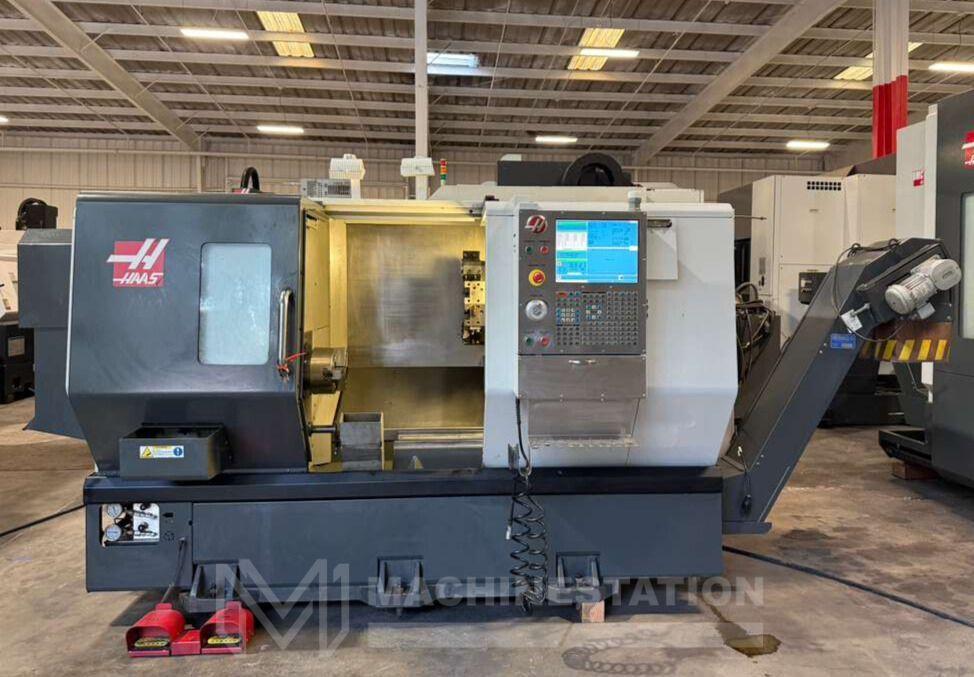

12” X 16” CNC 2 - Axis Lathe with Haas Next Gen Control, 8” 3 - Jaw Samchully Hydraulic Chuck, Manual Tailstock (Hydraulic Quill), Tool Presetter, Chip Conveyor, Auto Door, Visual Part Programming System, Media Display M - Code, Rigid Tapping, USB Port, Ethernet, Wifi Connection and Haas Connect: Remote Monitoring.

GENERAL SPECIFICATIONS
Max. Swing:                        16.5”
Max. Cutting Diameter:                12”
Max Cutting Length:                 16”
X - Axis Travel:                    7.9”
Z - Axis Travel:                    16”
Chuck Size:                        8”
Bar Capacity:                        2.5”
Spindle Nose:                    A2-6
Spindle Motor:                    20 HP
Spindle Speed:                    4,000 RPM

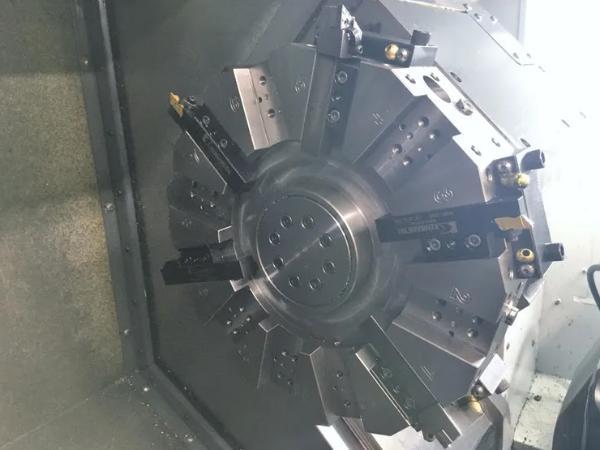

Turret Positions:                    12
Turret Type:                        Bolt - On


INCLUDES: Haas Next Gen Control, 8” 3 - Jaw Samchully Hydraulic Chuck, Manual Tailstock (Hydraulic Quill), Tool Presetter, Chip Conveyor, Auto Door, Visual Part Programming System, Media Display M - Code, Rigid Tapping, USB Port, Ethernet, Wifi Connection and Haas Connect: Remote Monitoring.

***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
