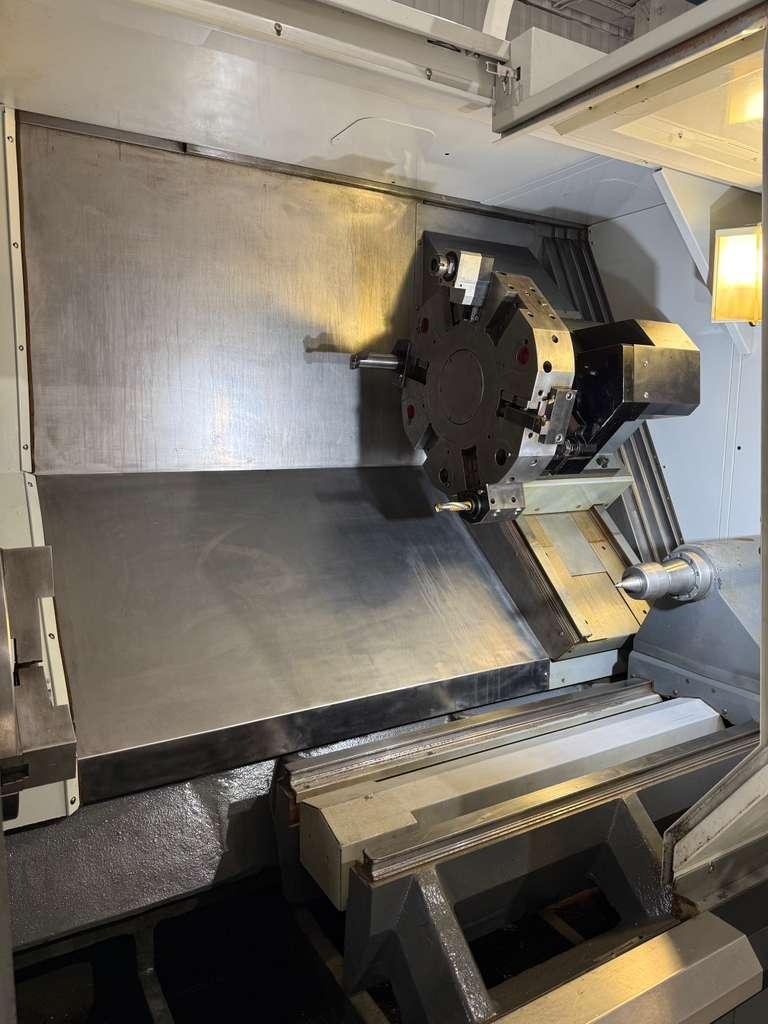

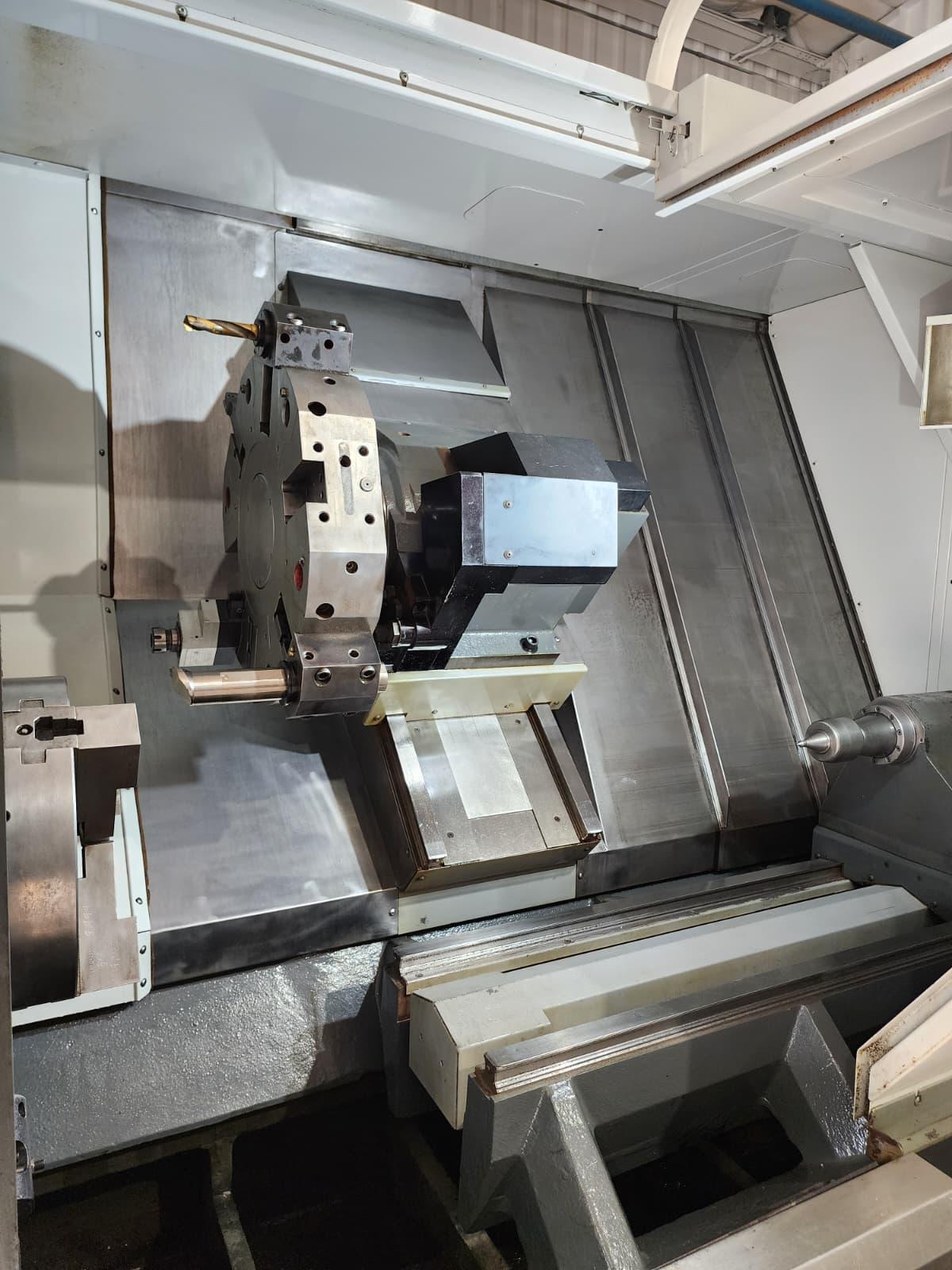

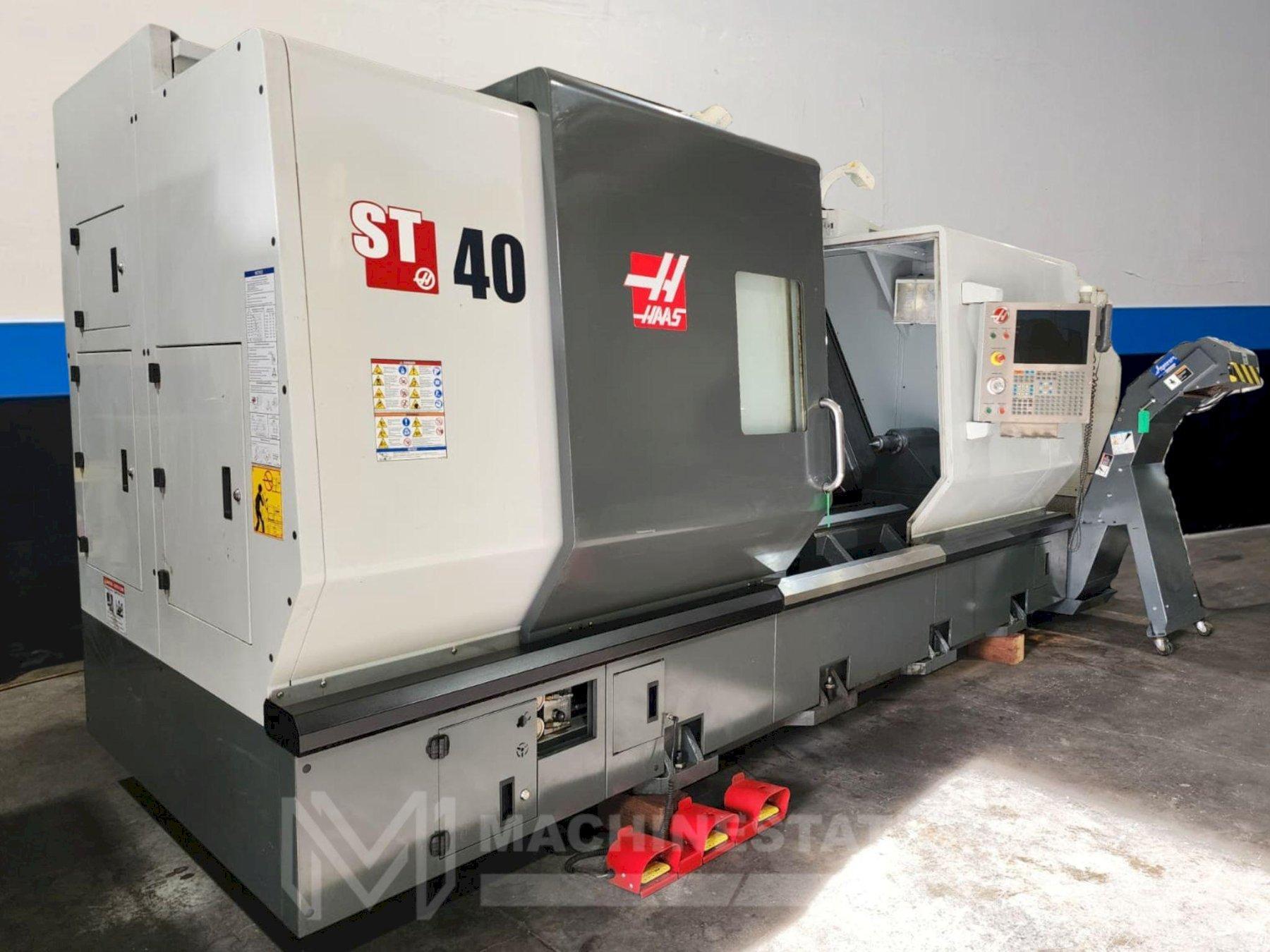

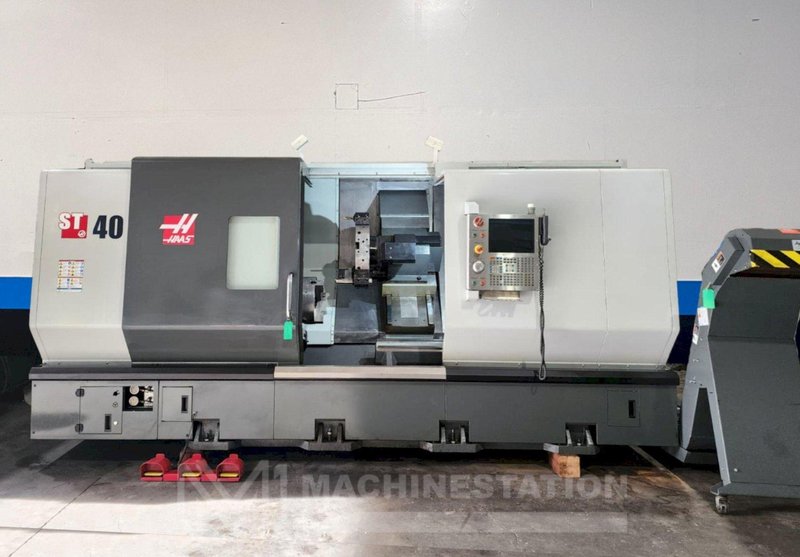

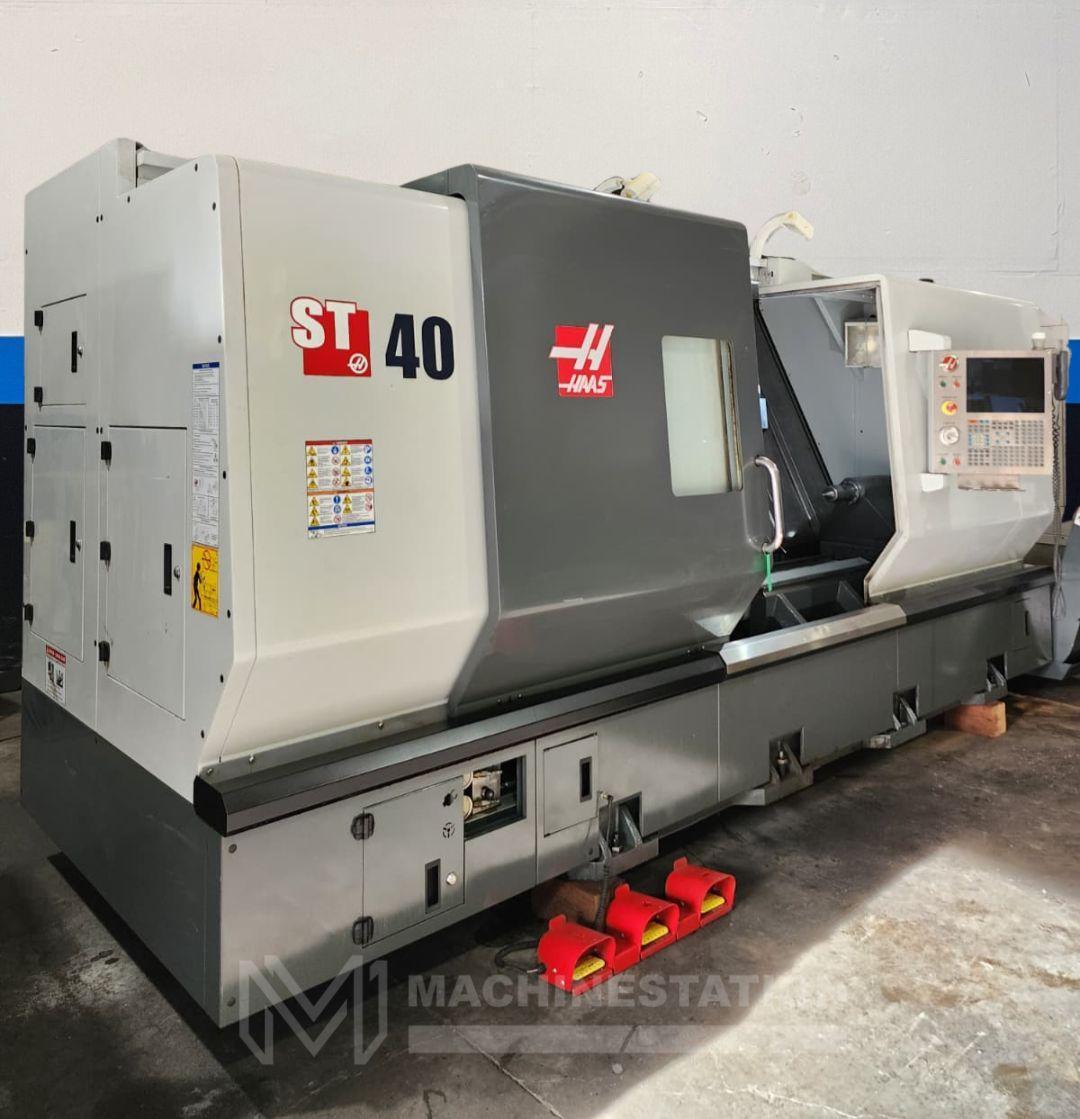

Haas ST-40 CNC Turning Center – C Axis Live Tool Lathe

Brand
HAAS
Category
Lathes & Turning Machines
Type
Turning Centers
Model
Haas ST-40
Stock #
112921
Year
2013
Condition
Not specified

Location

Not specified
REQUEST FINANCING

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Make:Haas
Model:ST40
Year:2013
Condition:Used – Good
Equipped With:

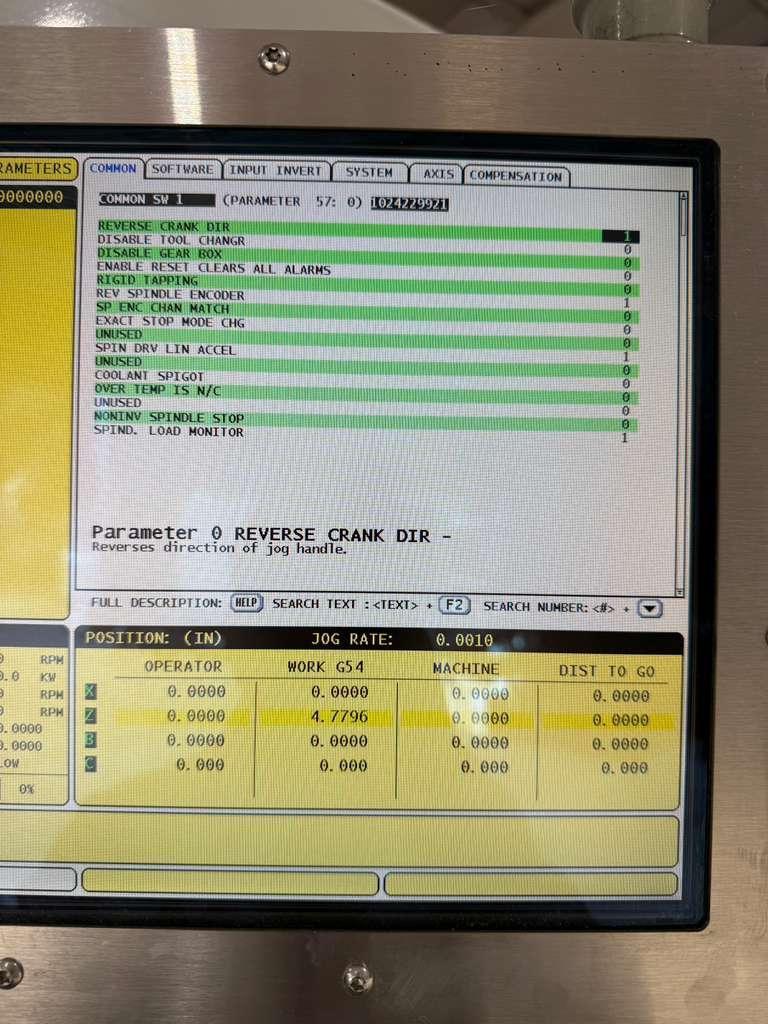

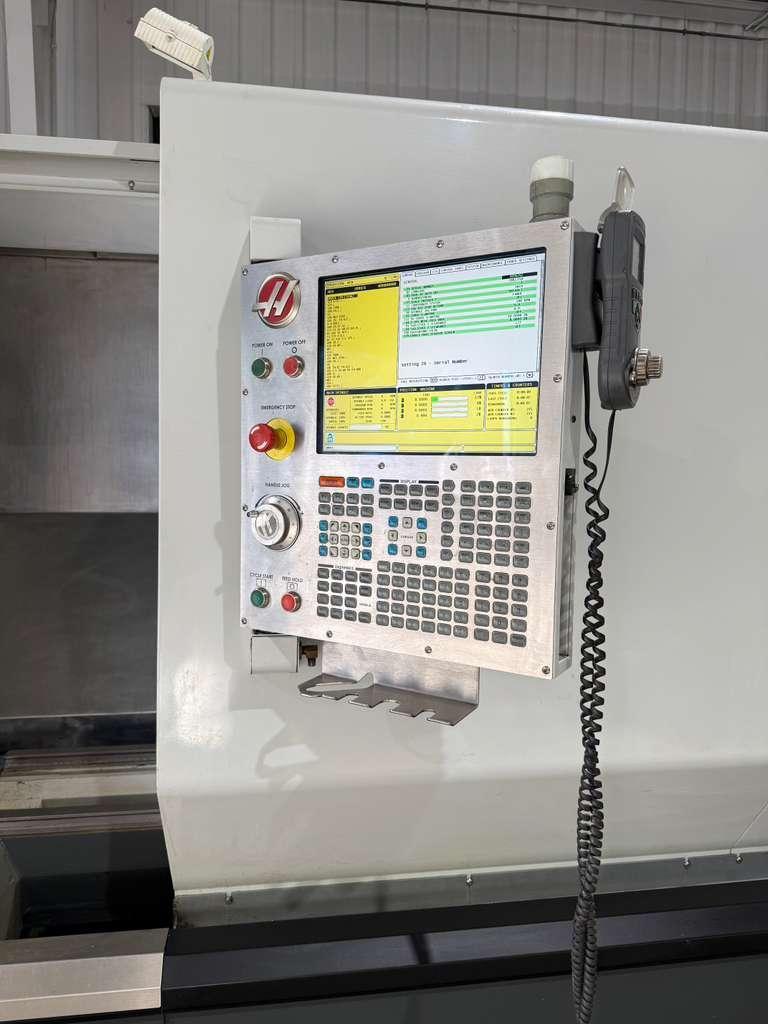

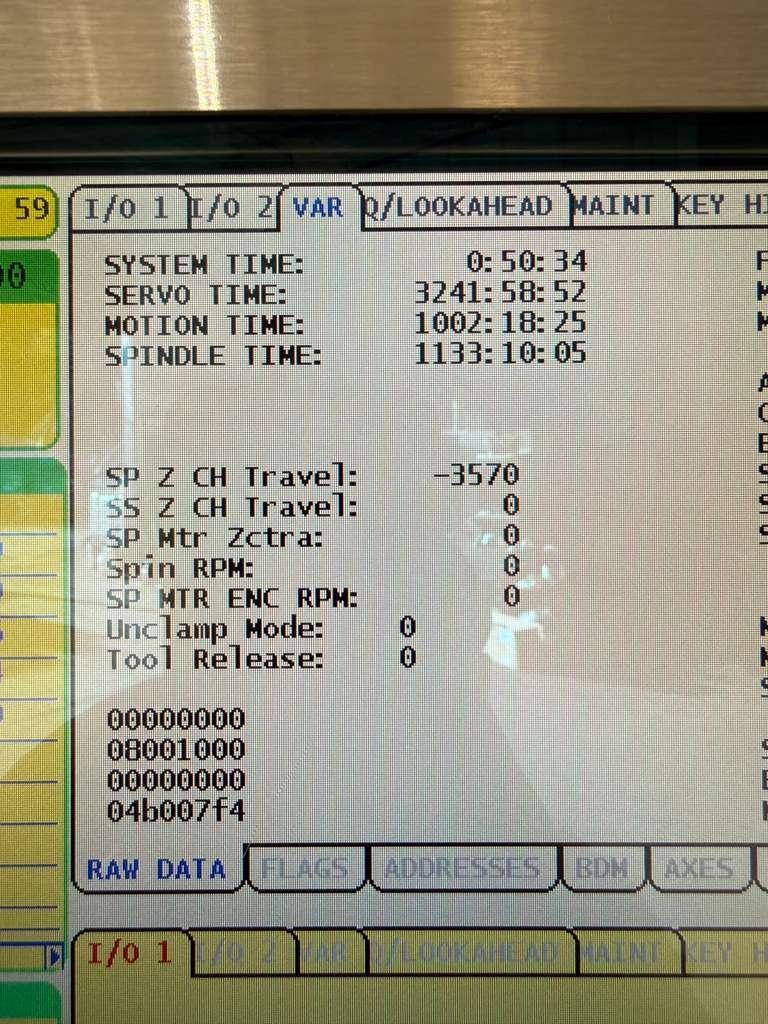

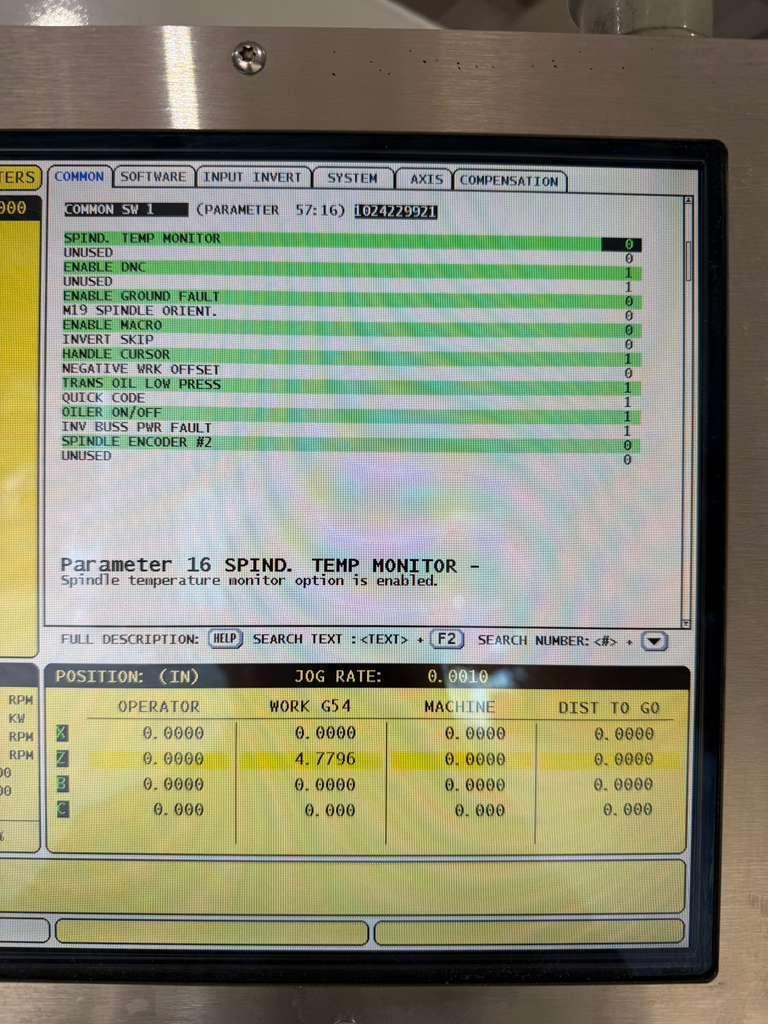

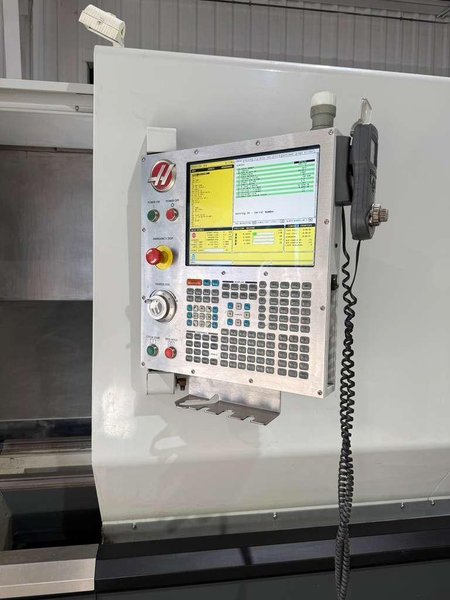

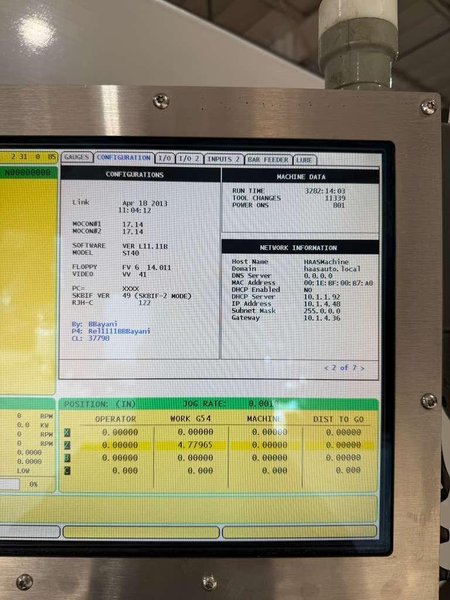

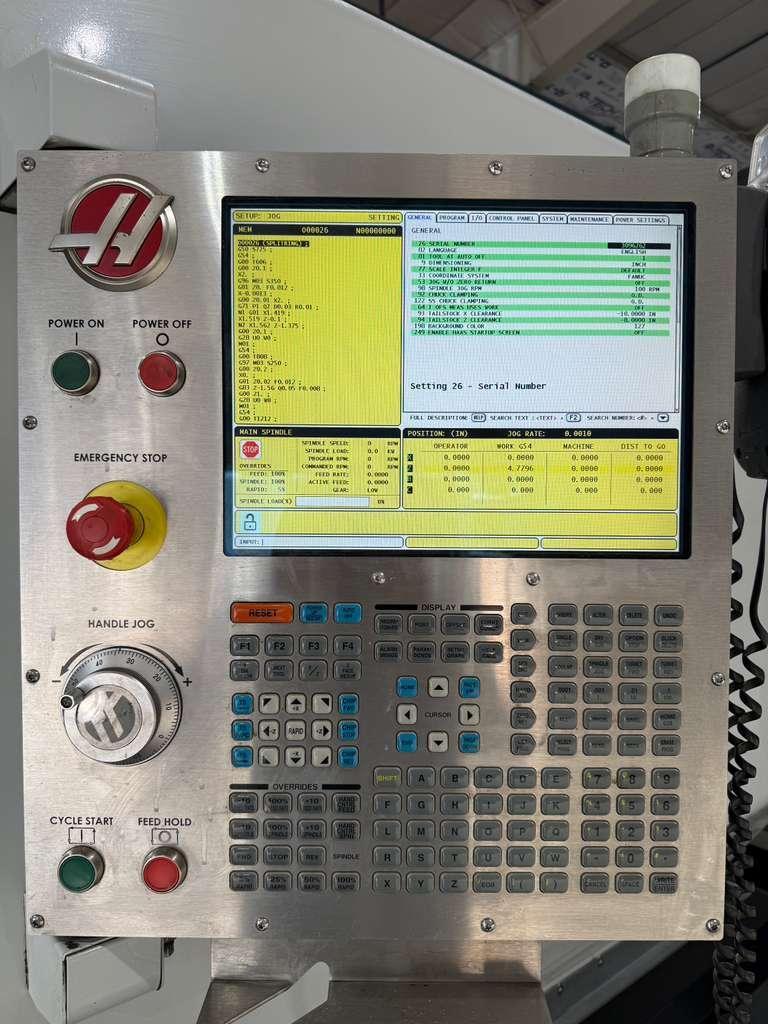

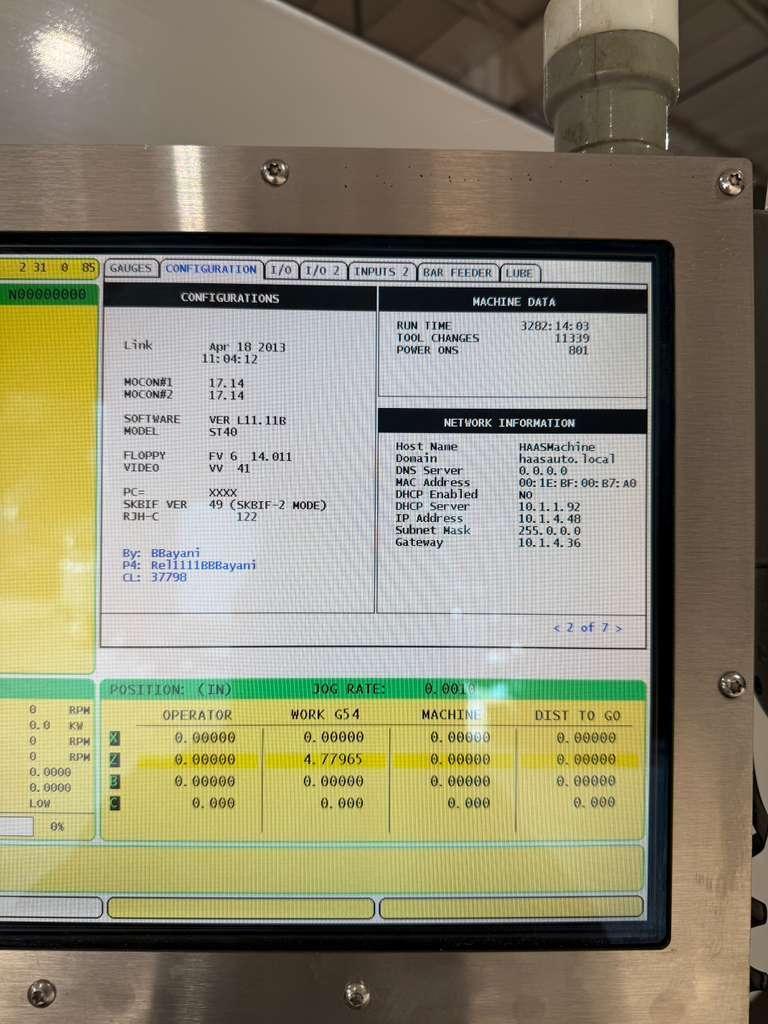

Haas CNC Control

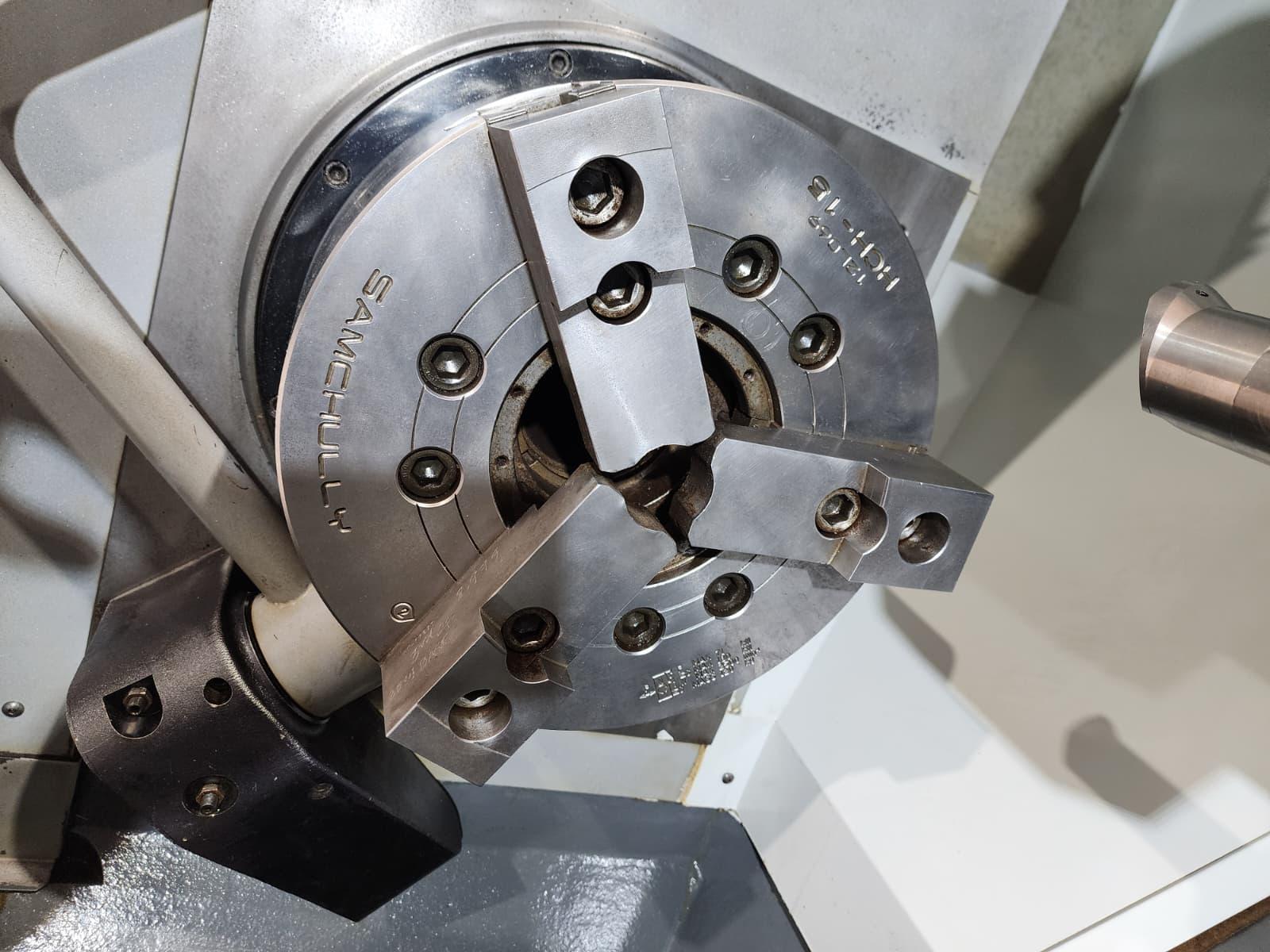

15″  3-Jaw Samchully HCH-15 Hydraulic Chuck
4.62″ Bore Spindle
A2-8 Gear Head Spindle
Servo Controlled C Axis on Spindle
12 Station Live Tool Turret (Upgraded $22,195 Approx. value Included)
60 HP Vector Drive (Upgraded $18,095  value Included)
Automatic Tool Presetter (Upgraded $5,895 Approx. value Included)
Programmable Servo Tailstock, MT-5 (Upgraded $16,695 Approx. value Included)
Remote Jog Handle
Automatic Lubrication system
DNC Enabled
Qick Code
Floopy Enable
Rigid Tapping
High Pressure Coolant System (Upgraded $8,695 Approx. value Included)
Chip Conveyor (Upgraded $7,095 value Included)
Foot Switches

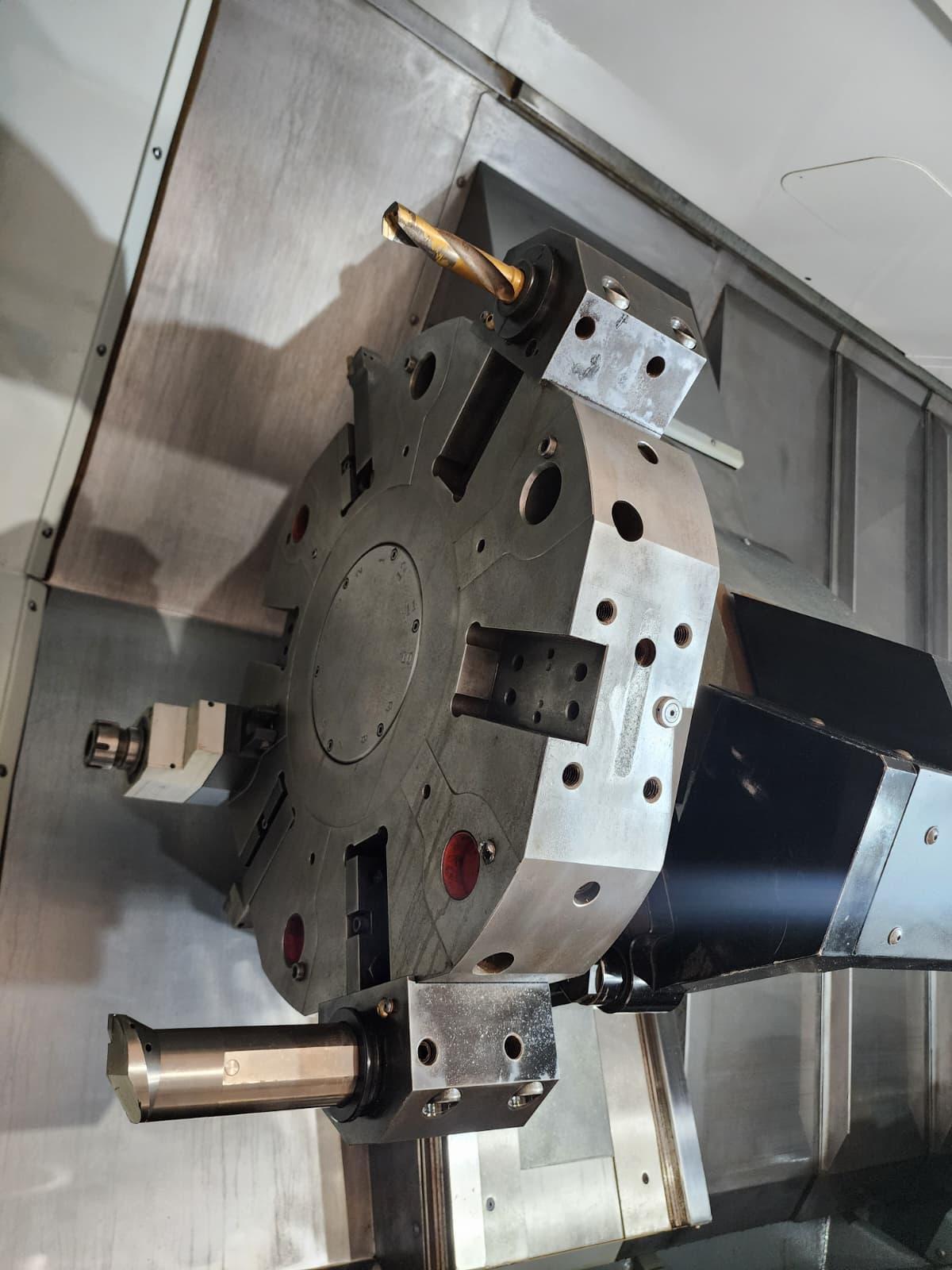

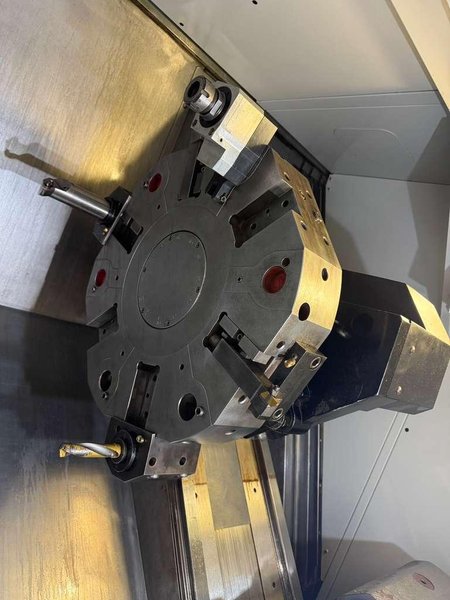

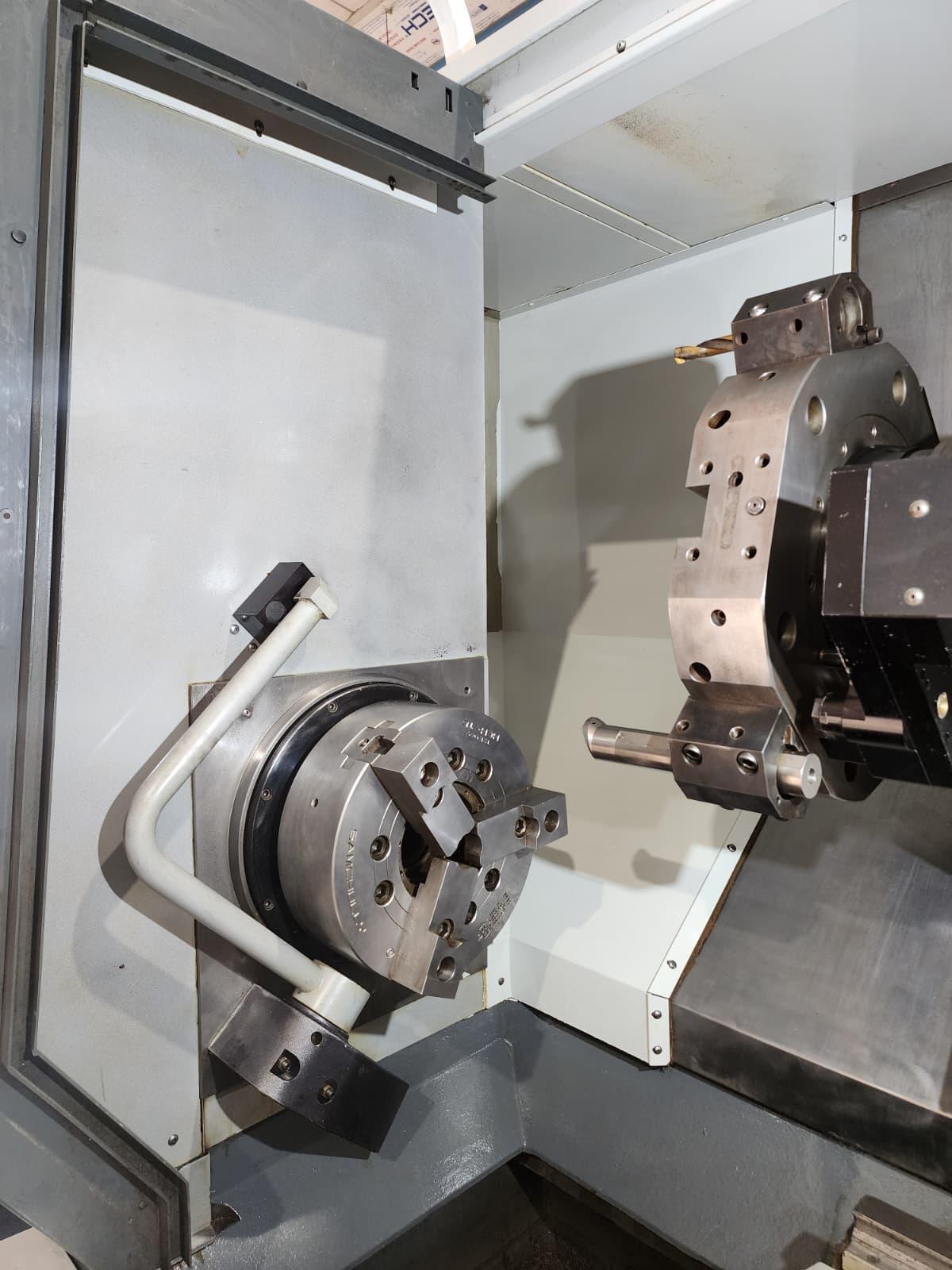

(1) Live Tool Holder (2) Boring Tool Holders are Mounted on Turret (As shown in the images)
Capacity:
Max Turning Diameter : 30.0″
Max Swing Over Bed : 35.5″
Max Turning Length:  44.0″
Max Bar Capacity : 4.0″
Travels:
X Axis Travel : 20″
Z1 Axis Travel : 44.0″
Feedrate:
Rapid Traverse X Axis: 710 IPM
Rapid Traverse Z Axis: 710 IPM
Spindle:
Spindle Nose: A2-8
Spindle Bore: 4.62″
Spindle Speed: 2400 RPM
Spindle Motor: 60 HP
Turret:
Turret Capacity: 12 Stations
Turret Index Time: 1 Second
Tailstock:
Tailstock Type: Programmable
Tailstock Taper: MT-5
Tailstock Travel: 42″
General:
Power Source: AC 220v / 3-Phase / 60 Hz
Machine Dimensions: 216″ x 95″ x 110″ High
Machine Weight: 21,740 lbs Approx.
