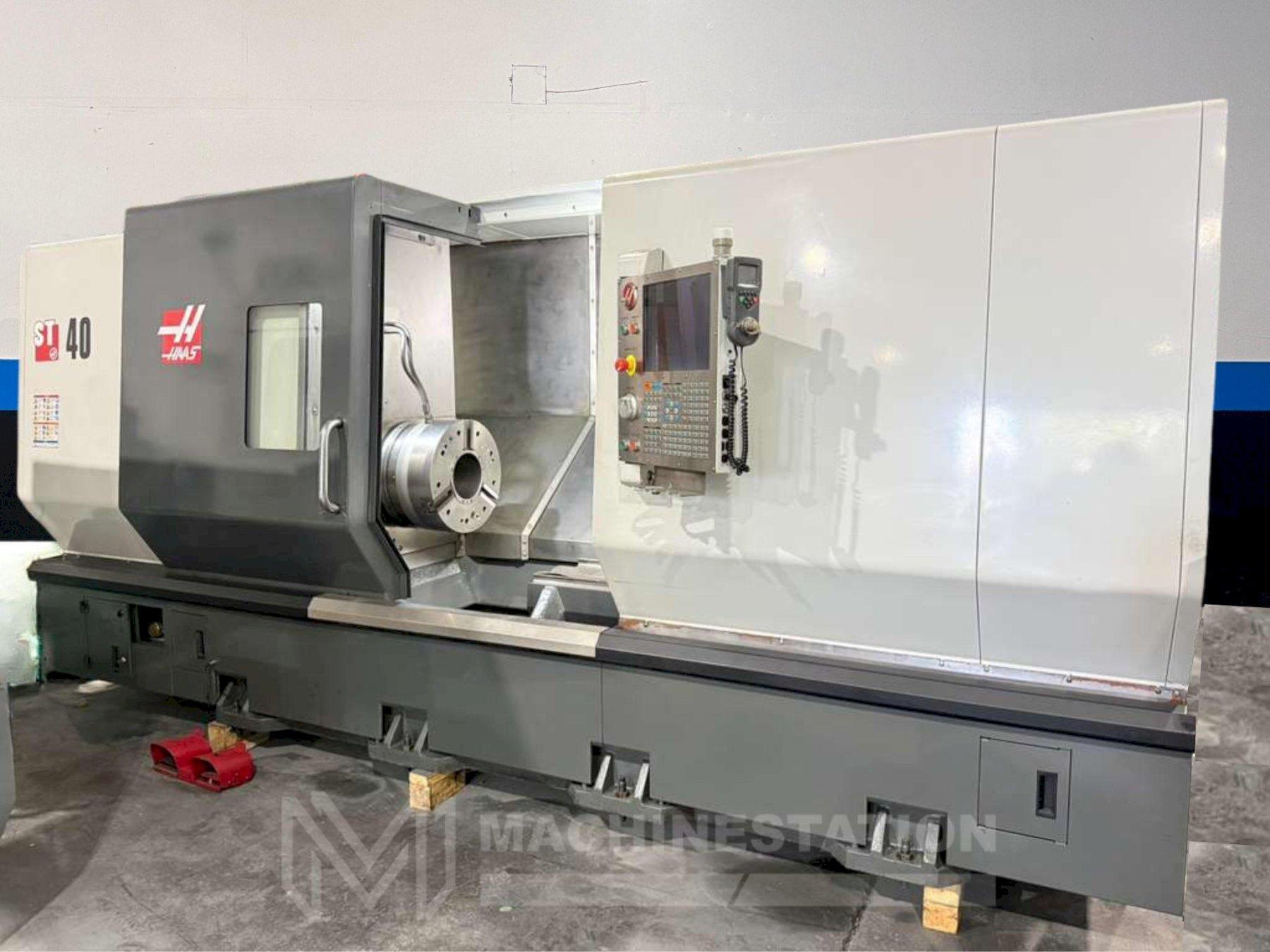

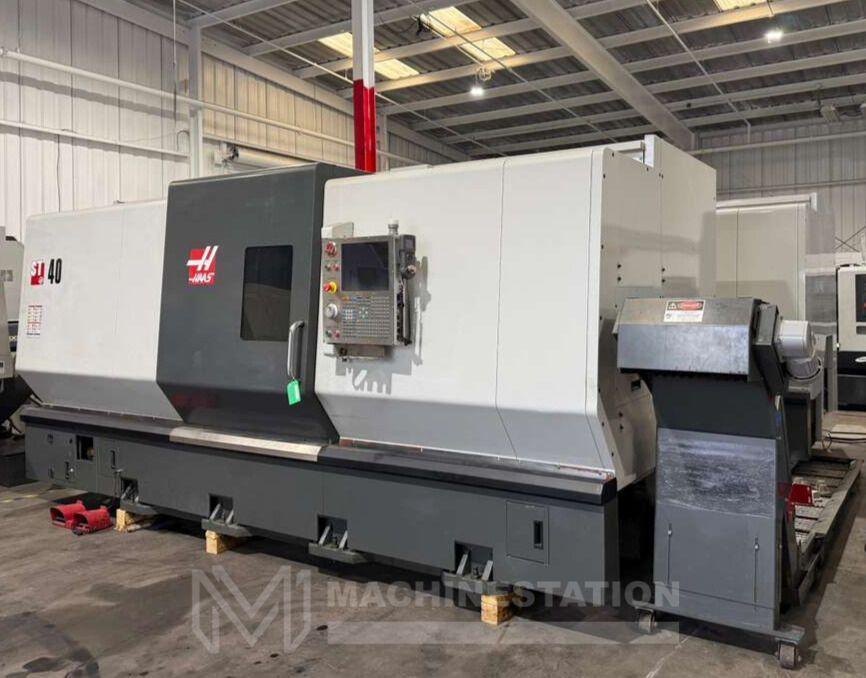

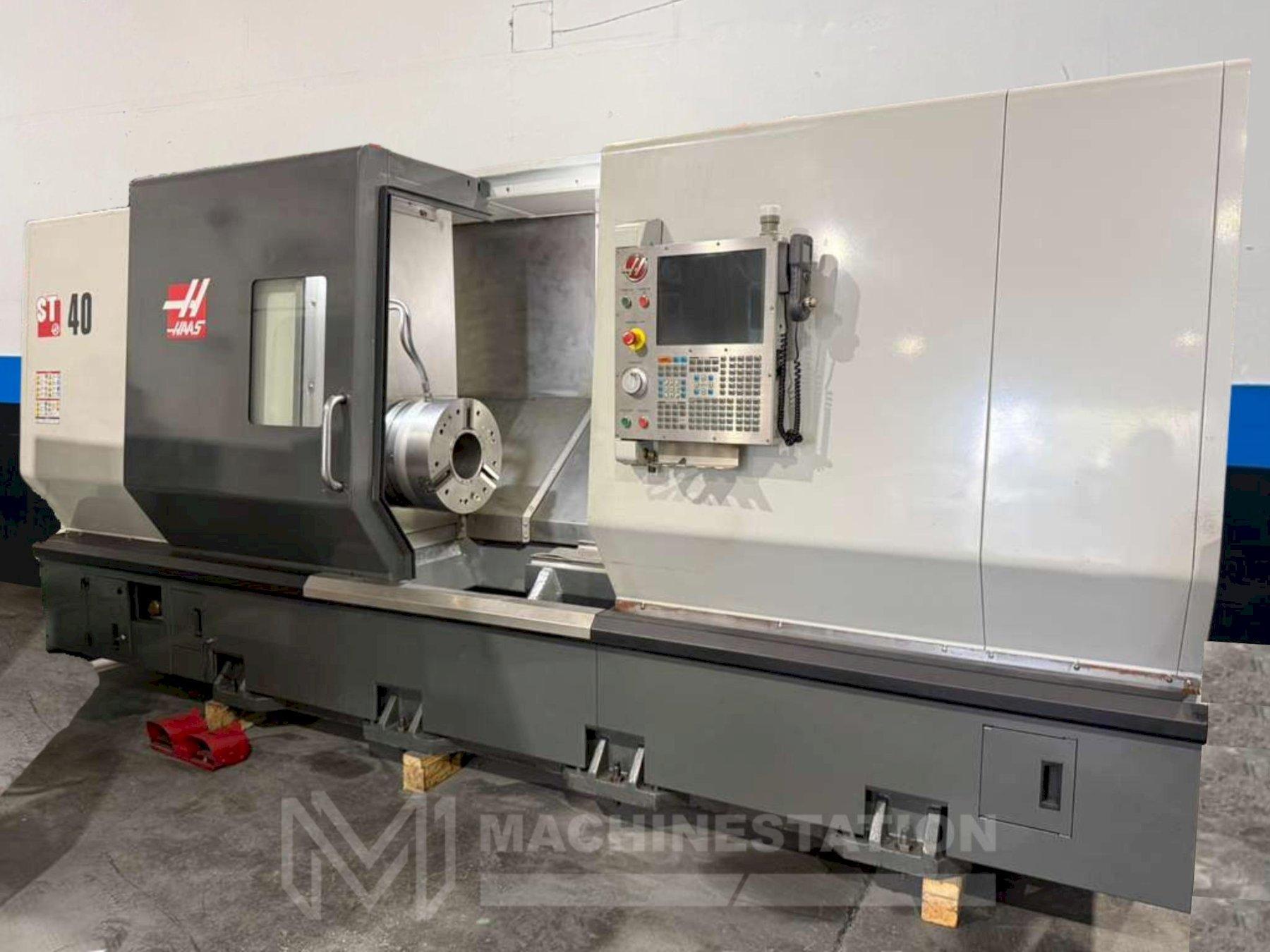

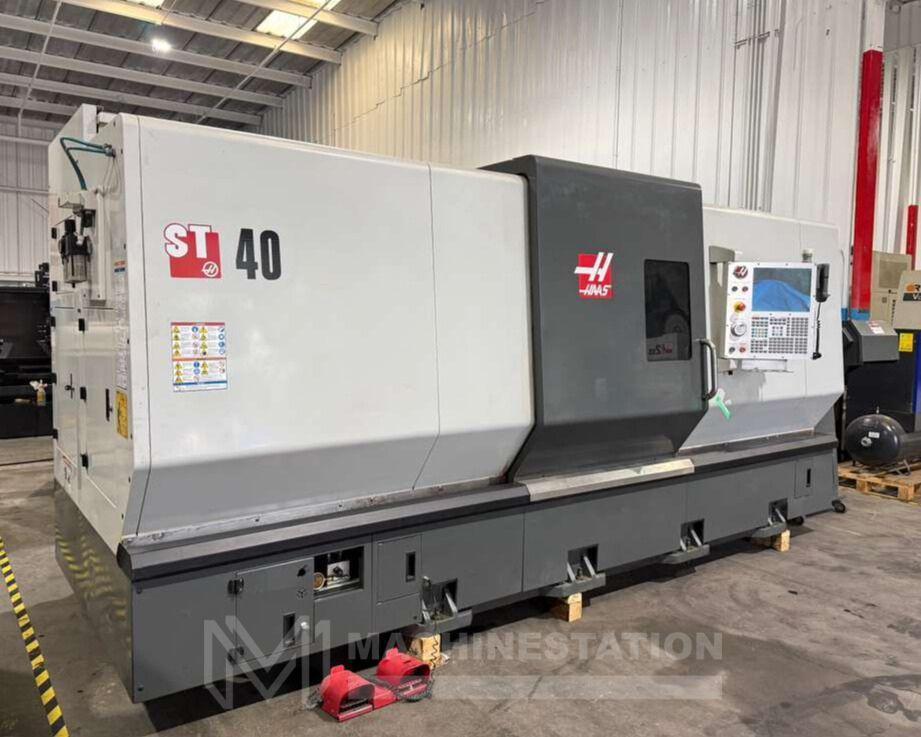

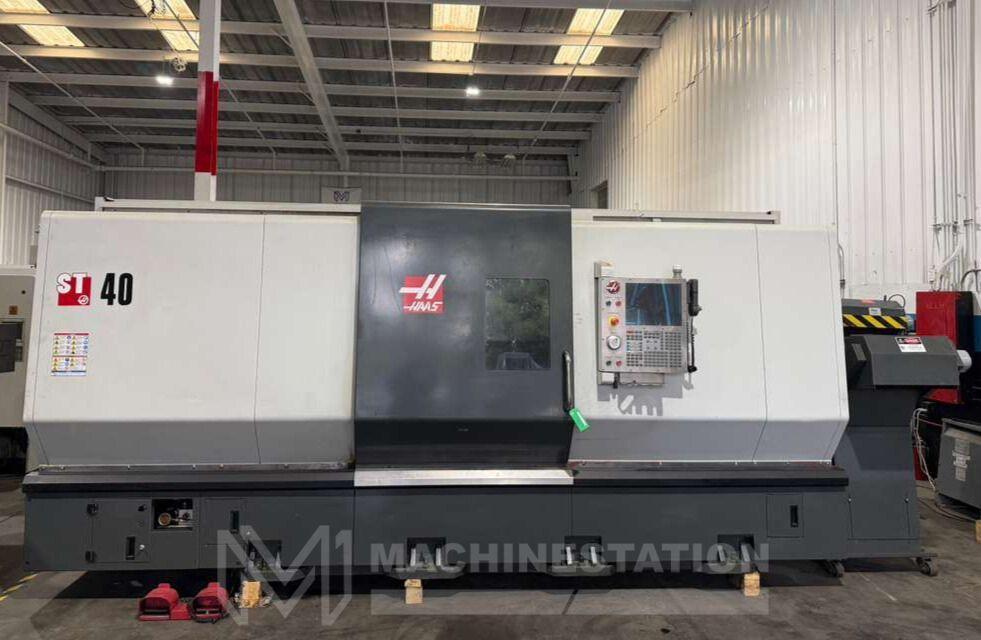

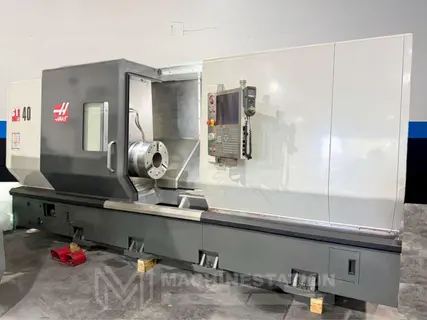

Haas ST-40 CNC Turning Center -18.5″ Chuck, 7.5″ Big Bore Lathe

Brand
HAAS
Category
Lathes & Turning Machines
Type
Turning Centers
Model
Haas ST-40
Stock #
112969
Year
2013
Condition
Not specified

Location

Not specified
REQUEST FINANCING

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Make: Haas
Model: ST40
Year: 2013 (Sold & Installed in 2014)
Condition: Used – Good
Equipped With:

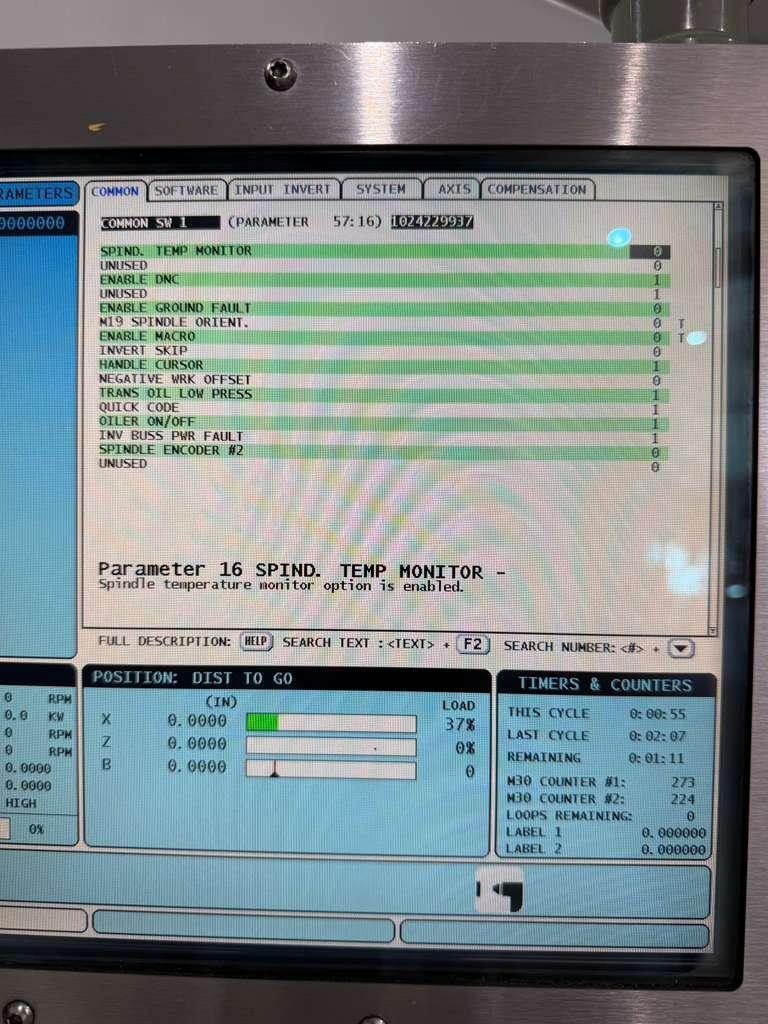

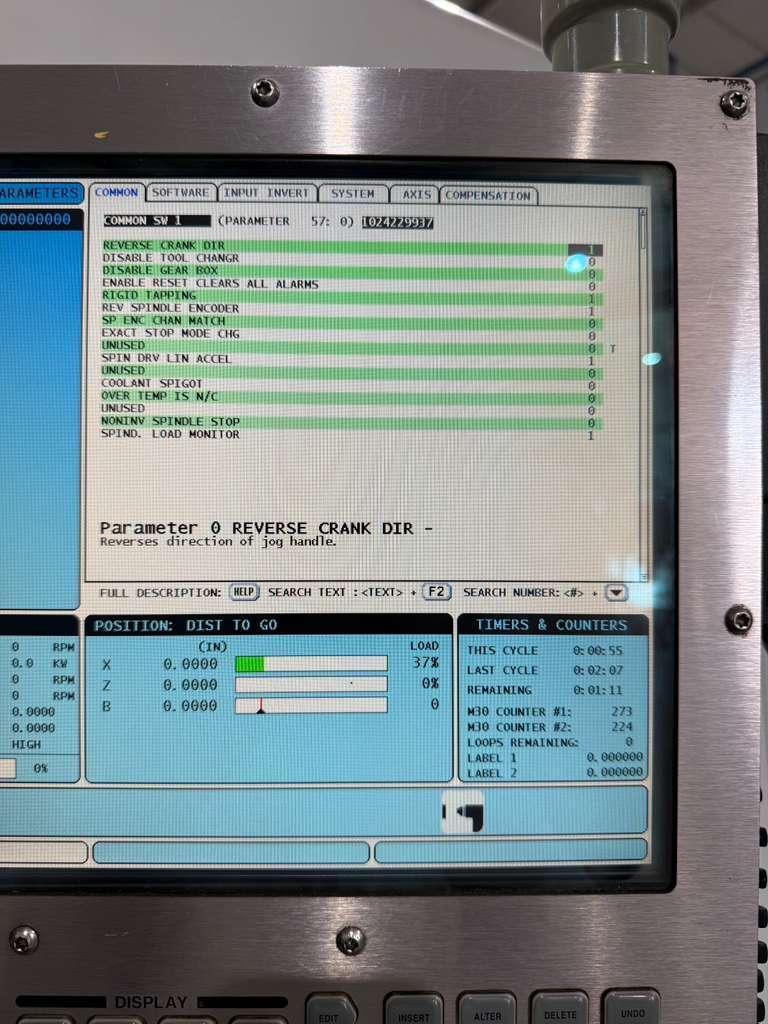

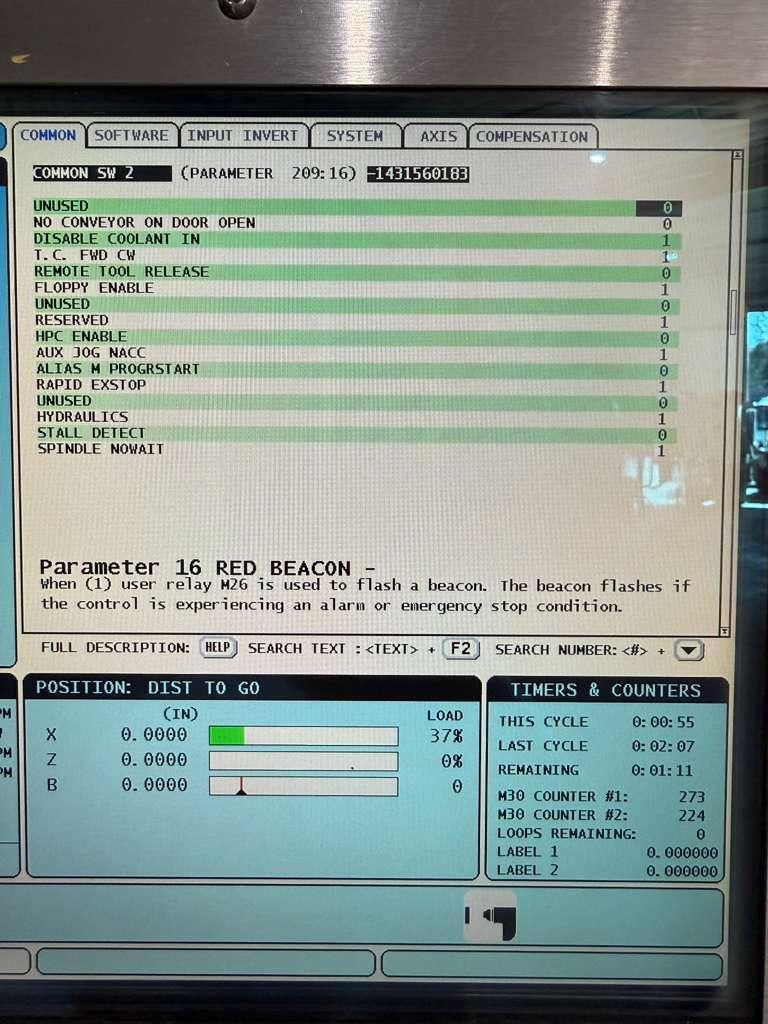

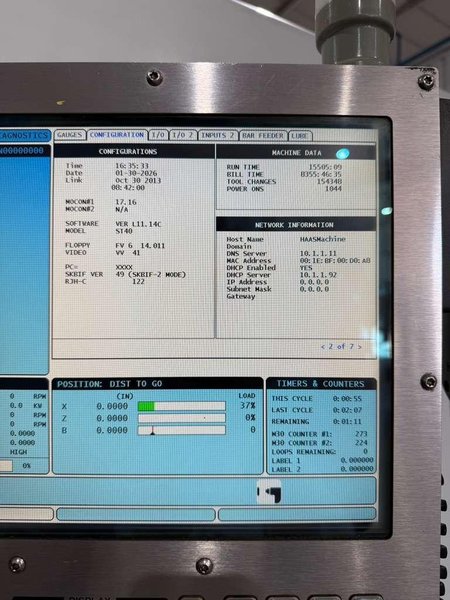

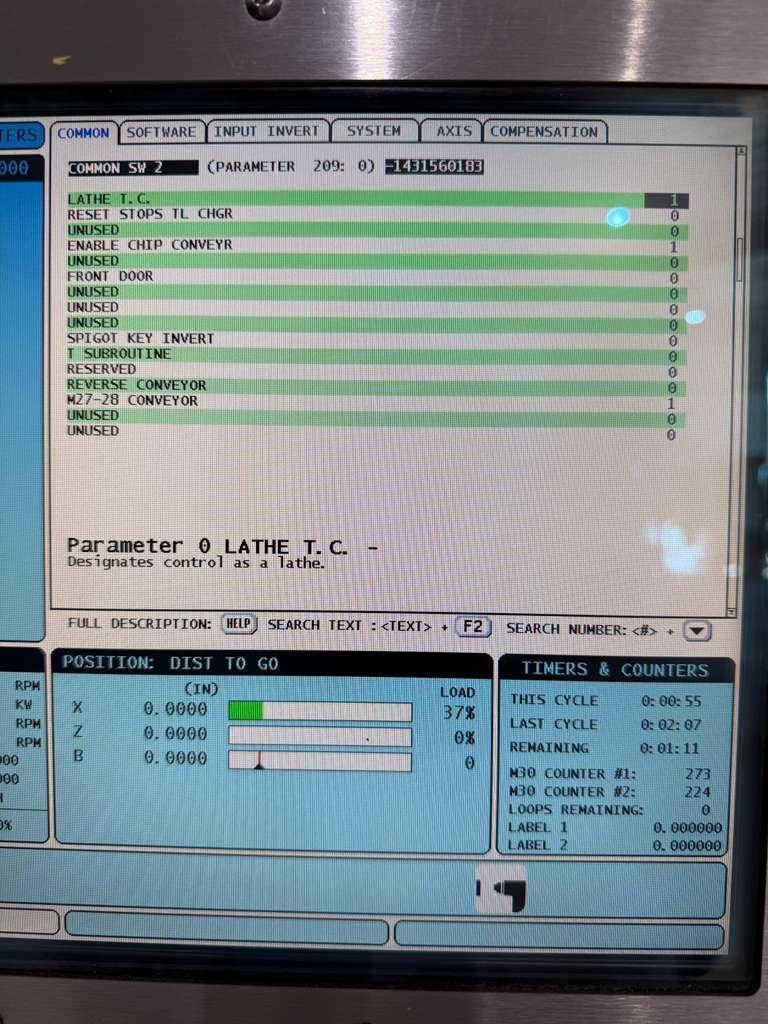

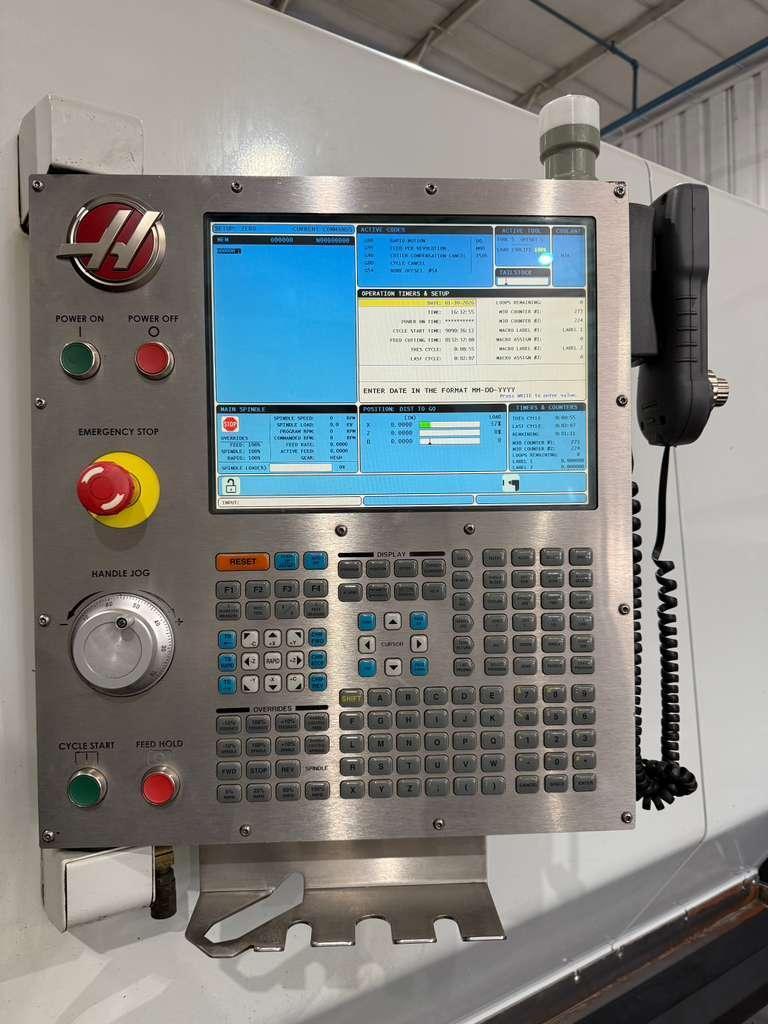

Haas CNC Control

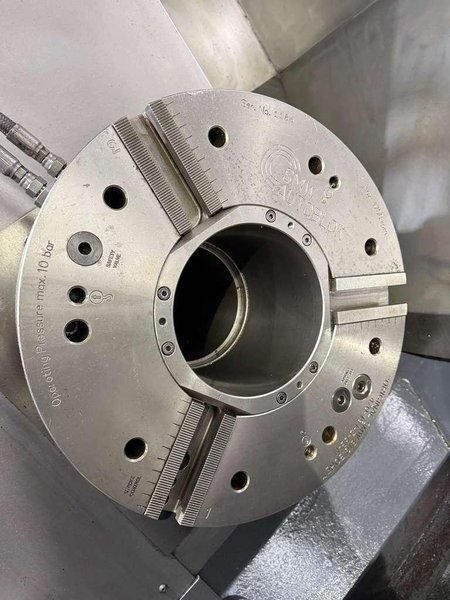

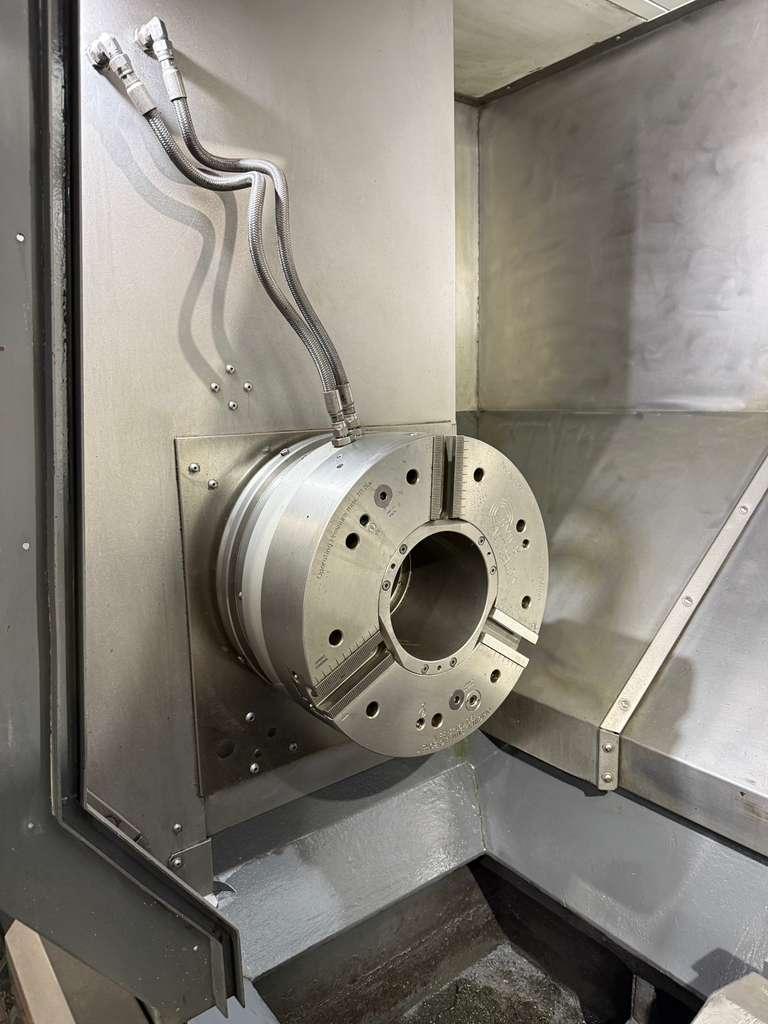

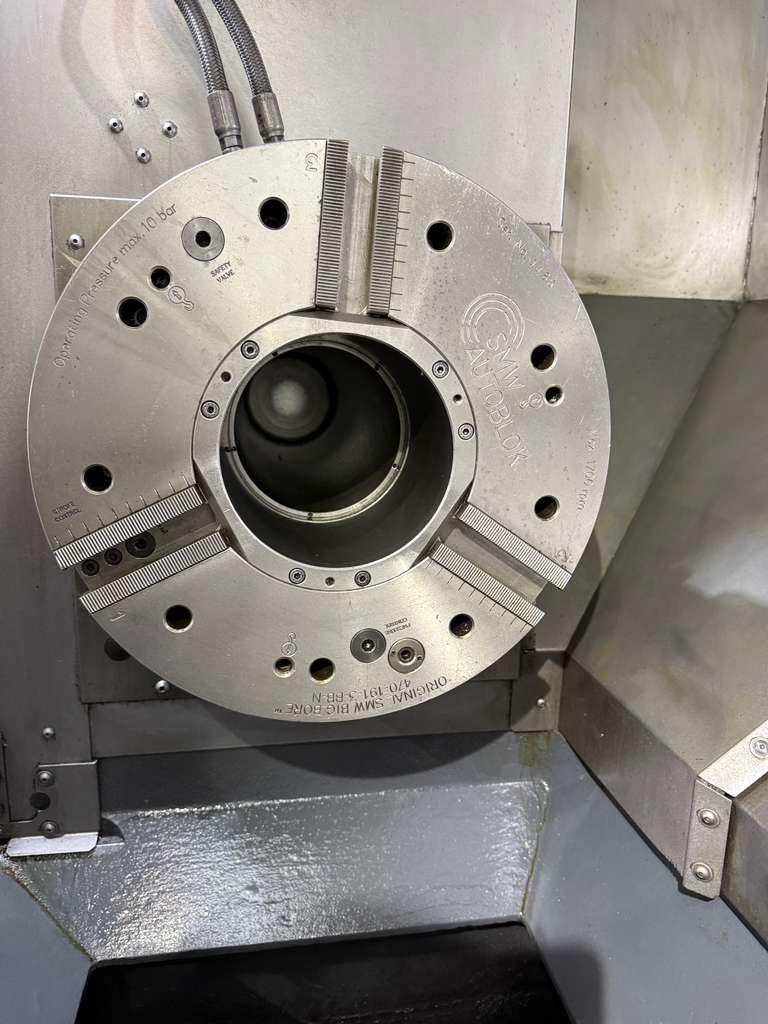

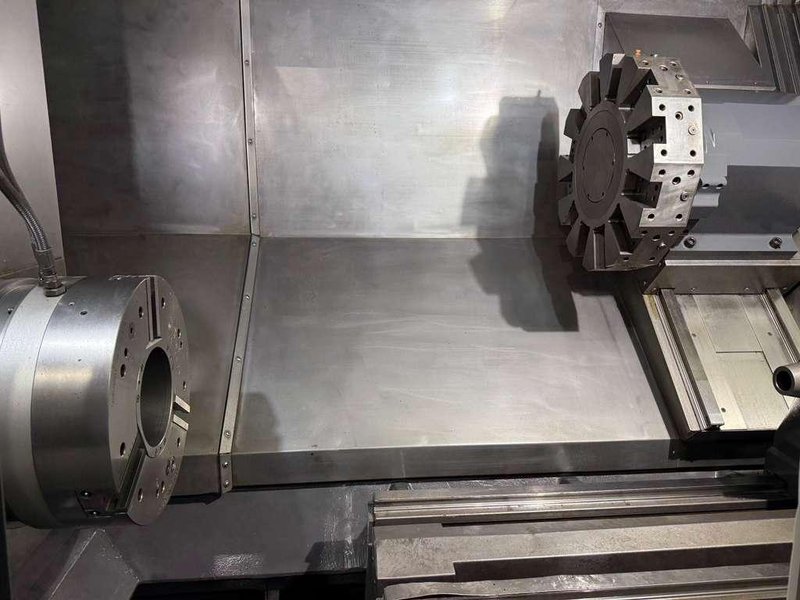

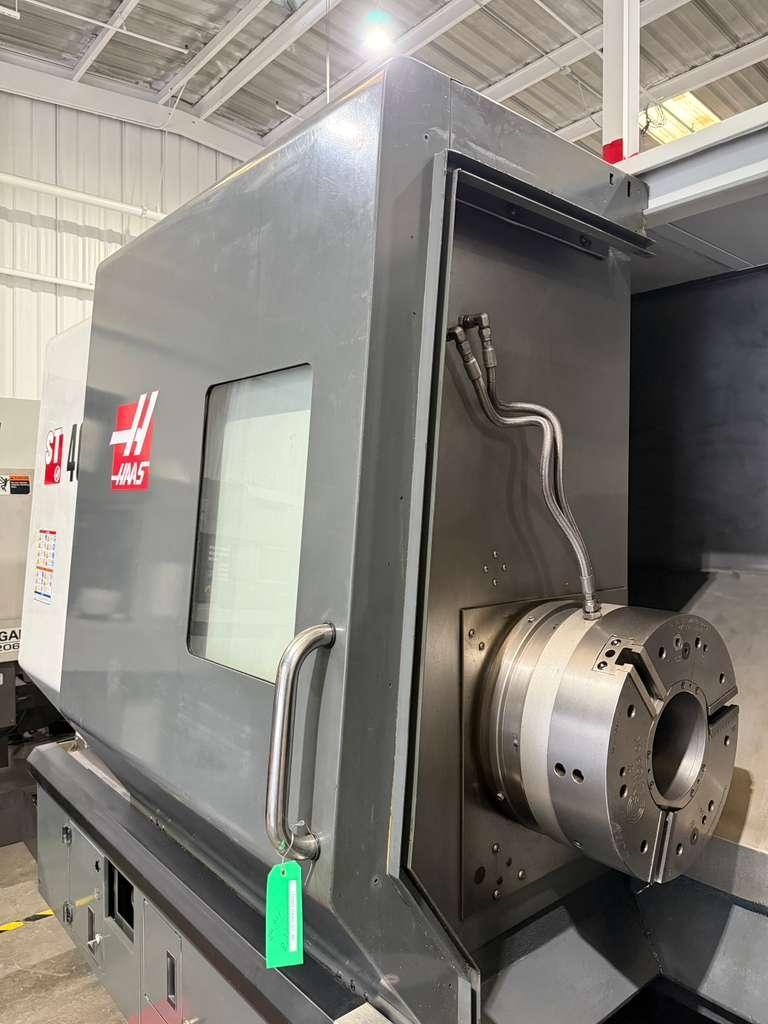

18.5″  3-Jaw SMW Autoblok 470-191-3-BB-N Chuck (Upgraded $8,995 Approx. value Included)
7.5″ Big Bore Spindle
1400-rpm Spindle

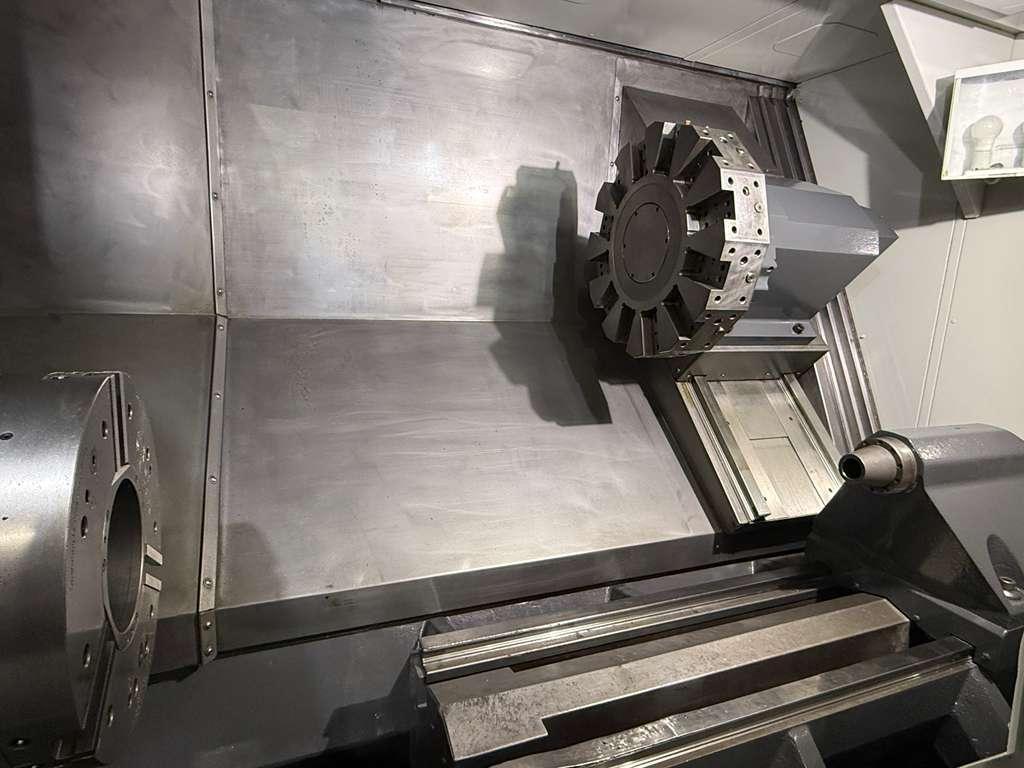

12 Station Automatic Turret
40 HP Vector Drive
Programmable Servo Tailstock, MT-5 (Upgraded $16,695 value Included)
Remote Jog Handle
USB Port
Floppy Enabled
DNC Enabled
Quick Code
Automatic Lubrication system
Rigid Tapping
Coolant System

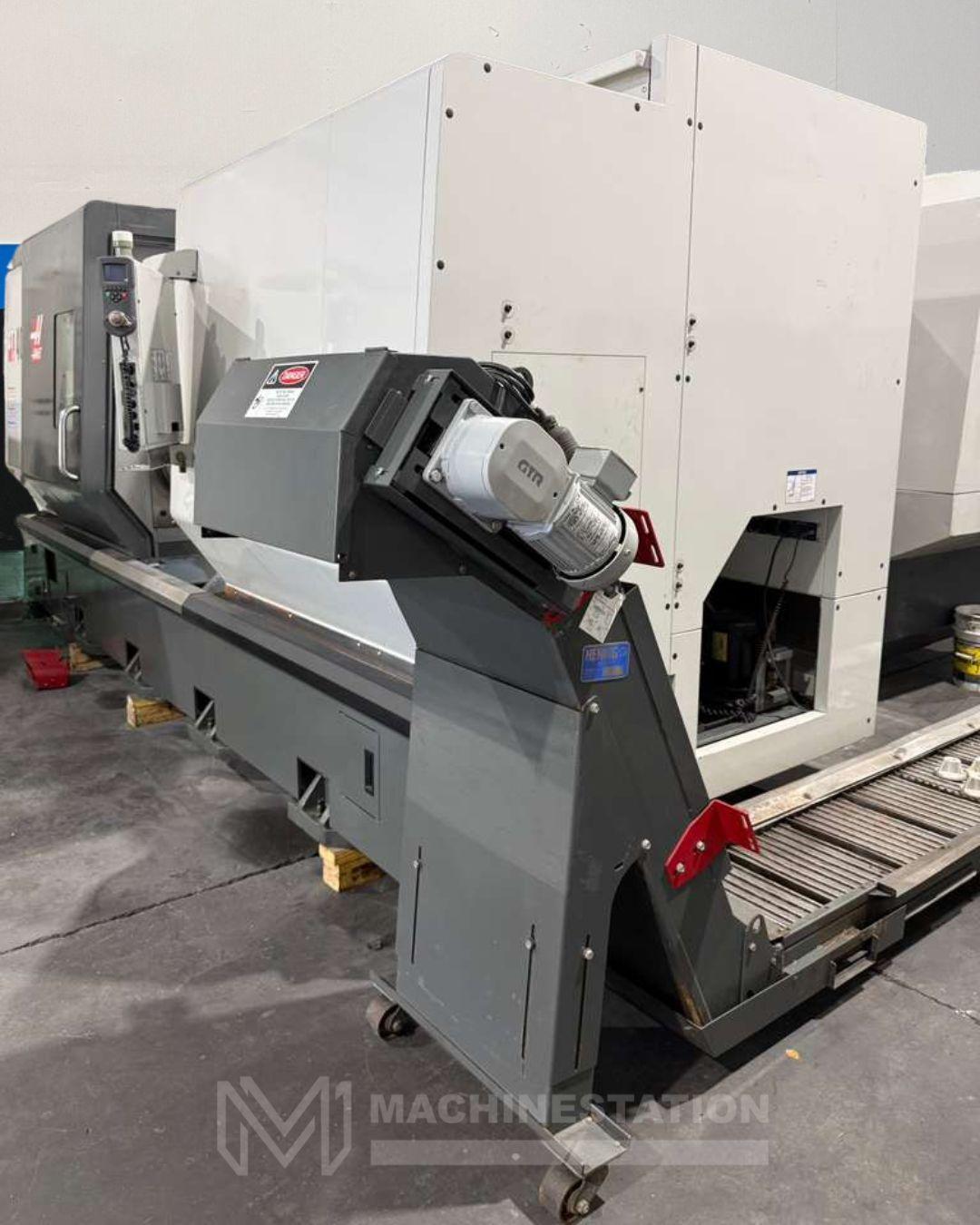

Chip Conveyor (Upgraded $7,095 value Included)
Foot Switches
Levelling Pads
Capacity:
Max Turning Diameter : 30.0″
Max Swing Over Bed : 35.5″
Max Turning Length:  44.0″
Max Bar Capacity : 7.0″
Travels:
X Axis Travel : 20.0″
Z1 Axis Travel : 44.0″
Feedrate:
Rapid Traverse X Axis: 710 IPM
Rapid Traverse Z Axis: 710 IPM
Spindle:
Spindle Nose: A2-8
Spindle Bore: 7.5″

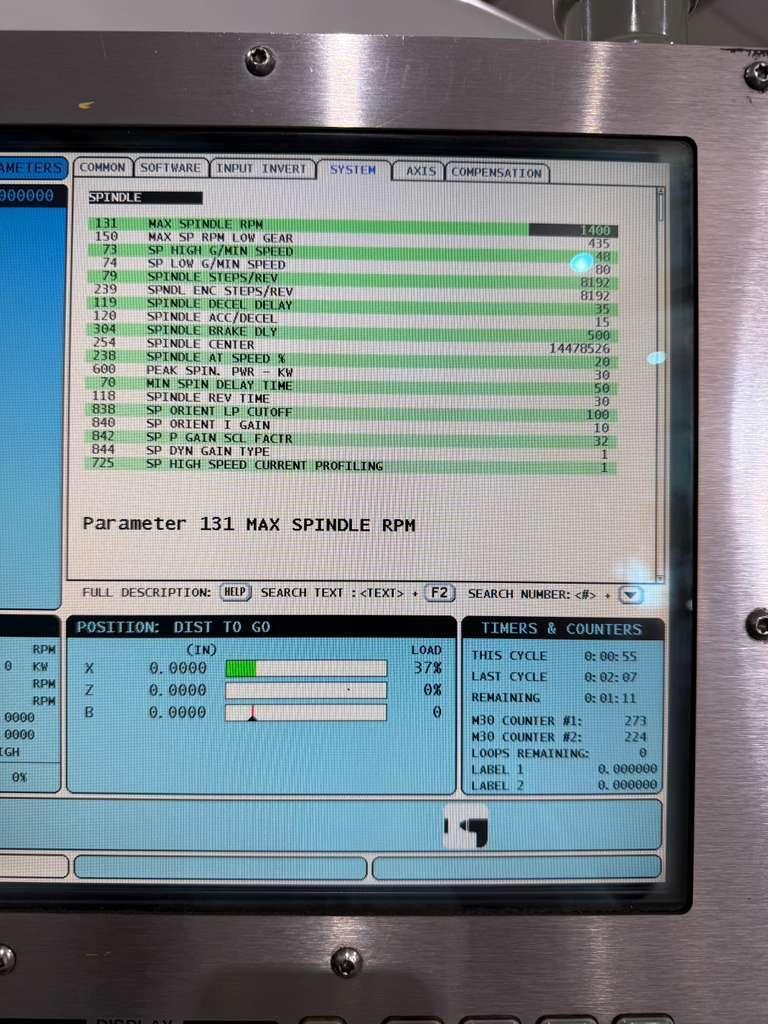

Spindle Speed: 1400 RPM
Spindle Motor: 40 HP
Turret:
Turret Capacity: 12 Stations
Turret Index Time: 1 Second
Tailstock:
Tailstock Type: Programmable
Tailstock Taper: MT-5
Tailstock Travel: 42″
General:
Power Source: AC 220v / 3-Phase / 60 Hz
Machine Dimensions: 216″ x 95″ x 110″ High
Machine Weight: 21,740 lbs Approx.
