48" x 4.75" x 20,000# Braner Slitting Line
Brand
Category
Model
Not specified
Stock #
2165
Year
Not specified
Condition
Very Good
Location
Ohio
| Max Width of Workpiece | 48 inches |
|

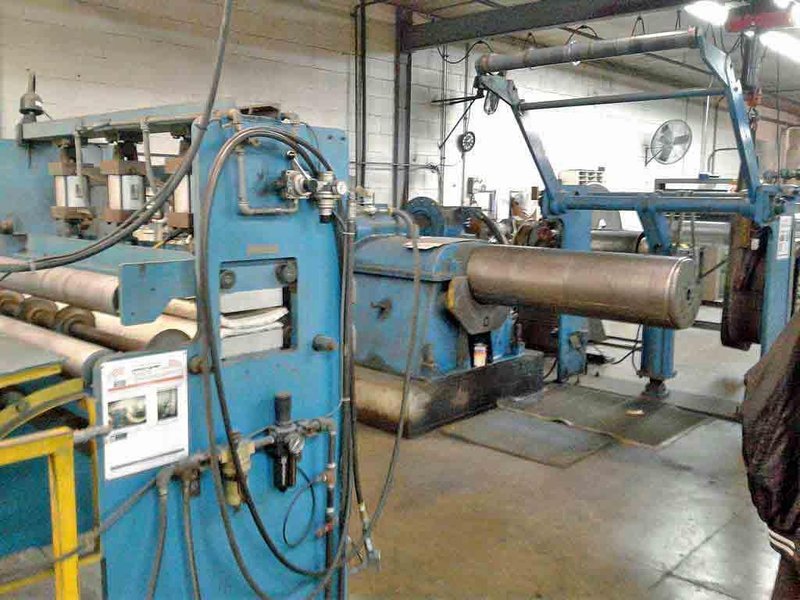

48" x 4.75" x 20,000lb Slitting Line

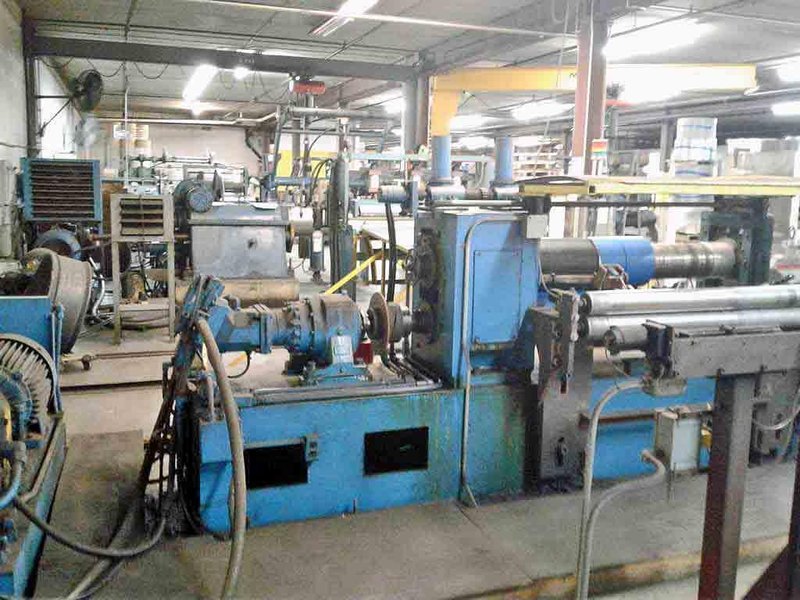

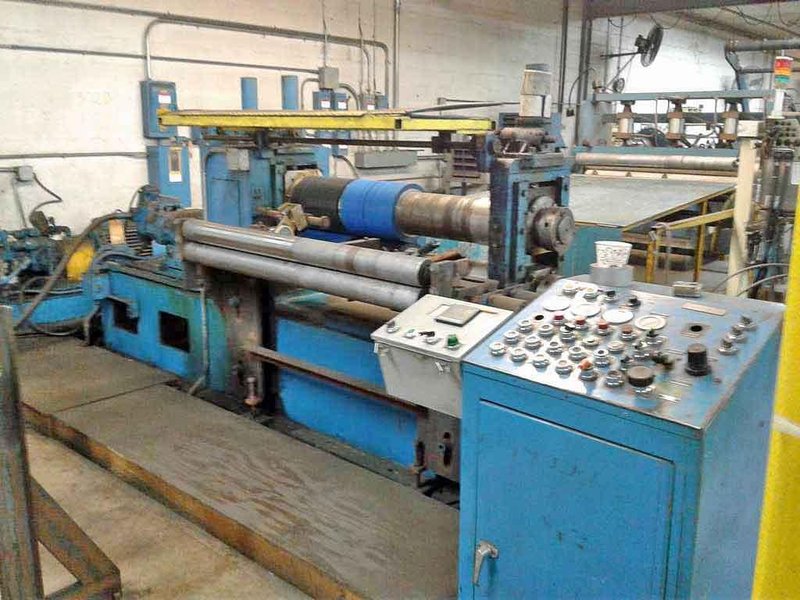

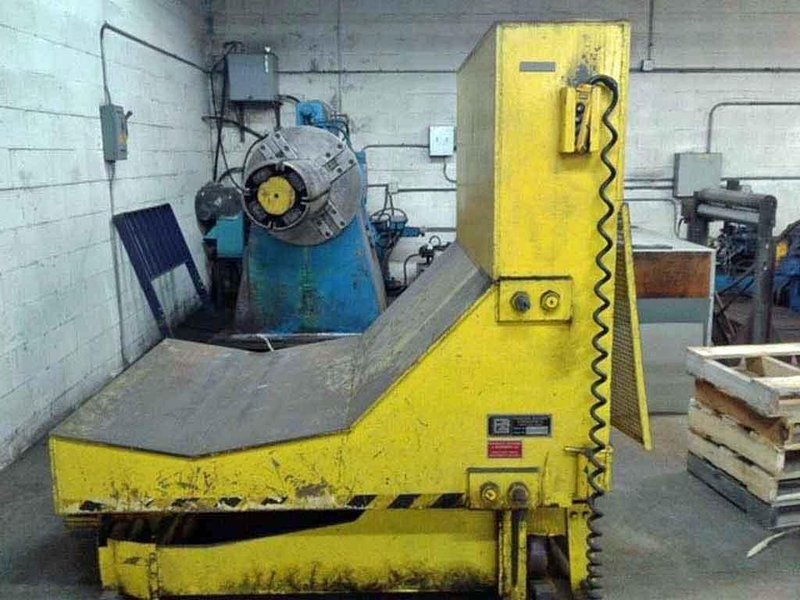

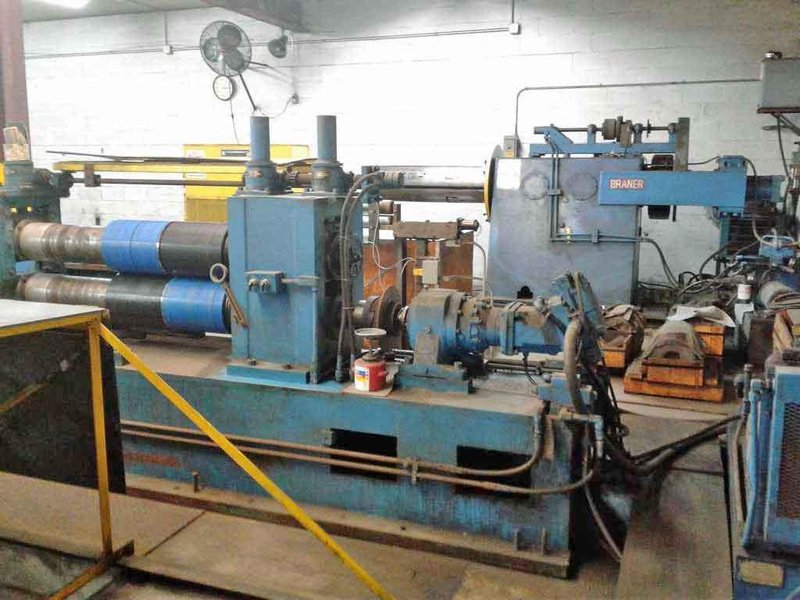

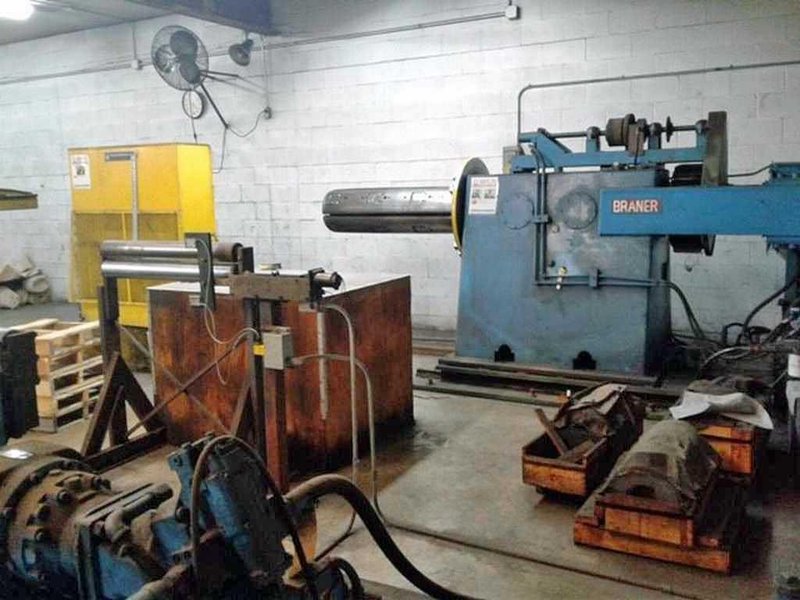

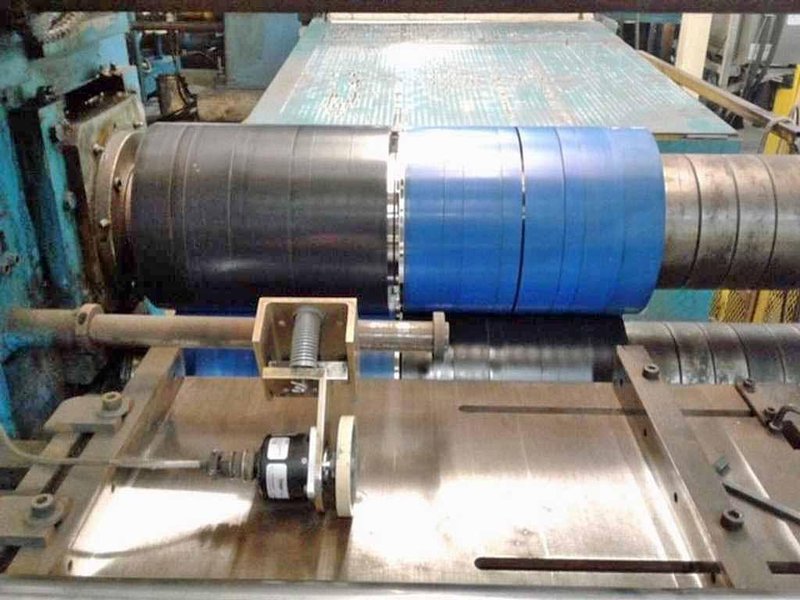

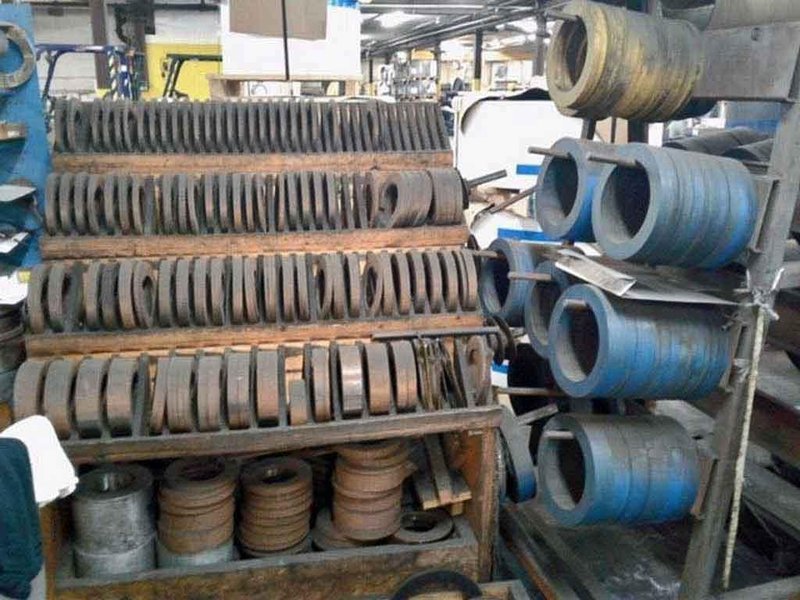

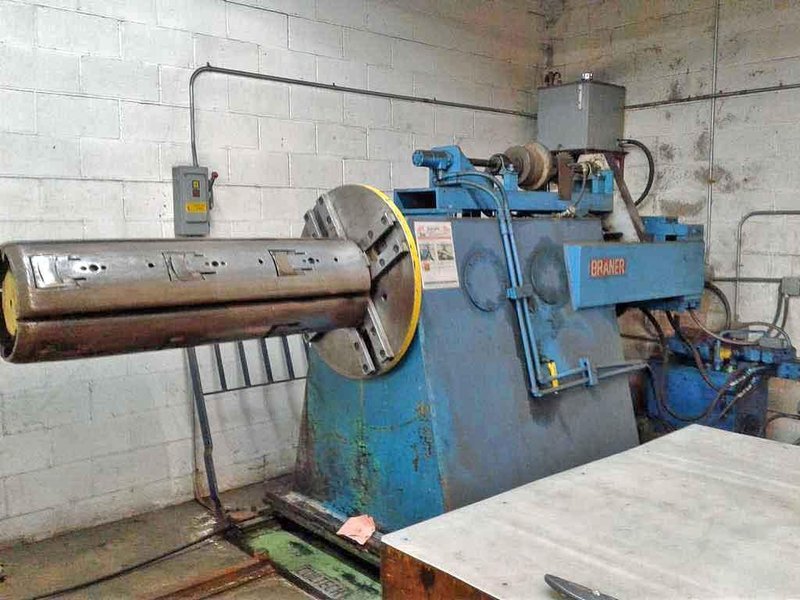

-48" Wide -20,000 lb. Capacity -Line Direction: Left to Right Consisting of the following: -Entry Coil Car: Progressive, New in 1993 Model: 82493 S/N: 2952 "L" Type Design 49" Wide Bed 72" O.D. Capacity Approx. 9" from Floor to bottom of "V" Cradle Self-Contained Hydraulics Hand Pendant Control Retractable Cable Reel Overall Size: 80" L x 53" W x 61" High -Mandrel Uncoiler: Braner (4) Segment Mandrel 51" Face Mandrel Hydraulic Expansion Range: 15" - 20.5" Coil I.D. Range: 16" - 20" Sliding Base Hydraulic Motor Feedup w/Air Clutch Fawick Air Brake Passline: 51.5" from Floor to center of Mandrel Base Plate: 67" L - R x 78" F - B Overall Size: 161" L x 68" W x 78" High -Slitter Head: New in 1985 4.75" Dia. x 50" Face Arbors Outboard slides in to 24" wide Entry Passline Rolls 4" Dia. x 56" Face Entry Side Guides Hydraulic Motor Adjustment Parallel Arbor Adjustment Hydraulic Motor Driven Passline: 38" Overall Size: 157" L x 48" W x 69" High -(2) Scrap Winders: Manual Scrap Ball removal Air Motor Driven Less Oscillate Wind Assembly -Pad Type Tension Stand: New in 1990 Entry Catenary Rolls Entry Passline Rolls 4" Dia. x 49.5" Face Width Entry Separator Tooling Bar (3) Air Cylinders for Pad Pressure Exit Passline Rolls 6" Dia. x 50" Face Width Passline: Adjustable from 45" - 47" Overall Size: 65" L x 52" W x 70" High -Recoiler: 16" Dia. x 52" Face Drum Hydraulic Grip and Expand (Gripper Bar Missing) Hydraulic Pushoff Hydraulic Drive Motor Reducer w/12.5:1 ratio Passline: 26" from Floor to center of Drum Overall Size: 134" L x 68" W x 48" High -Free Standing Overarm Separator: 49.5" L Tooling Bar Air Cylinder Operated Overall Size: 70" L x 32" W x 75" High -One Arm Turnstile: Manual Rotation Hydraulic Pushoff Self-Contained Hydraulics -Main Operators Control Panel: -Main Hydraulic Unit #1: For use with Slitter Head Drive -Main Hydraulic Unit #2: For use with Recoiler Drive With Cooler -(2) Additional Hydraulic Units: -Slitter Tooling: |
|
