8" x 24.5" x 20" FROHLING 4 HI REVERSING COLD ROLLING MILL (14086)

8" (203.2mm) x 24.5" (622.3mm) x 20" (508mm) 4-HI Frohling Reversing Cold Rolling Mill
Stock # 14806

Max Width Workpiece: 18 inches

Manufacturer: Frohling (Germany)
Mechanically and Electrically Upgraded in 2012 (Approximately $3.5MM USD)

Max Rolling Thickness: .250"
Min Rolling Thickness: .010"
Work Roll Face: 20"
Max Strip Width 18"
Min Strip Width: 6"
Max OD: 60"
Coil ID: 20"
Max Rolling Force: 400 Ton
Max Rolling Speed: 1000fpm
Line Direction: Right to Left

Work Roll Diameter: 8"
Back-Up Roll Diameter: 24.5"

Main Motor: 958HP
(2) Uncoiler Motors: 218HP Siemens DC
(2) Recoiler Motors: 210.5HP Siemens DC

Maximum Coil Weight: 5 Ton

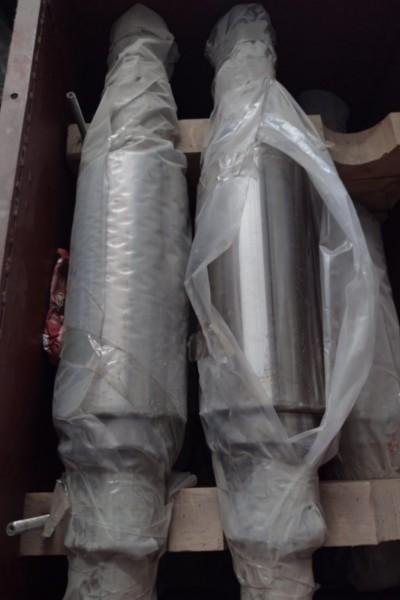

Spare Rolls and Chucks:

17 Brand New Work Rolls
10 Brand New Back Up Rolls
15 USED Work Rolls
2 USED Back Up Rolls
21 Work Roll Chucks

Complete Line with:

(2) Coil Cars

Pay off

Uncoiler

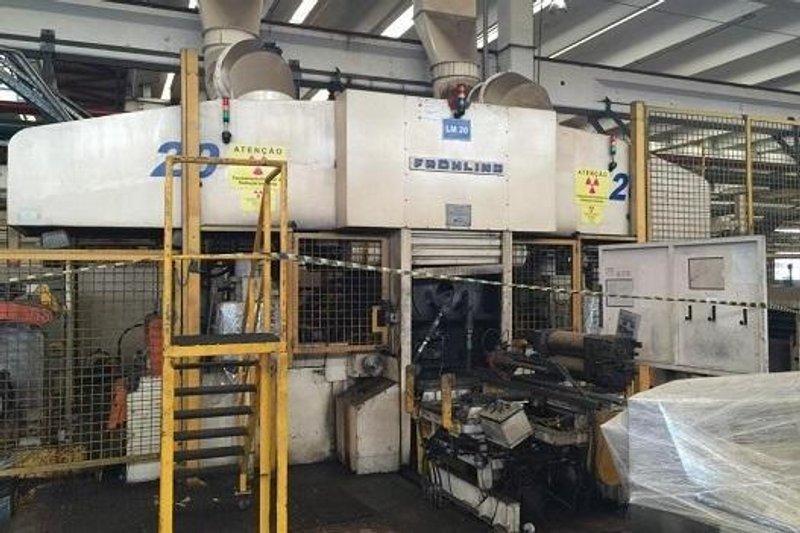

4-HI Rolling Mill with AGC
Hydraulic Screw Downs

Recoiler

Exit Coil Car

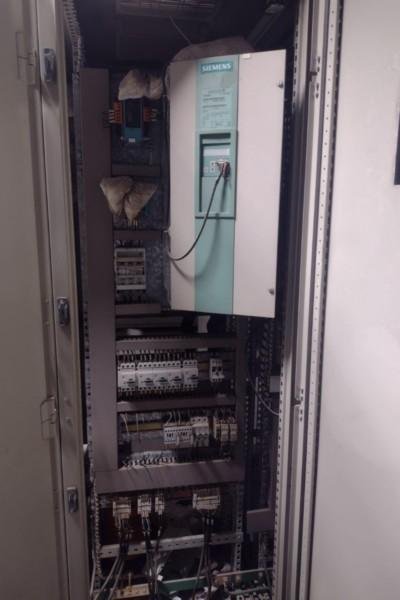

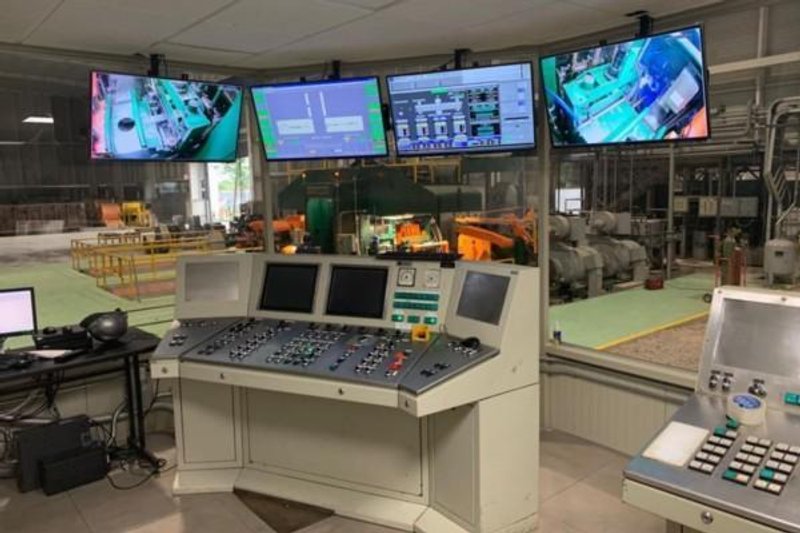

Siemens PLC and Drives
Controls, Electrics, Hydraulic Systems etc.
**PLEASE NOTE MILL DISMANTLED AND LYING IN STORAGE AT THIS TIME**

**Temporary Specifications Subject to Revisions**
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE SUBJECT TO BUYERS VERIFICATION**
