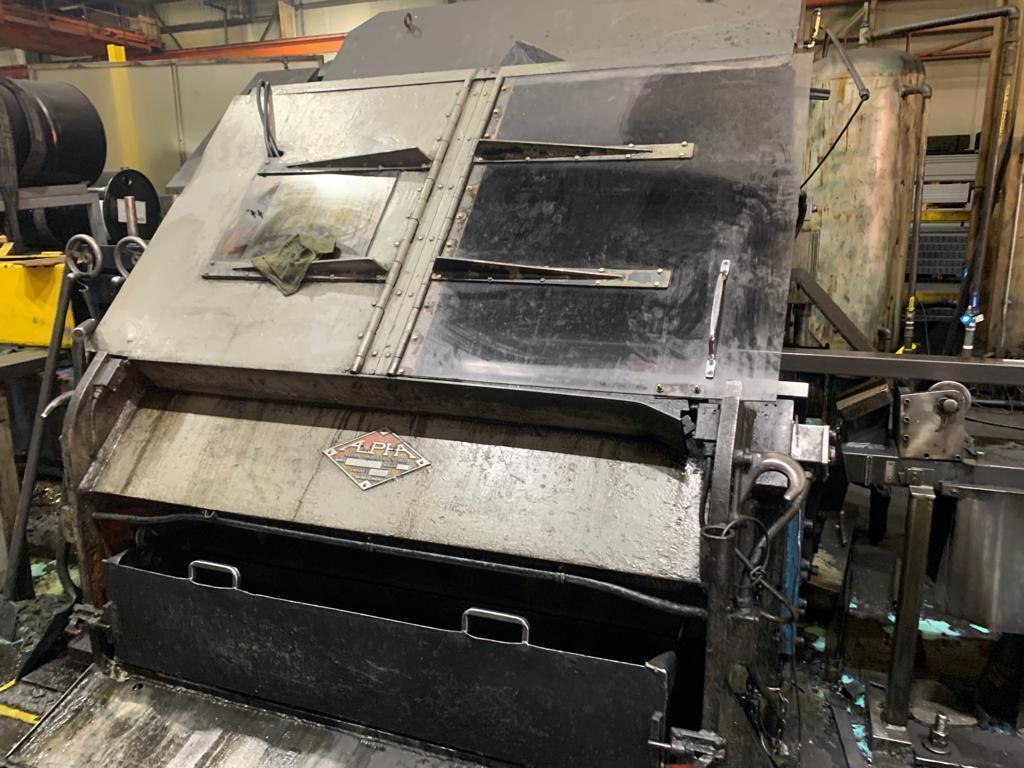

5” X .180” ABBEY ETNA TUBE MILL LINE
Brand
Category
Type
Model
Not specified
Stock #
115437
Year
Not specified
Condition
Used
Location
Not specified
| Tube Dia | 5 inches |
| Max. Wall Thickness | .180 inches |
|
Round Tube Diameter: 1” - 5”
Max Square Tube: 4”
Max Rectangle: 2” x 6”
Wall Thickness: .049” - .180”
Line Speed: 250 FPM
Maximum D/T Ratio: 50:1 Approx
Minimum D/T Ratio: 14:1. Approx
Line Direction: Left to Right
Complete Line with:
3 Arm Loopco Turnstile
Entry L-Type Coil Car
Mandrel Uncoiler

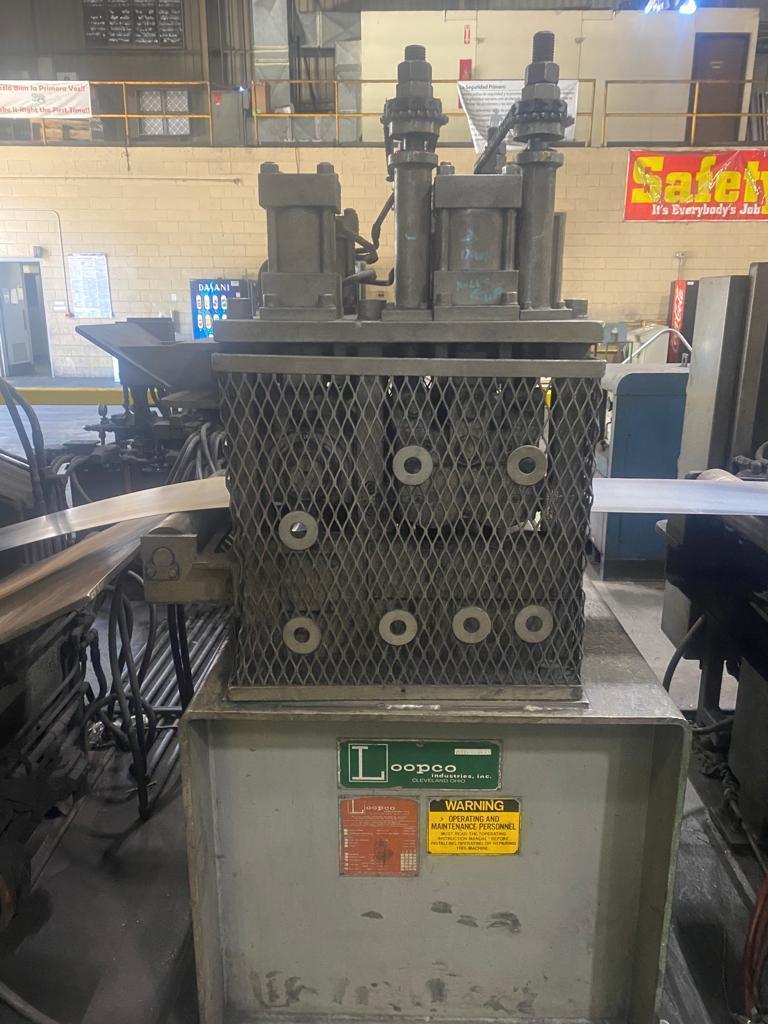

Loopco Peeler / Hold Down Roll
5 Roll Flattener
Guild Shear & Welder
Torch and Power Supply
Pinch Roll Stand

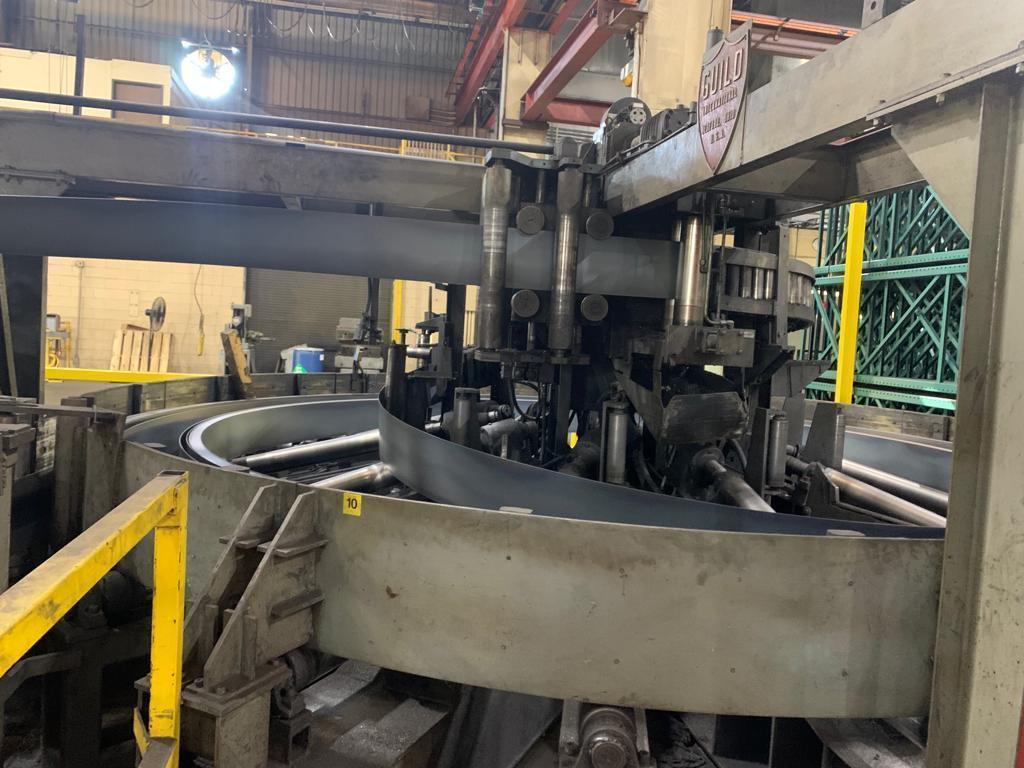

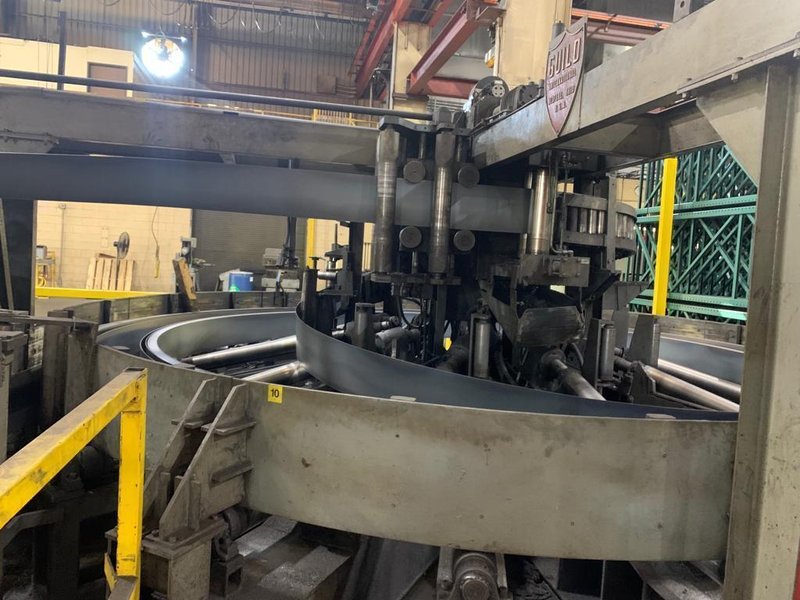

Guild Horizontal Accumulator
Edge Prep Station

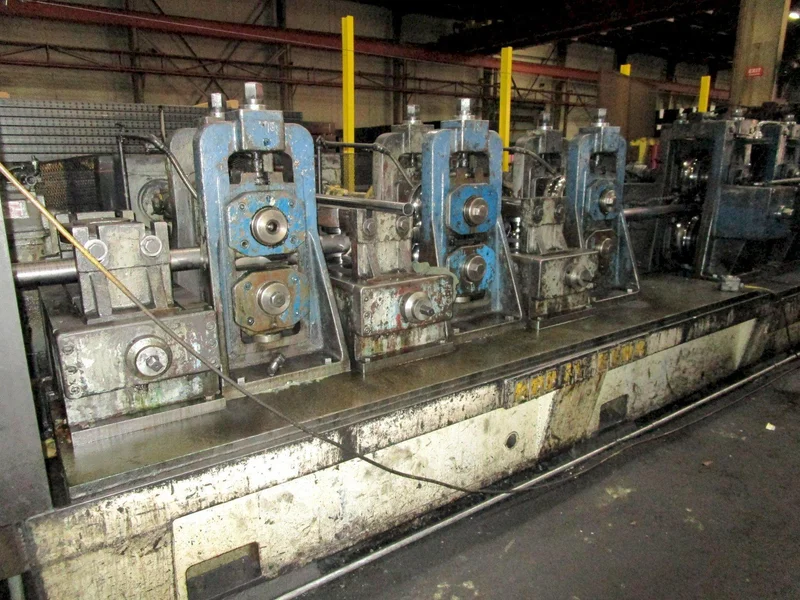

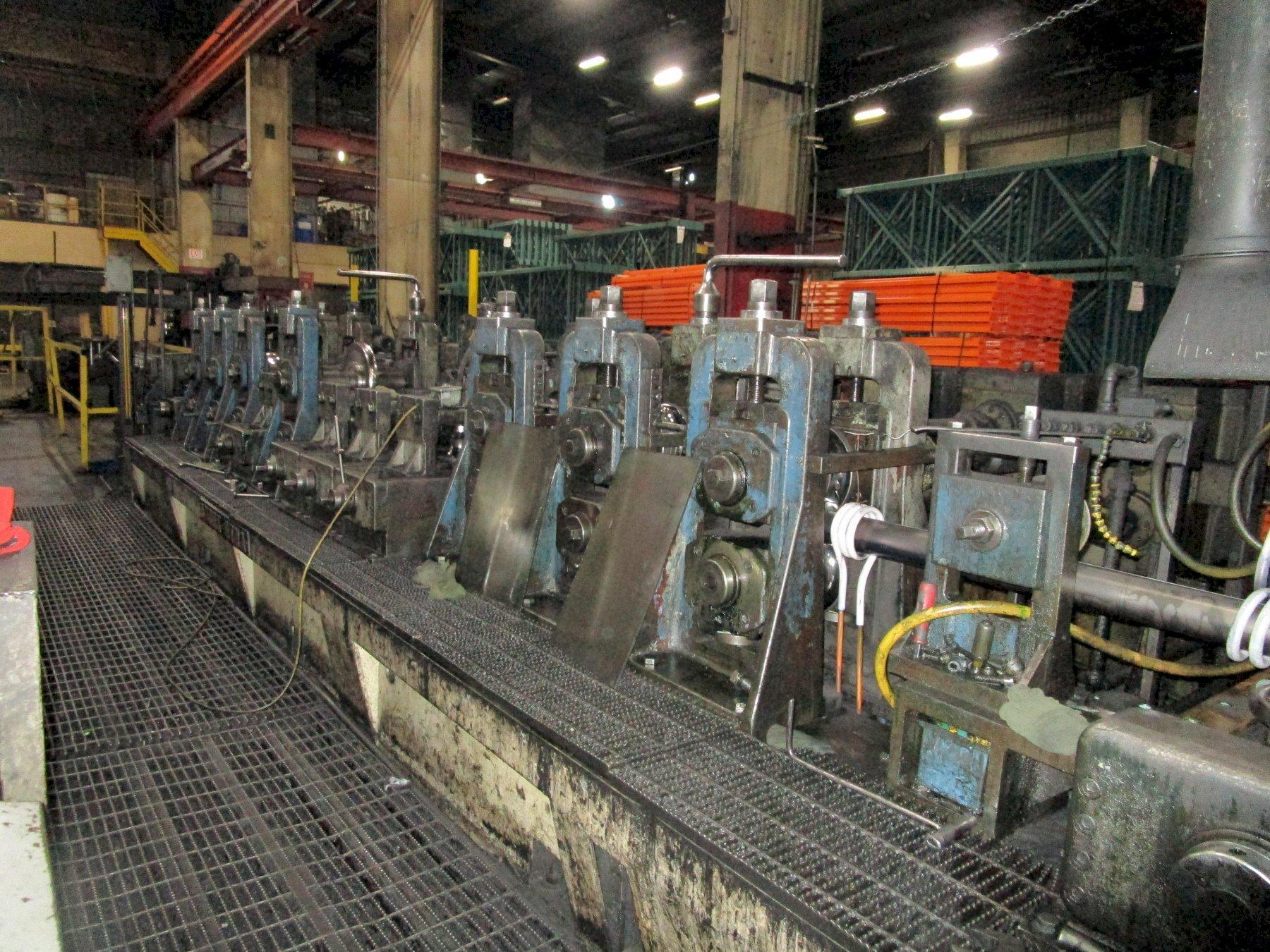

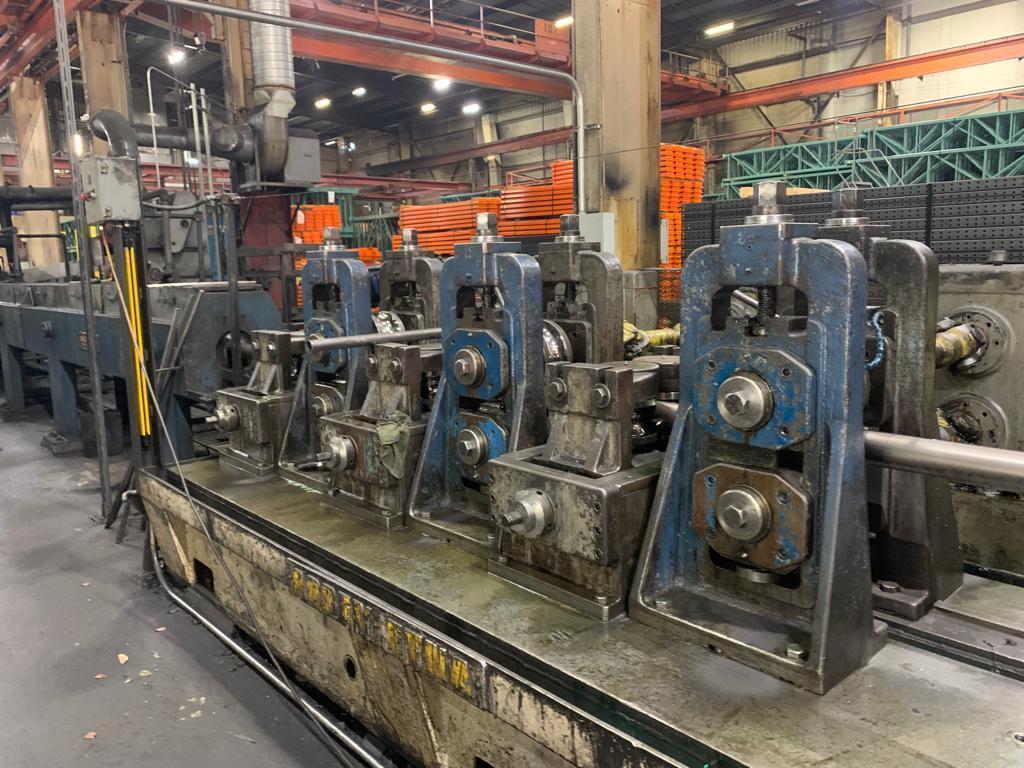

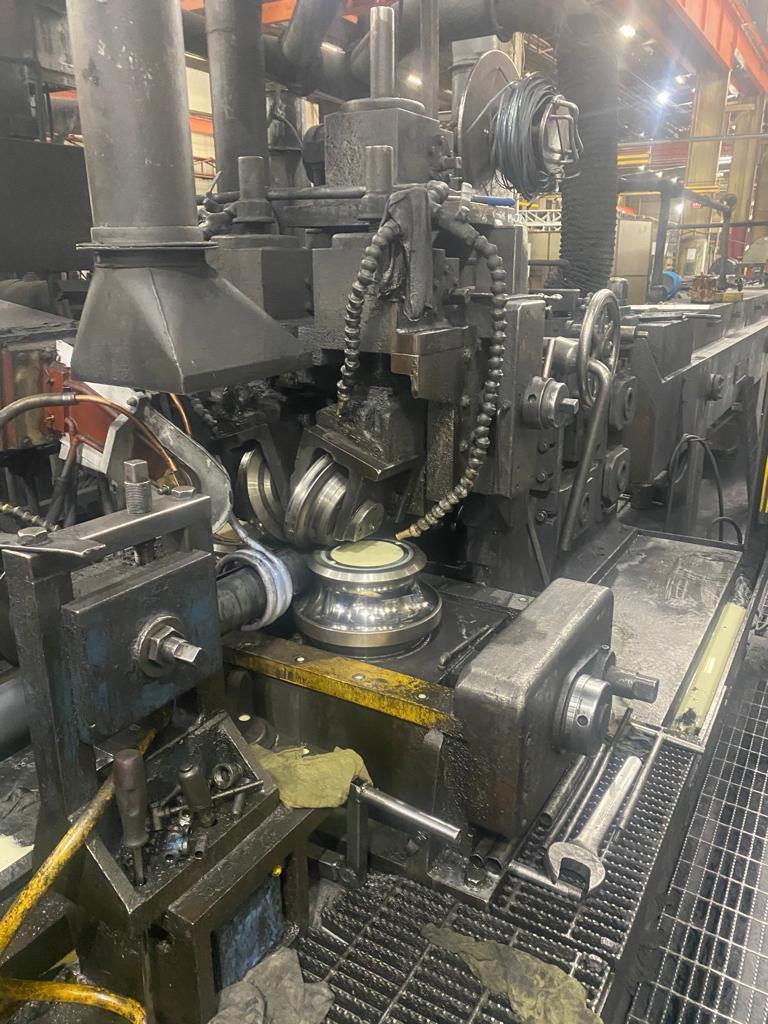

Abbey Etna Forming Mill
4 Forming Stands
3 Side Guide Roll Stands
3 Side Roll Cluster
3 Finn Pass Stands

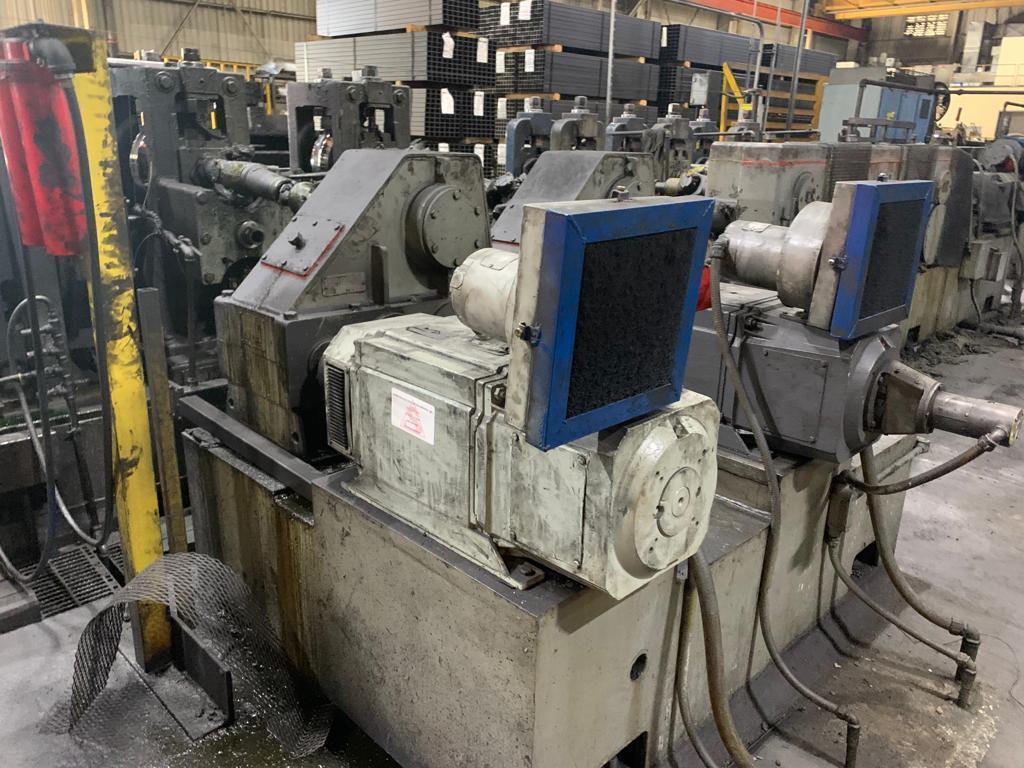

75 HP DC Forming Drive
50 HP DC Finn Pass Drive
Exit Seam Guide Roll
2 Speed Gear Boxes
2 Roll Weld Box
2 Seam Guide Rolls
2 OD Scaring Stands
400 KW Thermatool / Inductoguild High Frequency Welder
30’ Cooling Trough
Abbey Etna Sizing Mill
3 Sizing Stands
3 Side Idler Rolls
50 HP DC Sizing Drive
2 Speed Gear Box
2 OD Scaring Stands
400 KW Thermatool / Inductoguild High Frequency Welder
30’ Cooling Trough
Abbey Etna Sizing Mill
3 Sizing Stands
3 Side Idler Rolls
50 HP DC Sizing Drive
2 Speed Gear Box
2 Squaring Stands with Side Clevis’s
2 30 HP DC Squaring Stand Drives
Turks Head
Alpha Inclined Cut-Off
Hydraulic Die Accelerator
Tallyrand Measuring
Digital Readouts
Touch Screen
30’ Run Out Table
Side Discharge Stackers
Tooling Sizes:
SIZE FORMING FINS SIZING
ROUND
5" 1 1 1
4.5” 1 1 1
4” 1 1 1
3.75” 1 1
3.5” 1 1 1
3.125” 1 1 1
3” 1 2 2
2.813” 1 1 1
2.5” 1 2 2
2.188”
1.875” 1 2 2
1.562” 1 2 2
SIZE SQUARING
OVALS
3.386” X 5.660” 1
2.440” X 5.240” 1
2.739” X 1.039” 1
2.254” X 3.783” 1
1.780” X 3.710” 1
TRAPEZOID FORMING FINS SIZING SQUARING
1.625” X 4.375” 1 1 1 1
2” X 3.375” 1 1 1 1
SQUARES SQUARING
4” 2
3” 2
2.5” 1
2” 4
1.5” 4
1.25” 2
RECTANGLES
2” X 6” 2
2” X 5” 1
2” X 4” 1
1” X 4”
2” X 3” 1
1” X 3”
1.5” X 2.5”
1.5” X 2”
1” X 2”
1” X 1.5” 2
|
|
