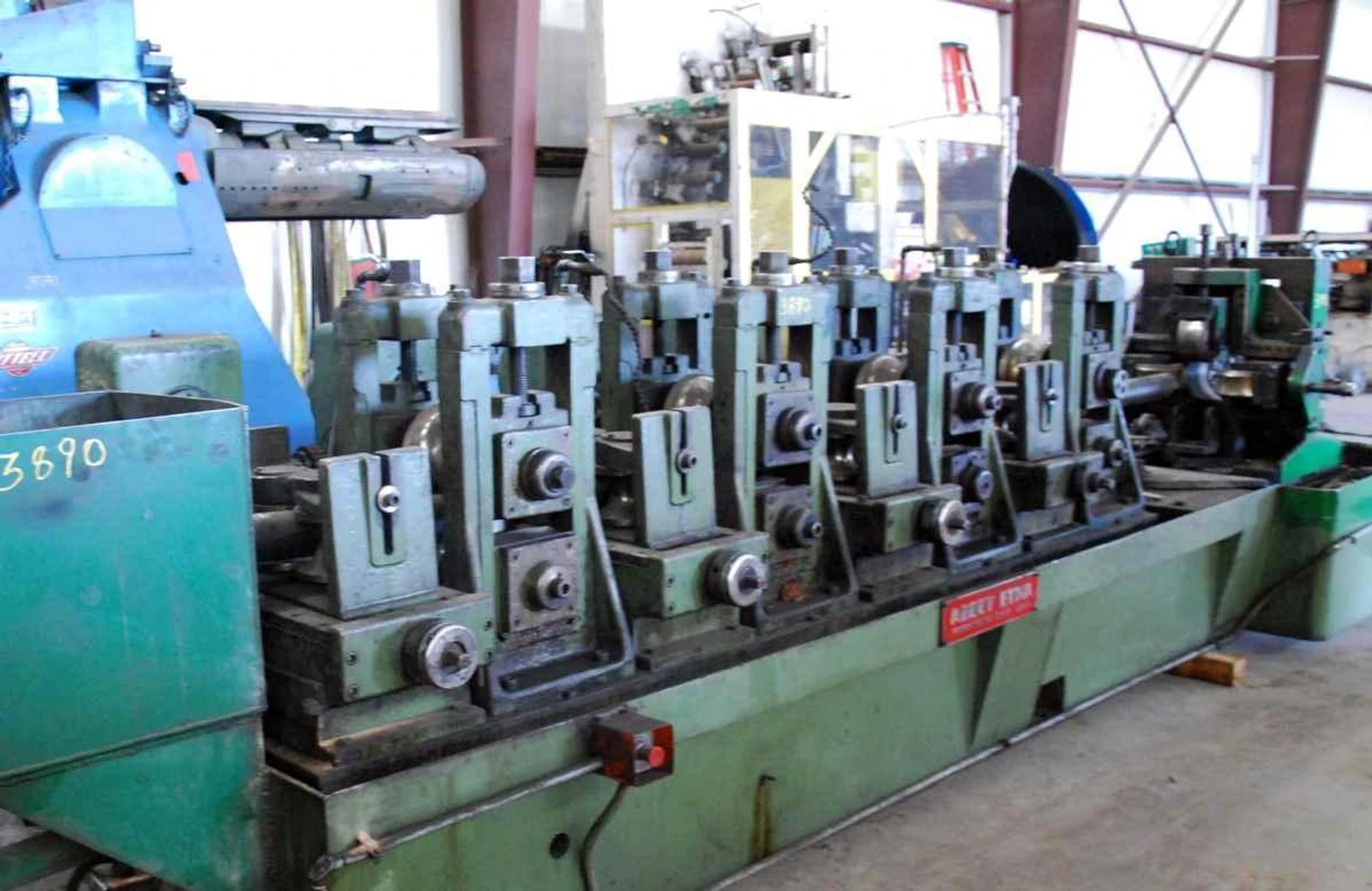

6" (152mm) x .120" (3mm) Abbey Etna 6SXU Tube Mill
Brand
Category
Type
Model
6 SXU
Stock #
102074
Year
Not specified
Condition
Used
Location
Ohio
| Tube Diameter | 6 inches |
| Max. Wall Thickness | .120 inches |
|
Manufacturer: Abbey Etna Machine Co.
Model Number: 6SXU
Specifications
Tube Diameter Range: 1.9” (48.2mm) – 6” (152mm)
Wall Thickness Range: .042” (1.1mm) - .120” (3mm)
Forming Roll Space Width: 21” (533mm)
Fin & Sizing Roll Space Width: 8” (203mm)
Driven Spindle Diameter: 2-1/2” (63.5mm)
Gear Box Data: Abbey 4K, 15:1 Ratio
Direction of Operation: Left to Right

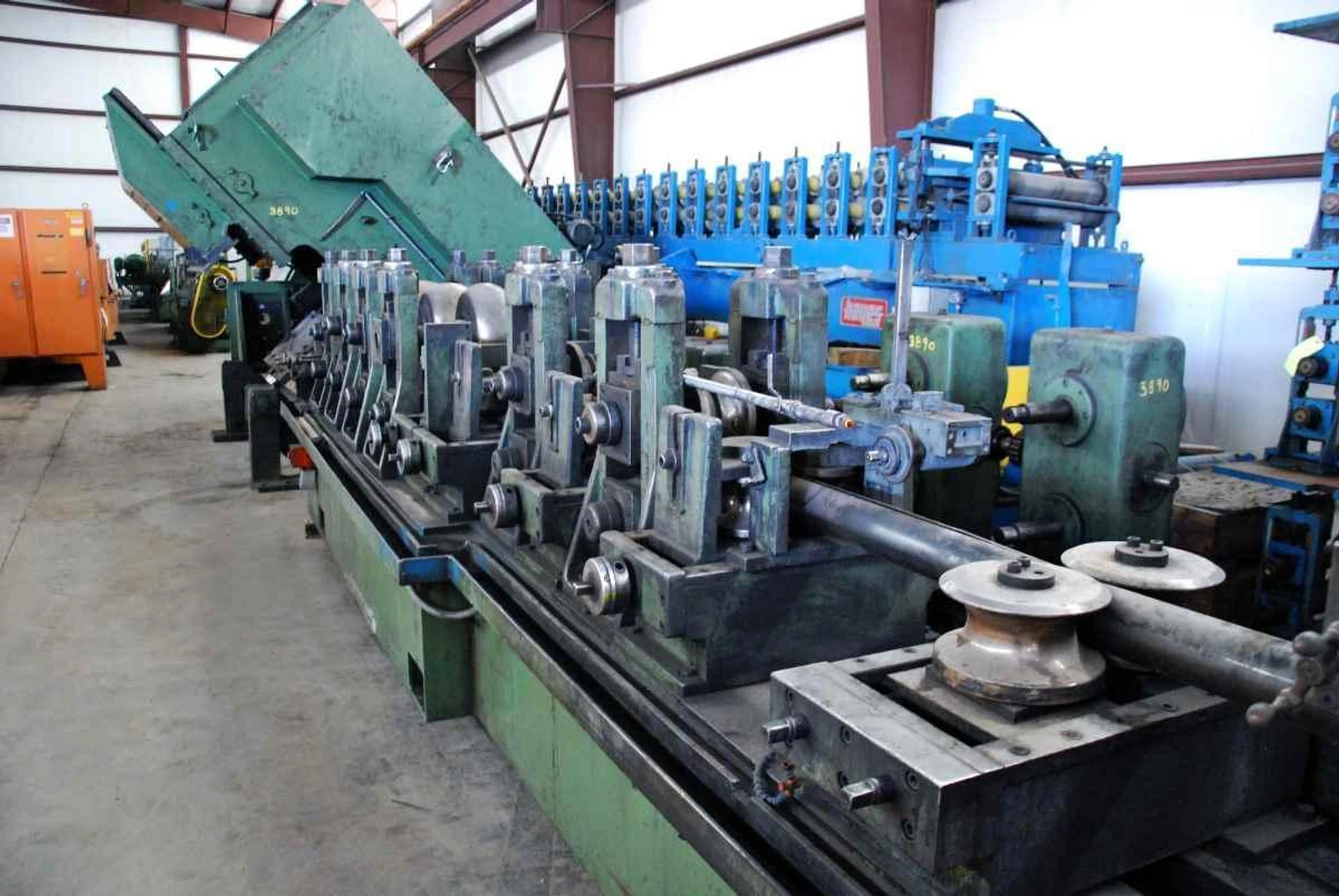

Forming Mill
Entry Guide
(4) Driven Breakdown Stands
(4) Idle Side Roll Units
(2) Driven Fin Stands
Welding Section
(1) 2 Roll Weld Pressure Unit for HF Welding
(1) Scarfing and Seam Ironer Unit

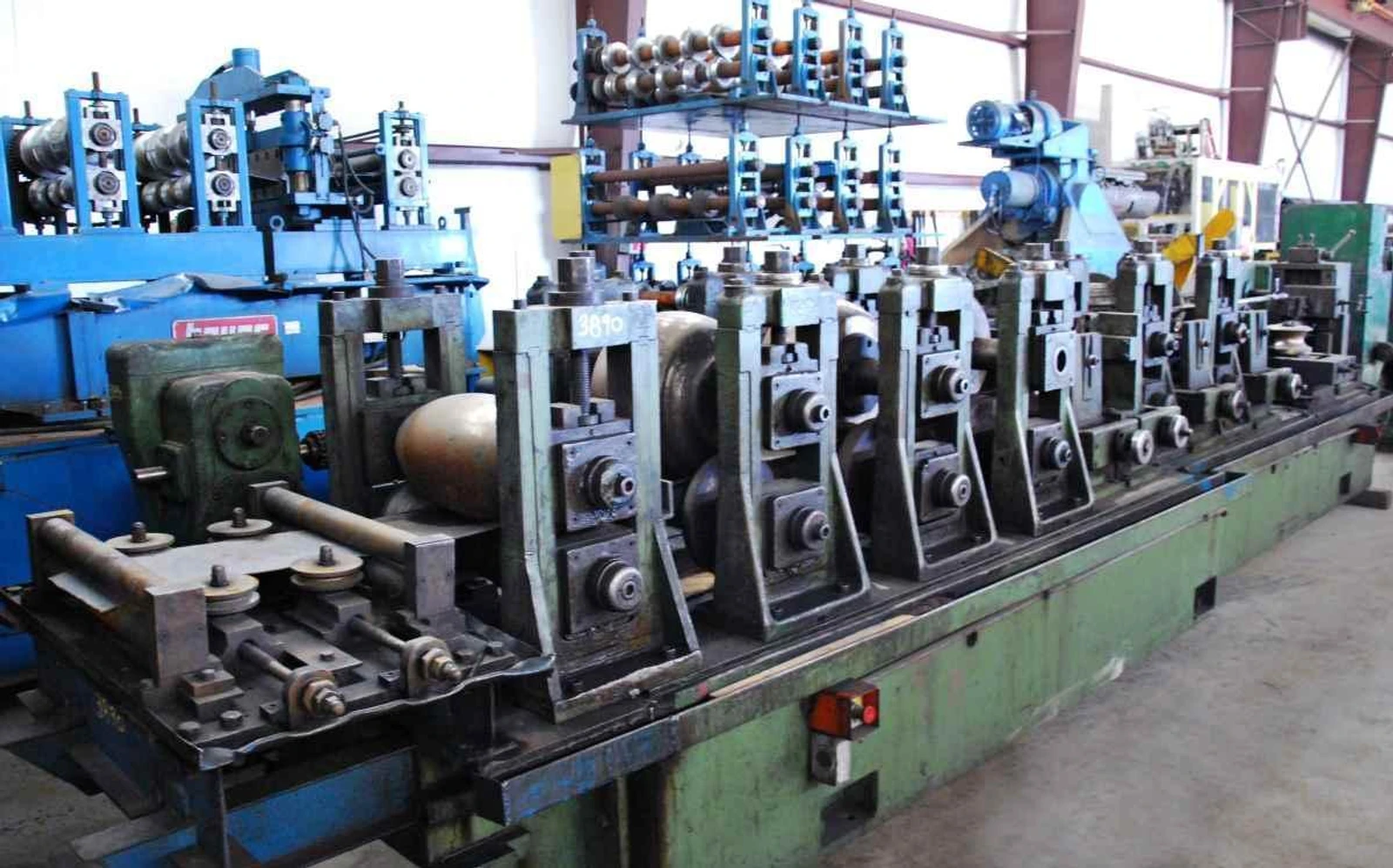

Sizing Mill
(4) Driven Sizing Stands
(4) Idle Side Roll Units

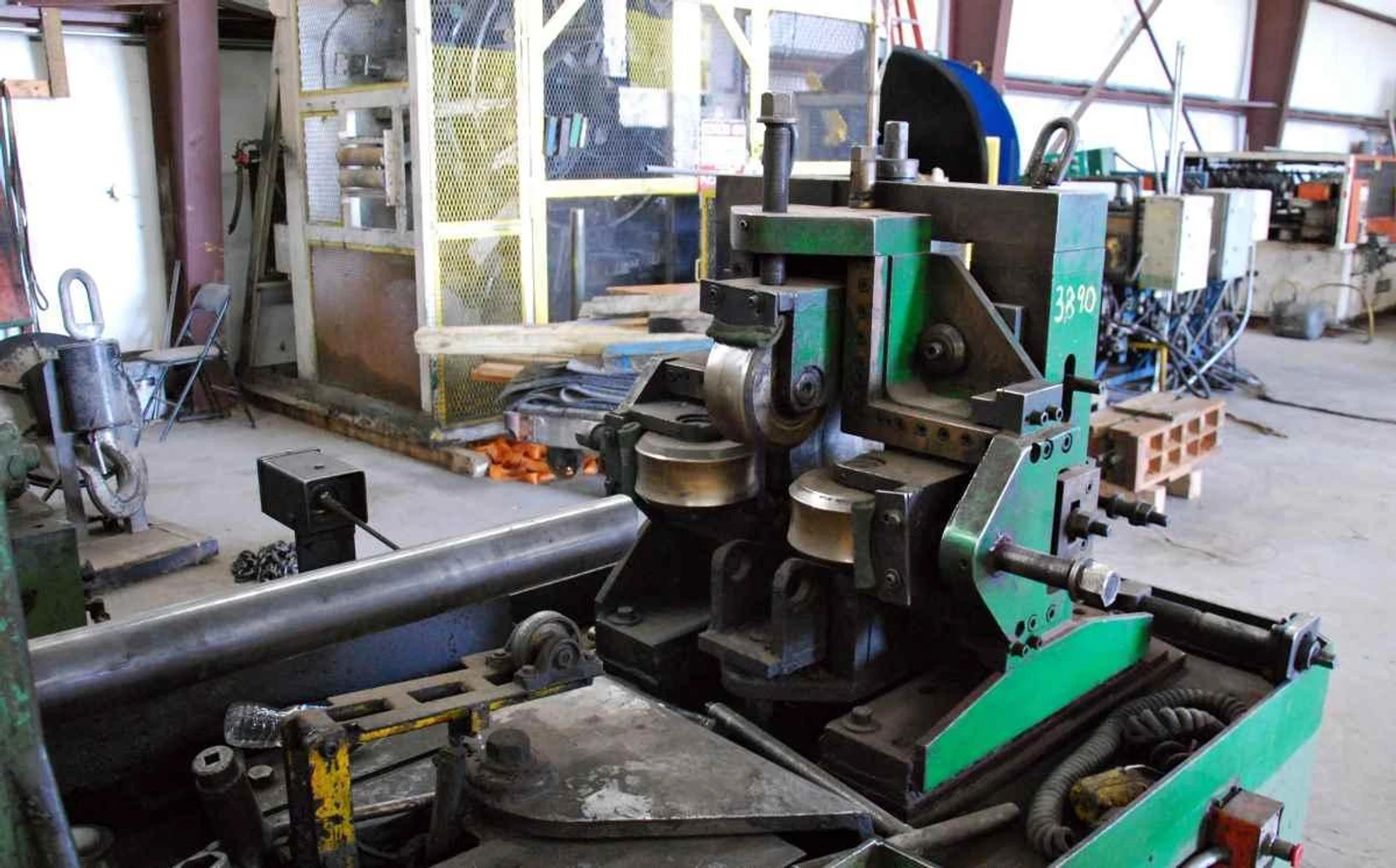

(1) Straightener Unit (Modified Turkshead)
Various Tooling Sizes
|
|
