3.500" x 0.135" AEF Tube Mill STOCK #2941

Brand
Model
Not specified
Stock #
2941
Year
Not specified
Condition
Very Good
Location
Ohio
-3.5" x 3.5" Square
-3" x 5" Rectangle (tooling in Mill)
-Line Direction:  Right to Left
-Material Thickness:  0.135"

Consisting of the following:

-Dahlstrom Coil Car:
  AC Motor Drive
  AC Motor Jack Screw Lift
  Floor Mounted Rails

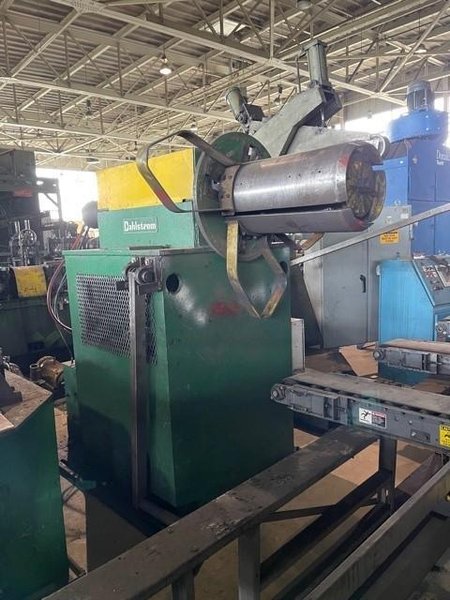

-Dahlstrom Uncoiler:
  18" Wide with 4 Keepers
  AC Gear Motor with Clutch Drive
  Hydraulic Expanson 16" to 22" ID
  72" Coil O.D.
  Self Contained Hydraulic Power Unit
  15,000 lb. Weight Capacity

-Free Standing Overarm Holddown:
  Loop Control Arm

-Dahlstrom Straightener:
  5 Roll - 2 over 3
  Dual Entry Pinch Roll
  Side Guides

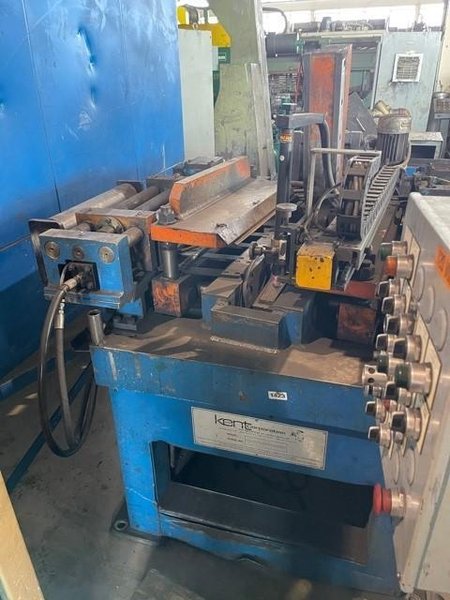

-Kent Shear End Welder:
  Model:  20-250-DSAA
  20" Strip Width
  0.250" Strip Thickness
  Entry and Exit Squaring Guides
  Dual Hydraulic Strip Clamps on Bias
  Hydraulic Blanking Shear
  Miller Square Wave 250

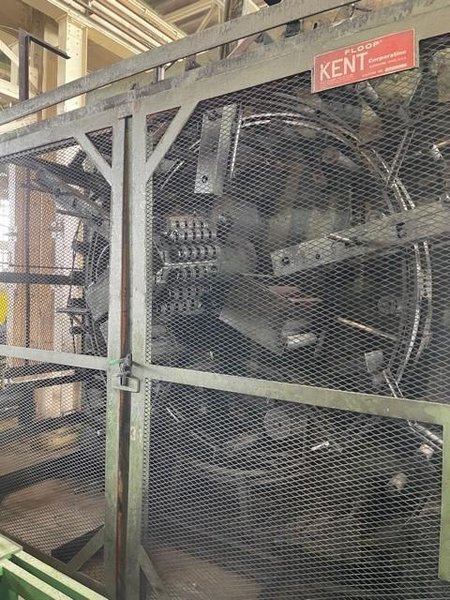

-Kent Vertical Floop Accumulator:
  Model:  BEC 3122
  16" Maximum Strip Width

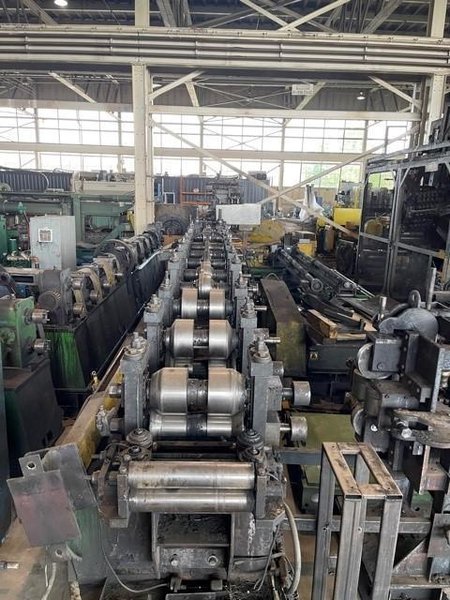

-AEF Forming Mill:
  Entry Side Guides
  Pass Line Roll
  11 Horizontal Stands
  Bottom Drive
  14" Roll Space
  24" Horizontal Spacing
  8" Vertical Adjustment last 3 Stands
  4 Roll Weld Box
  Scarfing Tool
  Scarf Recoiler - AC Drive

-150 HP AC Main Drive Motor

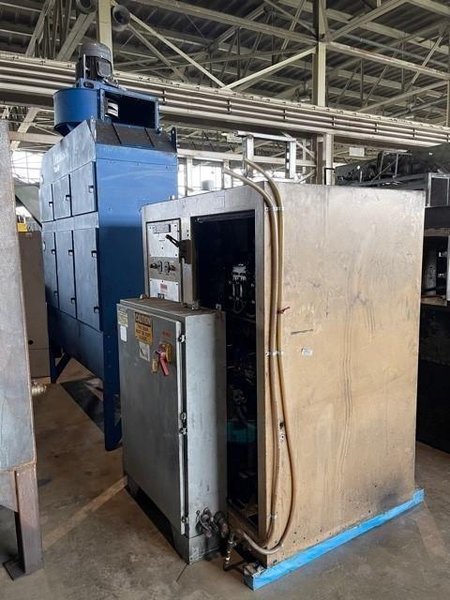

-Thermatool VT 200 Welder:
  375KV Transformer
  480V

-10' Long Coolant Trough

-AEF Sizing Stand:
  1 Driven Stand
  14" Roll Space
  Pinch Roll
  Single Side Turkshead
  6" x 6" Max. Opening

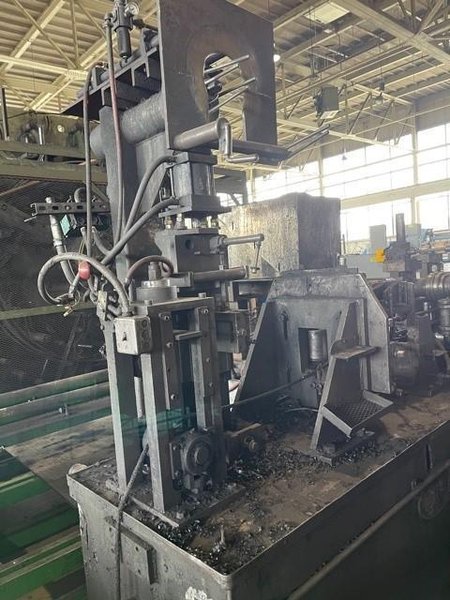

-Free Standing Turkshead:
  6" x 6" Max. Opening

-Flying Cutoff Saw:
  Hydraulic Clamp - Dual Vise
  AC Motor Blade Drive
  Hydraulic Cylinder Accelerator

-(2) 45' Long Conveyor Runout Sections:
  40' Long Discharge Table
  8' Deep
  Belt Type Top

-(2) 40' Long Stacking Tables
