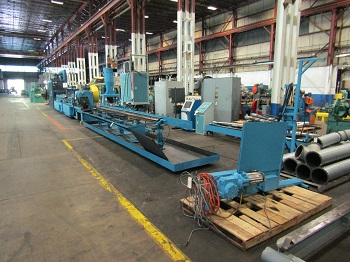

2" x .083" AEF TUBE MILL WITH KENT VERTICAL FLOOP & ALPHA CUTOFF


LINE SPECIFICATIONS

MAXIMUM DIAMETER - 2" (50mm)
MAXIMUM WALL THICKNESS - 0.083" (2mm)
SHAFT DIAMETER - 2.5" (63.5 mm)
UNVERSAL CONNECTION - YES
LINE DIRECTION - LEFT TO RIGHT
SOLID STATE WELDER - YES

LINE COMPONENTS:

DOUBLE END UNCOILER
ID RANGE - 16"-20" ID
MAX OD - 60"

SHEAR END WELDER
Thermal Arc Mig/Tig 240vac Model Fabricator 818i

KENT VERTICAL FLOOP
MODEL - R22 LE
SERIAL NUMBER - 913-1 RB

TUBE MILL ENTRY
4 ENTRY SIDE ROLLS

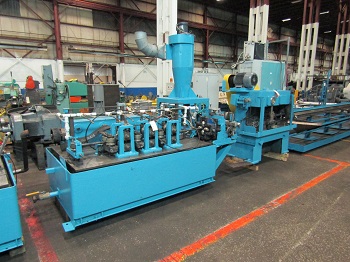

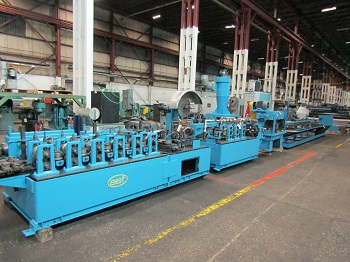

FORMING SECTION
6 FORMING/FIN PASS STANDS
5 SIDE PASS STANDS

SHAFT DIAMETER - 2.5" (63.5mm)
MOTOR - 40 HP Direct Current Reliance Motor

WELDING SECTION
2 ROLL WELD BOX

300 KW SAN FENG HIGH FREQUENCY SOLID STATE WELDER
PRIMARY VOLTS: 480V, 3PH, 60 Hz
PRIMARY POWER: 450 KVA
OUTPUT POWER: 300 KW
OUTPUT FREQUENCY: 300 KHz

OD SCARFING STAND

COOLING TROUGH / WATER QUENCH

SIZING SECTION
3 STAND SIZING STAND W/ 3 SIDE STANDS
SHAFT DIAMETER - 2.5" (63.5 mm)
MOTOR POWER - 40 HP Direct Current Reliance Motor

DOUBLE SIDED TURKSHEAD
4 ROLLS PER SIDE

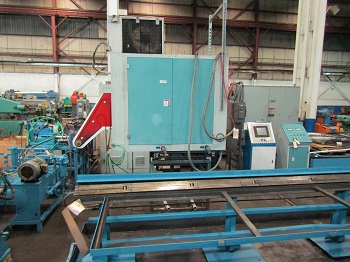

CUTOFF SECTION
ALPHA CUTOFF PRESS
MODEL - FR-8-Z-30
CAPACITY - 2" X 0.083"(50mm x 2mm)
SERIAL NUMBER - 4

GRAVITY RUNOUT
Length - 25'

INCLUDES:
TUBE MILL CONTROLS, ELECTRICS AND HYDRAULICS
