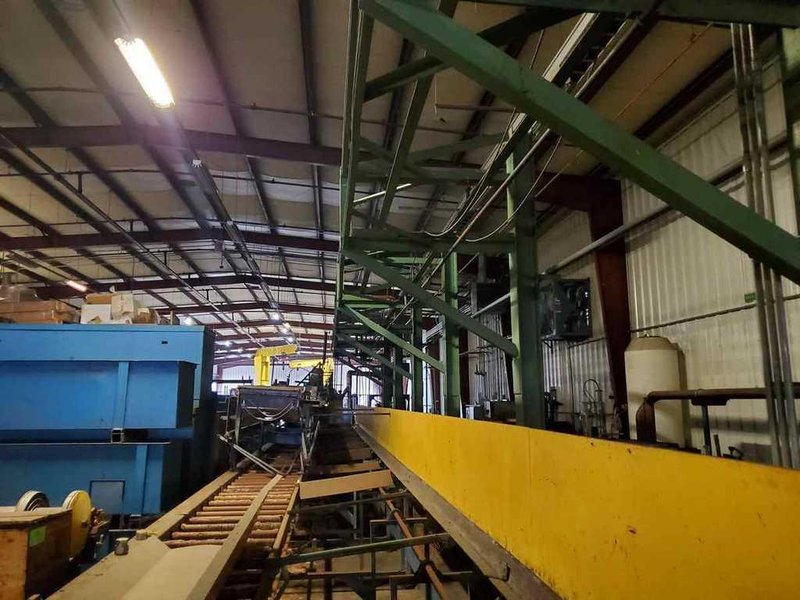

2.000" x 0.095" Yoder Tube Mill

-Hand of Operation:  Right to Left and Left to Right Mills Avail.

-Model Number:  Model M2

-Shaft Diameter:  2"

-Roll Space:  13"

-Maximum Tube Diameter:  2.25"

-Minimum Tube Diameter:  0.500"

-Maximum Wall:  0.095" Mild Steel

-Minimum Wall:  0.018" Mild Steel

-Rebuilt by Yoder in 2003 / Idled in 2009

Consisting of the following:

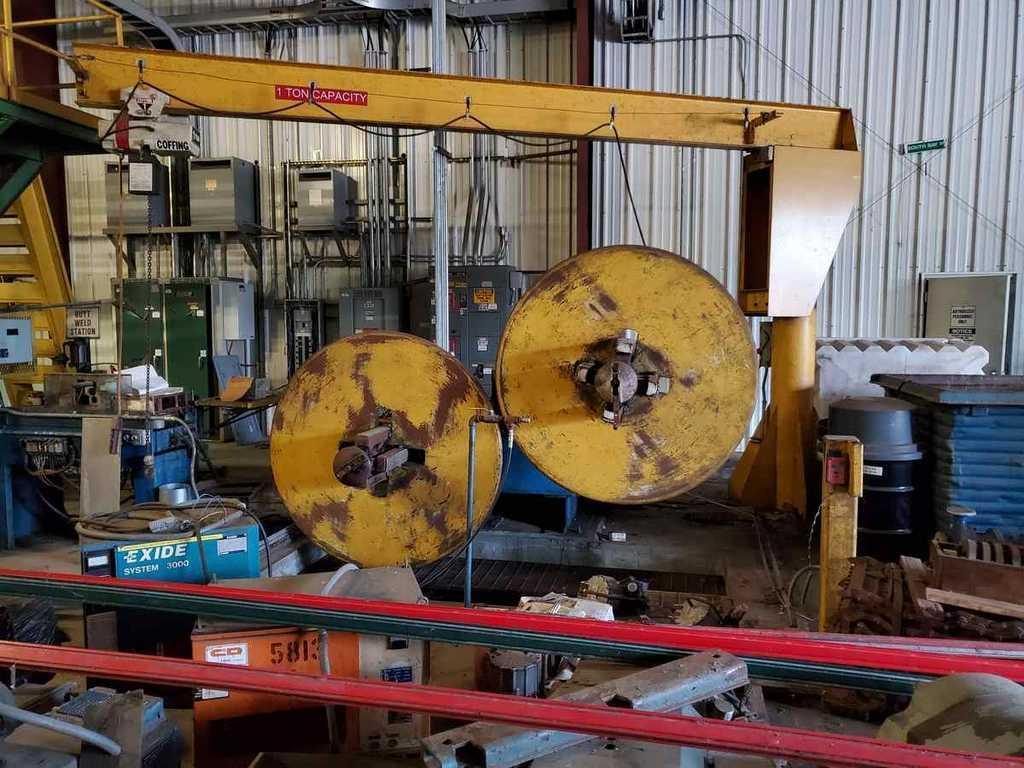

-Dual Mandrel Uncoilers:

  4,000 lb. Capacity each

  Pneumatic Braking

  Powered Carousel Type

  Hydraulic Expansion

  Full Diameter Back Plate and Keepers

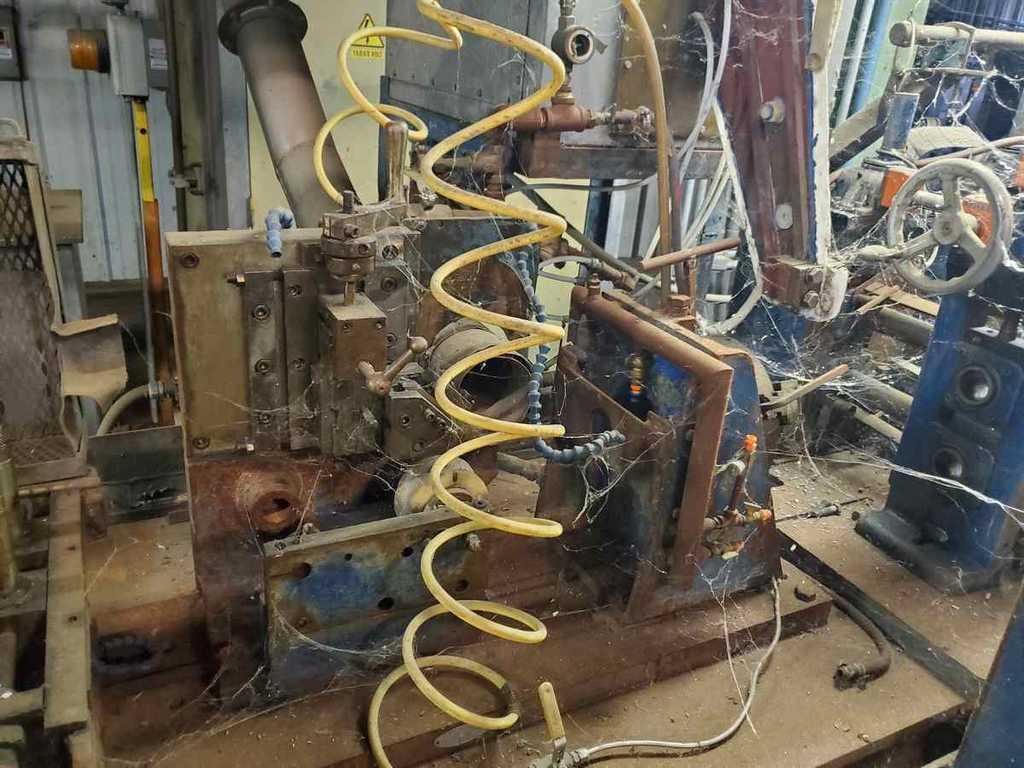

-Shear & End Welder:

  Manual Clamping

  Manual Shear

  Welding is automated

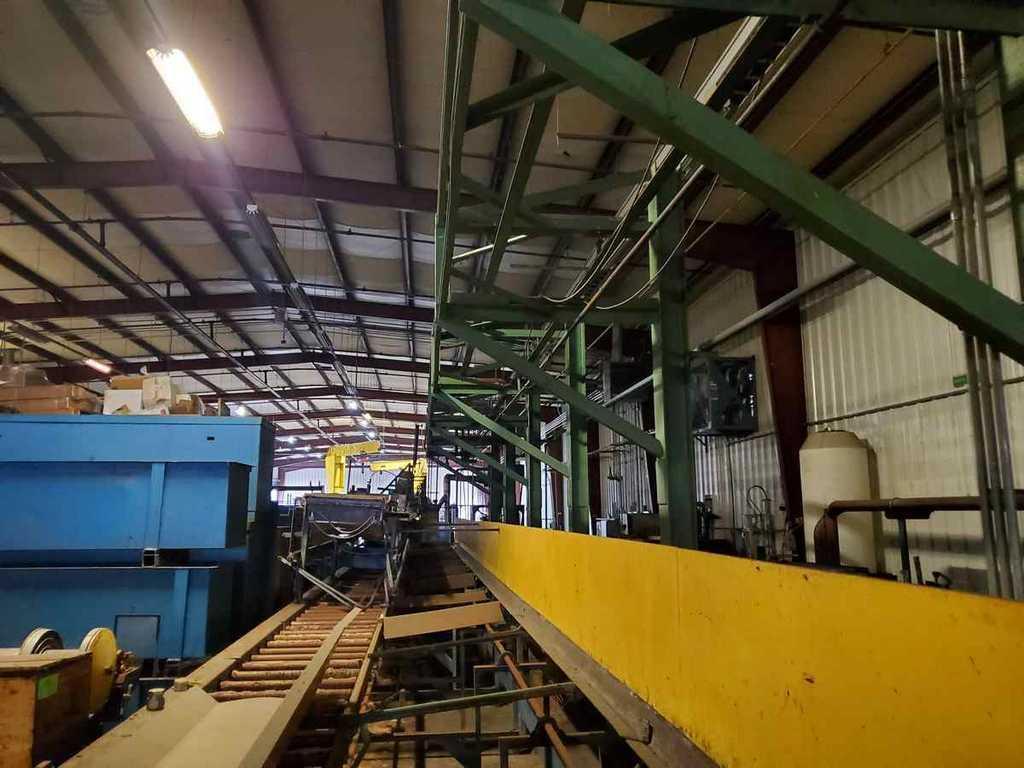

-Overhead Accumulator Tower:

  Entry and Exit Bridles

  Winch System

-Embossing Mill Stand:

  1-Entry Roller Guide, Vertical Adjustment and Horizontal.

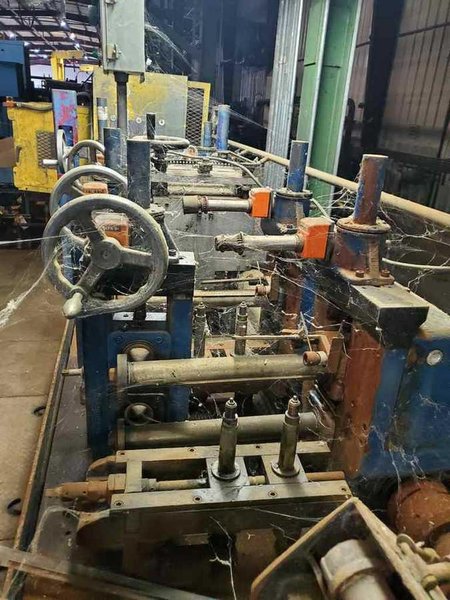

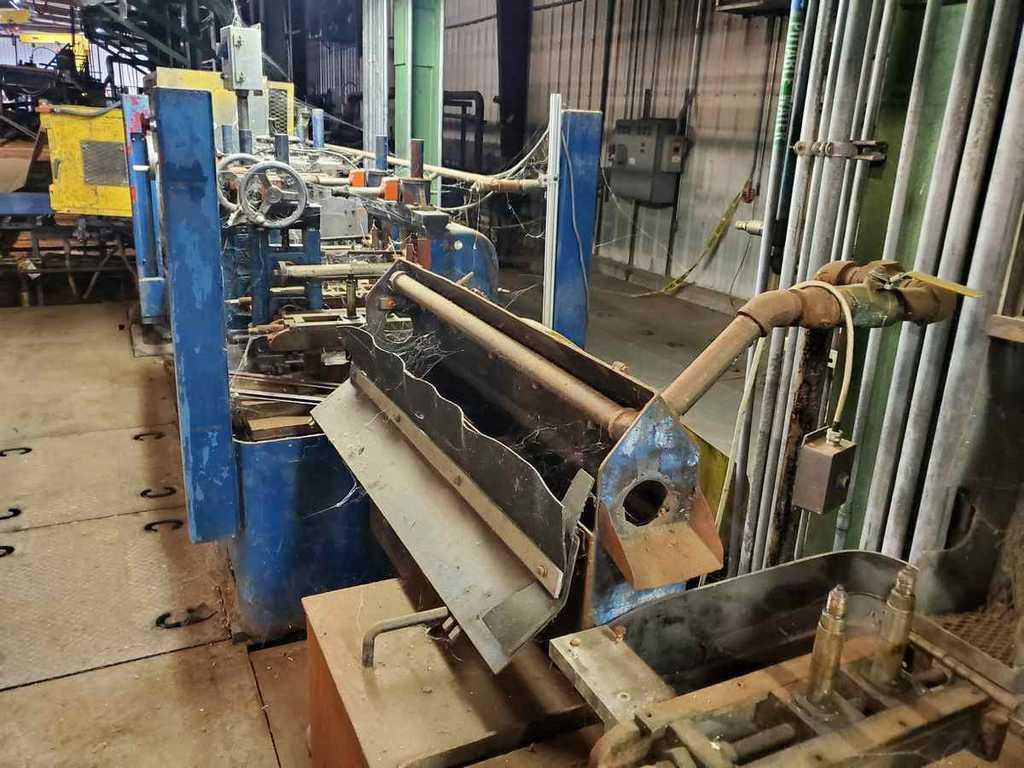

  Forming Mill:

   1-Entry Strip Guide Table with Horizontal and Vertical Strip Control.

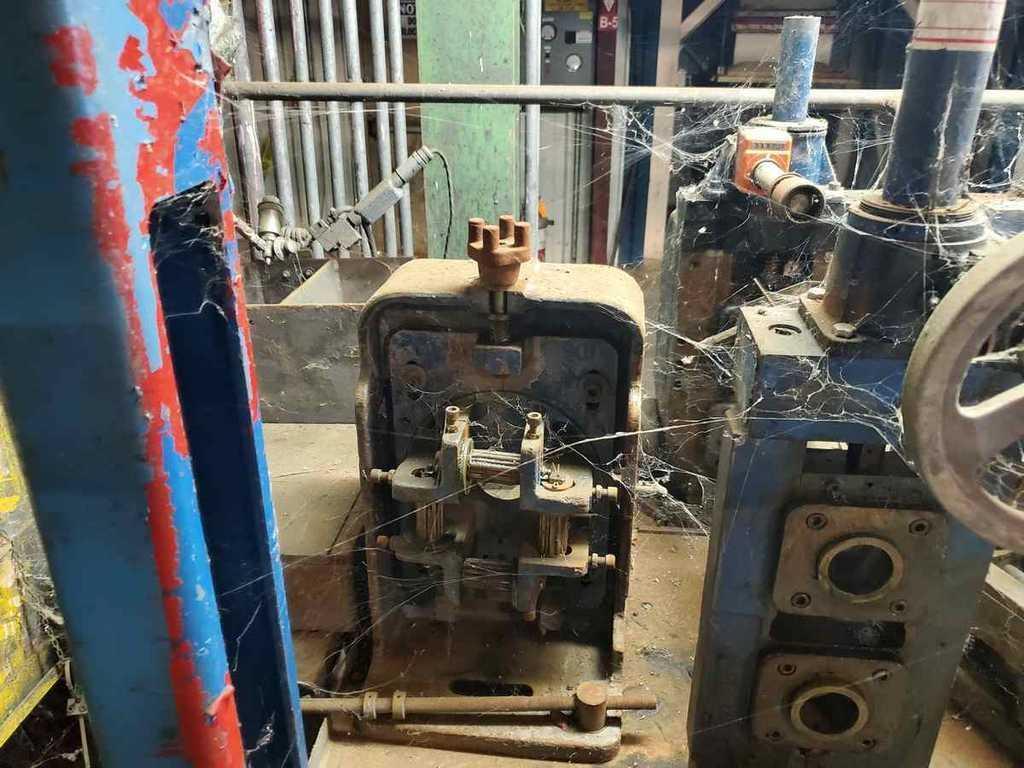

   3-Yoder M2 Driven Breakdown Stands with 2" Shafts (Single Point Adj)

   3-Yoder Idle Side Roll Stands

   3-Yoder M2 Driven Fin Stands with 2" Shafts (Single Point Adjustment)

   2-Yoder Idle Sideroll Stands

   1-60 HP DC Main Motor

-Weld Area:

  1-Tube Seam Guide with 2 Axis Adjustment

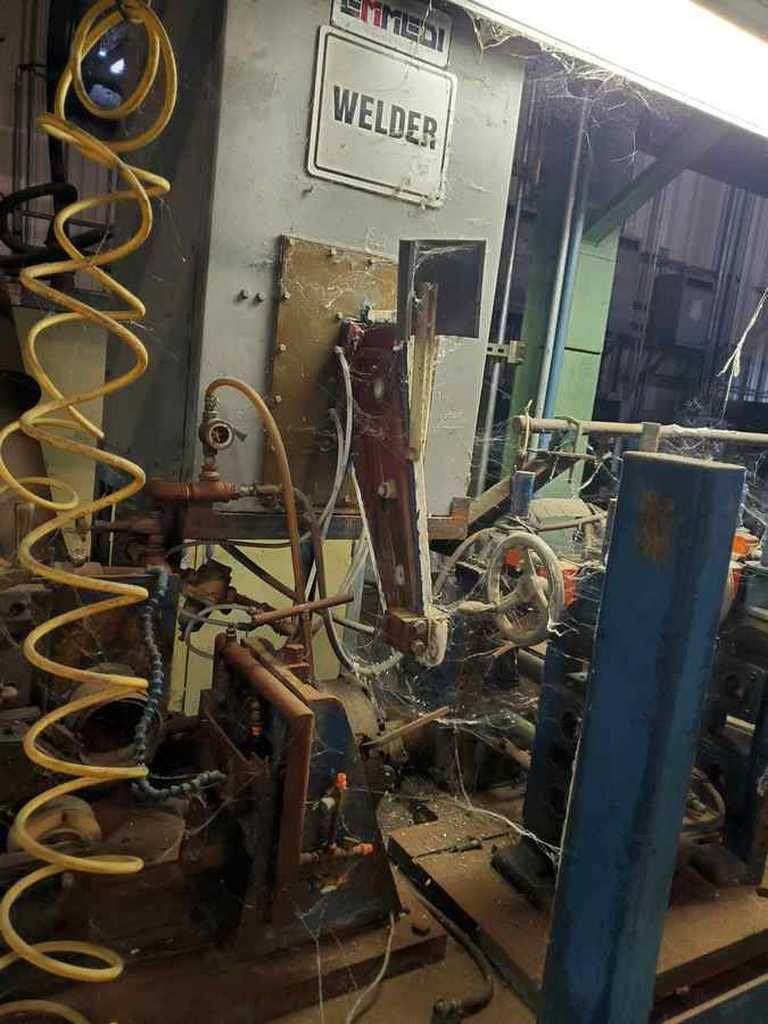

  1-Emmedi 100KW Solid State Welder

  1-Weld Bead Scarfing Station

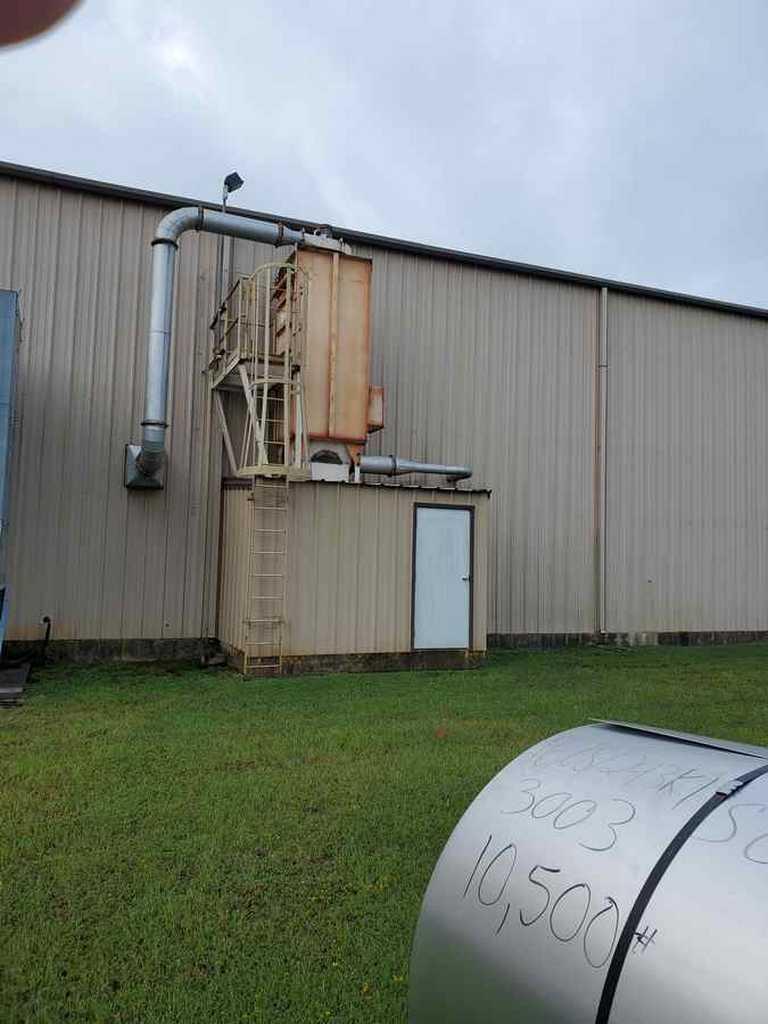

  1-Weld Bead Scrap Chop and Vaccum System

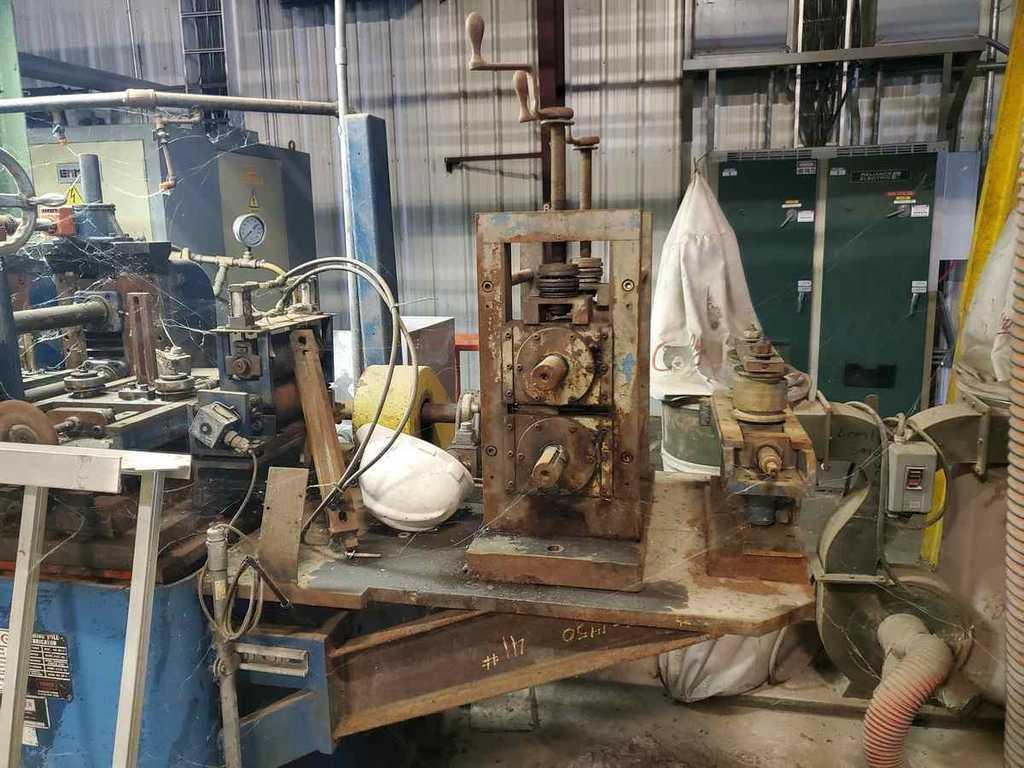

  1-Ironing Stand

-Coolant Zone:

  1-4' Trough Type Coolant Zone with Full Quench

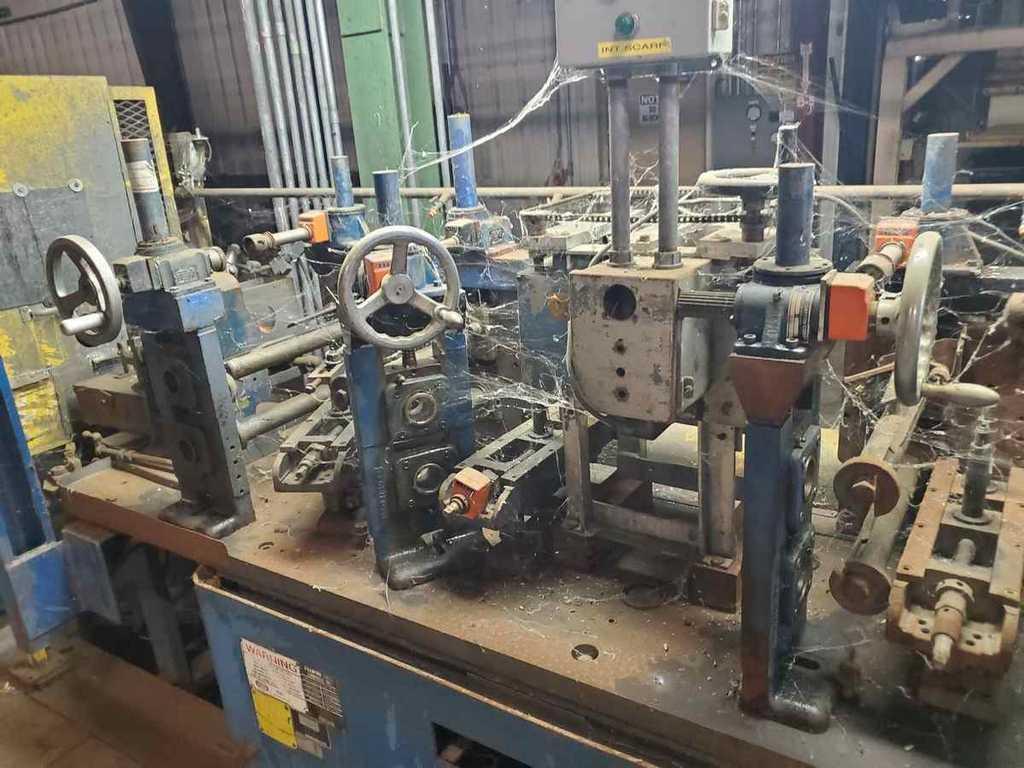

-Sizing Mill:

  4-Driven Yoder M2 Sizing Stands with 2" Shafts (Single Point Adj)

  3-Yoder Idle Sideroll Stands

  1-ID Scarfing Stand

  1-Turks Head

  1-60 HP DC Main Motor

-Cutoff:

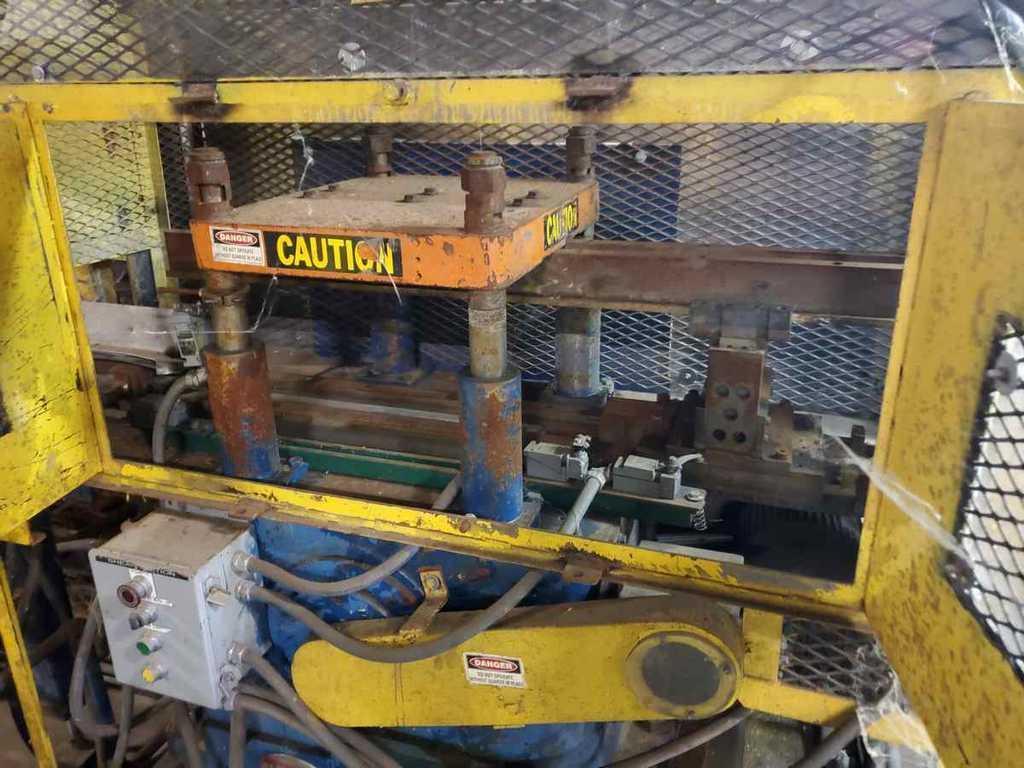

 1-40 Ton Alpha 4 Post Cutoff

  1-Length Control System

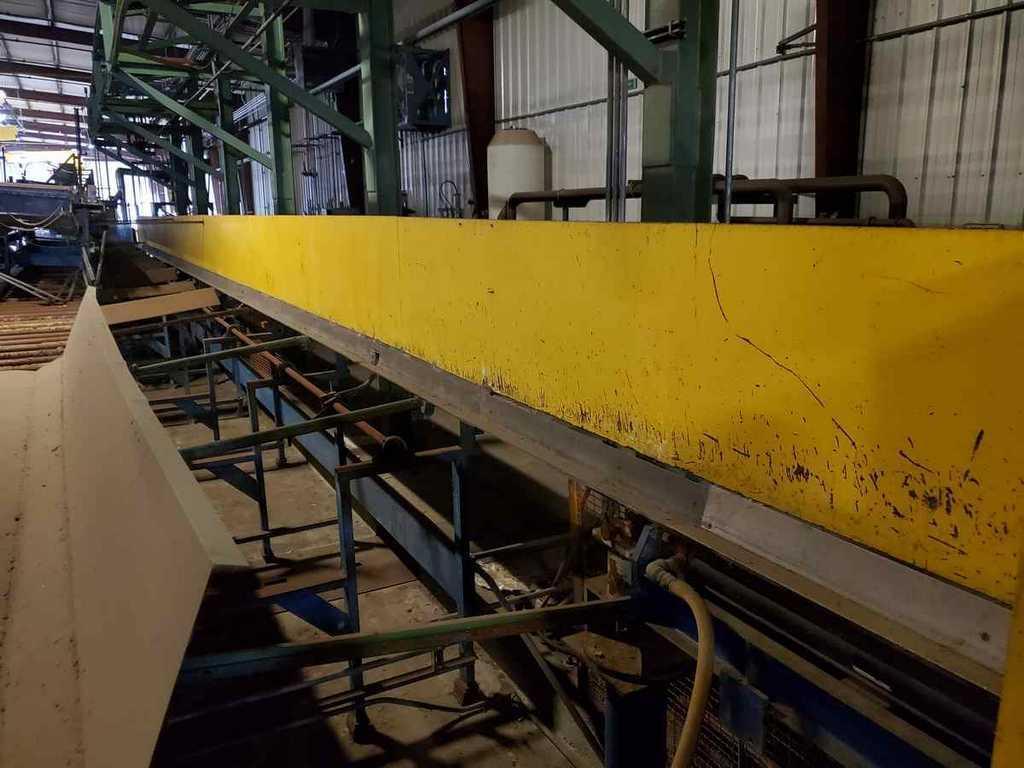

  1-Runout Table

-Tooling:

Price is per tube mill, there are 2 complete lines installed.

Price does not include removal or loading.
