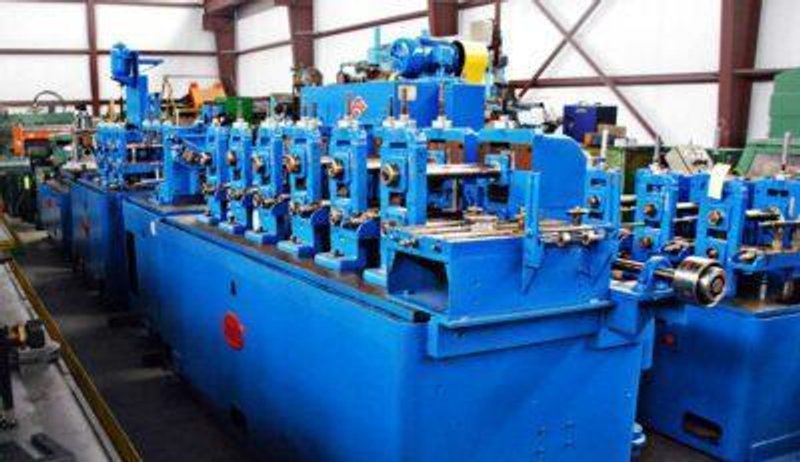

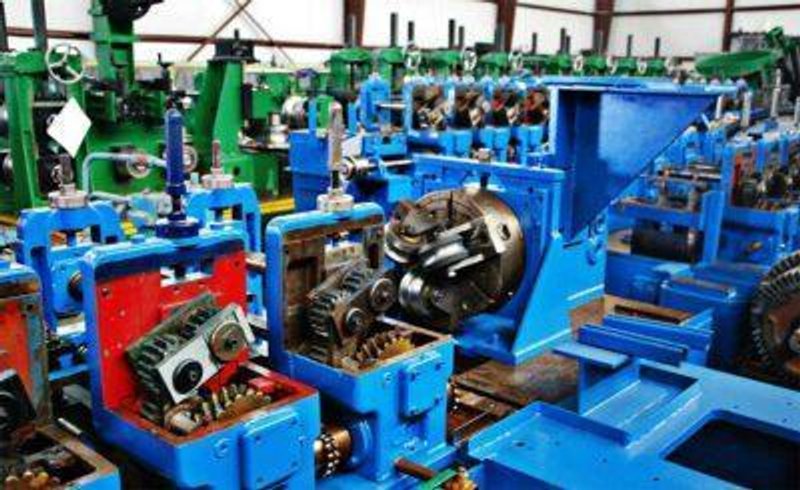

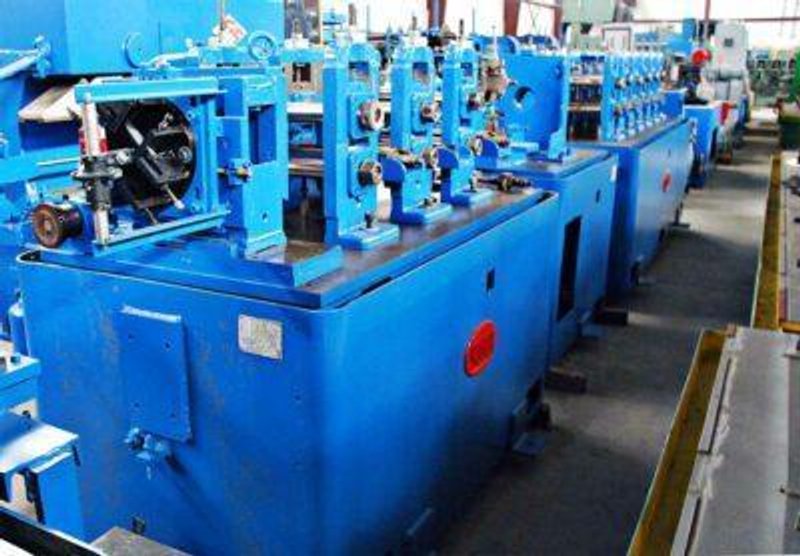

3709RB Used Yoder M-2 Tube Mill

    Line Direction: Right to Left
Maximum Tube Diameter: 2-1/2" (63.5 mm)
Minimum Tube Diameter: 1/2" (12.7 mm)
Maximum Wall Thickness: .095" (2.41 mm)
Minimum Wall Thickness: .020" (.508 mm)
Maximum Line Speed: 180 FPM, Maximum Gear In Speed, No Load
Maximum D/T Ratio: 60:1
Minimum D/T Ratio: 10:1
Maximum Material Yield: 50,000 PSI

GEAR BOX DATA:
Spindle Diameter: 2" (50.8 mm)
Roll Space Forming: 12" (304 mm)
Roll Space Fin & Size: 12" (304 mm)
Horizontal Centers: 15" (381 mm)

  FORMING MILL:
(1) Entry Guide Table
(3) Driven Breakdown Stands
(5) Idle Side Rolls
(3) Driven Fin Stands

  WELDING SECTION:
(1) 3-Roll Weld Pressure Unit
(1) Single Scarfing Unit

  SIZING MILL:
(3) Driven Sizing Stands
(3) Idle Side Rolls
(1) Straightener, Turkshead 4-Roll

  MILL DRIVE
(2) 40 HP AC Motors
(1) Control Panel
(1) ABB Drive Panel

*****   All Specifications are approximate   *****
