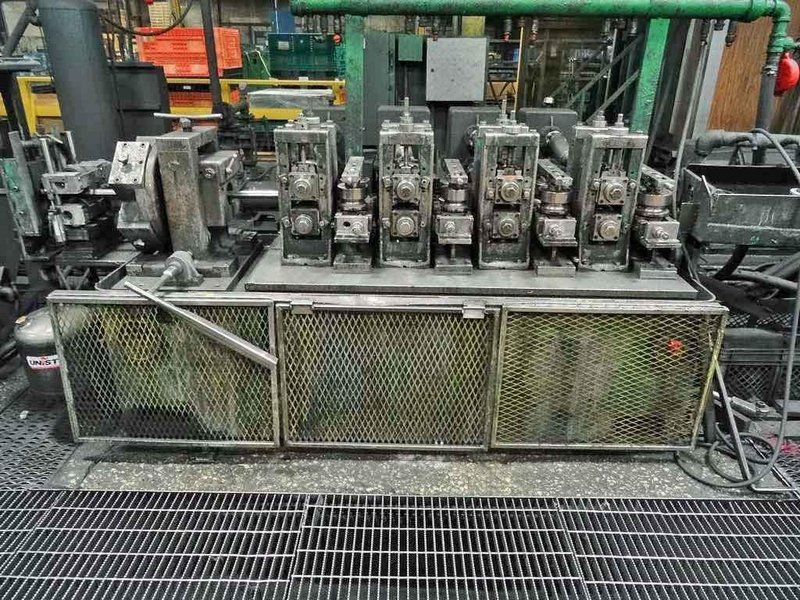

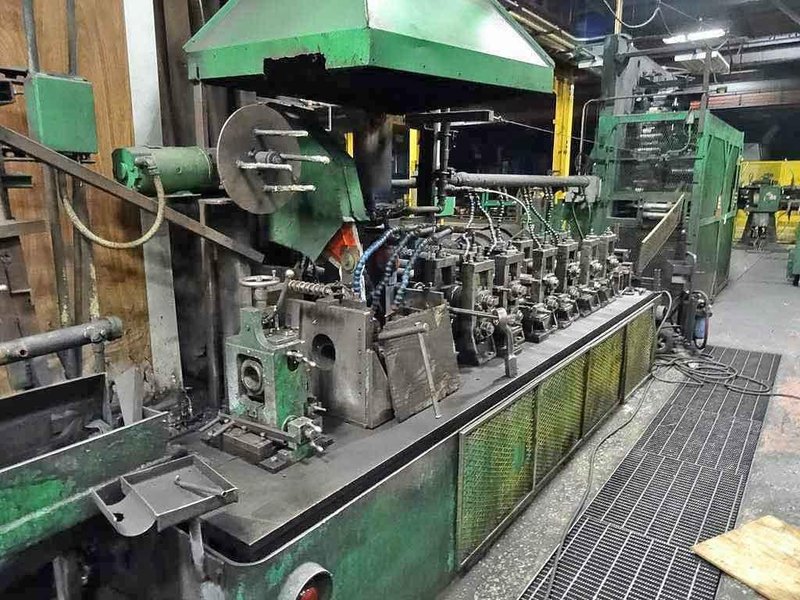

3.000" x 0.134" Yoder W20 Tube Mill

Name: 3.000" x 0.134" Yoder W20 Tube Mill
Brand: YODER
SKU: 2079
Availability: InStock

Brand

YODER

Location

Ohio

Specifications
Files & Videos

Tube Dia	3 inches
Max. Wall Thickness	.134 inches

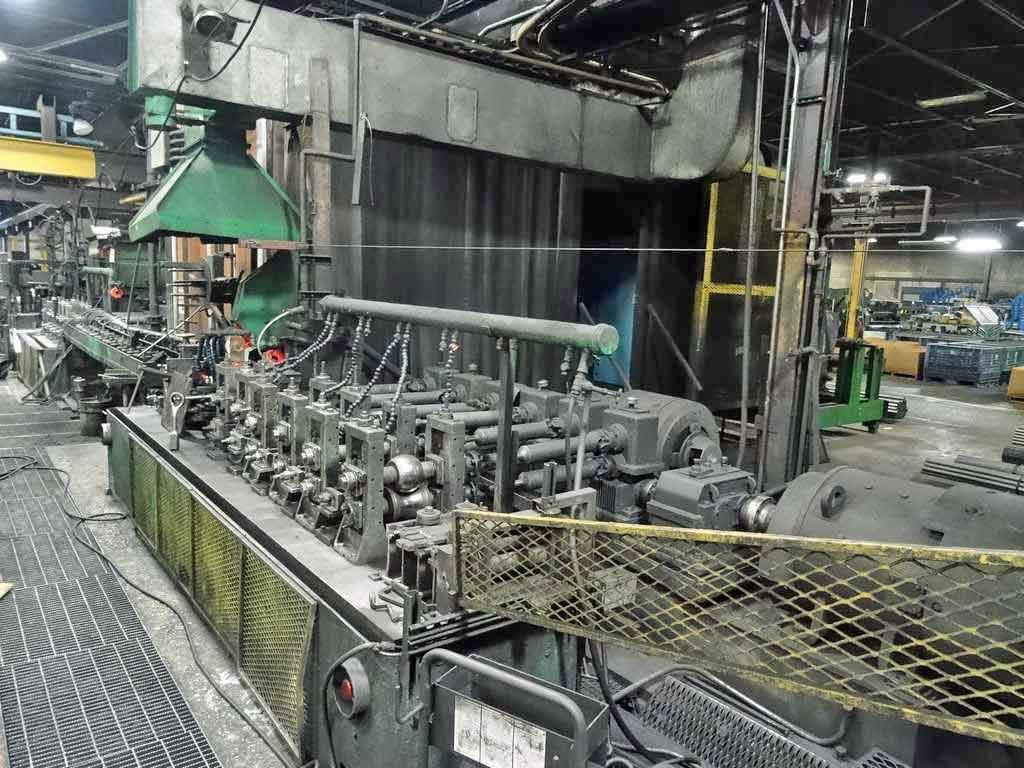

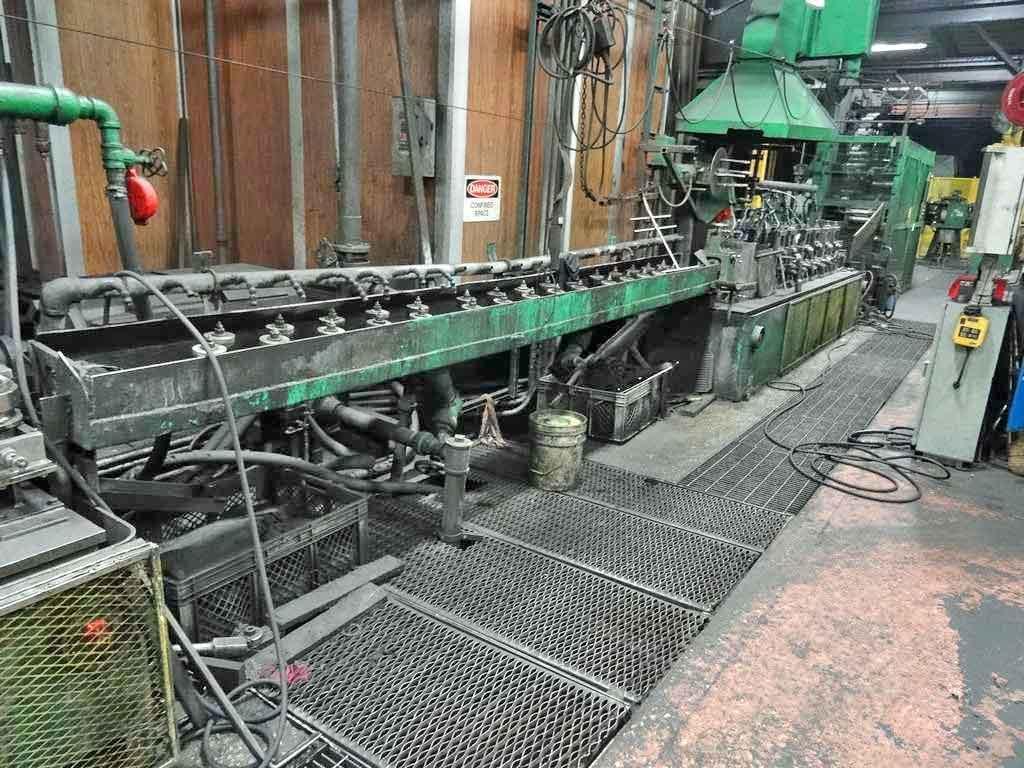

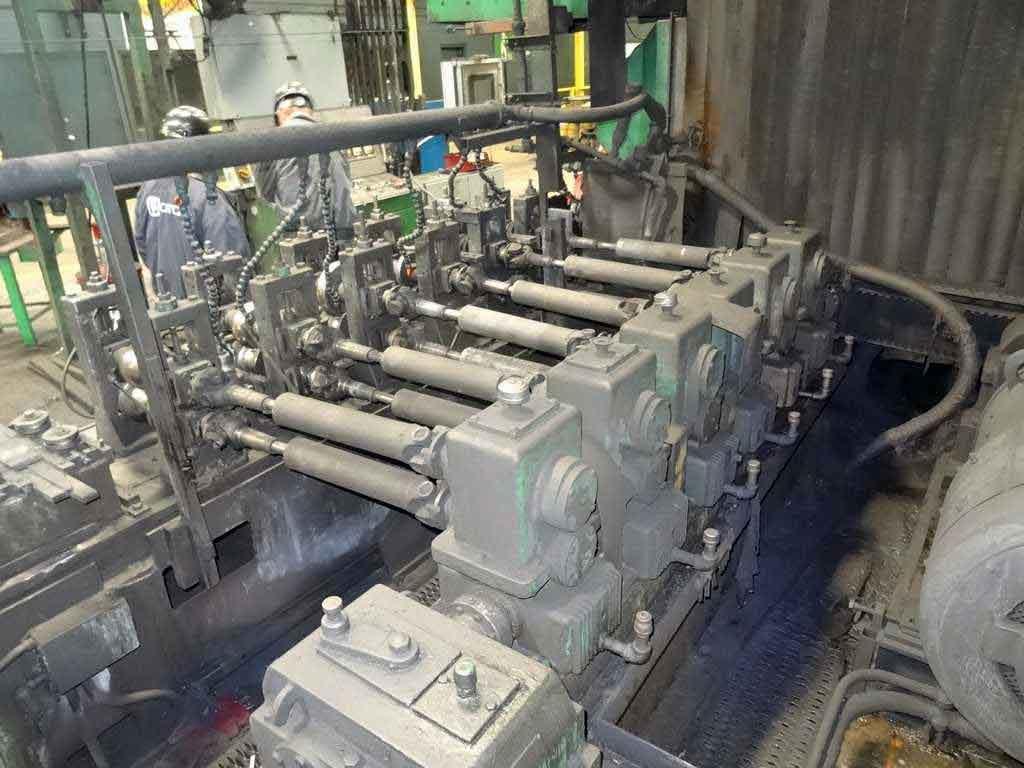

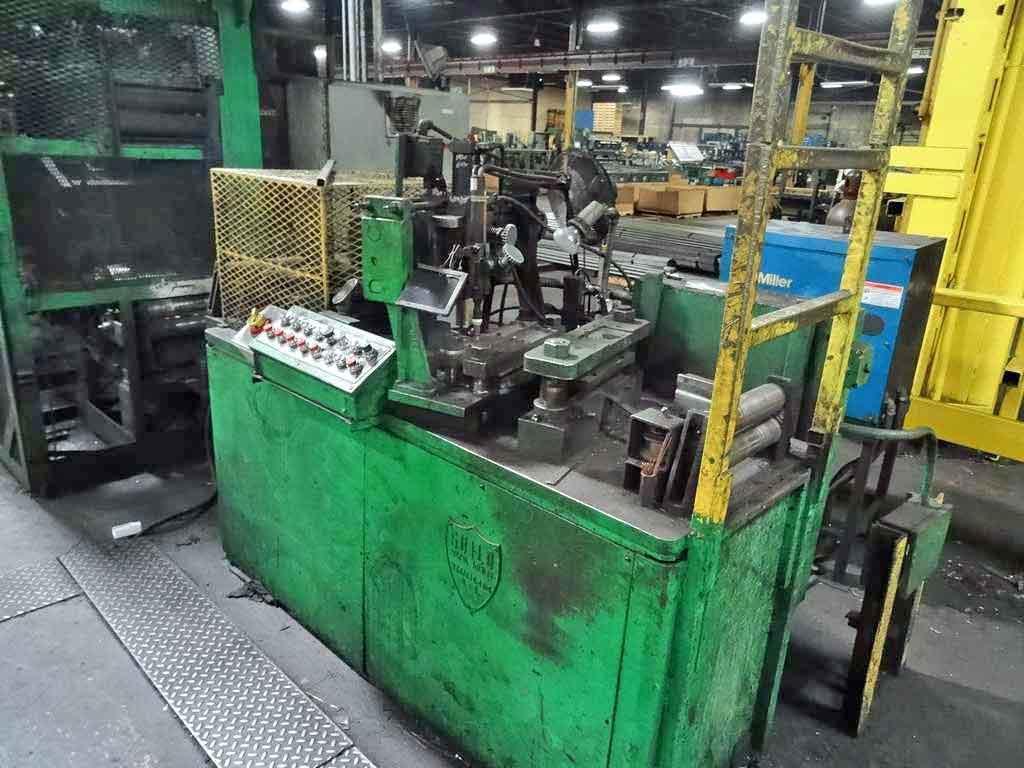

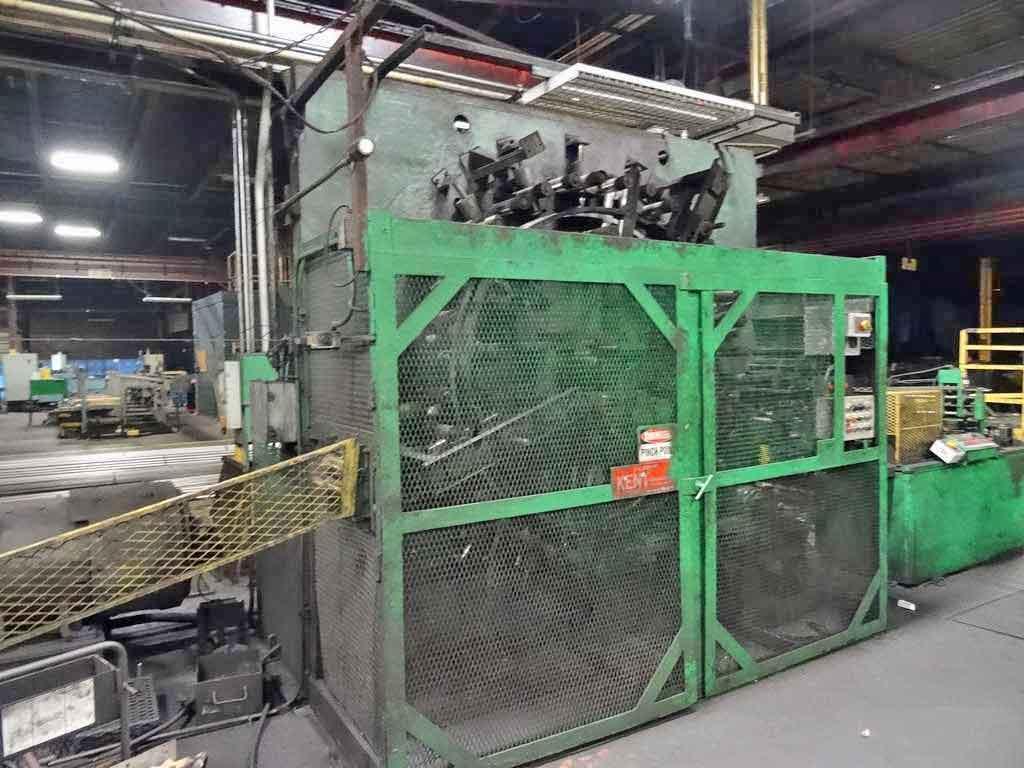

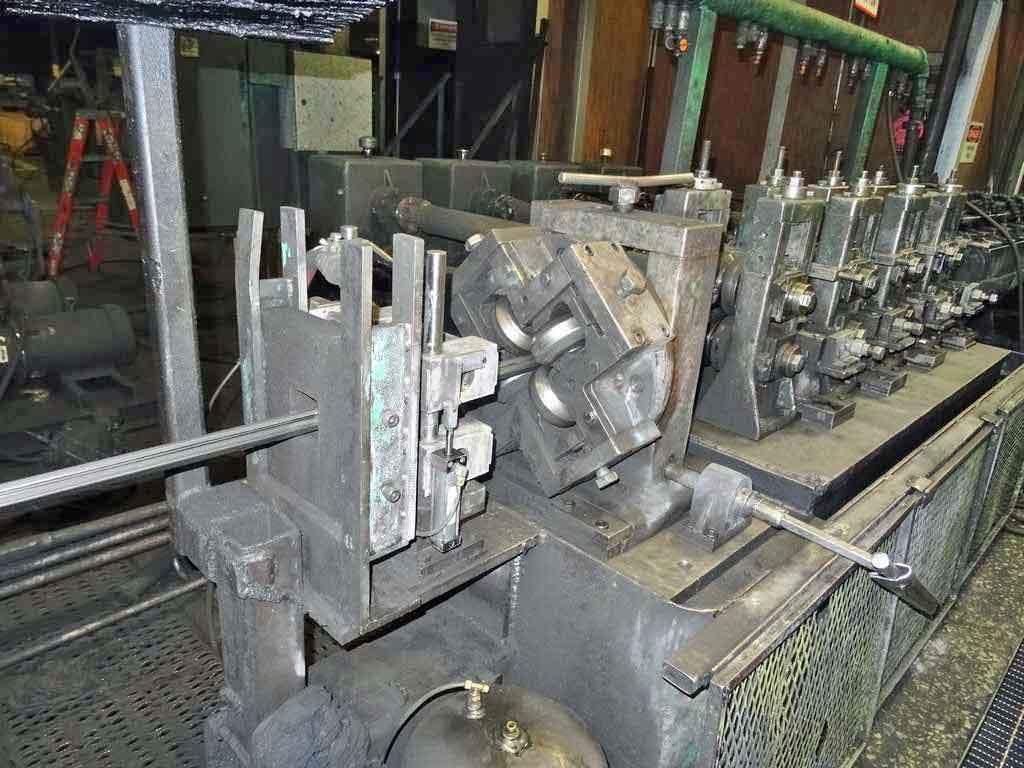

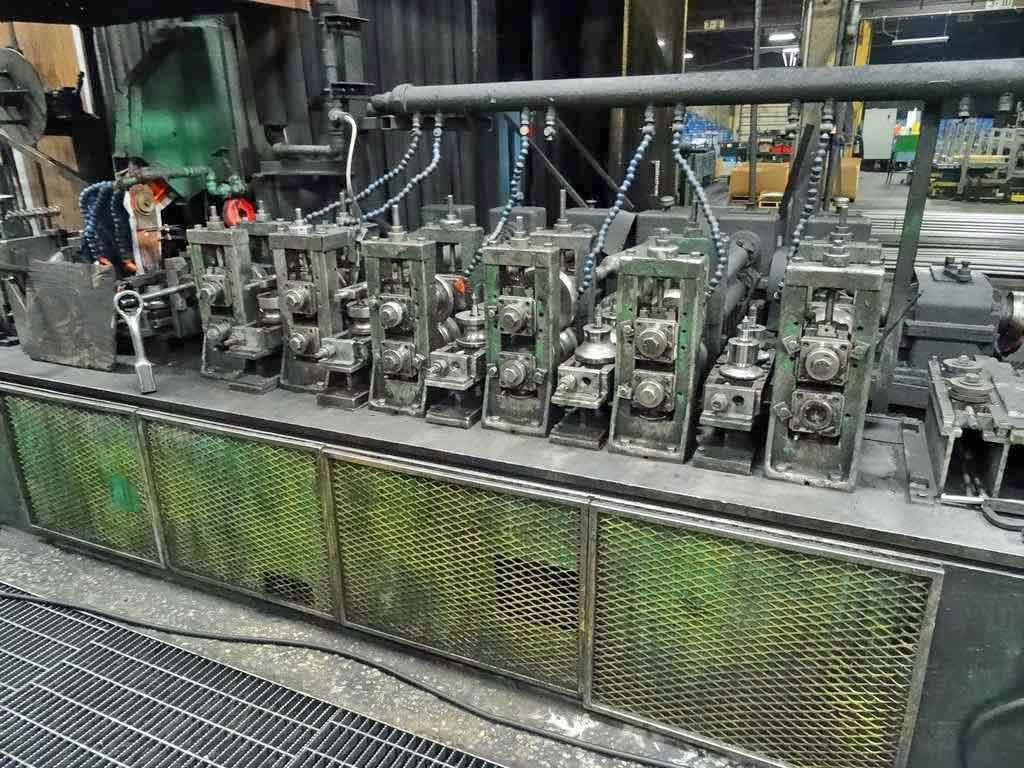

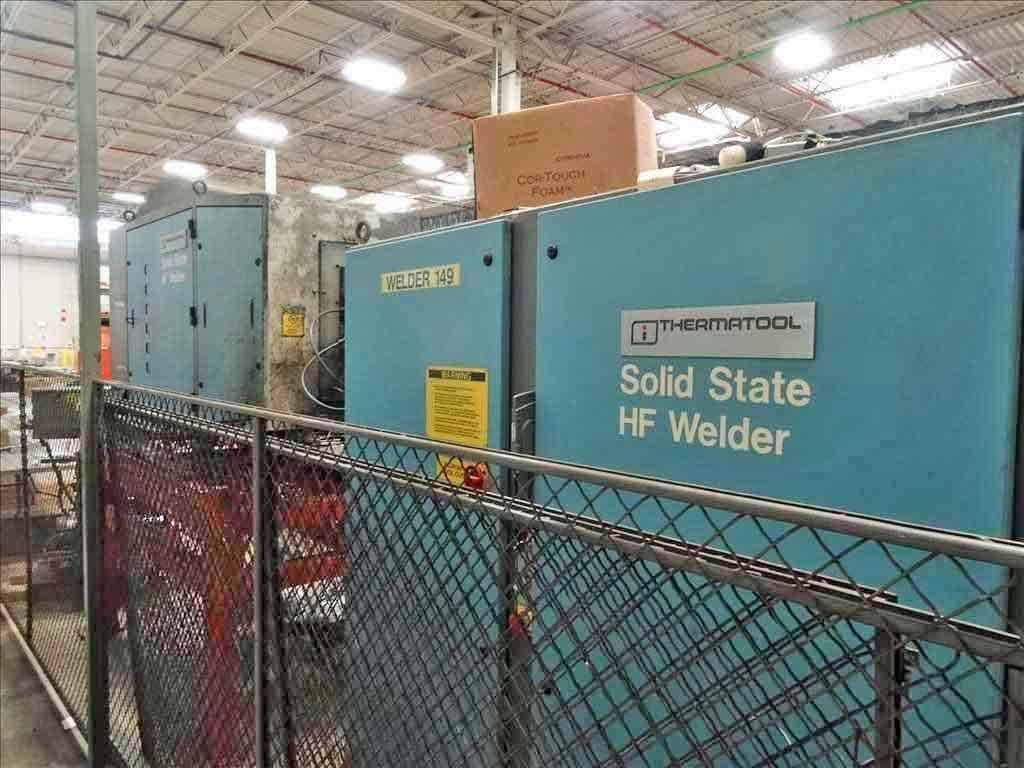

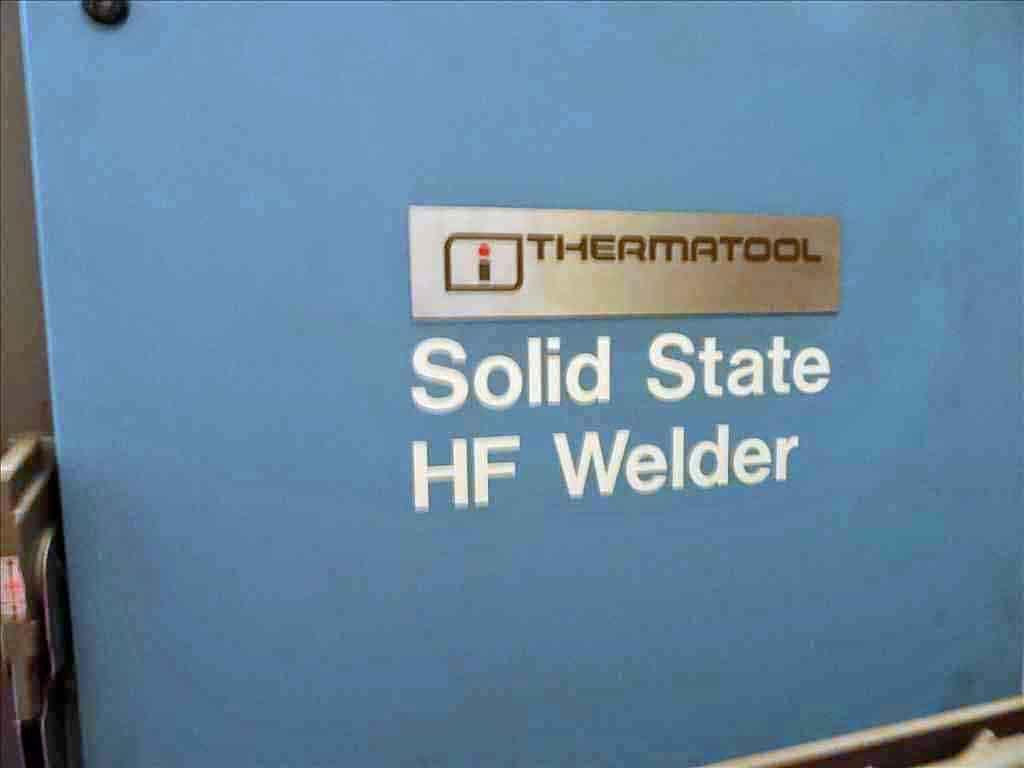

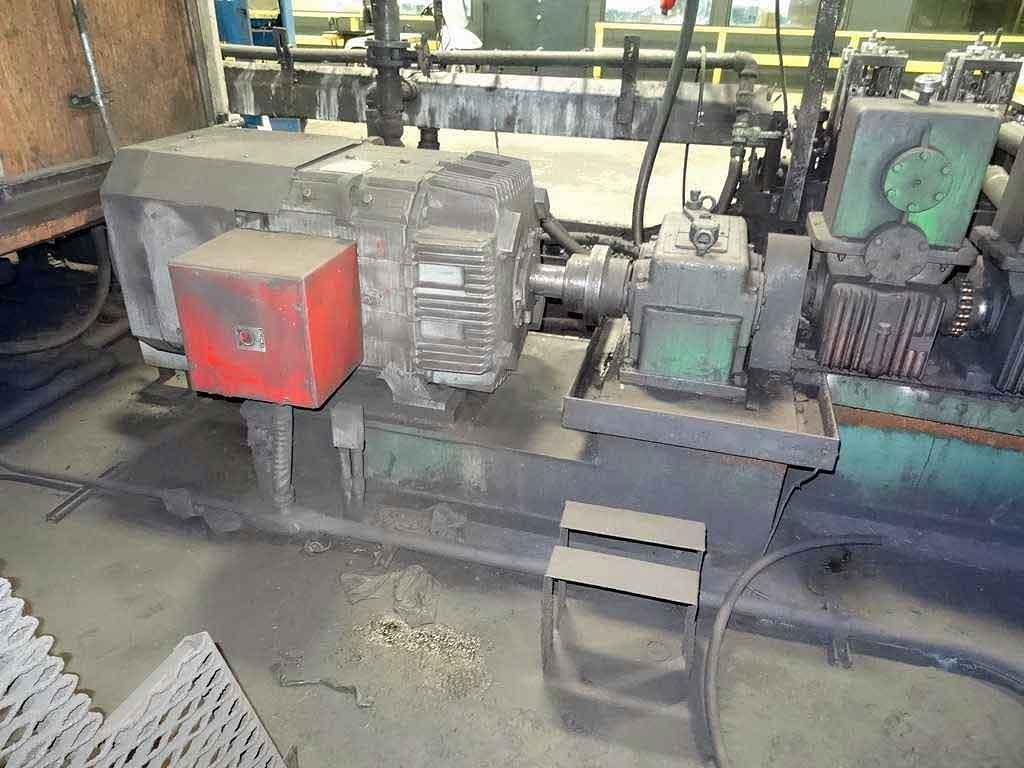

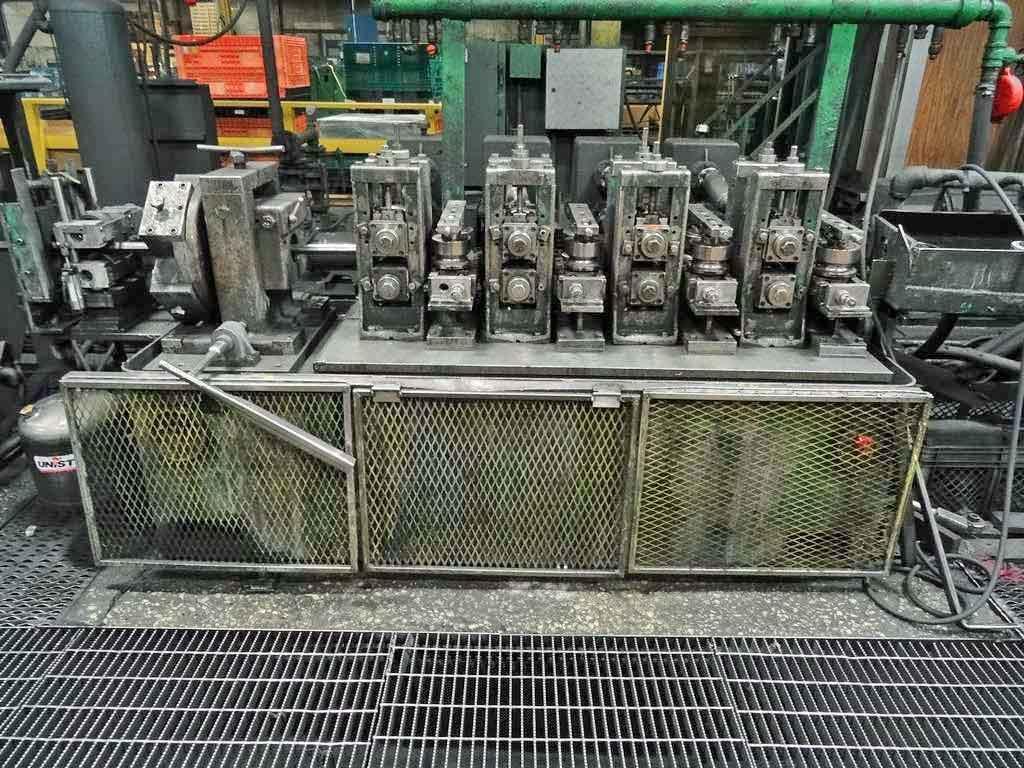

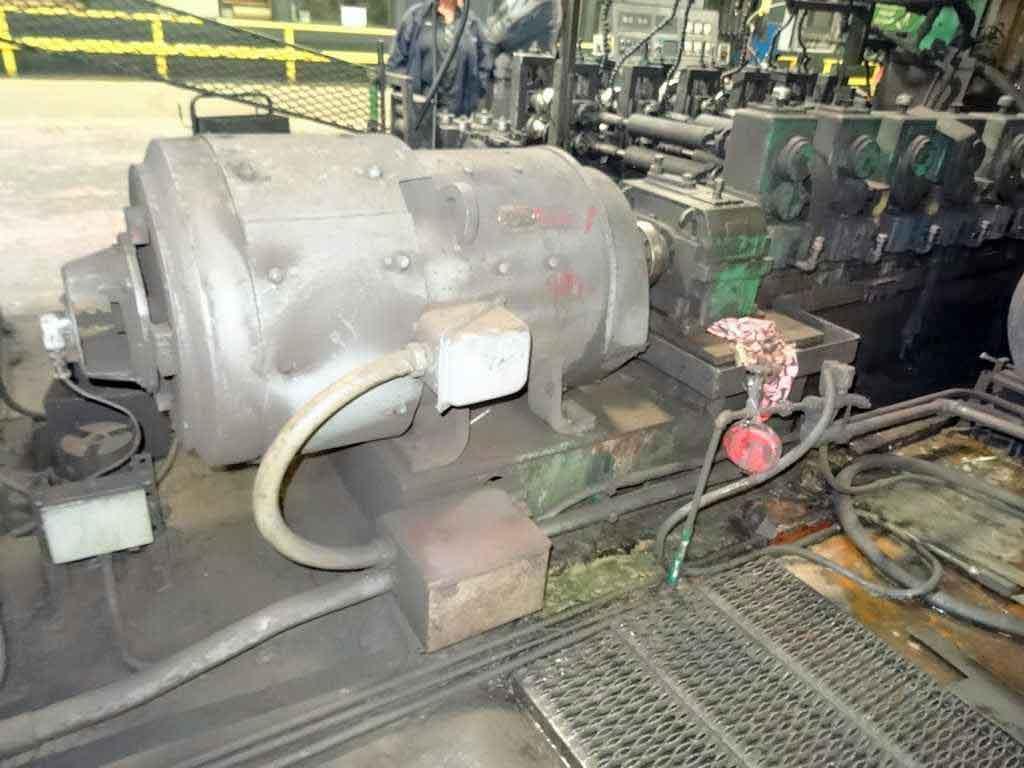

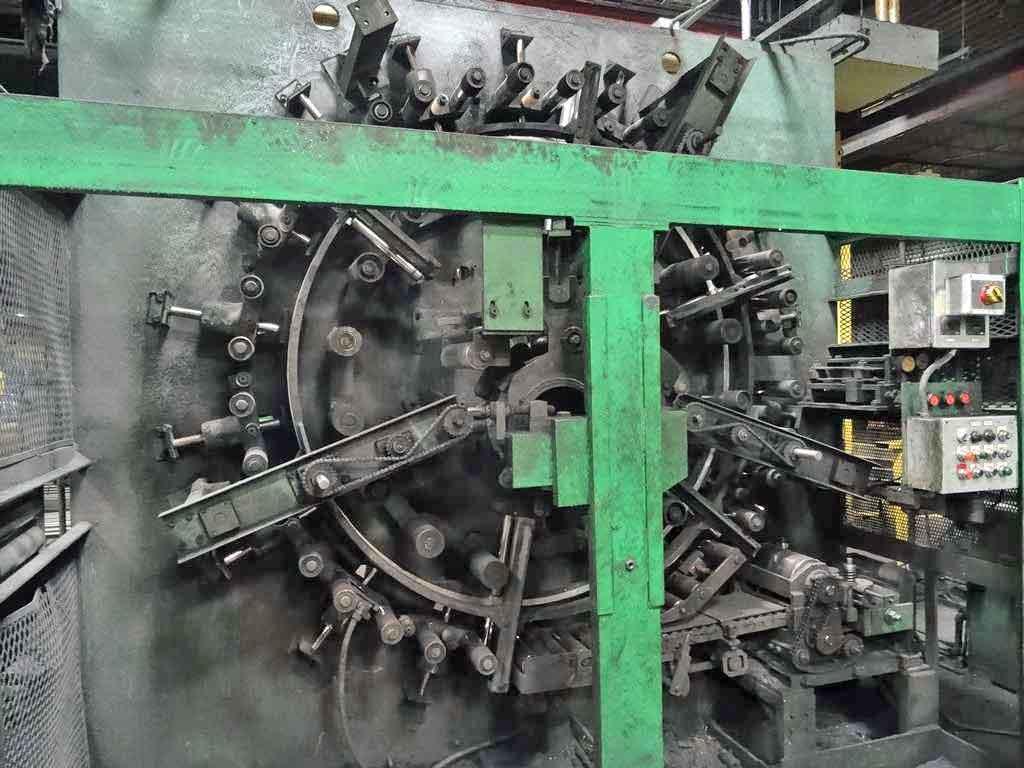

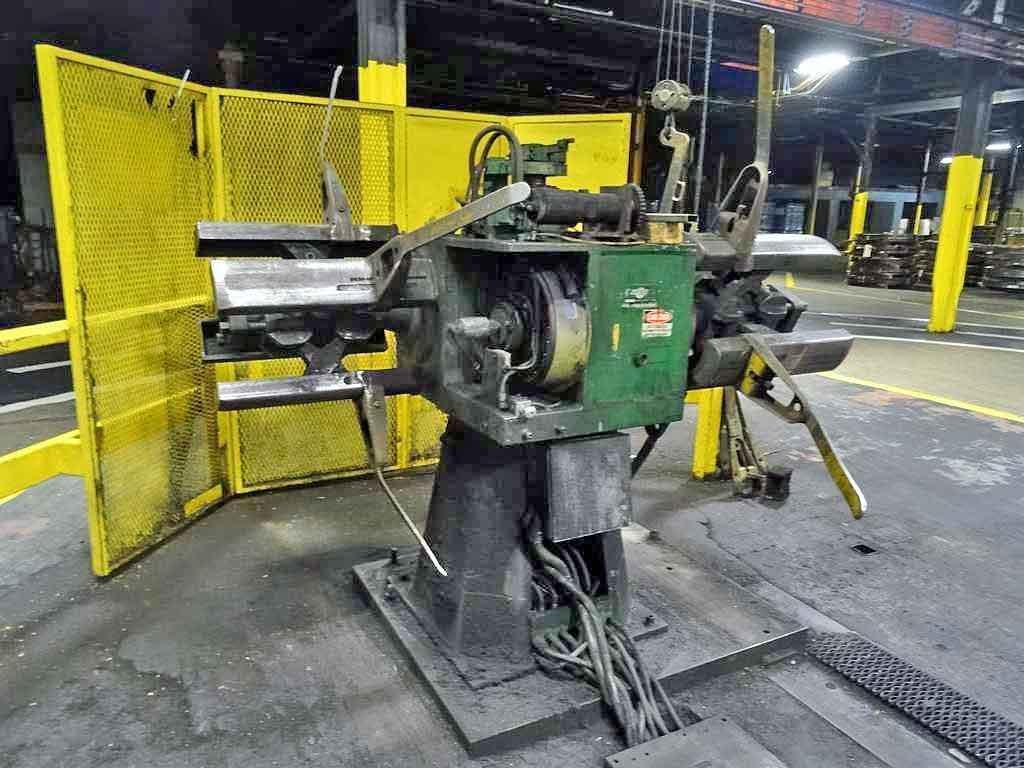

Line Direction: Right to Left Max. Tube Diameter: 3.00" (76.2mm) Min. Tube Diameter: 0.50" (12.7mm) Max. Wall Thickness: 0.134" (3.4mm) Min. Wall Thickness: 0.018" (0.45mm) Shaft Diameter: 2" (50.8mm) Roll Space: Stands 1-2: 10" (254mm) 3-4: 8" (203.2mm) 5-10: 4" (101.6mm) Line Speed: 130 - 300 FPM (39.6 MPM - 91.4 MPM) Consisting of the following: -Double End Uncoiler: Littell Model: 60-12 Serial Number: 800-0 6,000# x 12" Capacity Each Side Hydraulic Expansion: 19" - 24" Hydraulic Motor Feedup Fawick Air Brakes 72" O.D. Capacity Power Rotation -Guild Shear End Welder: Miller Syncrowave Power Source, Model 250 11" Max. Strip Width Hydraulic Shear & Clamps Motorized Tig Torch -Kent R-22 Vertical Floop: Year: 1978 Machine #UL 20 HP DC Motor, 1750 RPM, 500 V Disc Type Holding Brake -Yoder Forming Mill: Serial Number: Y-2708 Entry Table with Roller Guides & Trimming 3 Driven Breakdown Stands 5 Idle Side Rolls with Vertical Adjustment & Top Strap 3 Driven Fin Stands -Weld Area: Thermatool 3 Roll Pressure Unit Driven Chip Winder Seam Ironing Roll Scarfing Unit -Less Welder: -15' Coolant Trough -Yoder Sizing Mill: 4 Driven Sizing Stands 4 Idle Side Rolls with Vertical Adjustment & Top Straps 2 Turks Heads - One Double And One Single Sided (1) Yoder and (1) Loopco included Measuring Wheel -Alpha Cutoff: Model: MD-25-135-300 Serial No.: 99 Max. Speed: 300 FPM Single Downcut Design Tallyrand Length Control -Tube Runout Table: 25' L 6 Chain Delivery Legs All Chain Conveyor Powered Legs are adjustable for Tube length -Gorbel Overhead Lift Assembly: Includes Trolley and End Trucks Hydraulic Cylinder Lift 250 lbs. Magnet Pickup -Hydraulic Power Units to operate entire line -Coolant Filtration Unit with Storage Tank -Mill Drives: Forming Mill: (2) 50 HP Cutler-Hammer DC Motors, 850/2200 RPM, 500 V Sizing Mill: (1) 75 HP Reliance DC Motor, 850/2200 RPM, 500 V Motors have 2 Speed Reducers that are Direct Drive Connected -Main Operators Desk: -Misc. Tooling Included: -Less Electrics.
