30" x 7.00" x 20,000# Chicago Slitting Line

30" x 7.00" x 20,000# Chicago Slitting Line

Name: 30" x 7.00" x 20,000# Chicago Slitting Line
Brand: CHICAGO
SKU: 2053
Availability: InStock

Brand

CHICAGO

Location

Ohio

Specifications
Files & Videos

Max Width Of Workpiece

30 inches

Used 30" x 20,000 Lb. Chicago "Loop Type" Slitting Line

Coil Width: 30" (31" Untrimmed)
Coil Weight: 20,000 Lb.
Coil I.D.: 16" - 20"
Coil O.D.: 60"

Line Direction: Right to Left

Consisting of:

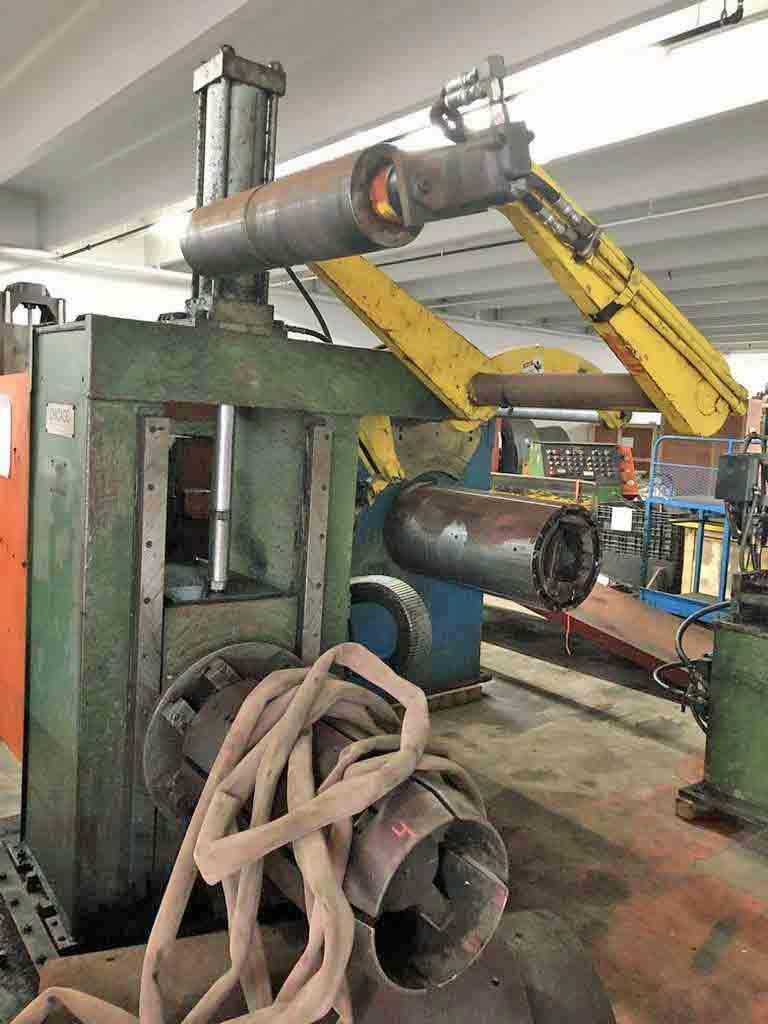

-Entry Coil Stand:

-Uncoiler:
Hydraulic Expansion, 16" - 20"
(4) Segment Mandrel
Sliding Base
Powered Holddown Roll
Threading Drive
Brake

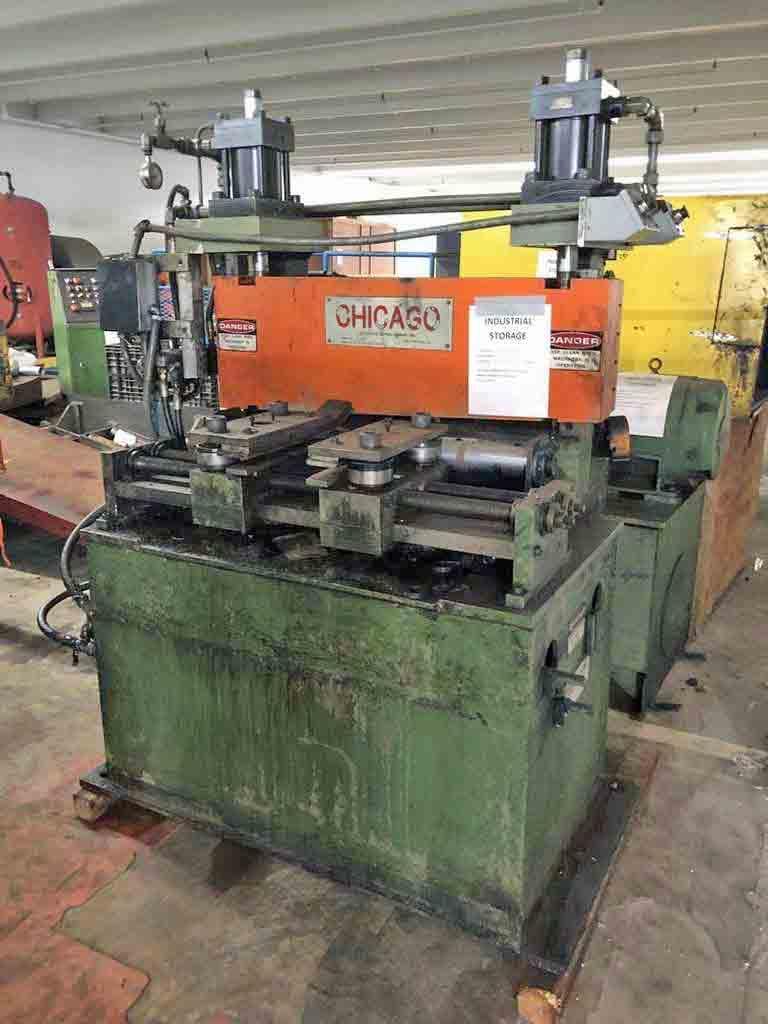

-Entry Table:
Peeler
Side Guides
Hydraulic Crop Shear
Driven Pinch Rolls

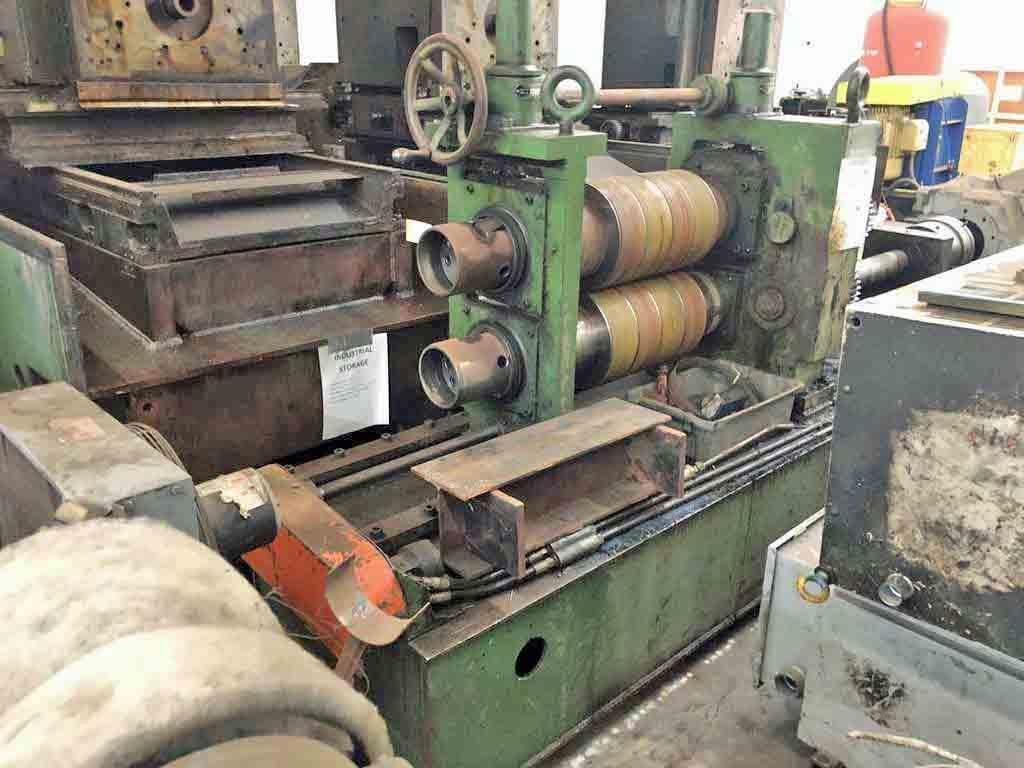

-Slitter Head:

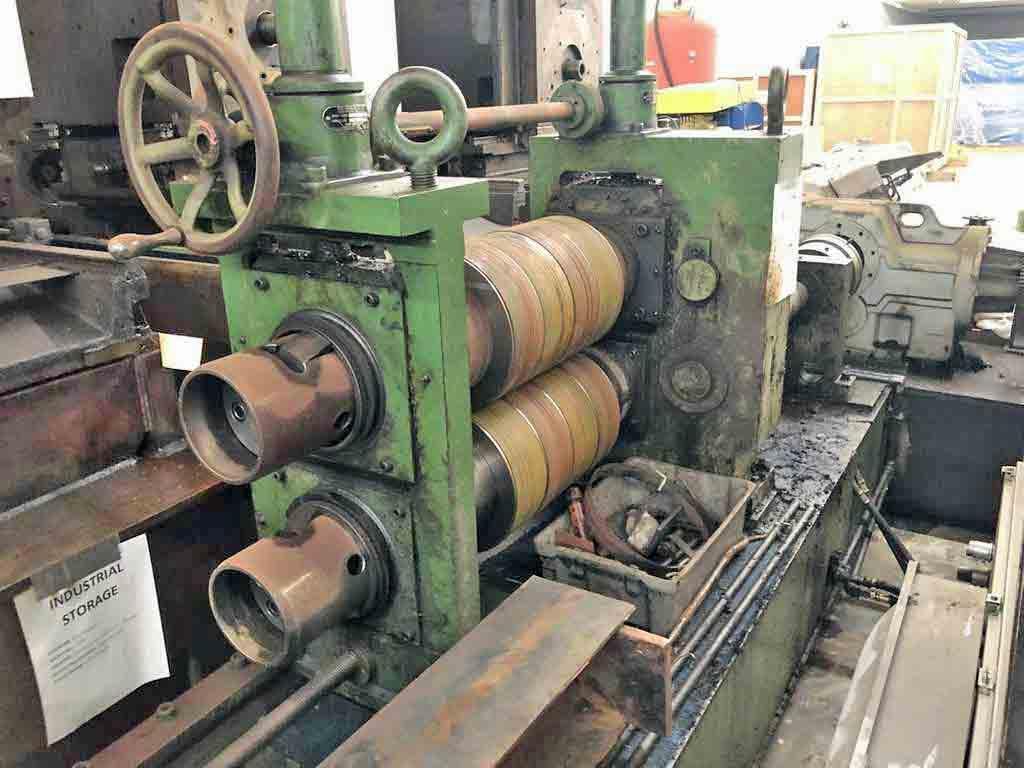

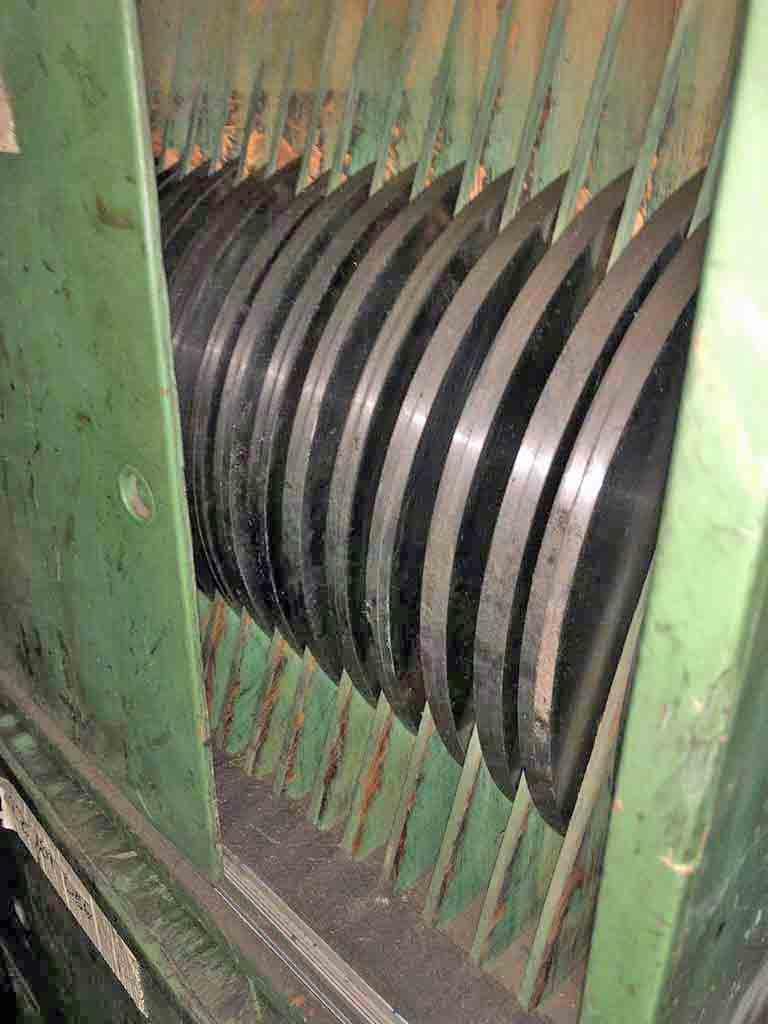

7" Dia. Arbors
Parallel Arbor Adjustment
75 HP Reliance DC Motor
850/1700 RPM, 500 V
Right Angle Gear Reducer

-Pit Table:
Hydraulic Cylinder Actuated

-Tension Stand:
Drag Board Type
Entry Separator Tooling Bar
Entry Passline Roll

-Scrap Baller:

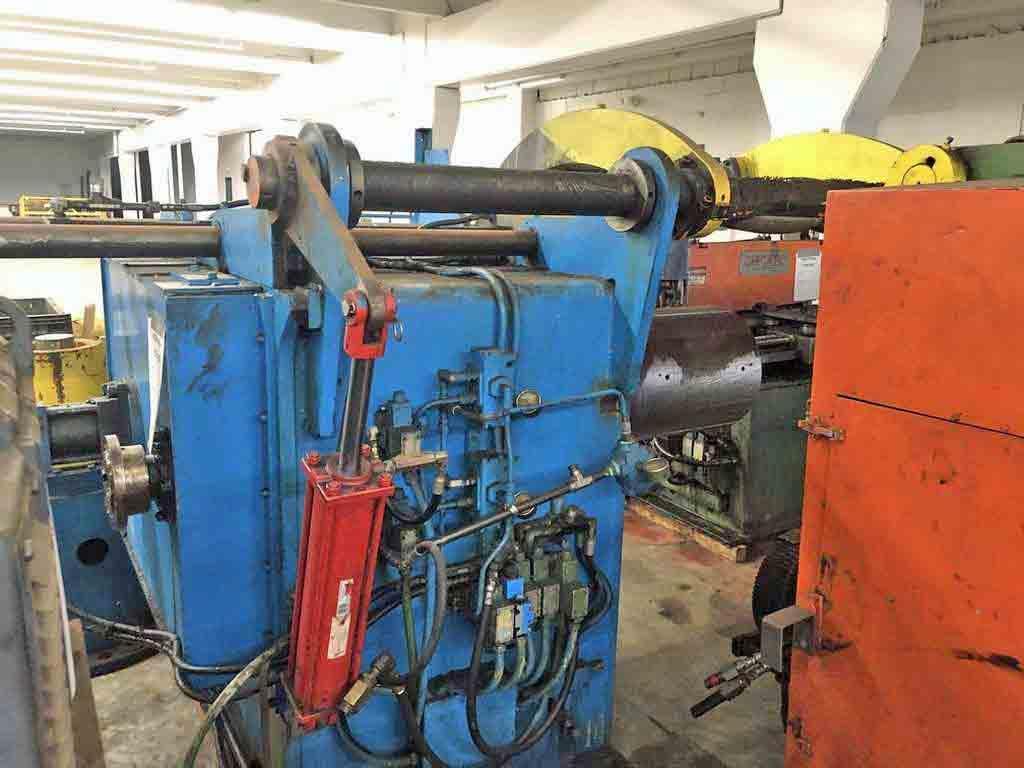

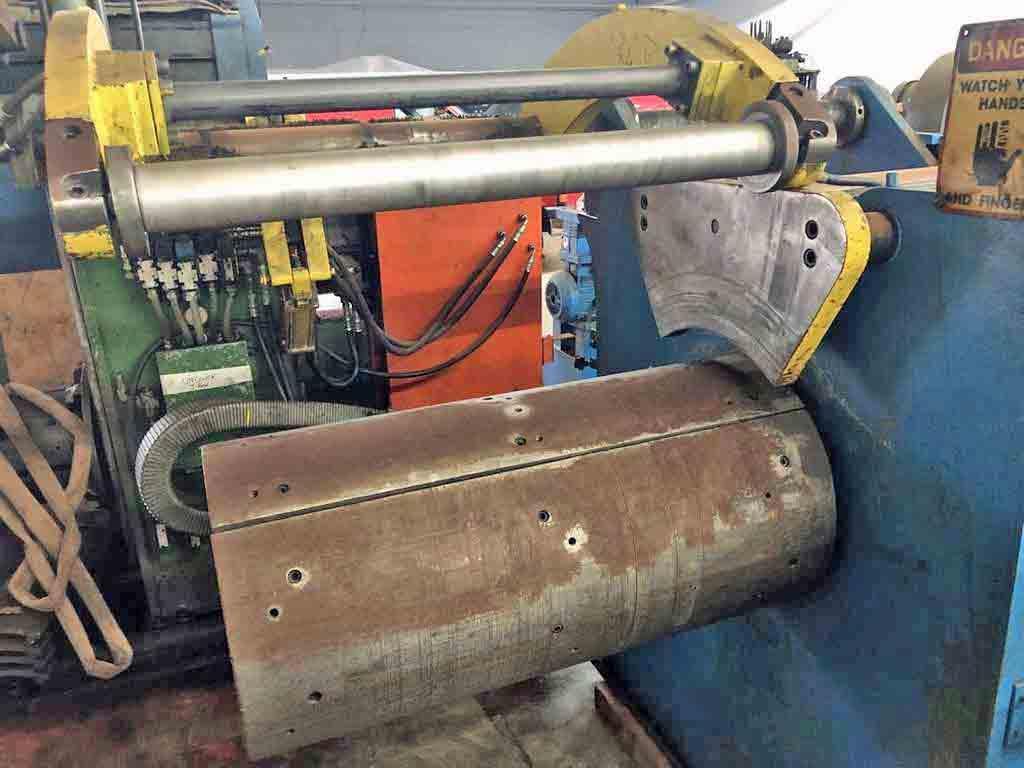

-Recoiler:
16" Dia. Drum
20" Dia. Bolt-on Pads
Hydraulic Clamp and Expansion
Hydraulic Pushoff
Overarm Separator
50 HP Reliance DC Motor
650/1950 RPM, 500 V
Right Angle Gear Reducer w/5.125:1 ratio
Drive-All Transmission w/1:1 and 2.091:1 ratios
Passline: 40" from Floor to center of Drum

-2 Arm Turnstile:
Manual Rotation

-Operators Control Panel:

-Hydraulic Power Unit:
40 HP Reliance AC Motor
1770 RPM, 230/460 V

-Slitter Tooling:

-Electrical Cabinets:

-Removed and in Storage
