MACHINE# 11955

SPECIFICATIONS:

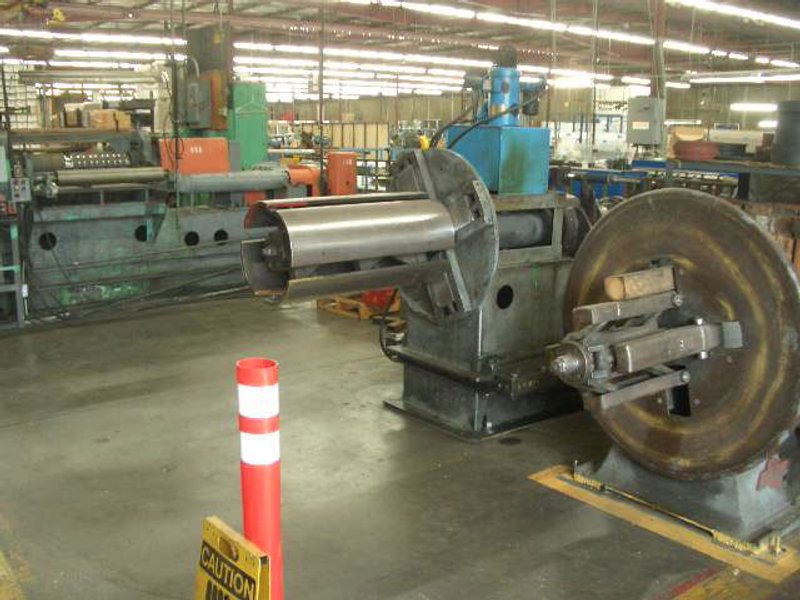

DUAL PAYOFF:

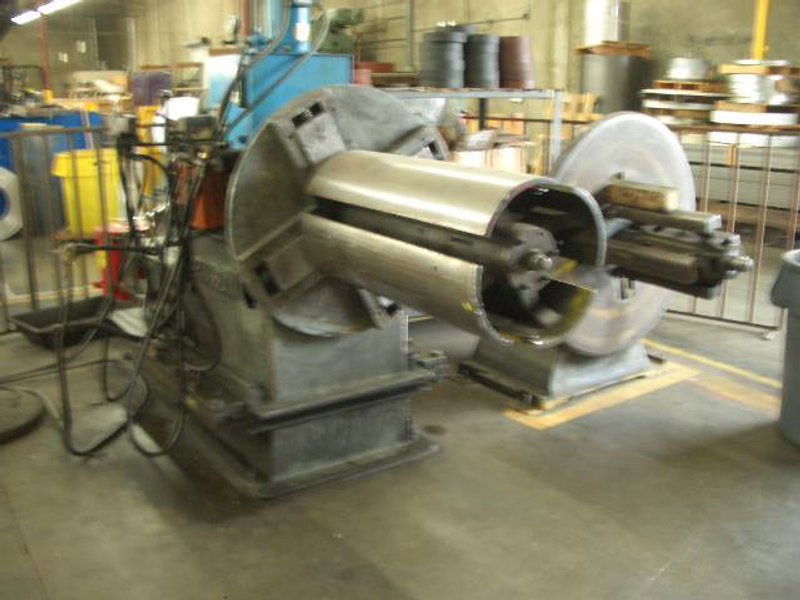

PAYOFF No. 1:
MANUFACTURER: PAXSON MACHINE CO.-USA
CAPACITY: 10,000 LB. (4536 KG)
I.D. RANGE: 14"- 20" (356mm-508mm)
WIDTH: 36" (915mm)
TYPE: EXPANDING MANDREL
TYPE EXPANSION: HYDRAULIC
COIL I.D.: 36" (915mm) MAXIMUM
SLIDING BASE: HYDRAULIC
BRAKE FOR BACK TENSION: HYDRAULIC
FEED UP DRIVE MOTOR: 3 PH, 208-230/460 VOLT, 1725 RPM,
8.5-8.2/4.1 AMP, 3 PH., 60 HZ
HYDRAULICS: VICKERS MODEL TK10VP-V30F-M

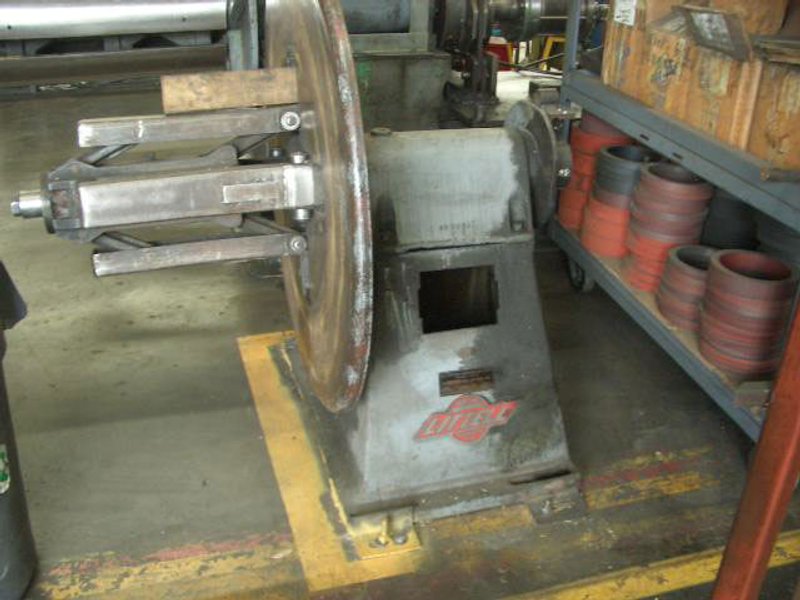

PAYOFF No. 2:
MANUFACTURER: LITTELL
MODEL: 18-22-18
COIL WEIGHT: 2500 LB. (1134 KG) MAXIMUM
I.D. RANGE: 18"-22" (458mm-560mm)
WIDTH: 15" (381mm)
TYPE: NON-DRIVEN

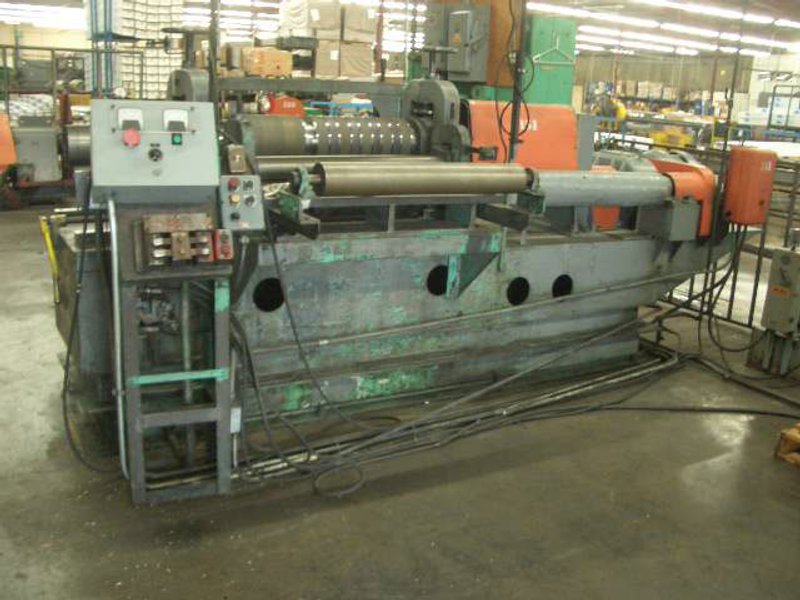

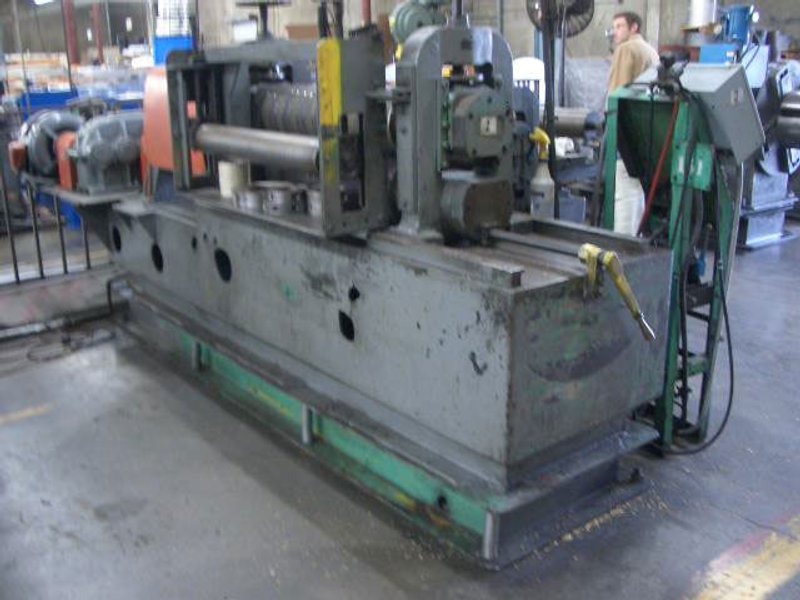

SLITTERHEAD:
ARBOR DIAMETER: 4 1/4" (108mm)
ARBOR WIDTH: 38" (965mm)
ENTRY BILLY ROLL: 5" (127mm) DIA. x 36" (915mm)
TYPE: NON-DRIVEN
PINCH ROLLS: 4" (102mm) DIA. x 38" (965mm)
DRIVEN OFF ARBOR DRIVE MOTOR
ARBOR RETRACTION FOR TOOL CHANGE: MANUAL
DUAL HAND WHEEL ADJUSTMENT
DRIVE MOTOR: 20 HP, 220/440 VOLT, 1750 RPM,
3 PH., 60 HZ

GEARBOX: 14 HP RATING, 1750 RPM, 3 PH.,
60 HZ, RATIO 31/1
KNIFE SIZE: 4 1/4" (108mm) I.D. x 9 3/4" (248mm) O.D.
RUBBER SPACERS

RECOILER:
TYPE: PULL-THROUGH EXPANDING MANDREL
MANDREL I.D.: 15 1/2"- 16" (394mm_407mm)
MANDREL WIDTH: 36" (915mm)
EXPANSION: MANUAL
COIL PUSH-OFF: HYDRAULIC
DRIVE MOTOR: 50 HP, 1750-2100 RPM, 500 VOLT,
83.5 AMP, DC VARIABLE SPEED BY RELIANCE
GEARBOX RATIO: 4 TO 1

ELECTRONICS ON RECOILER DRIVE
MANUFACTURER: BARDAC ELECTRONICS-USA
TYPE: SCR THYRISTOR DC CONTROL

SCRAP WINDER:
TYPE: DRIVEN

FLOOR SPACE: 60 FT. (182m) x 15 1/2 FT. (4.725m)

EQUIPPED WITH TWO SETS OF KNIVES AND SPACERS.

**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**

**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION BY PURCHASER**
