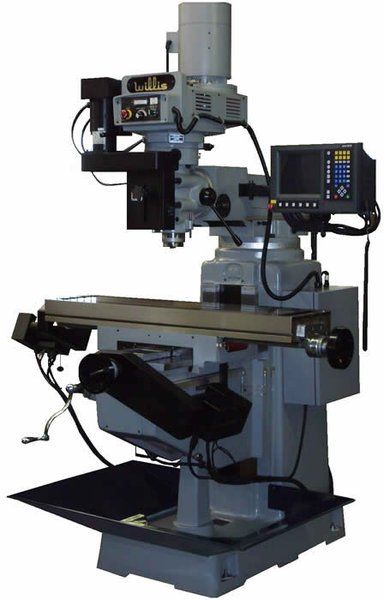

WILLIS CNC VERTICAL MILLING MACHINE

MODEL: 1250II-3MP

FACTORY SPECIFICATIONS

Table Size: 12" x 50"
Longitudinal Travel: 32"
Cross Travel: 17"
Maximum Weight Of Work Piece On Table: 1100 Lbs.
Vertical Knee Travel: 18"
Ram Travel: 24"
Ram Swivel: 360 Degrees
Quill Diameter: 4-1/8"
Quill Travel: 5"
Spindle Speeds, Infinitely Variable: 60 -4200 RPM
Spindle Taper: 40 Taper
Head Tilting, Left To Right: 90-0-90 Degrees
Head Tilting, Front To Back: Fixed
Spindle Nose To Table: 2" Minimum, 20" Maximum

EQUIPPED WITH

5 HP Spindle Motor
Acu-Rite Millpower 3-Axis CNC Control w/3-Axis DRO (Linear Scale On Z)

Approximate Weight: 3700 Lbs.

F.O.B. Toledo, Ohio

FACTORY SPECIFICATIONS SUBJECT TO CHANGE AND/OR MODIFICATION
