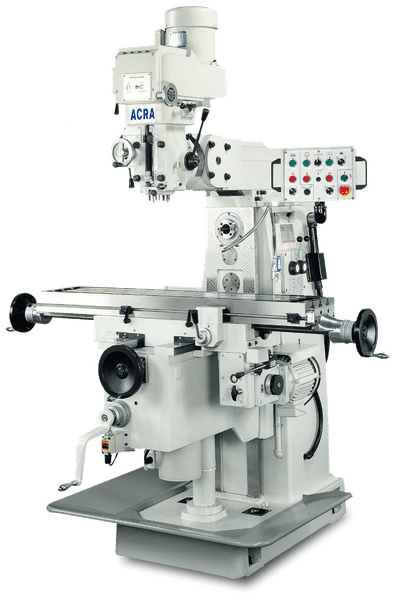

ACRA MODEL LC-25VH VERTICAL & HORIZONTAL VARIABLE SPEED MILLING MACHINE

• Castings made from genuine Meehanite.
• Box Knee Ways are Hardened and Ground.
• Box Column Ways.
• Double Box-type Turcite Coated Saddle Ways.
• Double Table and Knee Locks.
• Spring Loaded Handwheels for Safety.
• Precision Hardened and Ground Table.
• All Controls Located on Easily Positioned Control Pendant.

Specifications:
Table Size                                      10″ x 56″
X Axis Travel:                                  36″
Y Axis Travel:                                  16-1/2″
Z Axis Travel (Quill):                        5″
Ram Travel:                                    18-1/2″
Knee Travel:                                    17-1/2″
Throat Distance:                             12-13/16″ ~ 30-11/16″
Spindle Gauge Line to Table Top:   5-5/16″ ~ 23″
Vertical Spindle Taper:                    NT#40
Vertical Speed (Variable Speed):     60 – 4,500 RPM
Quill Feed (IPR):                              0.0016”, 0.003”, 0.006”
Vertical Spindle Taper:                    NT#40
Horizontal Speed (6 Speeds):         80 – 1 ,350 RPM
Horizontal Spindle Center to Table: 0″ ~ 17-3/8″
Horizontal Spindle Center to Overarm: 5-1/2″
Horizontal Spindle Nose to Table: 5-5/16″~ 23″
Head Tilt (right-left):                       90 Degrees
Head Tilt (up-down):                       45 Degrees
Vertical Motor:                                 5 HP, 230/ 460V, 3 phase, 60Hz
Horizontal Motor:                            5 HP, 230/460V, 3 phase, 60Hz
Weight                                             4200 lbs

Standard Equipment:
Flood Coolant System with Splash Pan.
Longitudinal Power Feed with Rapid Traverse.
Rapid Knee Traverse.
Rear Rubber Way Cover.
1″ Diameter Horizontal Arbor.
Two Overarm Supports.
One Shot Lubrication System.
Dual Cooling Fans.
Emergency Stop.
