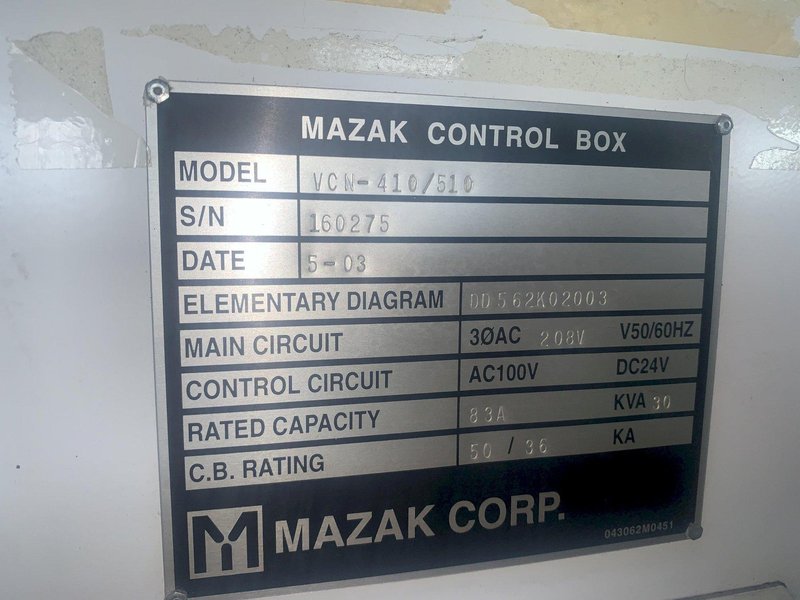

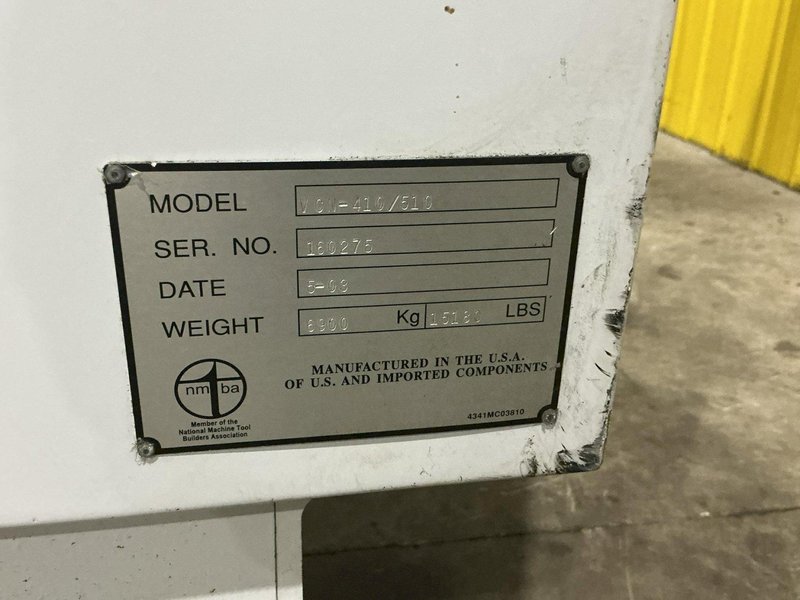

SERIAL ....................................... 160275

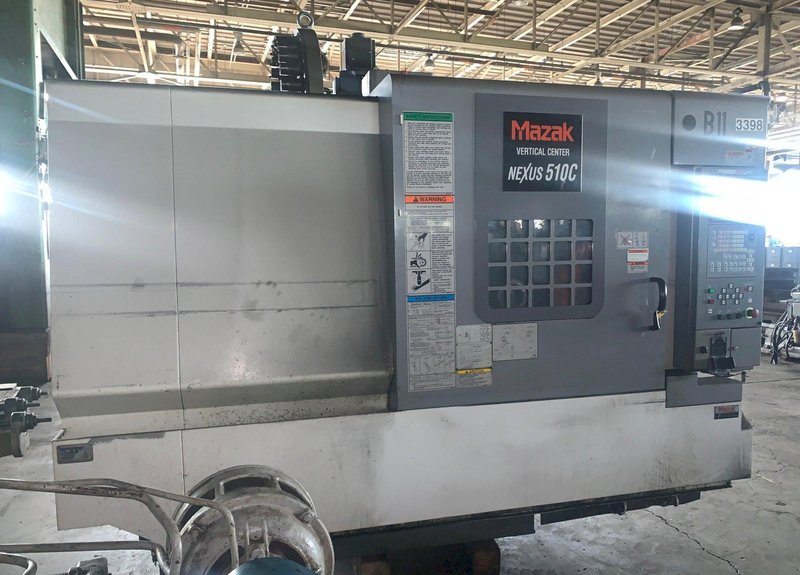

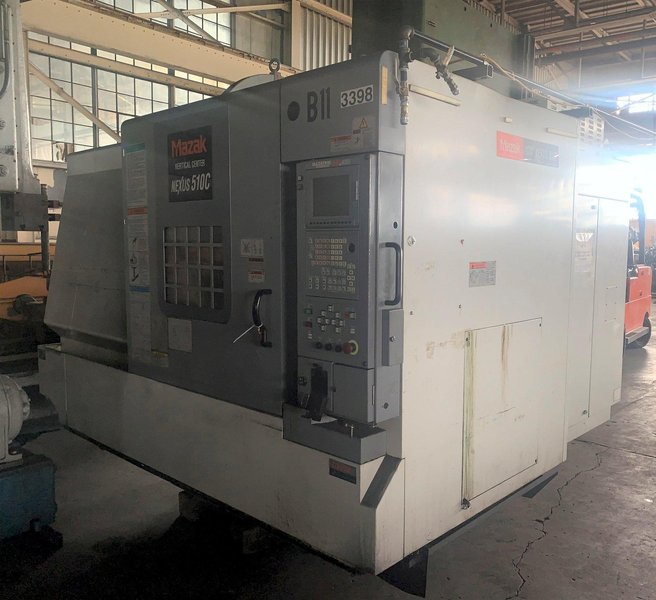

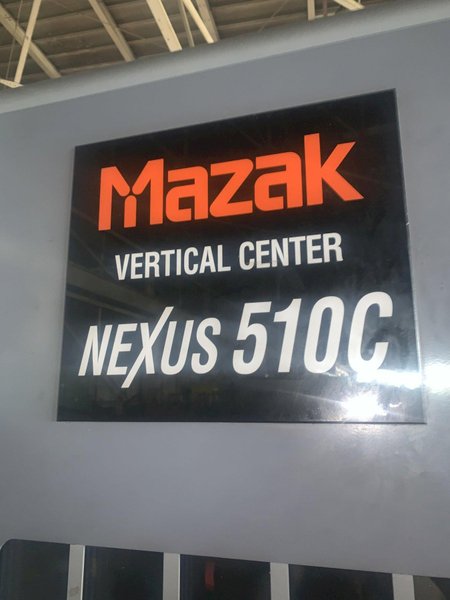

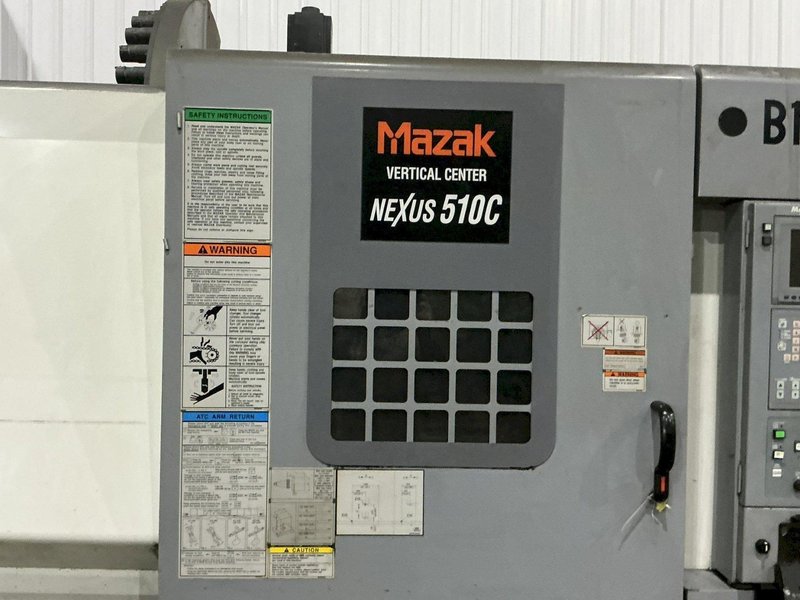

MODEL ........................................ VCN-410/510
YEAR ......................................... 2003

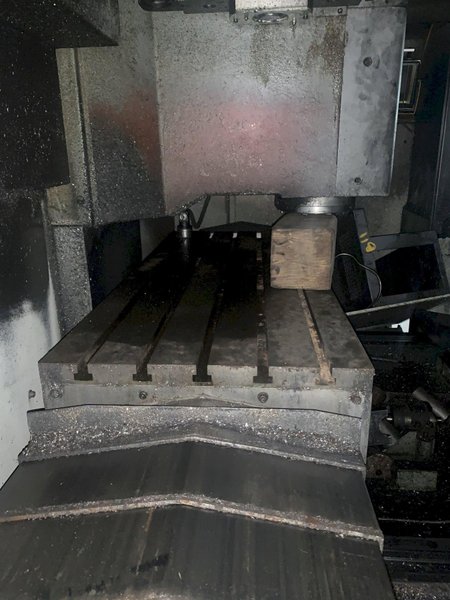

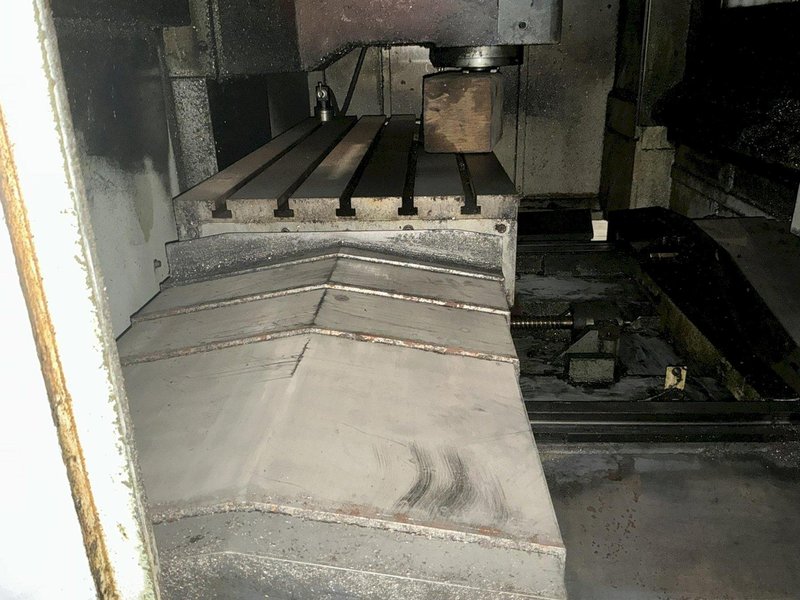

TABLE SIZE ................................... 51.18” x 21.65”
NUMBER OF T-SLOTS ............................ (3)
MAX TABLE LOAD CAPACITY....................... 2,640 (EVENLY DISTRIBUTED)

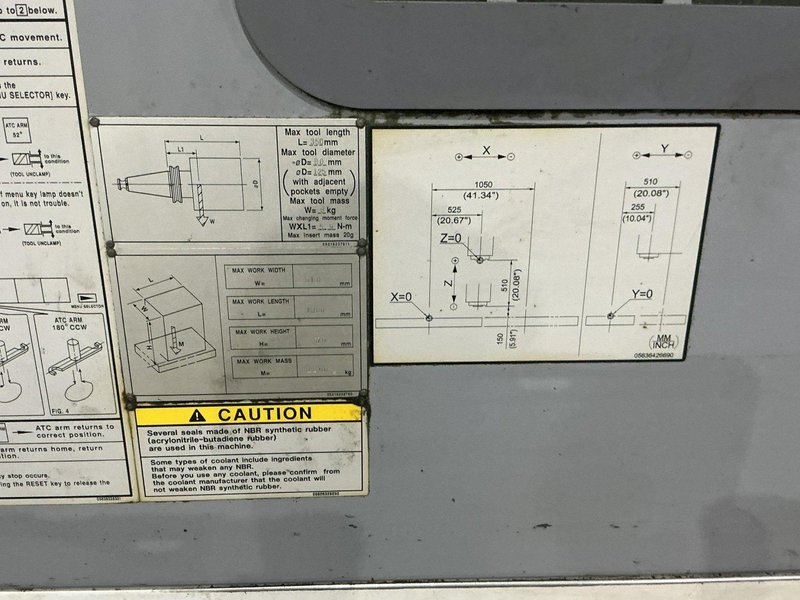

X AXIS TRAVEL ................................ 41.34”
Y AXIS TRAVEL ................................ 20.08”
Z AXIS TRAVEL ................................ 20.08’
DISTANCE (TABLE TOP TO SPINDLE NOSE) ......... 5.90"-25.98”
DISTANCE (COLUMN SURFACE TO SPINDLE CENTER) .. 22.67”
MAX SPINDLE SPEED ............................ 12,000 R.P.M.
SPINDLE TAPER ................................ Cat 40

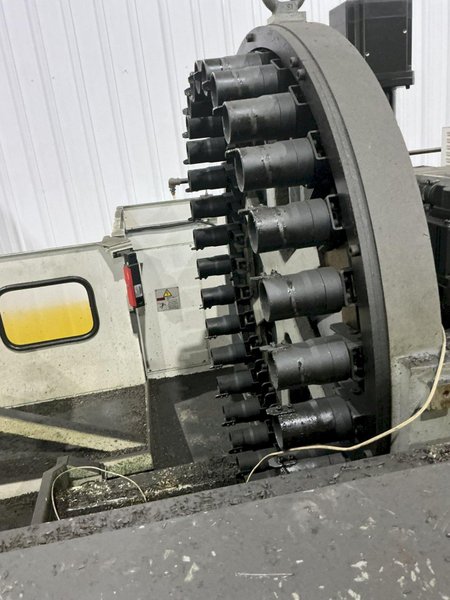

SIDE MOUNT TOOL CHANGER CPACITY .............. 30 TOOLS
MAX TOOL DIAMETER ............................ 3.15”
MAX TOOL LENGTH .............................. 13.78”
MAX TOOL WEIGHT .............................. 17.64 LBS

EQUIPPED WITH:

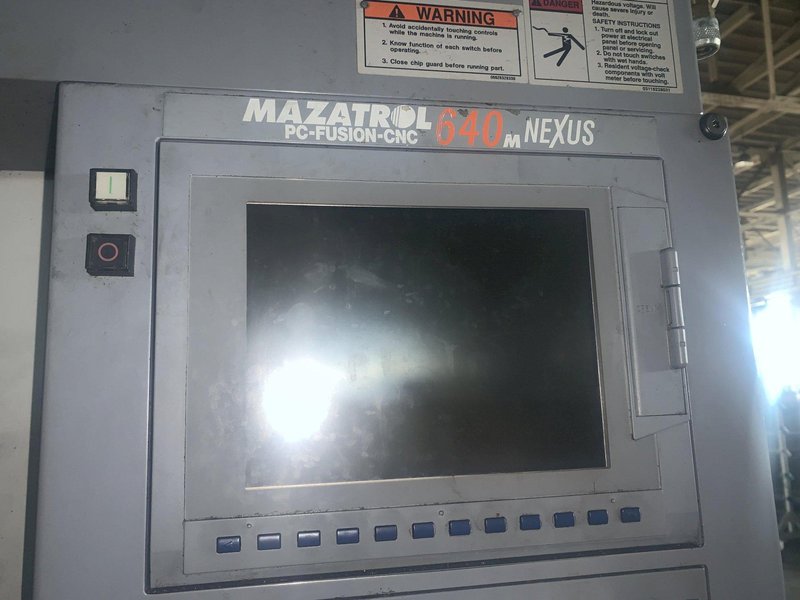

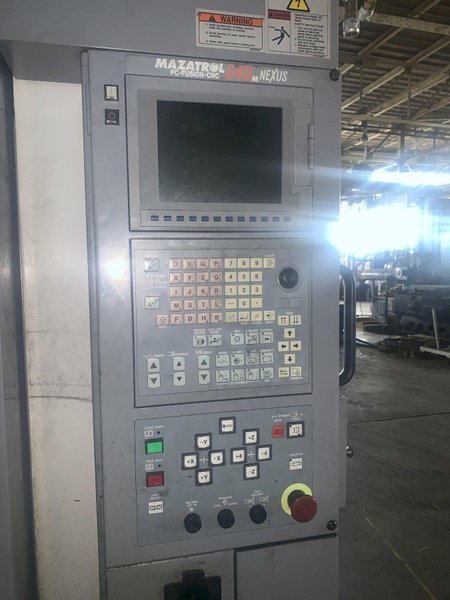

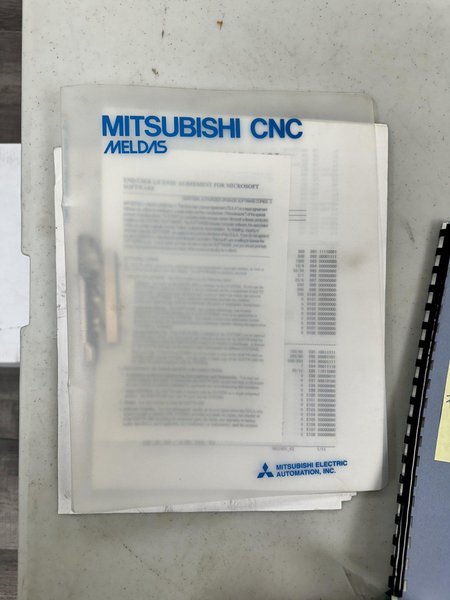

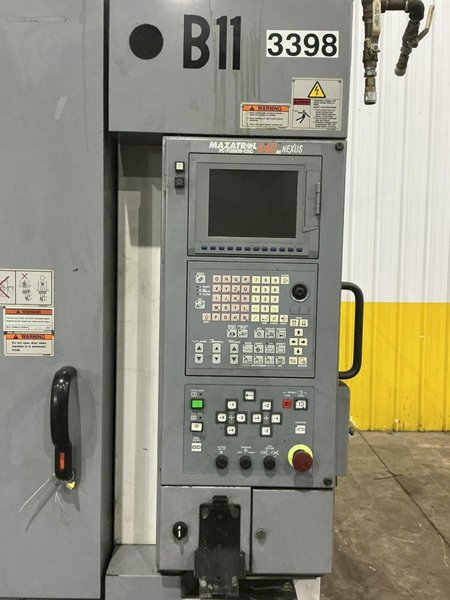

MAXATROL Fusion-CNC 640M NEXUS
“MPG” MANUAL PULSE GENERATOR

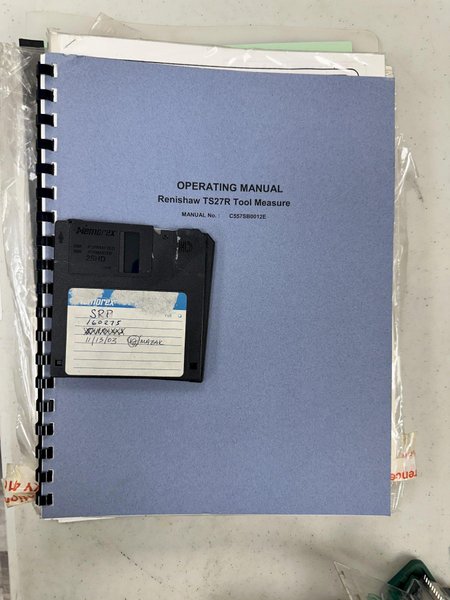

REINSHAW TOOL LENGTH / DIAMETER MEASUREMENT
WORK LIGHT

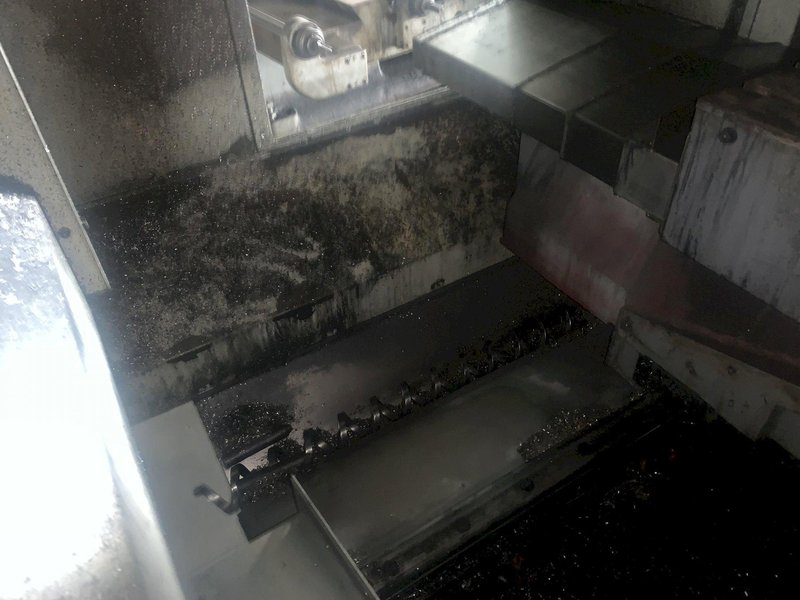

BELT TYPE CHIP CONVEYOR

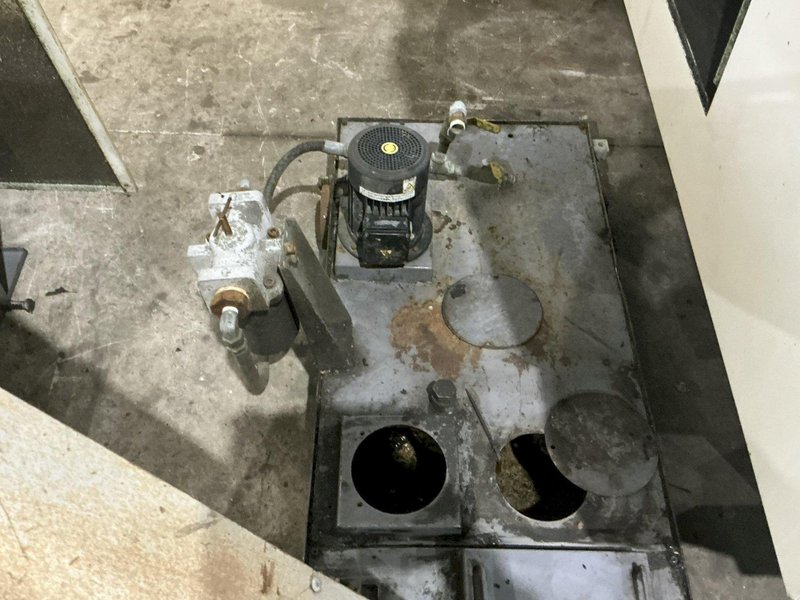

COOLANT TANK 66.04 GALLONS
25 HP MAIN SPINDLE MOTOR
LEVELING PADS
