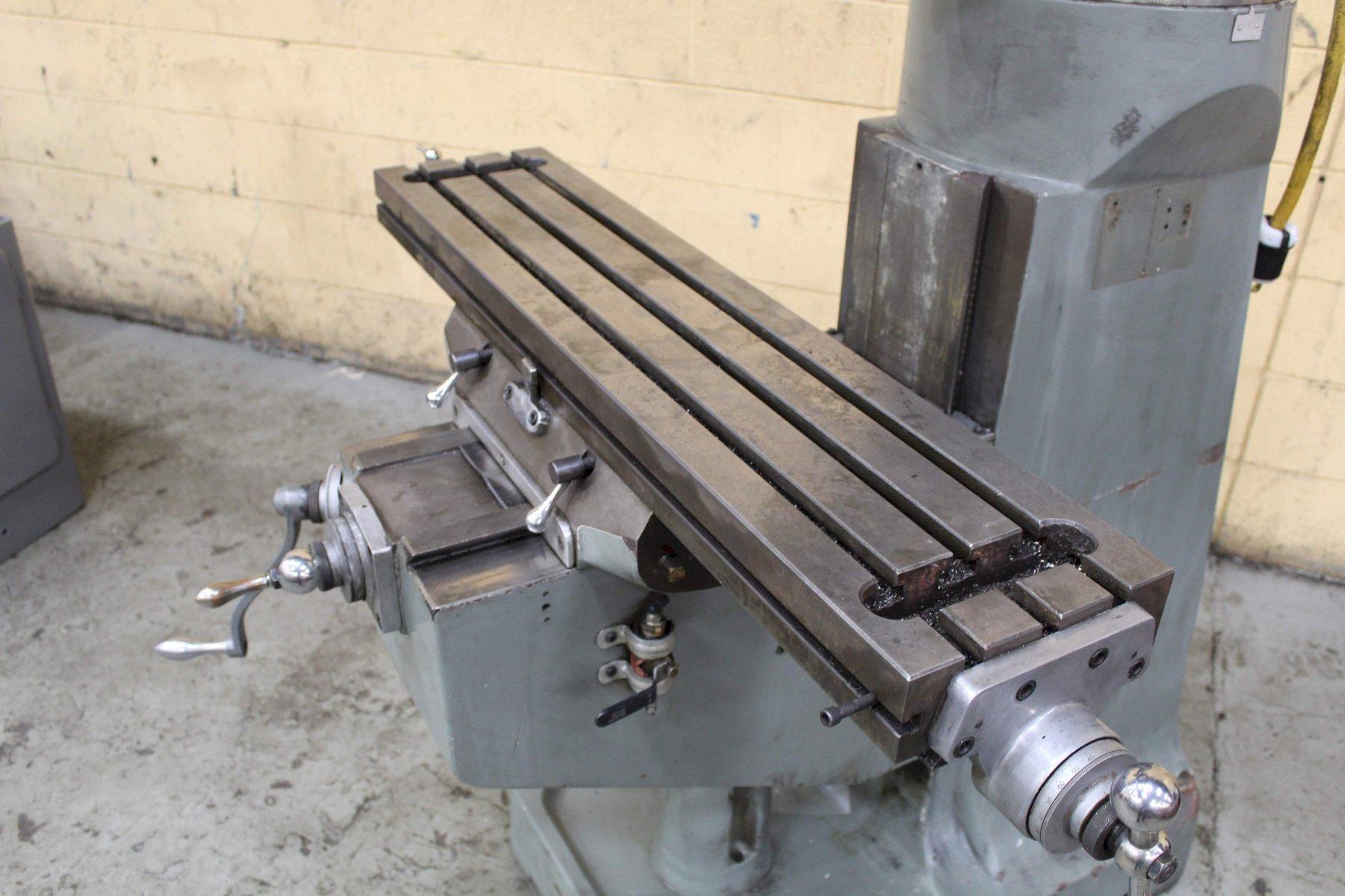

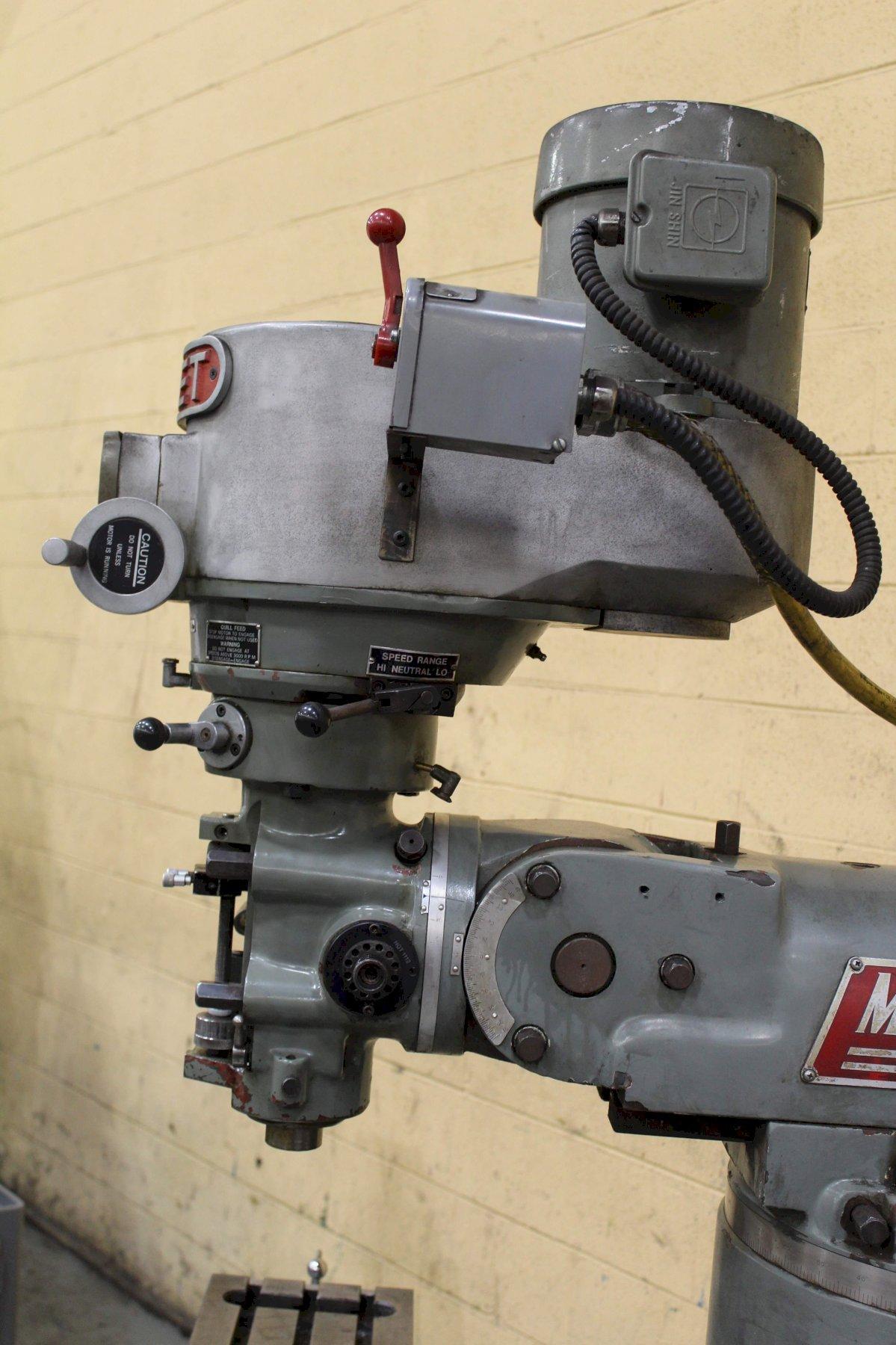

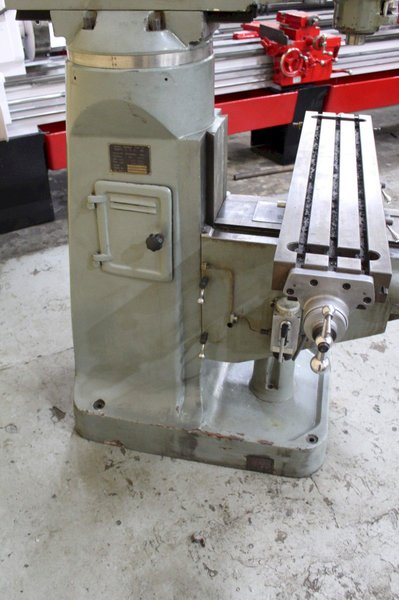

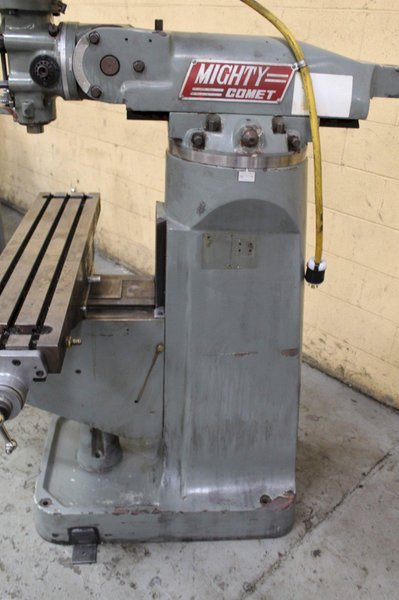

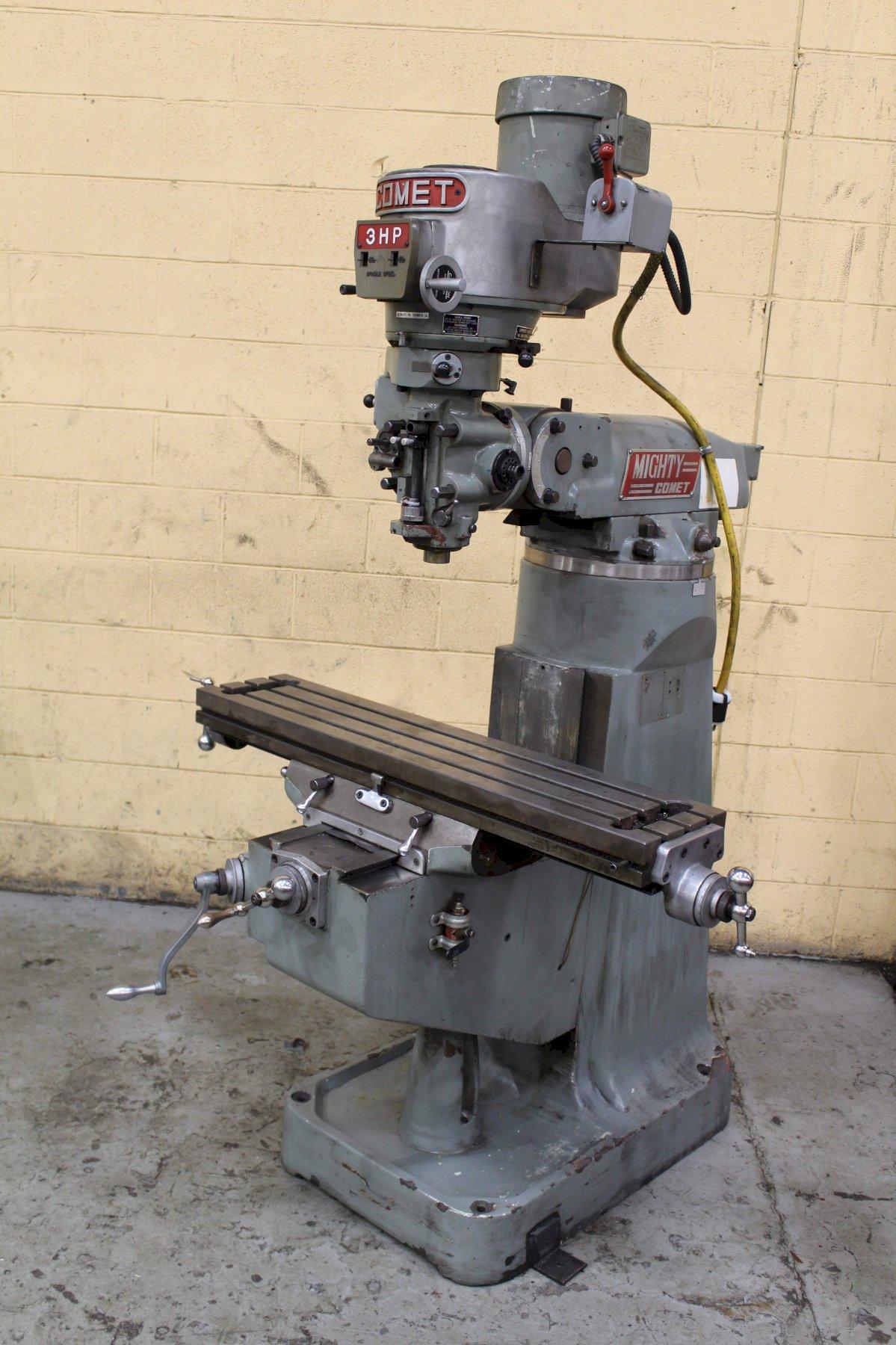

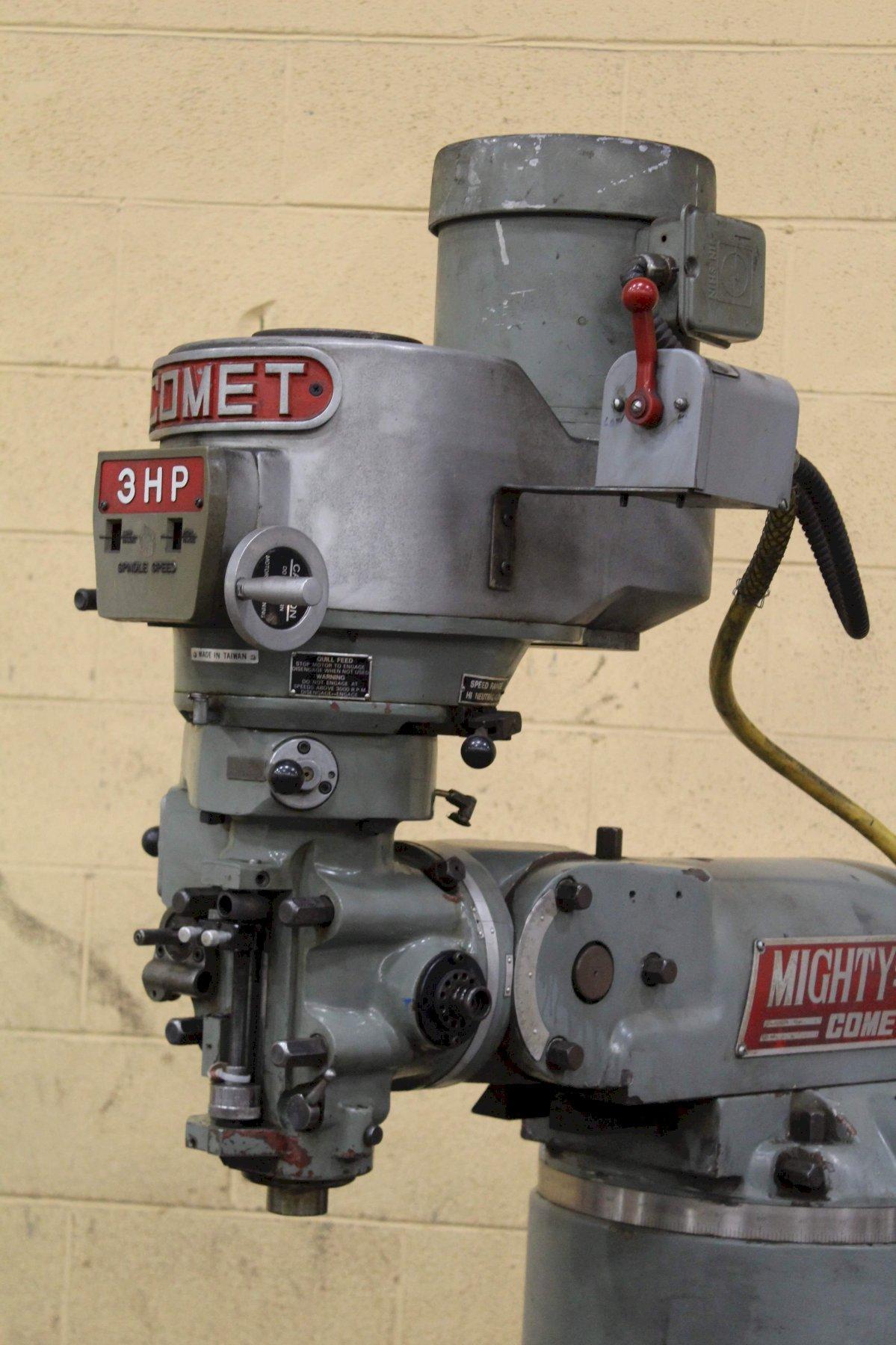

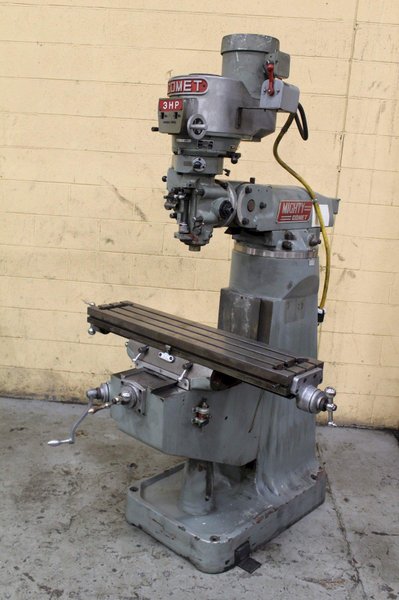

3 HP COMET RAM TYPE VERTICAL MILL: STOCK #72388
Brand
Not specified
Category
Model
Not specified
Stock #
72388
Year
Not specified
Condition
Not specified
Location
Ohio
|

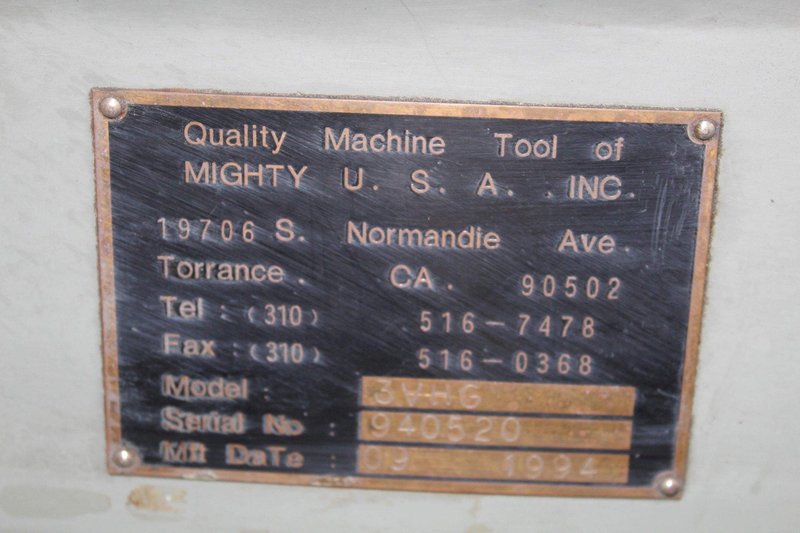

SERIAL ................................... 64520 MODEL .................................... 3-VHG YEAR NEW ................................. 1994 AREA OF TABLE ............................ 9" X 42" LONGITUDINAL TABLE TRAVEL ................ 30" CROSS TABLE TRAVEL ....................... 16" VERTICAL KNEE TRAVEL ..................... 16" QUILL TRAVEL ............................. 5" RAM TRAVEL IN/OUT ........................ 24" SPINDLE SPEEDS VARIABLE SPEED ............ 60 TO 4,200 RPM SPINDLE TAPER ............................ R-8 POWER QUILL FEEDS ........................ 0015, .003 & .006 IPR DISTANCE, SPINDLE NOSE TO TABLE .......... 2" MINIMUM 18" MAXIMUM DISTANCE SPINDLE CENTERLINE OF COLUMN .... 4" MINIMUM 28" MAXIMUM HEAD TILTS ............................... 45 DEGREES (BACK & FORWARD) HEAD ROTATES ............................. 90 DEGREES (RIGHT & LEFT) MOTOR .................................... 3 HORSEPOWER |
