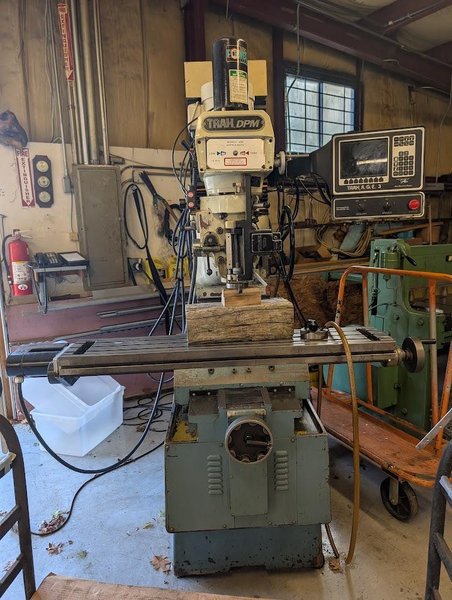

SOUTHWESTERN INDUSTRIES TRAK DPM 3-AXIS CNC BED MILL

SOUTHWESTERN INDUSTRIES TRAK DPM 3-AXIS CNC BED MILL

New: 1997

Motor driven with 3 HP, 3-phase, 60 cycle, AC motor & controls

Equipped with: Trak A.G.E. 3 CNC controls, service code 34 for fixed or variable peck drilling, power draw bar, RS232 port, coolant

Specifications:

Table size:         10" x 50"
Travels:           X-axis: 31"  Y-axis: 17"  Z-axis: 25"
Quill diameter:       3-15/16"
Spindle taper:       40 NST/NMTBA
Spindle speeds (variable):  70–4200 rpm
Spindle center to column face: 17.3"
Max quill travel:       5"
Quill feed per rev. in auto feed: 0.002, 0.004, 0.006 ipr
Max weight on work table:  1,320 lbs
Drilling mild steel:     1.5"
Tapping capacity:      1.25"
Milling capacity:      3" cubed/min
Boring capacity:      4.75"
Approximate dimensions:   70" x 72" x 89"
Approximate weight:    4,500 lbs
