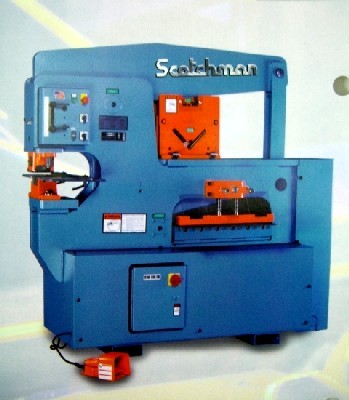

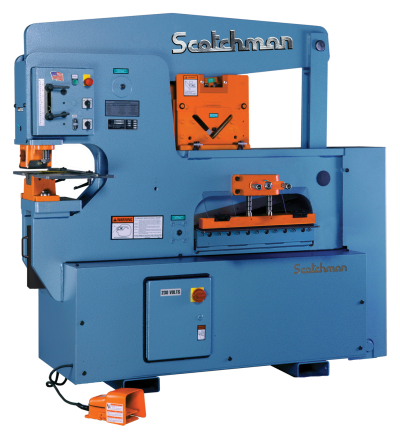

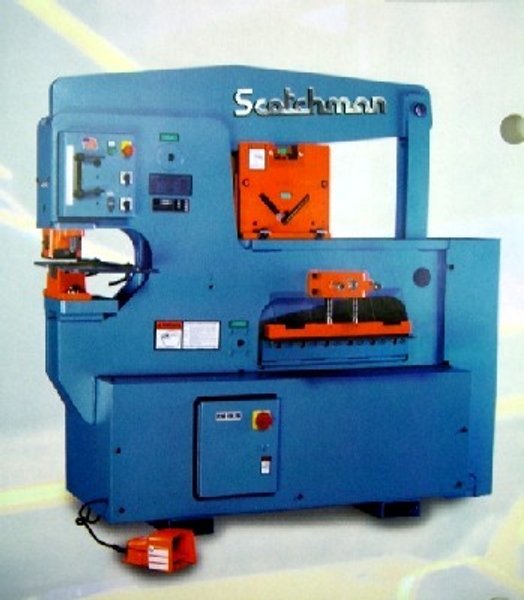

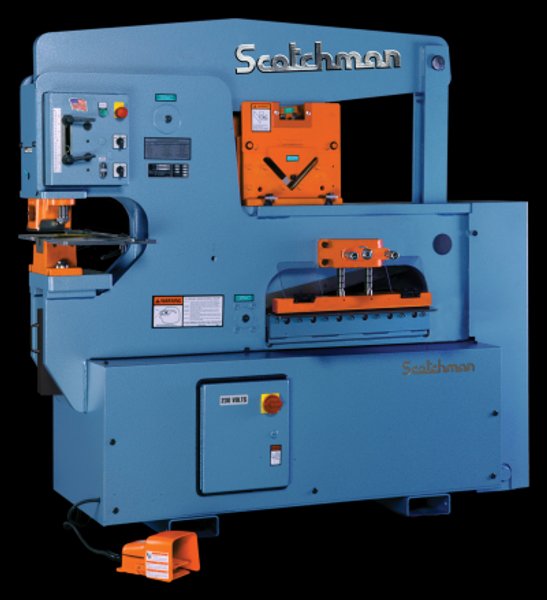

(NEW) SCOTCHMAN HYDRAULIC IRONWORKER

MODEL: 9012-24M

STANDARD FEATURES

Single Operator, Three Stations
90 Ton Punch Station
Keyed Punch Ram For Safety
Die Holder Complete With 2" Die Insert
Punch Nut With Wrench and Stripper
Punch Jog Control
Adjustable Electric Stroke Control With Scale
Electric Remote Foot Pedal
Flat Bar Shear With 4-Way Reversible Blade
Tool Table Work Area
Two-Stage Hydraulic Pump
Electrical Box Supplied With Emergency Palm Button and Lock-Out
 Tag-Out Accommodations
230/460 Volt/3 Phase Electrics (Must Specify Voltage)
All Guards Necessary To Comply With ANSI B 11-5 Standards
Forklift Accommodations
Three-Year Warranty On Parts
Made In USA

CAPACITIES AND SPECIFICATIONS: Rated On: A 36 Mild Steel/65,000 psi Tensile

Punching Capacity: 90 Ton
1-1/8" In 1"
Special Tooling: 4" Maximum Diameter
Throat Depth: 12"
Flat Bar Shear: 24" Length
1" x 8"
3/4" x 12"
1/2" x 16"
1/4" x 24"
Optional Saber Blade: 1/2" x 22"
3/8" x 24"
Angle Shear, 90 Degrees: 6" x 6" x 1/2"
45 Degrees: 4" x 4" x 1/2"
Brake 12"*: 50 Ton
Brake 24"*: 40 Ton
Pipe Notcher, Schedule 40 I.D.*: 3/4", 1", 1-1/4, 1-1/2", 2"
Rectangle Notcher*: 2" x 2-1/2" x 3/8"
90 Degree V-Notcher*: 6" x 6" x 5/16"
Channel Shear: 2" to 6" Adjustable
Rod Shear
Round Rod: 1/4" to 1-1/4", 9 Cavity
Square Rod: 1/4" to 1", 1 Cavity
Square Tube Shear*: 1/2" to 2", 14 Gauge
Picket Tool Housing*: 1/2", 3/4", 1"

Strokes Per Minute, Light Material: 56 SPM (1/4" Stroke)
Strokes Per Minute, Heavy Material: 19 SPM (3/4" Stroke)
Hydraulics: 2600 PSI
Standard Motor: 5 HP, 3 Phase 230/460/208//380/575 V
Optional Motor: 5 HP, 1 Phase 230 V

*Optional Equipment Available

Dimensions: 26"W x 76"L x 70"H
Approximate Weight: 4000 Lbs.

F.O.B. Philip, South Dakota

FACTORY SPECIFICATIONS SUBJECT TO CHANGE AND/OR MODIFICATION
