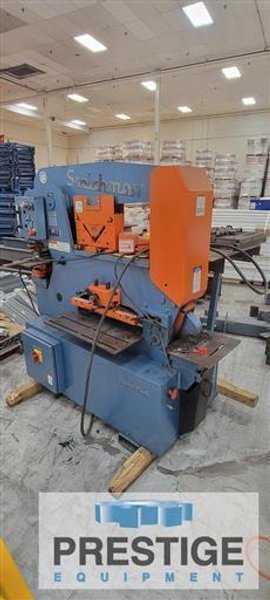

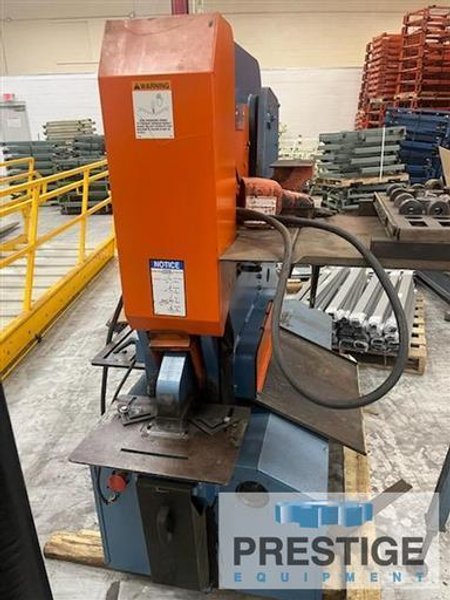

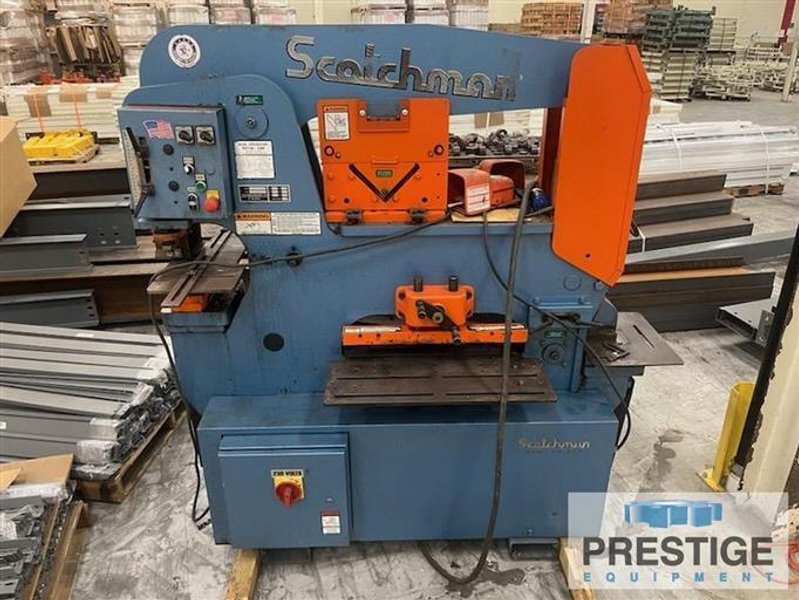

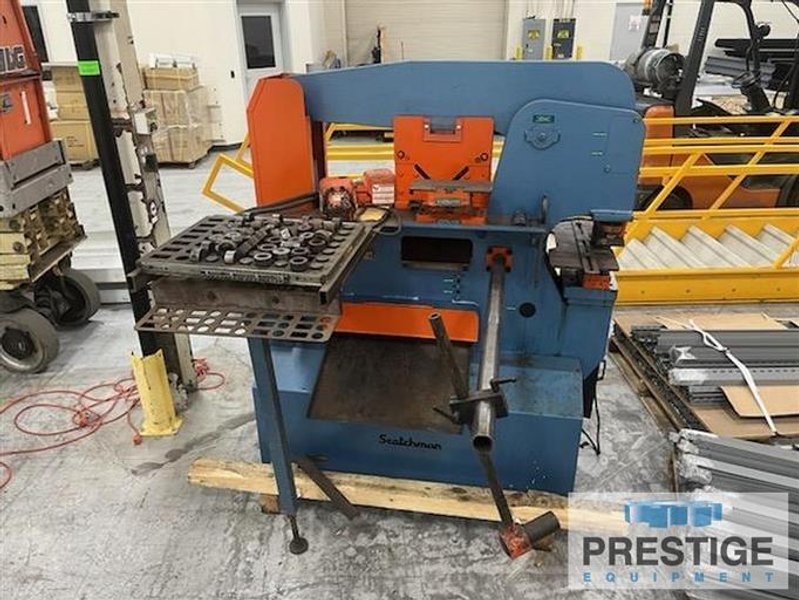

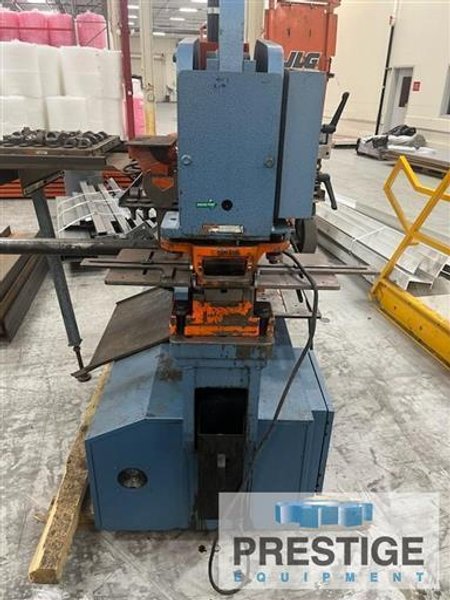

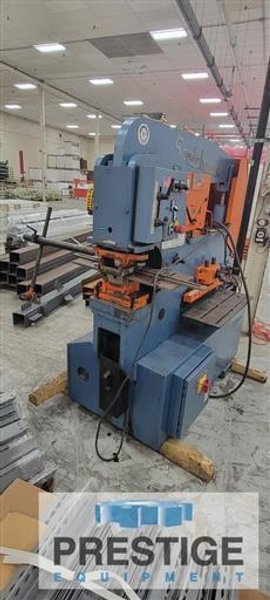

Punches Ironworkers

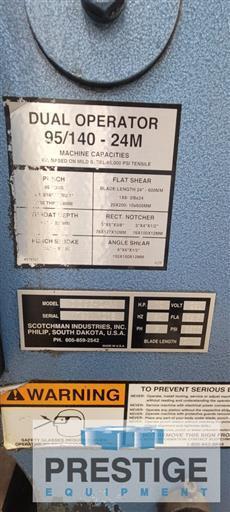

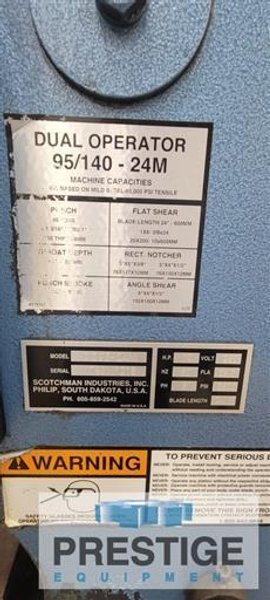

SPECIFICATIONS:
Punch Tonnage 95 Tons
Maximum Punch Capacity 1-3/16" in 1"
Flat Bar Shear Tonnage 140 Ton
Flat Bar Shear Capacity 1" x 8", 3/4" x 12, 1/2" x 16", 3/8" x 24"
Throat Depth 9"
Angle Shear Capacity (90 Deg.) 6" x 6" x 1/2"
Angel Shear Capacity (45 Deg.) 3" x 3" x 3/8"
Square Tube Shear (12 Ga.) 1/2"-2"
Rectangle Notcher 3" x 5" x 3/8"
Flat Bar Shear (110 T, 24" Length) 1" x 8" / 3/8" x 24"
Brake (12") 80 Ton
Brake (24") 55 Ton
Main Motor 10 HP
Approximate Dimensions 65" x 30" x 73"
Approximate Weight 4,000 Lbs.



Equipped With:
Dual Operator, 5 Stations
Keyed Punch Ram For Safety
Punch Gauging Table With Fence & Scale
Die Holder With 2" Insert
Punch Nut & Wrench & Stripper
Adjustable Swing Away Stripper
Punch Jog Control
Two Adjustable Electric Stroke Controls With Scale
Dual Electric Remote Foot Pedals
2-Stage Hydraulic Pumps
Slug Receptables
Tooling
