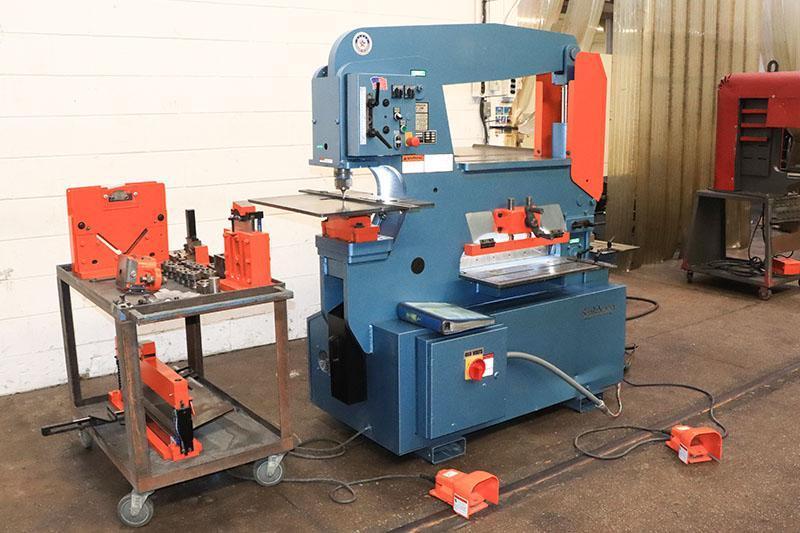

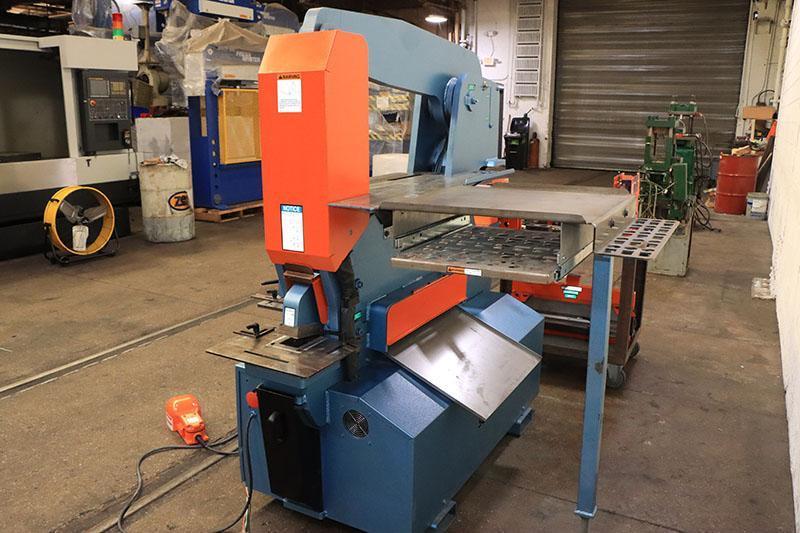

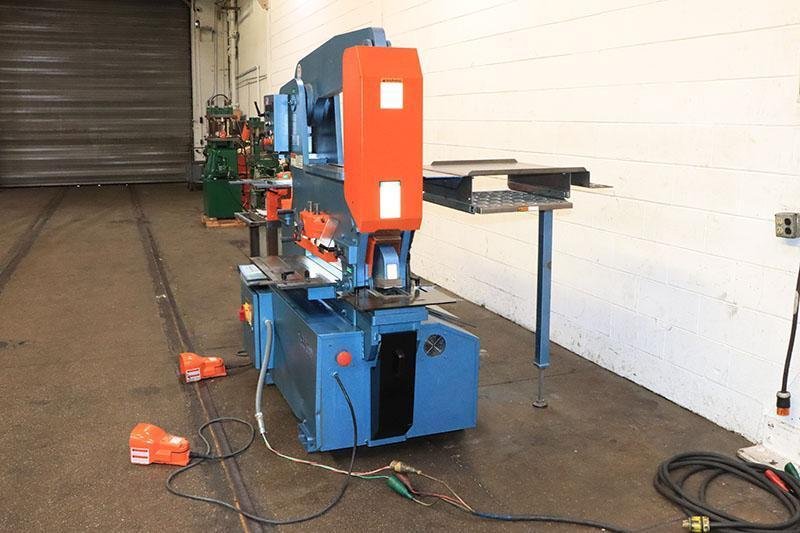

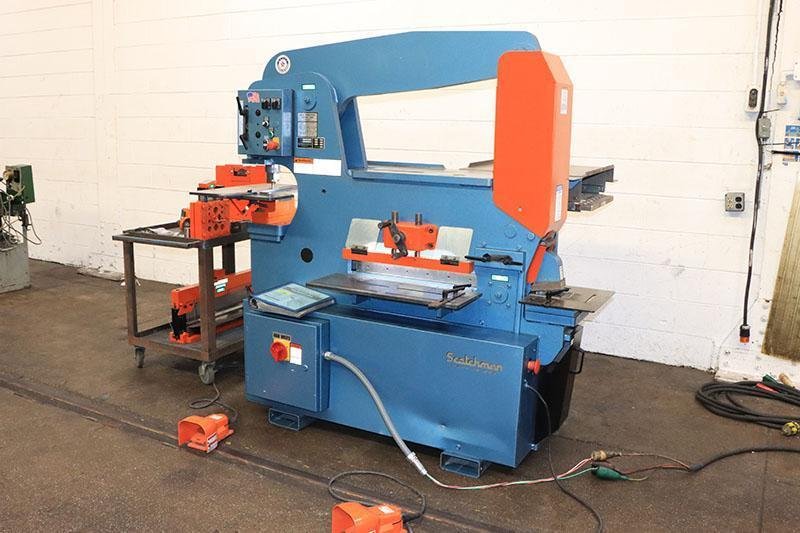

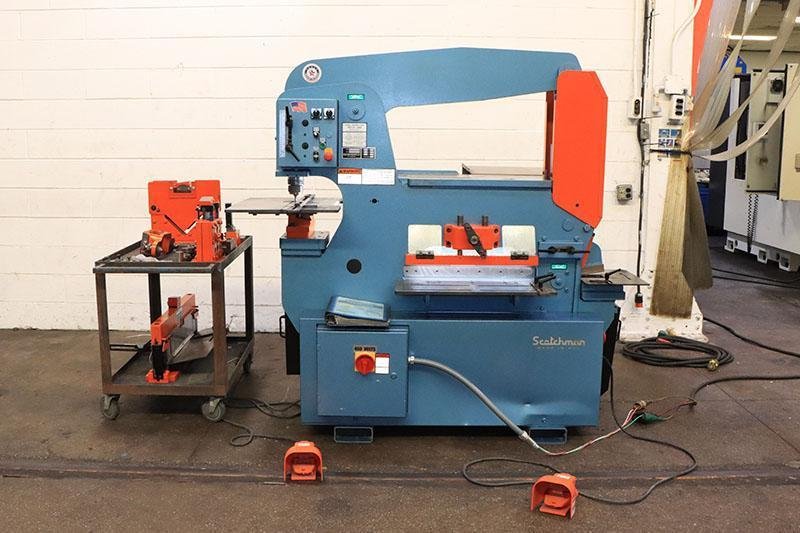

70/110 TON SCOTCHMAN DUAL OPERATOR IRONWORKER MODEL DO 70-24M
Brand
Category
Type
Model
DO 70-24M
Stock #
5099
Year
2024
Condition
Excellent
Location
New Jersey
|
70/110 TON SCOTCHMAN DUAL OPERATOR IRONWORKER
MODEL DO 70-24M

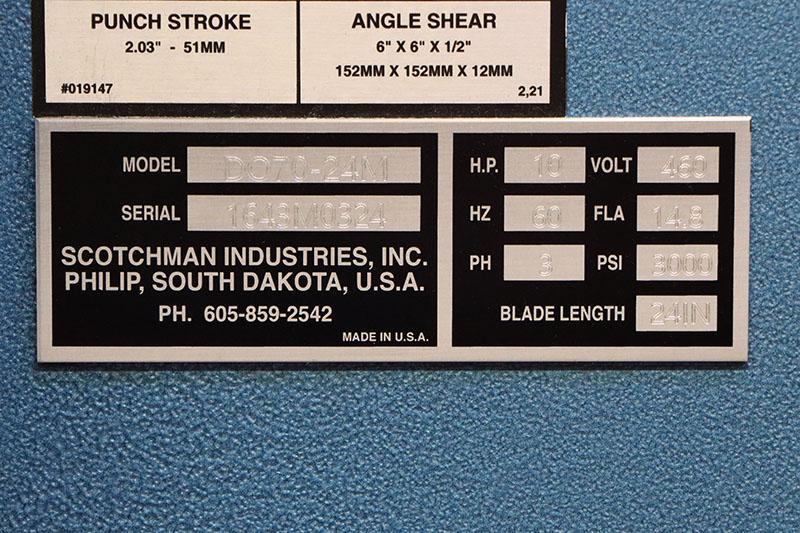

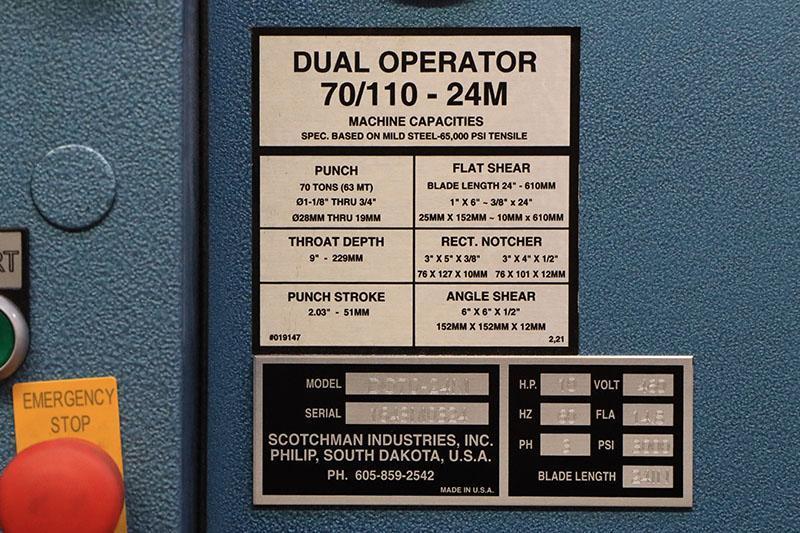

S/N 1643M0324 NEW 2024 Punching Capacity ........... 70 Ton
1-1/8" in 3/4"
Throat Depth ................ 9"
24" Flat Bar Shear .......... 1" x 6"
3/4" x 10"
1/2" x 14"
3/8" x 24"
Angle Shear 90 Degrees ...... 6" x 6" x 1/2"
Angle Shear 45 Degrees ...... 3" x 3" x 3/8"

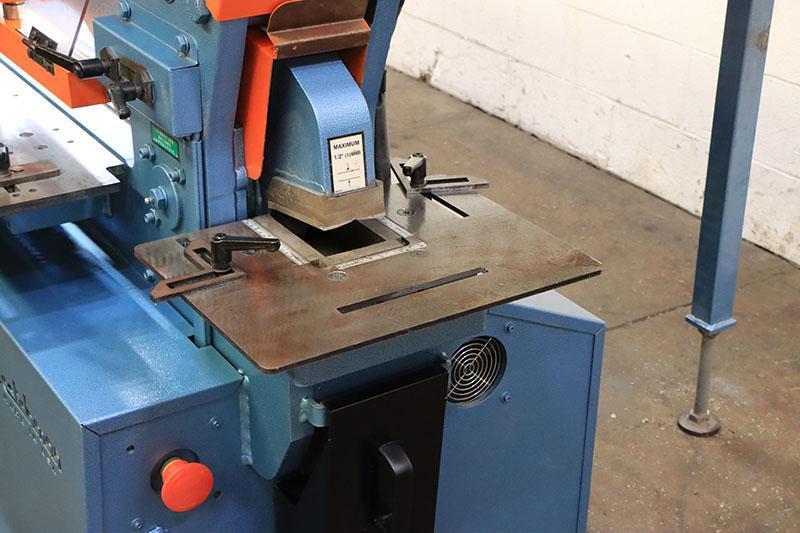

Notcher Rectangle ........... 3" x 5" x 3/8"
3" x 4" x 1/2"
Stroke ...................... 2.03"
Hydraulics .................. 2,500 PSI
Motor Standard .............. 10 hp, 3 ph, 230/460
Dimensions .................. 30" W x 65" L x 72-1/8" H
Weight ...................... 3,790 Lbs.
EQUIPPED WITH:
- COPER / NOTCHER
- PUNCH
- FLAT SHEAR
- ANGLE SHEAR

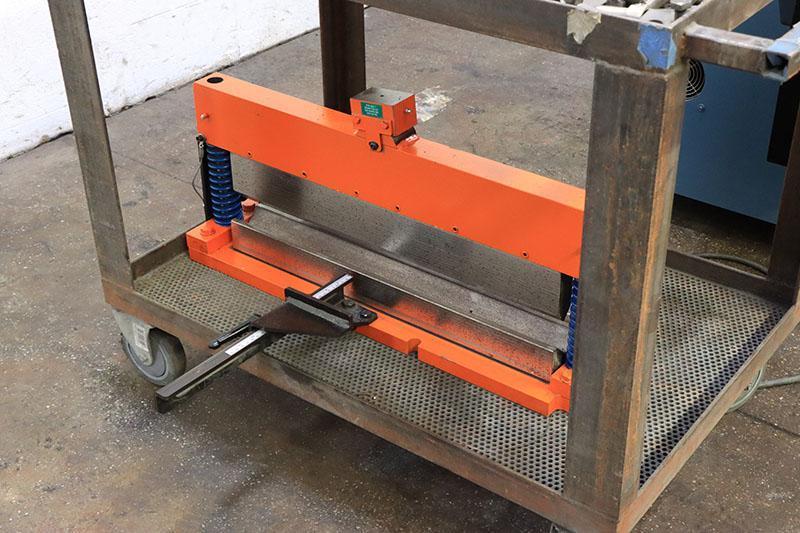

- 24" PRESS BRAKE ATTACHMENT W/BACK GAUGE STOP
- ROD SHEAR

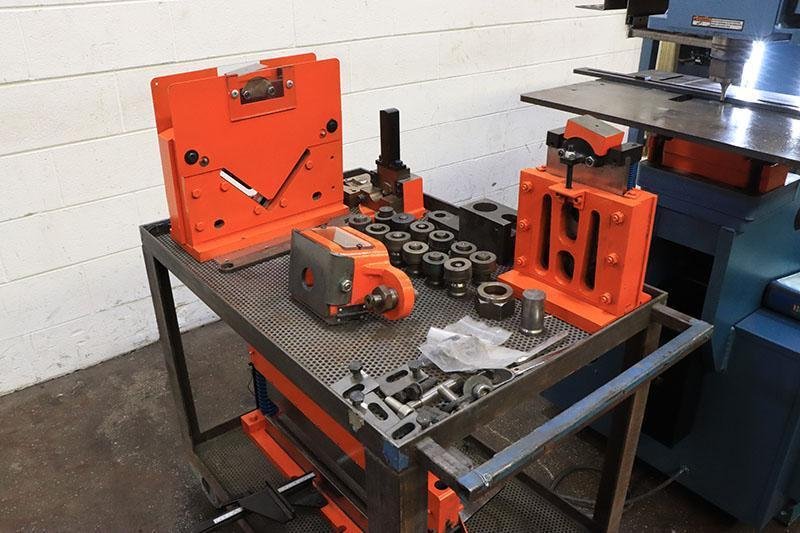

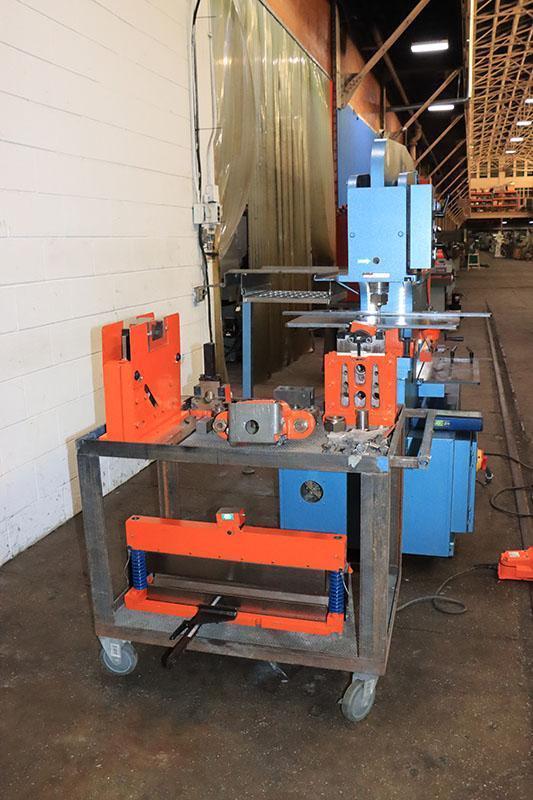

- MISC. PUNCHES AND DIES

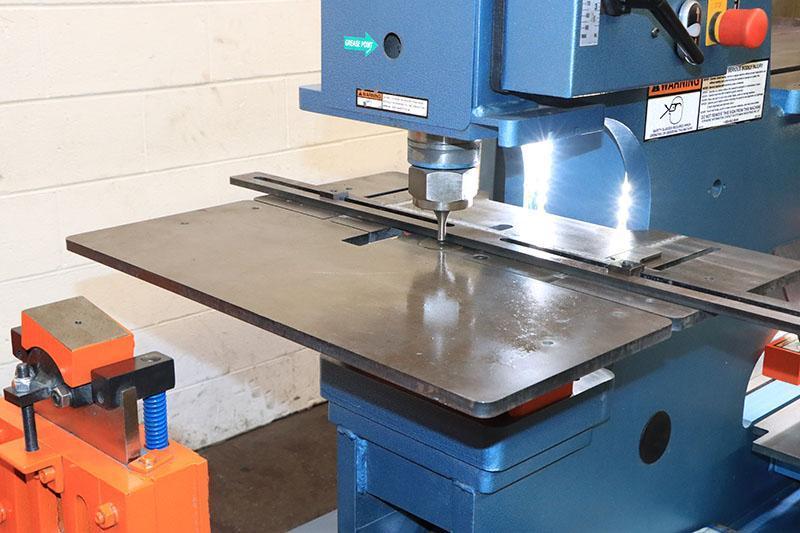

- PUNCH GAUGING TABLE WITH FENCE & SCALE
- DIE HOLDER COMPLETE WITH 2" DIE INSERT
STANDARD FEATURES
Dual Operator: 2 Operators Can Work at the Same Time at
Full Capacity
Keyed Punch Ram for Safety
Adjustable Swing-Away Stripper

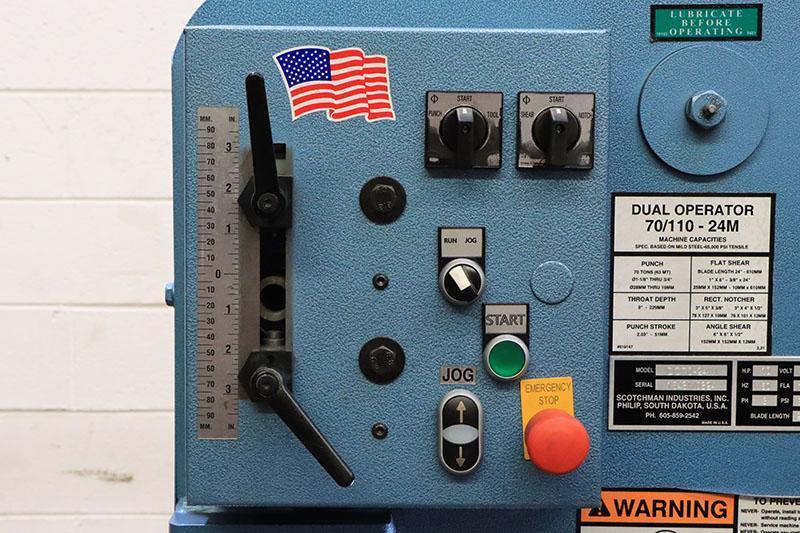

Punch Jog Control
Two Adjustable Electric Stroke Controls with Scale
Two Electric Remote Foot Pedals
Rectangle Notcher 3" x 5" x 3/8" & 3" x 4" x 1/2"
Notcher Table with Guides

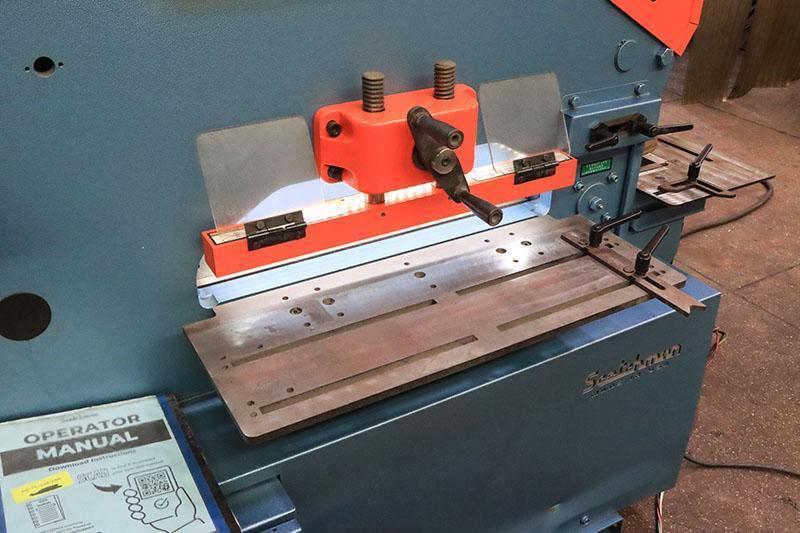

24" Bar Shear w/Sabre Blade (1" x 6", 3/8" x 24")
Shear Table
Tool Table Work Area
Slug Receptacles
Forklift Accommodations
Made in USA
FOB: Origin |
