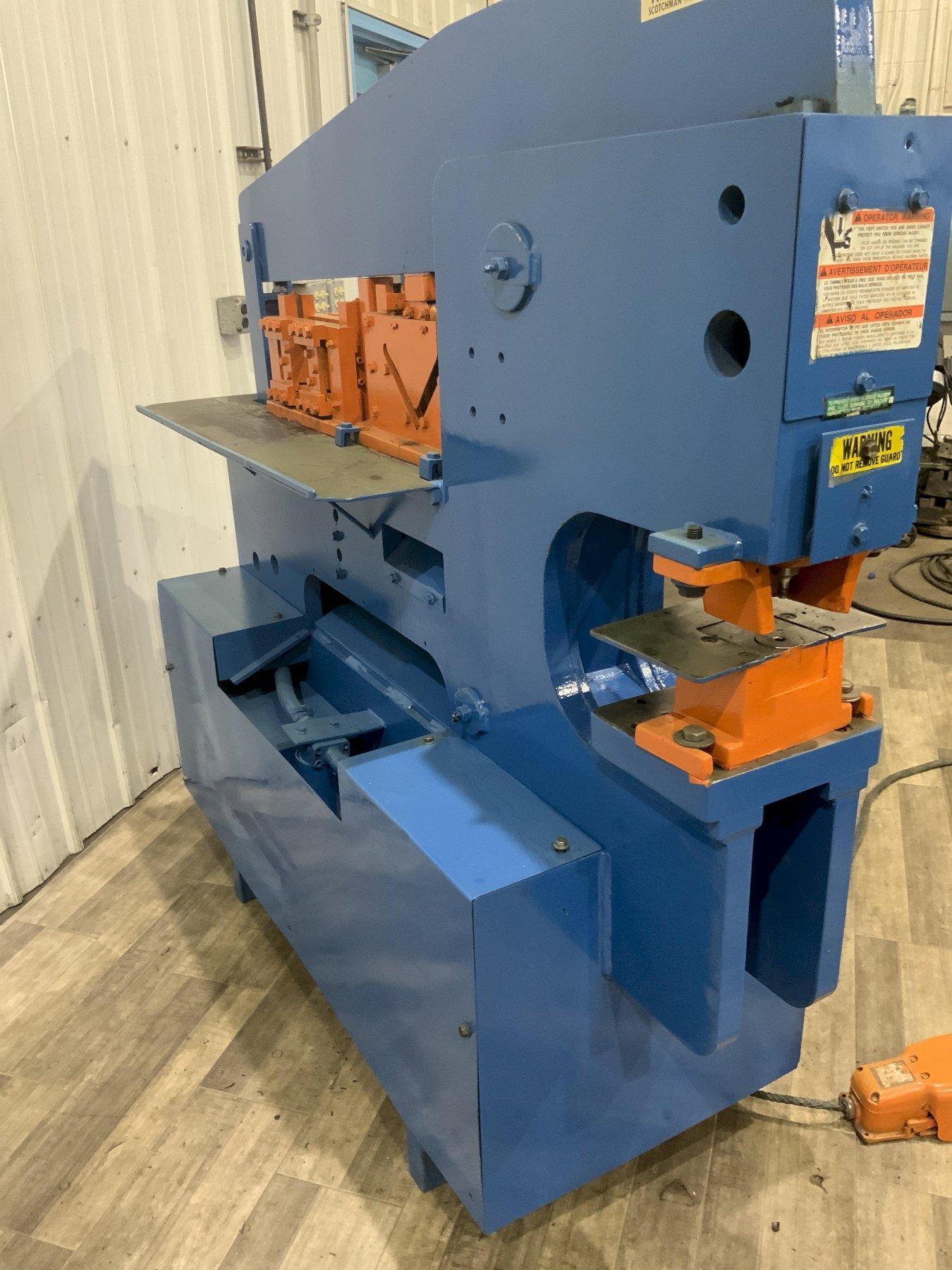

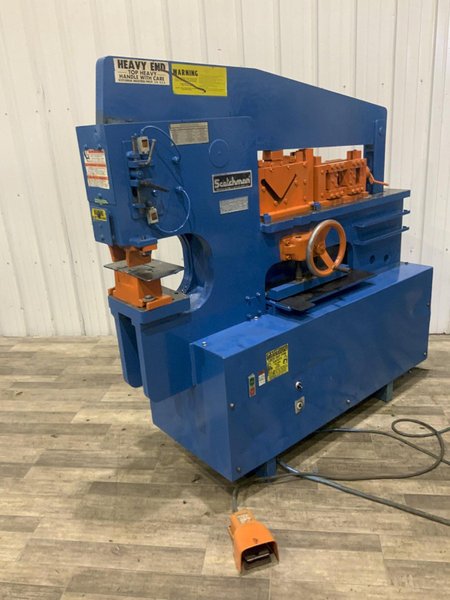

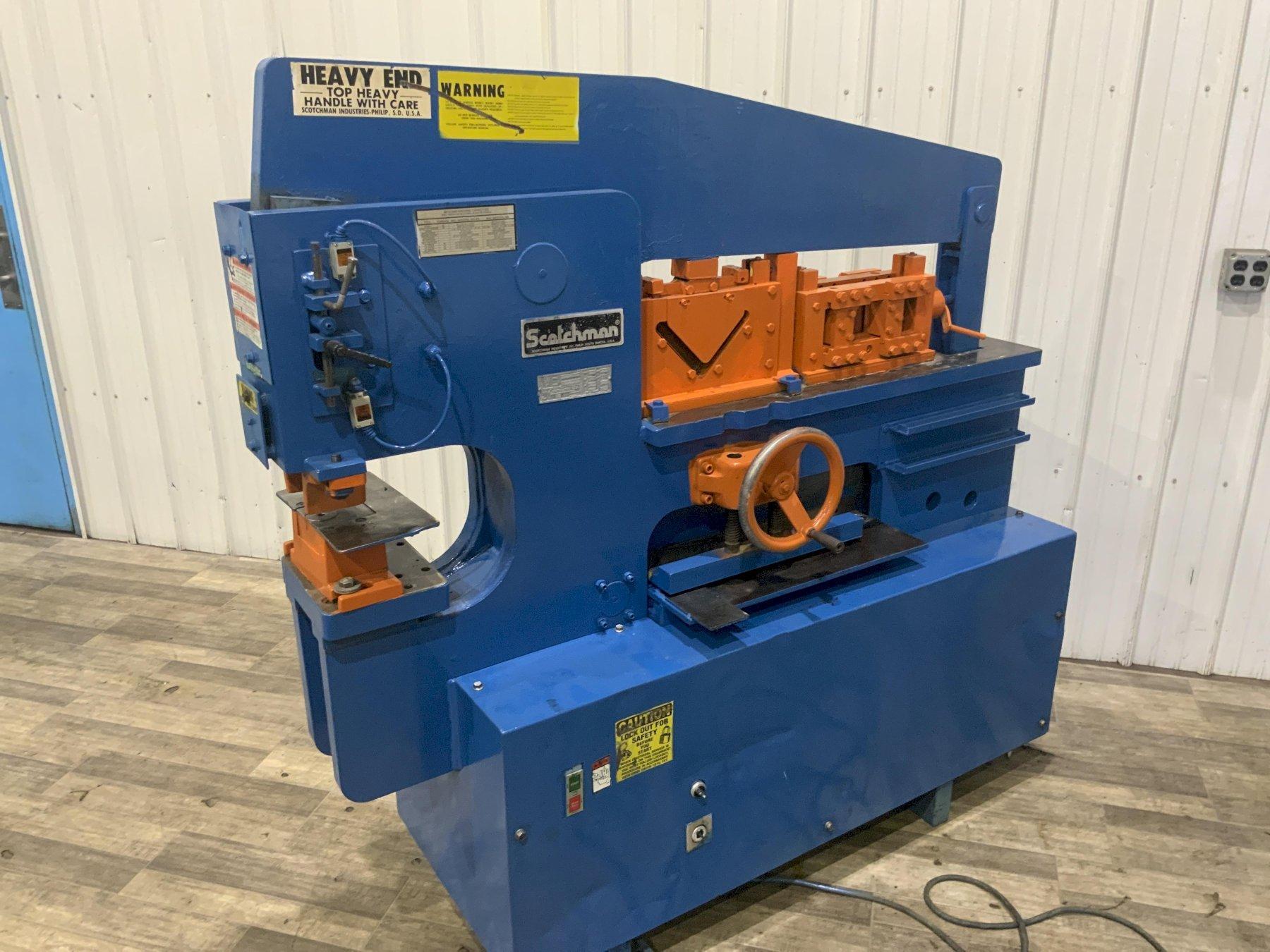

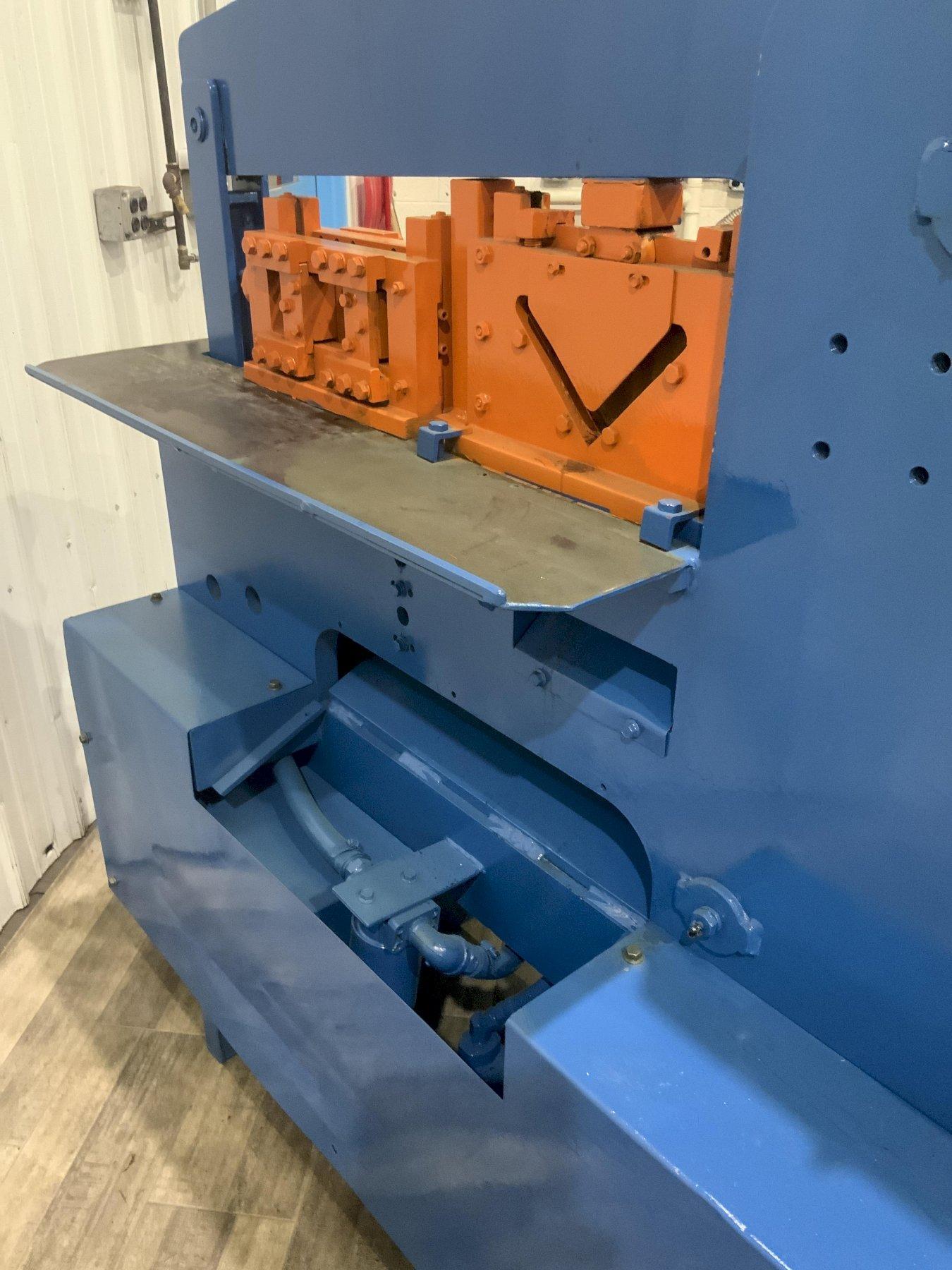

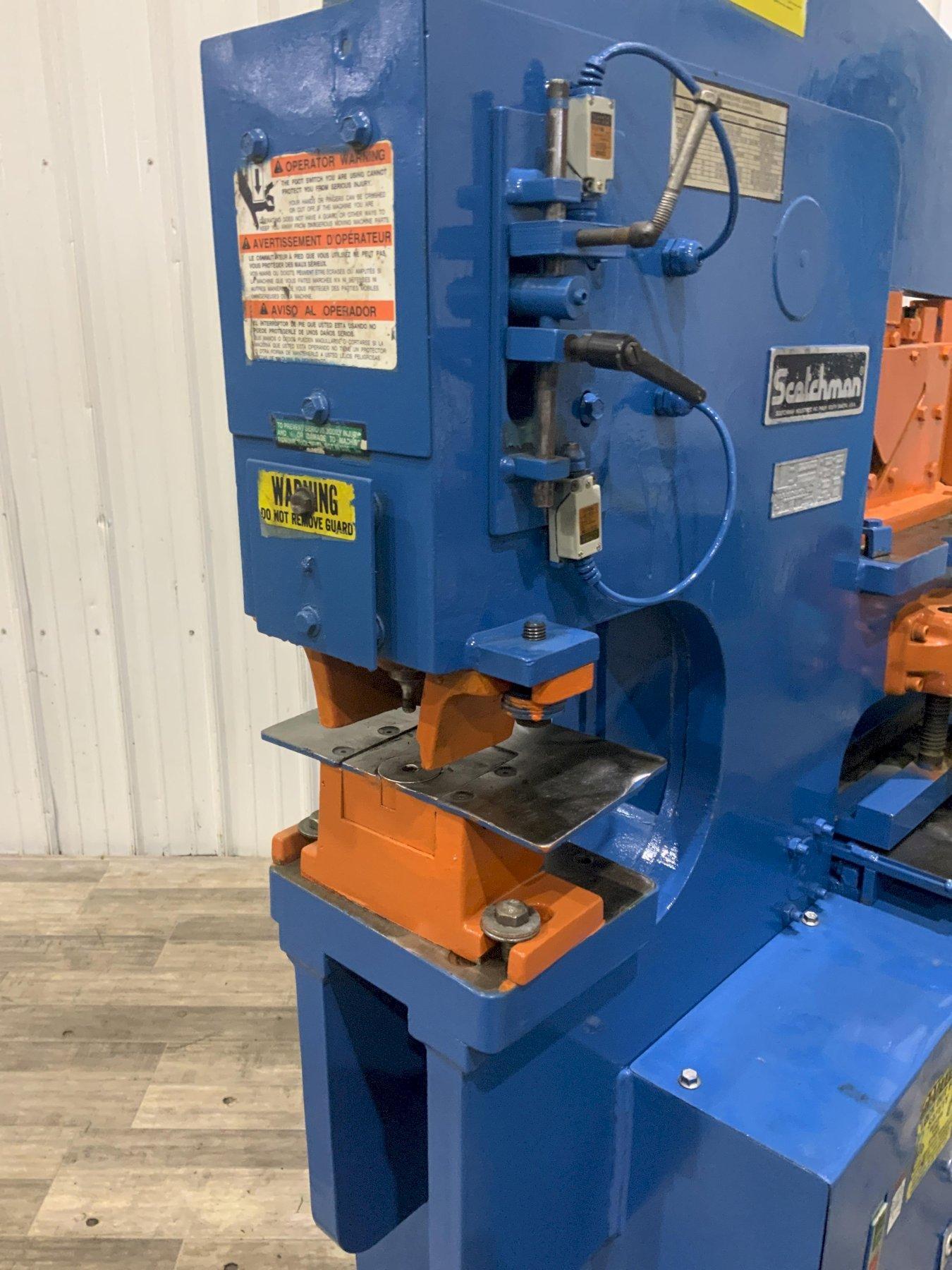

90 TON SCOTCHMAN HYDRAULIC IRON WORKER #9012: STOCK #80932

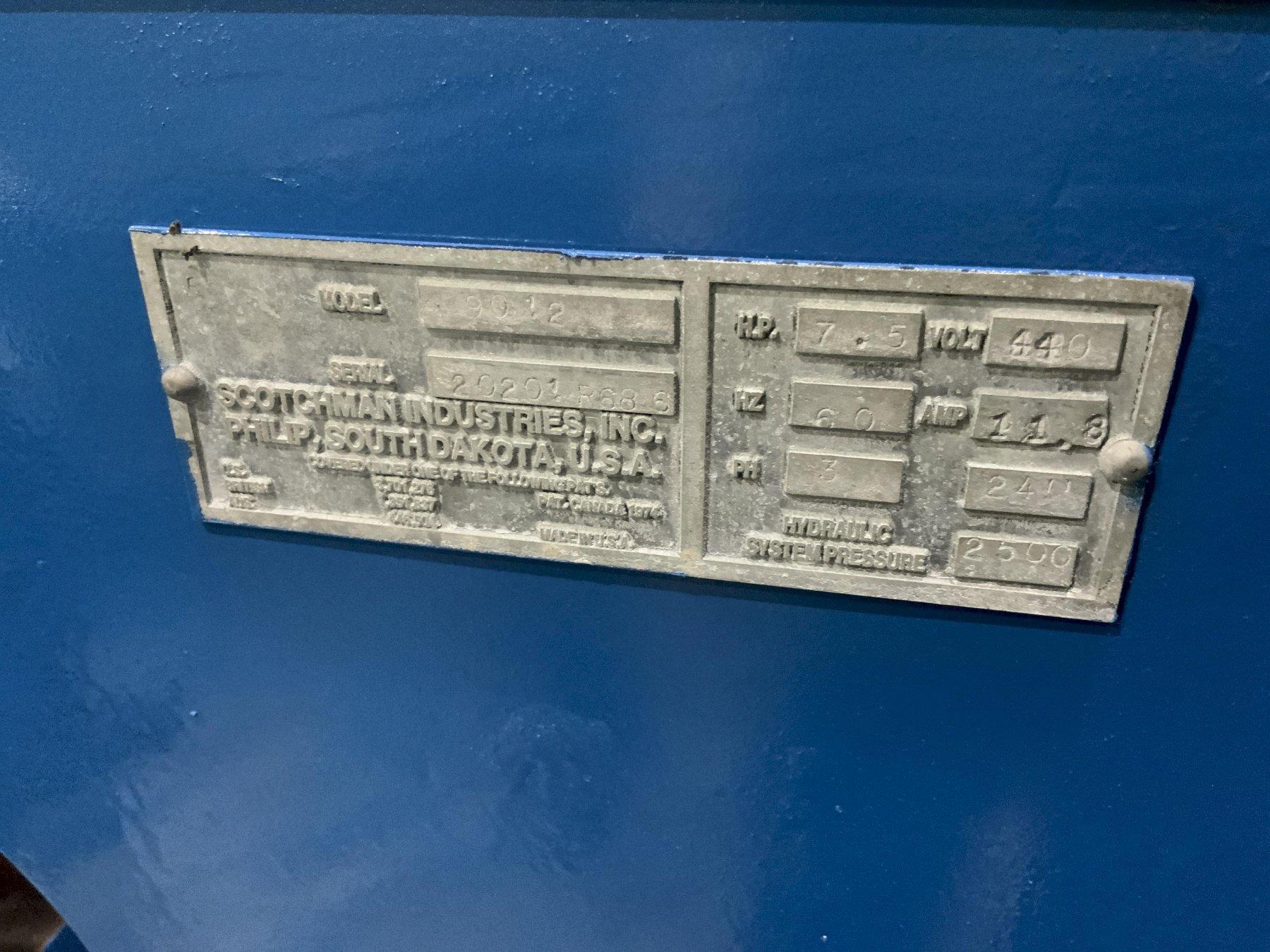

SERIAL .............................. 20201 R686

MODEL ............................... 9012

YEAR NEW ............................ 1986

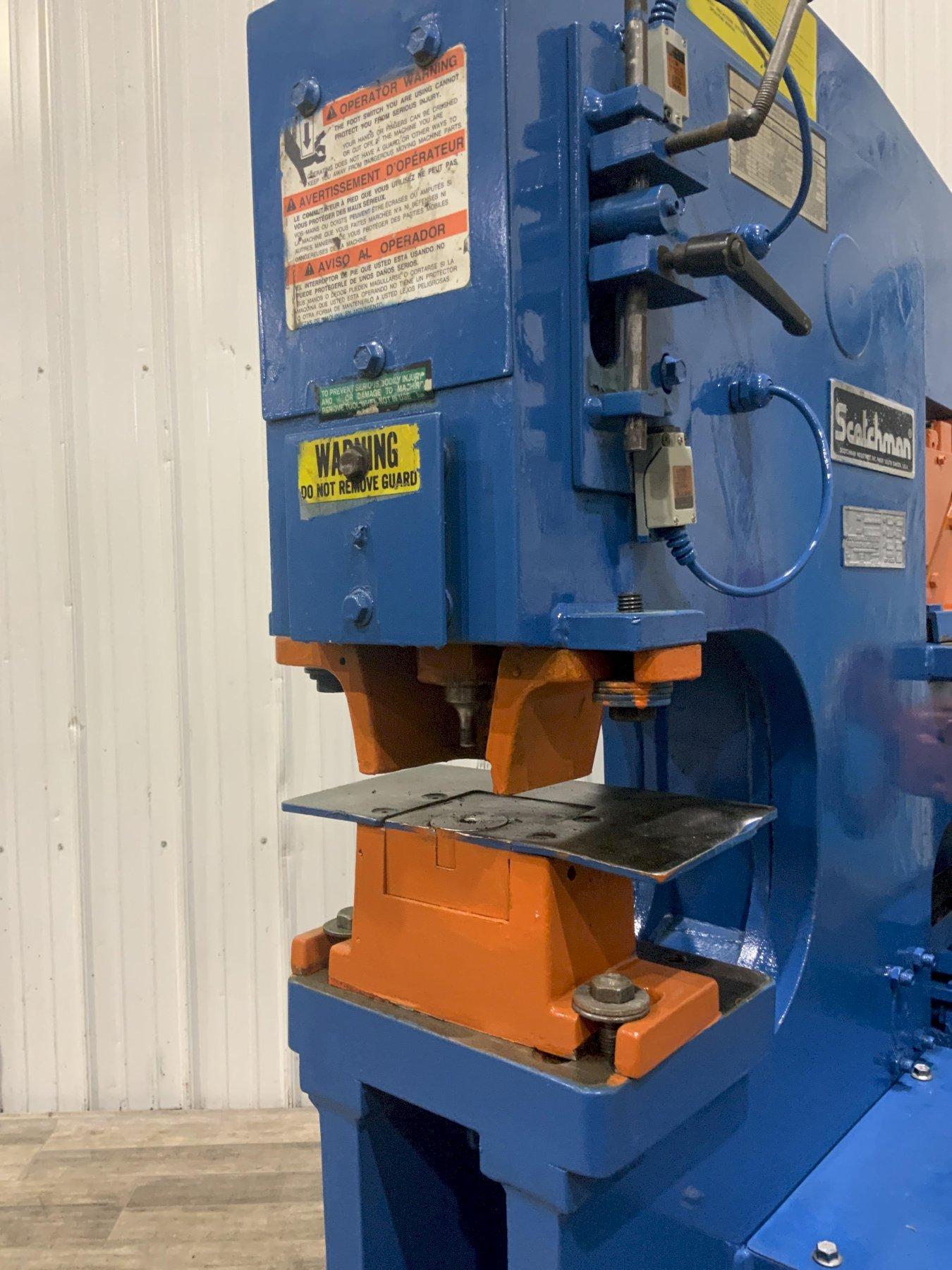

PUNCHING CAPACITY ................... 90 TON

PUNCHING DIAMETER THRU THICKNESS .... 1-1/8" THRU 1"

CAPACITY ANGLE @ 90 DEGREES ......... 6" X 6" X 1/2"

CAPACITY ROUNDS ..................... 1-1/4"

CAPACITY SQUARES .................... 1"

CAPACITY FLATS ...................... 1/4" X 24"

STROKED PER MINUTE .................. 37 & 10"

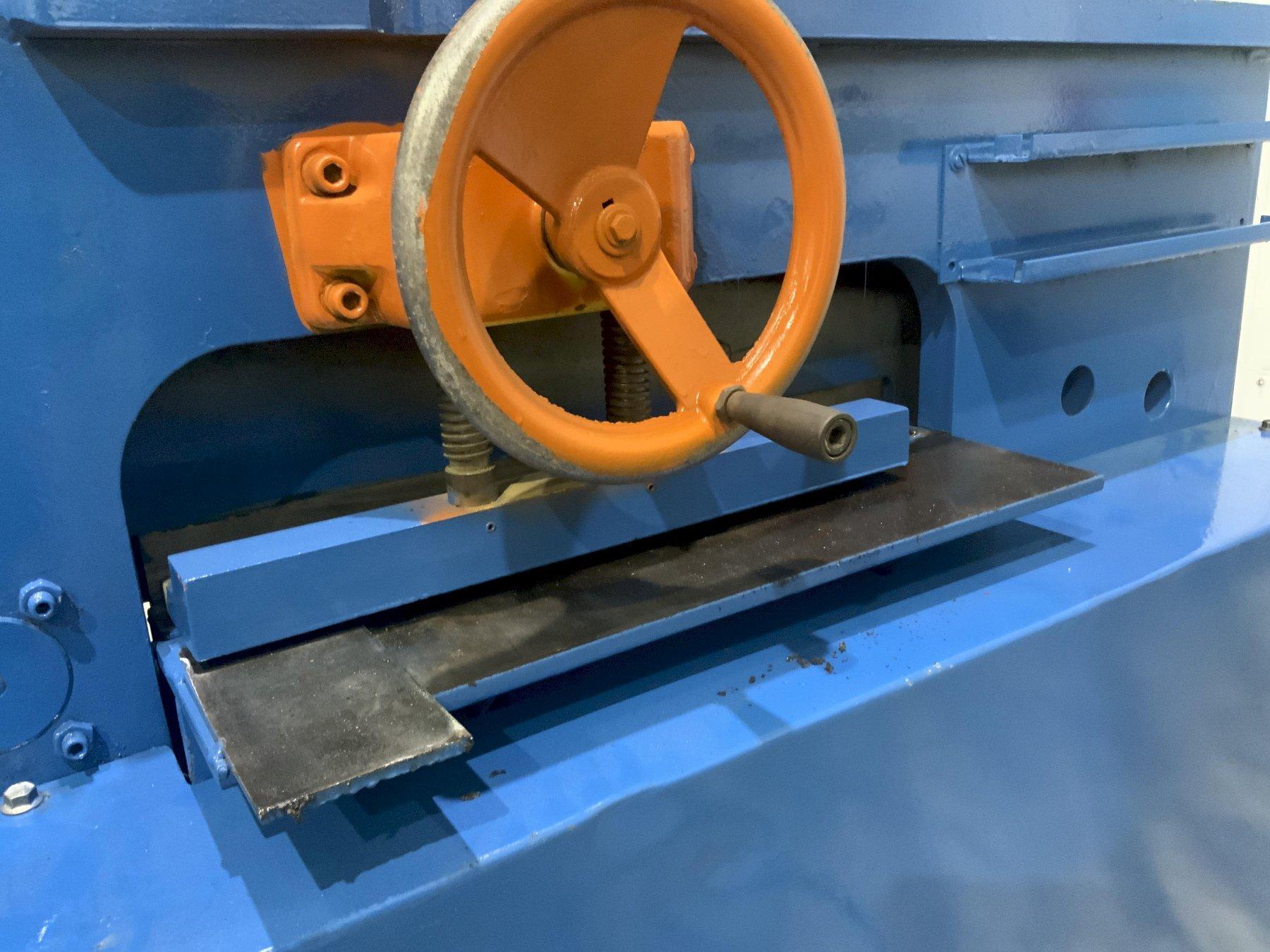

LENGTH OF BLADE ..................... 24"

DEPTH OF THROAT ..................... 12"

NOTCHER ............................. YES

STROKES PER MINUTE .................. 56 @ 1/4" 19 @ 3/4"

DUAL FOOT CONTROLS .................. YES

PRESS BRAKE ATTACHMENT .............. 12" @ 83 TON

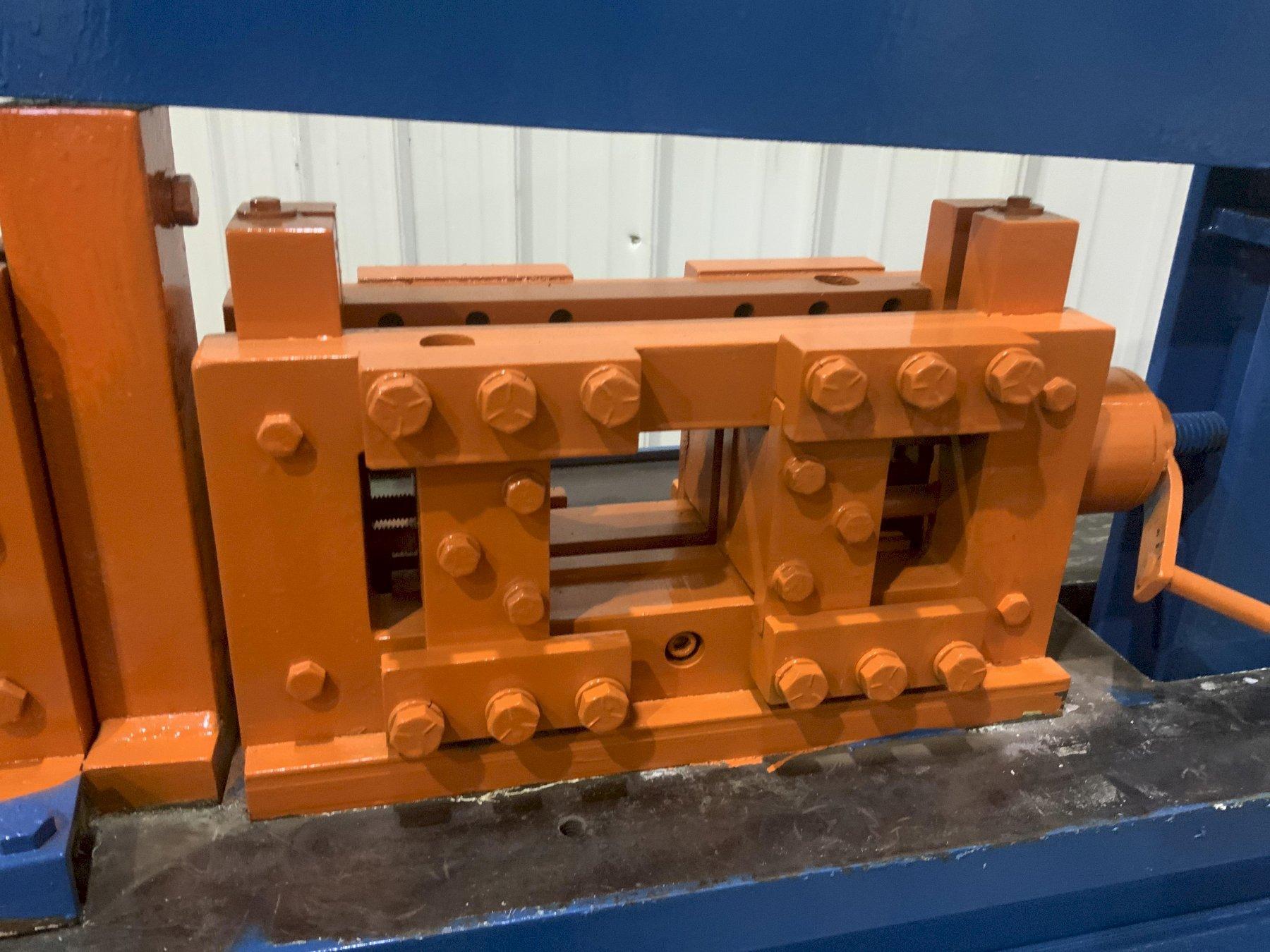

CHANNEL SHEAR ....................... 2" TO 6" MAXIMUM

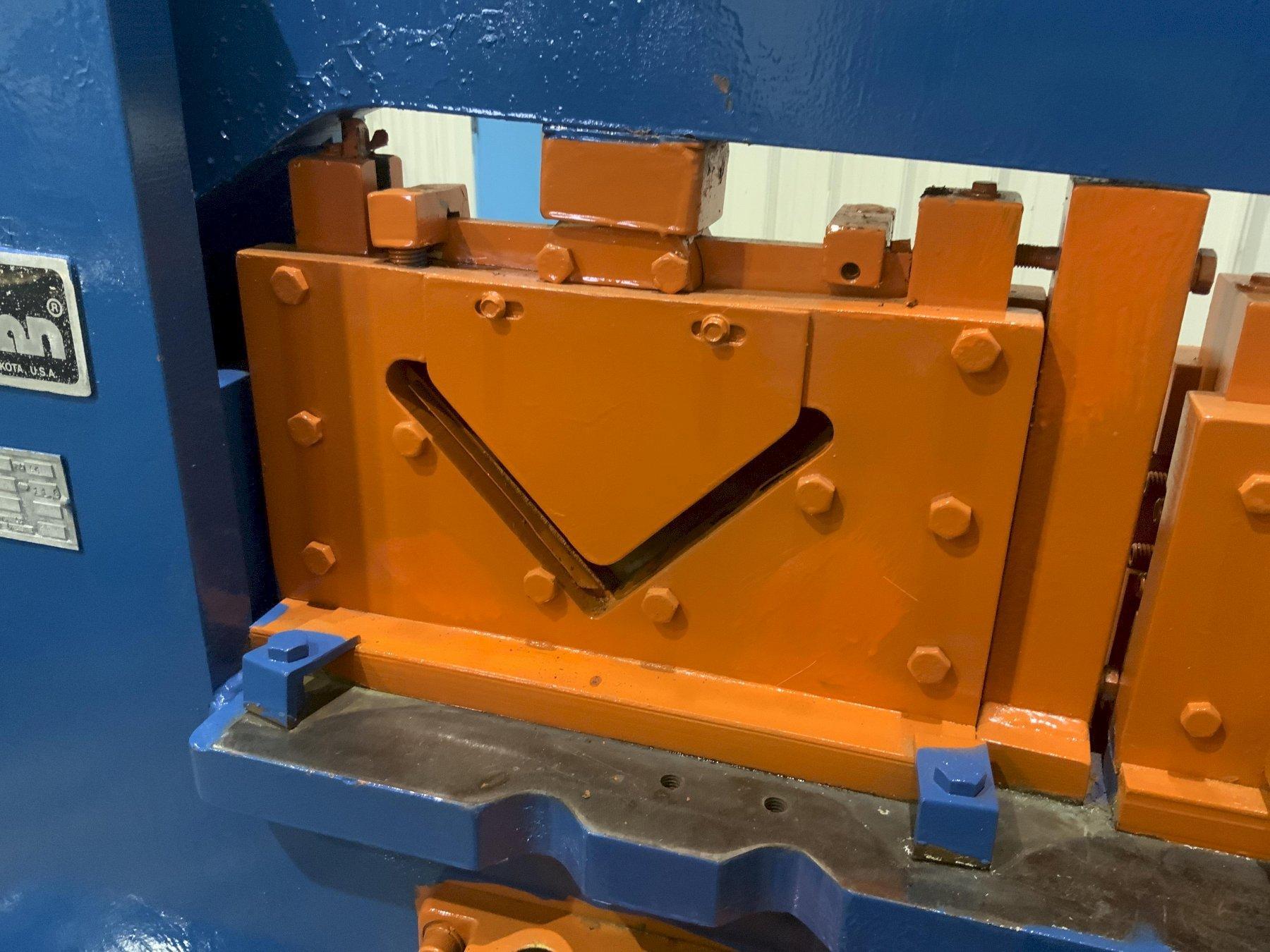

ANGLE IRON ATTACHMENT ............... YES

OFFSET DIE HOLDER ................... YES

MAIN MOTOR .......................... 5 HORSEPOWER
