USED SCOTCHMAN 51 TON HYDRAULIC IRONWORKER MODEL FI5109-14M

USED SCOTCHMAN 51 TON HYDRAULIC IRONWORKER MODEL FI5109-14M

Name: USED SCOTCHMAN 51 TON HYDRAULIC IRONWORKER MODEL FI5109-14M
Brand: SCOTCHMAN
SKU: 11253
Availability: PreOrder

Brand

SCOTCHMAN

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Overview

Type:

Ironworkers

Manufacturer:

SCOTCHMAN

Model:

FI5109-14M

Year:

1996

Stock #:

11253

Status:

For Sale

Description

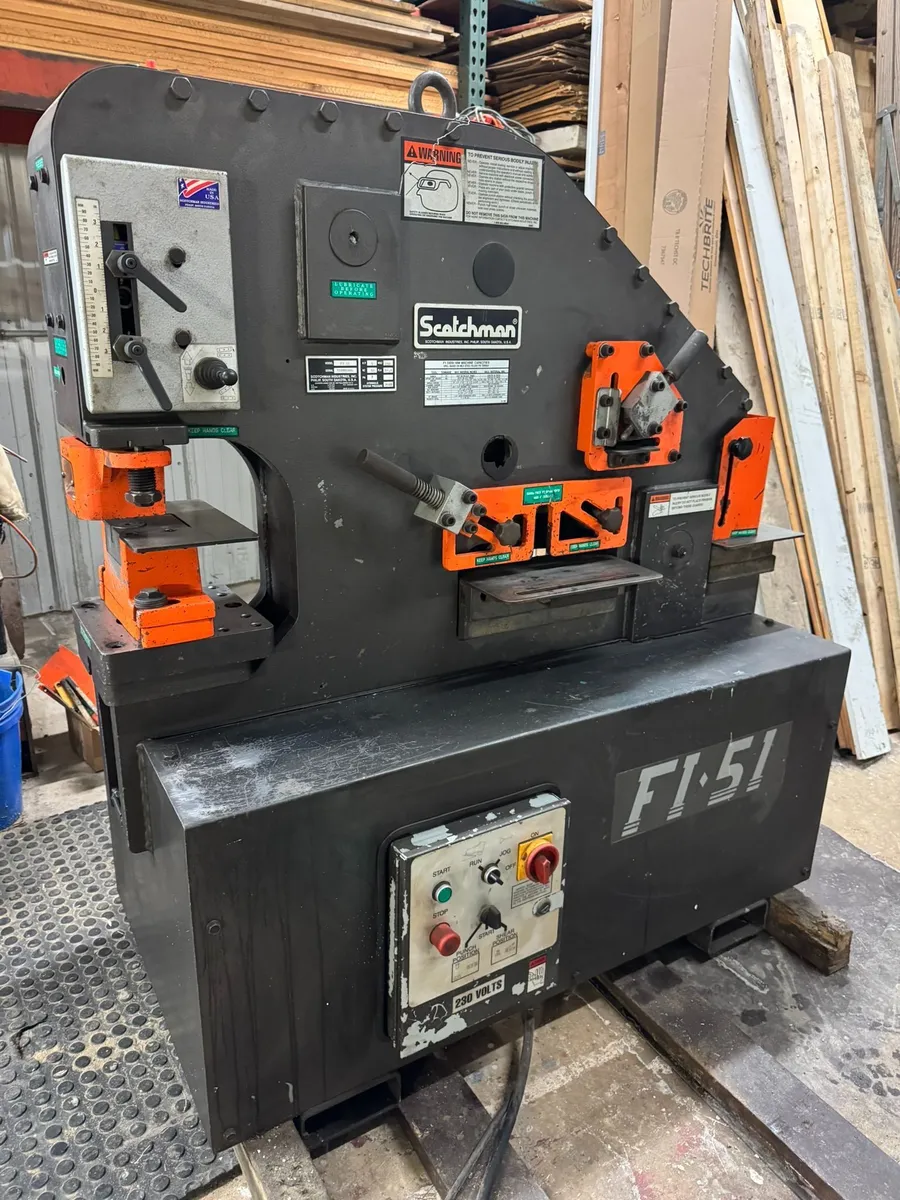

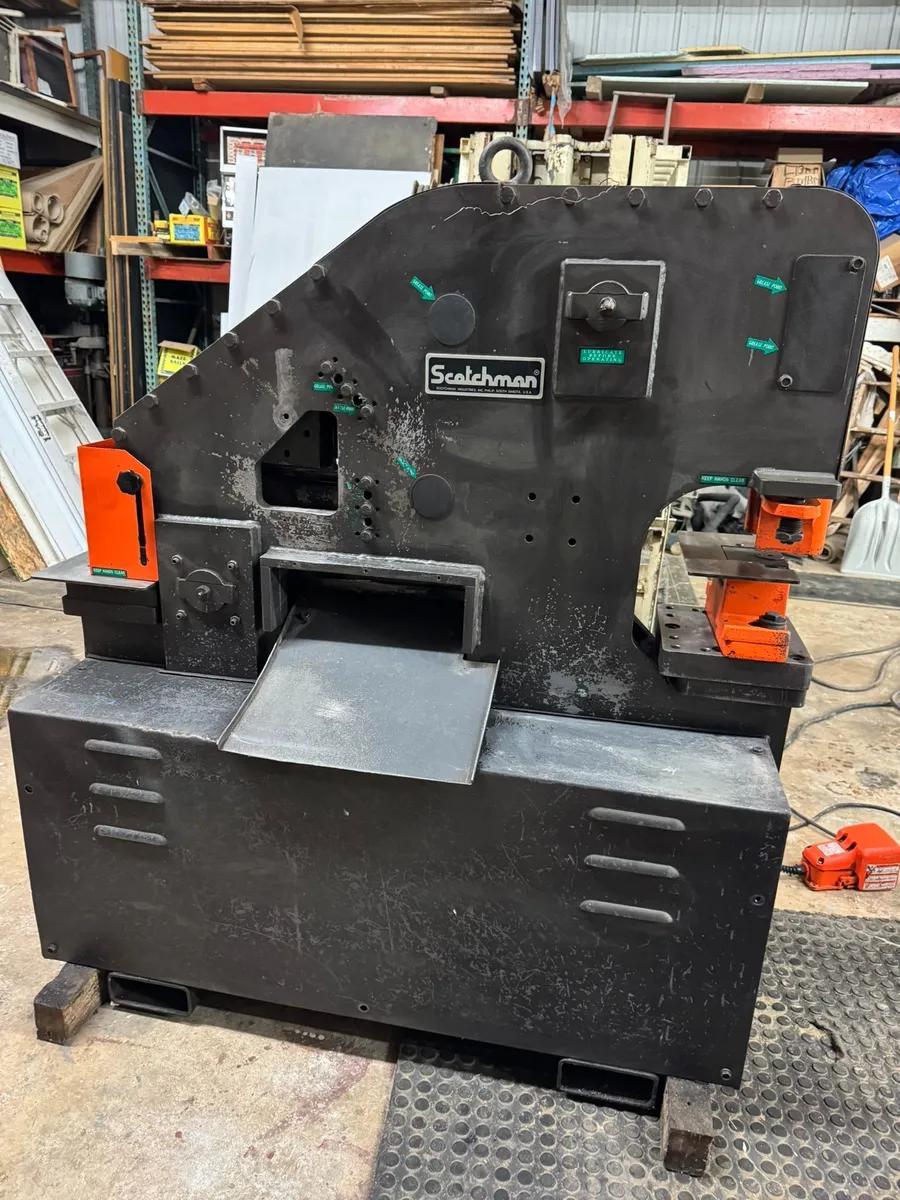

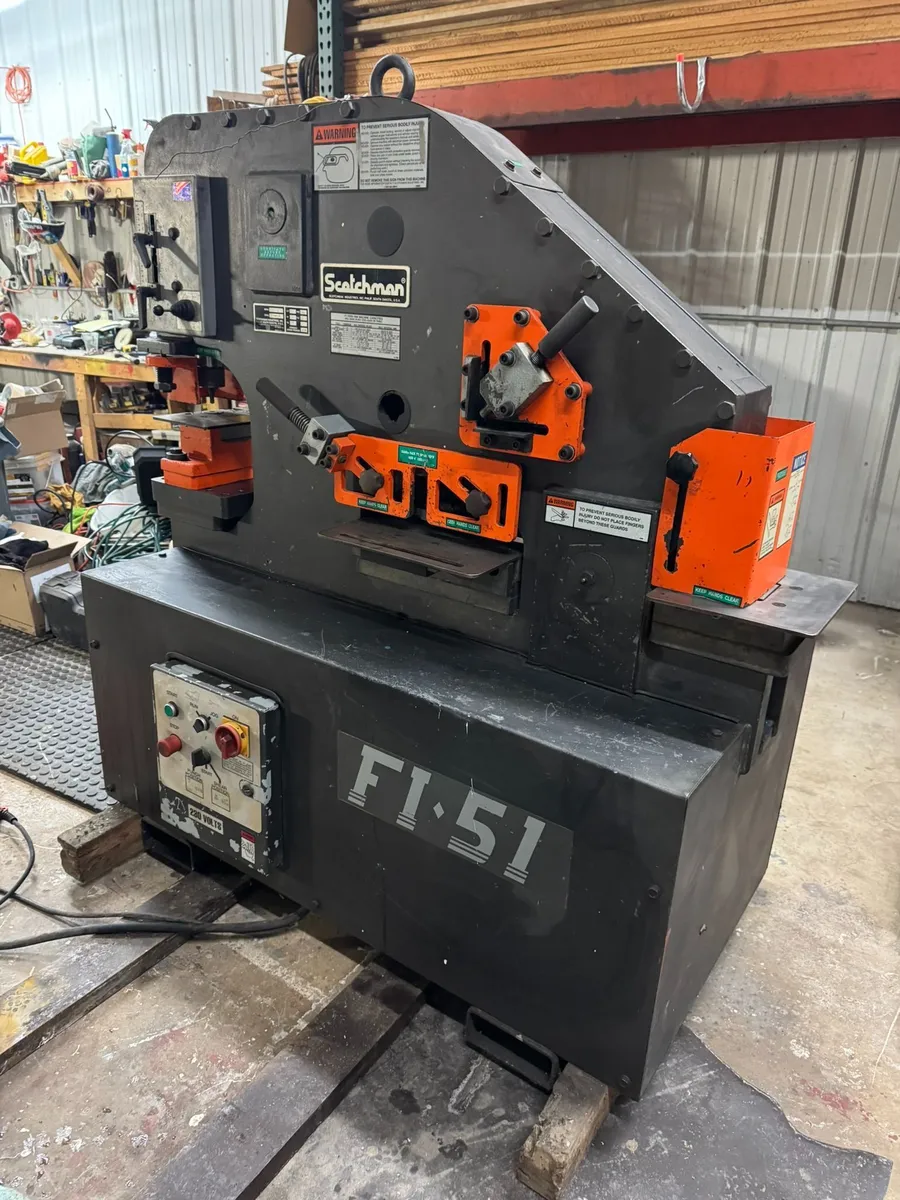

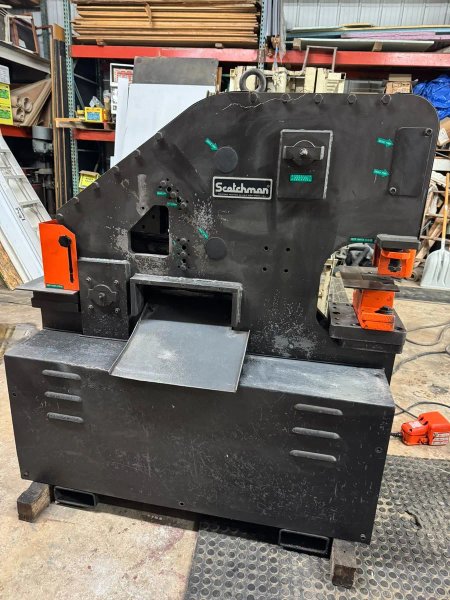

For sale: Used Scotchman 51-ton hydraulic ironworker, model FI5109-14M, from 1996. Features 51-ton punching capacity, 9" throat depth, and shear capabilities for flat bar and angles. Includes adjustable stripper, remote foot pedal, and more.

ImperialMetric

Tonnage	51 T	46.266 t
Angle (L1)	5"	127 mm
Angle (L2)	5"	127 mm
Angle (T)	0.375"	9.525 mm
Power	5 hp	5 hp
Throat	9"	228.6 mm
Stroke	3"	76.2 mm
Dimensions	28" x 59" x 61"	28" x 59" x 61"
Weight	3,150 Lbs.	3,150 Lbs.

Brand: Scotchman
Model: FI5109-14M

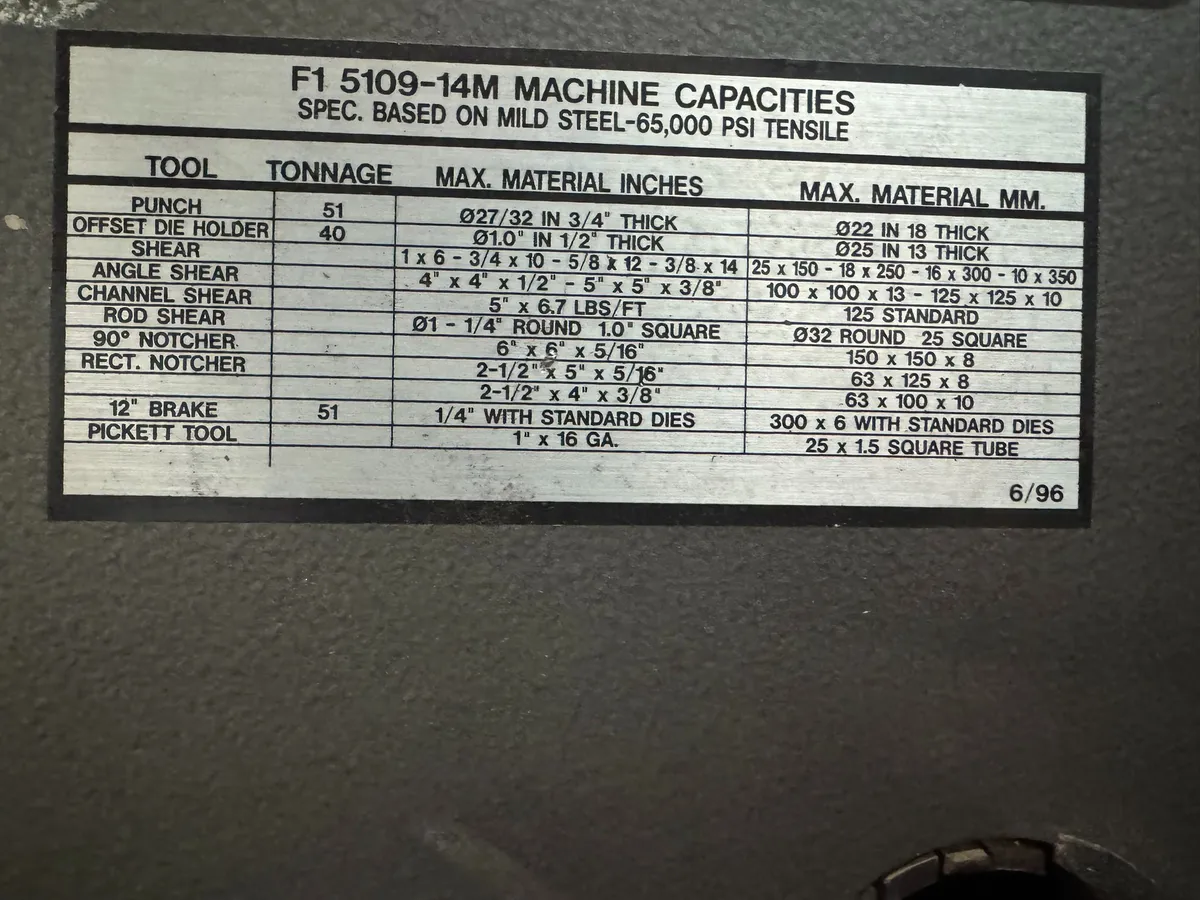

Specifications (Capacities & specifications rated on 65,000 PSI Tensile)
Throat depth: 9”
Punching capacity: 51 ton, 1-1/32” thru 5/8” (1-1/4” maximum diameter)

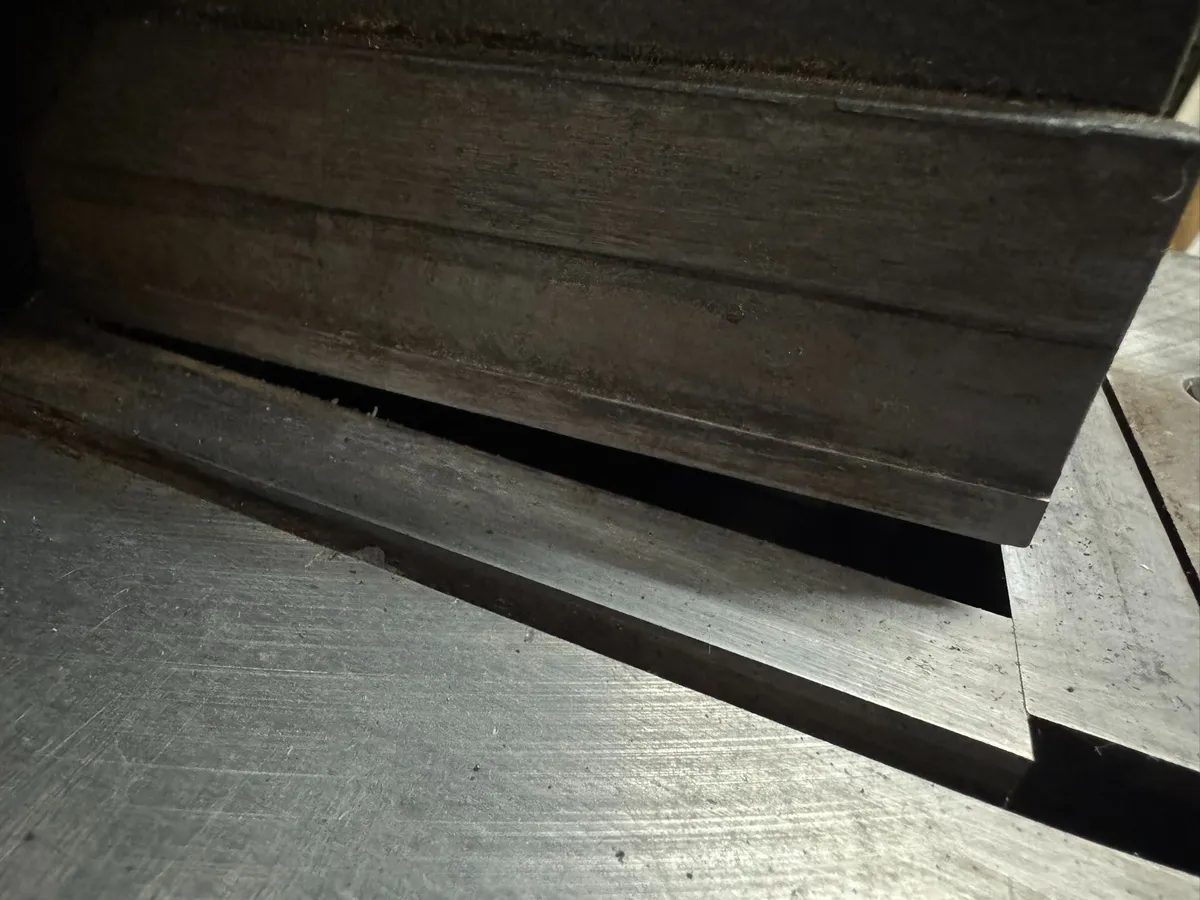

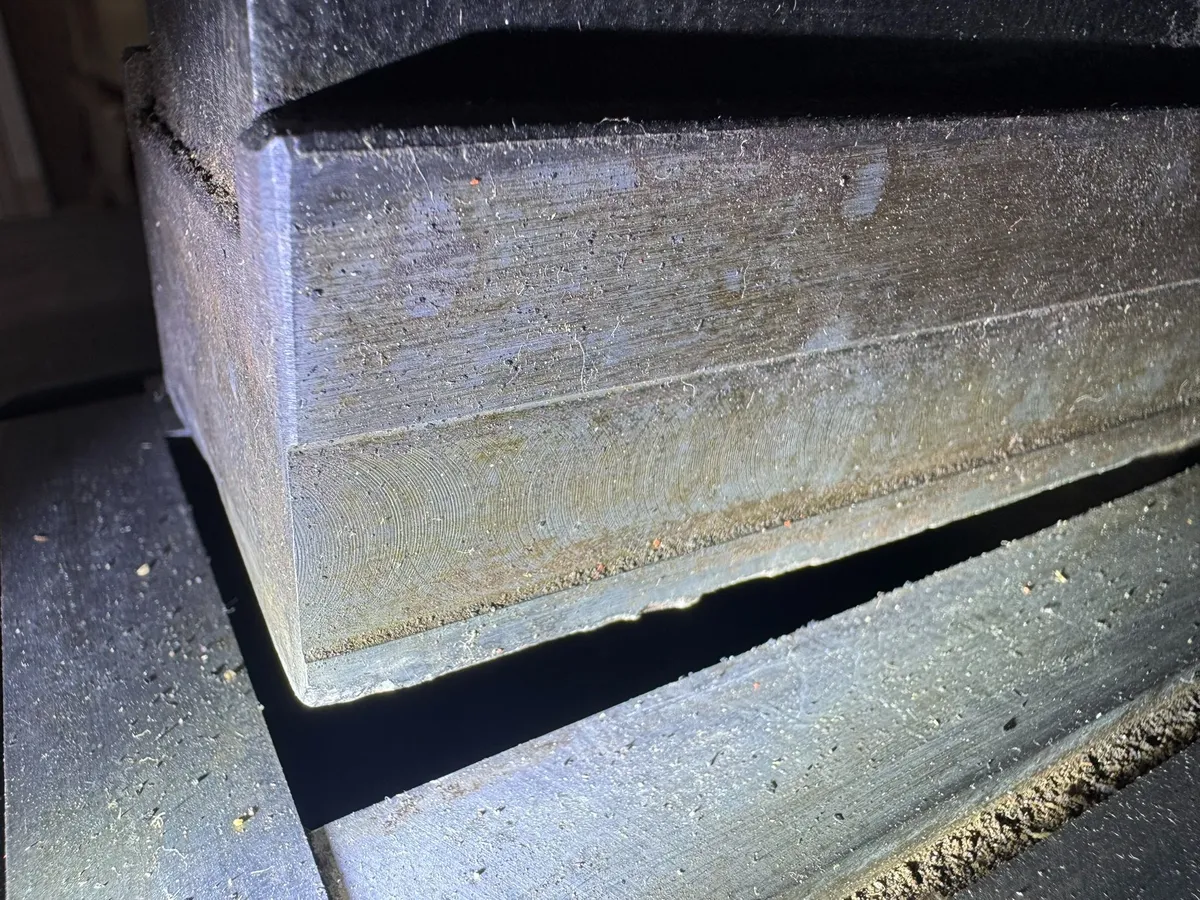

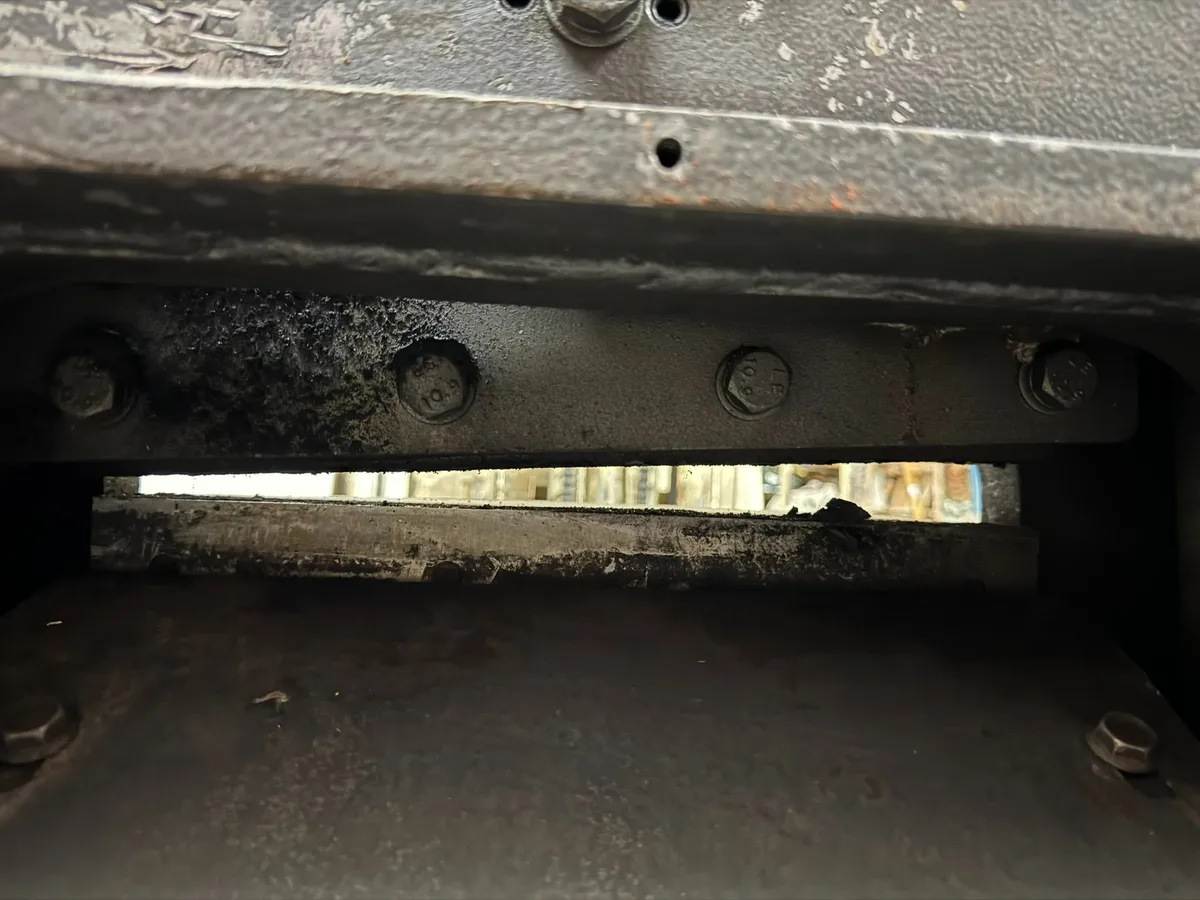

Flat bar shear: 14” length
1” x 6”
3/4” x 10”
5/8” x 12”
3/8” x 14”

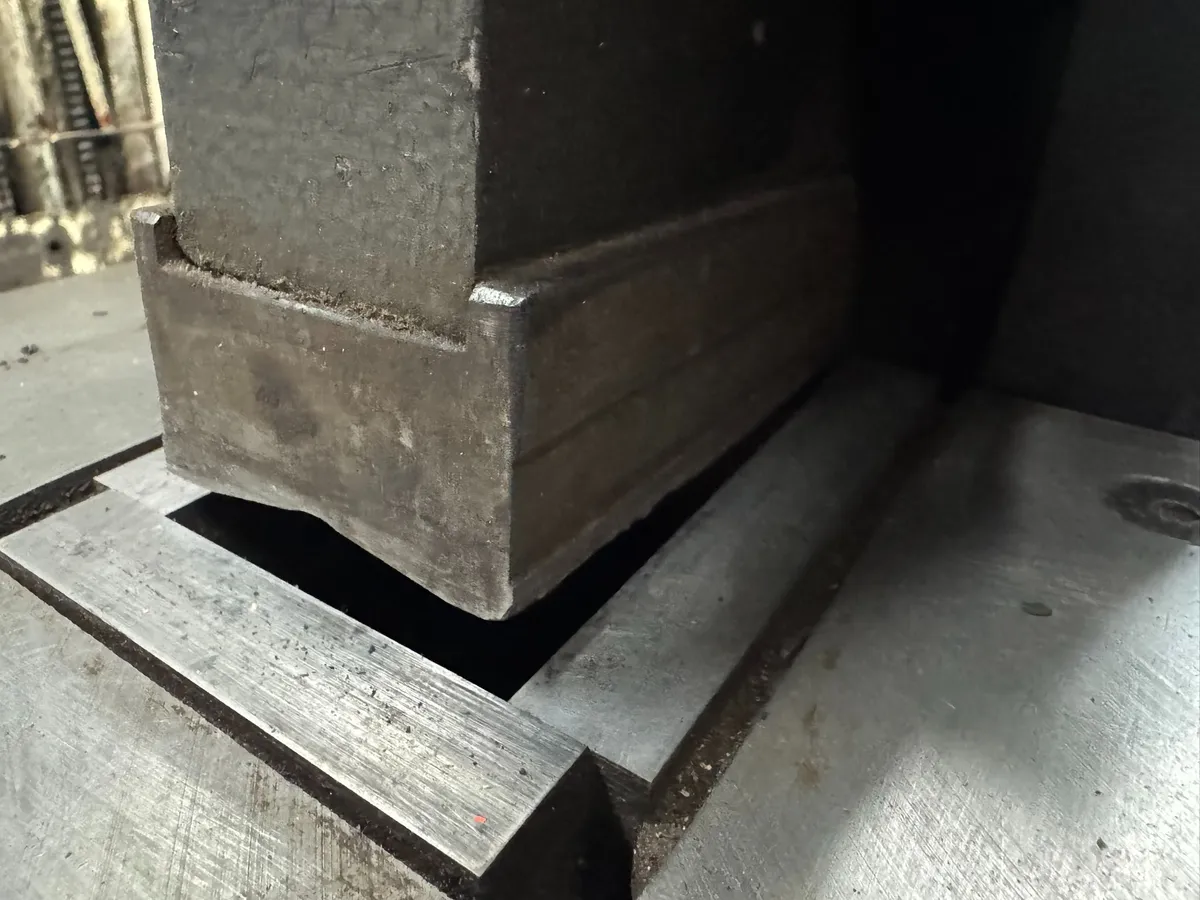

Angle shear @ 90°: 5” x 5” x 3/8” and 4” x 4” x 1/2”
@ 45°: 4” x 4” x 1/2”

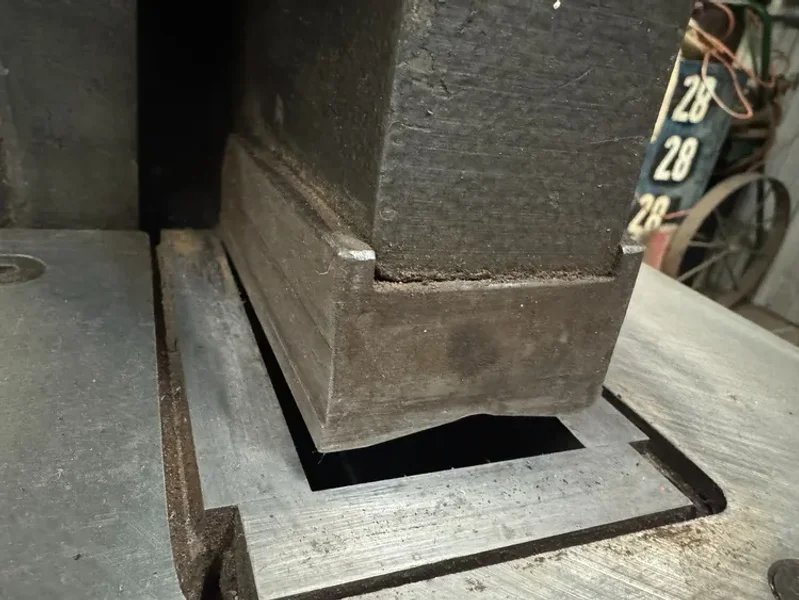

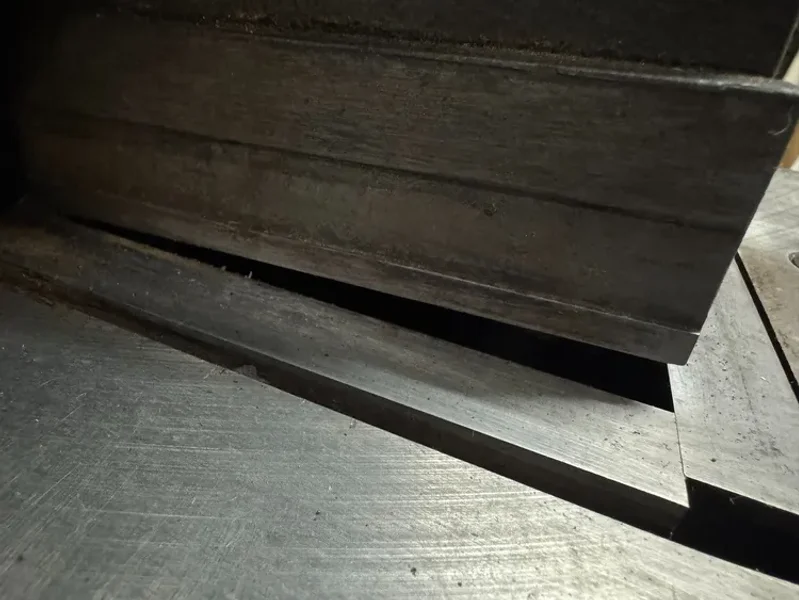

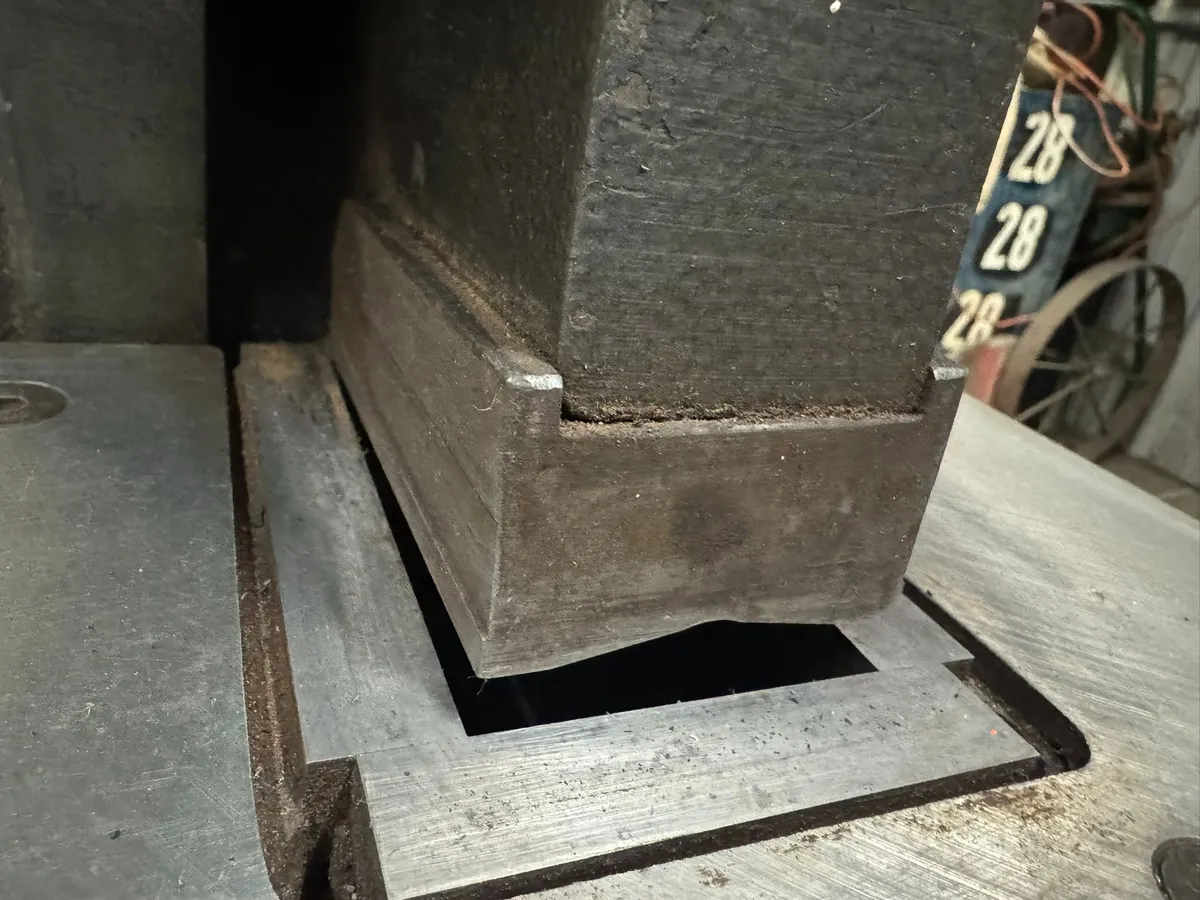

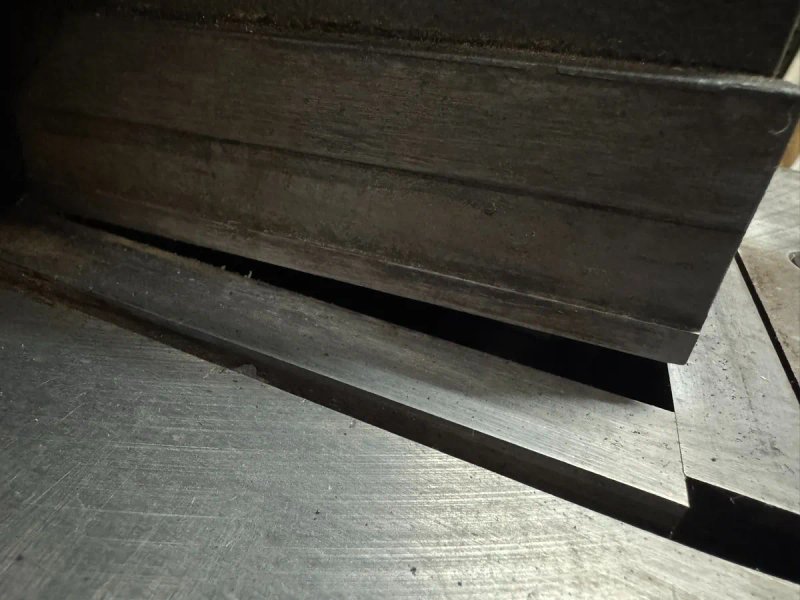

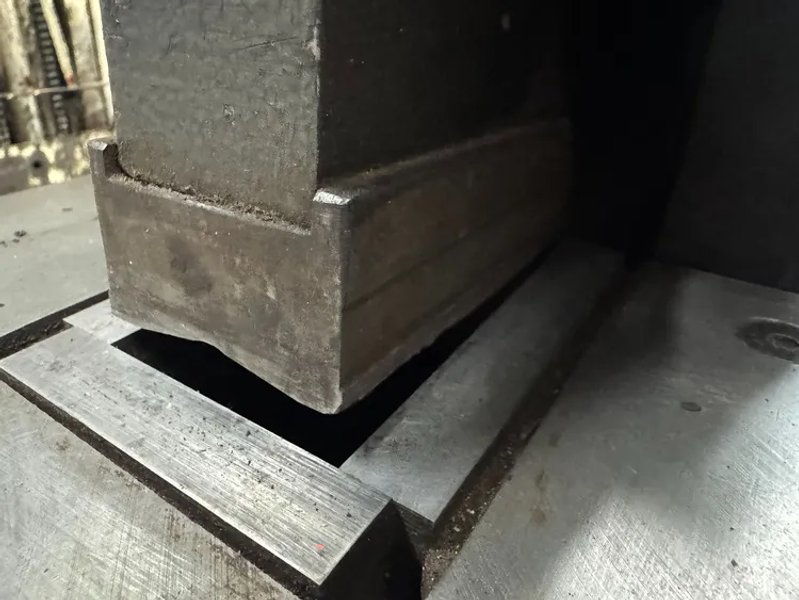

Rectangle Notcher: 2-1/2” x 5” x 5/16” (2-1/2” x 2-1/2” x 3/8” vee by rotating material)
Strokes per minute: light gauge 37, 14 under full load
Hydraulics: 2,500 PSI
Motor: 5 H.P.
Voltage: 230 / 440 volt currently wired 230 volt 3 phase
Dimensions: 28” width x 59” length x 61” height
Weight: 3,150 lbs.

Adjustable stripper on punch
Remote foot pedal
Bar shear support table
Die holder complete w/2” die insert

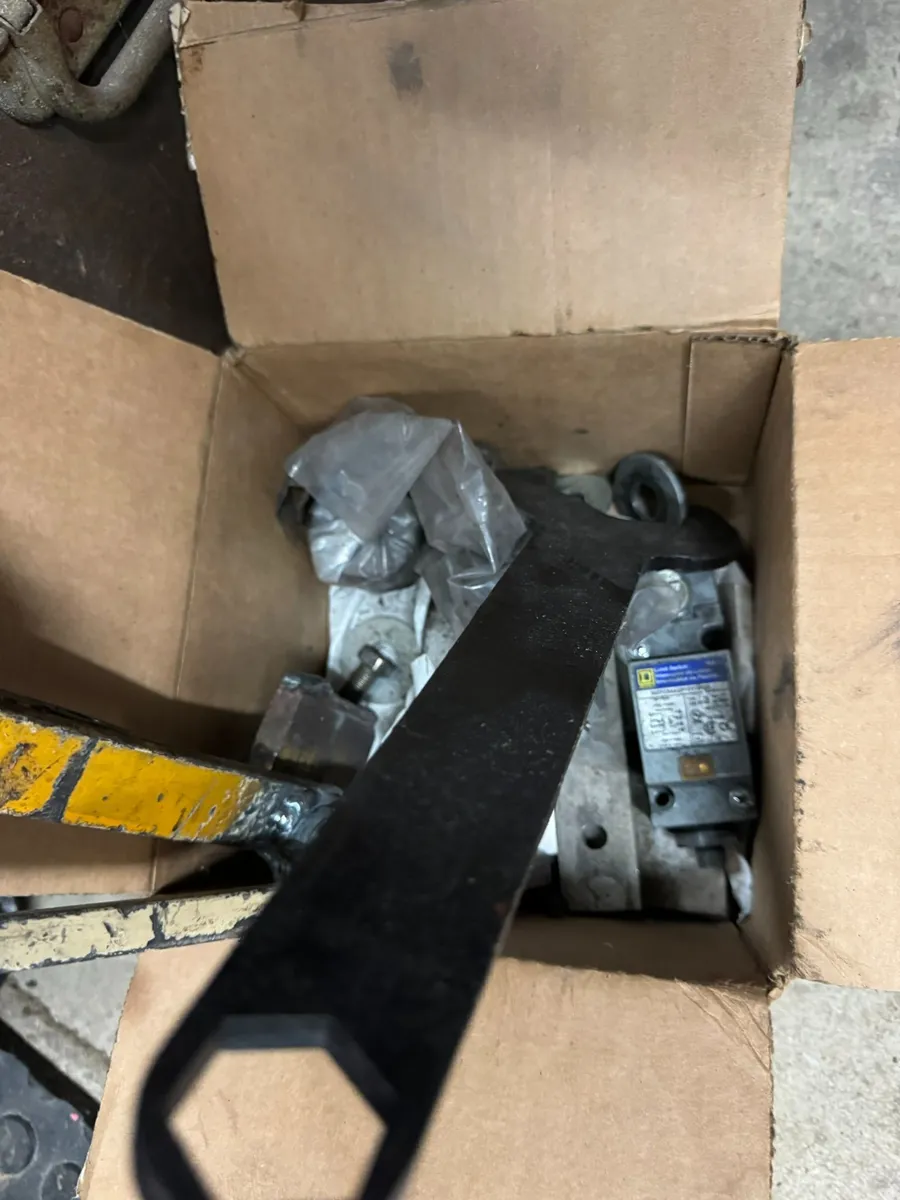

Adjustable stroke controls w/electric limit switch
Punch table

Machine sold As-Is
