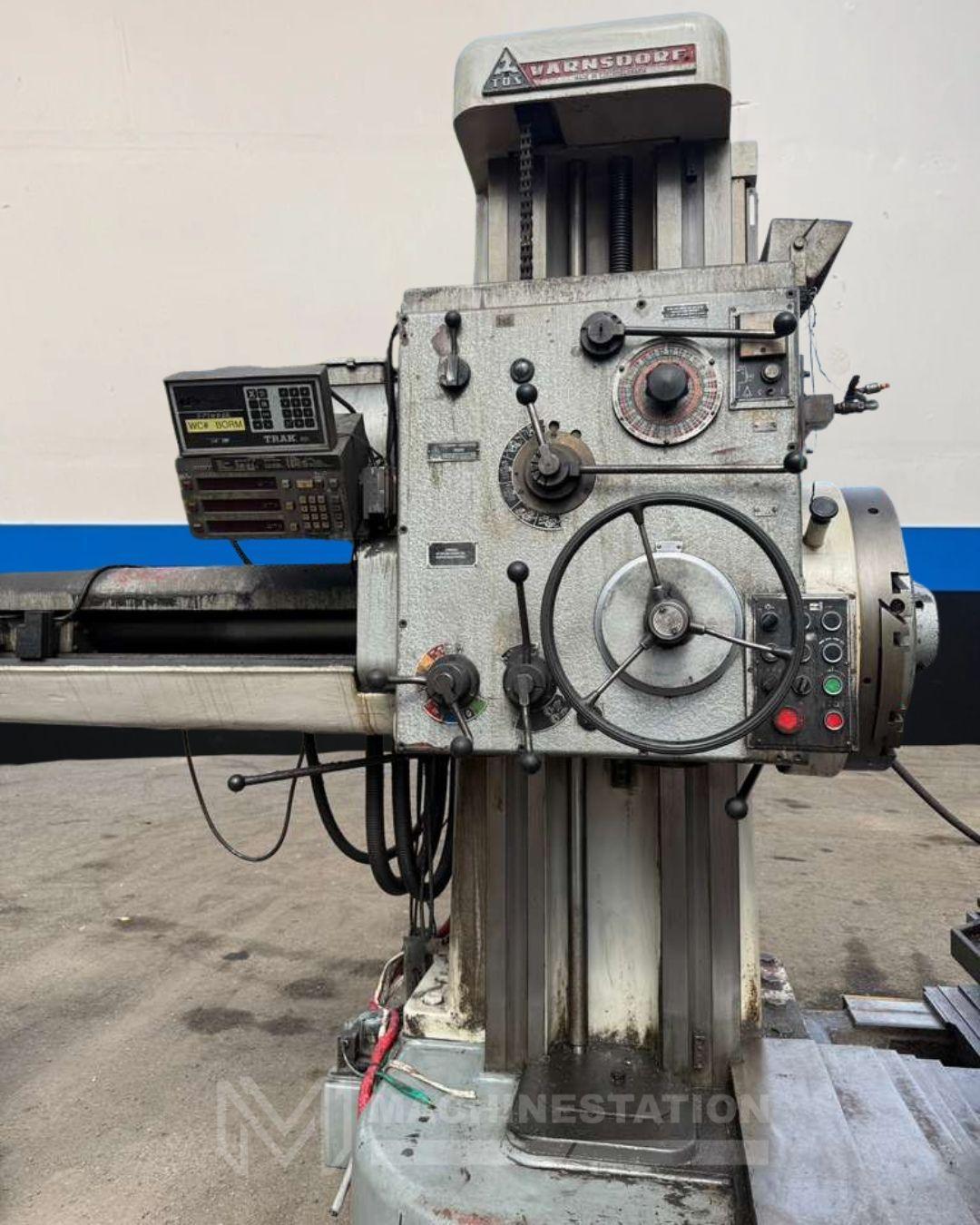

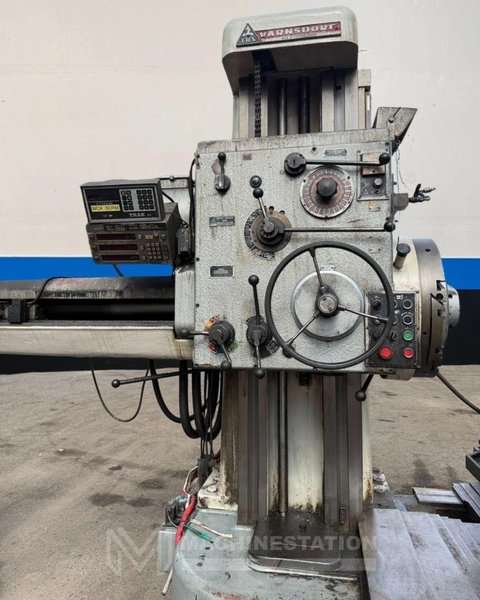

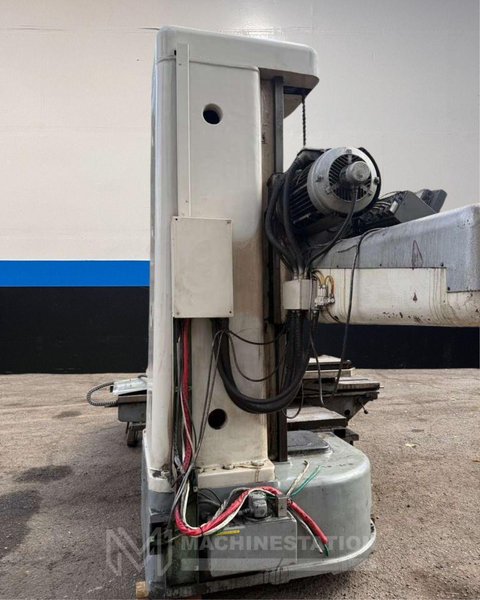

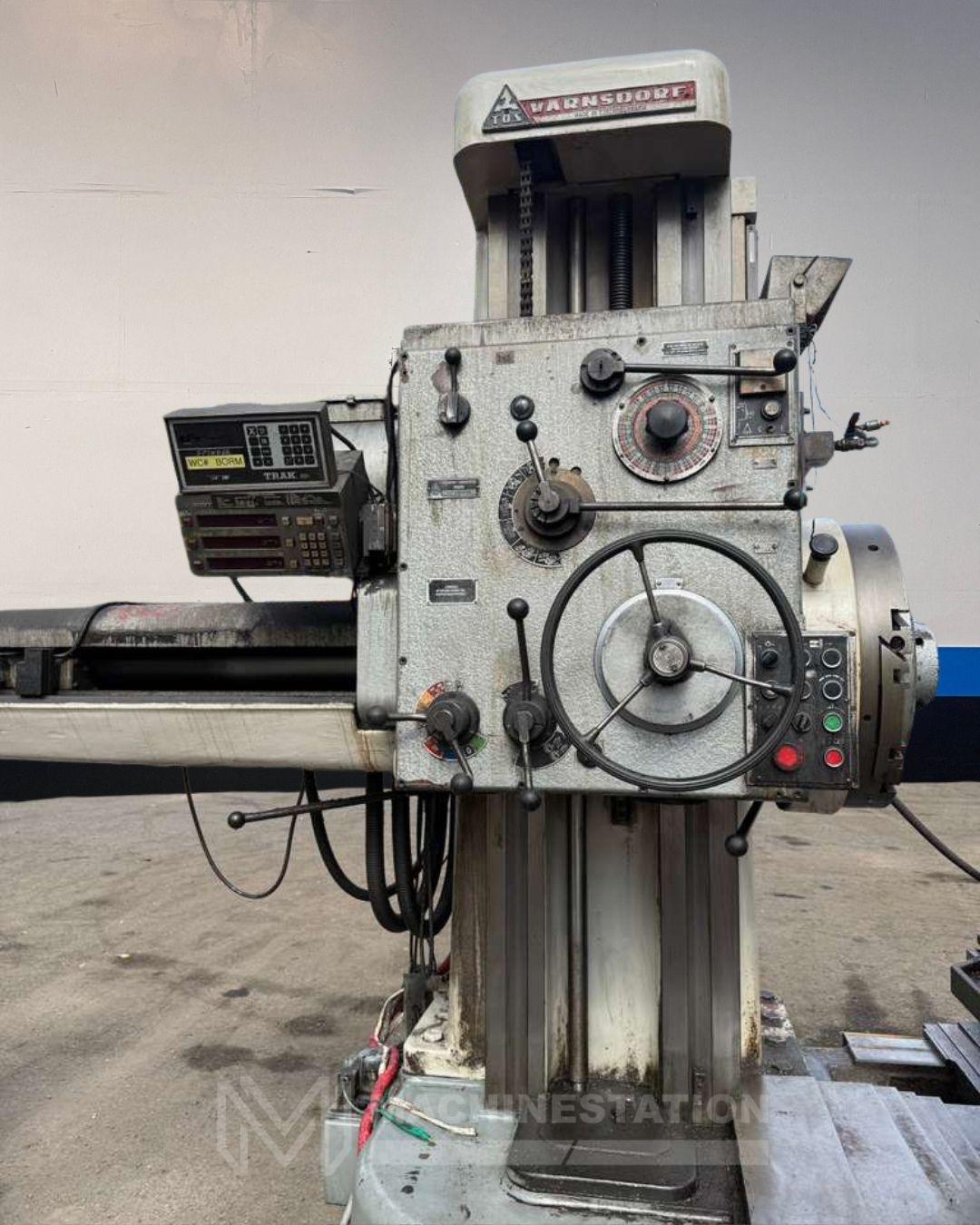

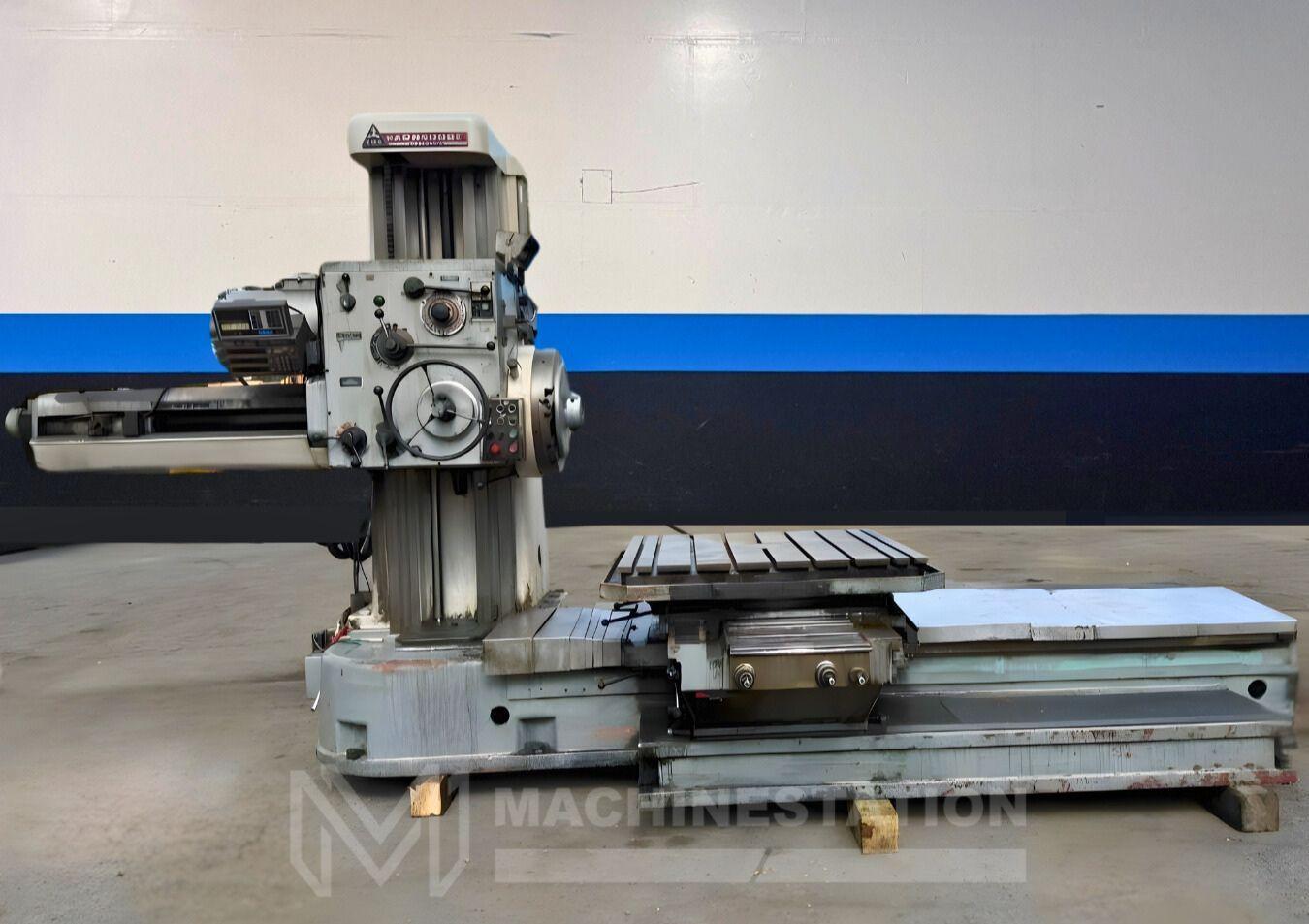

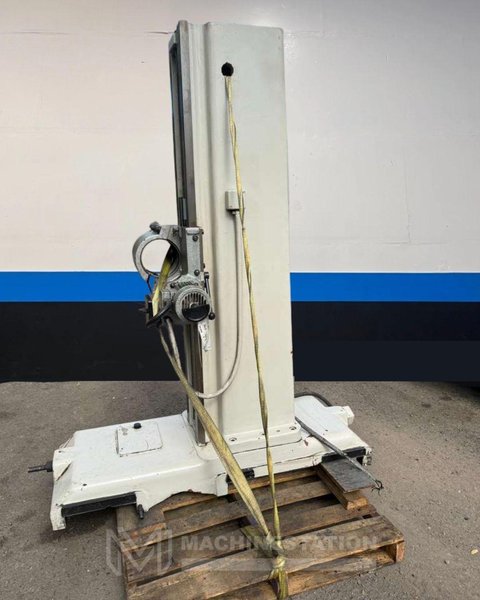

Tos Varnsdorf W100A Horizontal Table Type Boring Mill

Brand
TOS
Category
Boring Mills
Type
Table Type CNC Horizontal Boring Mills
Model
Tos Varnsdorf W100A
Stock #
112890
Year
1980
Condition
Not specified

Location

Not specified
REQUEST FINANCING

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Make: Tos Varnsdorf
Model: W100A
Year: 1980
Condition: Used – Good
Features:
3.94″ Spindle Diameter
4th Axis Rotary Table
Heavy Table Load Capacities
Gear Head Spindle for Powerful Torque
Facing Chuck
Tailstock
DRO
Note: Machine is dismantled and Ready to be loaded on the Truck
Travels:
X Axis (Table Traverse Travel): 63.00″
Y Axis (Headstock Vertical Travel): 44.09″
Z Axis (Table Longitudinal Travel): 49.21″
W Axis (Spindle Stroke): 27.6″
Feed Rates:
Feeds For Boring – 32 Stages: 0.0008 – 0.47 inch/rev.
Feeds For Milling – 18 Stages: 0.71 – 35.43 inch/min
Rapid Travese (Spindle Stroke, Headstock and Trable): 110.24 inch/min

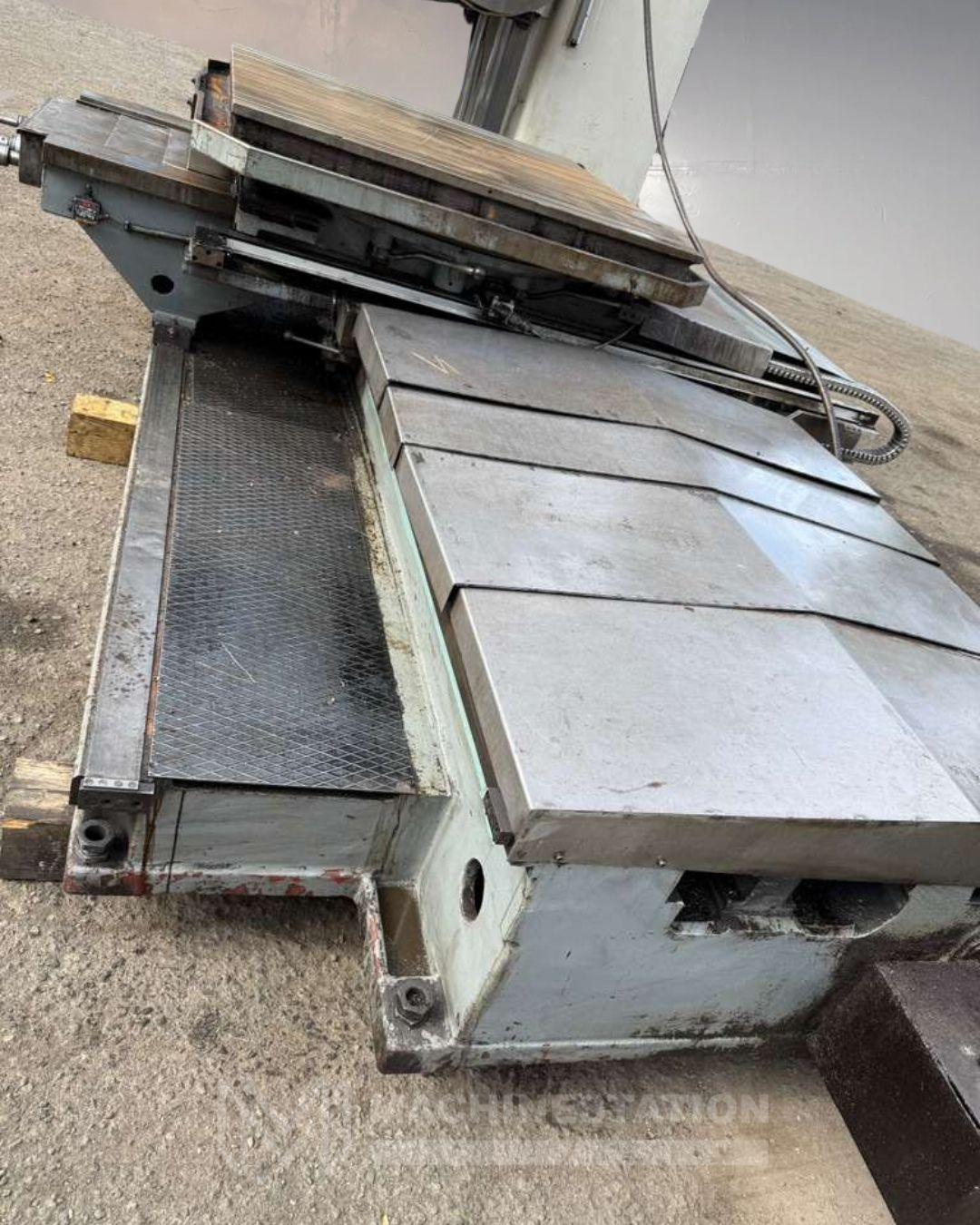

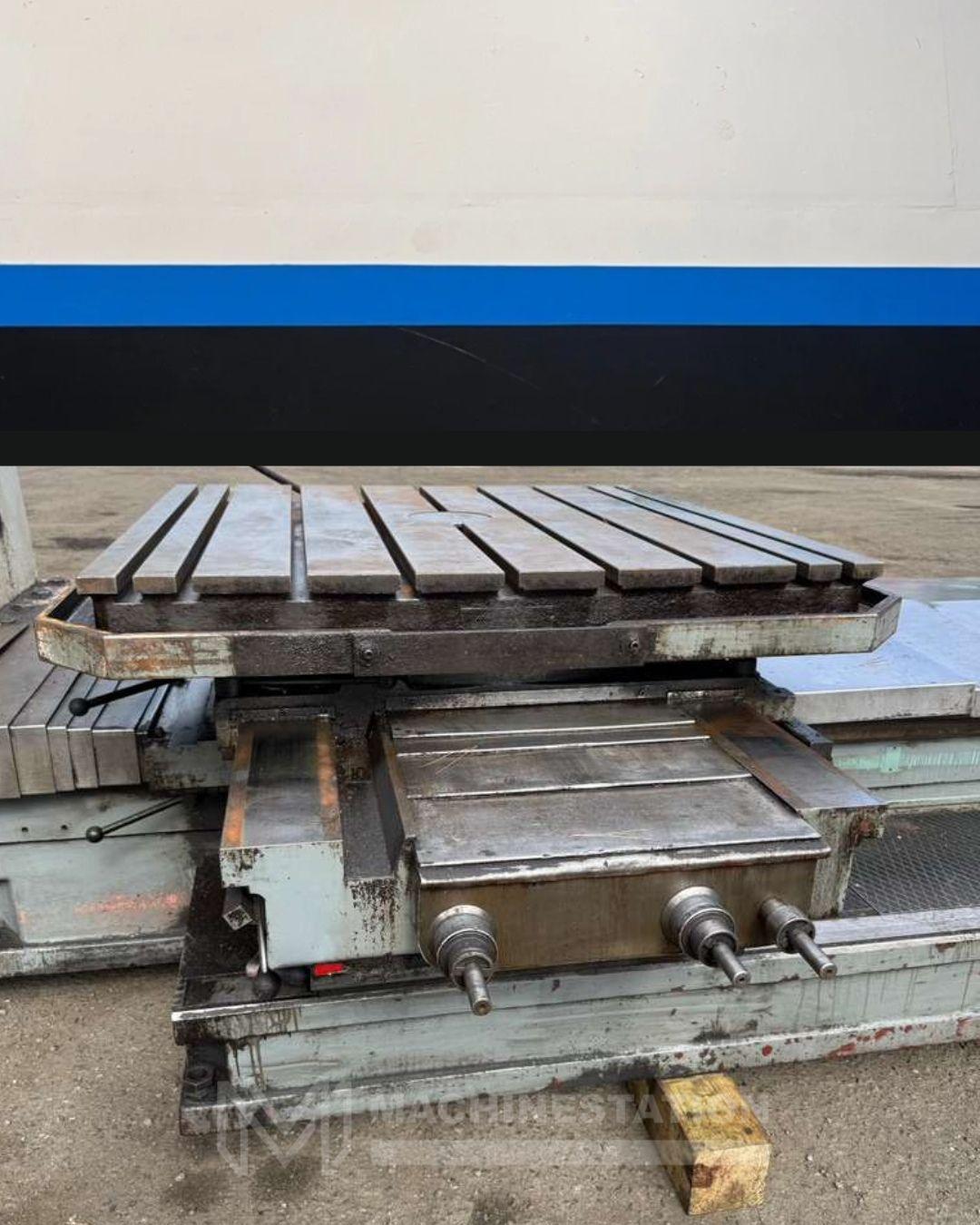

Rotary Table:
Length: 49.21″
Width: 49.21″
Max Weight on Table: 6,624 lbs
Indexing: 1 Degree
Spindle:
Spindle Diameter: 3.94″
Spindle Range: 7.1 – 1,120 RPM
Spindle Taper: 50
Power: 15 HP

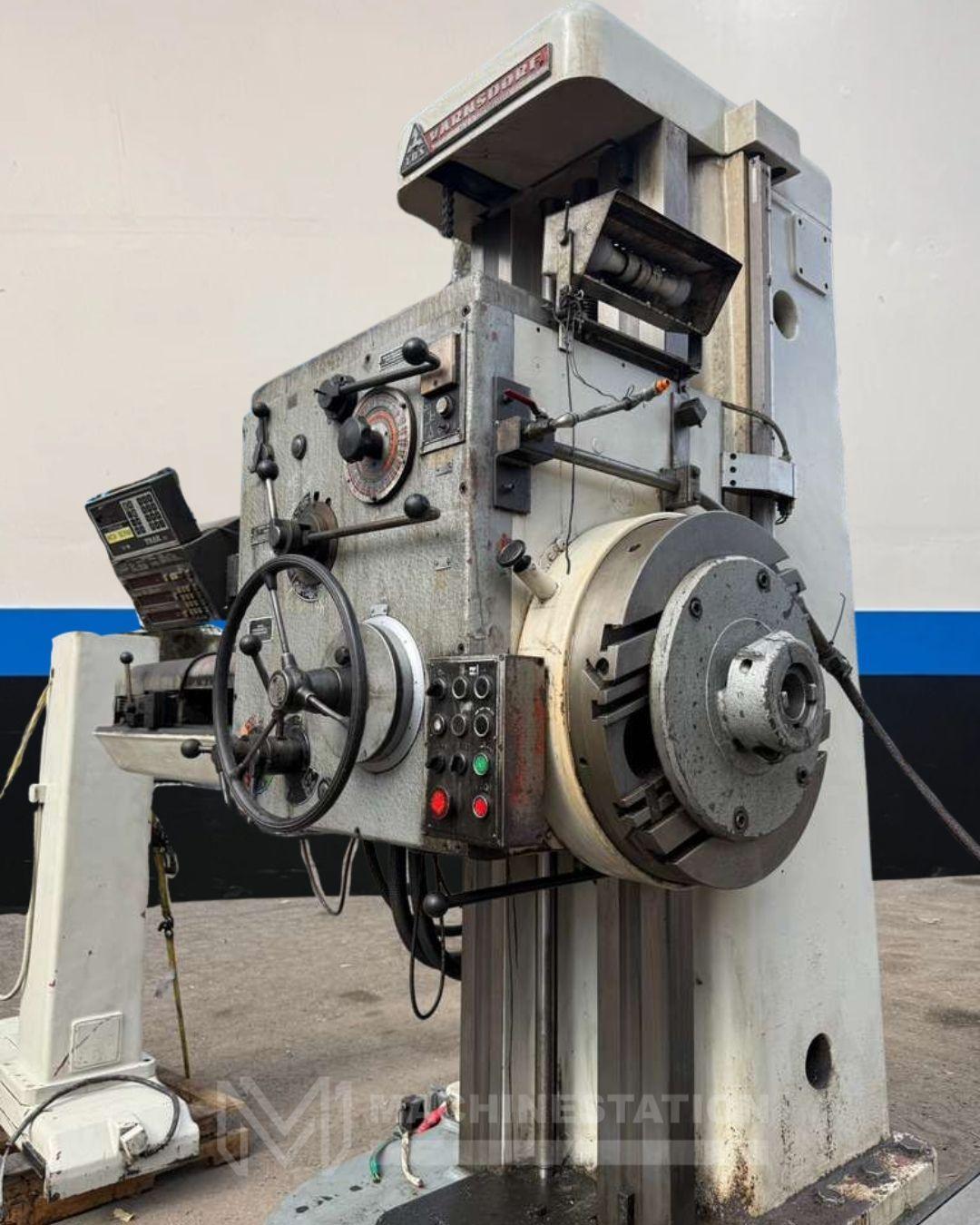

Facing Head:
Daimeter: 23.62″
Slide Travel: 8.26″
Facing Diameter Max: 35.43″
Speed Range: 7.1 – 224 RPM
General:
Power: 66FLA / 205-220v / 3-Phase
Machine Dimensions: 234″ x 118″ x 118″ High
Machine Weight: 30,905 lbs. Approx.
