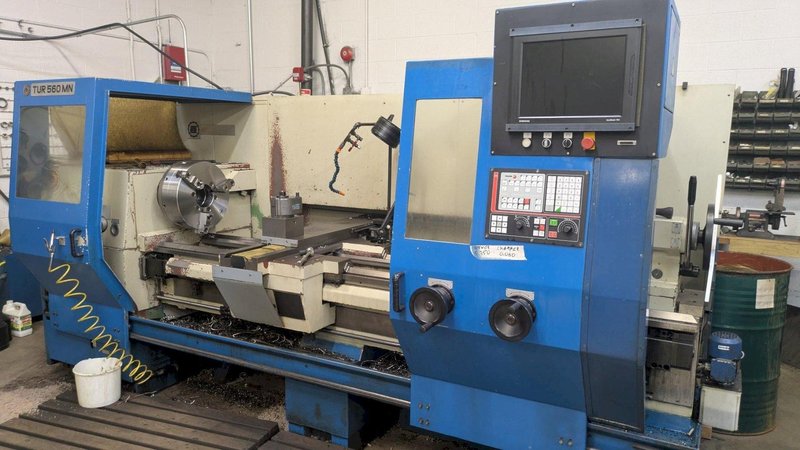

Name: FAT TUR 560MN 2002 Teach-In / Manual-Plus Fagor CNC Lathe 2000mm (~78.7")
Brand: TOOLMEX
Availability: InStock

Brand

TOOLMEX

Location

Illinois

Specifications
Files & Videos

CNC Control	yes
Type Of CNC Control	Fagor

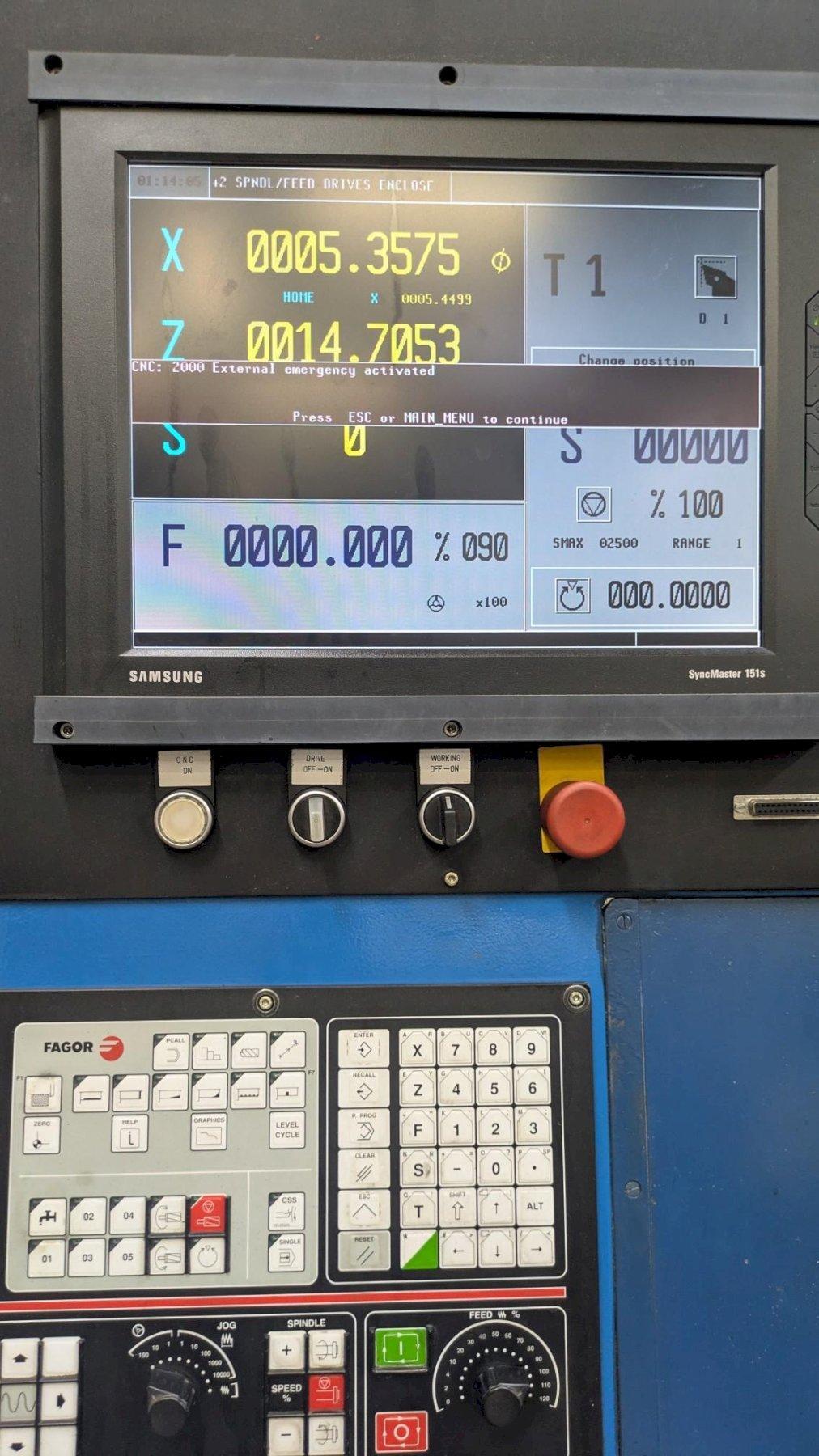

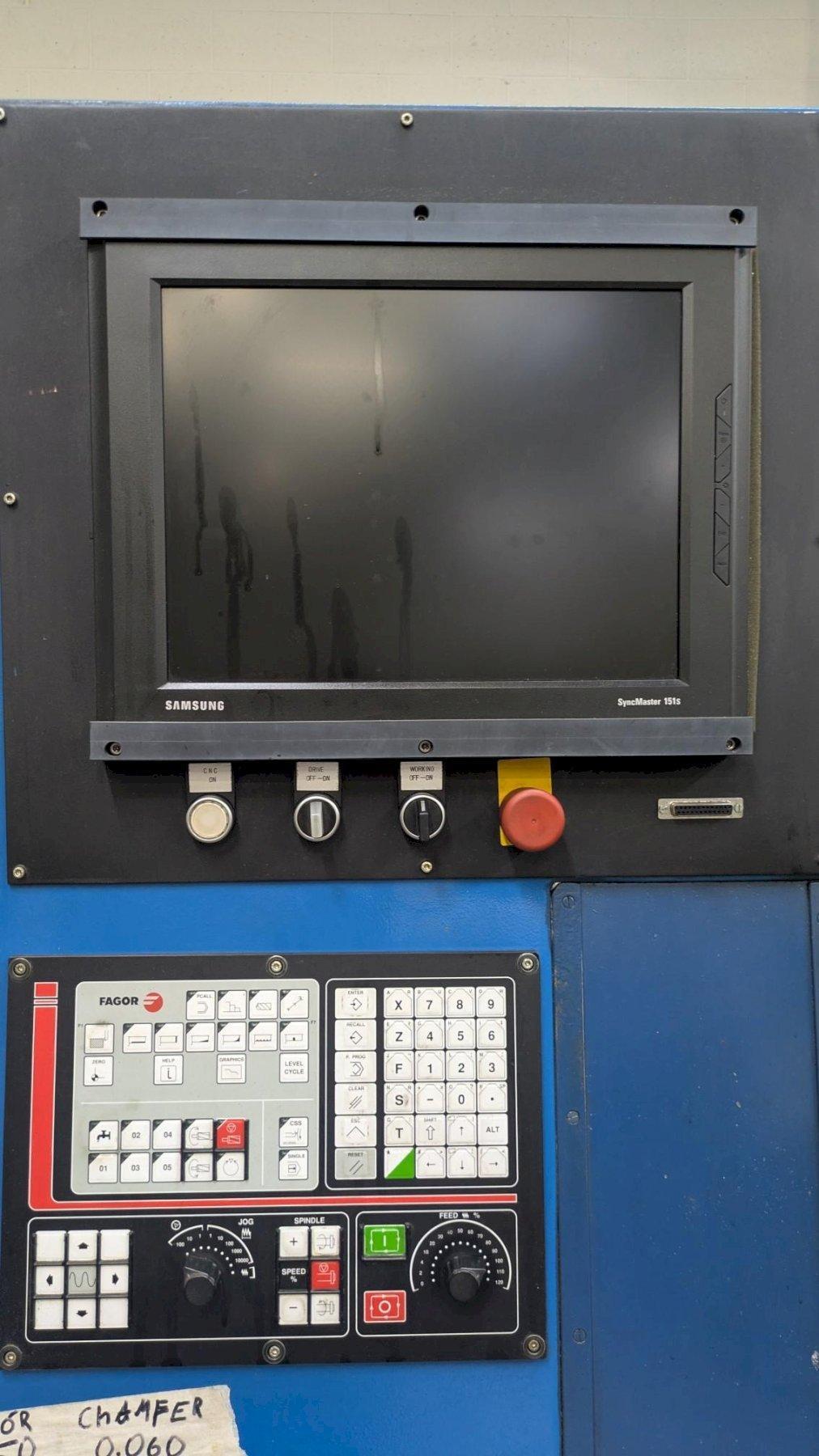

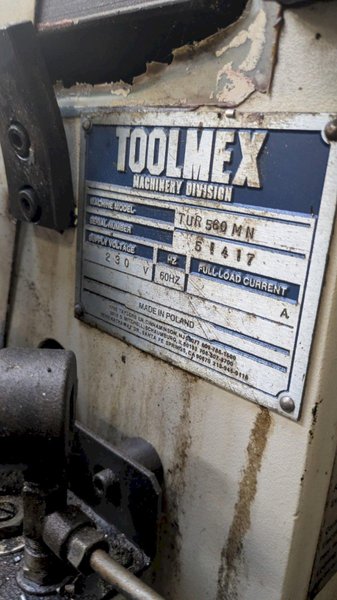

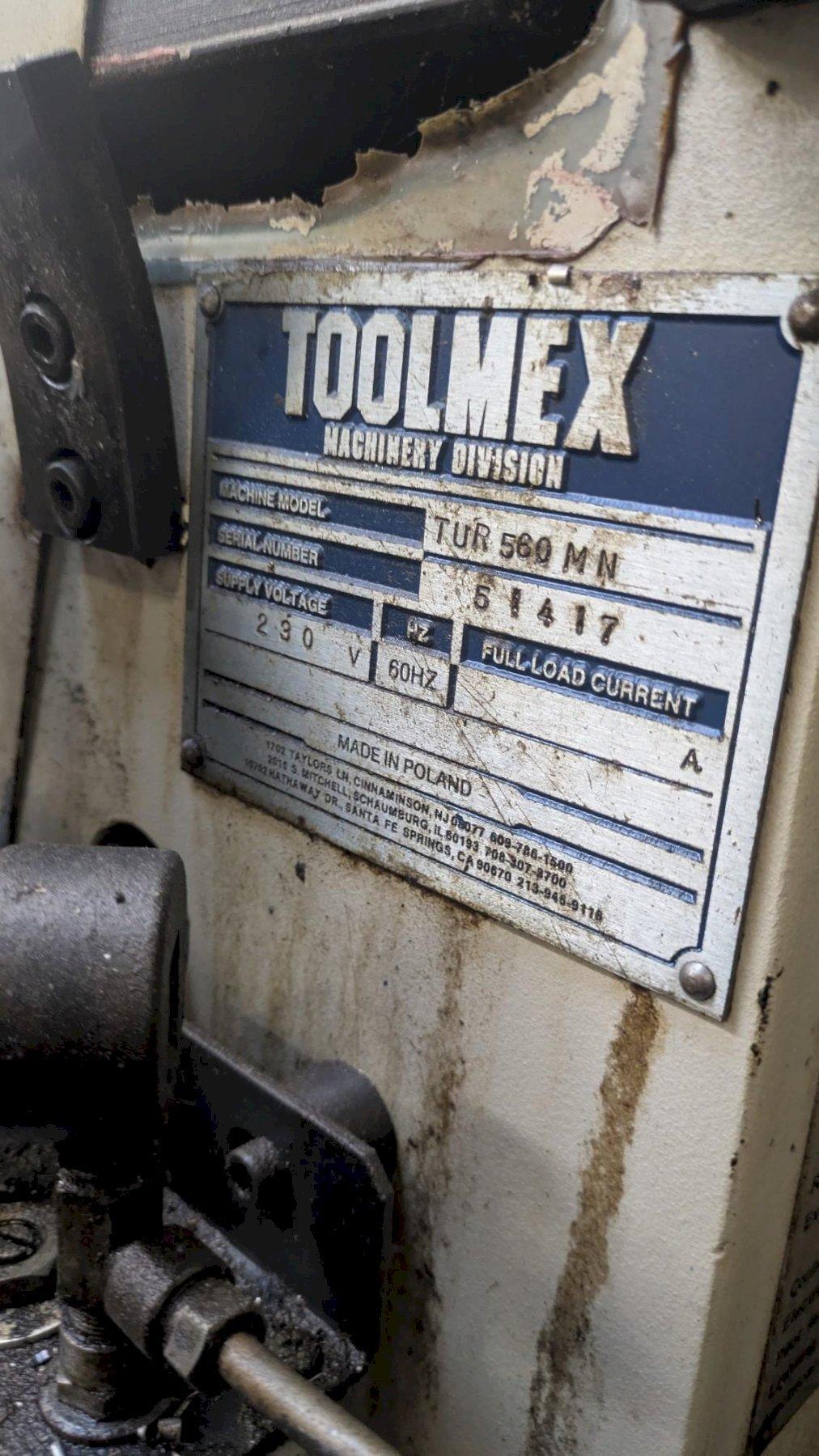

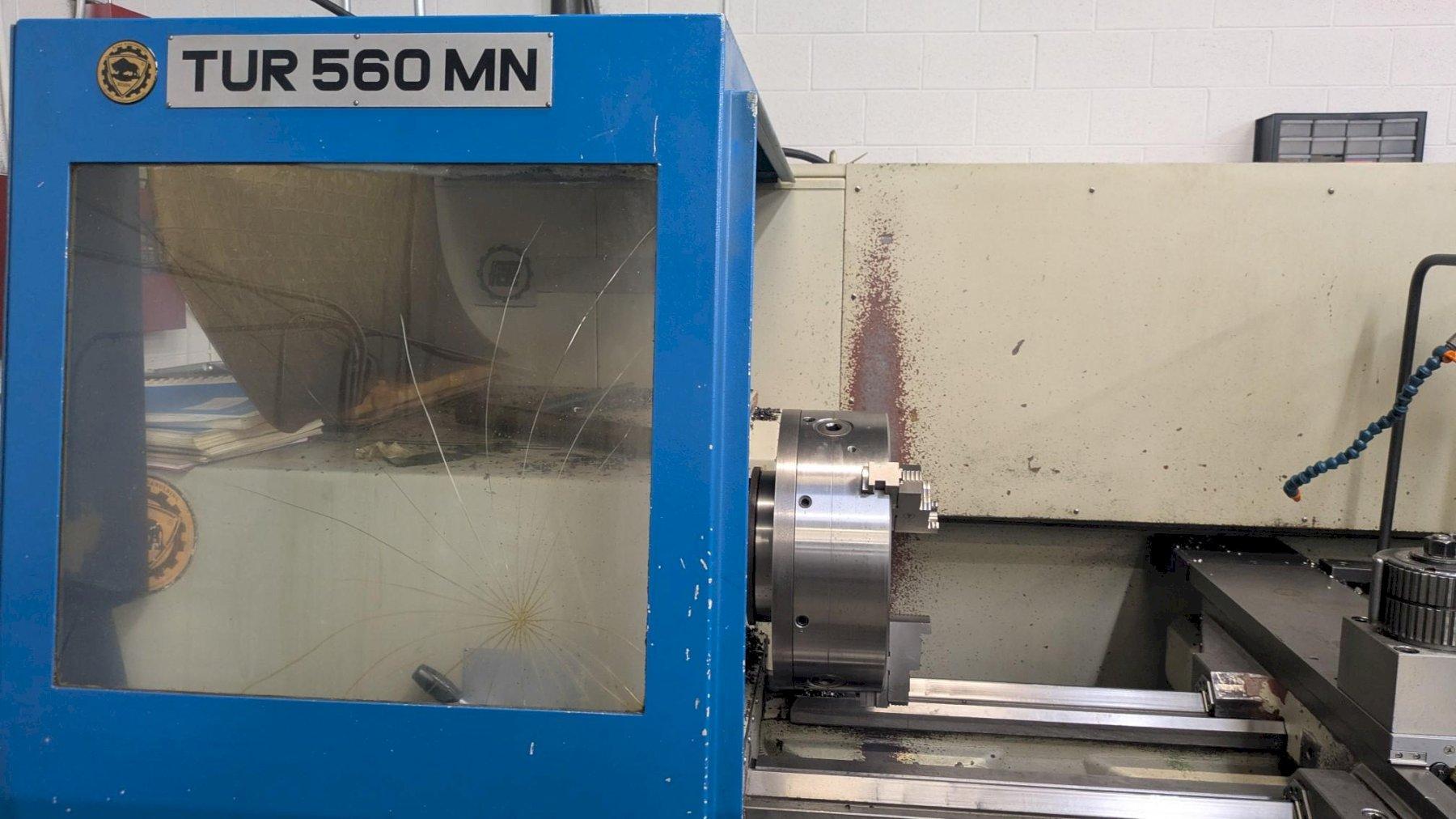

FAT HACO / Toolmex TUR 560MN Teach-In / Manual-Plus CNC Lathe. Based on your layout, this machine features a 2000 mm (~78.7") center distance configuration yielding an approximate 70" maximum turning length (between centers) once clearances for the chuck and tailstock are factored in. While these machines typically came equipped with Siemens controls, your specific unit (S# 51417) was ordered or retrofitted with a Fagor Control system (typically the Fagor 8055 or 8060/8065 series). Core Dimensions & Capacity Swing Over Bed: 560 mm (22.0") Swing Over Cross Slide: 300 mm (11.8") Distance Between Centers: 2,000 mm (~78.7") Maximum Turning Length: Approx. 1,800 mm to 1,960 mm (~70" to 77" working envelope) Width of Bed: 433 mm (17.0") Maximum Workpiece Weight (Between Centers): 2,500 kg (5,511 lbs) Maximum Workpiece Weight (In Chuck): 800 kg (1,763 lbs) Main Spindle & Headstock Spindle Bore: 105 mm (4.13") Spindle Nose Standard: D1-8 Camlock (ISO 5419) Spindle Speed Range: 2 to 2,500 RPM Gearbox: 2-speed manual range selection (Low range for torque / High range for finishing) Main Motor Power: 18.5 kW (24.8 HP) continuous Feeds & Axis Travels X-Axis Travel: 380 mm (14.9") Z-Axis Travel: ~2,000 mm depending on center configuration Rapid Feed Rate (X and Z): 8 m/min (315 IPM) Tailstock Quill Diameter: 100 mm (3.93") Quill Taper: MT 5 or MT 6 (depending on targeted market spec) Quill Stroke: 200 mm (7.87") Tooling Configuration Options Turret / Tool Post: heavy-duty quick-change tool post. Physical Machine footprint Floor Space Dimensions (L × W × H): Approx. 4,000 mm × 2,300 mm × 1,800 mm (~157" × 90" × 71") Machine Weight: Approx. 4,500 kg to 5,300 kg (9,920 lbs to 11,684 lbs) depending on guarding and accessories. FOB: Wood Dale IL 60191 (can recommend local rigger) Any questions, please ask.
