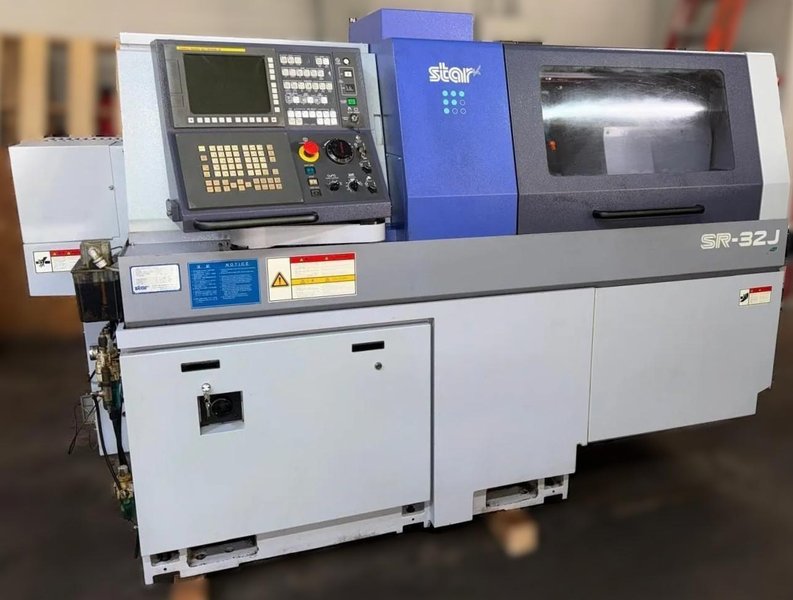

2015 STAR SR-32J CNC Swiss-Type Automatic Lathe, 1-1/4" Bar Capacity, Fanuc 32i-B CNC Control, Main & Sub-Spindle, C-Axis, Live Tooling, and Back-Working Capability.
Brand
Category
Type
Model
SR-32J
Stock #
7197
Year
2015
Condition
Not specified
Location
California
| Manufacturer | Star Micronics |
| Model | SR-32J |
| Year | 2015 |
| Machine Type | CNC Swiss-Type Automatic Lathe |

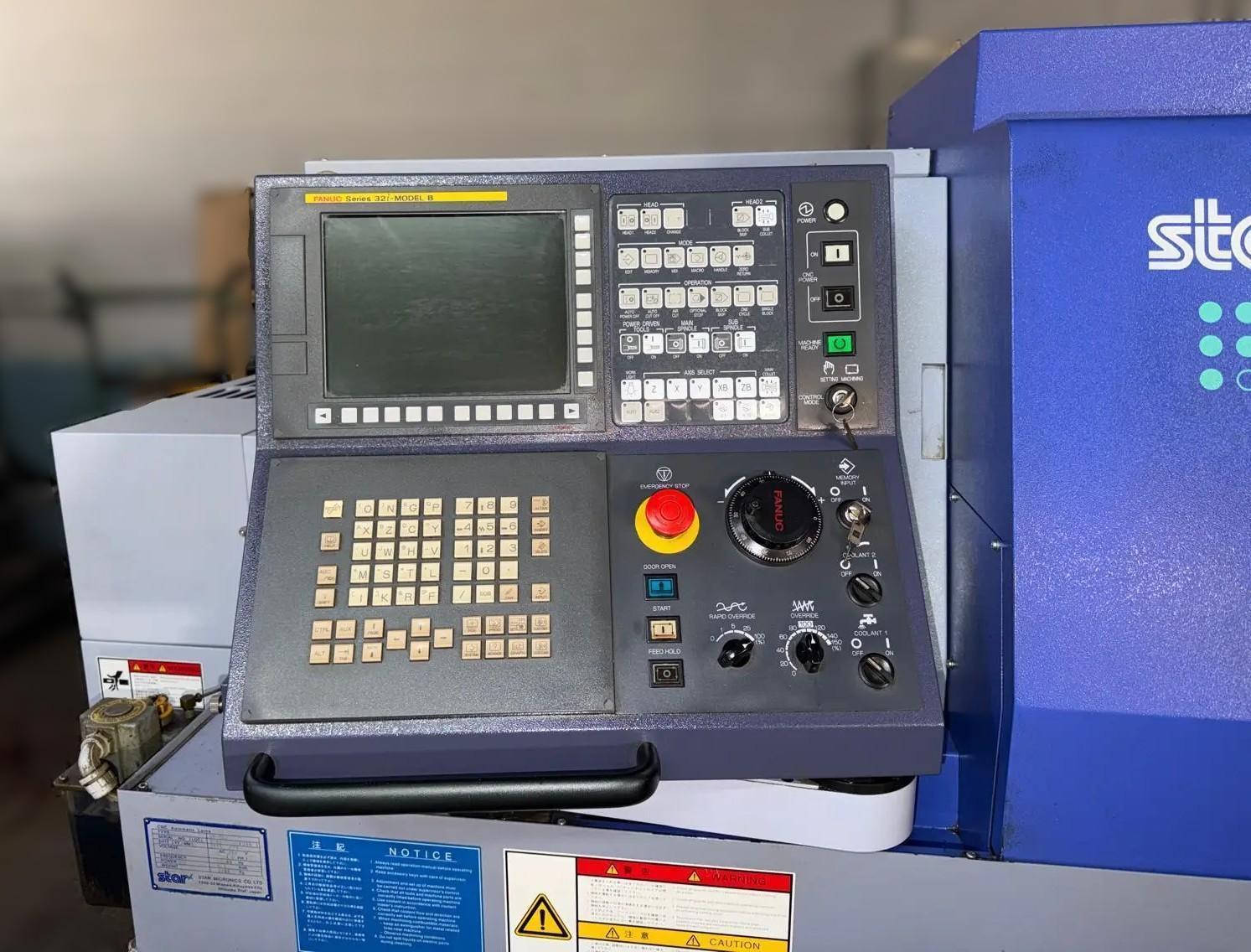

| CNC Control | Fanuc 32i-B |
| Maximum Bar Capacity | 1.26" (32 mm) |
| Maximum Headstock Stroke | 12.20" (310 mm) |
| Headstock Stroke With RMGB | 11.02" (280 mm) |
| Main Spindle Speed | 7,000 RPM |
| Main Spindle Motor | 7.4 HP continuous / 10 HP peak |
| Sub-Spindle Speed | 7,000 RPM |
| Sub-Spindle Motor | 3 HP continuous / 5 HP peak |
| Main & Sub C-Axis | Yes |
| Turning Tool Stations | 6 |
| Turning Tool Shank | 5/8" (16 mm) |
| Cross-Working Live Tools | 3 standard |
| Live Tool Speed | 5,000 RPM |
| Front-Working Tool Positions | Up to 4 |
| Back-Working Tool Positions | Up to 4 |
| Maximum Drilling Diameter | 0.51" (13 mm), stationary |
| Maximum Tapping | M12 × 1.75, stationary |
| Rapid Traverse | 945 IPM (24 m/min) |
| Coolant Tank | 46 Gallons (174 L) |
| Machine Dimensions | 106.7" W × 50.2" D × 67.1" H |
| Approximate Machine Weight | 6,835 lbs. (3,100 kg) |
|
2015 STAR SR-32J CNC Swiss-Type Automatic Lathe, 1-1/4" Bar Capacity, Fanuc 32i-B CNC Control, Main & Sub-Spindle, C-Axis, Live Tooling, and Back-Working Capability. |
|
