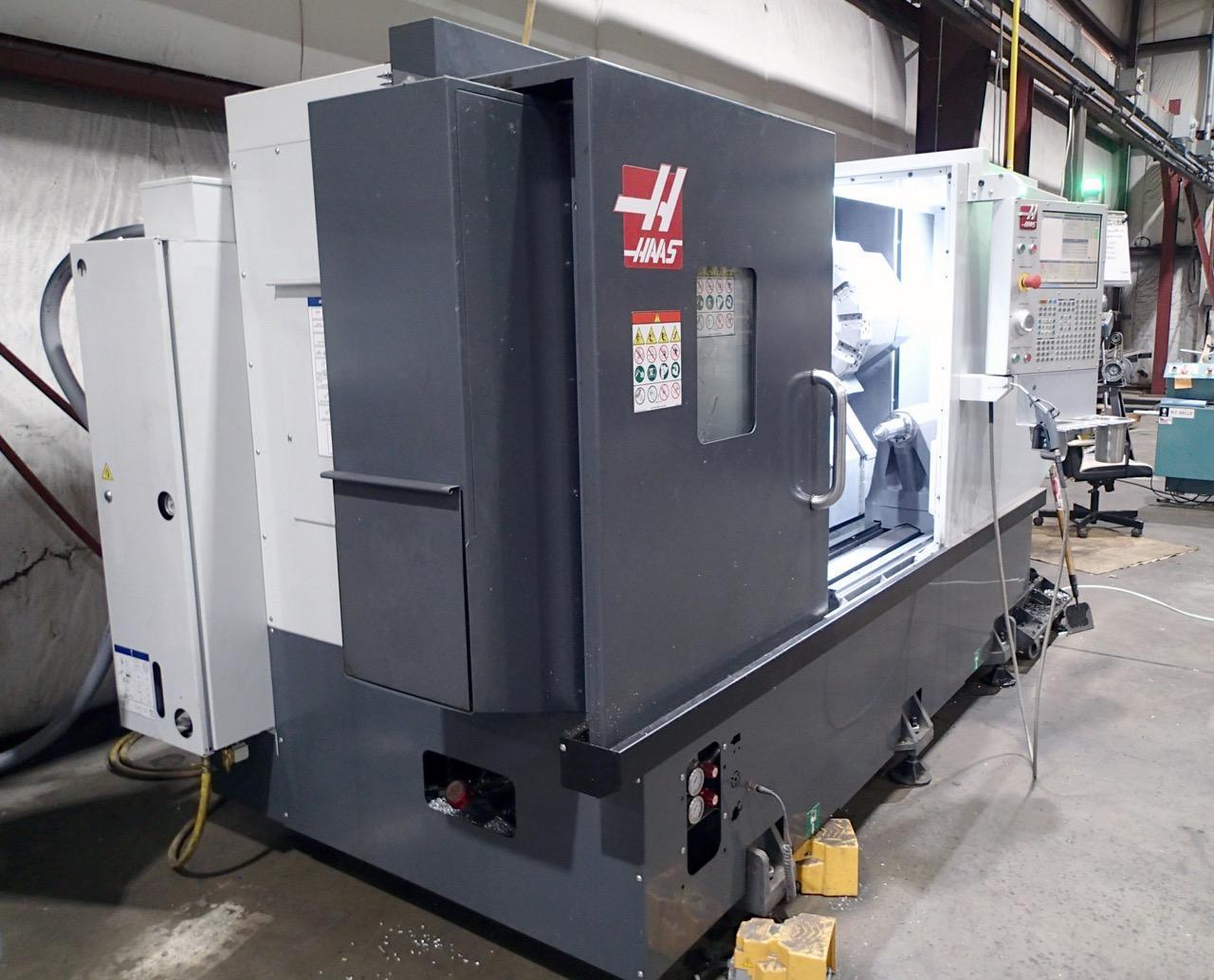

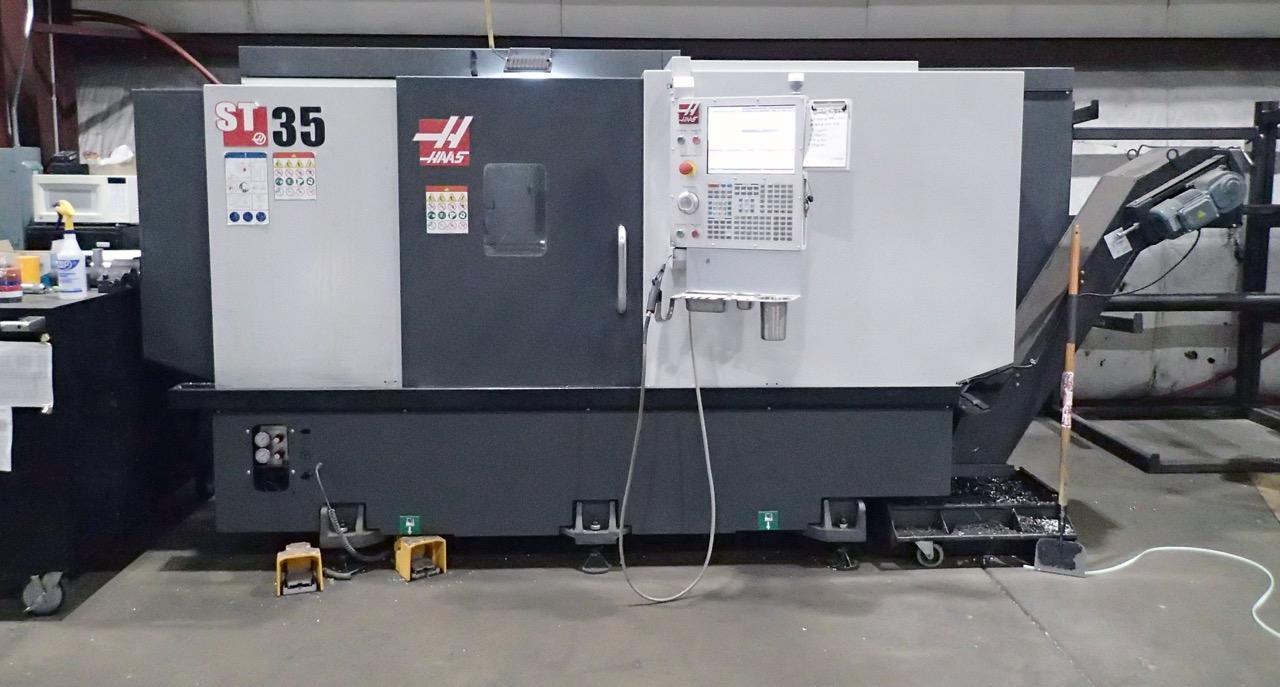

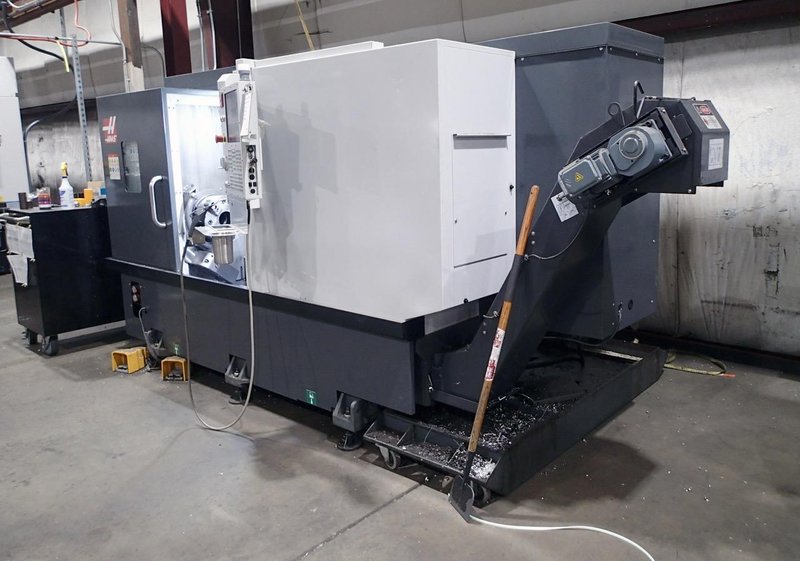

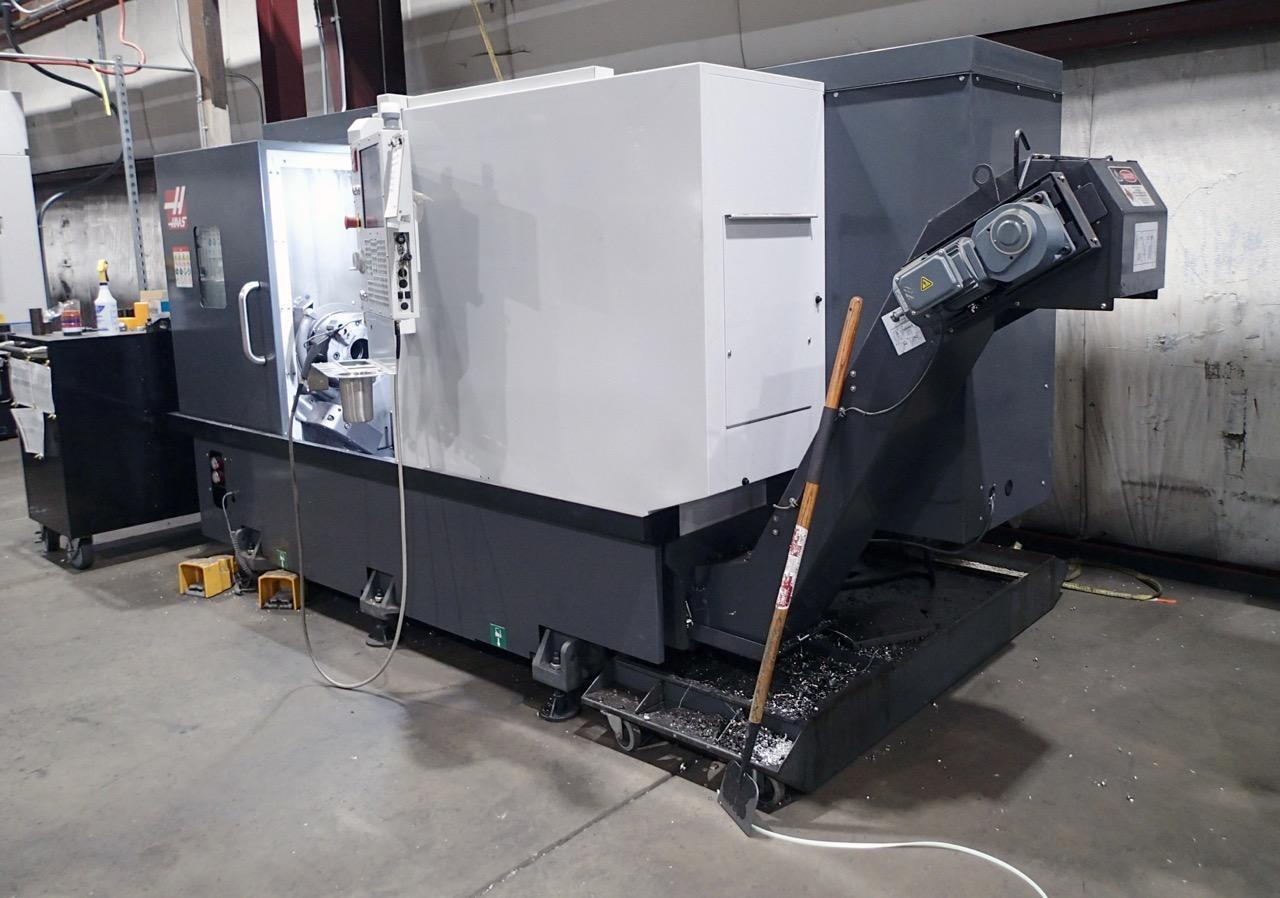

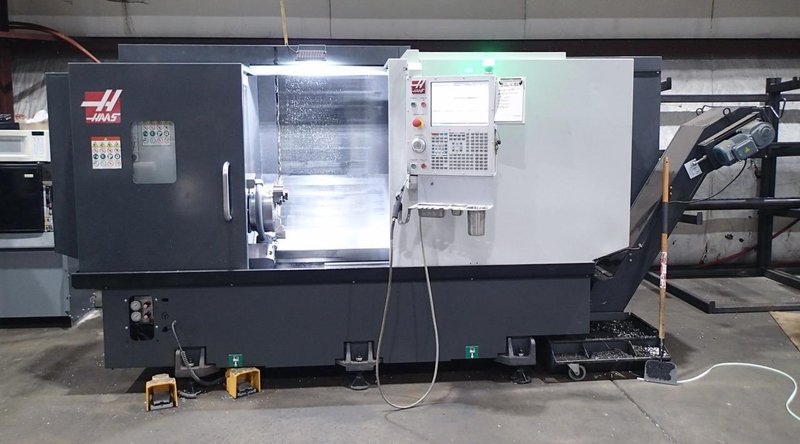

Haas ST-35 CNC Lathe, 2022 – Programmable Tailstock, Presetter, 12″ Chuck, Conveyor

Chuck Size: 12.0″ (305 mm) Max Part Swing: 21.0″ (533 mm) Max Cutting Diameter (with BOT turret) 15.00 in 381 mm Max Cutting Length: 32.5″ (826 mm) Bar Capacity 4.00″ (102 mm) Between Centers: 32.5″ (826 mm)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,X-Axis: 9.4″ (239 mm) Z-Axis: 32.5″ (826 mm) Rapids on X/Z: 945 ipm (24.0 m/min) Max Thrust X: 4100 lbf Max Thrust Z: 5100 lbf

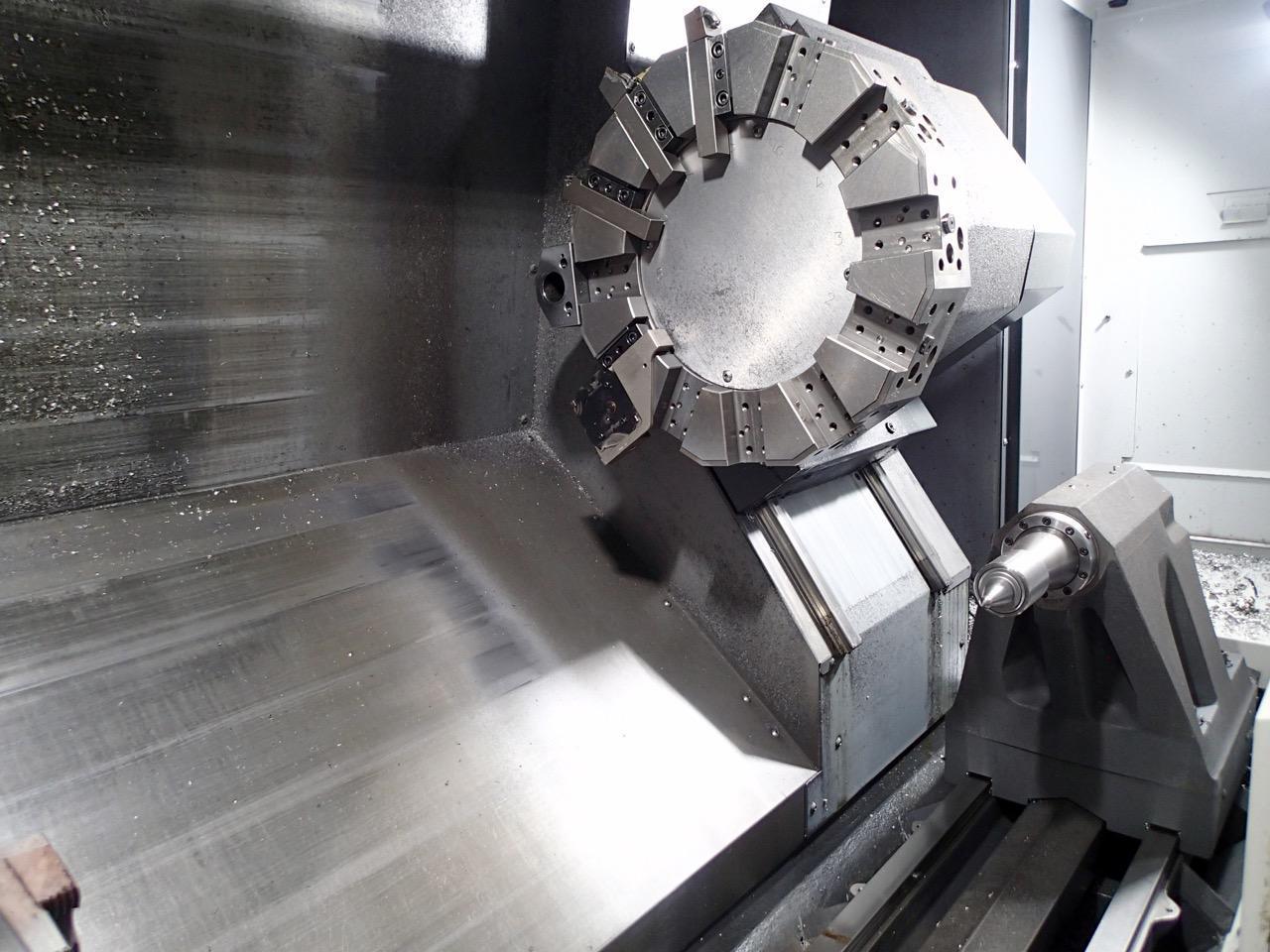

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Spindle Nose: A2-8 Max Rating: 40.0 hp Max Speed: 3200 rpm Max Torque: 425.0 ft-lbf @ 325 rpm Spindle Bore Diameter: 4.62″ Max Rating: 40.0 hp 29.8 kW Tool Turret: 12 Station Boring Bar Rear Clearance: 4.00″ (102.0 mm)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Approx. Dimensions: 171″ x 90″ x 92″ (435 cm x 229 cm x 234 cm) Machine Weight: 14,300 lb (6487 kg)

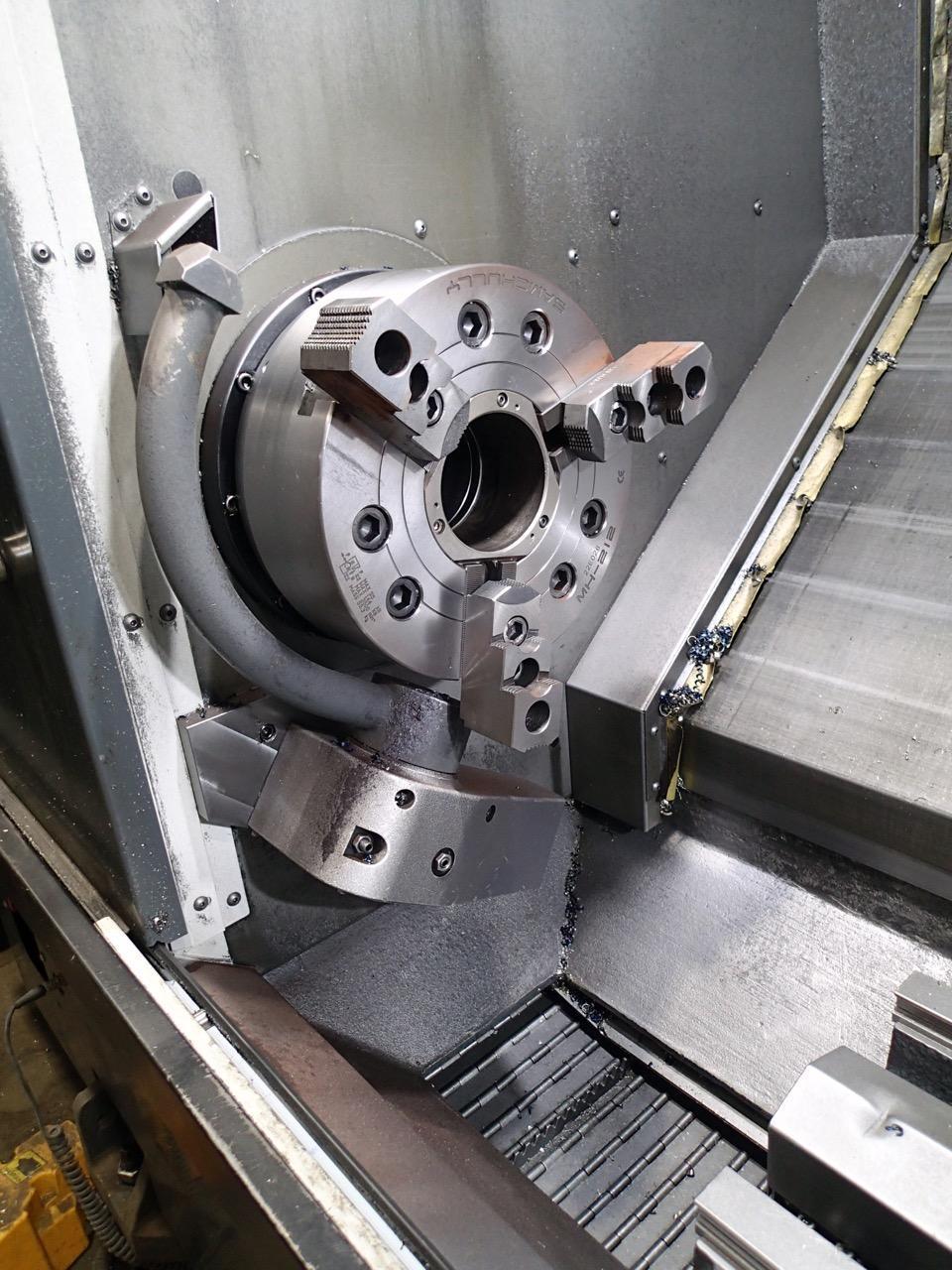

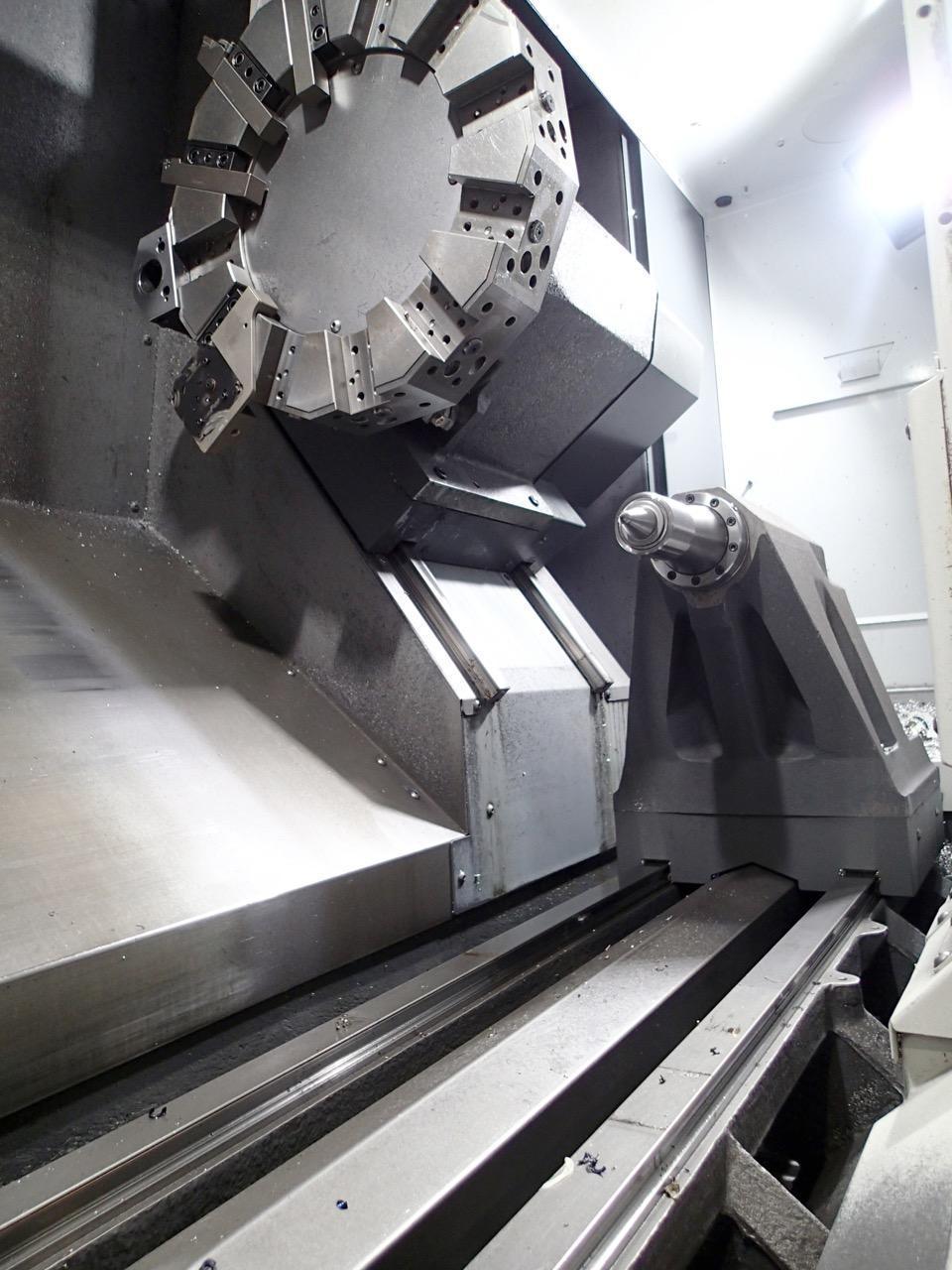

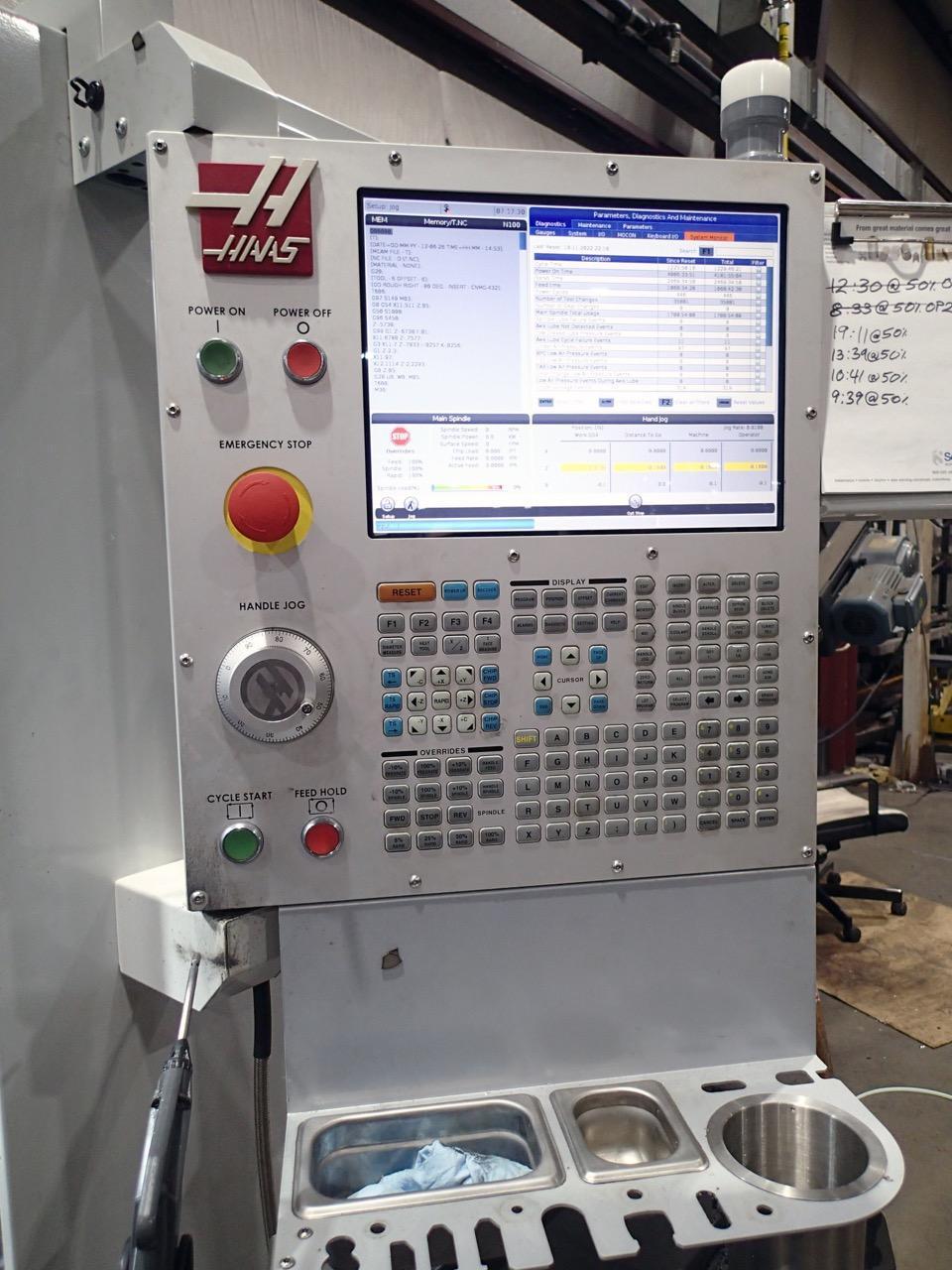

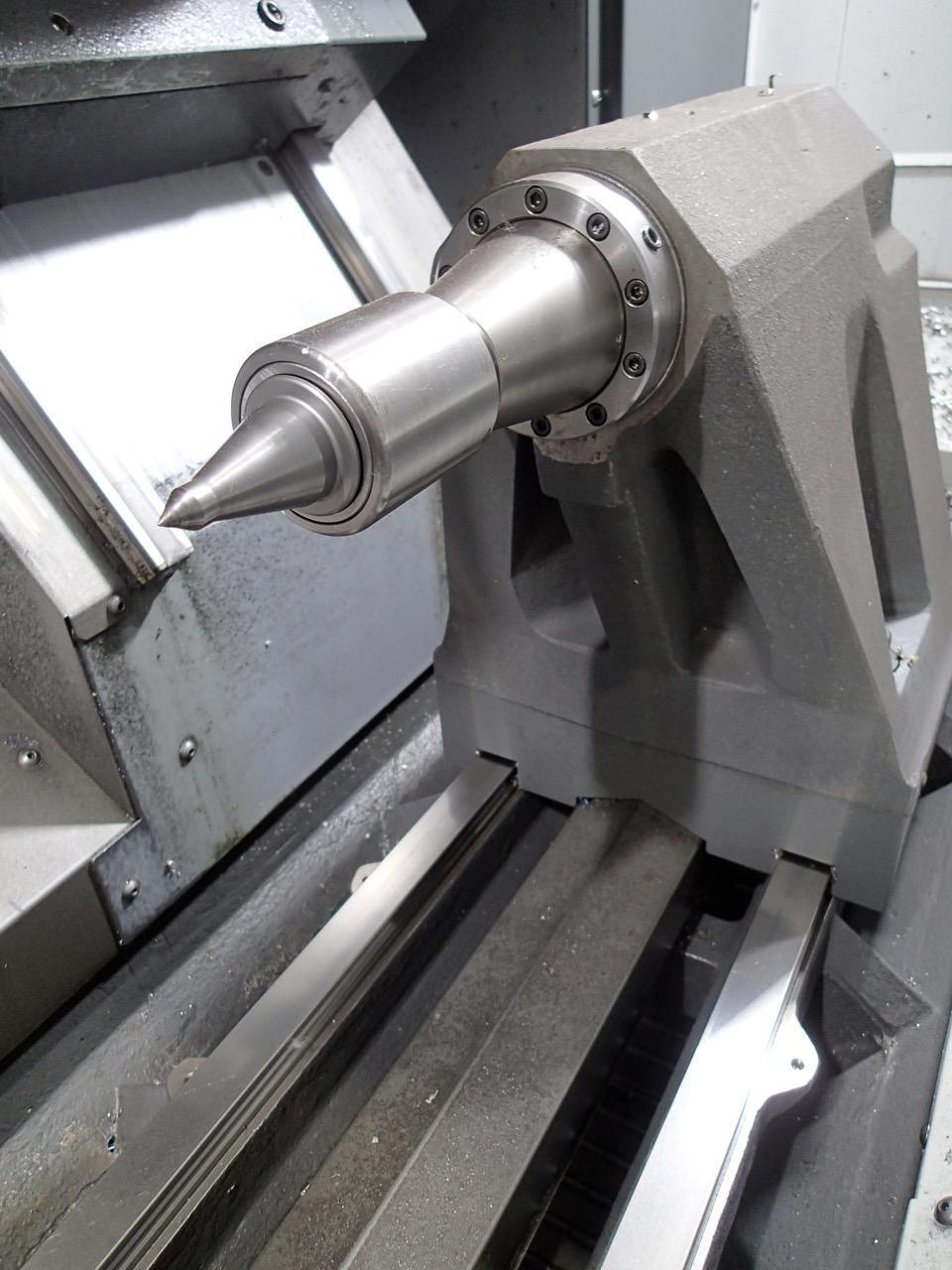

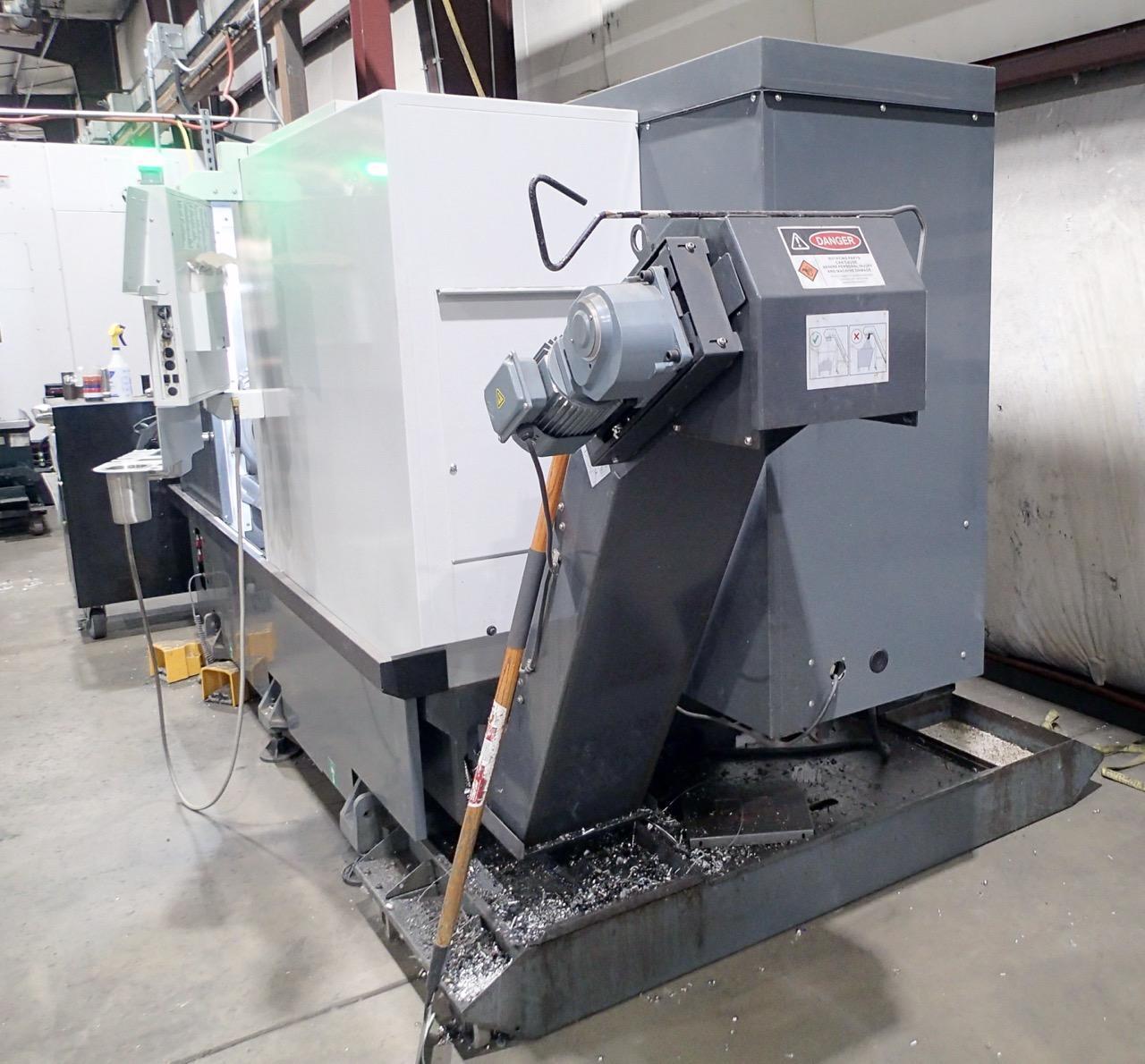

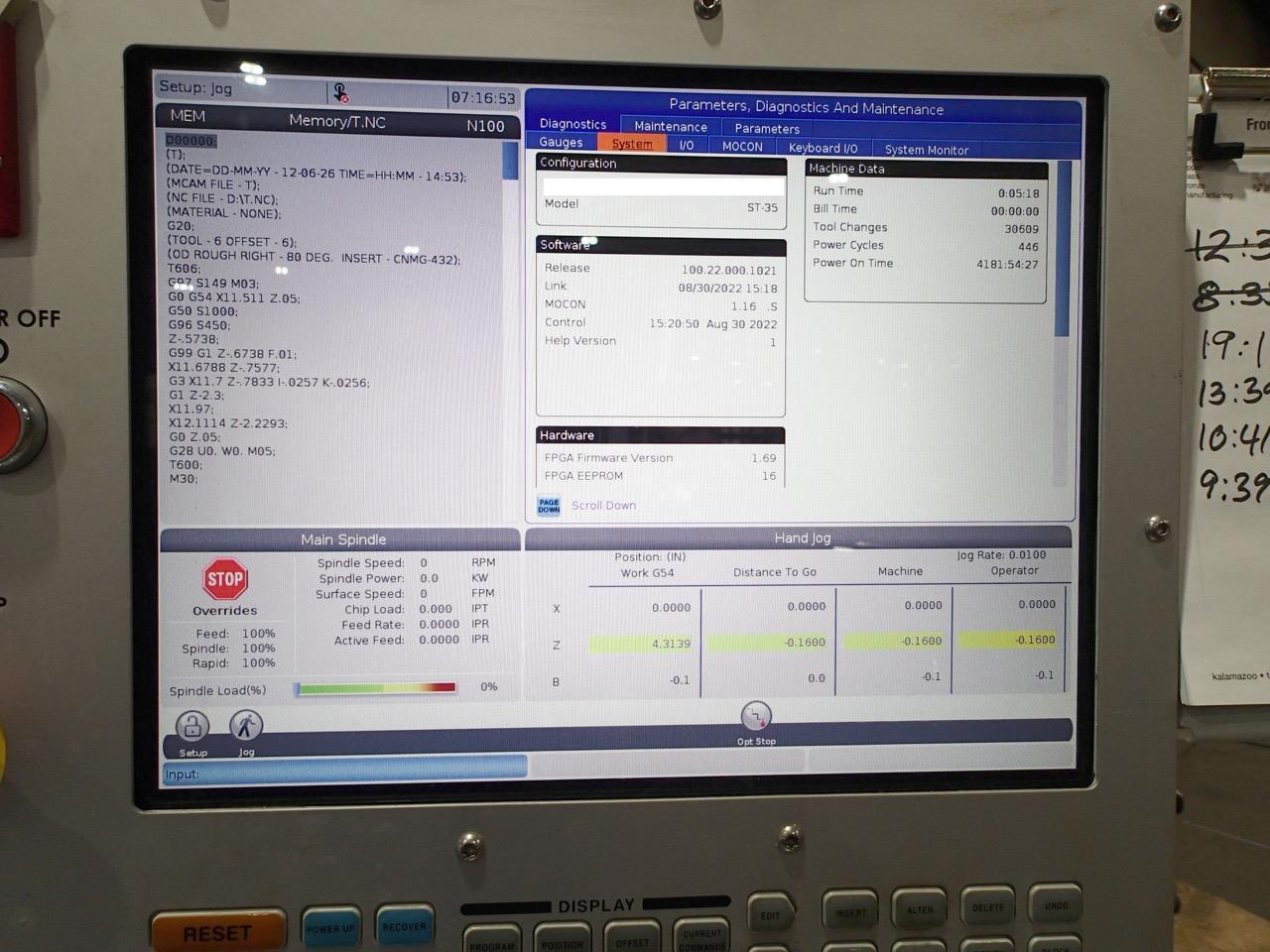

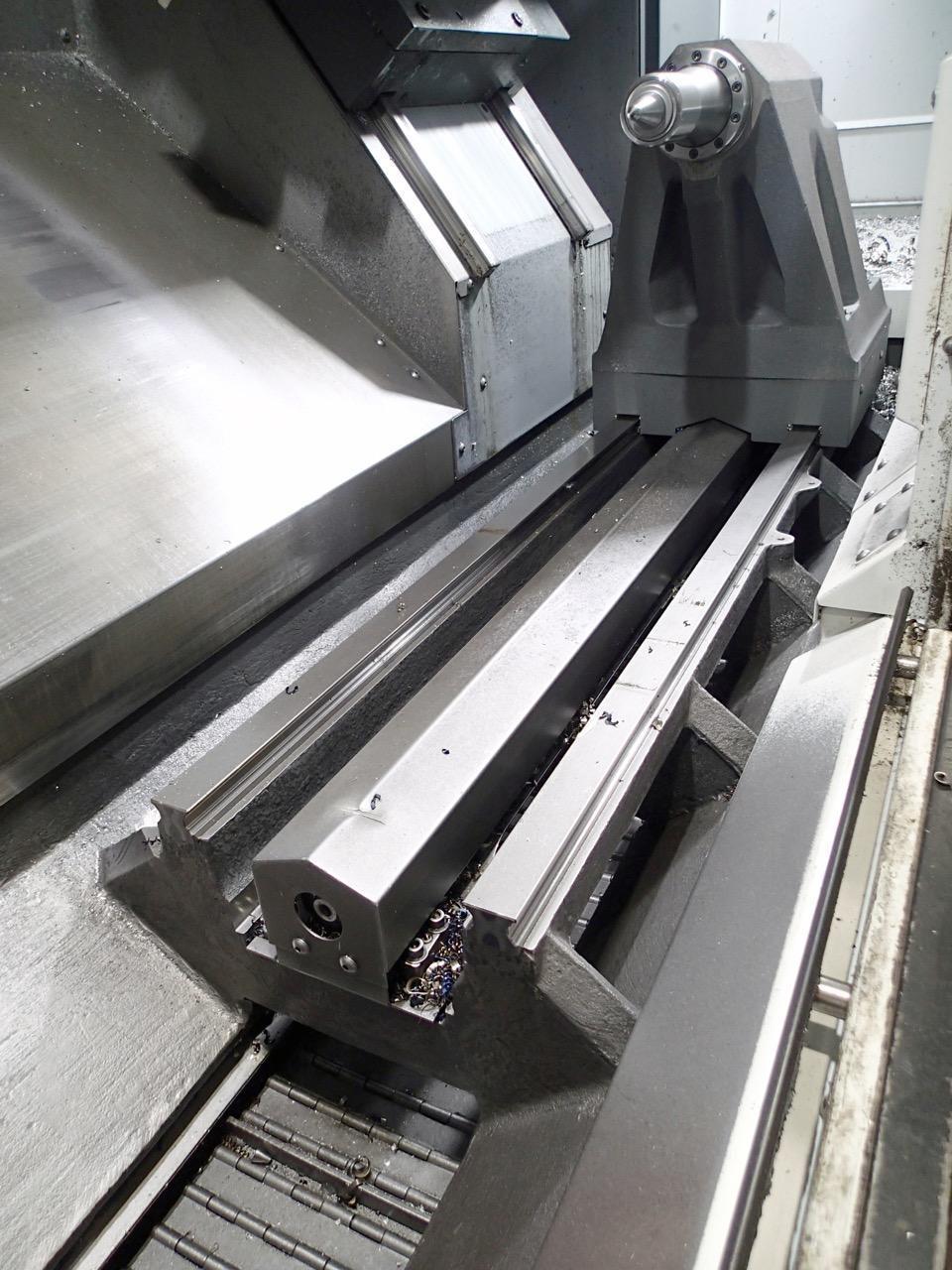

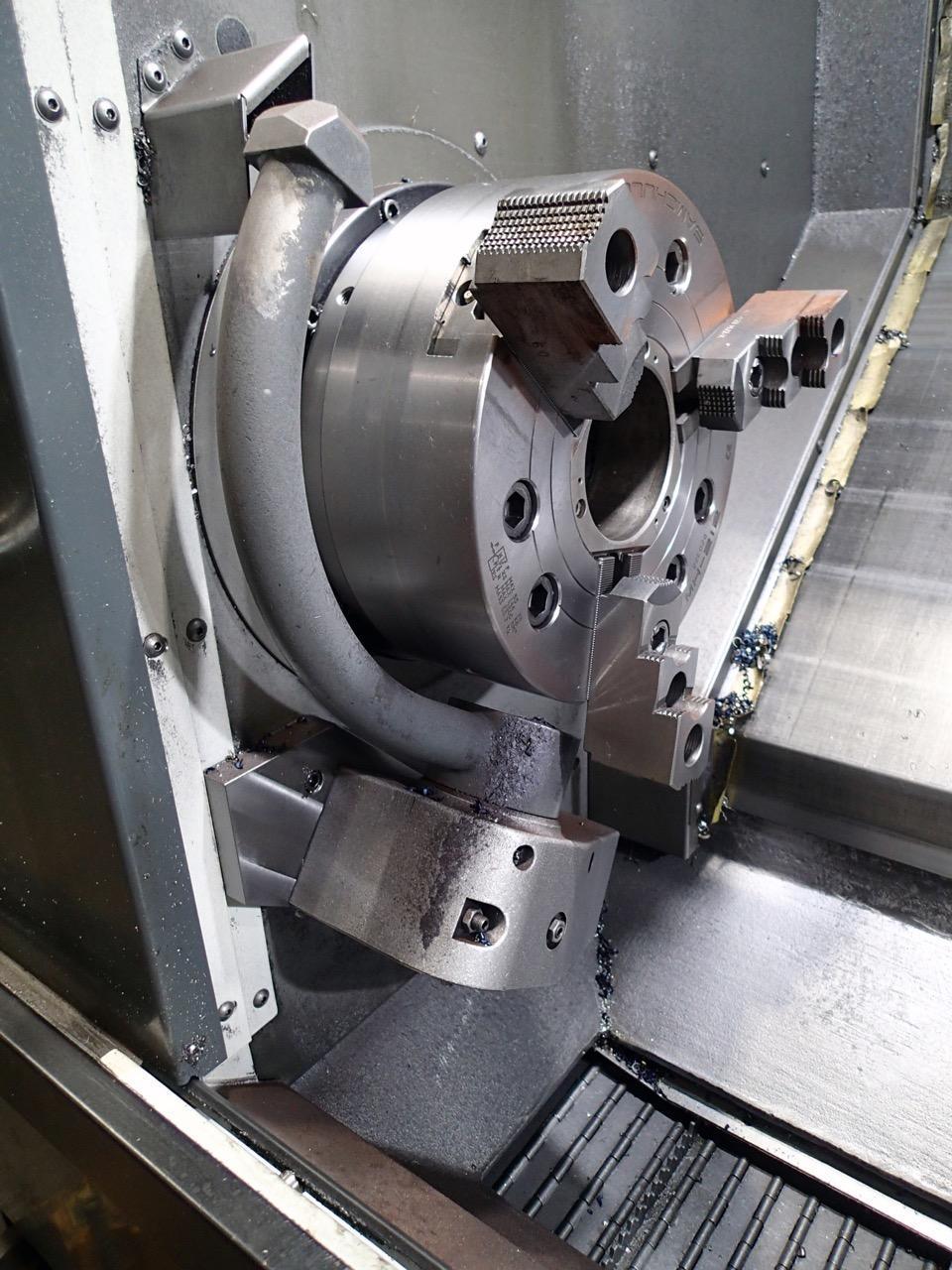

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,EQUIPPED WITH: Haas CNC Control with Touch Screen Ethernet Interface & Wi-Fi Connection 12″ Hydraulic Chuck, A2-8 Spindle Orientation Rigid Tapping Programmable Hydraulic Tailstock Automatic Tool Presetter Chip Conveyor- Belt-Type Chip Tray Filter Kit

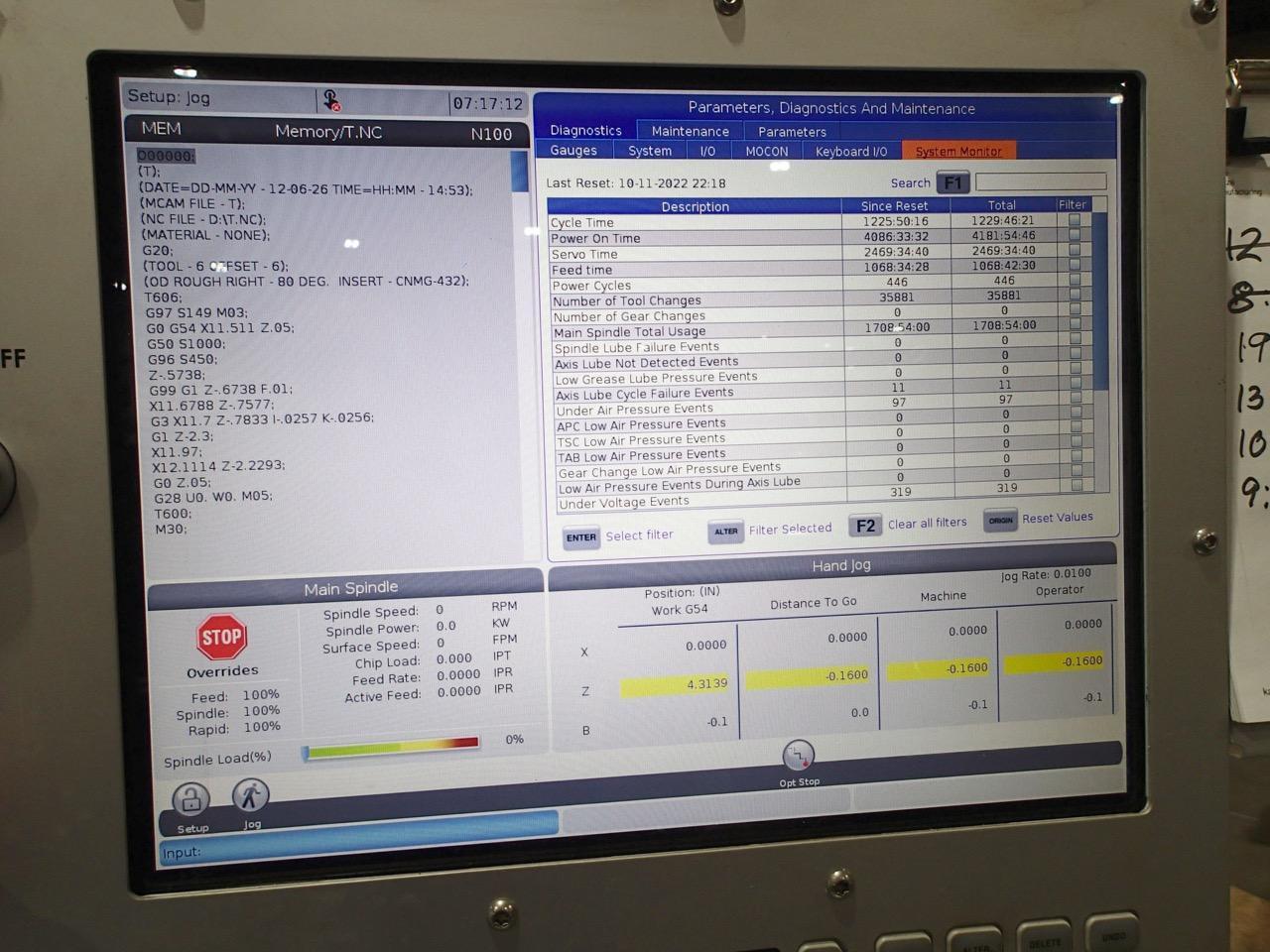

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Approx Power On Time: 4,086 Hours Approx Feed Time: 1,068 Hours Approx Main Spindle Total Usage: 1,709 Hours

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
