Romi 60" m20 CNC lathe 2005 with turret S#002-089905-404

Romi 60" m20 CNC lathe 2005 with turret S#002-089905-404

Name: Romi 60" m20 CNC lathe 2005 with turret S#002-089905-404
Brand: ROMI
Availability: InStock

Brand

ROMI

Location

Illinois

Specifications
Files & Videos

CNC Control	yes

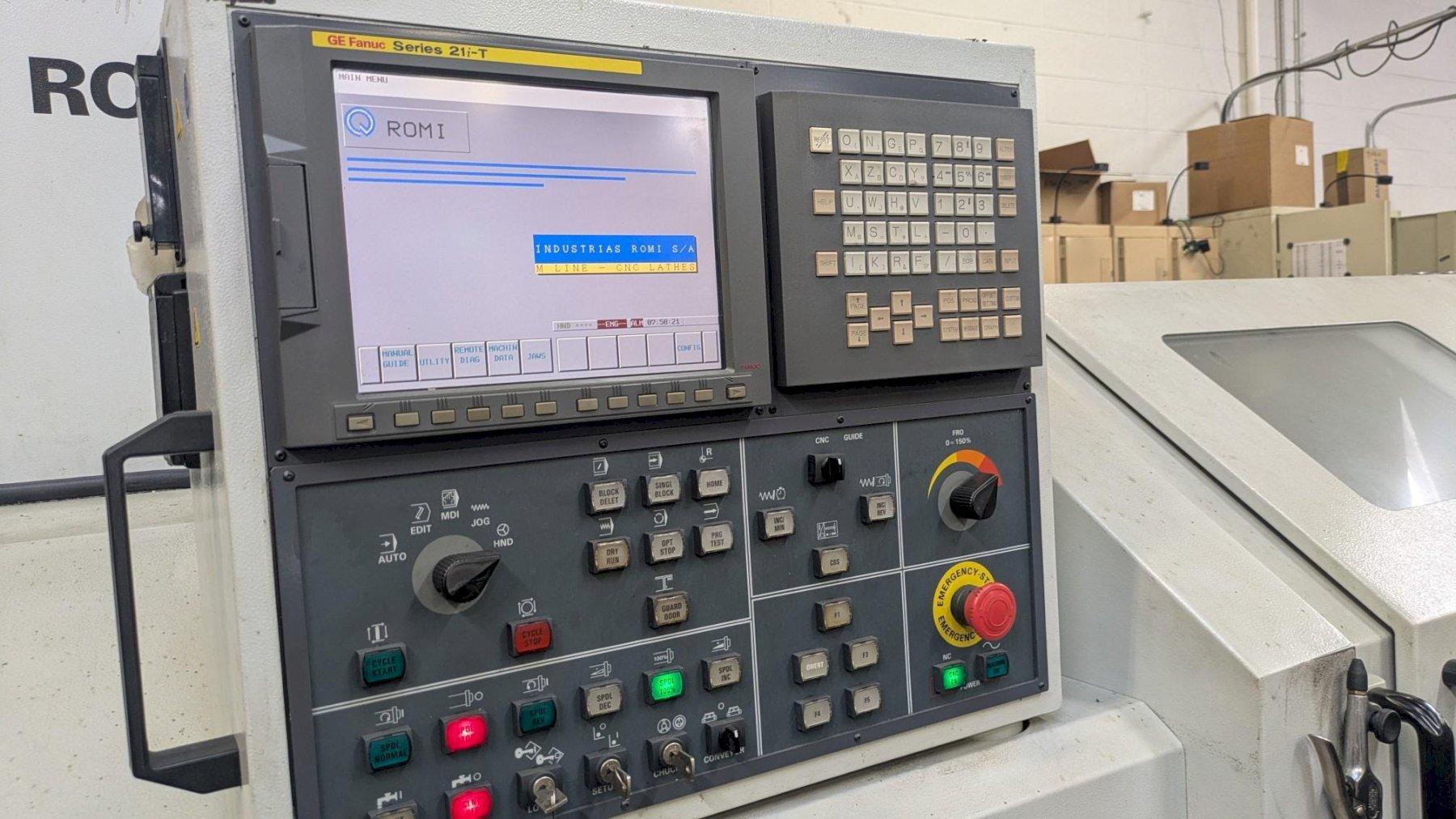

Type Of CNC Control	Fanuc 21i-T
Tailstock	yes

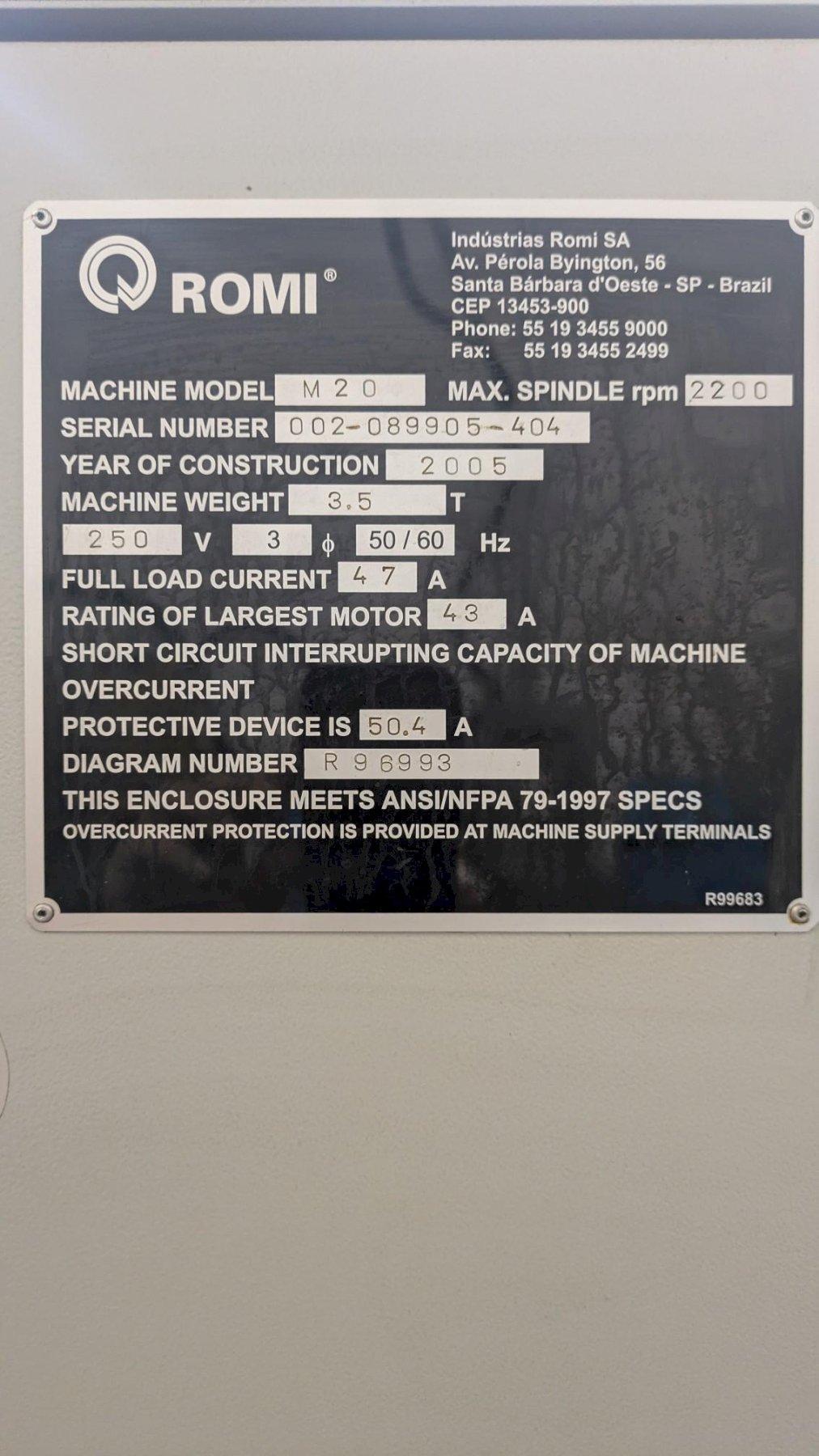

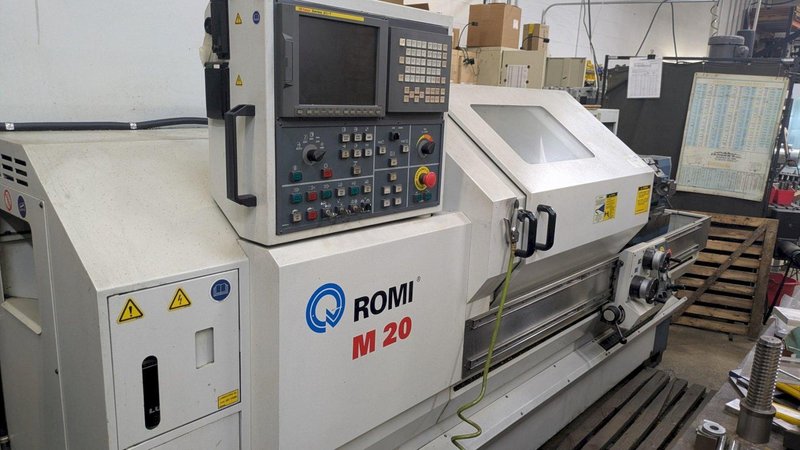

Romi 60" m20 lathe 2005. S#002-089905-404 The 2005 Romi M20 x 60" (Serial Number format: `002-XXXXXX-404`) is a highly accurate flat-bed CNC/Manual teach lathe. It combines the ease of manual operations with two MPG electronic handwheels and full CNC execution via the Fanuc 21i-T control system. The factory specifications for this model configuration are detailed below: 📐 Capacities & Working Range Distance Between Centers: 60" (1,524 mm) Swing Over Bed: 20.5" (520 mm) Swing Over Cross Slide: 10.2" (259 mm) Swing Over Saddle Wings: 17.7" (450 mm) Center Height: 10.04" (255 mm) Bed Width: 13.39" (340 mm) ⚙️ Spindle & Headstock Spindle Bore: 3.15" (80 mm) (Note: Standard bar capacity maxes out around 3.0") Spindle Nose: A2-6 (Optionally A2-8 depending on chuck packages) Spindle Speed Range: Variable from 2 to 2,200 RPM (Up to 3,000 RPM peak capacity) Main Motor Power: 15 HP (11.2 kW) 🏎️ Travels & Feed Rates X-Axis Travel (Cross Slide): 11.02" (280 mm) Z-Axis Travel (Longitudinal): 60" (1,524 mm) X-Axis Rapid Traverse: 295 IPM (7.5 m/min) Z-Axis Rapid Traverse: 394 IPM (10 m/min) 🐎 Tailstock Quill Diameter: 3.15" (80 mm) Quill Travel: 5.12" (130 mm) Inner Taper: #4 MT (Morse Taper) 🔌 Physical & Electrical Requirements Power Supply: 220V–240V AC / 3-Phase / 60 Hz Approximate Footprint (L x W x H): ~124" x 65" x 78" Approximate Machine Weight: ~8,000 lbs (3,628 kg) FOB: Wood Dale IL 60191 (can recommend local rigger) Any questions, please ask.
