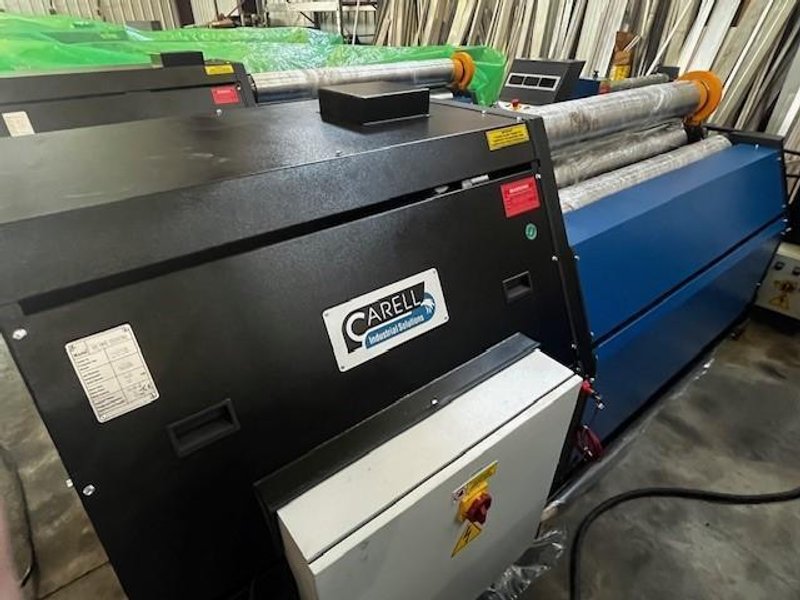

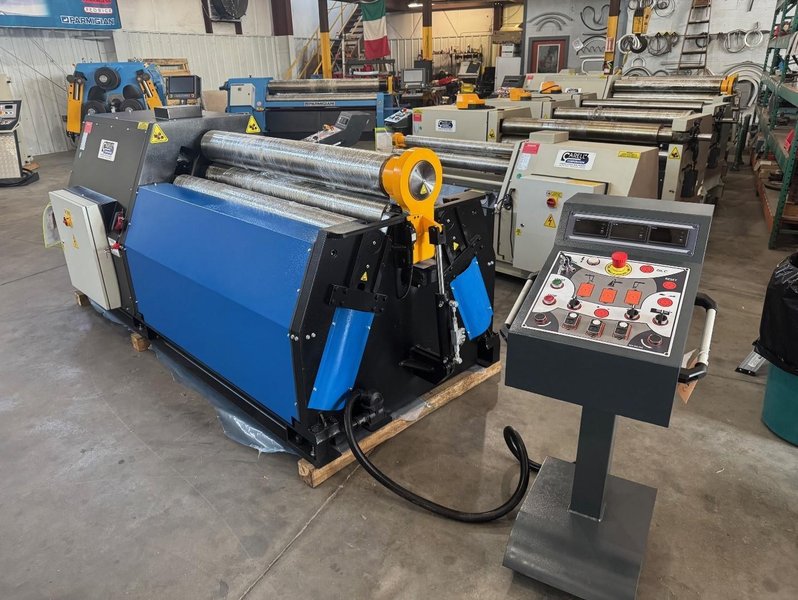

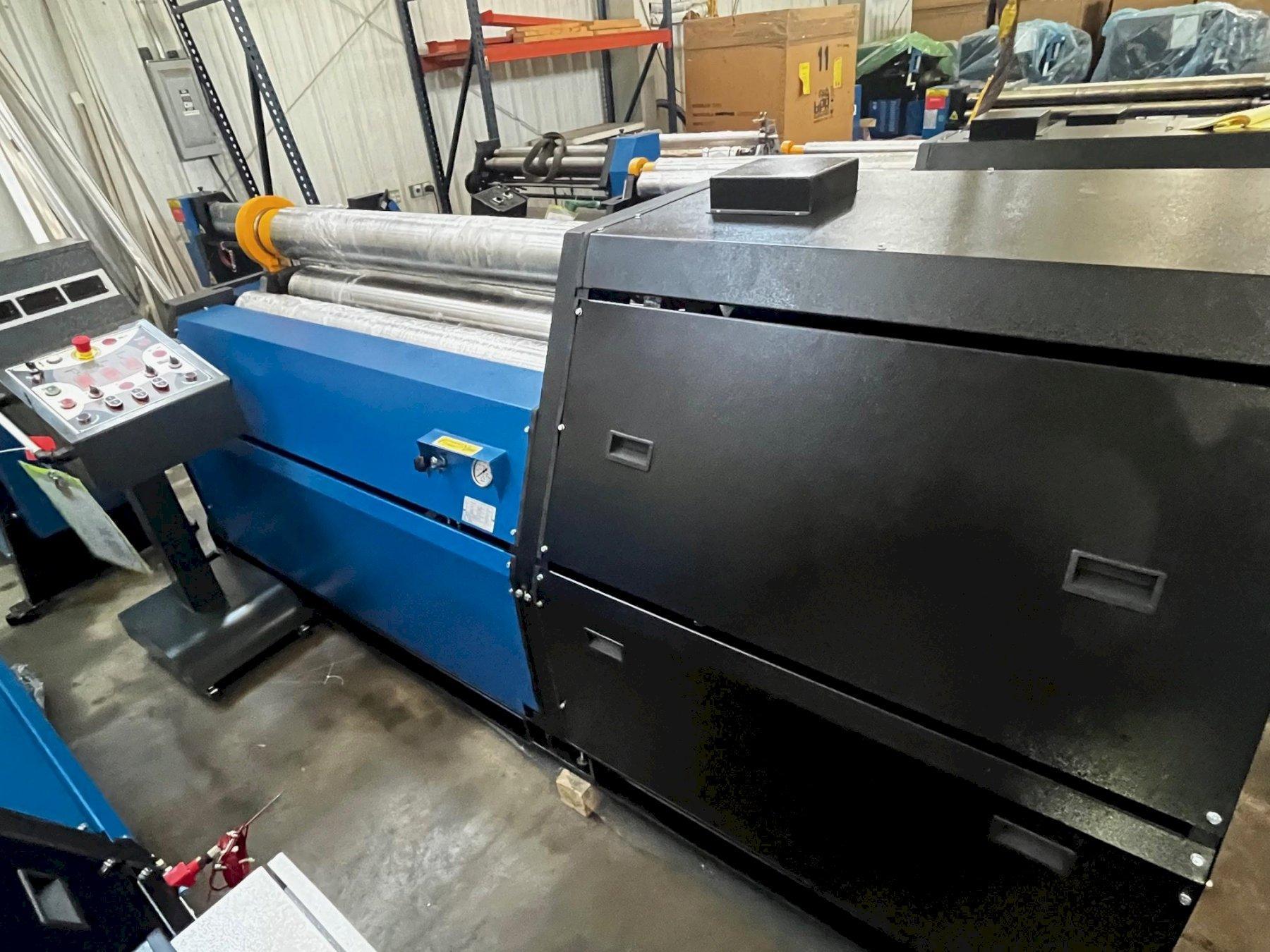

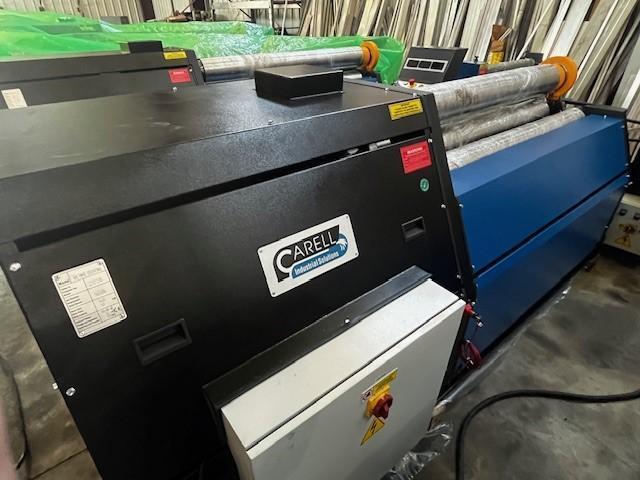

1/4" x 5 ft New Carell Hydraulic Plate Bending Roll - 4 Roll Model 4R HMS 1550 x 180
Brand
Category
Model
4R HMS 1550 x 180
Stock #
5142
Year
Not specified
Condition
New
Location
New York
|
1/4" x 5 ft NEW Carell Hydraulic Plate Bending Roll - 4 Roll
Model 4R HMS 1550 x 180 TECHNICAL CHARACTERISTICS
Top & pinch roll diameter ................................................ 7.09" (180 mm)
Lateral rolls diameter ......................................................... 5.90" (150 mm)
Rotation speed ..................................................................... 18 fpm Pump motor .......................................................................... 7.5 HP (5.5 kW)
Voltage .................................................................................... 3 Phase, 220 or 440 Volt
Oil capacity & type ............................................................. ISO 46
Main pump ............................................................................ Continuous Duty - Vane Type
Hydraulic motors ................................................................. Radial Pison - High Torque
Speed reduction ................................................................. Planetary, Oil Bath
Dimensions: 132" x 54" x 51" (l x w h)
Working height: 39"
Machine weight: 6,380 lbs. approximate 4R HMS 1550 x 180 BENDING CAPACITIES - at 5’ useful length Rating with Material Yields: Rolling Maximum large diameters: 0.375" (36,000 psi) and 0.300" (50,000 psi) Pre-bending 5.0 x top roll OD: 0.250” (36,000 psi) and 0.200" (50,000 psi) Pre-bending 1.5 x top roll OD: 0.195" (36,000 psi) and 0.150" (50,000 psi) Performances based on Mild Steel with maximum Yield Points of 36,000 psi (250N/mm2) and
50,000 psi (350N/nn2) respectively.
Rolls are crowned for optimal rolling at mid-range capacity. Results outside of the range may exhibit the normal effect of crowning.
Cone rolling capacity = 60% of rating. Unbent flats may vary from 1.5 to 3 x material thickness in pre-bending and greater in rolling.
4 Roll 4R HMS Features & Design
o INCREASE PRODUCTIVITY on repetitive jobs with shorter cycle times
o ENHANCE SAFETY with the plate being pinched between rollers at most times
o REDUCE MATERIAL HANDLING by flat feeding of sheet into the machine
o REDUCE FITUP as it is generally easier to produce shorter leading & trailing flats
DRIVE SYSTEM:
o Top & Pinch Rolls Driven by electric drive motor coupled with planetary speed reducer unit
with pinch roll using cardanic shaft final drive for lower maintenance.
OPERATION & CONSTRUCTION:
o Direct Thrust Roll Movements eliminate swing arms and deliver power direct to the rolls
o Hydraulic Drop End with long opening stroke and heavy yoke, operated from control desk
o Hydraulic volumetric Parallelism System on rolls for instant, continuous parallelism operated
from control desk without use of mechanical moving parts or torsion bars, maintenance free
o Hydraulic Cone Tilting of lateral rolls from console, no manual cams/jacks, maintenance free
o Pinch Pressure Regulation, allows operator to compensate for various sheet thickness
o Heavy Solid Plate Steel End Frames distribute loads and reduce torsional deflection
o Push Buttons on detached mobile rolling console
o 3 LED Readouts, one for each lower roll
ELECTRICS / HYDRAULICS SYSTEMS:
o Top Brand OEM Non-Proprietary Components in a NEMA type enclosure with IEC/DIN
switchgear, overload protection, low voltage 24VAC controls and TEFC/IEC electric motors
o Integral Hydraulic Unit uses SAE/ DIN modular top brand name OEM components
o PONRV + Pressure Relief Valves ensure steady positioning and protect against overload
o Flexible Hose System reduces noise, vibration and fittings
SAFETY SYSTEMS:
o Multiple safety stops with circumferential trip wire and console mounted E-Stop, 24VAC
o Drop End area protected by fixed heavy steel guard, Control console has keyed lockout
4R HMS- 1550x180: 5' x 1/4" Per above description:
Automatic roll tilting from control desk .................................................. INCLUDED!
Induction hardened & Polished Rolls ..................................................... INCLUDED!
Cone Rolling Equipment .......................................................................... INCLUDED!
3 LED Readouts (1 for each lower roll) ................................................... INCLUDED!
FOB: Alabama |
