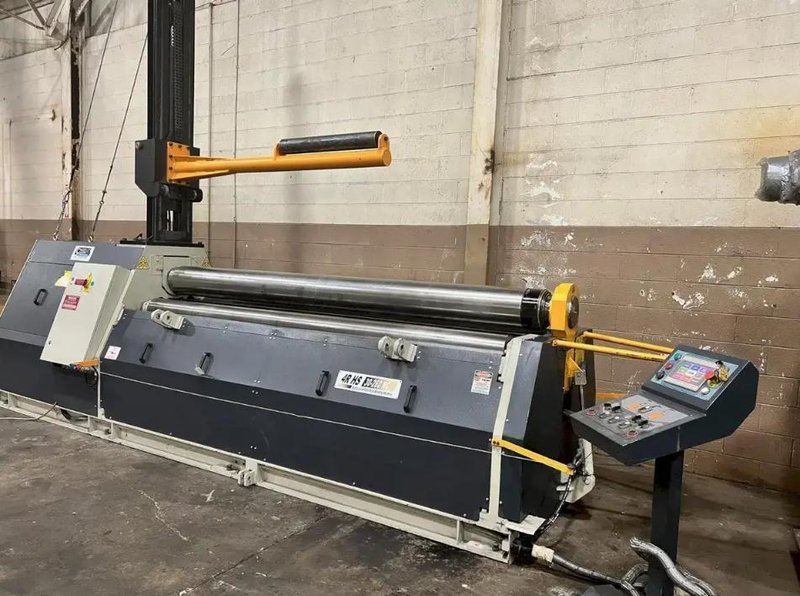

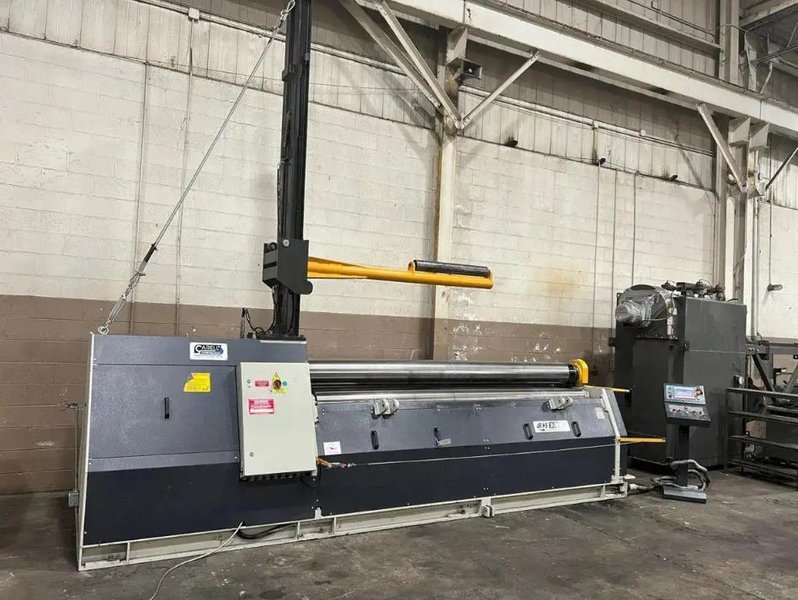

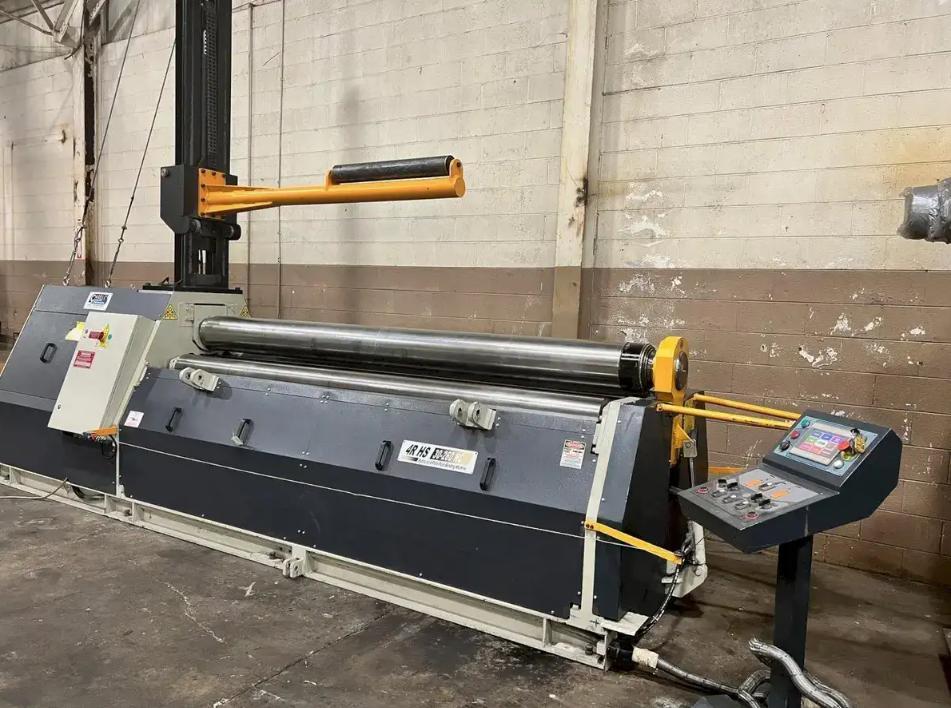

⅜” X 10’ Plate Roll with Portable NC Color Touchscreen Control, Hydraulic Drop End, Bottom Pinch Roll Hydraulically Positioned, Dual Speed and Mechanical Overhead Roll Support.

GENERAL SPECIFICATIONS
Capacity @ 36,000 PSI
Rolling OD 5X Top Roll:                    ⅜” X 10’
Rolling OD 1.5X Top Roll:                    5/16” X 10’
Prebending OD 5X Top Roll:                5/16” X 10’
Prebending OD 1.5X Top Roll:                ¼” X 10’

Capacity @ 50,000 PSI
Rolling OD 5X Top Roll:                    ¼” X 10’
Rolling OD 1.5X Top Roll:                    7/32” X 10’
Prebending OD 5X Top Roll:                7/32” X 10’
Prebending OD 1.5X Top Roll:                3/16” X 10’

Top Roll Diameter:                        10.2”
Lateral Roll Diameter:                    7.87”
(2) Rotation Speeds:                    5 FPM / 18 FPM
Total Power:                            10 HP
Voltage:                            440 V 3 Ph
Dimensions:                            197” X 63” X 63”
Weight:                            16,450 Lbs


INCLUDES: Portable NC Color Touchscreen Control, Hydraulic Drop End, Bottom Pinch Roll Hydraulically Positioned, Dual Speed and Mechanical Overhead Roll Support.

***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
