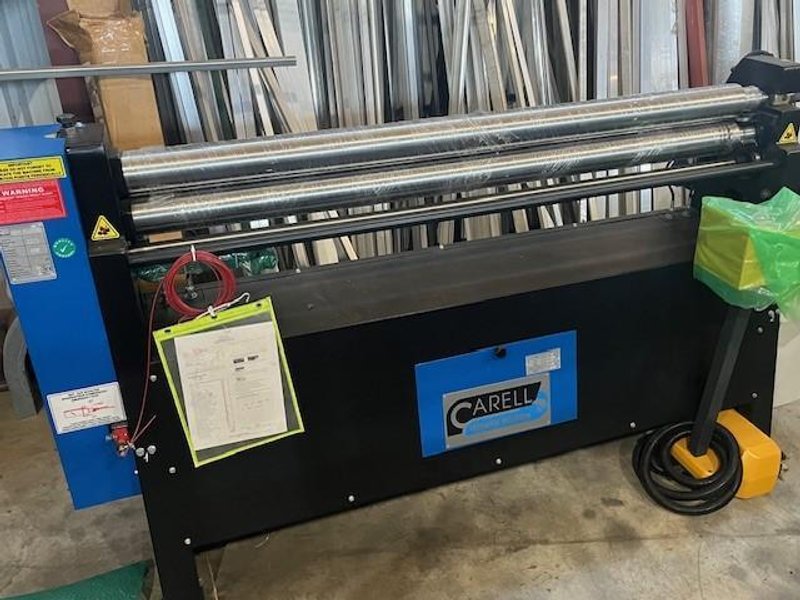

3.54" Diameter x 60", NEW Carell Power Bending Roll Initial Pinch - Model HRM 1550 x 90

3.54" Diameter x 60", NEW Carell Power Bending Roll Initial Pinch - Model HRM 1550 x 90
Model HRM 1550 x 90
5 ft x 14 Ga. Mild Steel

STANDARD FEATURES

 Both Upper roll and Central Pinch rolls driven by electric motor and

oil bath speed reducer through NiCrMo solid stock gears

 Base in electro-welded and/or reinforced spheroidal cast steel, stress relieved

 Lateral roll, idle and moving on roller bearings

 Central pinch roll pinch pressure adjustable by ergonomic easy adjust cam

 Front lateral release top roll with spring loaded lock

 Hydraulic Lateral Roll Movement via push button controlled dual hydraulic pistons

 Lateral bending roll tilting for cone working via push buttons on control console

 Integral Hydraulic Power Pack with pressure gauge and pressure adjustment

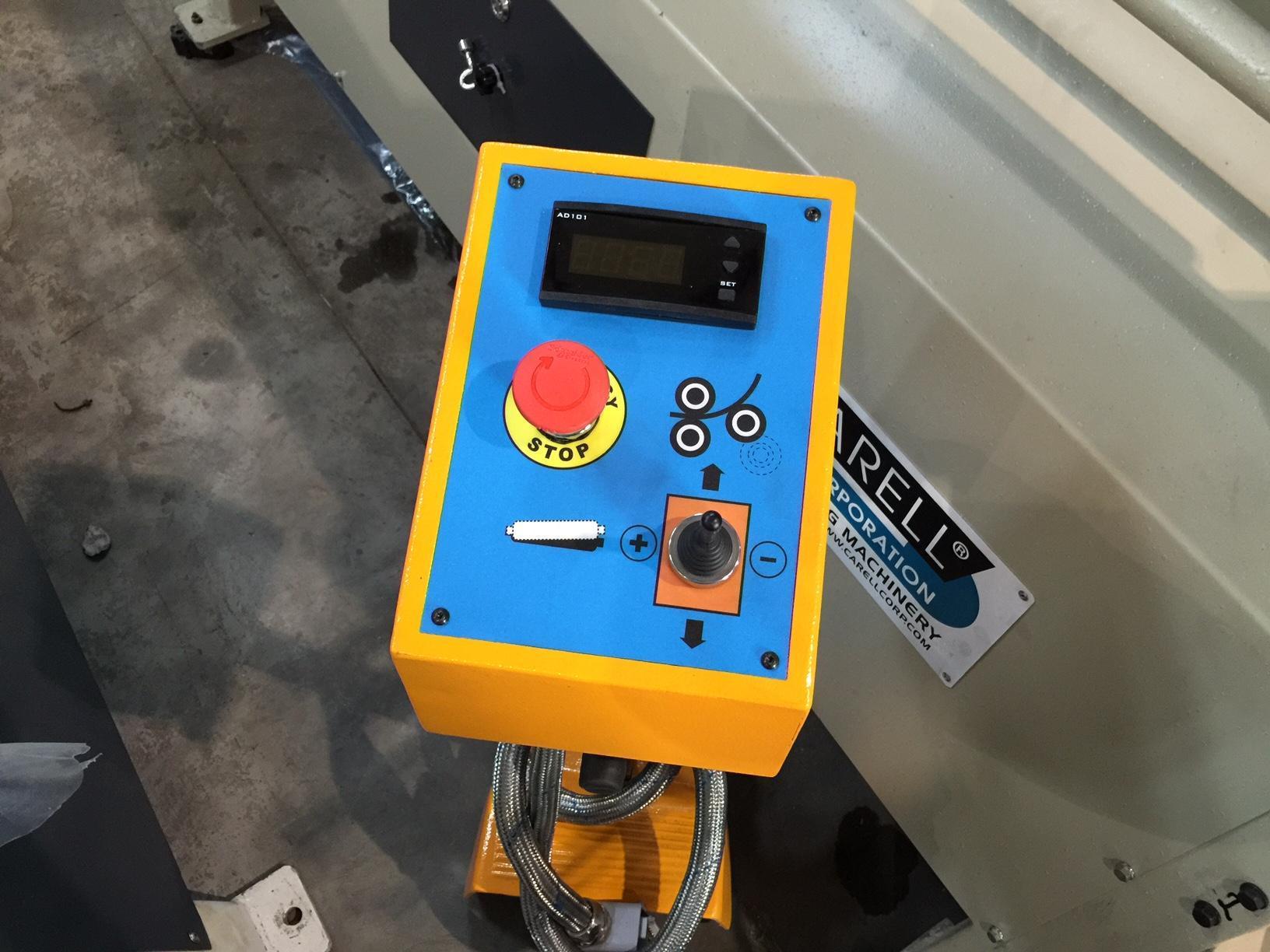

 Low voltage console with foot pedals rotation, push buttons & E-stop

 Multi point safety system including circumferential trip wire

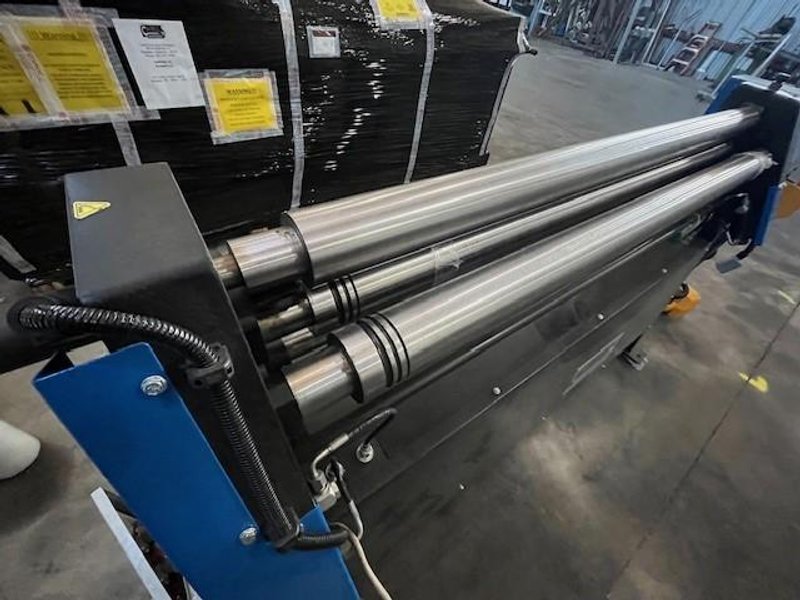

 3 Rod Grooves on lower rolls for up to 1/4", 3/8" and 1/2" rod

 Instruction manual

 NOTE: LED readout, Cone Device & Hardened & Polished Rolls ARE STANDARD

OPTIONAL EQUIPMENT

 Cone rolling attachment .............................................................................. INCLUDED

 Induction hardened rolls, required for most applications ............................ INCLUDED

 Rolls smooth polished to remove heat treatment residue .......................... INCLUDED

 LED Readout On Bending Roll ................................................................... INCLUDED

 Powered Adjustment of Bending Roll (hydraulic with tilting) ....................... INCLUDED

Approx. Speed: 16 fpm
Electrics: 2 HP
Dimensions, L x W x H (approximate): 95” x 28” x 44”

Weight - approximately 1,280 lbs


FOB: ALABAMA

                                  .
