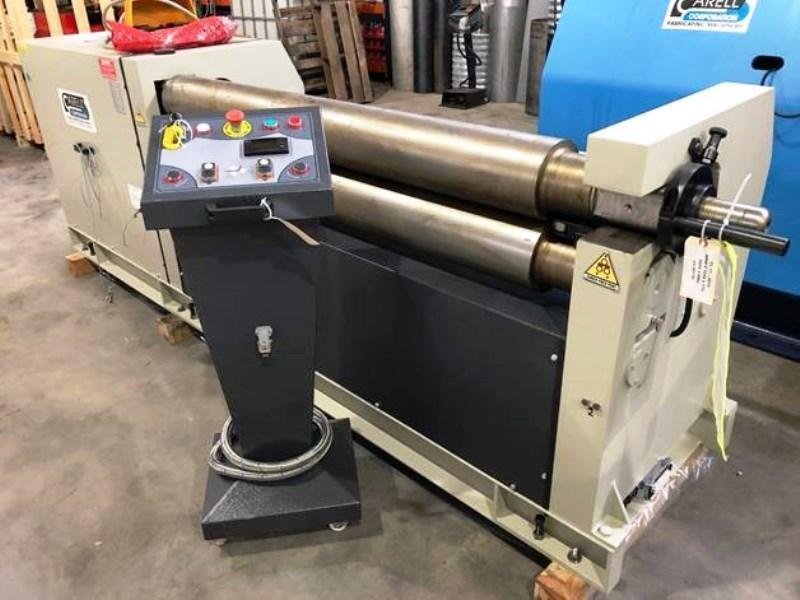

Our MRM-S SERIES Model 1550x170 unit is a 5' x 1/4", 3 roll, single initial pinch plate bending machine with powered adjustment of lateral bending roll and powered rotation of upper and lower pinch rolls using high efficiency motor/reduction units. Machine designed to work with 1/4” x 5’ wide material.

TECHNICAL CHARACTERISTICS

STANDARD FEATURES

·       Both Upper roll and Central Pinch rolls driven by electric motor

and oil bath speed reducer through NiCrMo solid stock gears

·       Base in steel, electro-welded and stress relieved

·       Lateral roll, idle and moving on roller bearings

·       Pinch roll pinch pressure adjustable by precision worm gear movement

·       Front quick release top roll with rotation lock out safety switch

·       Lateral roll movement via electric motor and heavy duty worm gear

drive for precise positioning and maximum power

·       Lateral bending roll and pinch roll incline for cone working

·       Push Button Controls, low voltage 24VAC for safety

·       Multi point safety system including circumferential trip wire

·       Instruction manual

BENDING CAPACITIES

INCLUDING:

·     Cone rolling attachment…………………………………………………....................................................................................... INCLUDED

·     Induction hardened rolls, required for most all application……......................................................................................... INCLUDED

·     Polished Rolls (to remove heat treating surface residue)......... INCLUDED

·     LED Readout on bending roll............................................. INCLUDED

·     Powered Pinch Roll Adjustment Up/Down (adds to machine length)....................................................................................... INCLUDED

·     Add-on Foot Pedal for CW and CCW (stock machines only)....................................................................................... INCLUDED

OPTIONAL EQUIPMENT (Must be ordered with machine to be built, not in stock)

·     LED Readout on pinch roll..................................................... $1,600.00

·     Shaft extensions for section bending rolls............................ on request

·     Section Bending Dies........................................................... on request
