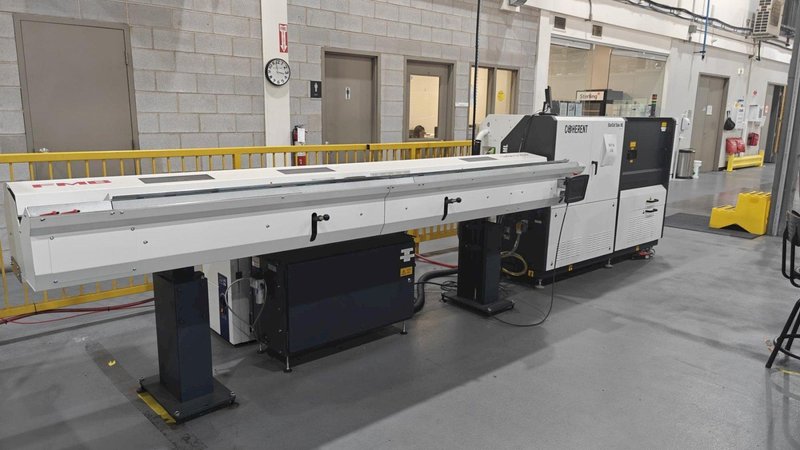

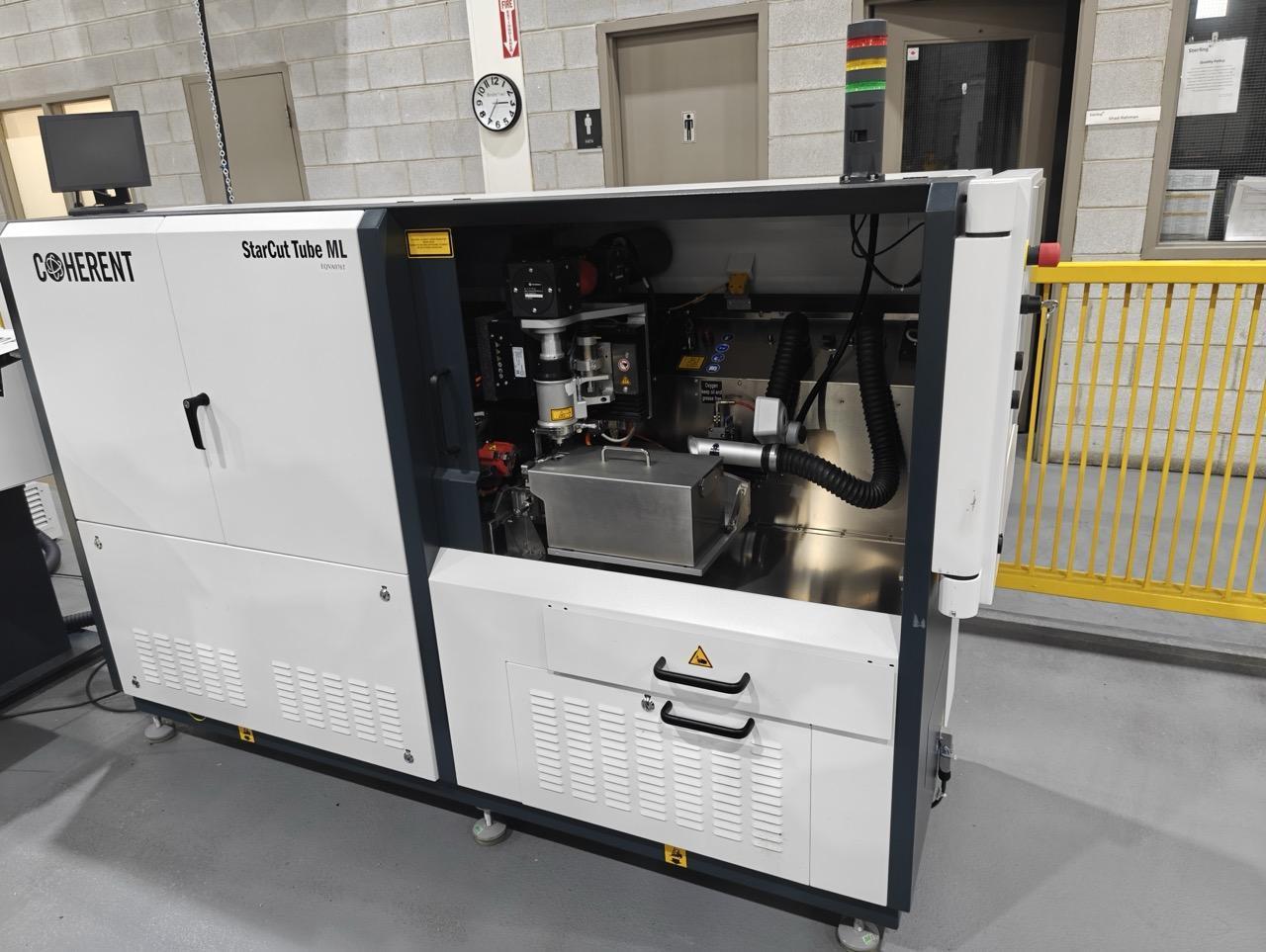

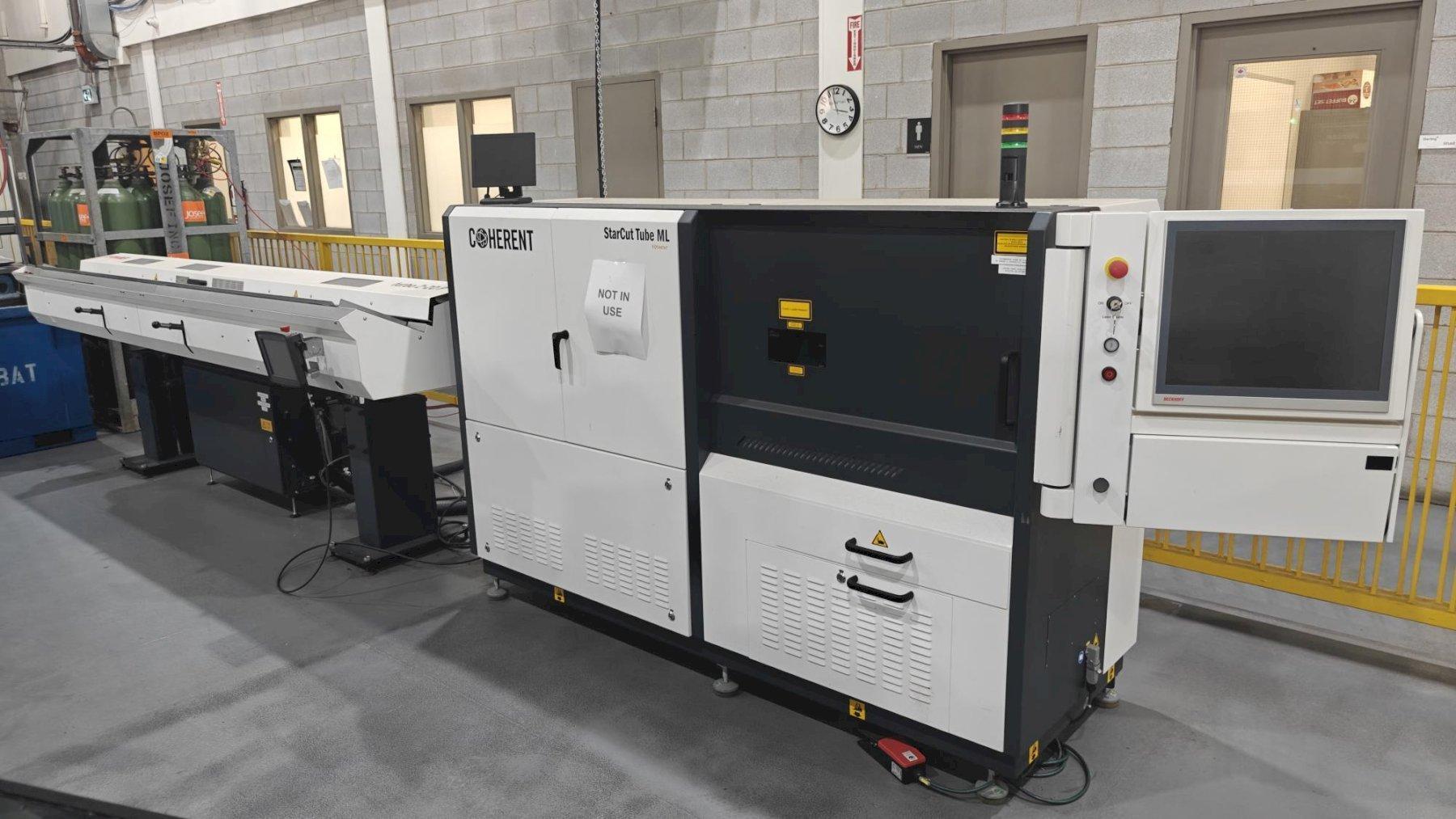

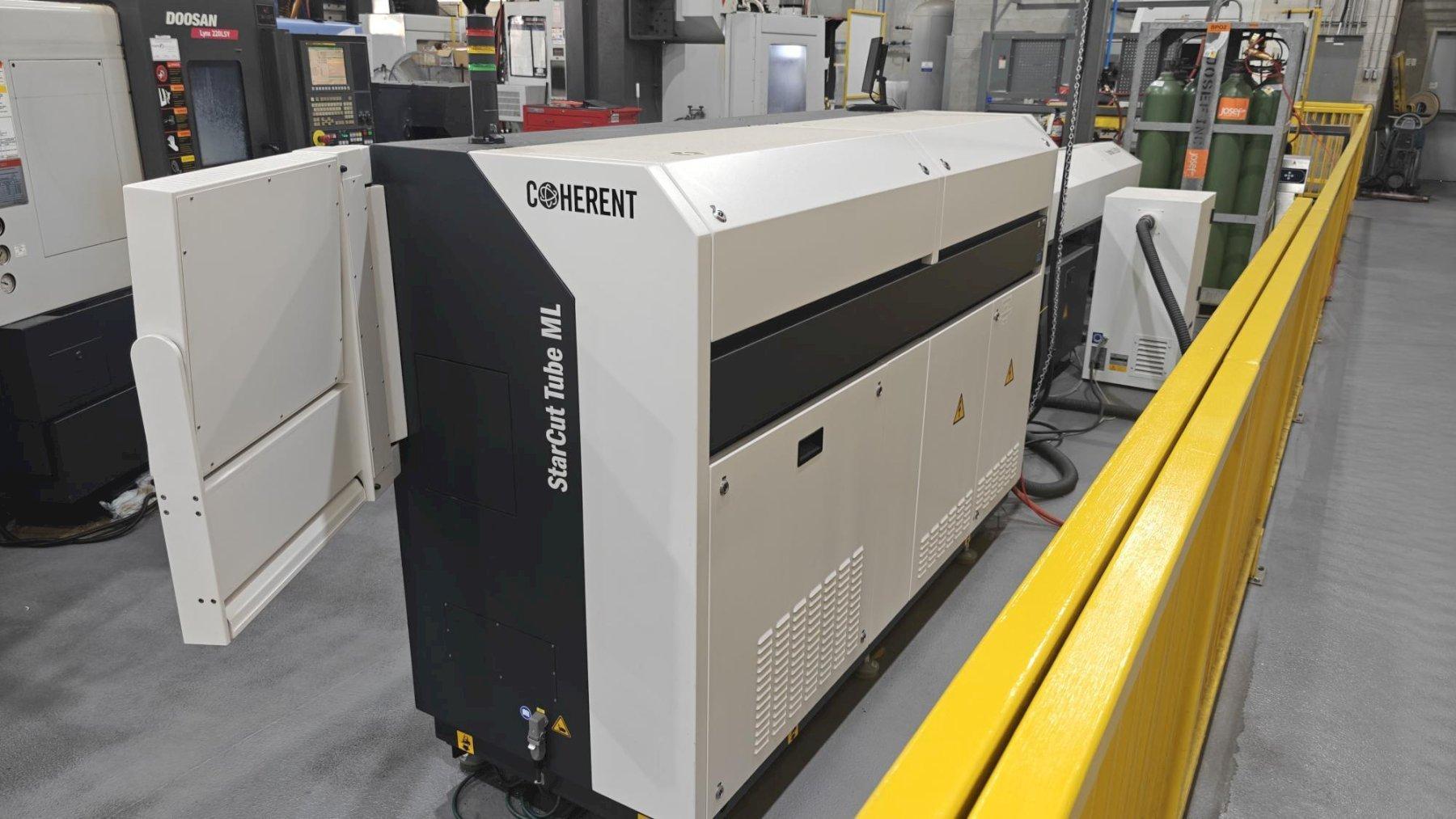

150 Watt Coherent StarCut Tube ML Precision Fiber Laser Tube Cutting System, 2024 – 150W StarFiber 150P, FMB Turbo 2-20 P Bar Loader, Fume Extraction

Minimum Tube Diameter: 0.012″ (0.3 mm) Maximum Tube Diameter: 1.18″ (30 mm) Maximum Pulsed Output Power: 150W Maximum Continuous Wave Output Power: 250W Peak Pulse Power: 1,500W Laser Wavelength: 1,070 nm Pulse Duration: 0.02–50 ms Maximum Pulse Energy: 15 J Pulse Repetition Rate: Single Pulse To 50 kHz Maximum Tube Diameter: 1.18″ (30 mm) Y Axis Travel: 2.95″ (75 mm) Z Axis Travel: 1.57″ (40 mm) Laser Cooling: Air Cooled Machine Base: Granite Laser Safety Classification: Class 1 Voltage: 208V ±10% Phase: 3 Frequency: 50/60 Hz Electrical Power Rating: 3.0 kVA Maximum Line Fuse Rating: 16A Per Phase Enclosure Protection Rating: IP21

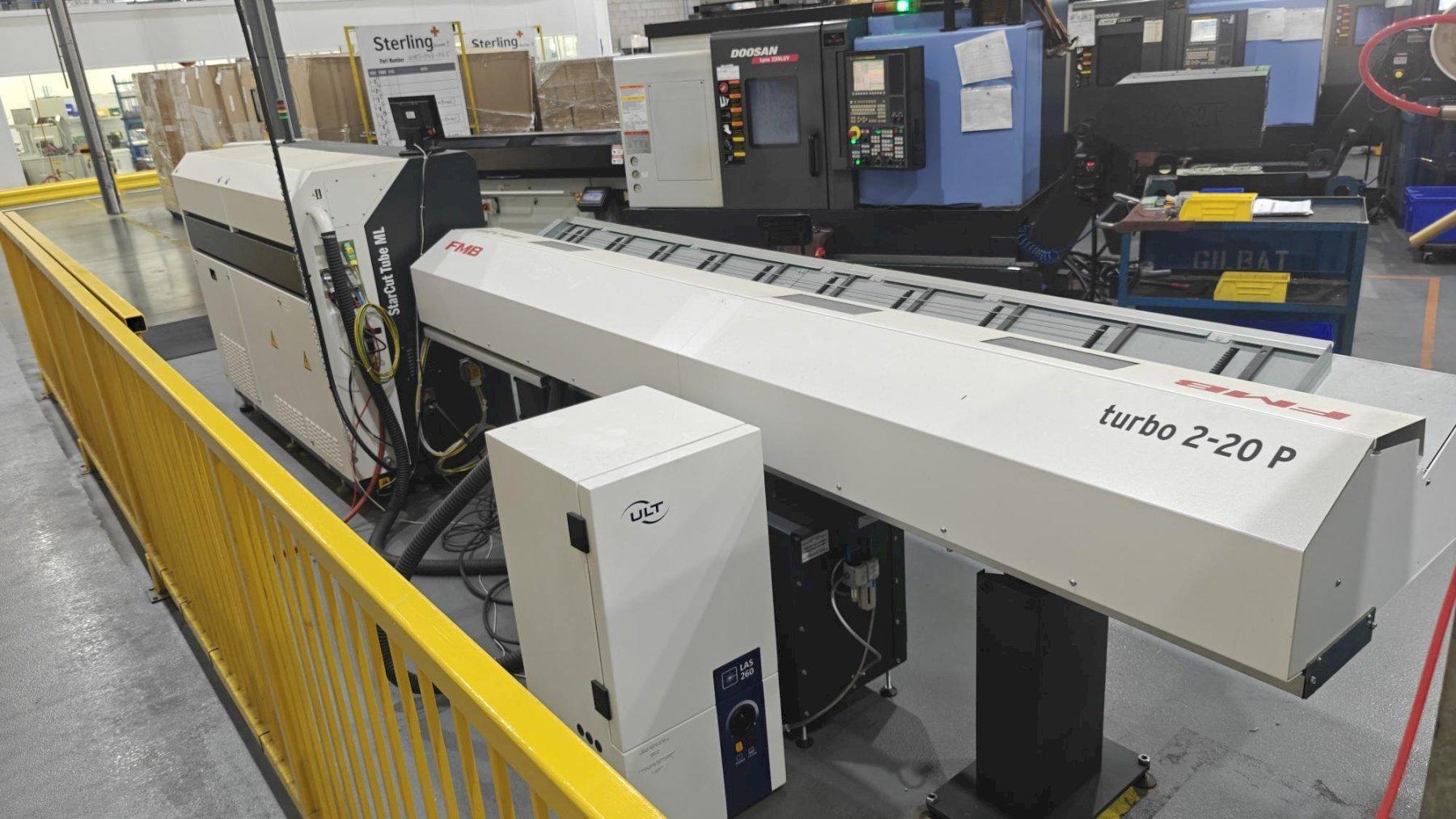

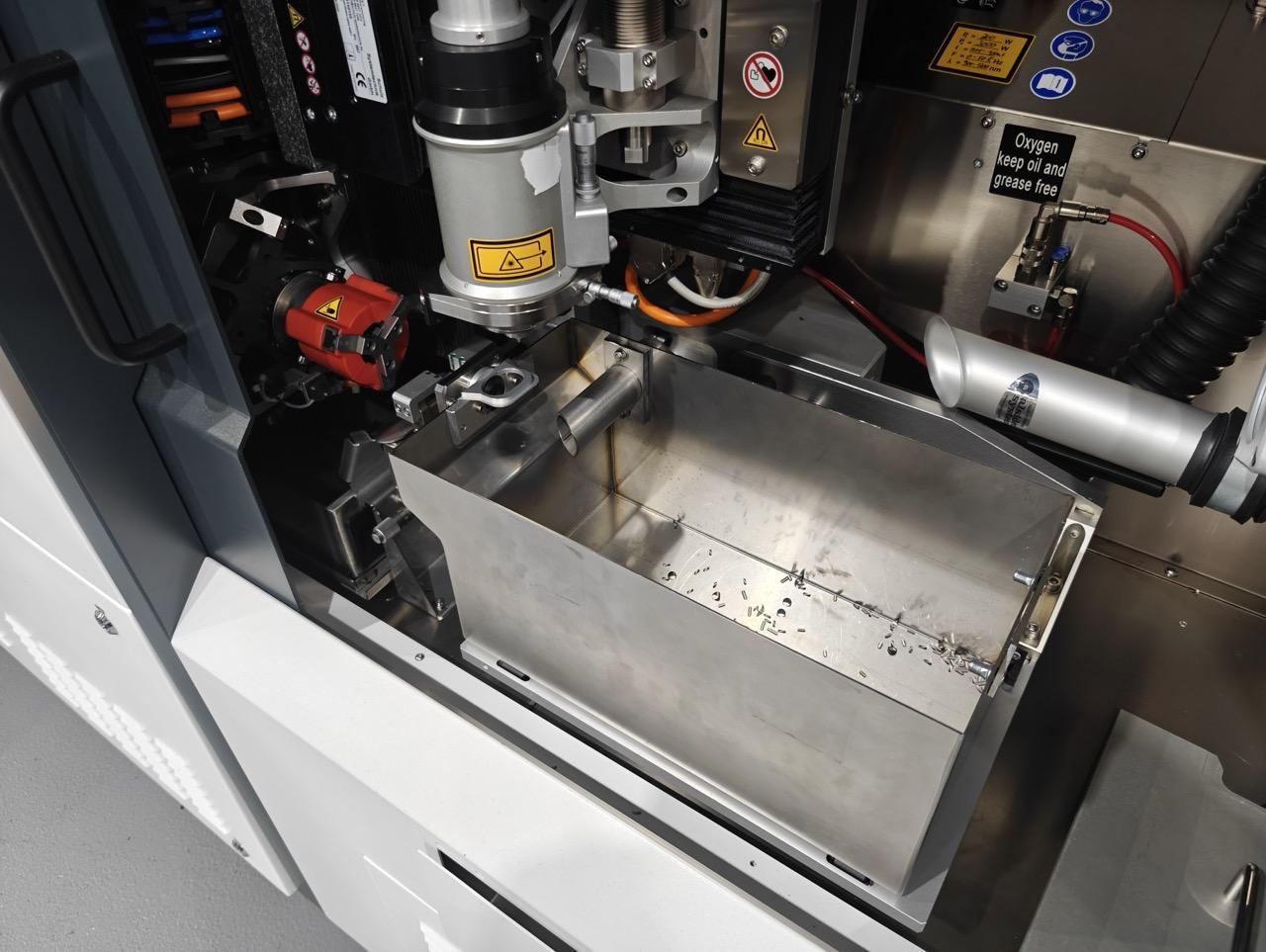

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: – StarFiber 150P Laser Source – FMB Turbo 2-20 P Automatic Bar Loader – Beckhoff Operator Panel – ULT LAS 260 Fume Extraction Unit – Process Viewing Monitor – Enclosed Cutting Chamber – Foot Pedal – Stack Light

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
