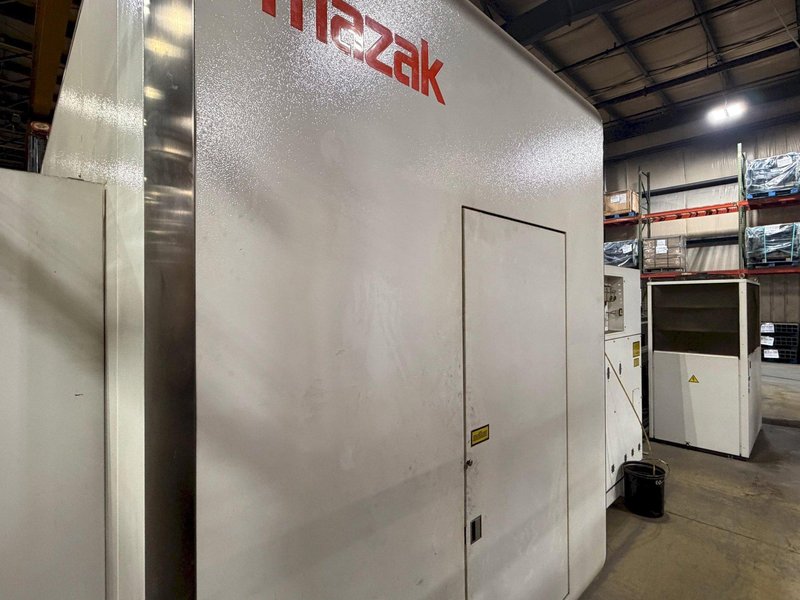

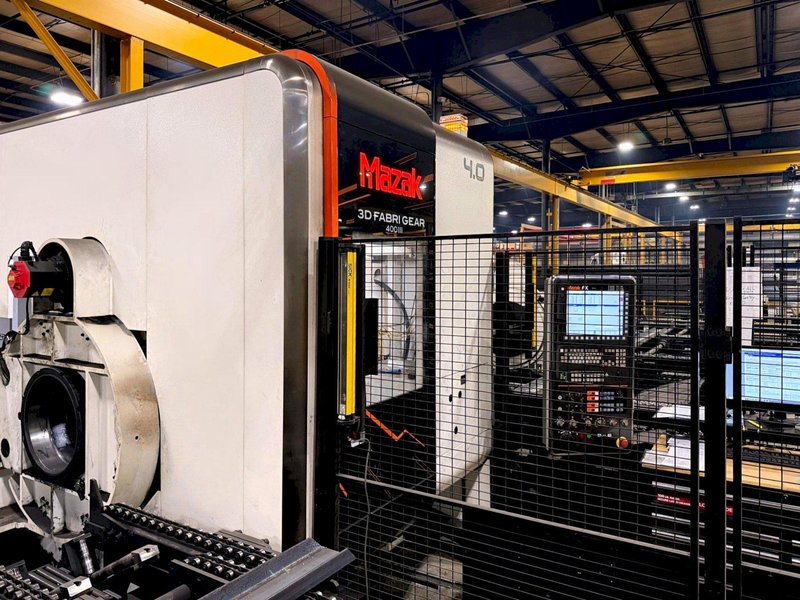

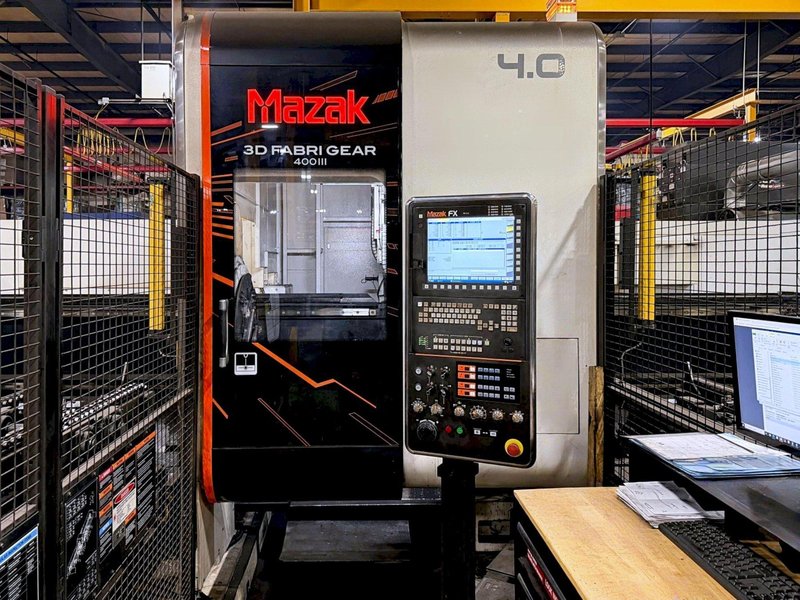

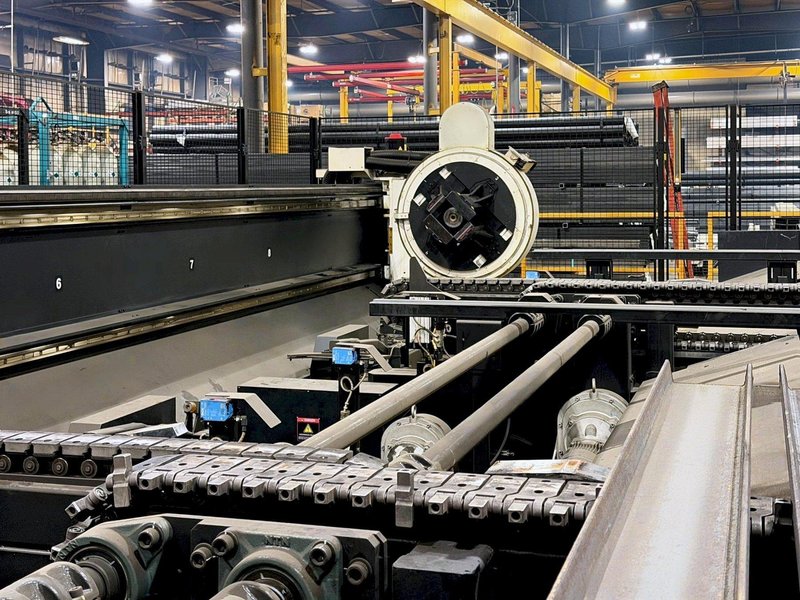

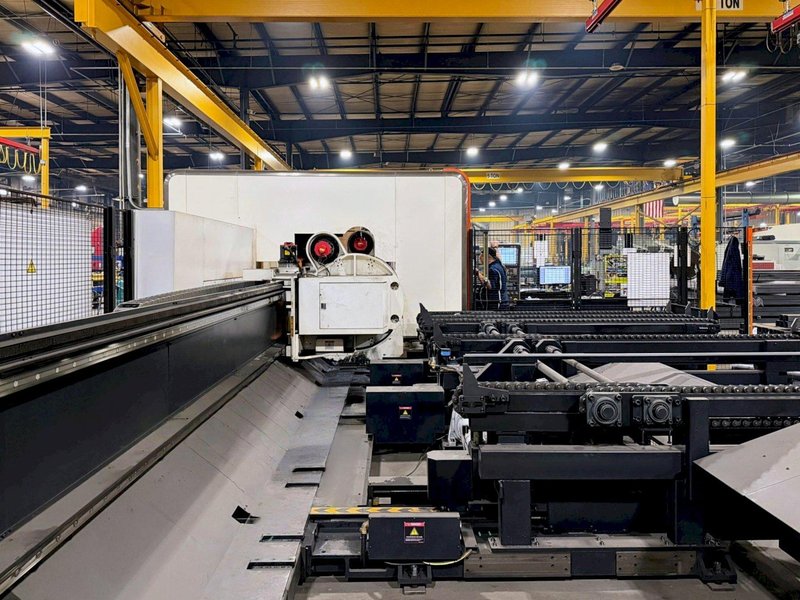

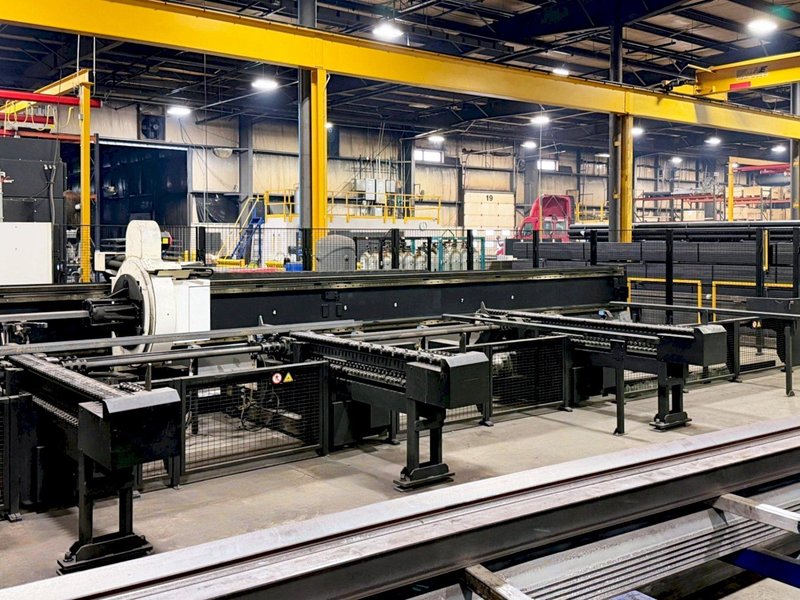

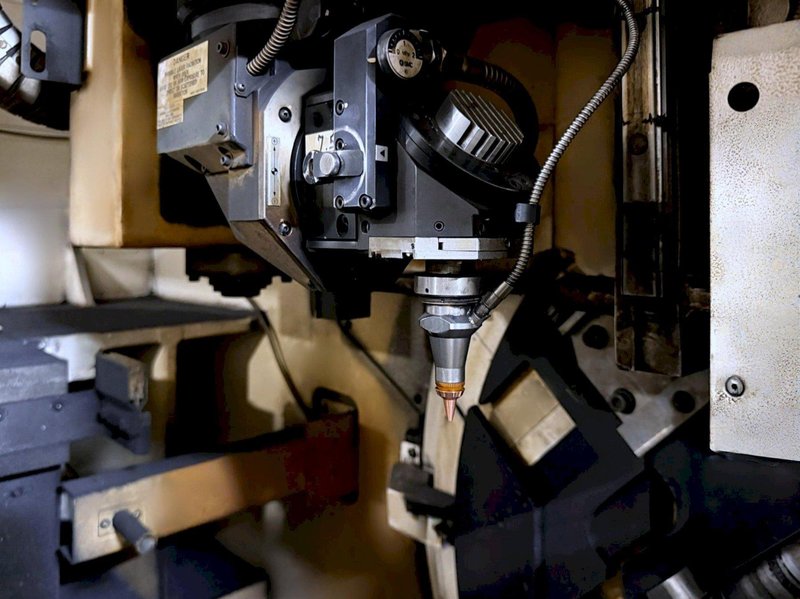

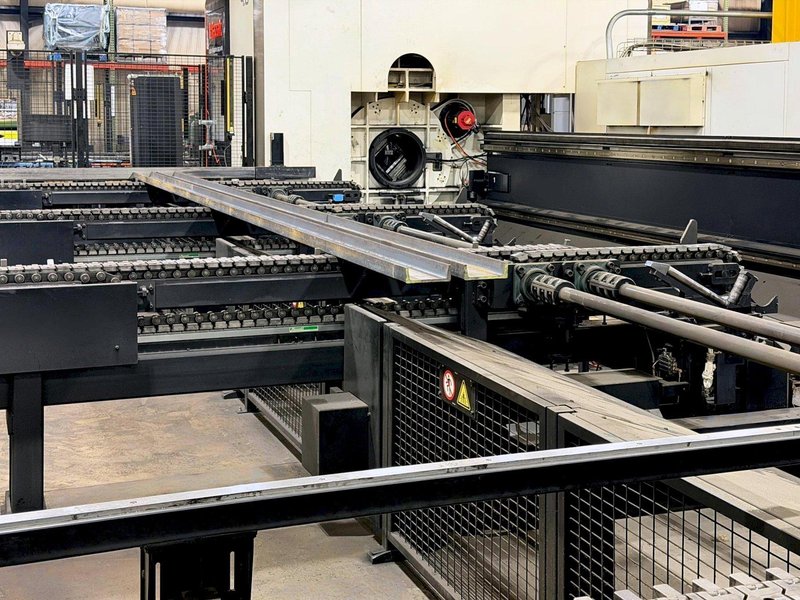

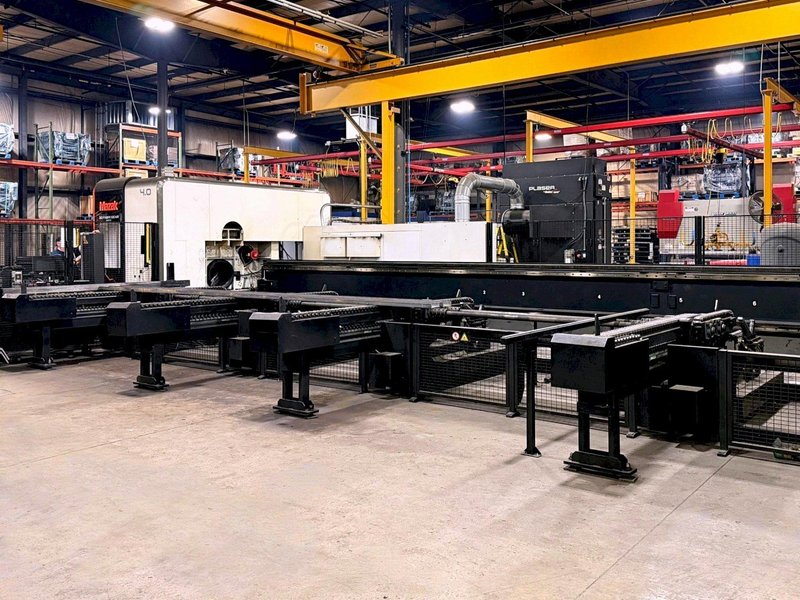

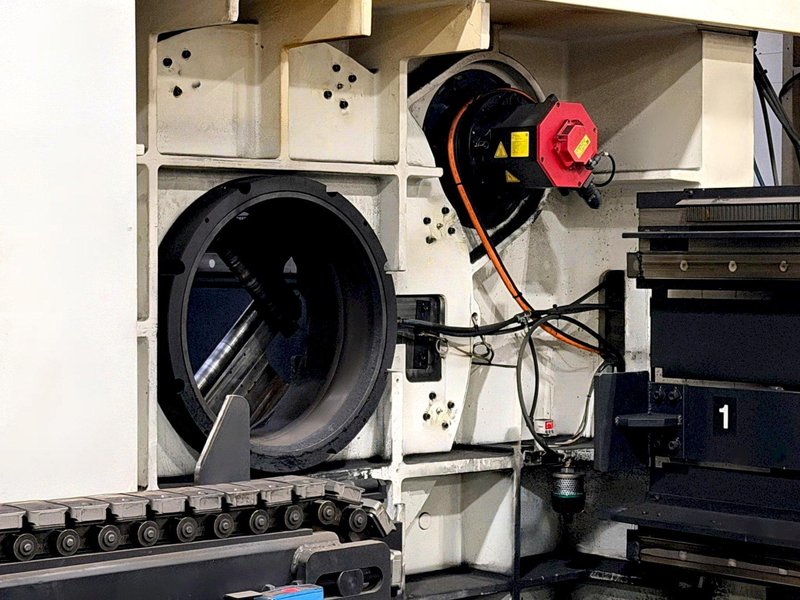

Mazak Fabri Gear 400 III Tube Laser

Name: Mazak Fabri Gear 400 III Tube Laser
Brand: MAZAK
SKU: 100639
Availability: PreOrder

Brand

MAZAK

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

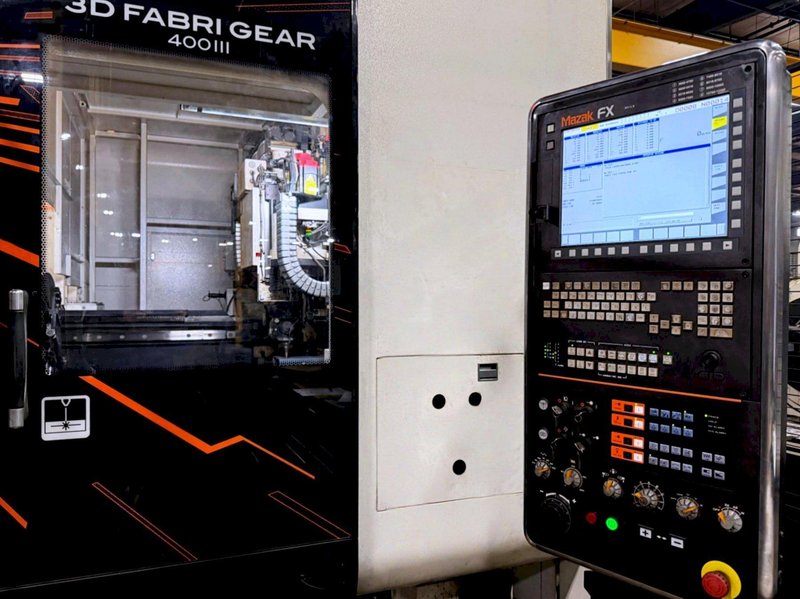

Control	Mazak FX Control Unit
Resonator Type	CO2
Resonator Make	Panasonic
Laser Output	4.0 KW
Laser Gas	He, N2, Co2
Tube Capacity	40' Infeed / 20' Outfeed
Max Material Thickness (Mild Steel)	0.866”
Max Material Thickness (Stainless)	0.393”
Max Material Thickness (Aluminum)	0.314”
Max. Material Diameter Square	11.8”
Max. Material Diameter Round	16”
Max. Workpiece Length Load	472.44"
Max. Workpiece Length Unload	236.22”
Max. Workpiece Weight/Piece	1,764 Lbs.
Stroke X Chuck Left/Right	346.06”
Stroke U Chuck Left/Right	366.14”
Stroke V Chuck Left/Right	99.2”
Stroke Y Head Back/Forth	50.0”
Stroke Z Head Up/Down	14.57”
Stroke A Head Rotation	±99,999.999 Deg.
Stroke B Head Swing	±135 Deg.
Rapid Travel Speed (X,U,V)	1,181 IPM
Rapid Table Speed (Y)	945 IPM
Rapid Table Speed (Z)	945 IPM
Rapid Table Speed (A,B)	9,600 Deg/Min
Rapid Table Speed (C)	6,000 Deg/Min
Total Electrical Requirement	87 kVA
Machine Weight	77,160 Lbs.

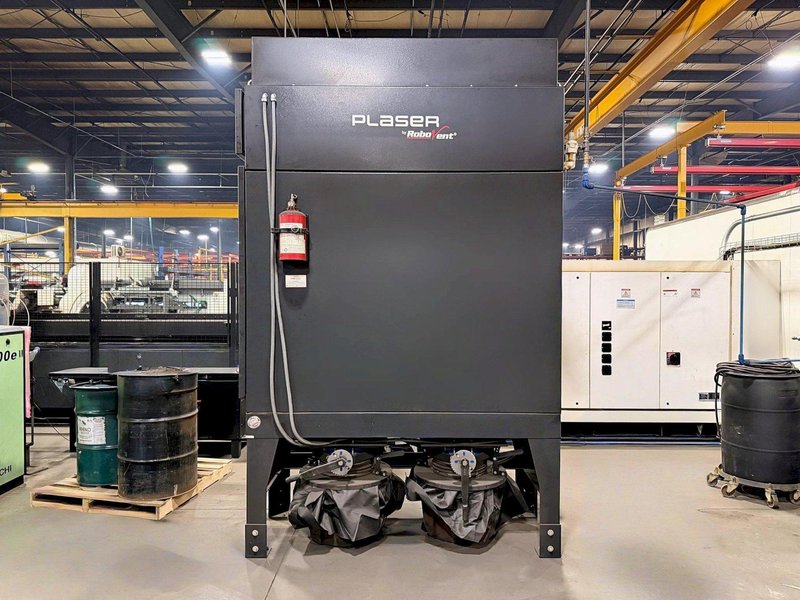

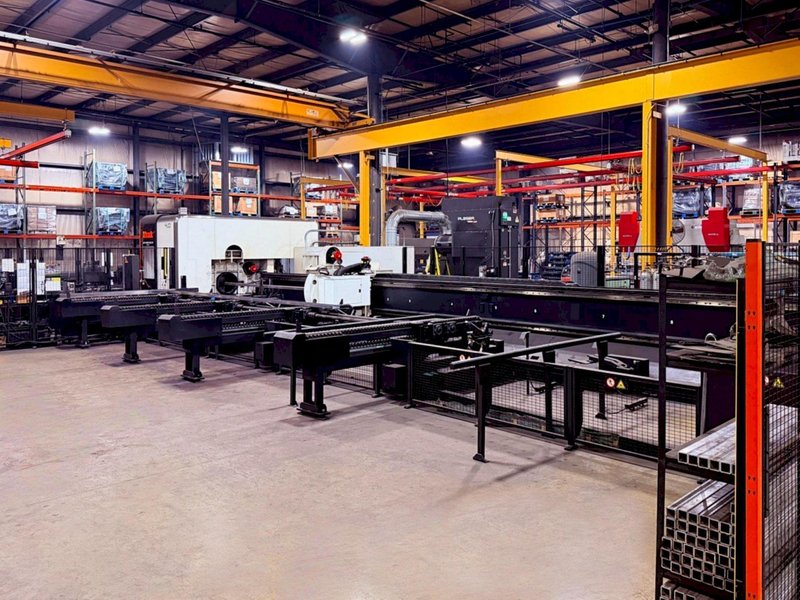

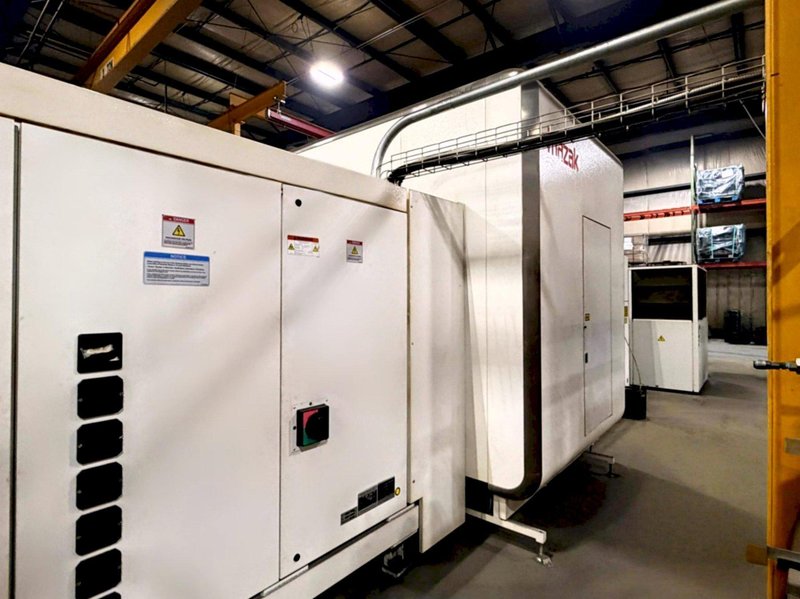

Equipped With: Mazak FX Control Unit 4.0 KW Panasonic Resonator 3D Laser Rotary Head Tapping Unit w/ 8 Tap Adapter Set Additional 7.5” Focal Length High-Pressure Lens 40’ Auto Infeed / 20’ Auto Outfeed MT Connect Adapter Touch Sensor Seam Detector Workpiece Measurement Loader Support For Small Dia Work Horizontal Support Position Chip Conveyor w/ 36” Extension Mazak Smart Glasses Regulator Startup Kit Fire Suppression RoboVent Dust Collector Multi-Tap Transformer (208v to 480v) Chiller Unit
