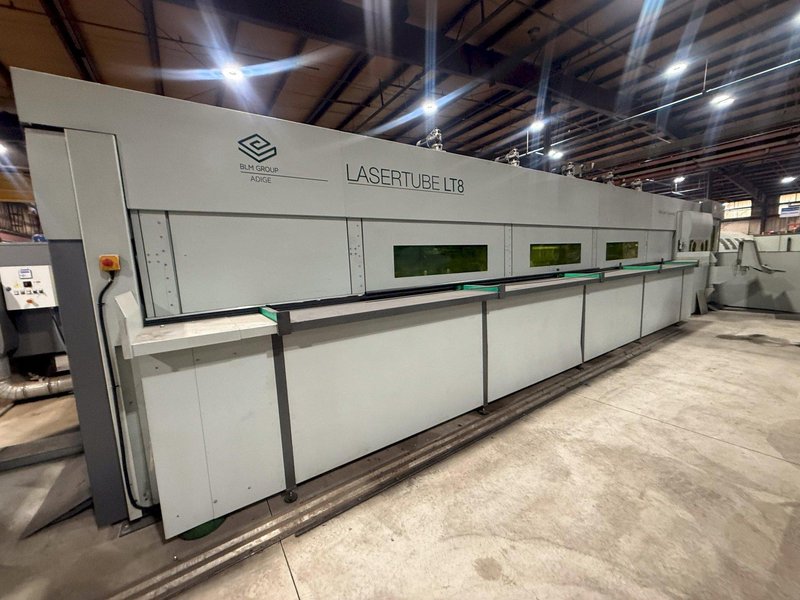

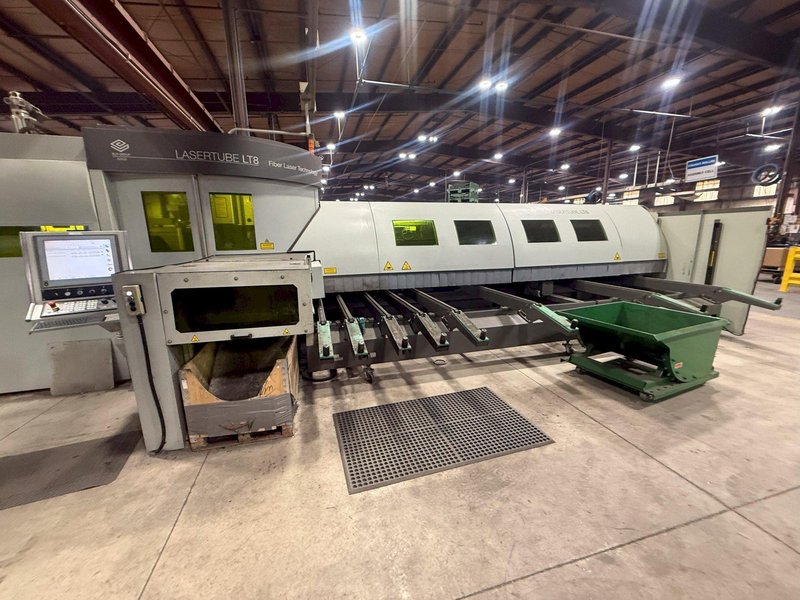

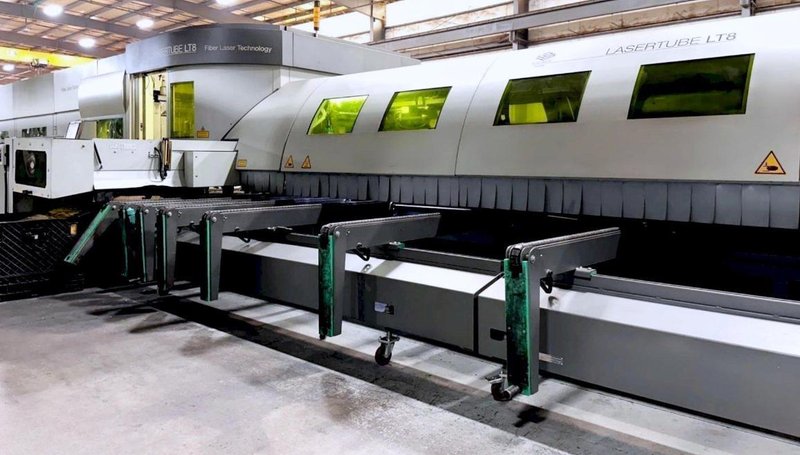

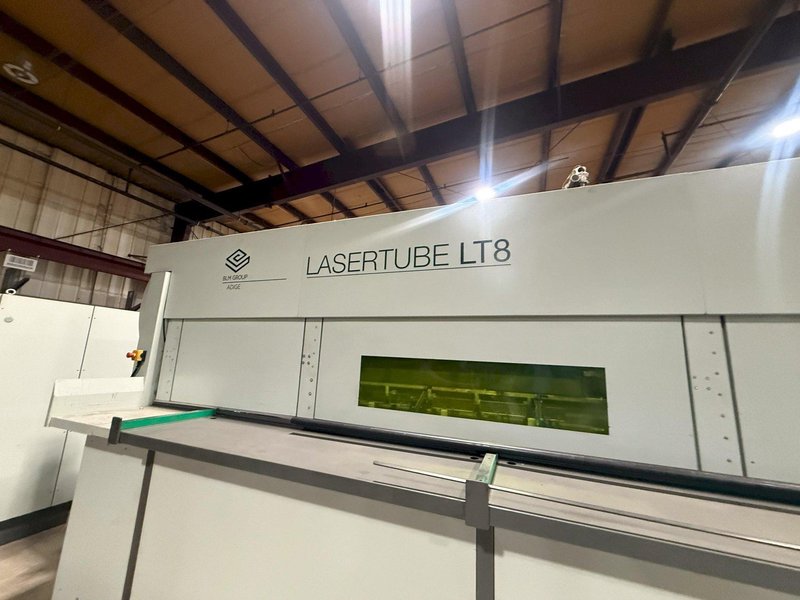

2015 BLM LT8 2D FIBER TUBE LASER 8" X .394": YOBRO 25043

Year 2015

Controller Siemens Simatic

Laser Power IPG YLS 3000 Watt Fiber Resonator

Round Tube Diameter .50” - 8.625”

Square Tubes .50” - 8.0”

Rectangular Tube (Width) .50” – 8.0”

Bar Load Size 28’

Min. Bar Load Length (Auto Bundle Loader) 8.2'

Bar Unload Size 21”

Max. Bundle Weight 8,800 lbs.

Max. Bar Weight (At full duty cycle) 25 lbs. / Foot

Cutting Head HPSSL (2D)

Open Shapes Capability Standard - Processing Angle Iron, Channel, Flat Bar

Booster Pierce / Breakthrough Detector Standard

Weld Seam Detection Standard

Tube Twist & Bow Correction Standard

Max. Cut Thickness (Mild Steel) .394”

Max. Cut Thickness (Stainless Steel) .236”

Max. Cut Thickness (Aluminum) .236”

Max. Cut Thickness (Brass) .236”

Max. Cut Thickness (Copper) .157”

Equipped With:

HPSSL 2D Cutting Head

Active Piercing

Optical Weld Seam Detector

Spoon (Clean Tube Technology)

Rear Bundle Loader

Front Single Bar Loader

3kW IPG YLS Fiber Laser

Reidel USA Chiller

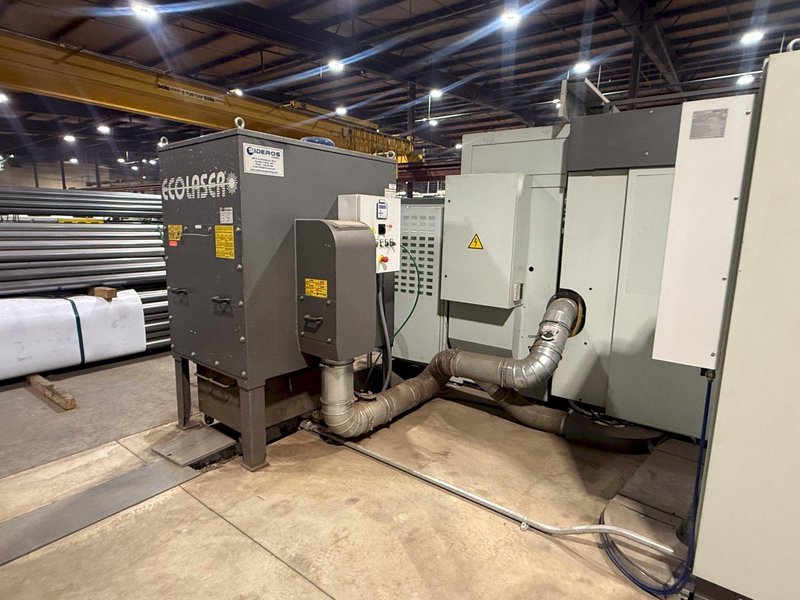

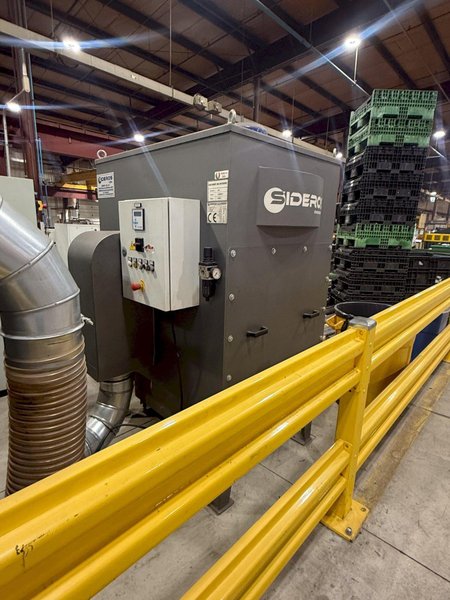

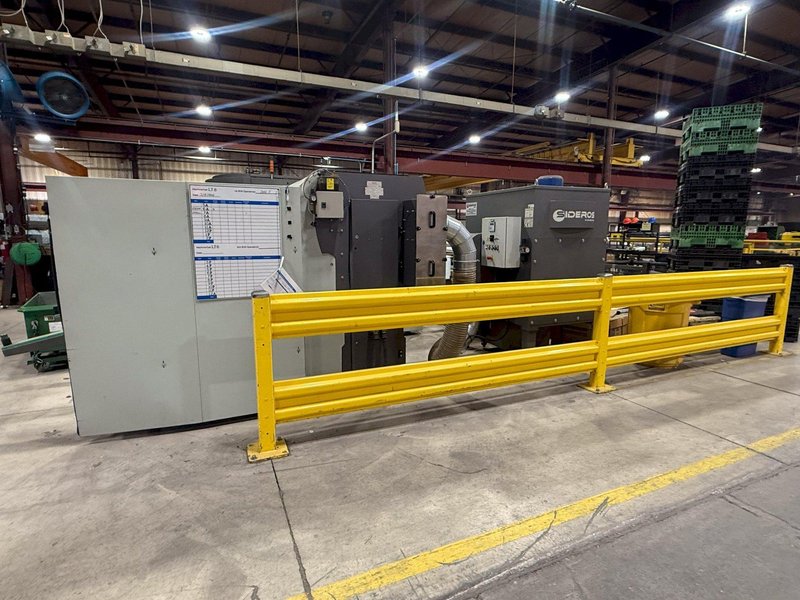

(2) Sideros ECO4 Dust Collector

(2) On-board cameras (Internal & Rear of Machine)

Short Parts Belt

Rear Scrap Conveyor

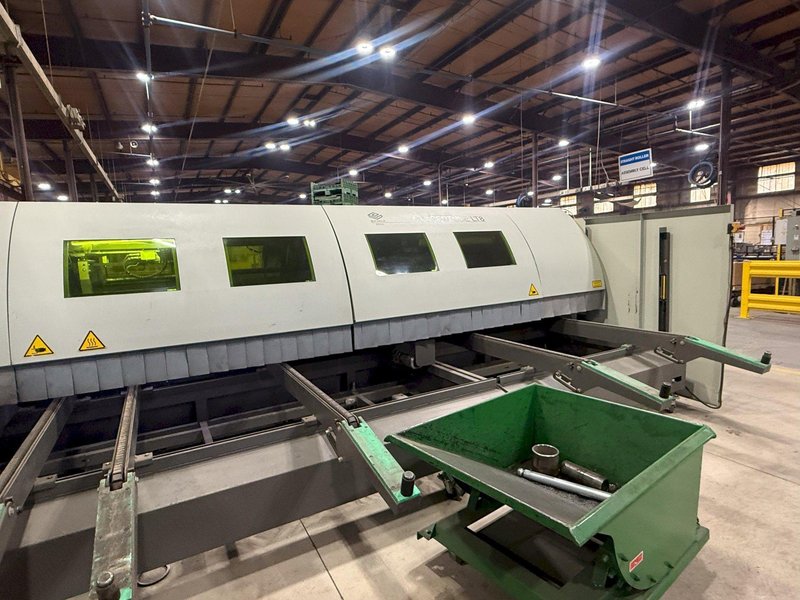

Front Unload Collection Table

Rear Unload Collection Table
