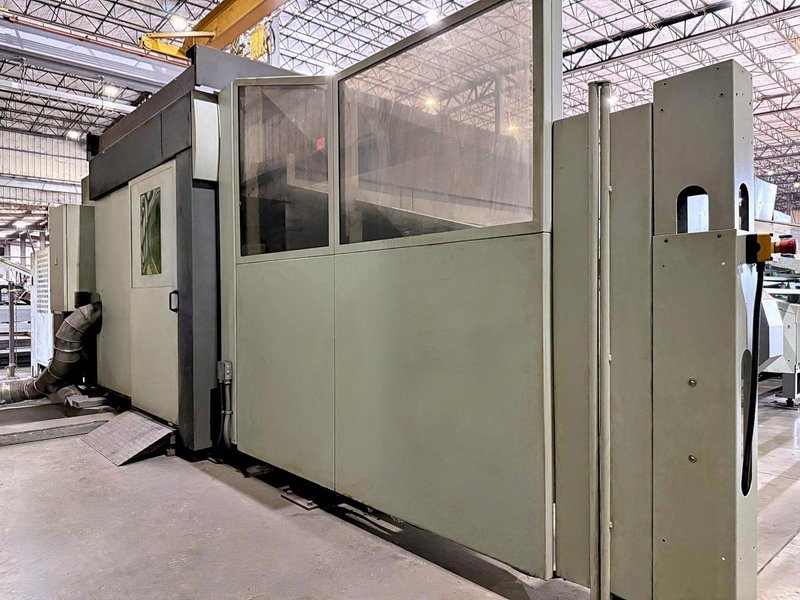

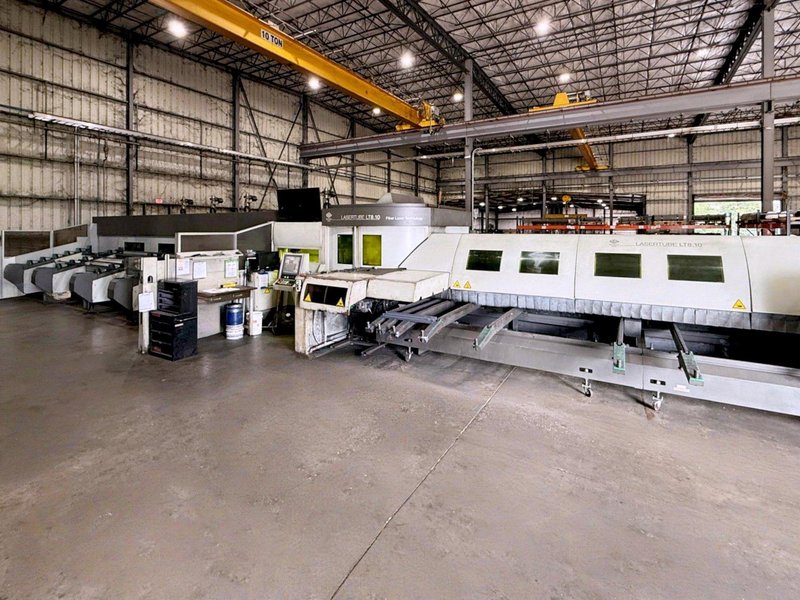

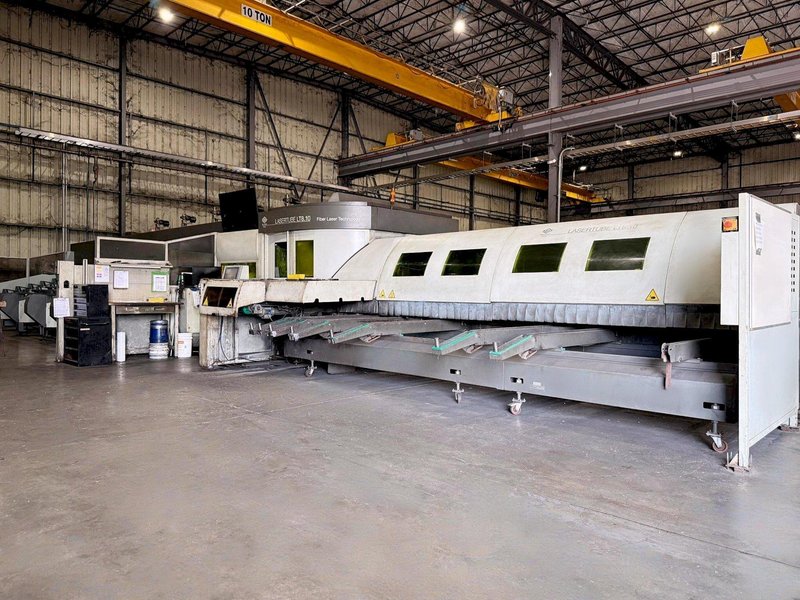

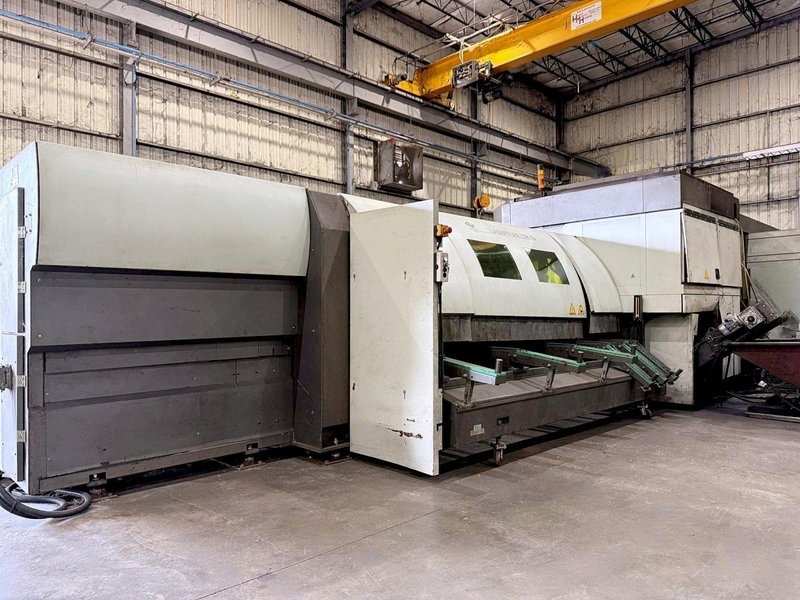

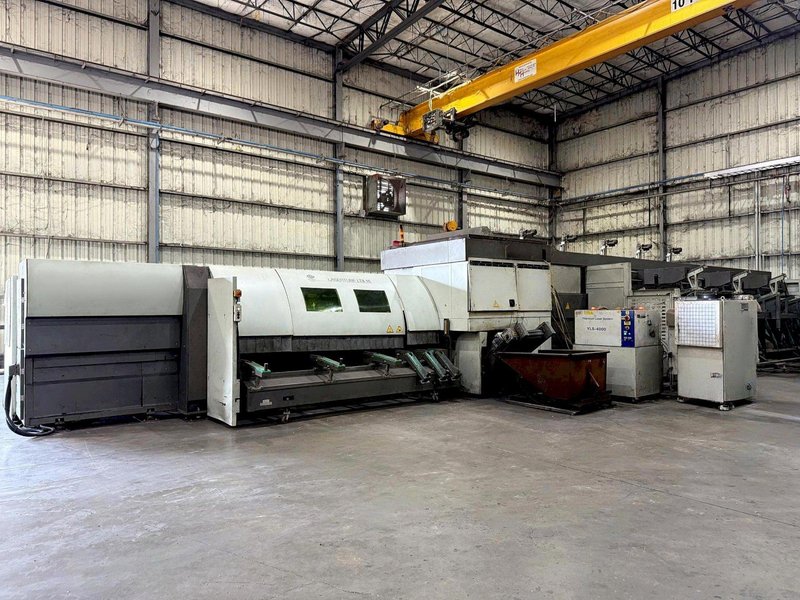

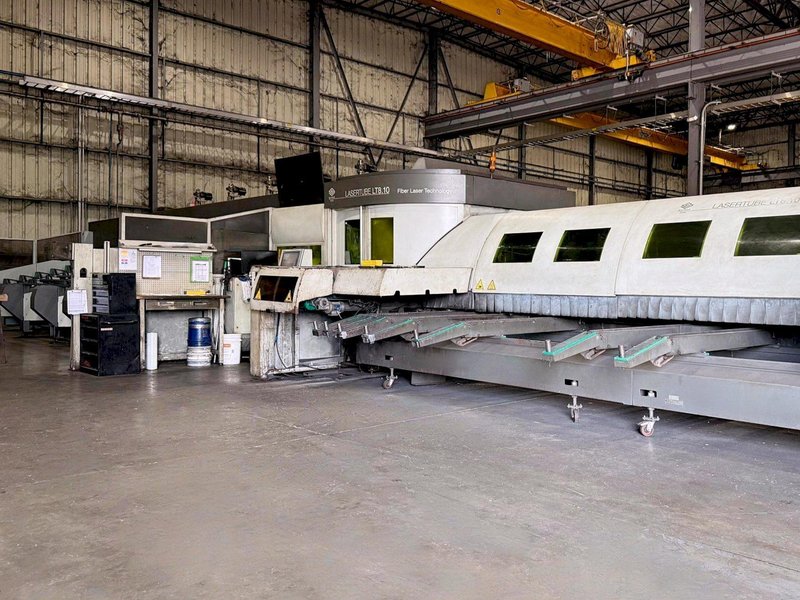

BLM LT8.10 3D Fiber Tube Laser

Name: Used BLM LT8.10 Fiber For Sale 100609
Brand: BLM
SKU: 100609
Availability: PreOrder

Brand

BLM

Not specified

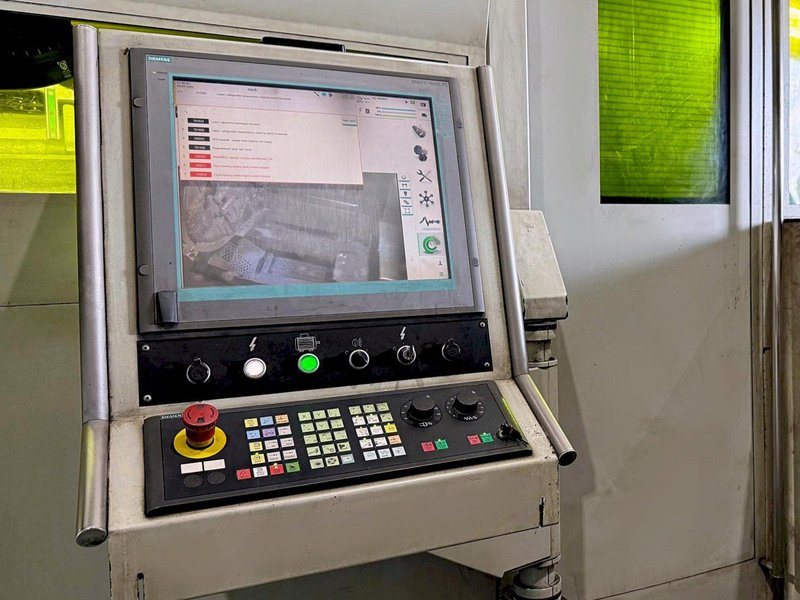

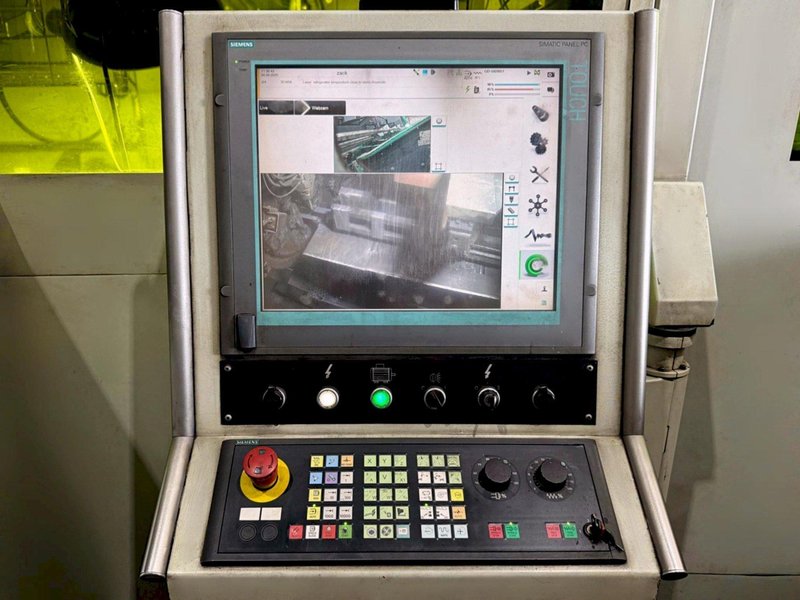

Controller	Siemens Simatic

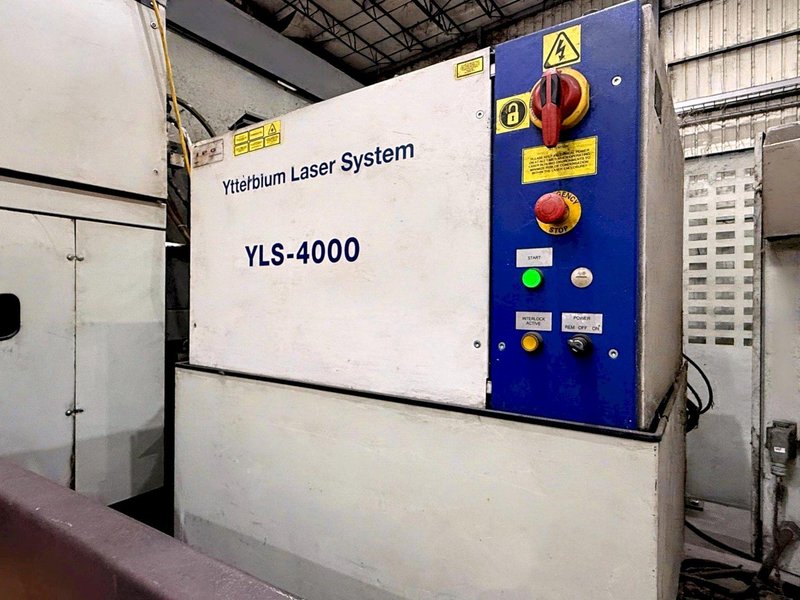

Laser Power	IPG YLS 4000 Watt Fiber Resonator
Round Tube Diameter	.50” - 8.625”
Square Tubes	.50” - 8.0”
Rectangular Tube (Width)	.50” – 8.0”
Bar Load Size	28’
Min. Bar Load Length (Auto Bundle Loader)	8.2'
Bar Unload Size	21”
Max. Bundle Weight	8,800 lbs.
Max. Bar Weight (At Full Duty Cycle)	25 lbs. / Foot
Unloading Lengths	21'
Tilt Head Cutting	Standard (+/- 45 Degrees)
Open Shapes Capability	Standard - Processing Angle Iron, Channel, Flat Bar
Booster Pierce / Breakthrough Detector	Standard
Weld Seam Detection	Standard
Tube Twist & Bow Correction	Standard
Max. Cut Thickness (Mild Steel)	.394”
Max. Cut Thickness (Stainless Steel)	.236”
Max. Cut Thickness (Aluminum)	.236”
Max. Cut Thickness (Brass)	.236”
Max. Cut Thickness (Copper)	.157”

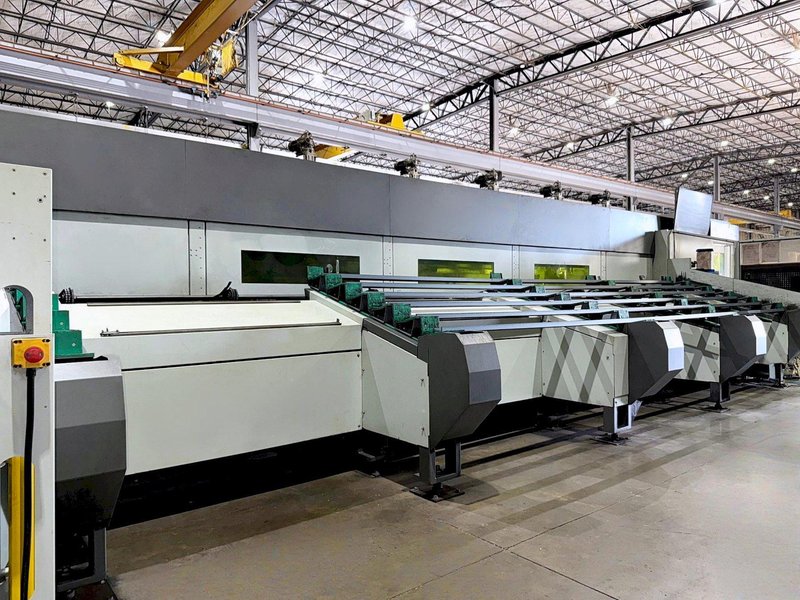

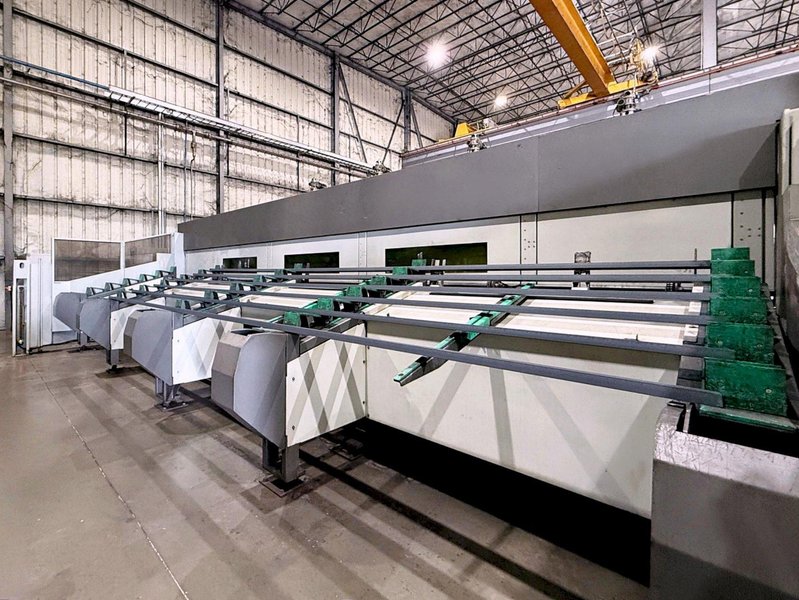

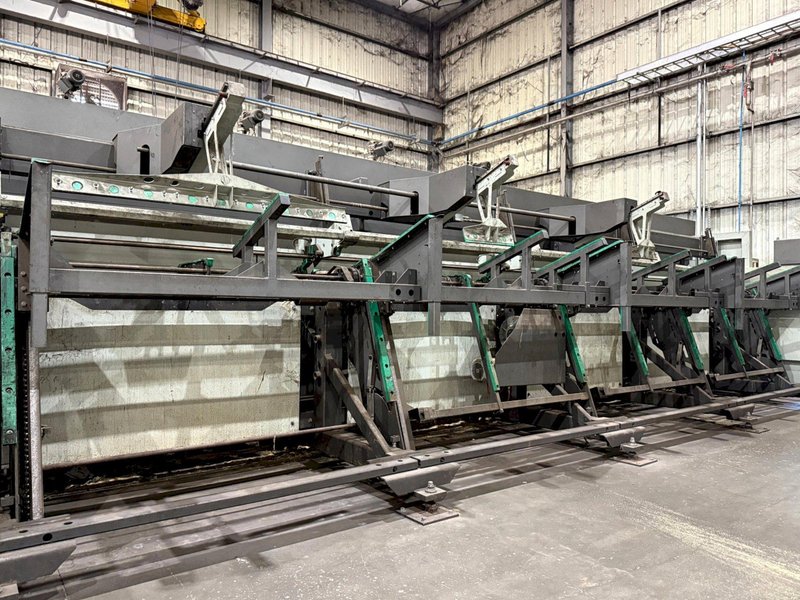

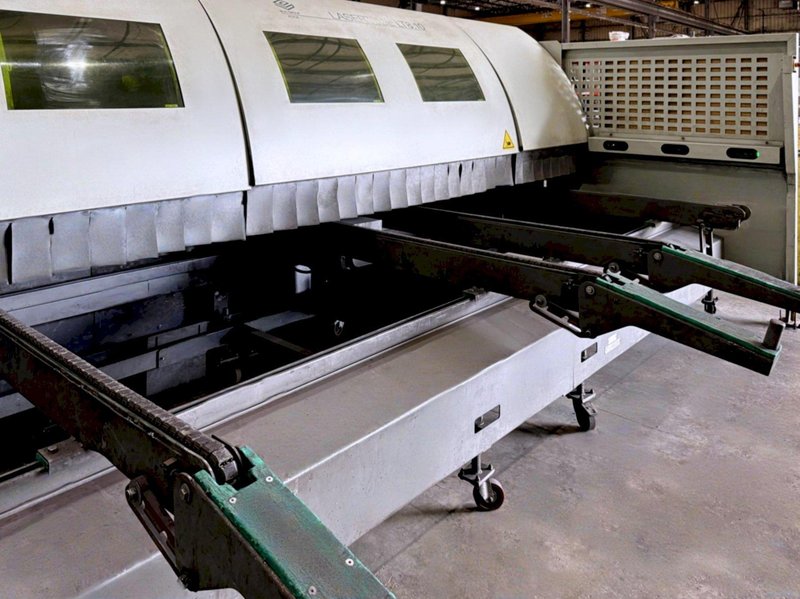

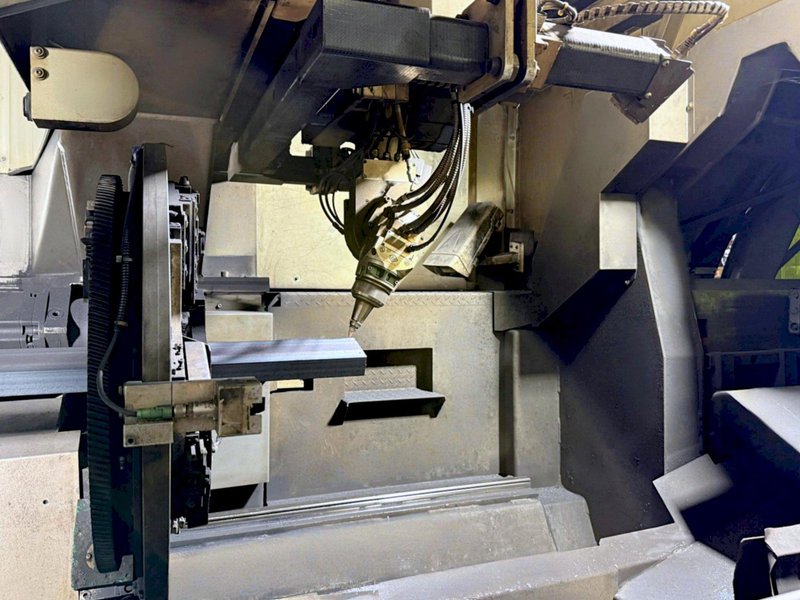

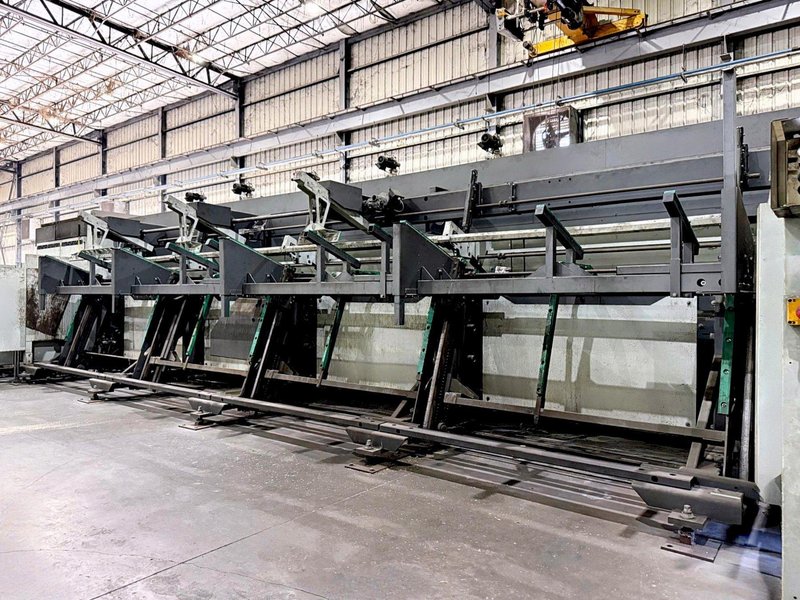

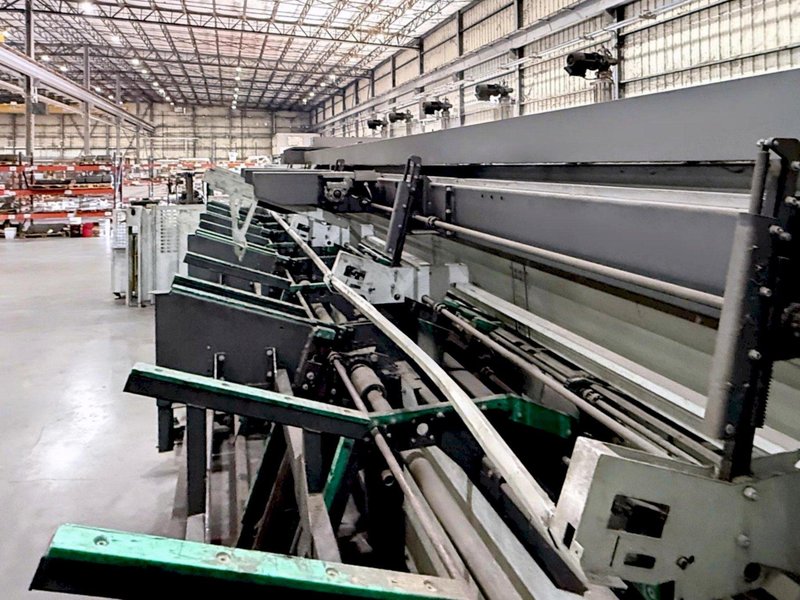

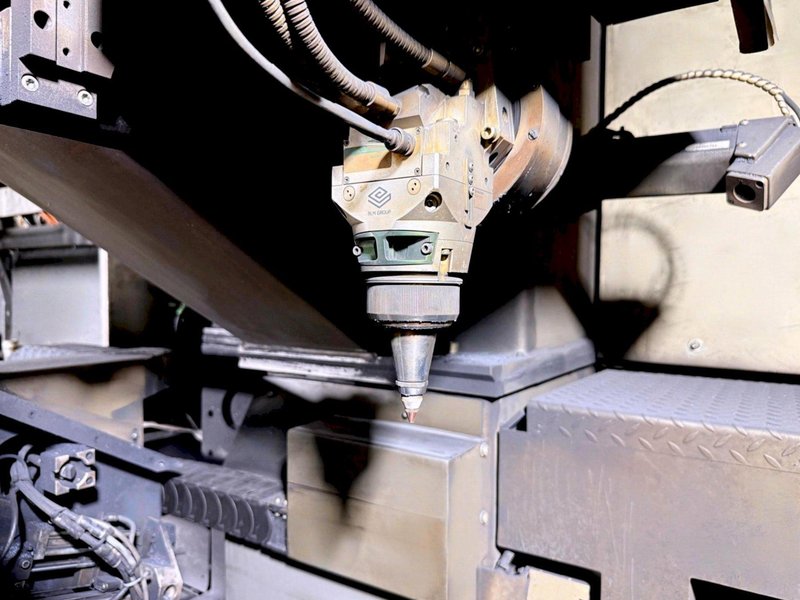

Equipped With: Tilting 3-D Laser Cutting Head +/- 45° (Bevels/Miters) 4kW IPG YLS Fiber Laser Active Scan Active Weld Active Focus Active Piercing Active Marking Optical Weld Seam Sensor (2) On-board cameras (Internal & Rear of Machine) Fully Automated Tube Bundle Loader (Rear) Step Bar Loader (Front) Open Shapes Capabilities Motorized Unloading Table Short Parts Belt Rear Scrap Conveyor Front and Rear Unload Collection Tables Chiller Dust Collector
