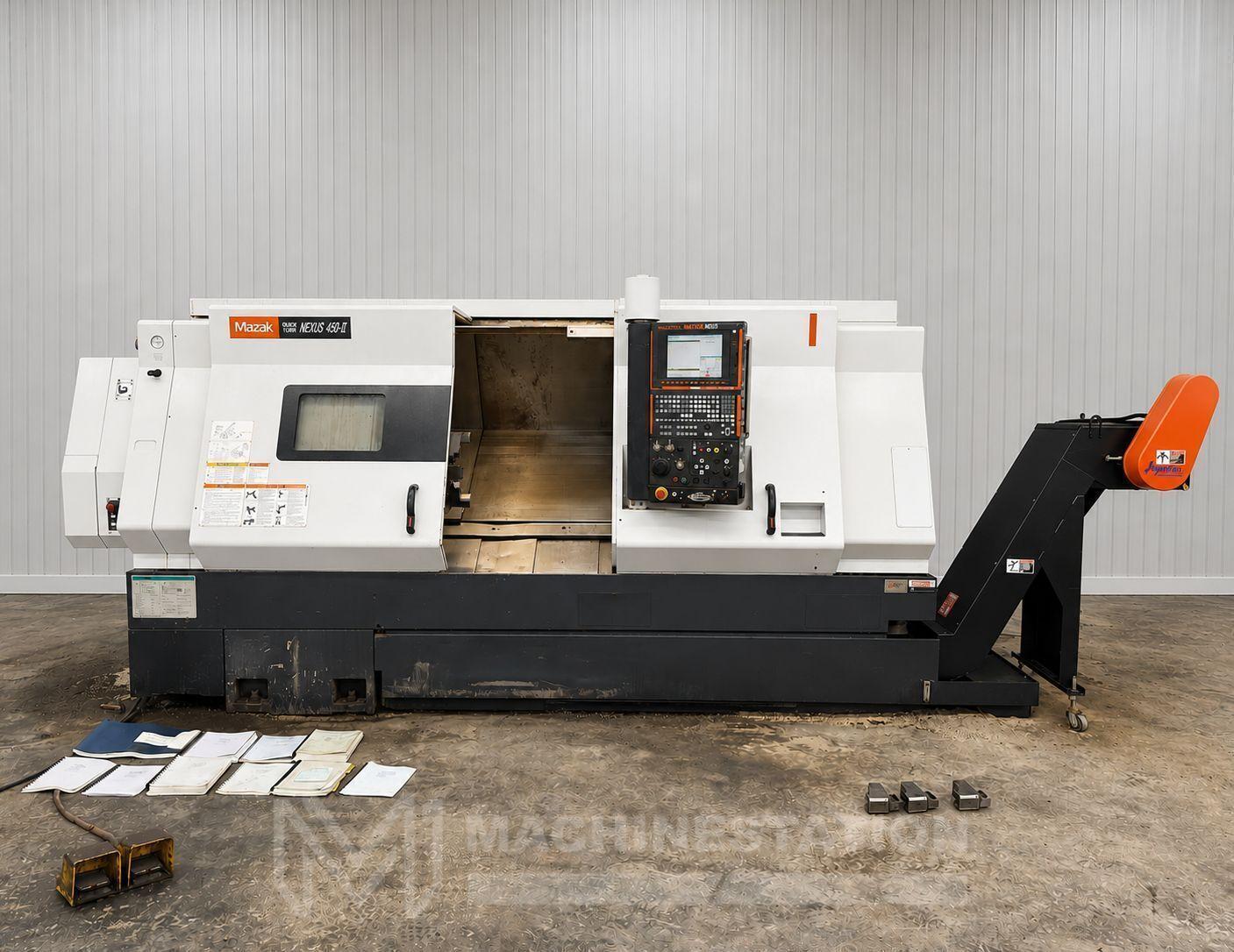

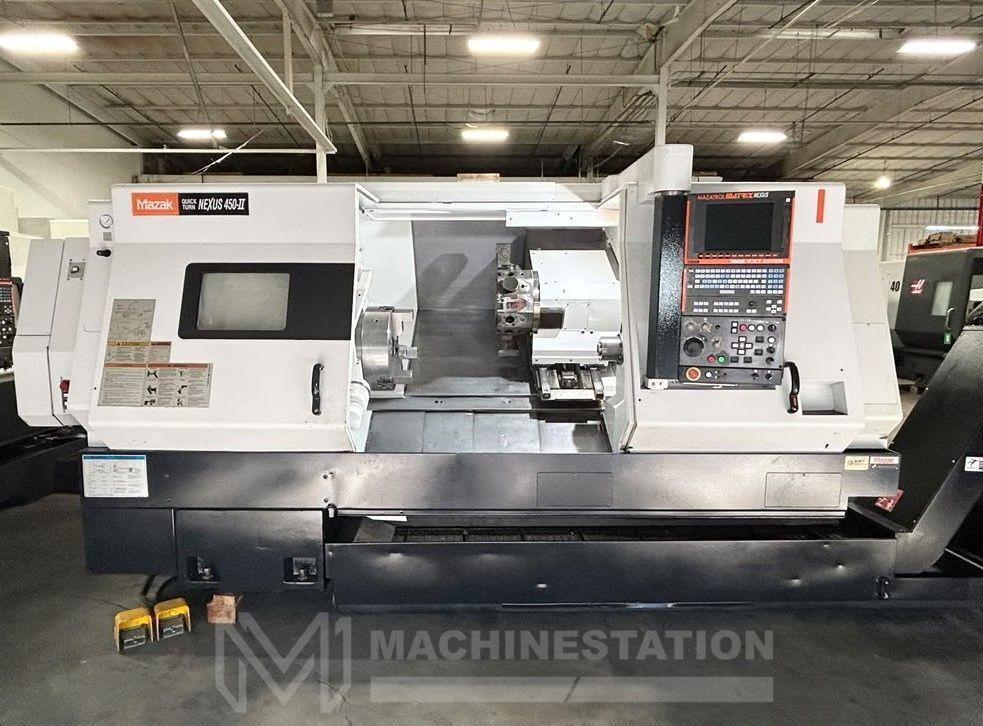

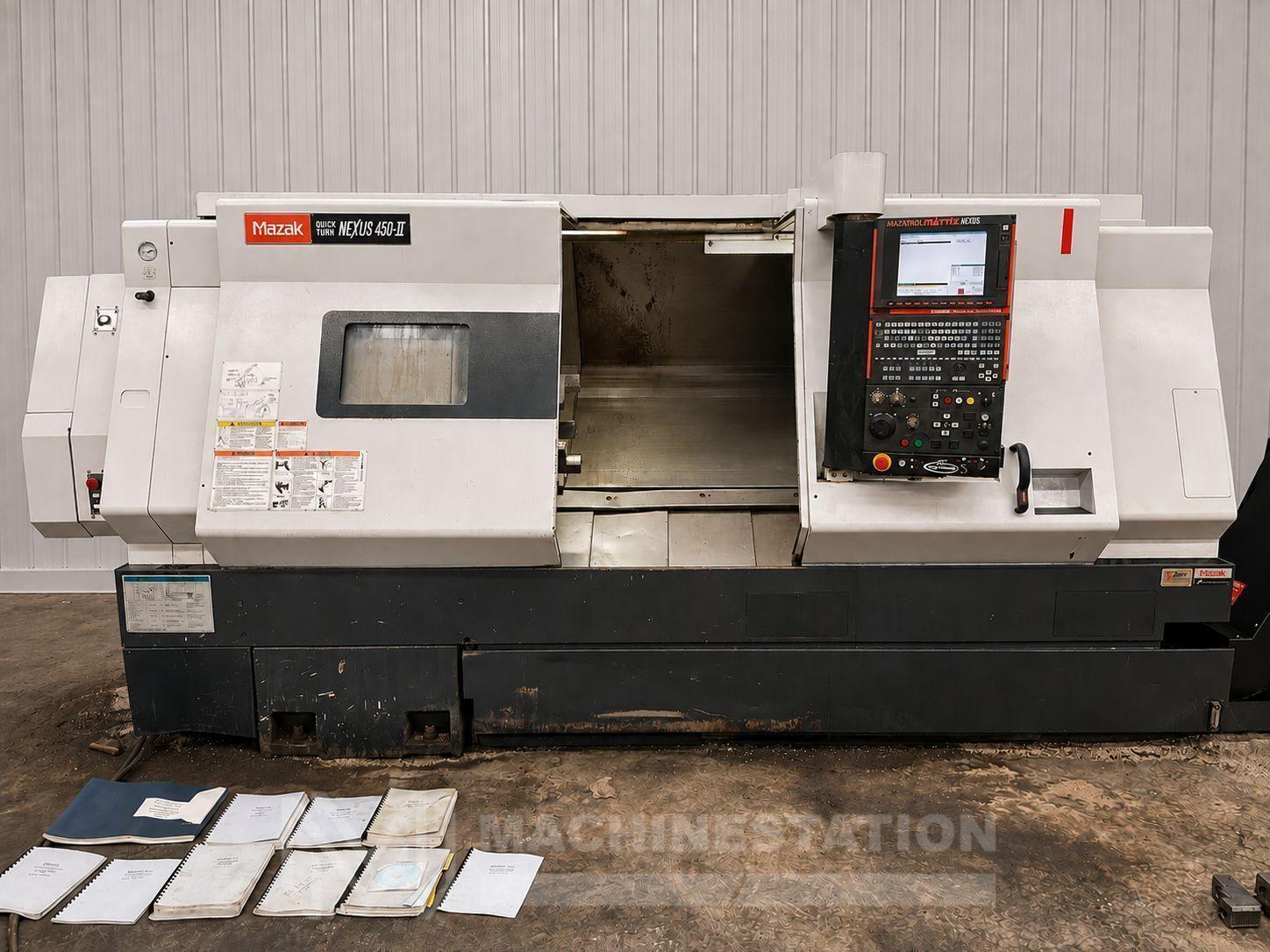

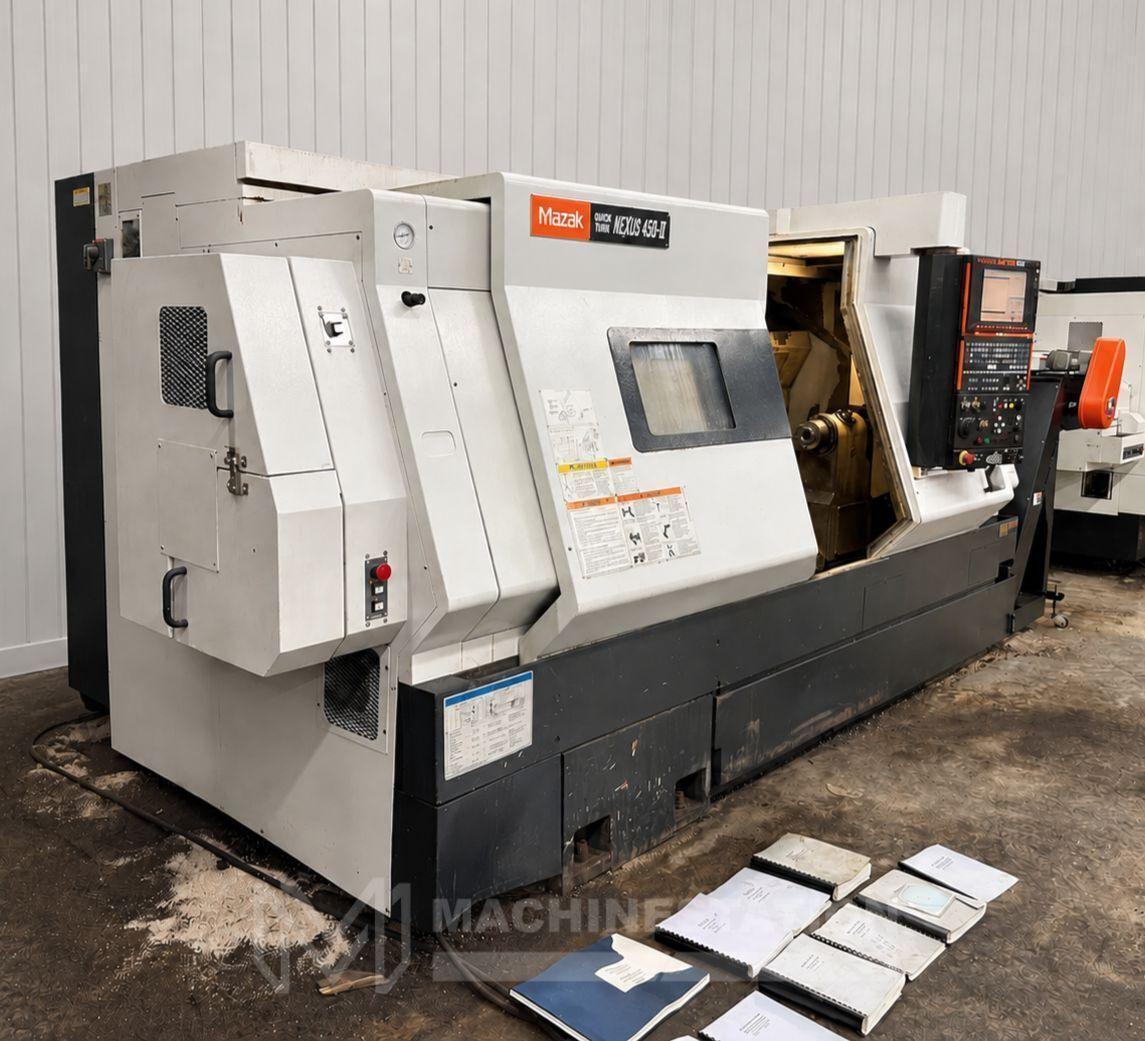

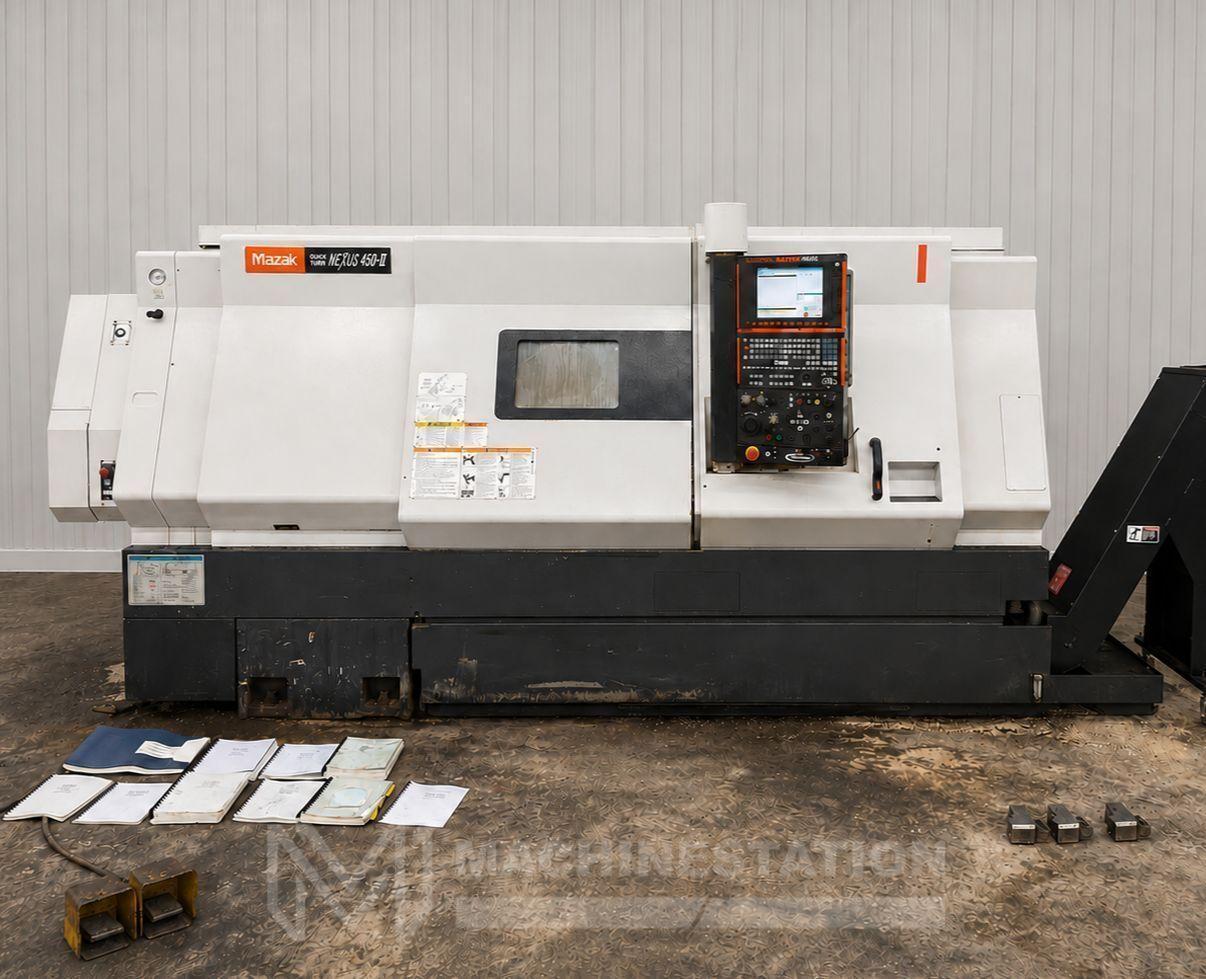

Mazak Quick Turn Nexus 450-II CNC Turning Center – 18″ Chuck Lathe

Brand
UNKNOWN
Category
Lathes & Turning Machines
Type
Turning Centers
Model
QUICK TURN NEXUS 450-II
Stock #
113673
Year
Not specified
Condition
Not specified

Location

Not specified

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Features:

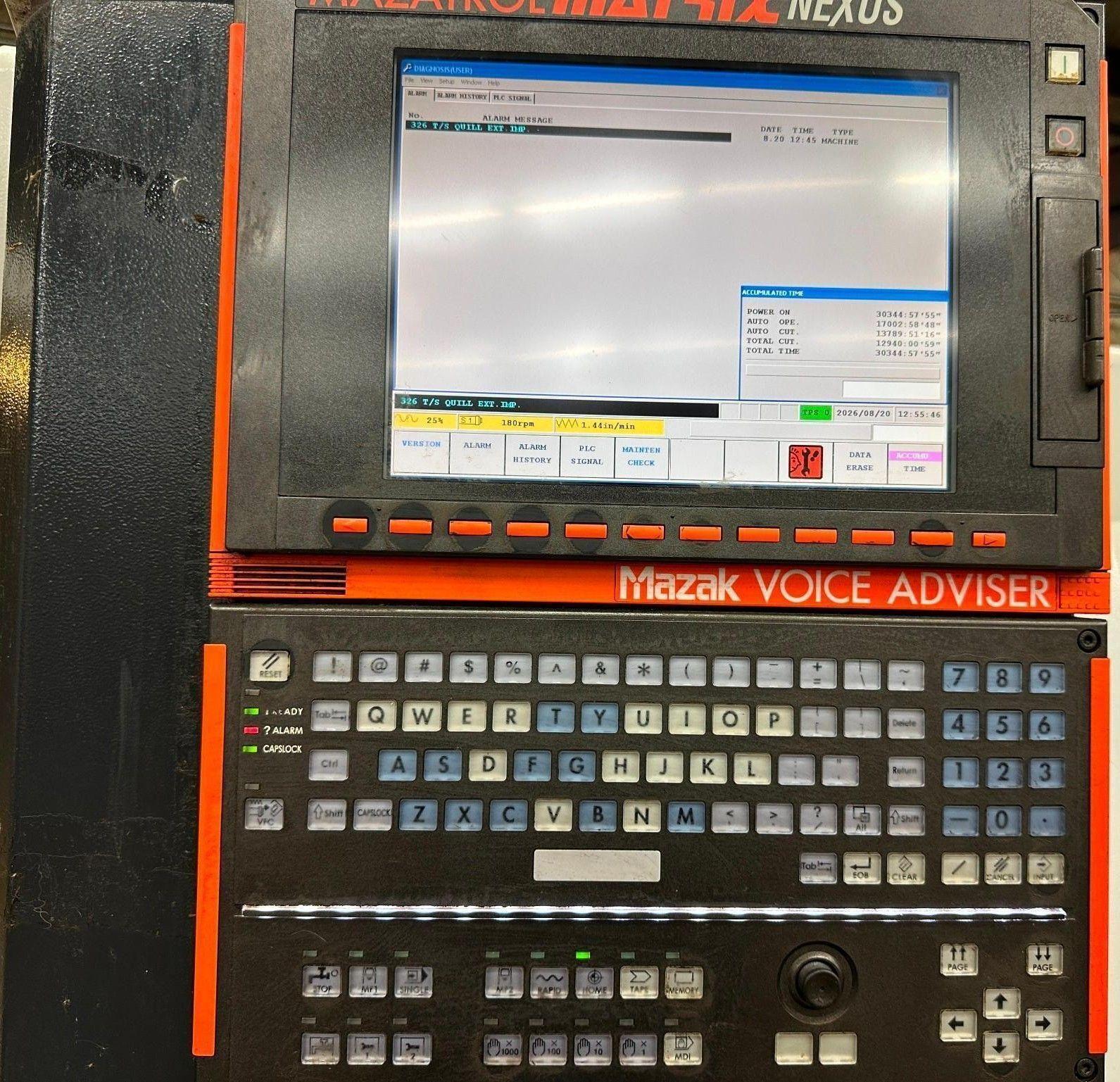

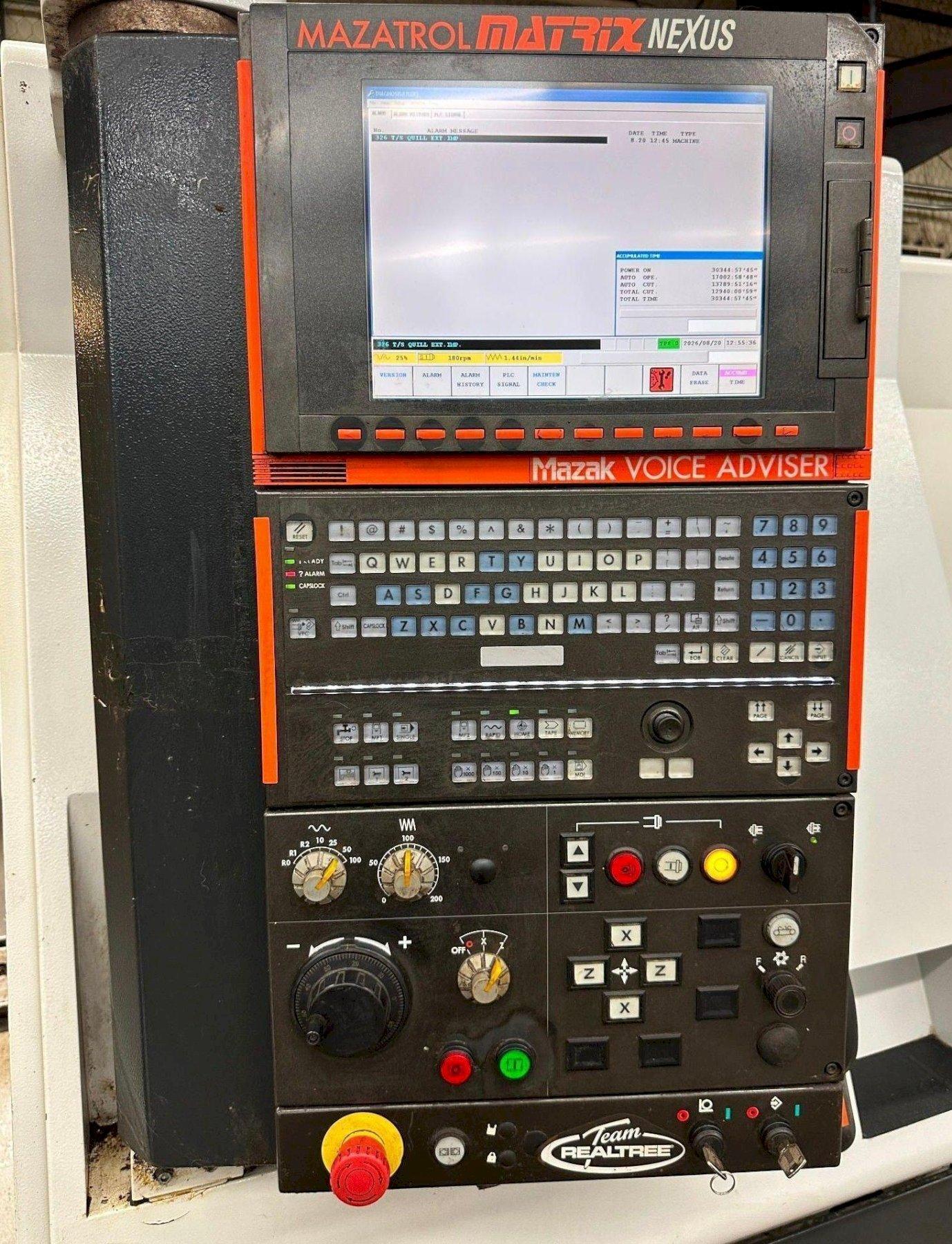

Mazatrol Matrix Nexus CNC Control

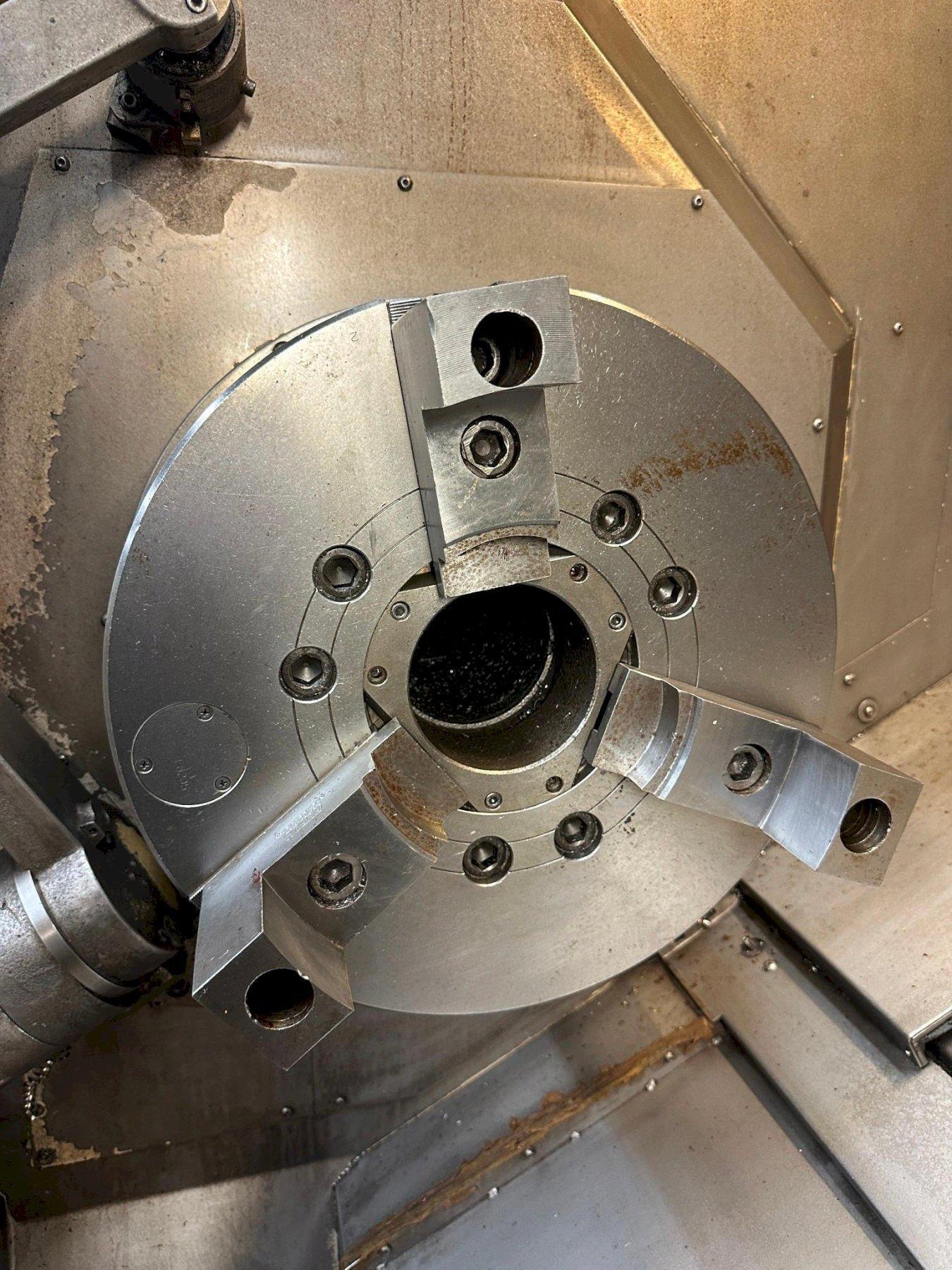

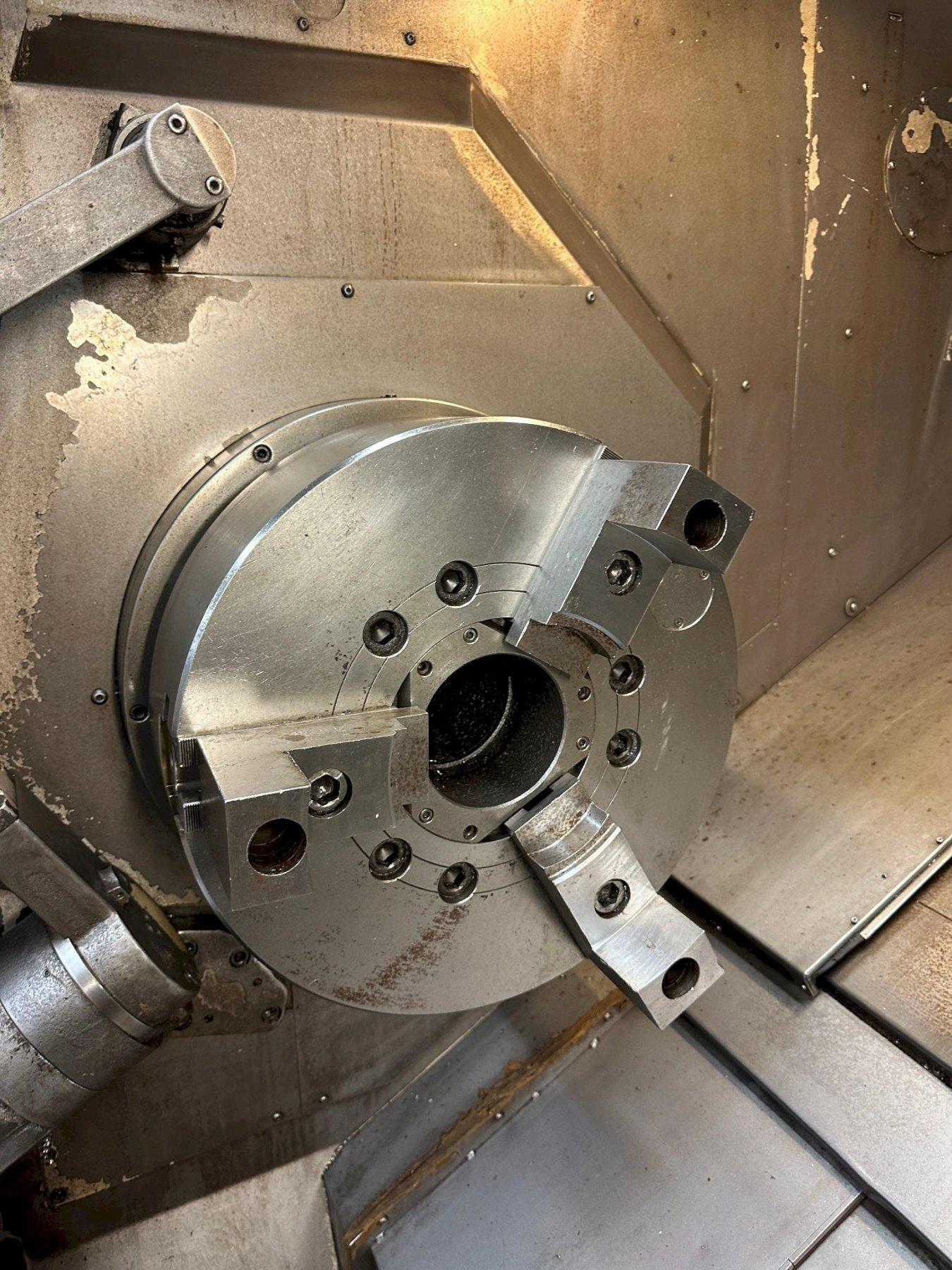

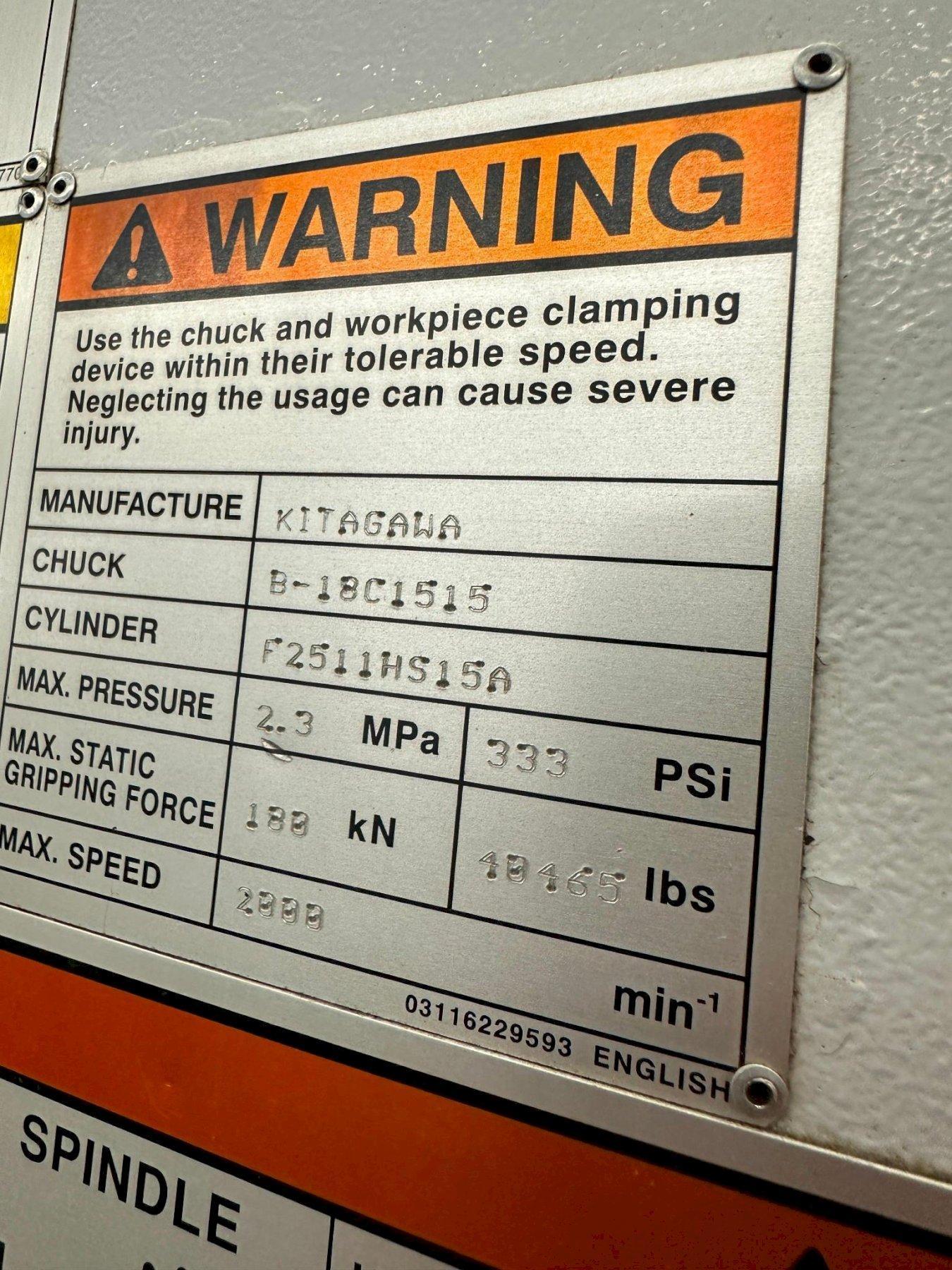

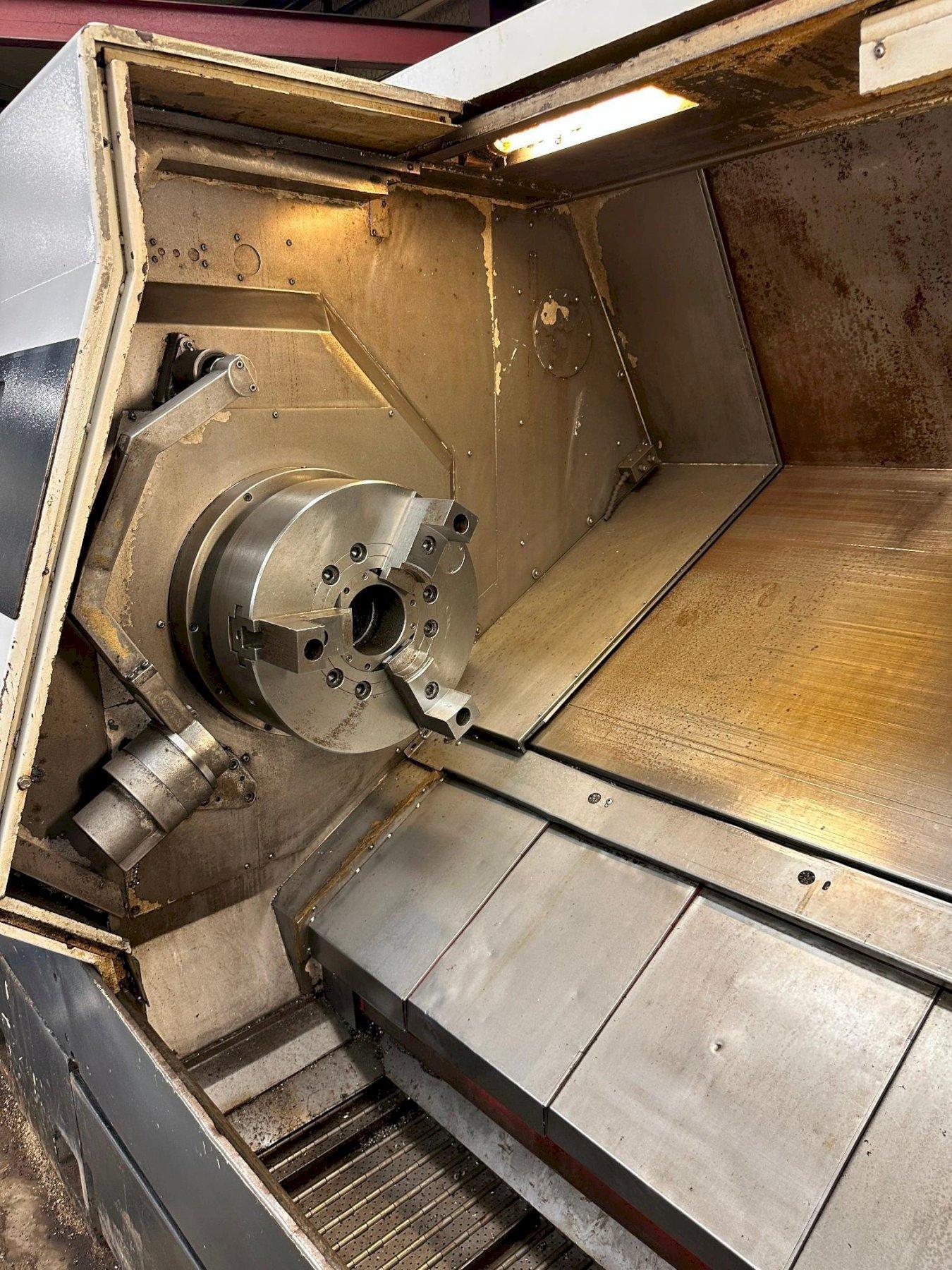

18″ 3-Jaw Kitagawa B-18C1515 Hydraulic Thru-Hole Chuck

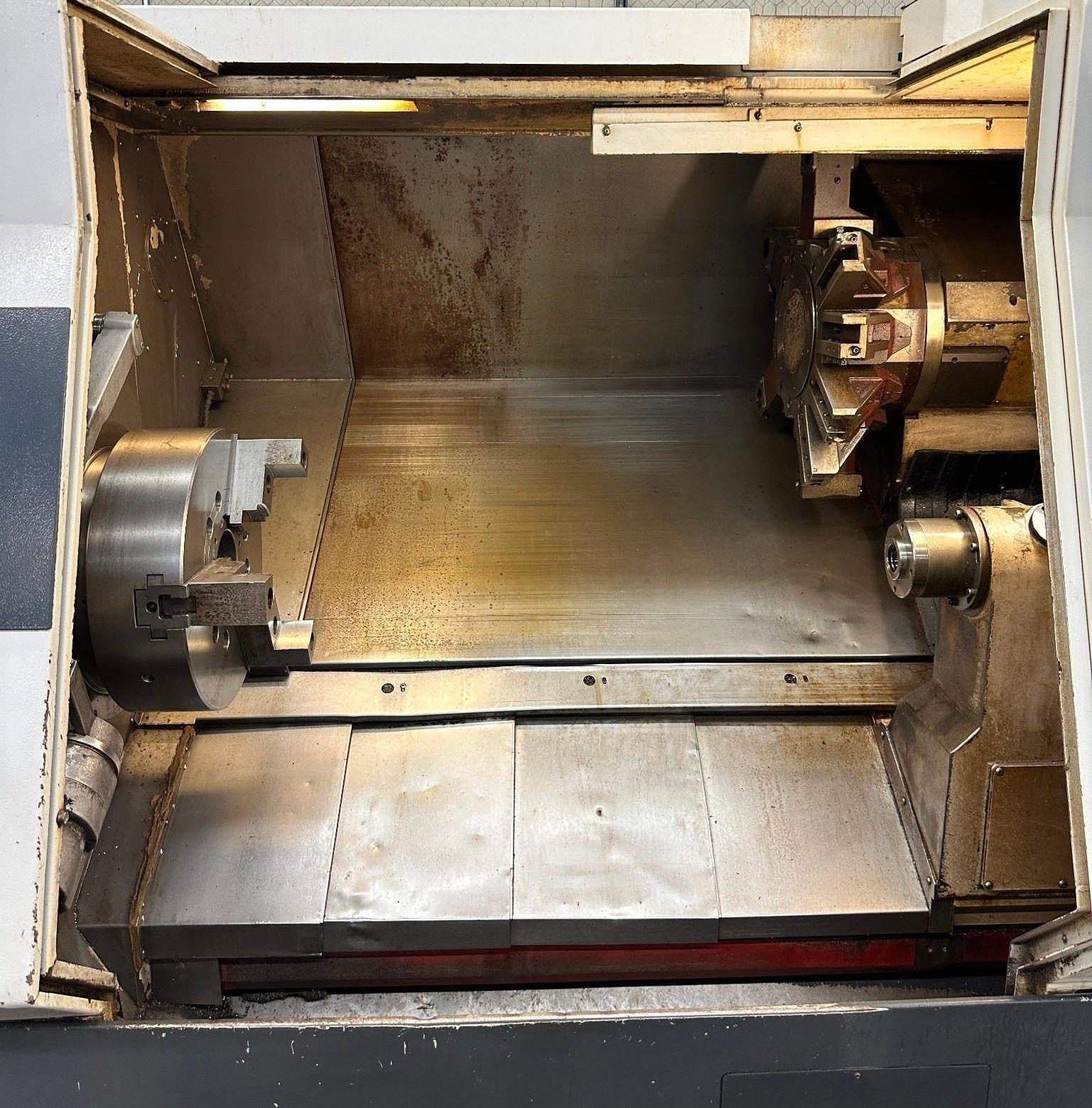

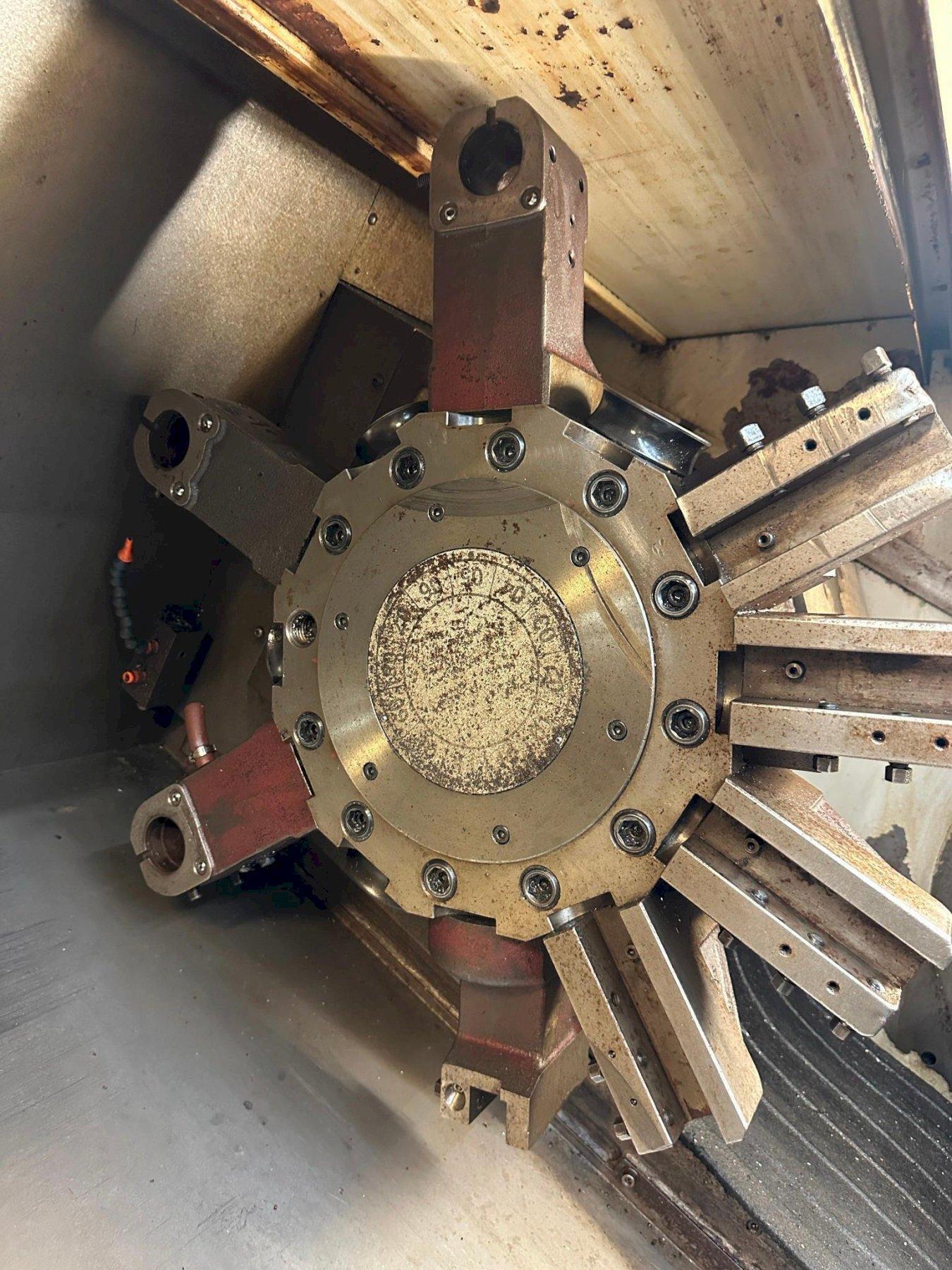

12-Station Automatic Turret
Tool Presetter
Programmable NC Servo Tailstock
Rigid Tapping
Automatic Lubrication Unit
Spindle Chiller Unit

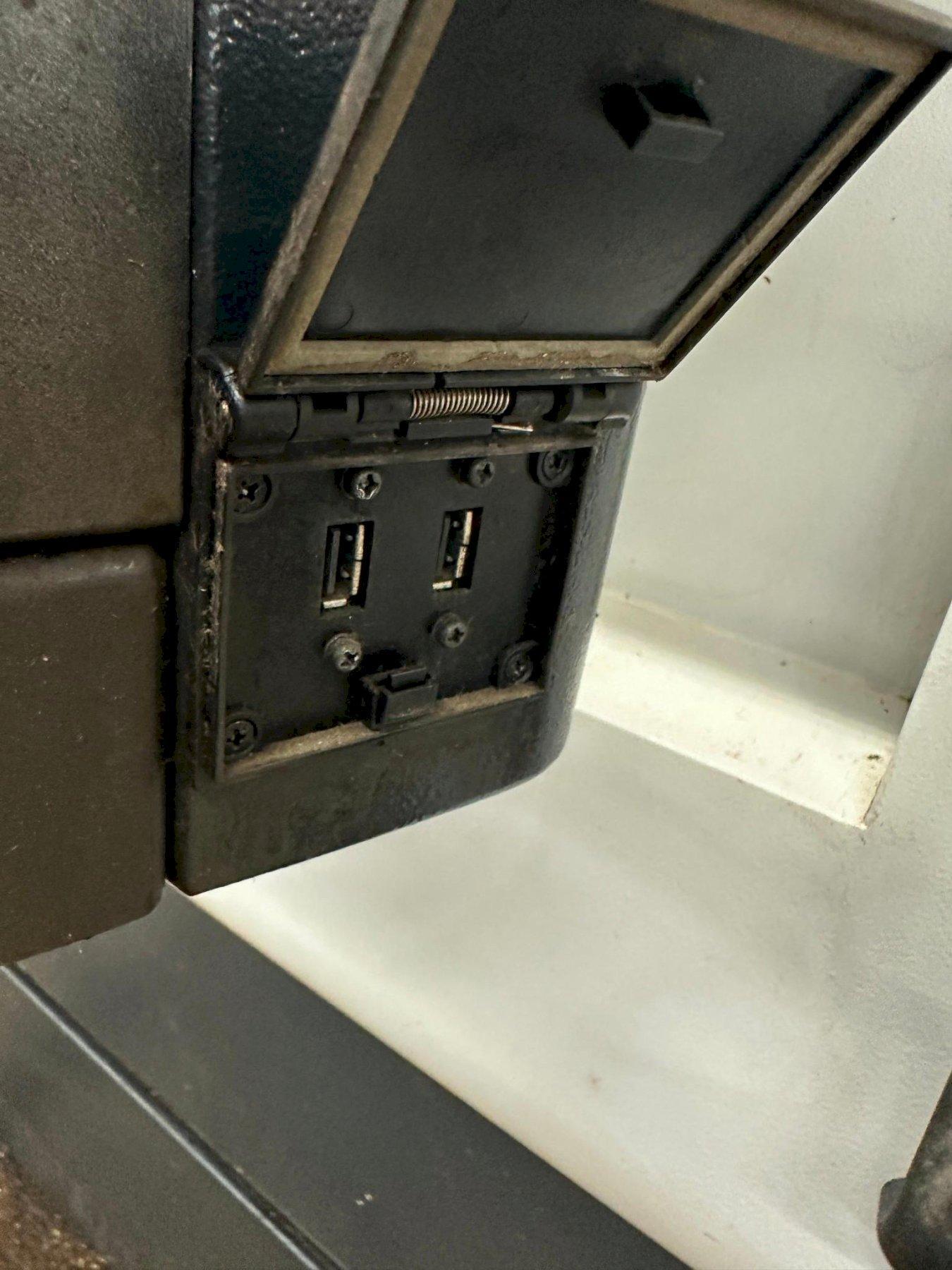

USB Ports
Coolant Tank

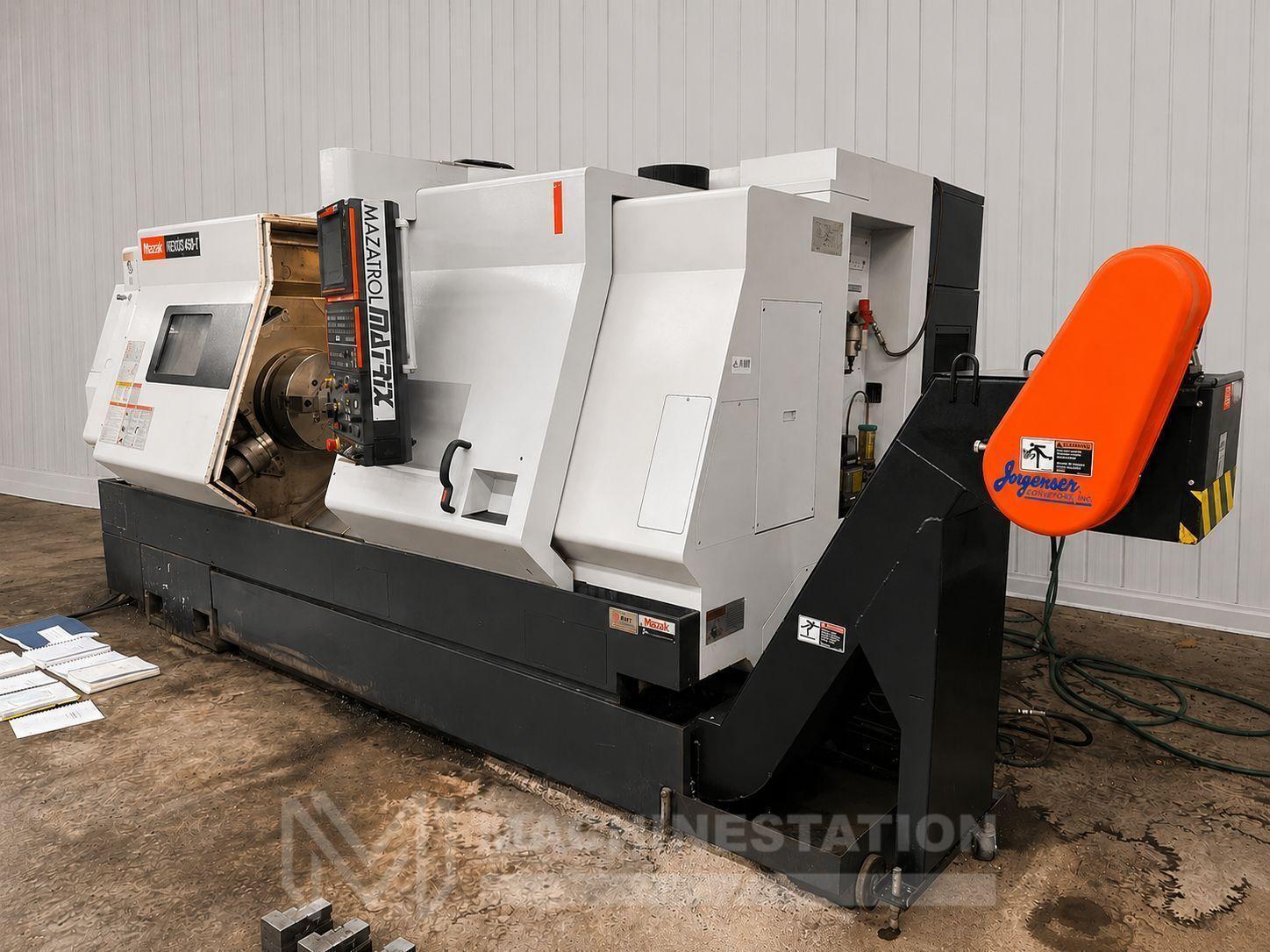

Jorgensen Chip Conveyor
Books & Manuals
Foot Switches
Capacity:
Maximum Turning Diameter: 22.83″
Maximum Turning Length: 39.37″
Maximum Swing Over Bed: 33.26″
Maximum Bar Capacity: 4.02″
Travels:
X-Axis Travel: 12.20″
Z-Axis Travel: 42.13″
Feedrate:
Rapid Traverse X-Axis: 1,181 IPM
Rapid Traverse Z-Axis: 1,181 IPM
Spindle:
Spindle Bore: 4.60″
Spindle Nose: A2-11
Spindle Speed: 2,000 RPM
Spindle Power: 50 HP
Maximum Boring Bar Shank Diameter: 2.0″
Turning Tool Shank Size: 1.26″
Turret:
Turret Capacity: 12 Stations
Turret Index Time: 0.2 Seconds
Tailstock:
Tailstock Type: Programmable NC Servo Tailstock
Tailstock Taper: MT-5
Tailstock Travel: 40.35″
General:
Power Source: 208V / 50/60 Hz / 3-Phase / 78 kVA
Overall Dimensions: 159″ × 90″ × 80″ High
Weight: 19,000 lbs Approx.
No files or videos to display
