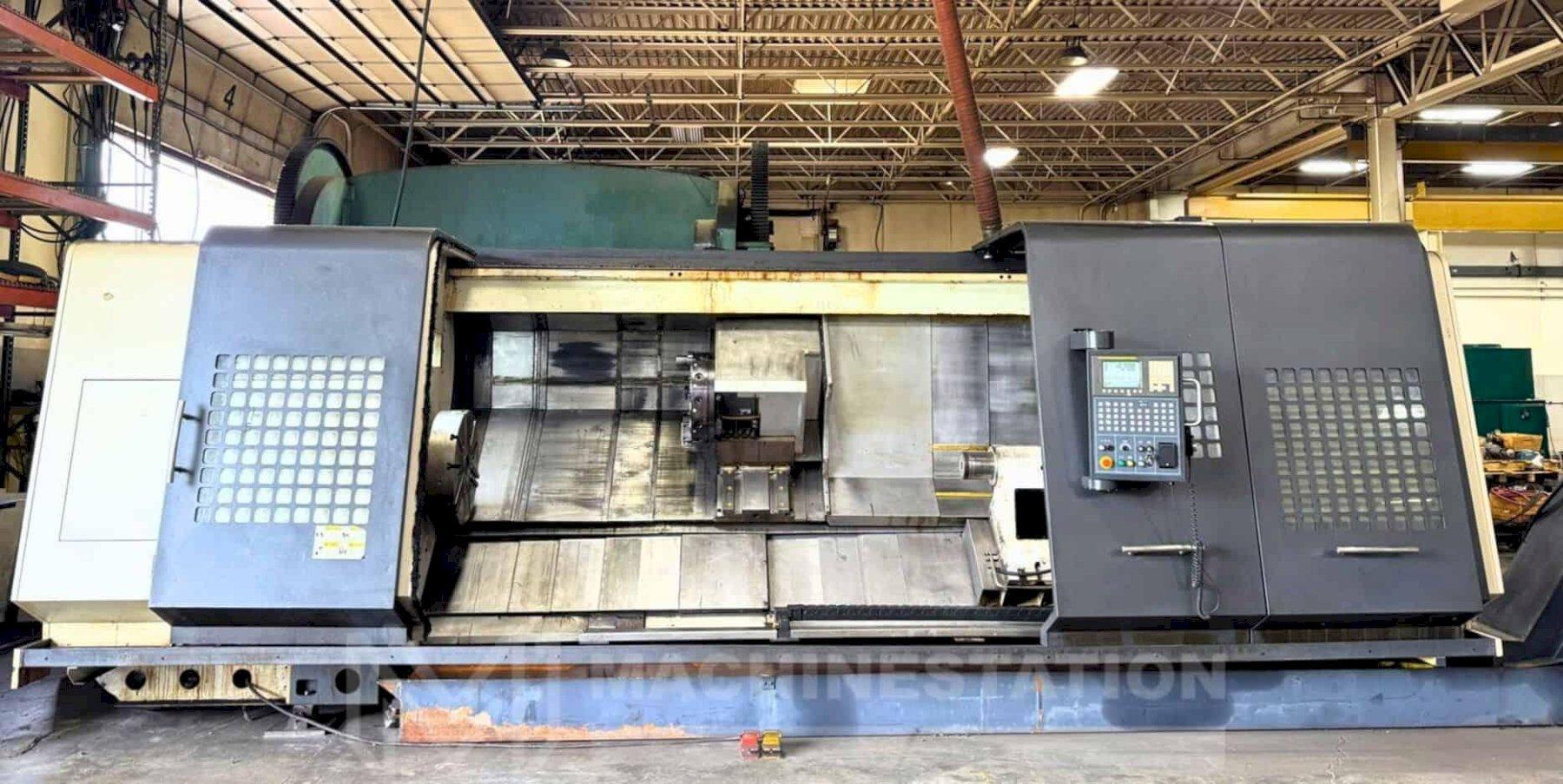

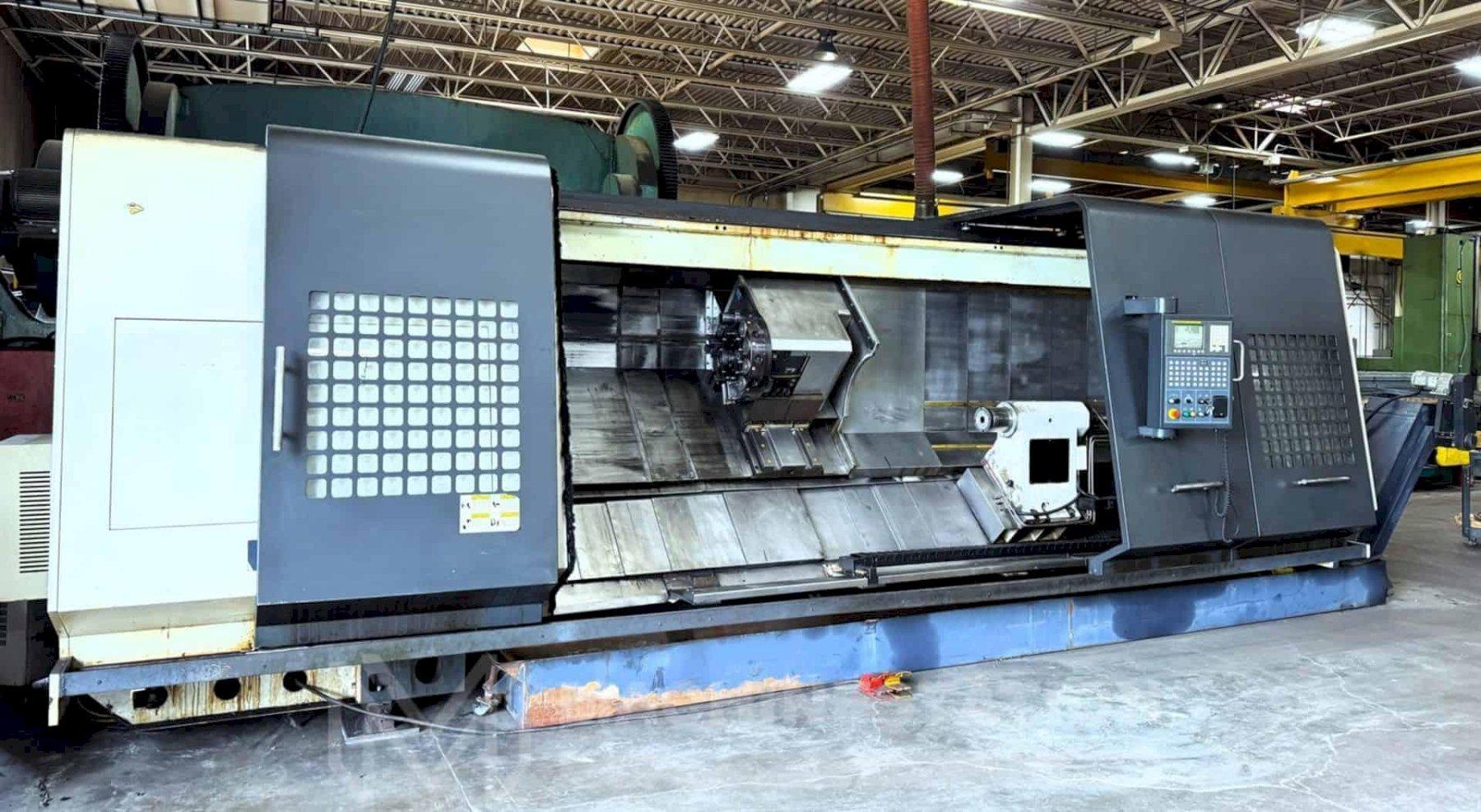

Shenyang SMTCL HTC80400Z CNC Turning Center – 157″ Long Bed C-Axis Live Tool Lathe

Brand
Model
HTC-80400Z
Stock #
112825
Year
Not specified
Condition
Not specified

Location

Not specified

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Make: Shenyang SMTCL
Model: HTC80400Z
Year: 2008
Equipped With:

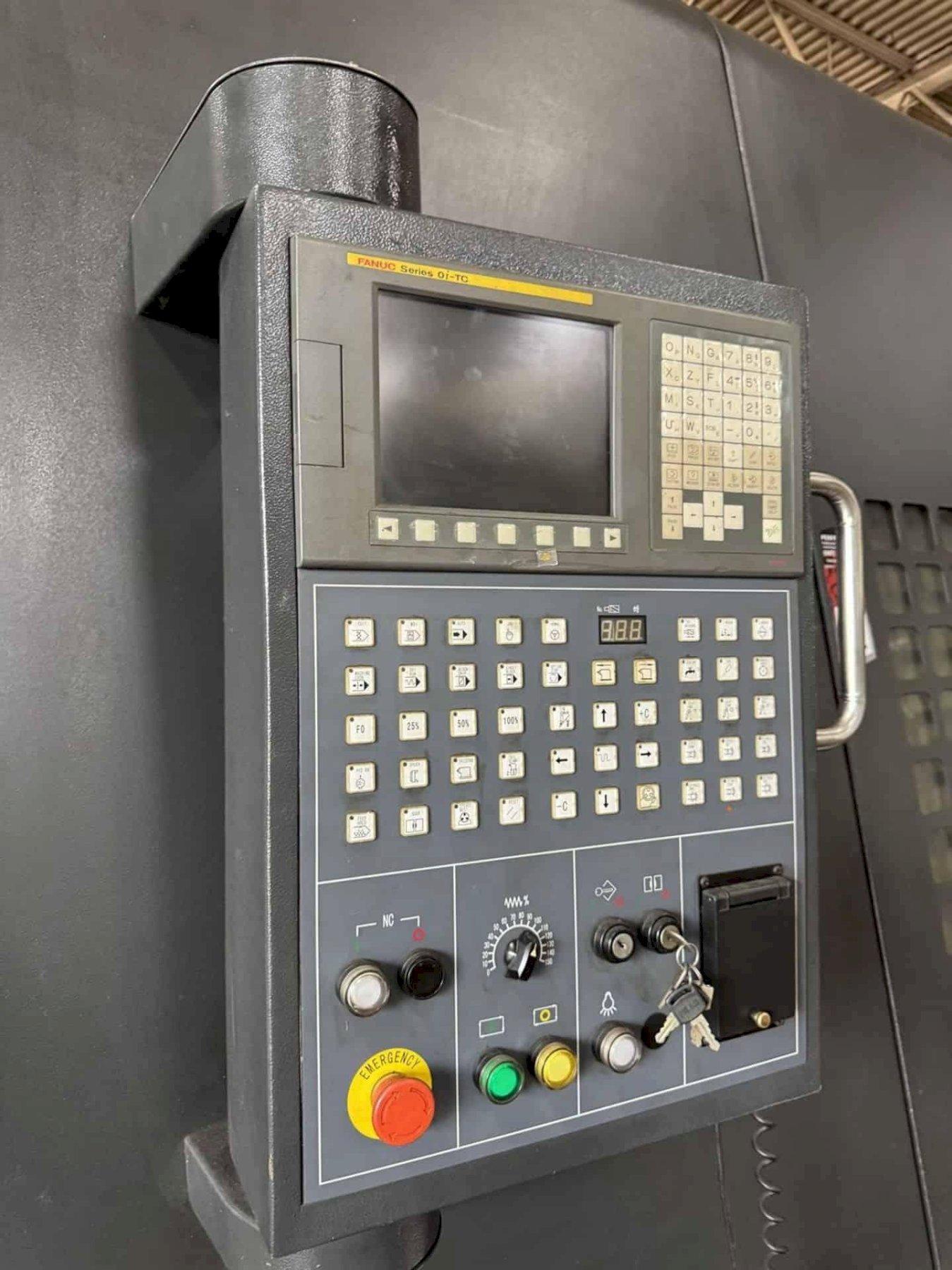

Fanuc Oi-TC CNC Control

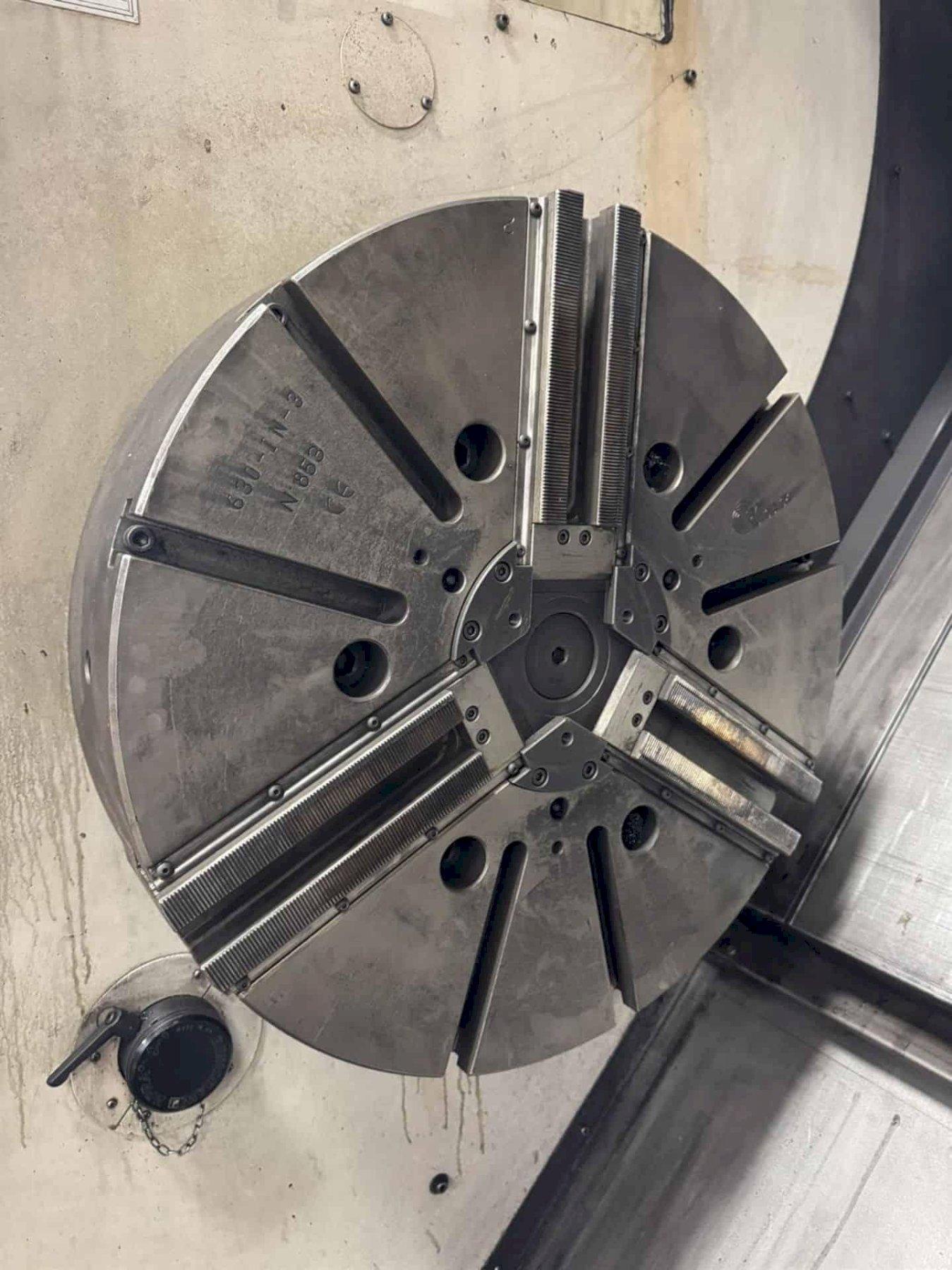

24 inch 3-Jaw SMW Autoblock Chuck

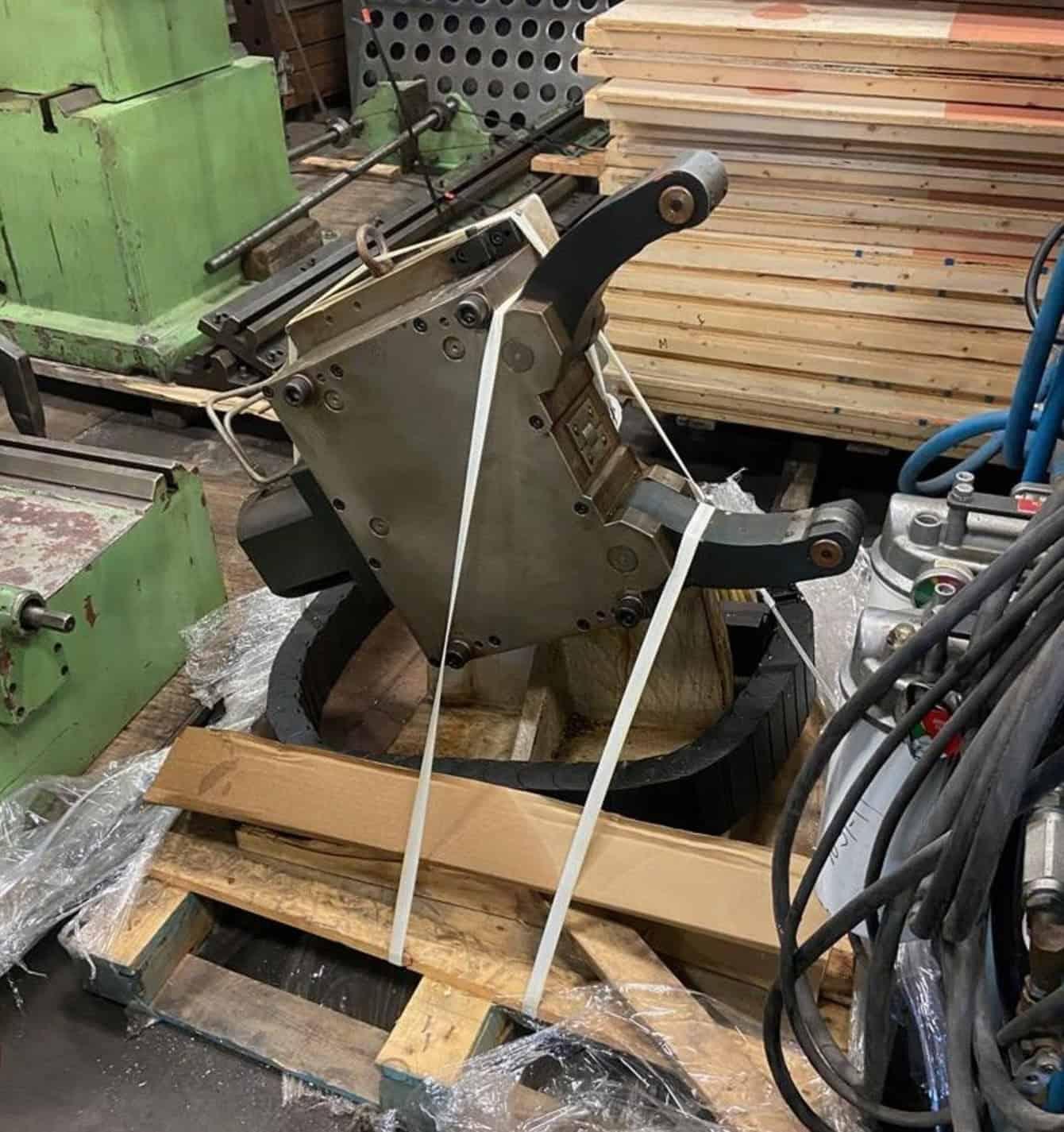

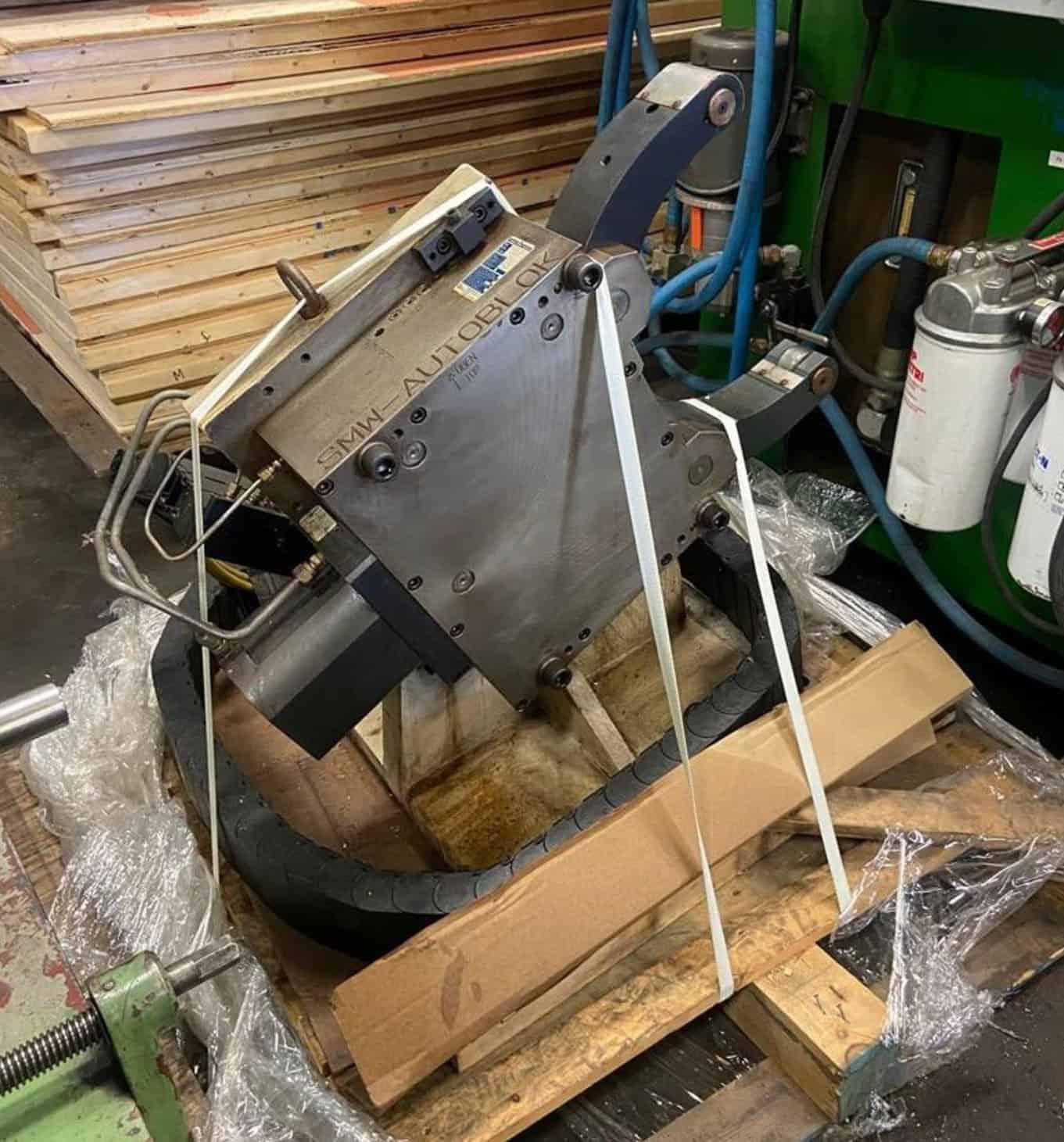

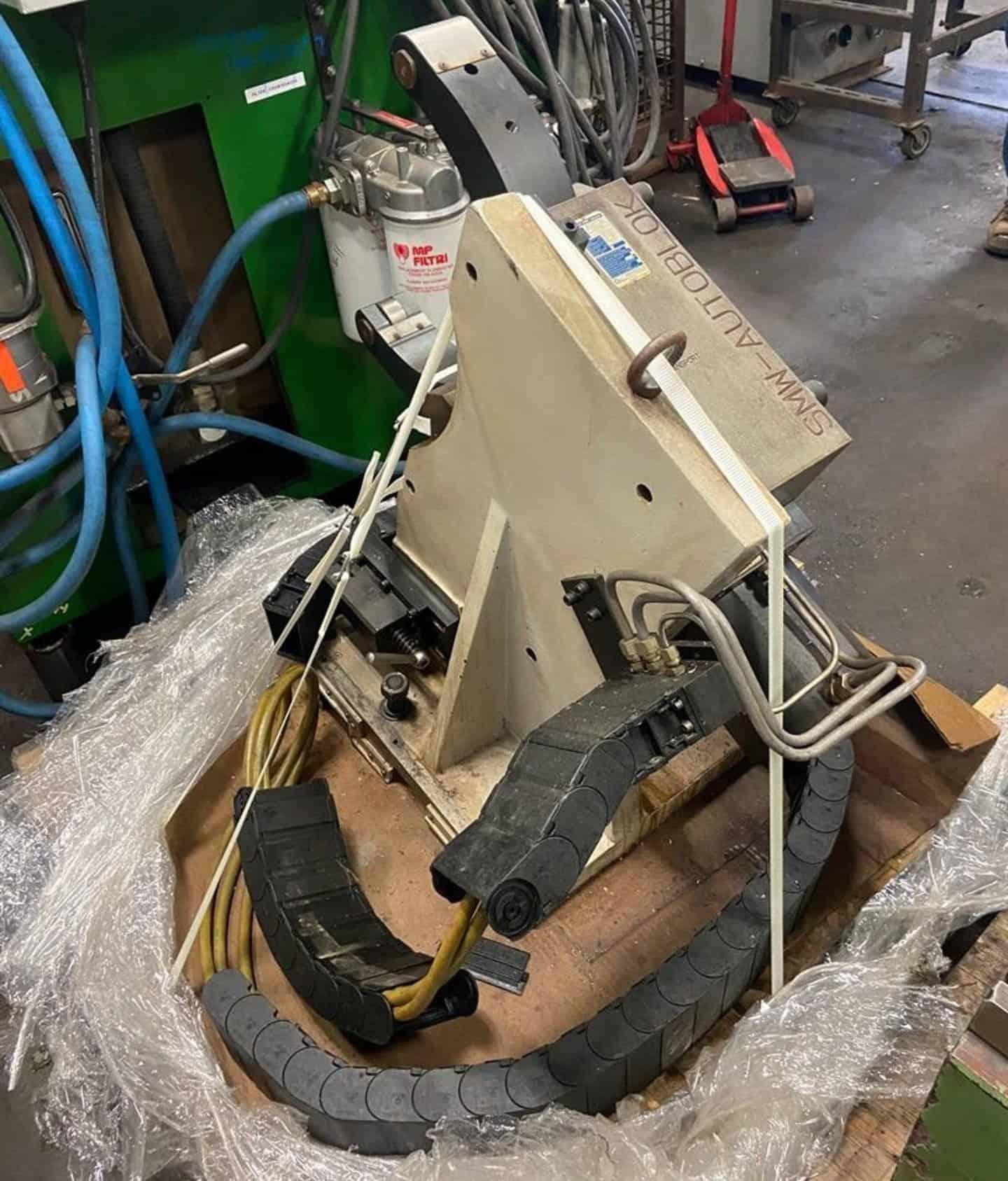

SMW Autoblock Steady Rest
A2-15 Spindle

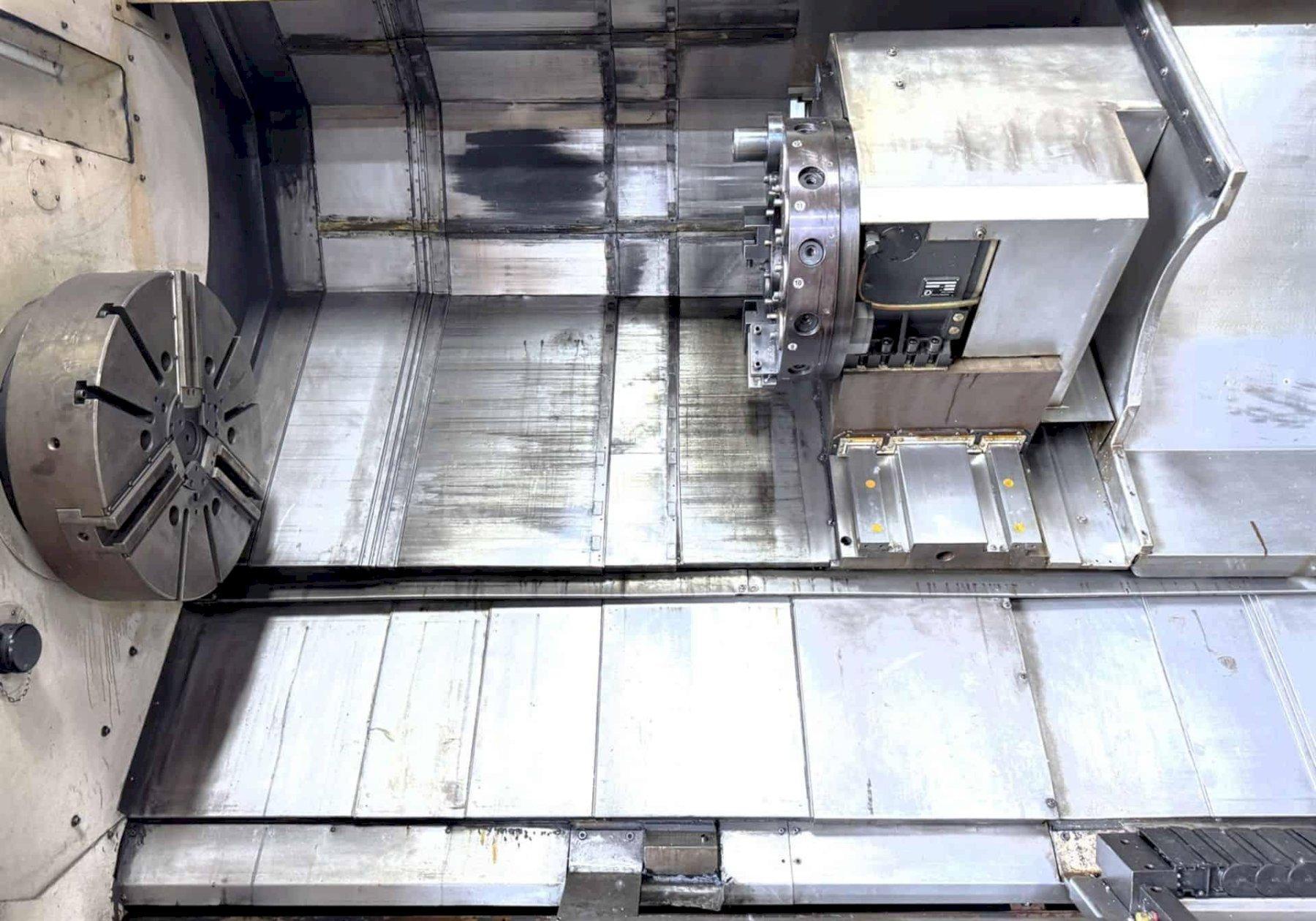

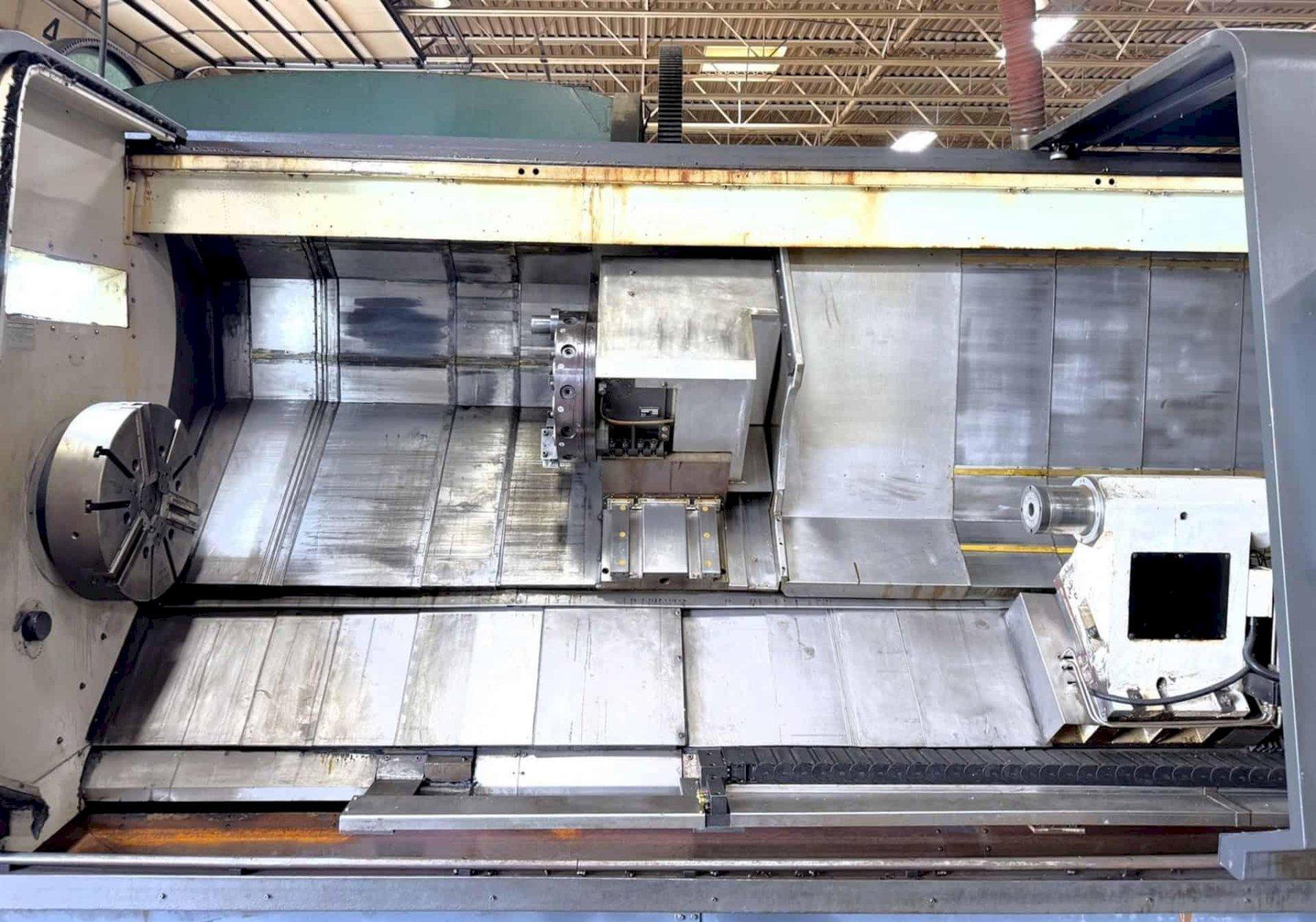

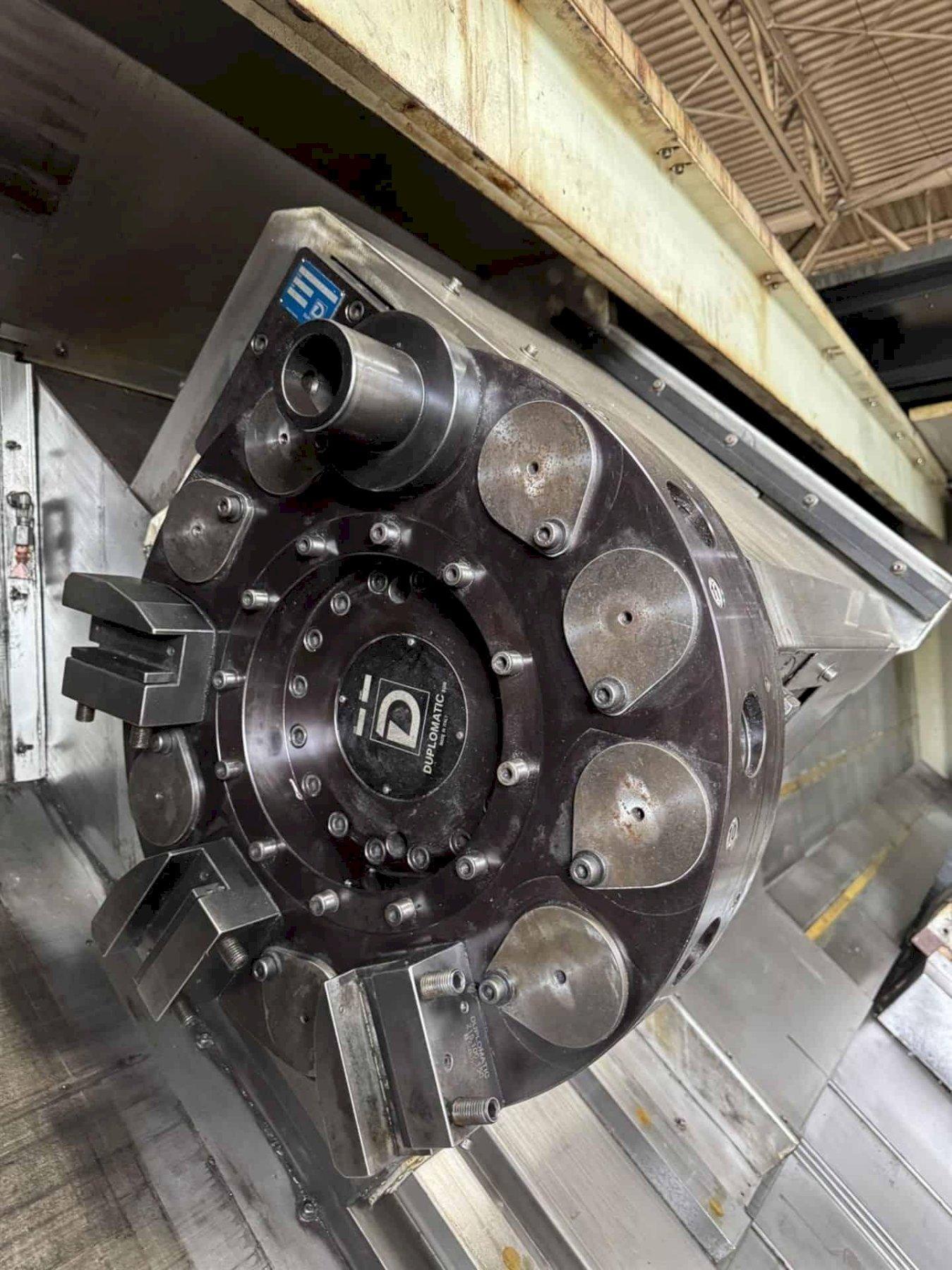

12-Station Duplomate Live Tool Turret

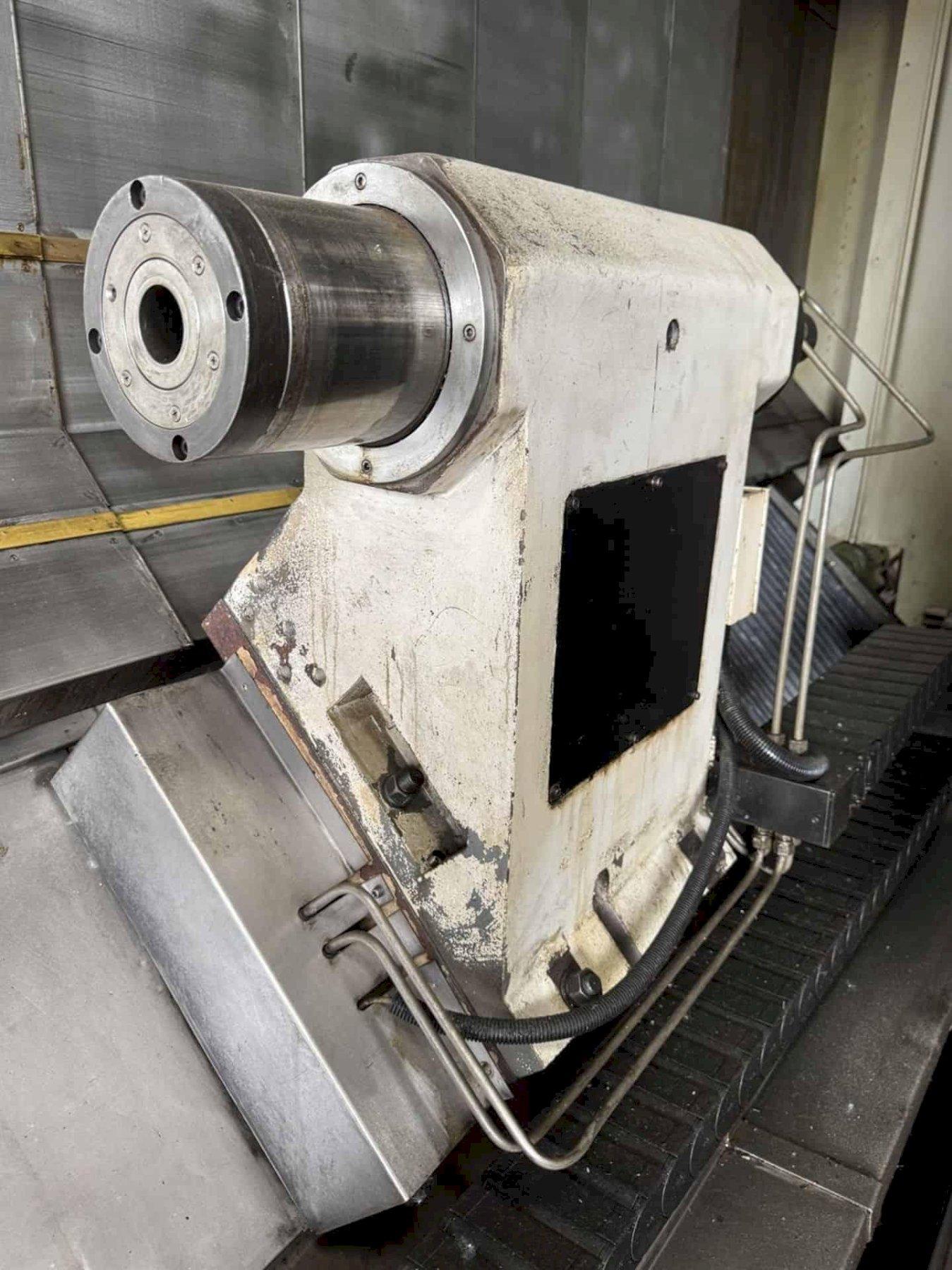

Motorized-Position Hydraulic Tailstock

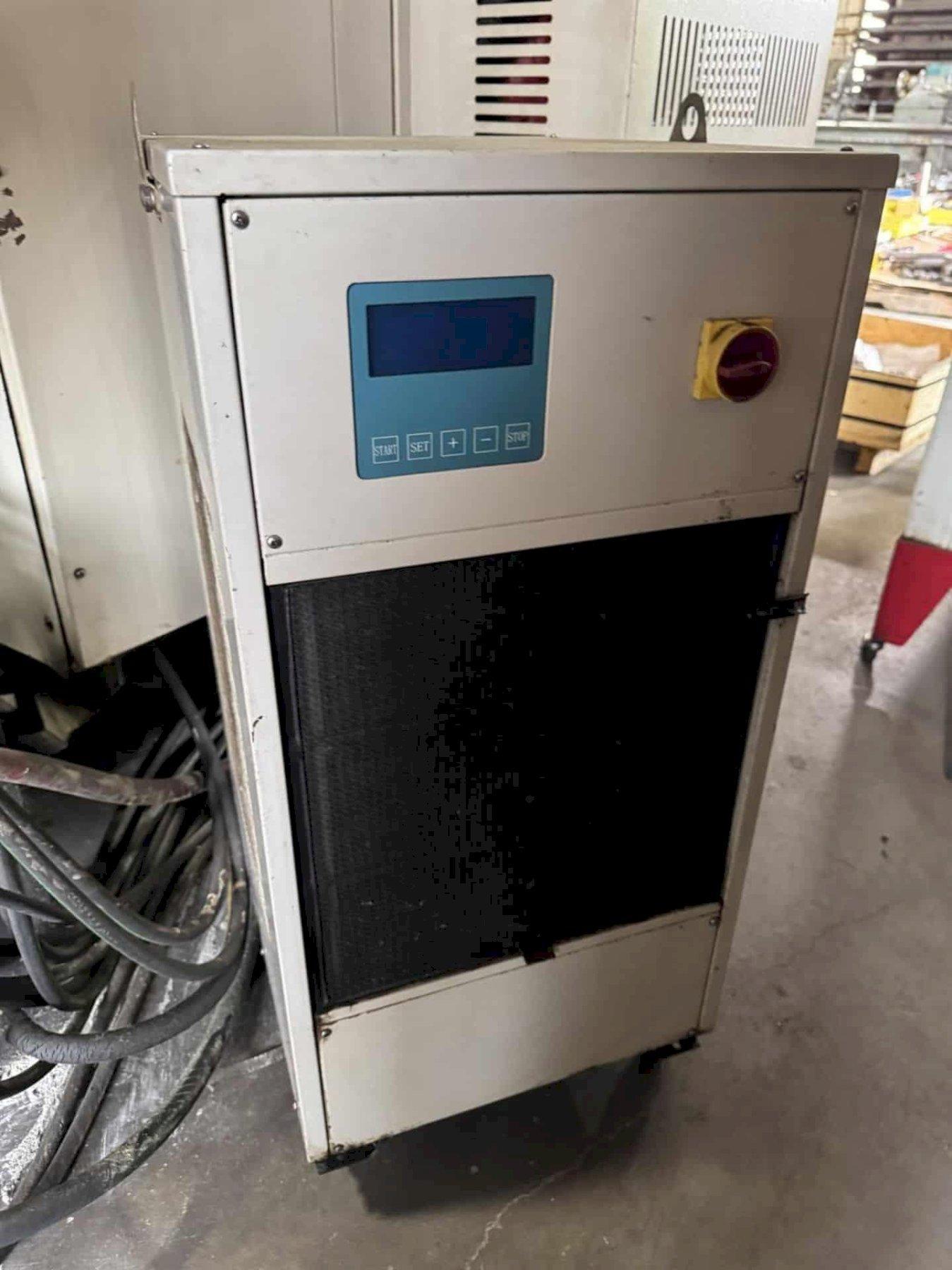

Spindle Chiller Unit
Rigid Tapping
Coolant System
Chip Conveyor
Automatic Lubrication System
Foot Switches

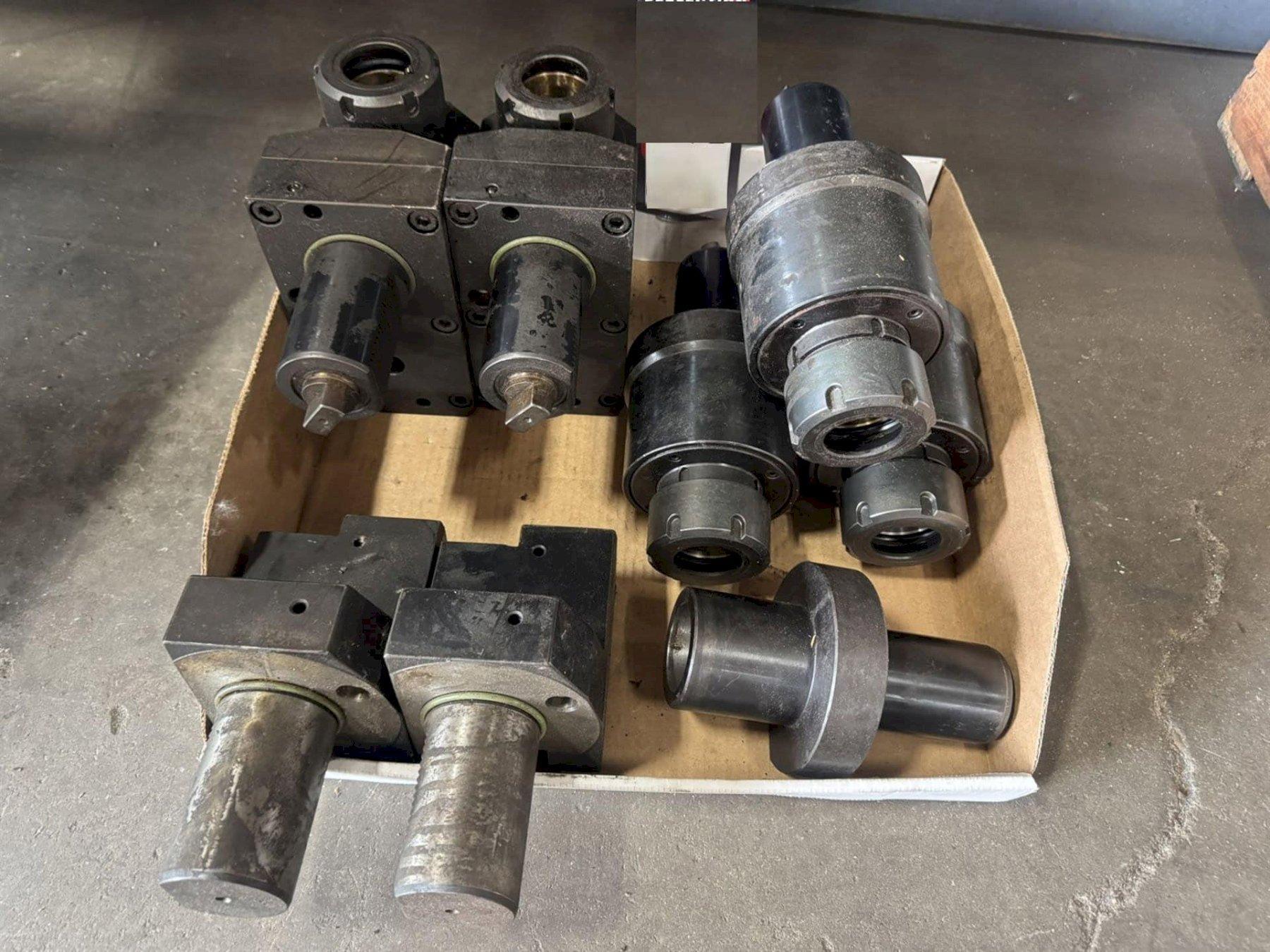

Misc. Live & Statics Tool Holders (As shown in the images)
Capacity:
Max Turning Diameter: 31.5 inch
Max Turning Length: 157.5 inch
Swing Over Bed: 39.4 inch
Swing Over Saddle: 30.7 inch
Travels:
X Axis Travel: 25.6 inch
X Axis Travel: 25.6 inch
C Axis: 0.001°
Feedrate:
Rapid Traverse X Axis: 315 IPM
Rapid Traverse Z Axis: 394 IPM
Spindle:
Spindle Nose: A2-15
Spindle Speed: 50-1800 RPM
Spindle Motor: 40 HP
Turret:
Turret Capacity: 12 Stations
Square Shank Height of Tool: 1.25 inch
Shank Diameter of Boring Bar: 2.36 inch
Tool Holders Type: VDI
Tailstock:
Tailstock Quill Diameter: 5.90 inch
Tailstock Quill Travel: 4.72 inch
Tailstock Taper: MT-5
General:
Power: 220v / 3-Phase / 60 Hz / 52 kva
Overall Dimensions: 320 inch x 100 inch x 100 inch High Approx.
Weight: 40,000 lbs Approx.
