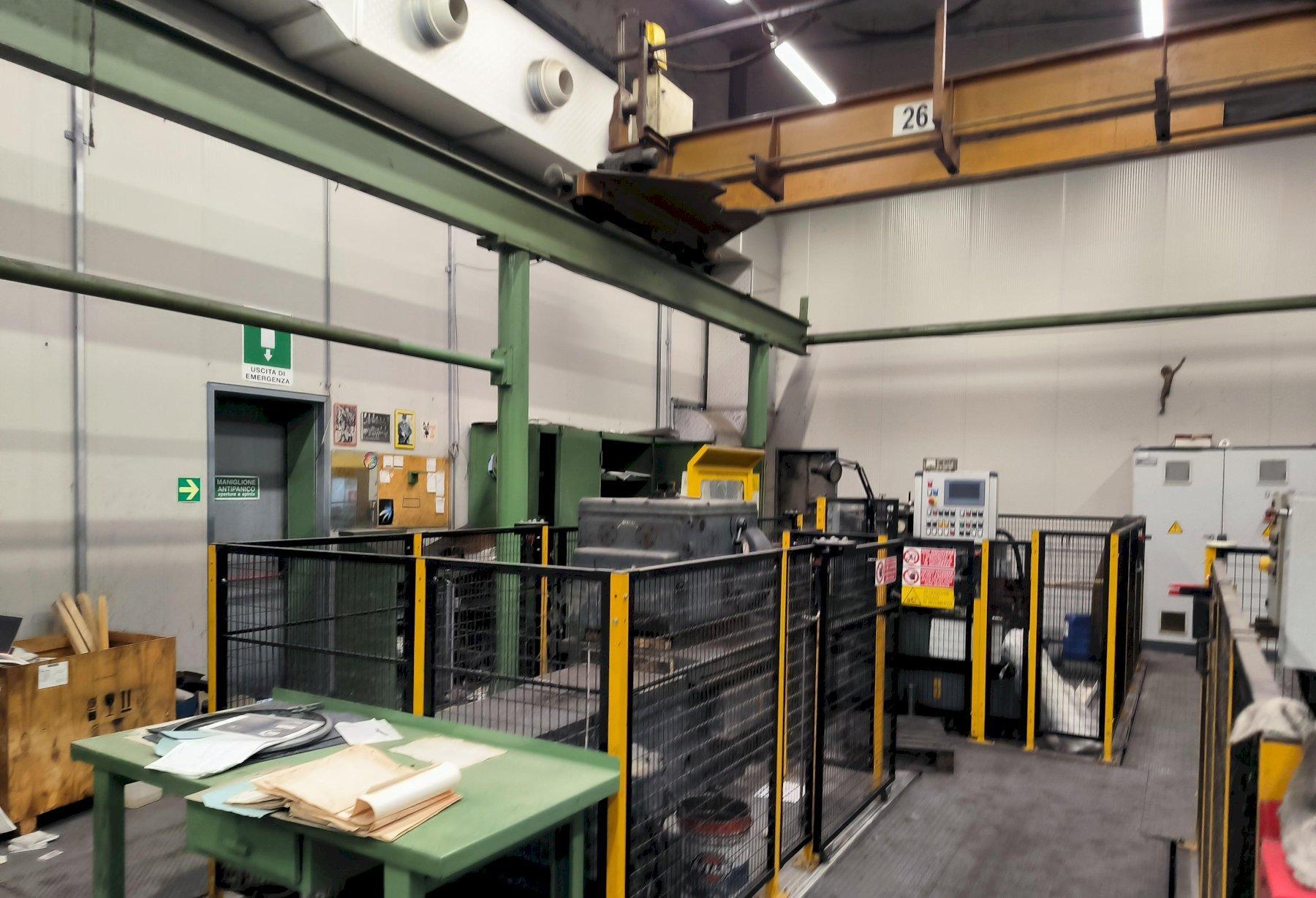

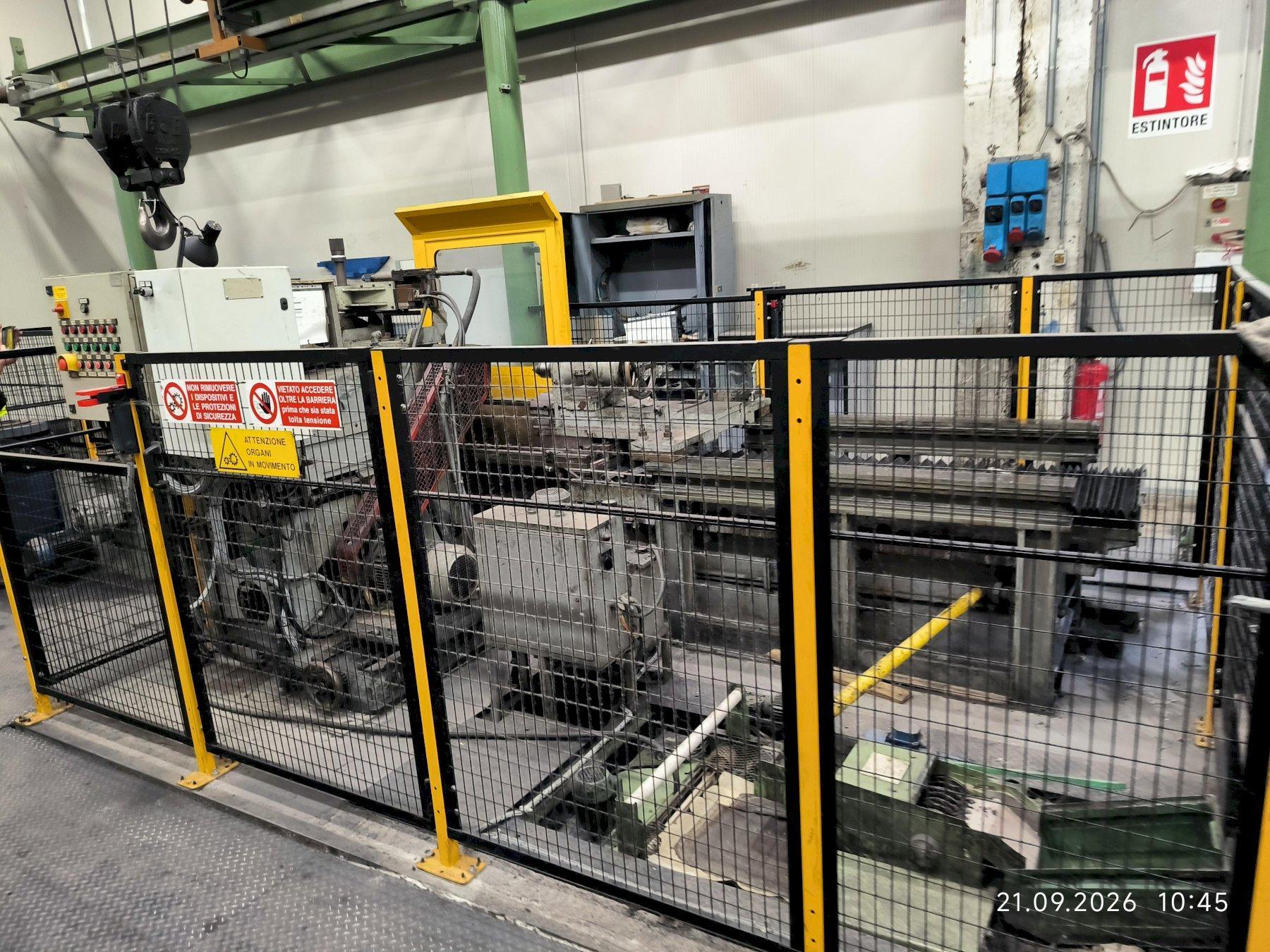

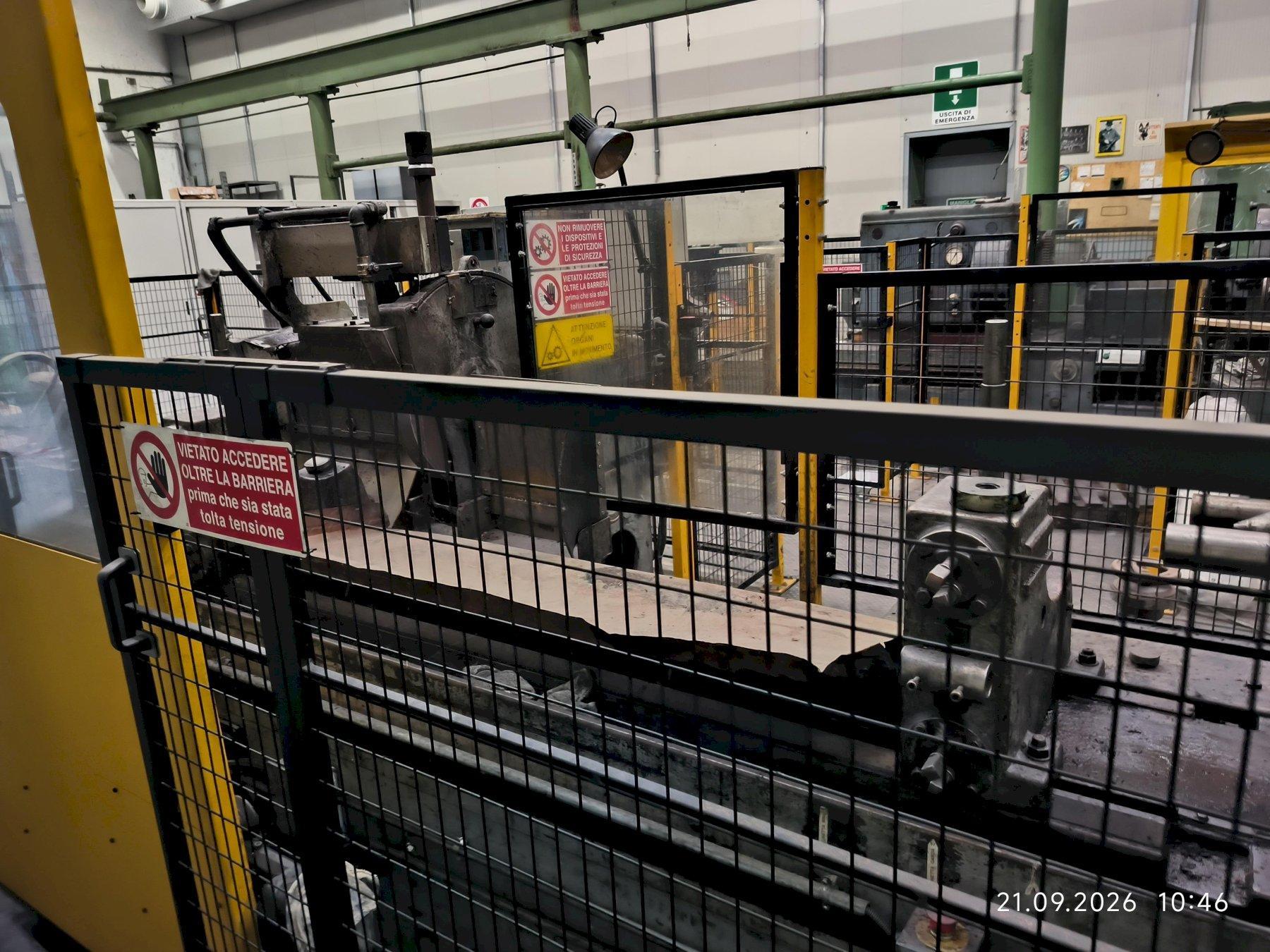

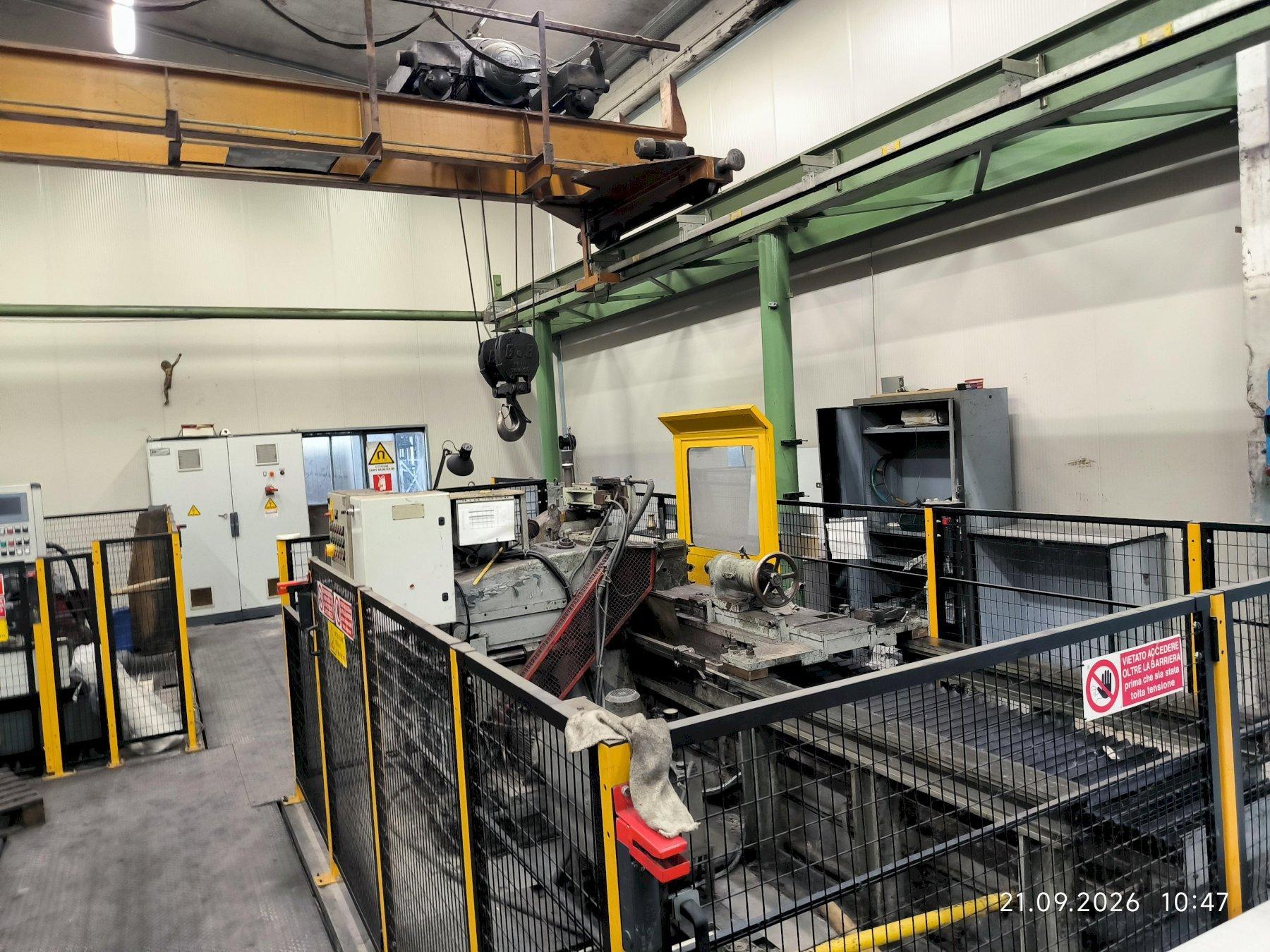

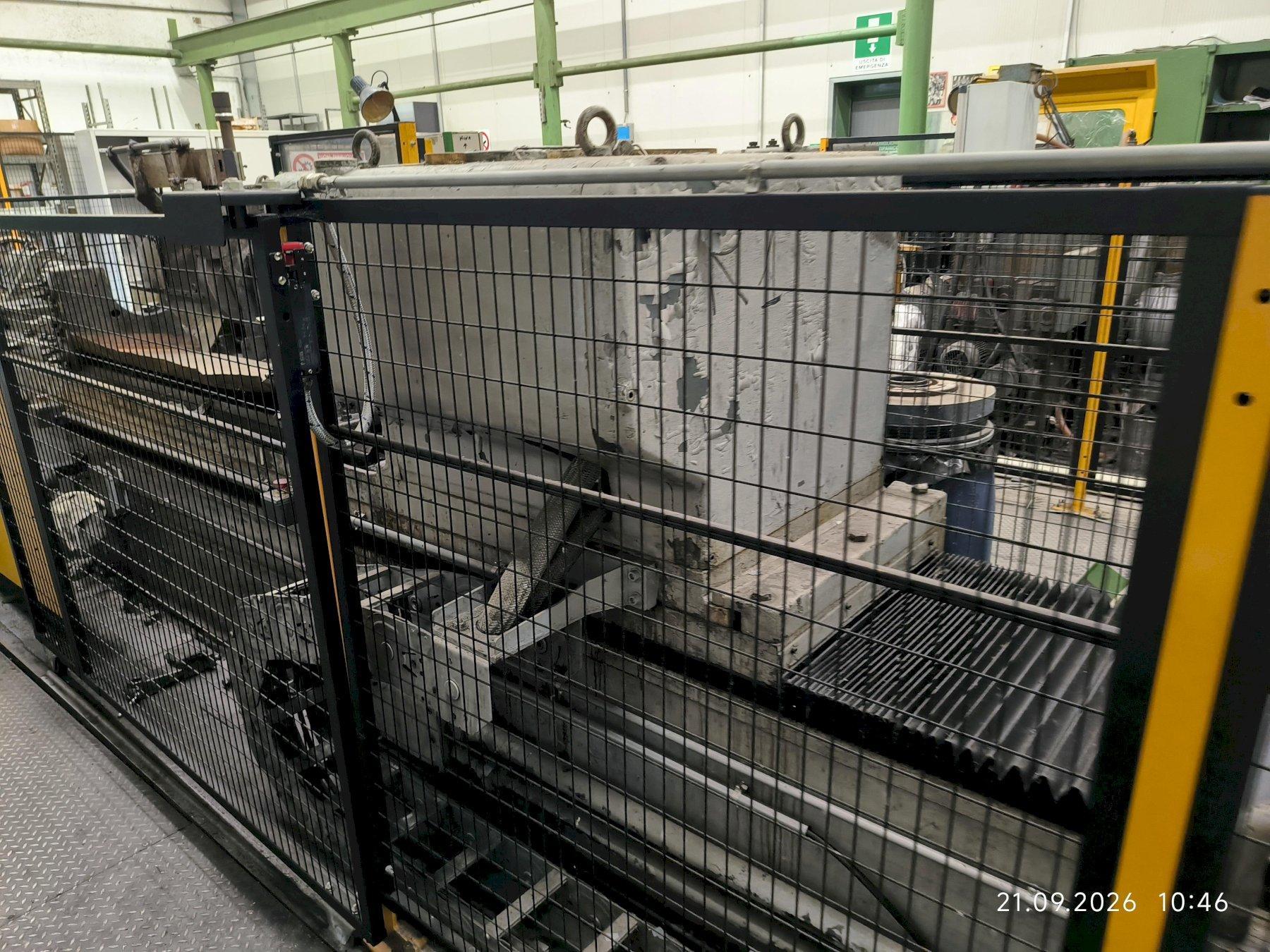

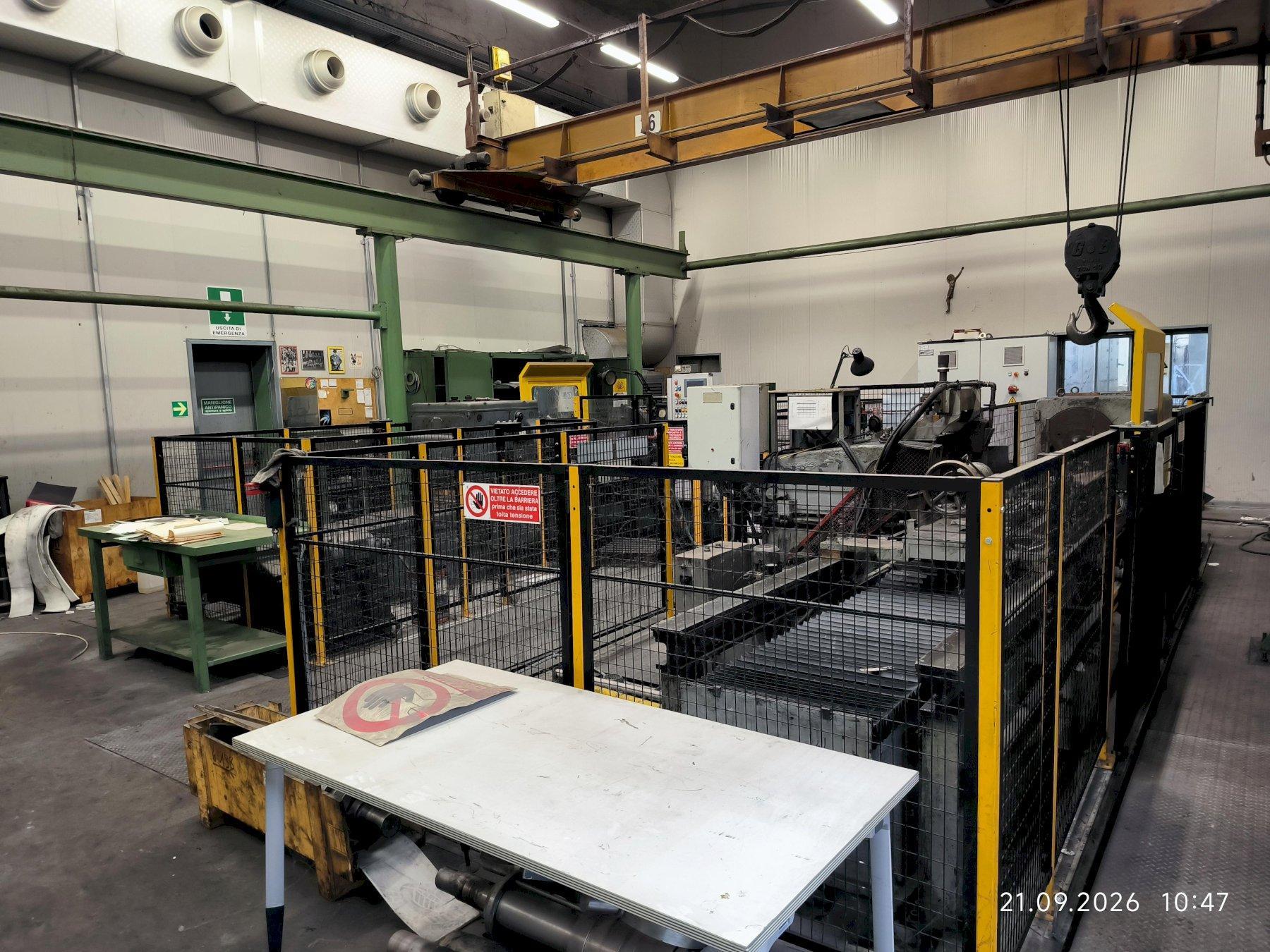

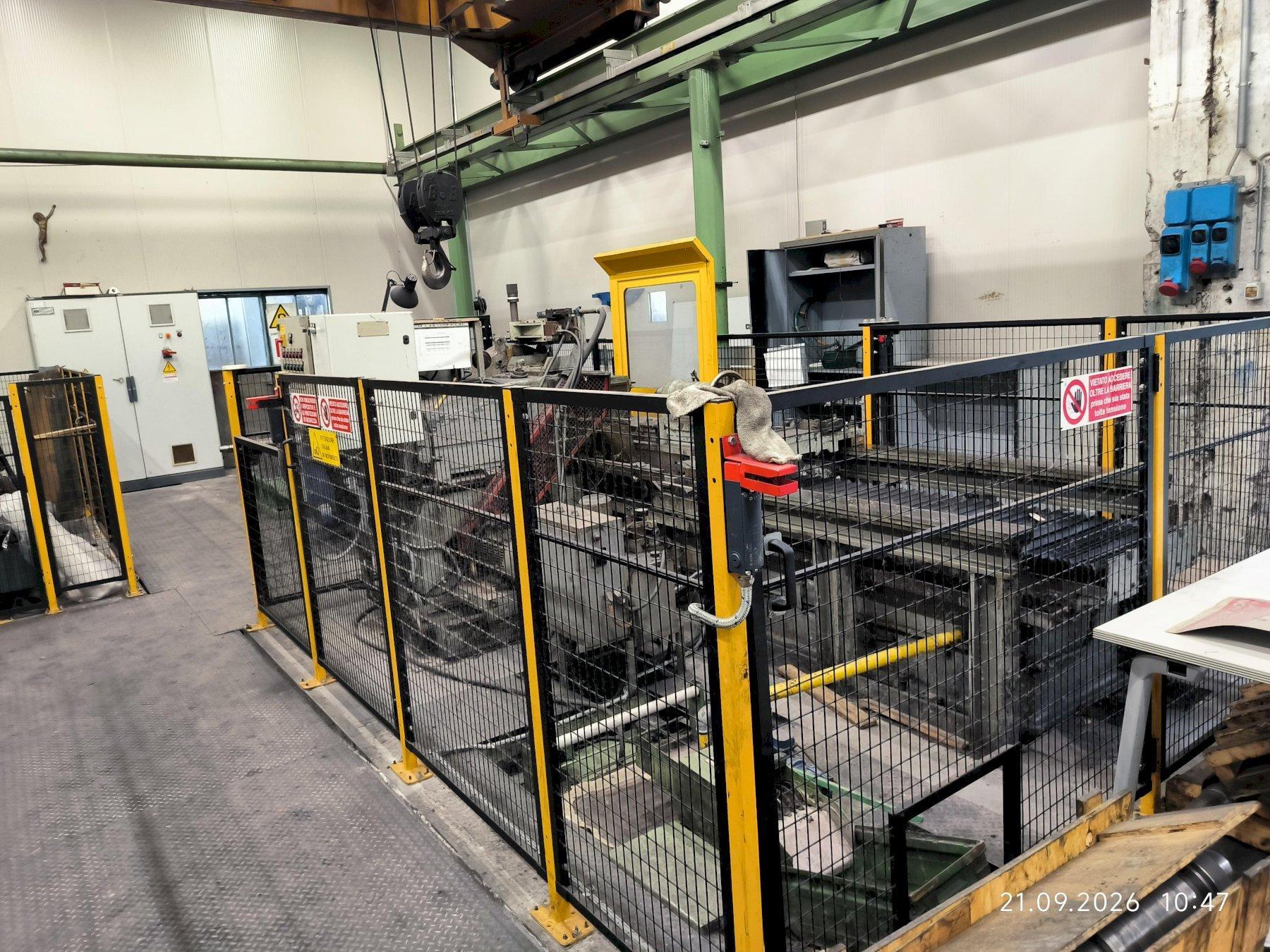

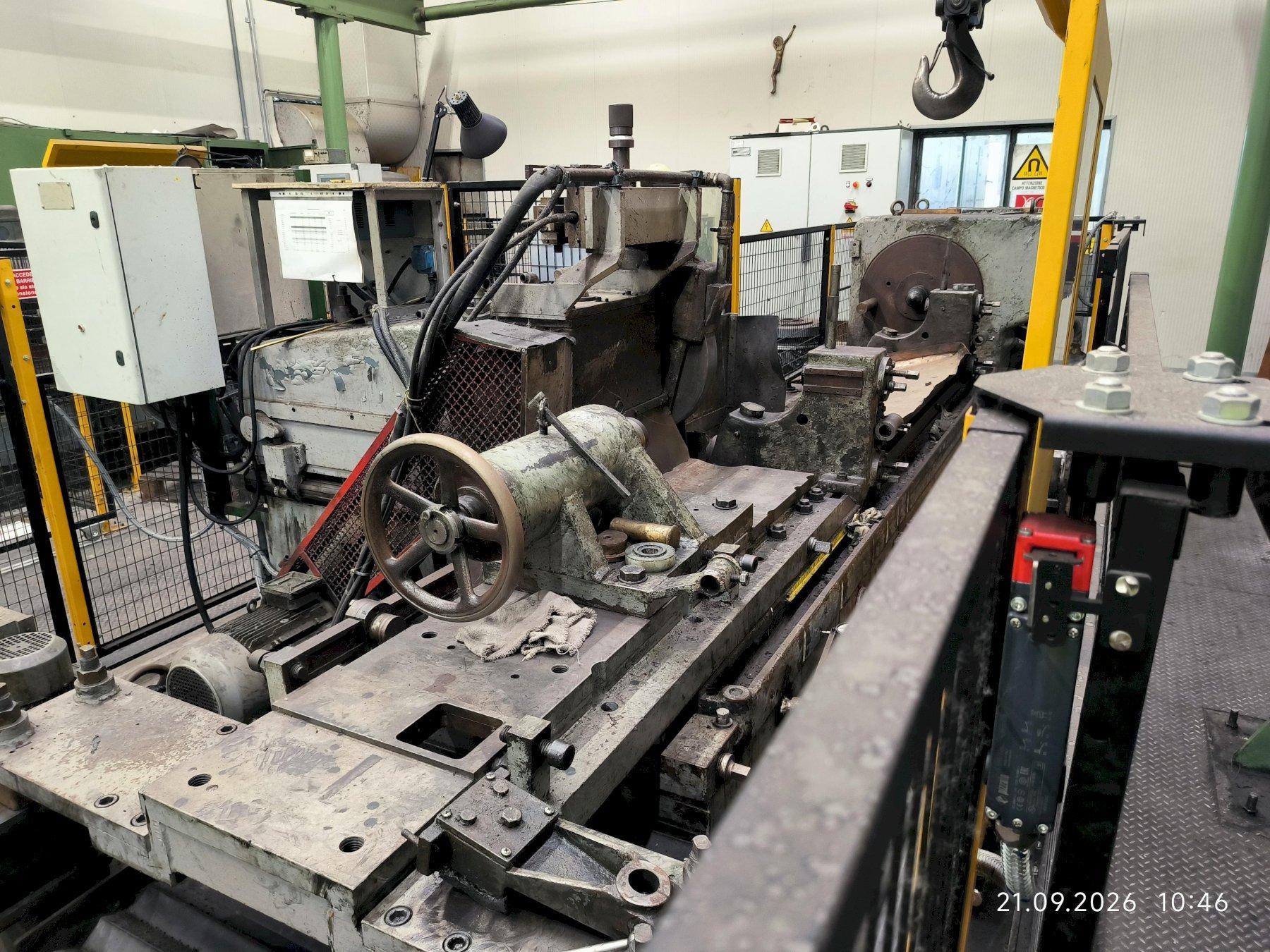

HERKULES #WS300/400 ROLL GRINDER
Brand
Category
Type
Model
WS 300/400
Stock #
117523
Year
Not specified
Condition
Used
Location
Not specified
|
Modell WS 300/400 - can be upgraded to grind max. diameter of aprox. 800mm
Overall Dimensions Required space = 9m x 3,5m
Tip lenght = 2250mm
Grinding length = 2000mm
Smallest workpiece diameter
with new grinding wheel = 40mm
Biggest workpiece diameter
with new grinding wheel = 500mm
Biggest workpiece diameter
In general = 575mm
Workpiece diameter usable
with the supports = 340mm – 200mm; 135mm – 100mm
Max. workpiece weight = 3000kg
Grinding wheel:
Dimensions = 600mm x 50mm x 203mm
Rpm = 400 – 1000
Power output = 12kW
Workpiece spindle :
1. range = 12 – 36rpm
2. range = 40 – 120rpm
Power output = 6,5kW
Drive type = V-Belt
Mounting for the morse taper = MK5
Tailstock:
Mounting for the morse taper = MK5
Mounting for the dressing tool = MK1
Table movement:
1 . Speed = 25 – 480mm/min
2 . Speed = 95 – 1900mm/min
Rapid speed = 1900mm/min
Hand movement:
1 revolution = 3mm
1 scale line = 0,1mm
Grinding wheel support movement:
Manual release (adjustable) = 0,003mm – 0,06mm
Standard inching mode = 2mm/min
Automatic at table reversal = 0,003mm – 0,06mm
Rapid speed = 350mm/min
Display of movement
1 scale line = 0,01mm
Fine adjustment = 0,001mm
Grinding Cooling System
Capacity of grinding coolant tank: 1000 liters
|
