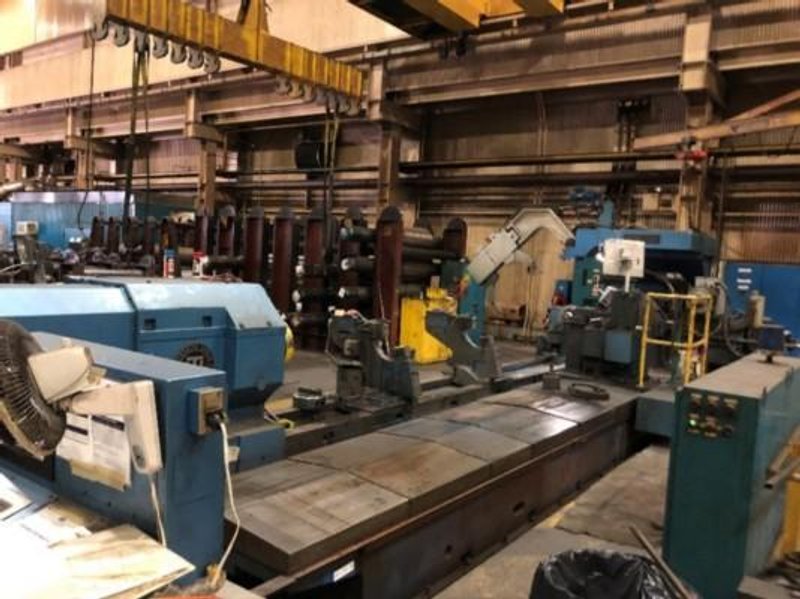

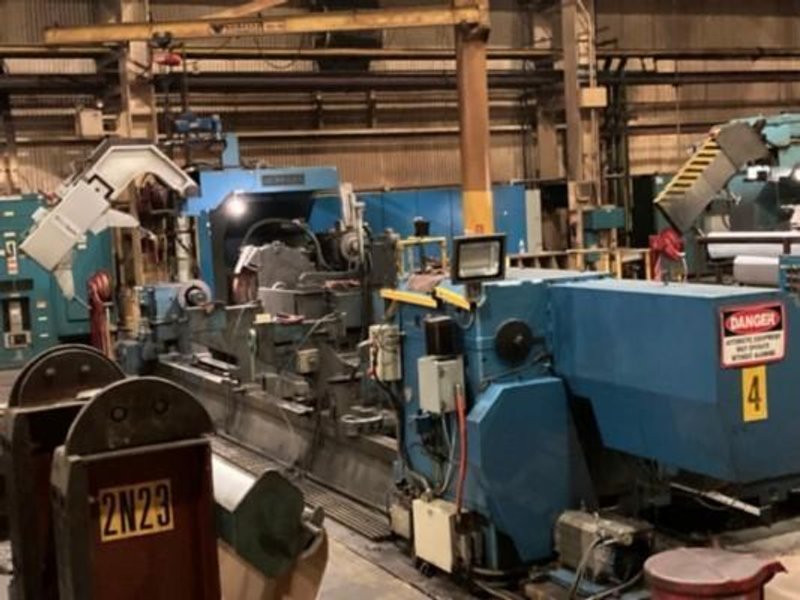

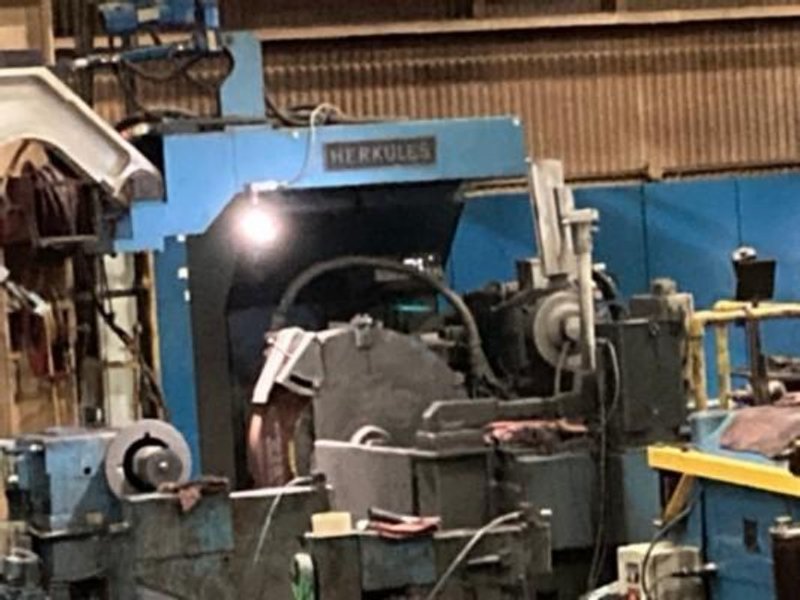

23.58" (600MM) / 17.68" (450MM) X 216" (5500MM) HERKULES WS600/450 X 5500 CNC ROLL GRINDER
Brand
Category
Type
Model
WS600/450X5500
Stock #
115573
Year
Not specified
Condition
Used
Location
Not specified
|
MANUFACTURER - HERKULES
YEAR - 1988
MODEL - WS600/450 X 5500
TYPE - CNC ROLL GRINDER
WORKING RANGE:
ROLL DIAMETER RANGE - 23.58" (600MM) / 17.68" (450MM)
LENGTH BETWEEN THE CENTERS - 216" (5500MM)
MIN-MAX GRINDING DIAMETER - 0 - 31.5"
MAX WORK PIECE WEIGHT IN STEADY REST - 17,600 LBS.
MAX WORK PIECE WEIGHT IN CHOCKS - 45,000 LBS
HEADSTOCK
SPEEDS - 10-70 RPM
DRIVE POWER - 15 KW
TYPE OF DRIVE - TOOTH CHAIN
CENTER ACCOMODAITON HOEL - 3.15" DIAMETER, 1:10 TAPER
LONGITUDINAL ADJUSTMENT OF FACEPLATE - 27.5"
WORK PRESSURE OF HEADSTOCK HYDRAULIC - 25 BAR
TAILSTOCK
DRESSSING TOOL ACCOMODATION HOLE - MORSE TAPER #1
CENTER ACCOMODATION HOEL - 3.15" DIAMETER, 1:10 TAPER
MAX ADJUSTMENT OF CENTER SLEEVE - 4.7"
ADJUSTING PRESSURE OF HYDRAULIC - 185 BAR
HYDRAULIC PRESSURE TO RELEASE THE CLAMPING - 235 BAR
RAPID MOTION - 87"/MIN
GRINDING WHEEL
DIMENSIONS - 36 X 6 (4) X 20 INCHES
SPEEDS - 400 - 1200 RPM
DRIVE POWER - 58 KW MAX
GRINDING CARRIAGE MOVEMENTS
FEEDS - 4 - 160 IN/MIN
RAPID MOTION - 160 IN/MIN
SLOW MOTION - 4 IN/MIN
HYDRAULIC DISCHARGE OF CARRIAGE - 4 BAR MAX
GRINDNG HEAD INFEEDS
INFEEDS BY HAND - 0.0004"
AUTOMATIC INFEED ON CARRIAGE REVERSE - 0.0004" - 0.0035"
CONTINUOUS INFEED - 0.0004" - 0.008"/MIN
CONTINOUS MICRO ADJUSTMENT - 0.00004" - 0.002"/MIN
RAPID MOTION - 30"/MIN
SLOW MOTION - 1"/MIN
MICRO ADJUSTMENT BY HAND - 1 GRADUATION - 0.00004"
FORM GRINDING DEVICE
MAX VALUE IN REFERENCE TO DIAMETER - 0.2"
MAX CORRECTION VALUES FOR CARRIAGE PATH
CORRECTION (RADIUS) - 0.039"
CORRECTIVE GRINDING (RADIUS) - 0.0039"
STEADY RESTS
ACCOMODATION CAPACITY - 7.8" - 17.3" DIAMETER
ADJUSTING SPEED - 0.04"/MIN
1 IMPULS - 0.0002"
UPGRADES
NEW CONTROLS BY HERCULES (YEAR 2004)
NEW ROLL INSPECTION EQUIPMENT (YEAR 2020)
INDUSTTRIAL PC ADDED (YEAR 2020) |
