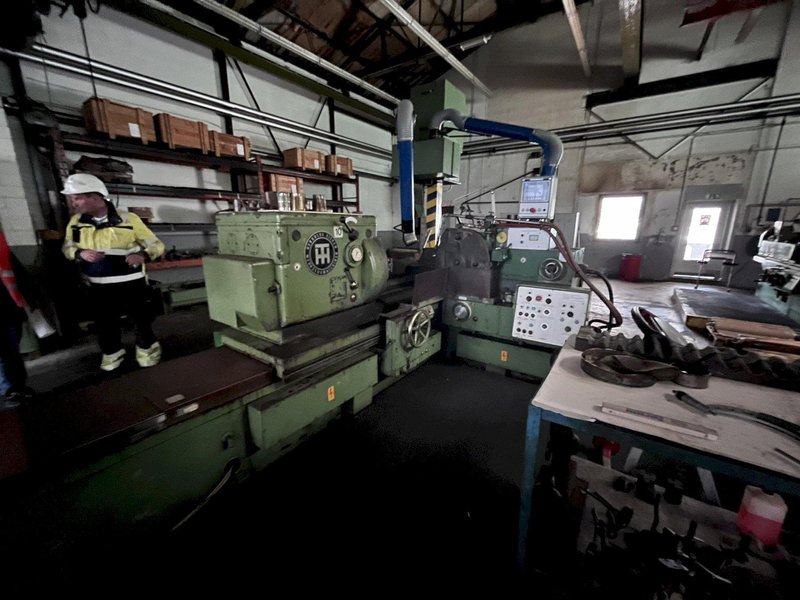

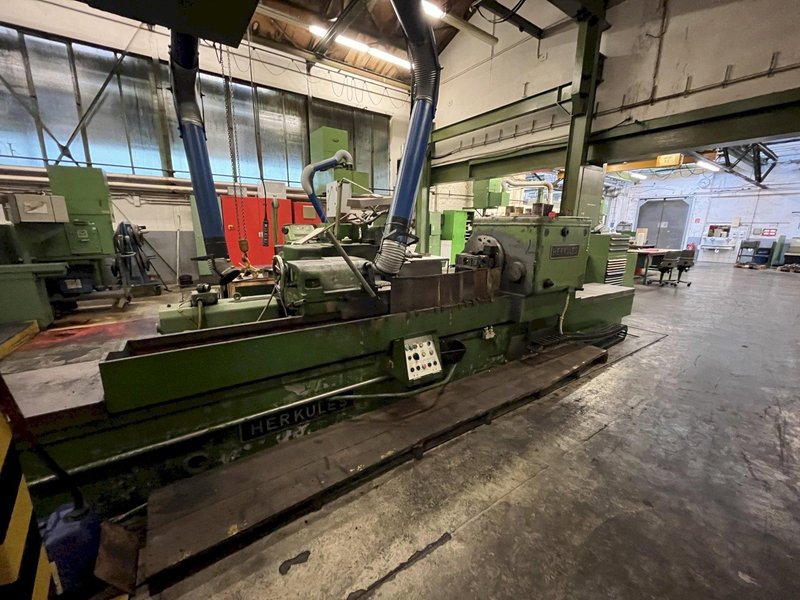

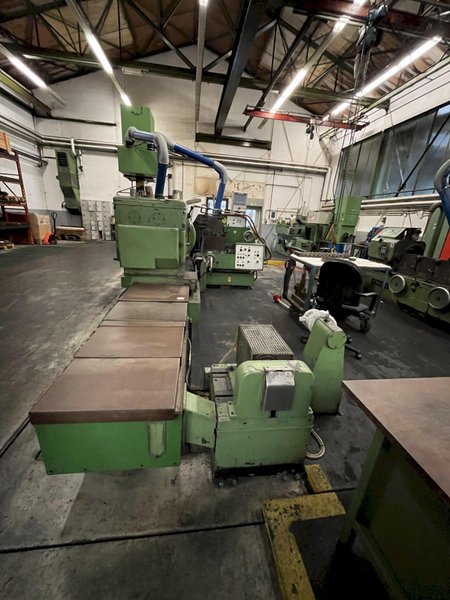

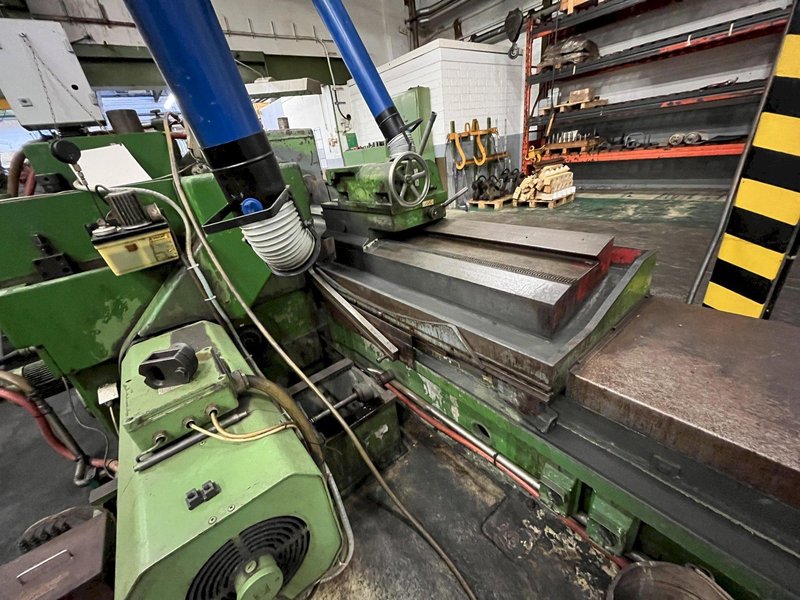

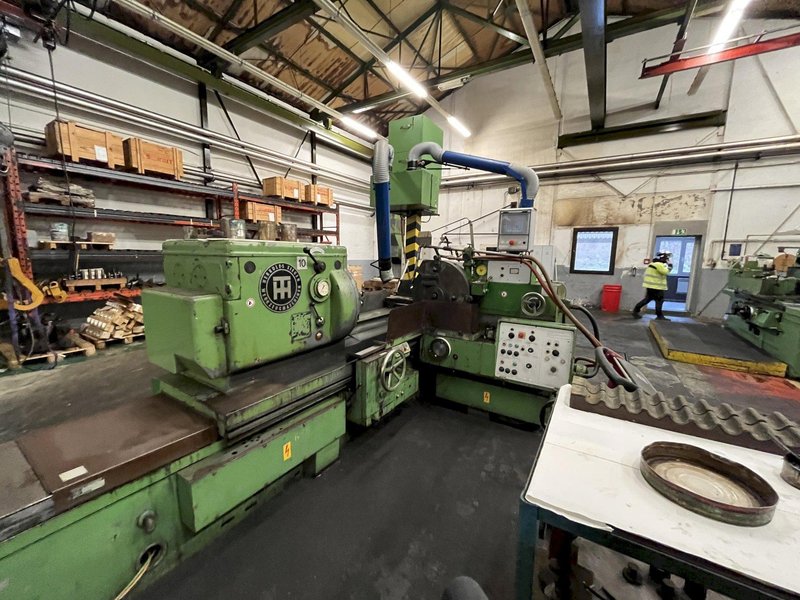

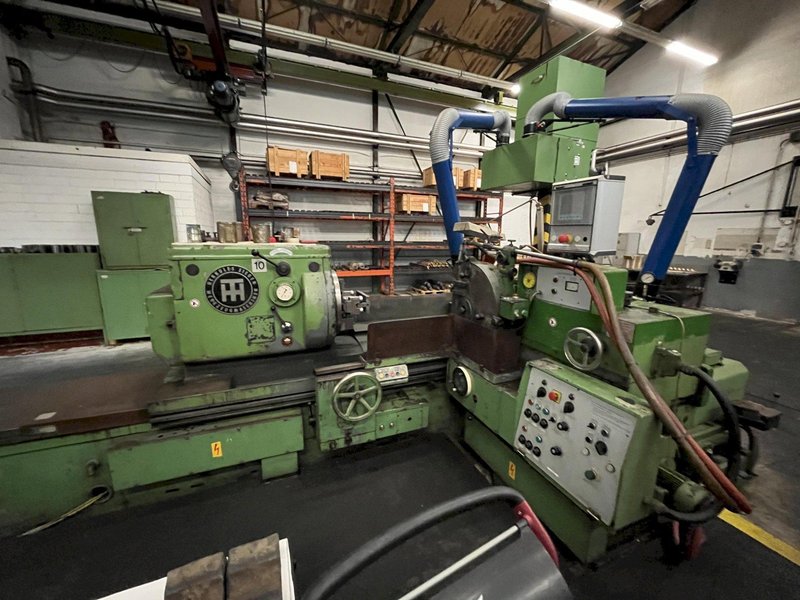

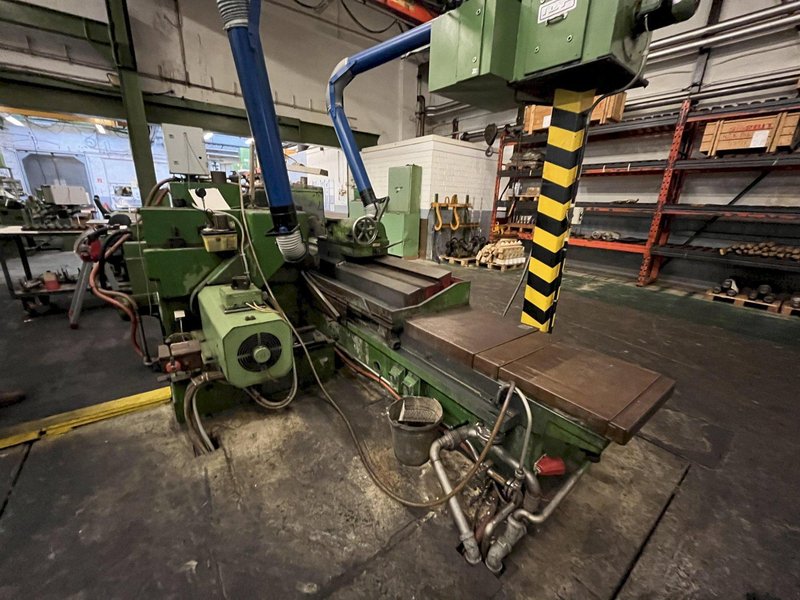

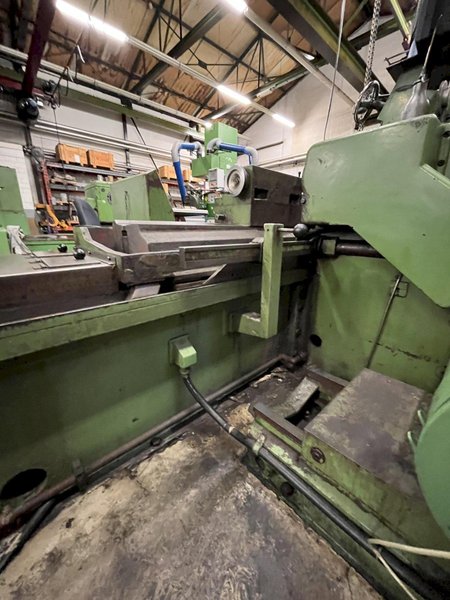

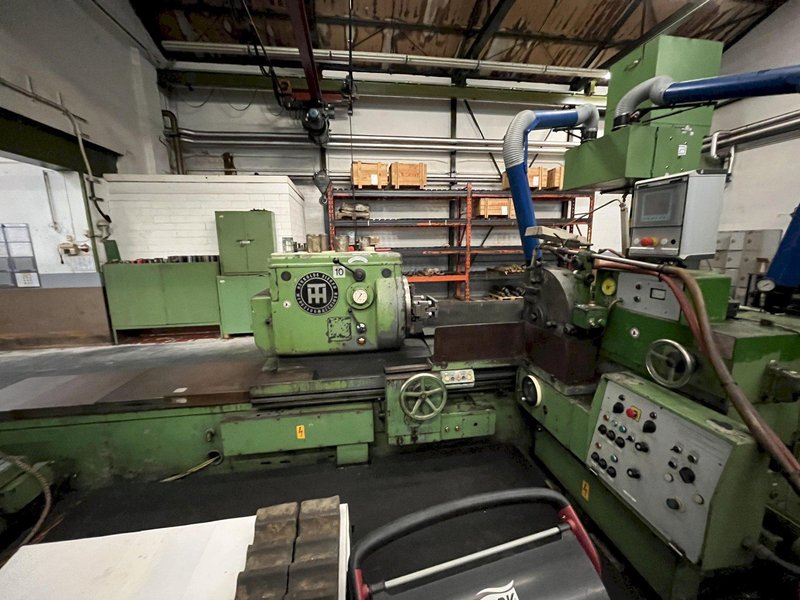

HERKULES WS300 ROLL GRINDER WITH CROWNING
Brand
Category
Type
Model
WS 300
Stock #
116589
Year
Not specified
Condition
Used
Location
Not specifiedGermany
|
MACHINE TYPE: WS300 ROLL GRINDER WITH CROWNING
SPECIFICATIONS: DISTANCE BETWEEN CENTERS: 2250MM
GRINDING LENGTH: 2000MM
SMALLEST WORKPIECE DIAMETER WITH NEW GRINDING WHEEL: 40MM
BIGGEST WORKPIECE DIAMETER
WITH NEW GRINDING WHEEL: 500MM
BIGGEST WORKPIECE DIAMETER
IN GENERAL: 575MM
MAX. WORKPIECE WEIGHT: 3000KG
FLOOR SDPACE: 9M X 3,5M
GRINDING WHEEL:
DIMENSIONS: 600MM X 50MM X 203MM
RPM: 400 – 1000
POWER OUTPUT: 12KW
HEADSTOCK
2 SPEED
RANGE 1: 12 – 36RPM
RANGE 2: 40 – 120RPM
POWER OUTPUT: 6,5KW
DRIVE TYPE: V-BELT
MOUNTING FOR THE MORSE TAPER: MK5
TAILSTOCK:
MOUNTING FOR THE MORSE TAPER: MK5
MOUNTING FOR THE DRESSING TOOL: MK1
GRINDING CARRIAGE MOVEMENT:
RANGE 1: 25 – 480MM/MIN
RANGE 2: 95 – 1900MM/MIN
RAPID TRAVERSE: 1900MM/MIN
HAND MOVEMENT:
1 REVOLUTION: 3MM
1 GRADUATION: 0,1MM
CONTROLS: SIEMENS S7-300
CONTROL TECHNIQUES DRIVE CONTROLS
EXHAUST / FILTRATION UNIT MFG - ILT - ILT
|
