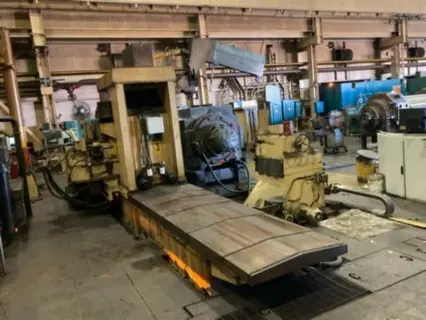

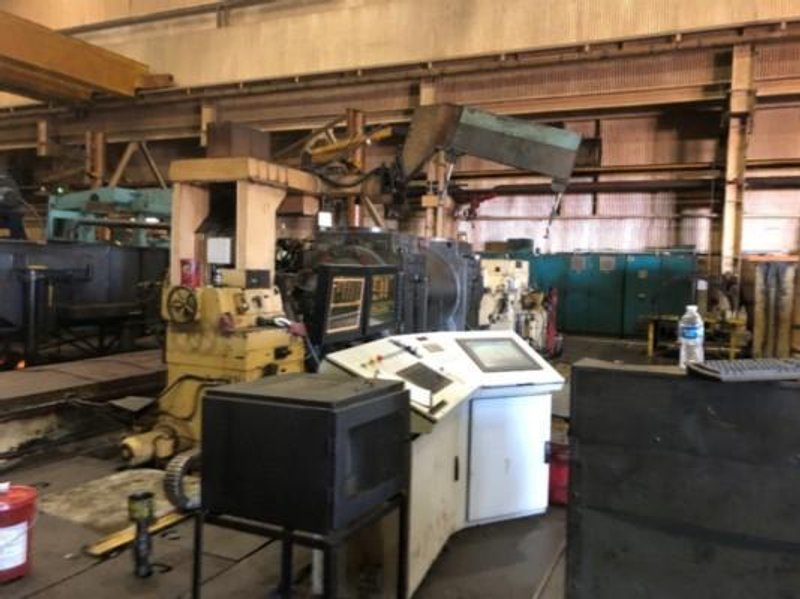

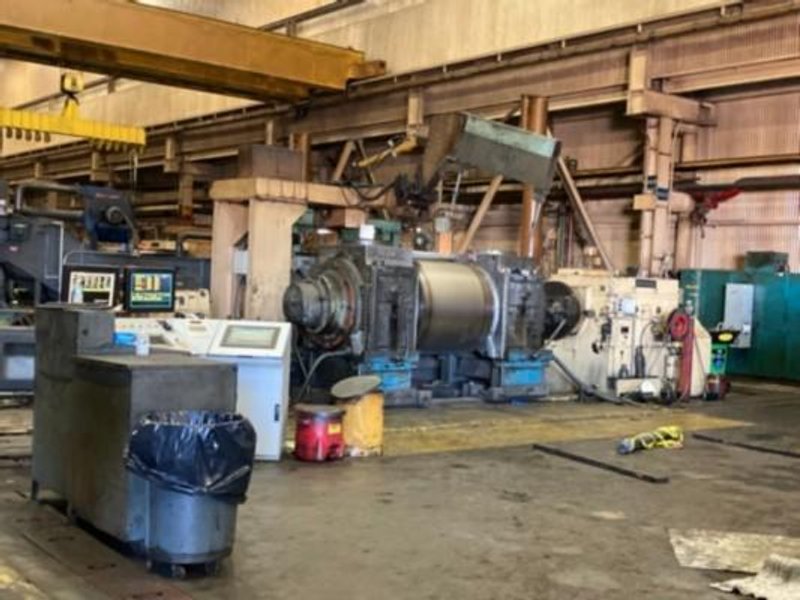

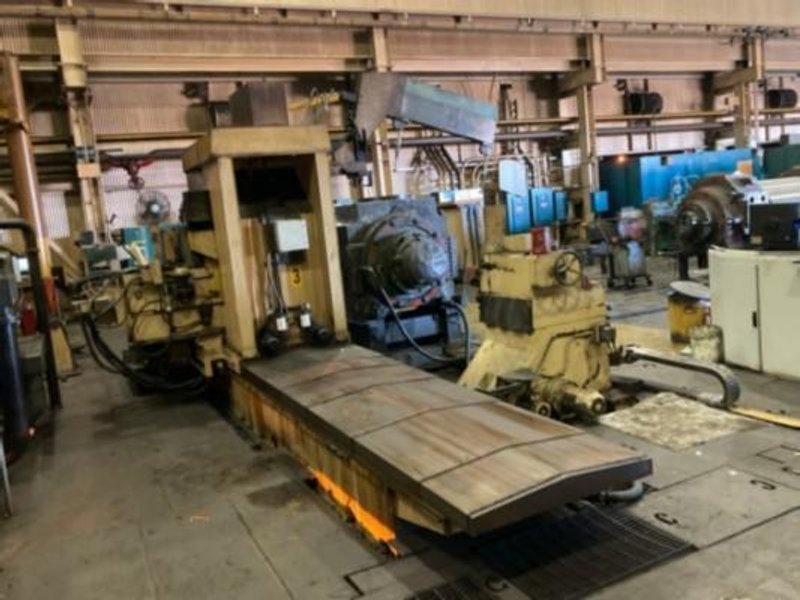

23.58" (600MM) X 216" (5500MM) HERKULES WS600 X 5500 CNC ROLL GRINDER
Brand
Category
Type
Model
WS600 X 5500
Stock #
115572
Year
Not specified
Condition
Used
Location
Not specified
|
•MANUFACTURER – HERKULES
•YEAR - 1988
•MODEL – WS600 X 5500
•TYPE – CNC ROLL GRINDER
WORKING RANGE:
•ROLL DIAMETER RANGE – 23.58” (600MM)
•LENGTH BETWEEN THE CENTERS – 216” (5500MM)
•GRINDING LENGTH – 197”
•MIN-MAX GRINDING DIAMETER – 0 - 55”
•MAX WORK PIECE WEIGHT IN STEADY REST – 17,600 LBS.
•MAX WORK PIECE WEIGHT IN CHOCKS – 88,000 LBS
HEADSTOCK
•SPEEDS – 1.5-60 RPM
•DRIVE POWER – 34 KW
•TYPE OF DRIVE – TOOTH CHAIN
•CENTER ACCOMODAITON HOEL – 3.93” DIAMETER, 1:10 TAPER
•LONGITUDINAL ADJUSTMENT OF FACEPLATE – 6”
•WORK PRESSURE OF HEADSTOCK HYDRAULIC – 25 BAR
TAILSTOCK
•DRESSSING TOOL ACCOMODATION HOLE – MORSE TAPER #1
•CENTER ACCOMODATION HOEL – 3.93” DIAMETER, 1:10 TAPER
•MAX ADJUSTMENT OF CENTER SLEEVE – 6”
•ADJUSTING PRESSURE OF HYDRAULIC – 275 BAR
•HYDRAULIC PRESSURE TO RELEASE THE CLAMPING – 300 BAR
•RAPID MOTION – 53”/MIN
GRINDING WHEEL
•DIMENSIONS – 35.4 X 6 (4) X 20 INCHES
•SPEEDS - 400 – 1200 RPM
•DRIVE POWER – 110 KW MAX
GRINDING CARRIAGE MOVEMENTS
•FEEDS – 4 – 160 IN/MIN
•RAPID MOTION – 160 IN/MIN
•SLOW MOTION – 4 IN/MIN
•HYDRAULIC DISCHARGE OF CARRIAGE – 4 BAR MAX
GRINDNG HEAD INFEEDS
•INFEEDS BY HAND – 0.0004”
•AUTOMATIC INFEED ON CARRIAGE REVERSE – 0.0004” – 0.0035”
•CONTINUOUS INFEED – 0.0004” – 0.008”/MIN
•CONTINOUS MICRO ADJUSTMENT – 0.00004” – 0.002”/MIN
•RAPID MOTION – 30”/MIN
•SLOW MOTION – 1”/MIN
•MICRO ADJUSTMENT BY HAND – 1 GRADUATION – 0.00004”
•CONTINUOUS FINEST IN FEED – 0.00004” – 0.002”
FORM GRINDING DEVICE
•MAX VALUE IN REFERENCE TO DIAMETER – 0.2”
•MAX CORRECTION VALUES FOR CARRIAGE PATH
-CORRECTION (RADIUS) – 0.039”
-CORRECTIVE GRINDING (RADIUS) – 0.0039” |
