Max Width of Workpiece | 32 inches |
Max Thickness of Workpiece (in.) | 5.00 inches |
Weight | 10000 pounds |
-Coil Weight: 10,000 lbs.
-Width: 2" to 32"
-Coil O.D.: 70" O.D. Entry
64" O.D. Exit
-Thickness: 0.010" to 0.105"
-Line Speed: Right to Left
-Speeds: 50 to 345 FPM (Bare Drum Speed)
600 FPM (Coil Build-up Speed)
Consisting of the following:

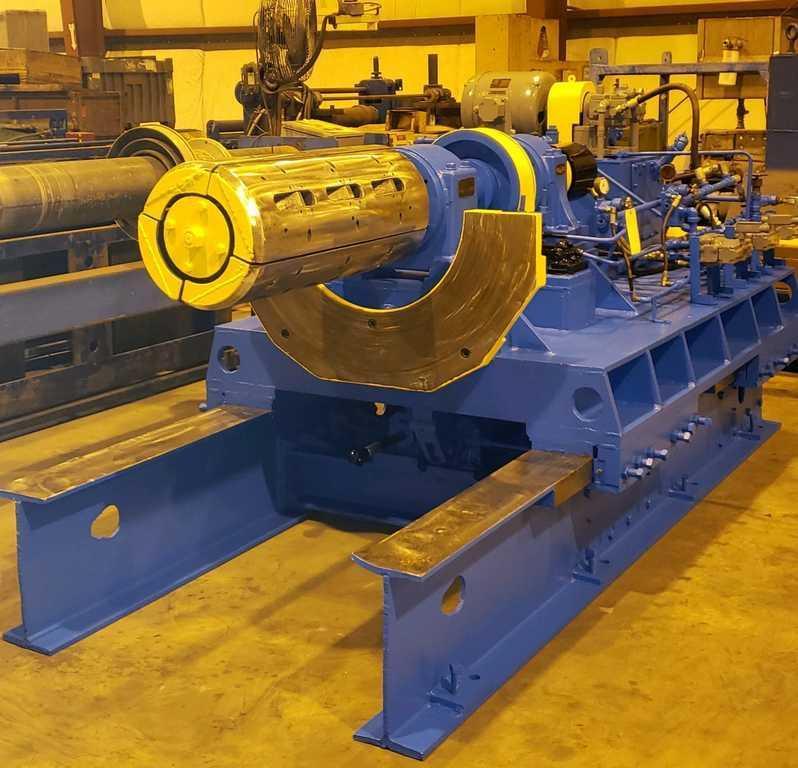

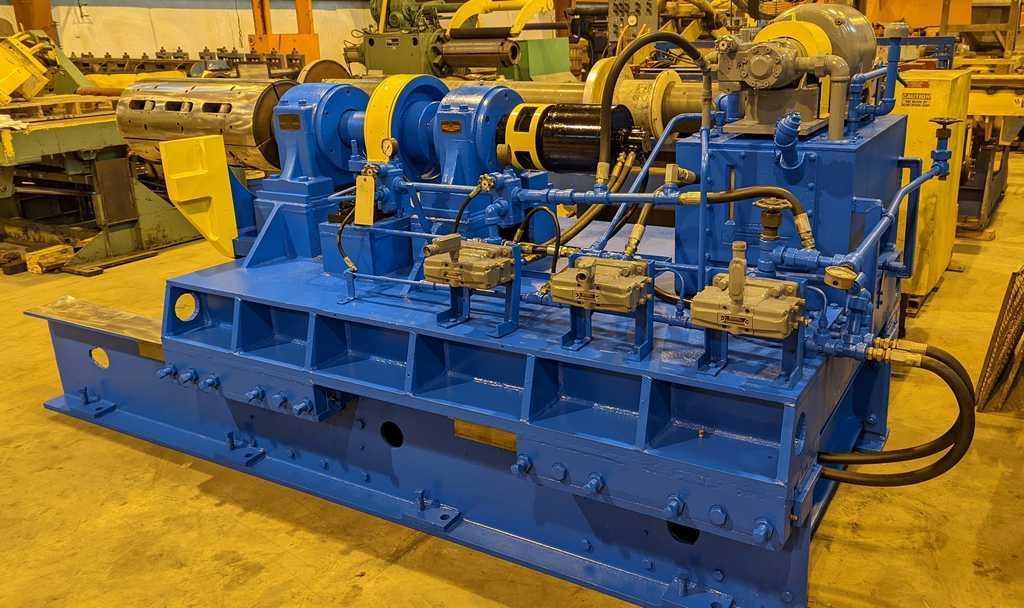

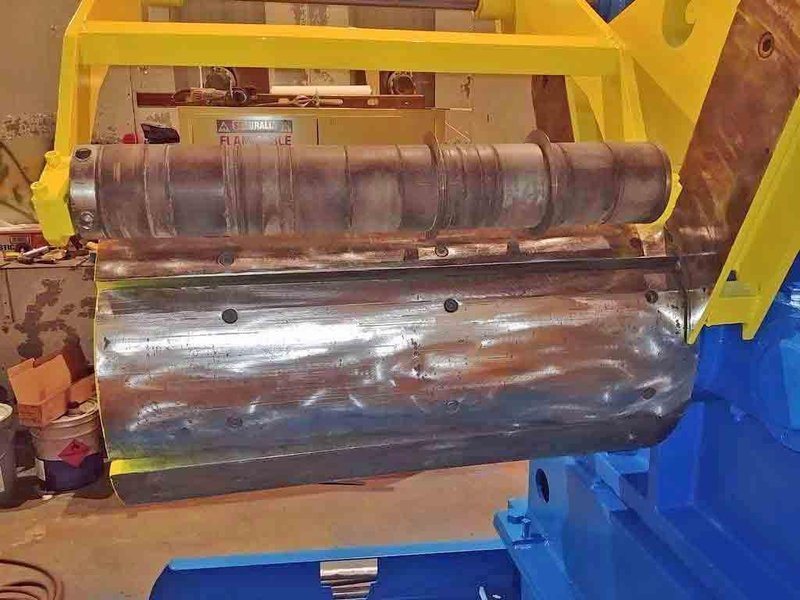

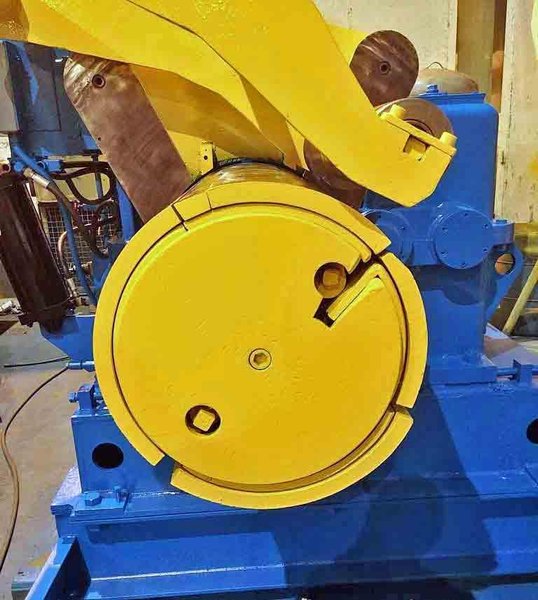

-Stamco Uncoiler:
Hydraulic Link-Type Expansion
16" to 20" ID Range with pads
4 Segment Mandrel
33" Face Mandrel
Band Brake with Hydraulic Adjustment
Sliding Base
Self-Contained Hydraulic Power Unit
48" Passline from Floor to center of Mandrel
70" O.D. Capacity
Overall Size: 140" L x 70" W x 66" High

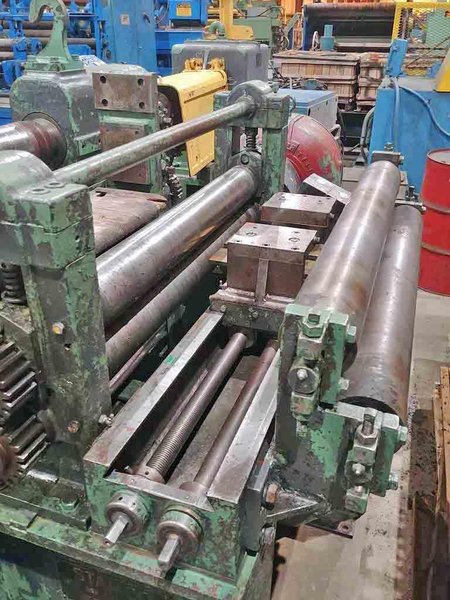

-Entry Passline Rolls:
4" Dia. x 34.5" Face
-Entry Side Guide Rolls:
Manual Adjustment

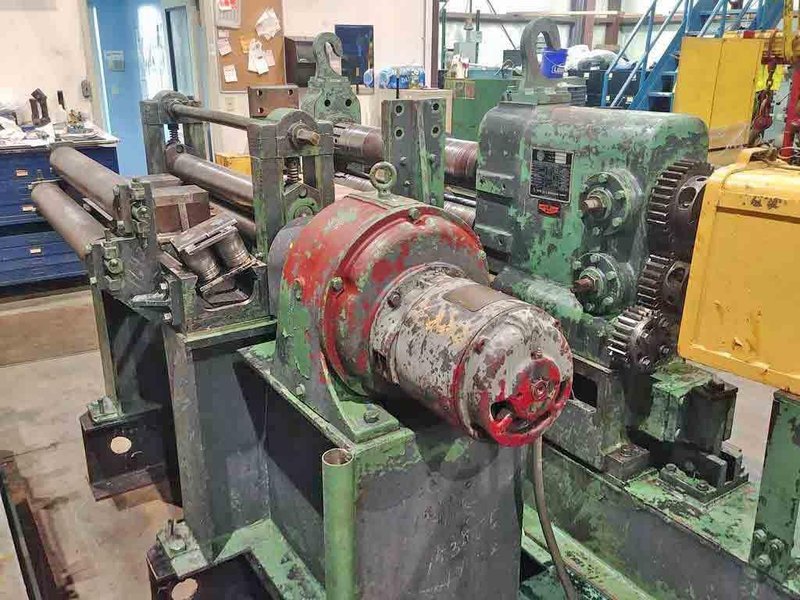

-Entry Driven Pinch Rolls:
4" Dia. x 34" Face
1.5 HP AC Gearmotor Drive

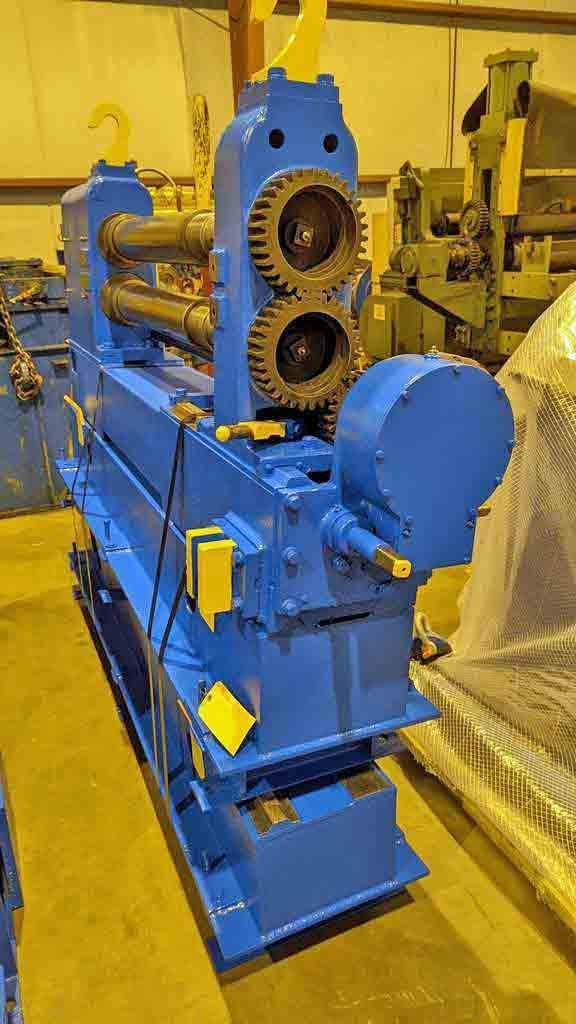

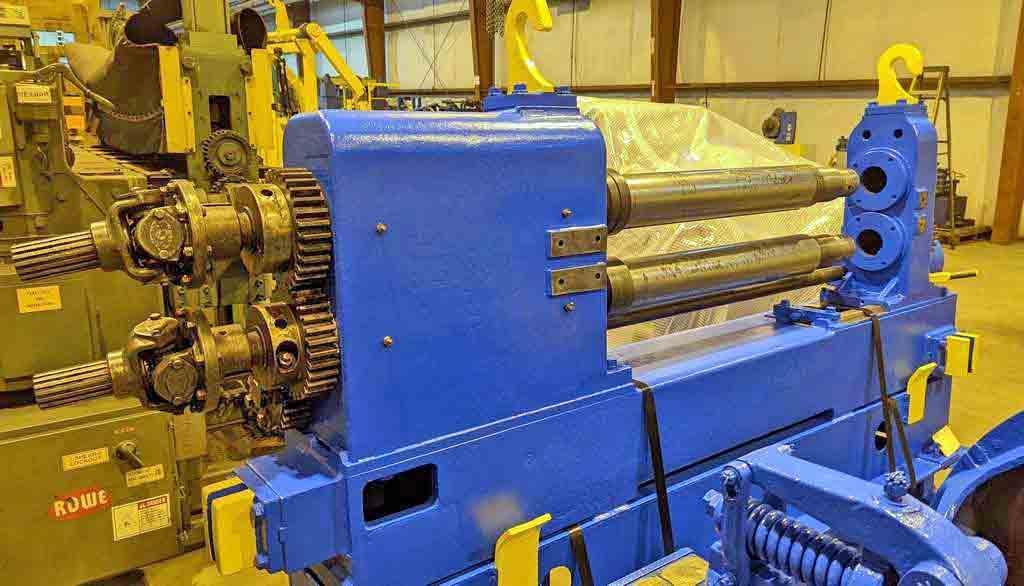

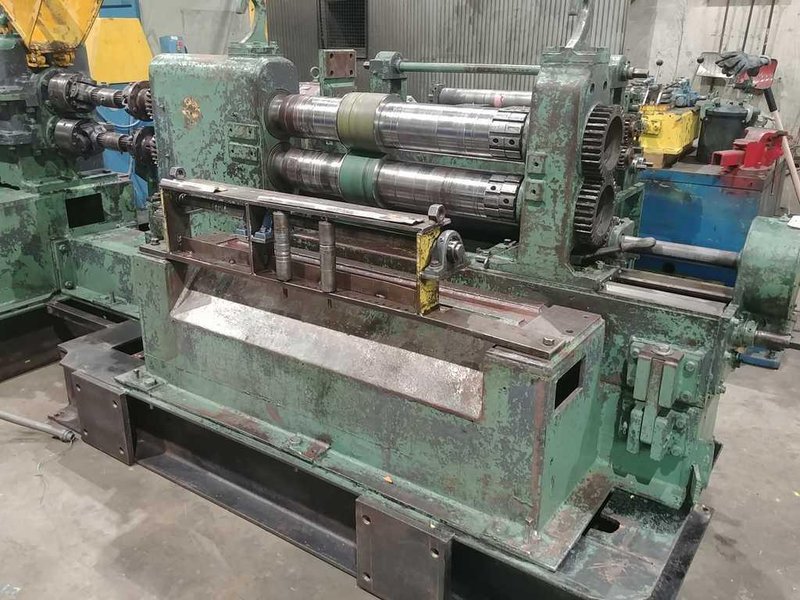

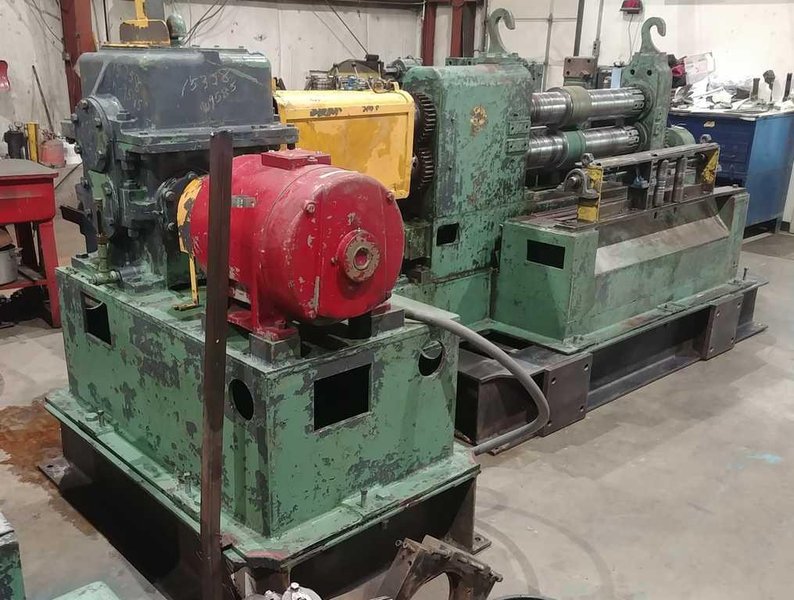

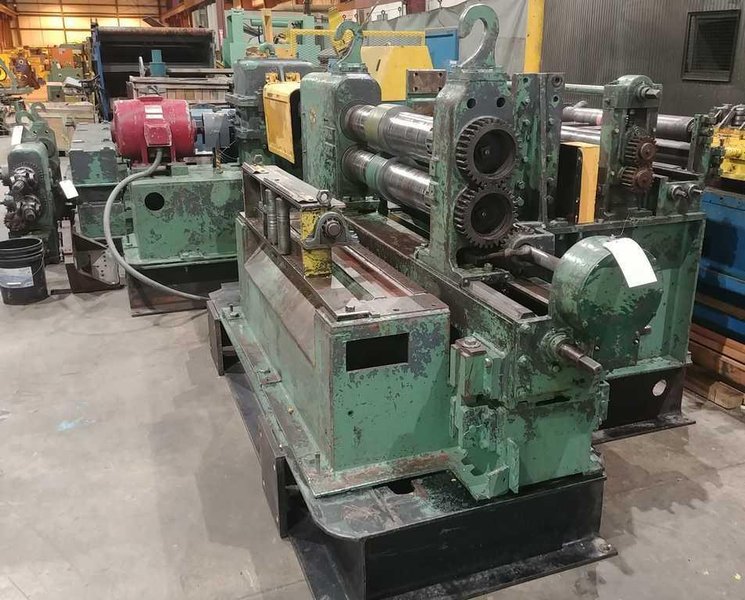

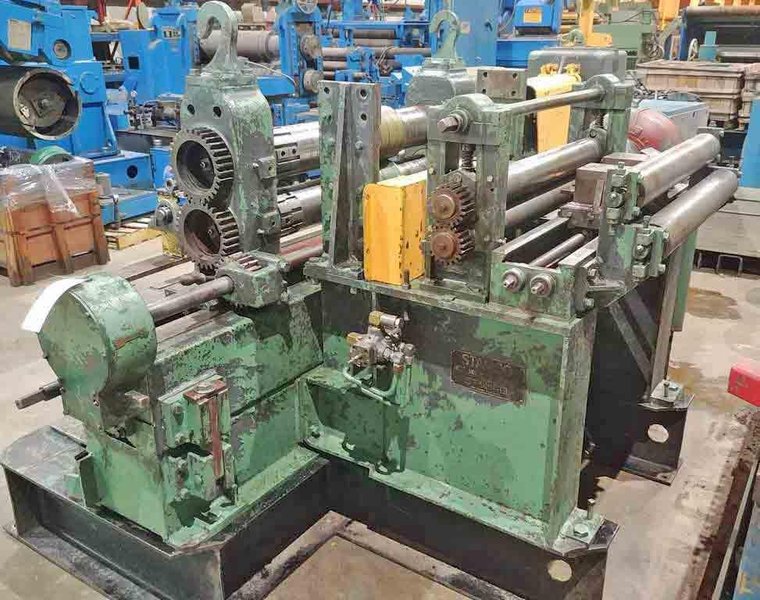

-(2) Slitter Heads:
Crane Removal Type Heads
5" Dia. x 33" Face Width Arbors
Double Eccentric Arbor Adjustment

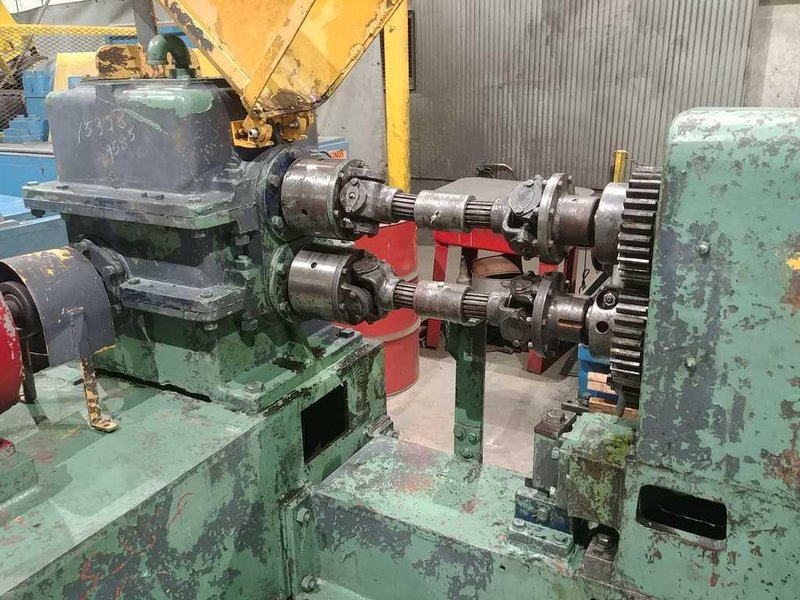

15 HP GE DC Motor, 1175 RPM, 208-220/440 V
Right Angle Reducer W/50.1:1 Ratio
Exit Scrap Guide
47" Passline
Overall Size: 164" L x 77" W x 72" High

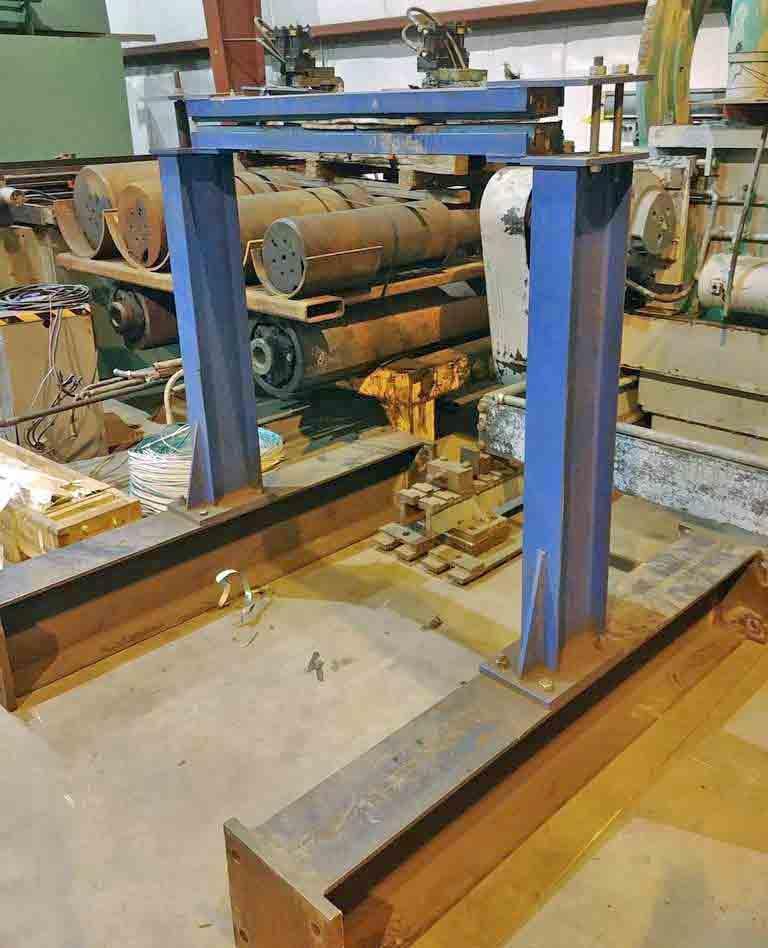

-Tension Stand:
Pad Drag Type
48" wide Pads
Manual screw adjustment for pressure
Overall Size: 70" L x 62" W x 65" High

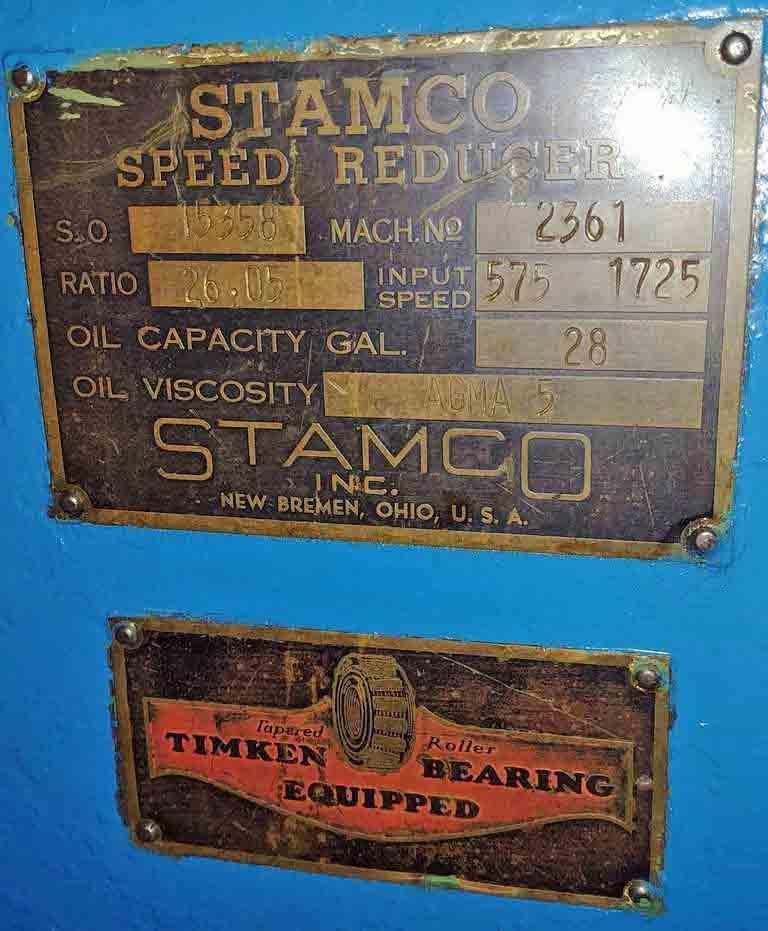

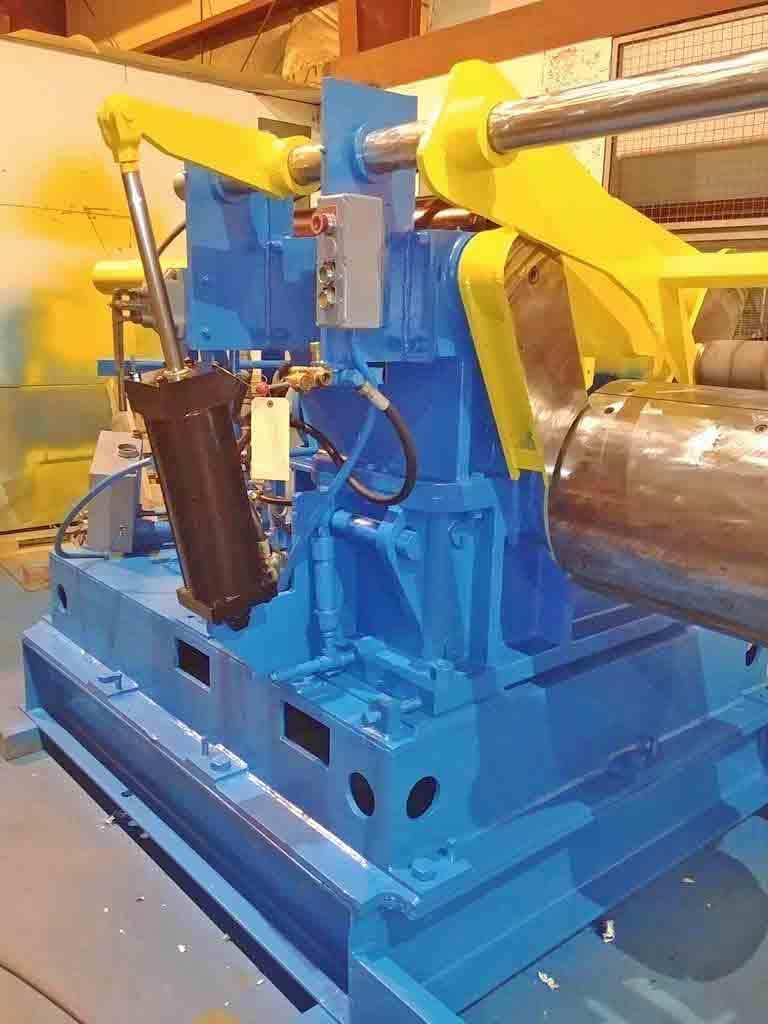

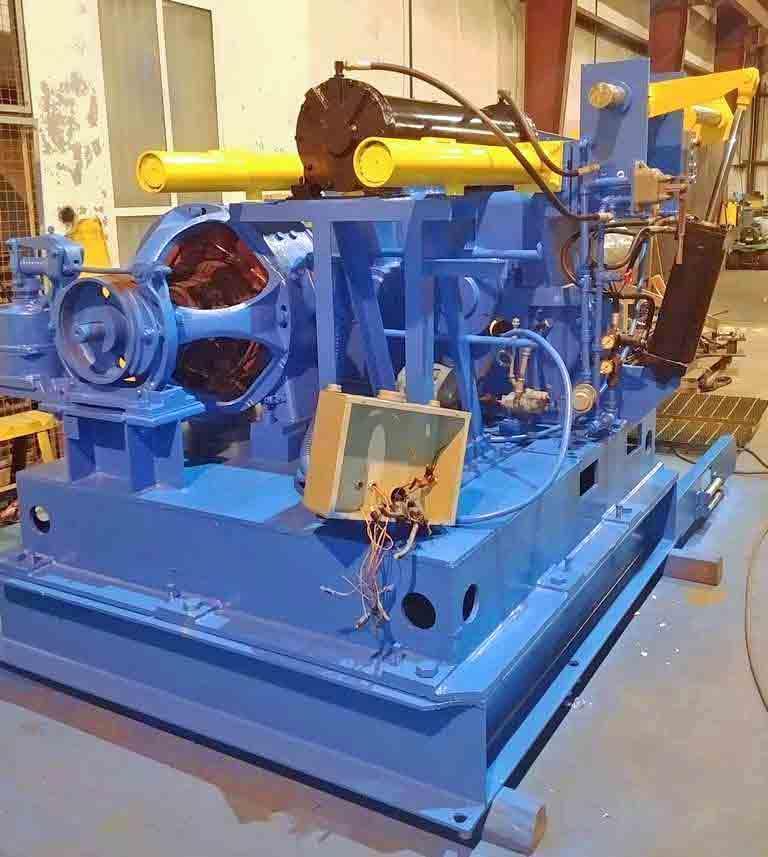

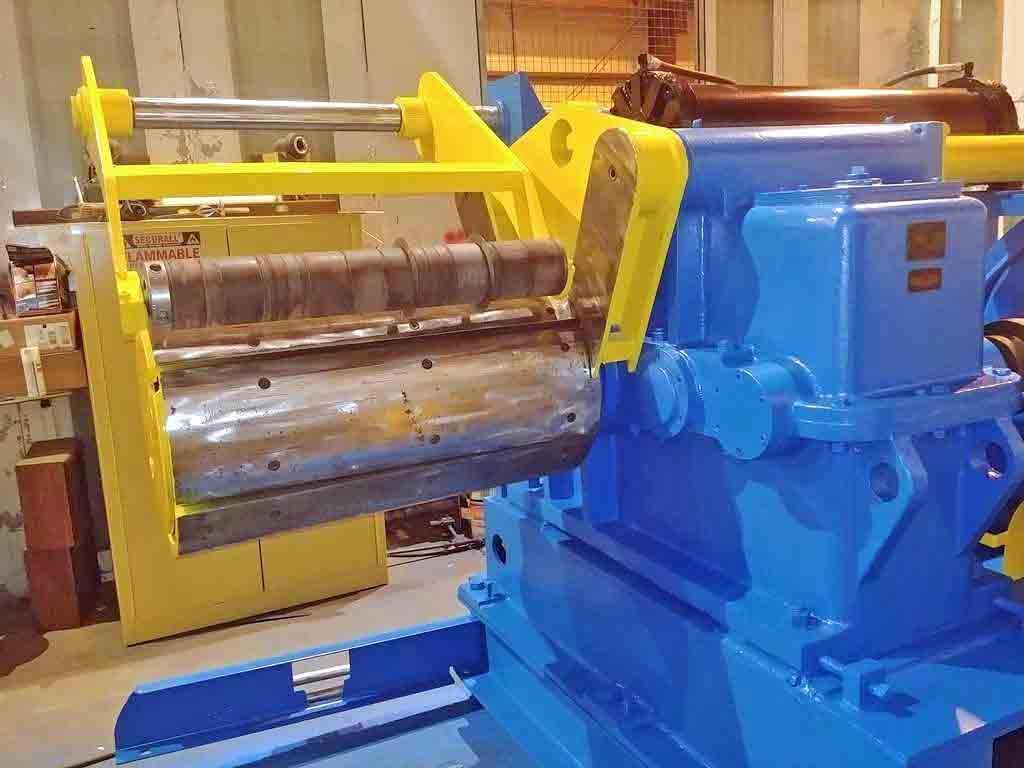

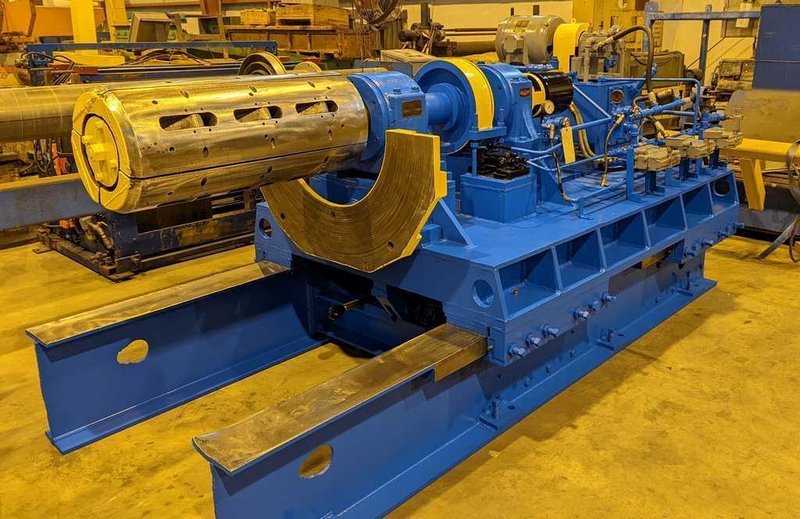

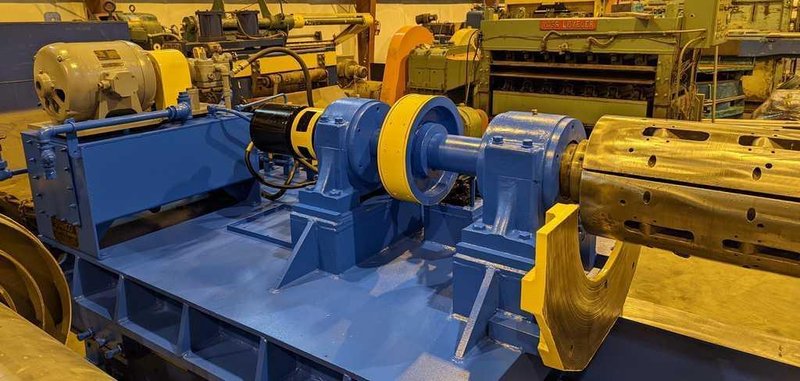

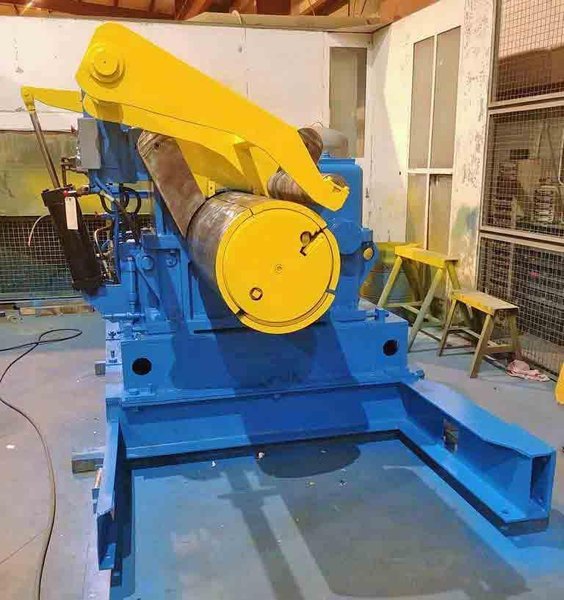

-Stamco Recoiler:
S/O: 15358
Machine No.: 2361

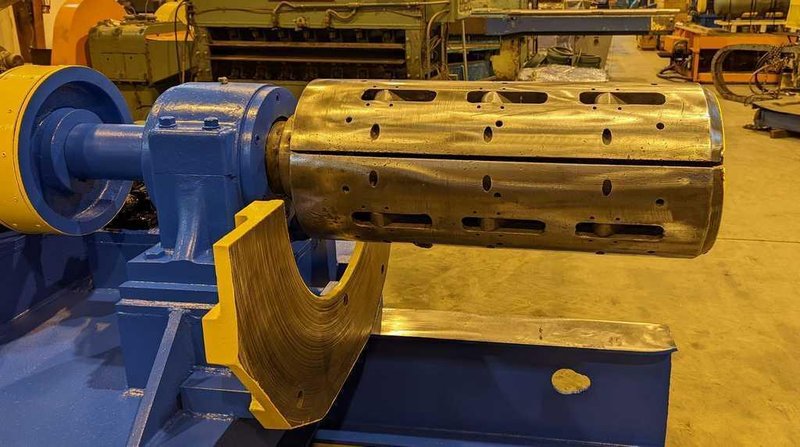

20" Dia. x 35" Face Drum
Manual Clamp and Expansion
44.5" Passline from Floor to center of Drum
Hydraulic Pushoff
Overarm Separator
64" O.D. Capacity

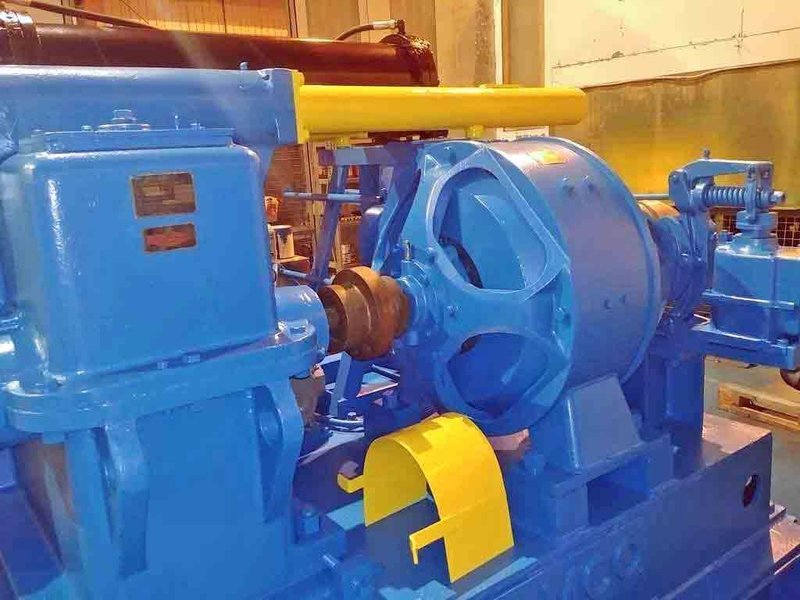

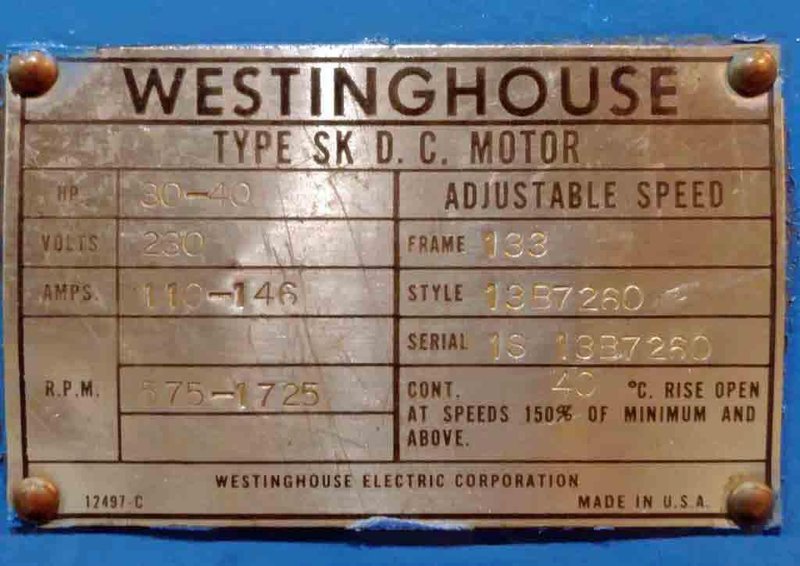

30/40 HP Westinghouse DC Motor w/MG Set
575/1725 RPM, 230 V
Thru Reducer w/26.05:1 Ratio
Electric Holding Brake
Powered lubrication for Gearbox
Overall Size: 134" L x 84" W x 77" High

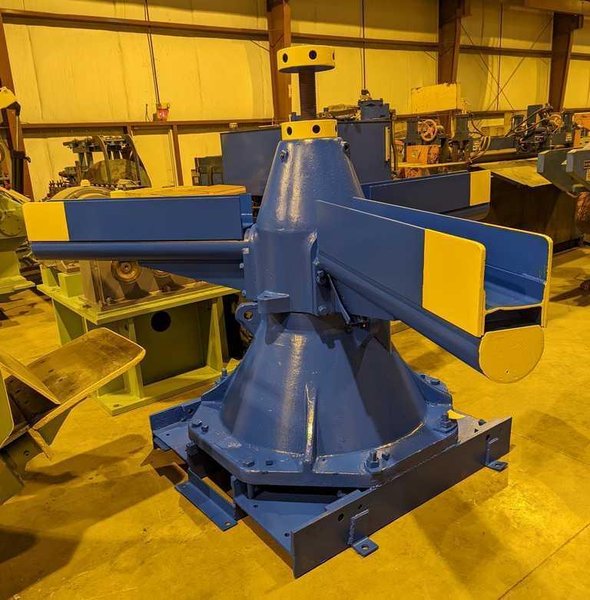

-Exit 3 Arm Turnstile: Stamco
10,000# Capacity Each Arm
Manual Rotation
Approx. 42" useable Arm Length
C-Hook Type Arms w/5.5" W x 6" High Slot
Passline: 53.5" from Floor to top of Arms
Overall Size: 114" L x 97" W x 80" High

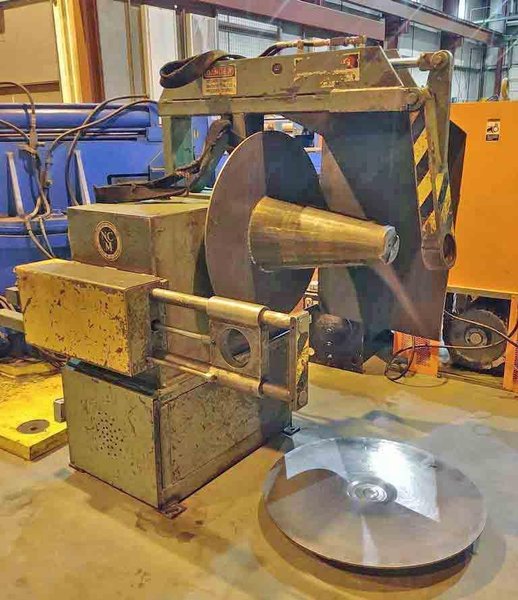

-Scrap Winder: North Central Machine
Approx. 30" Dia. x 24" Wide Scrap Ball
Hydraulic Motor Driven
Clam Shell Type Open/Close thru Hydraulic Cylinder
Hydraulic Cylinder Operated Scrap Oscillating Guide
Self -Contained Hydraulic Power Unit
Overall Size: 77" L x 60" W x 77" High
-Main Electrical Controls:

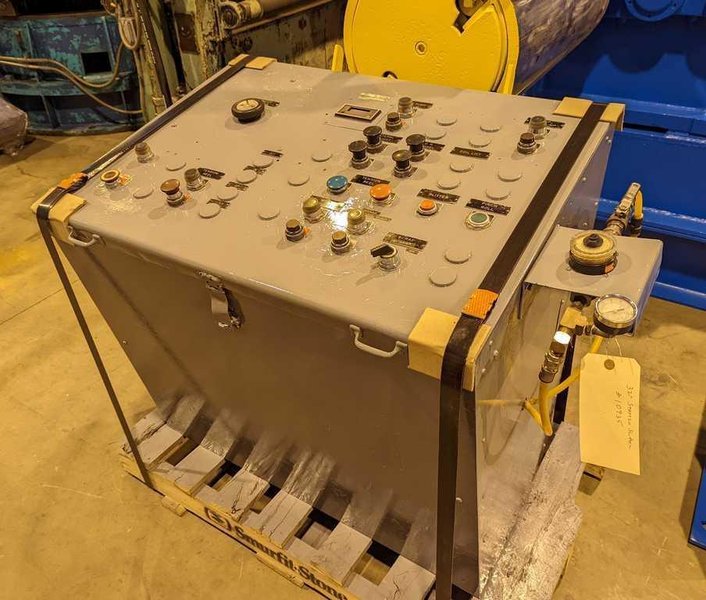

-Main Operators Control Panel:
Overall Size: 48" L x 34" W x 39" High
-Slitter Tooling:
Knives, Spacers & Rubbers
-Removed and in storage; Toledo, OH. |
