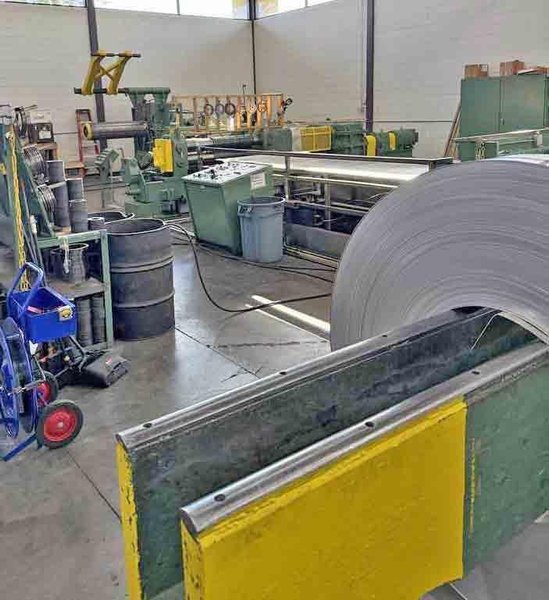

54" x 6.50" x 30,000# Stamco Slitting Line# 4057
Brand
Category
Model
Not specified
Stock #
4057
Year
Not specified
Condition
Not specified
Location
Ohio
|
Weight: 30,000 lbs.
Width: 54"
Coil I.D. Entry: 16" - 20"
Coil I.D. Exit: 20"
Coil O.D.: 72"
Line Direction: Left to Right
Line Speed: 300 fpm (Constant)
Consisting of the following:

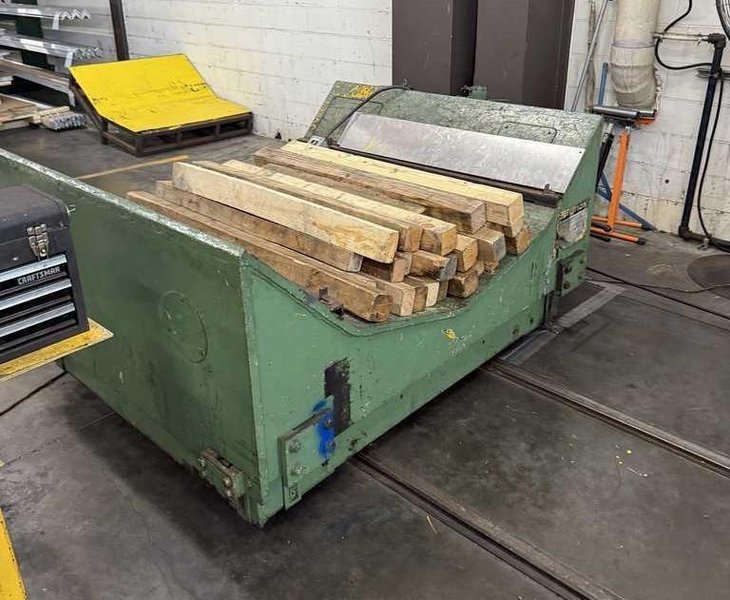

-Entry Coil Car:
Hydraulic Motorized Screw Jack Lift
Hydraulic Motorized Travel
Self Contained Hydraulic Power Unit

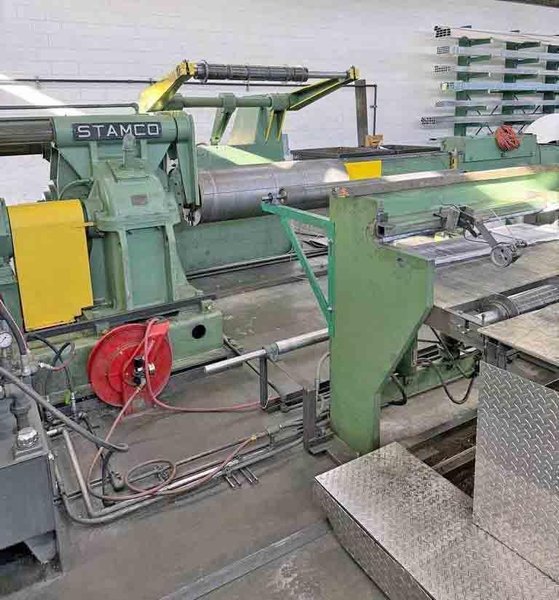

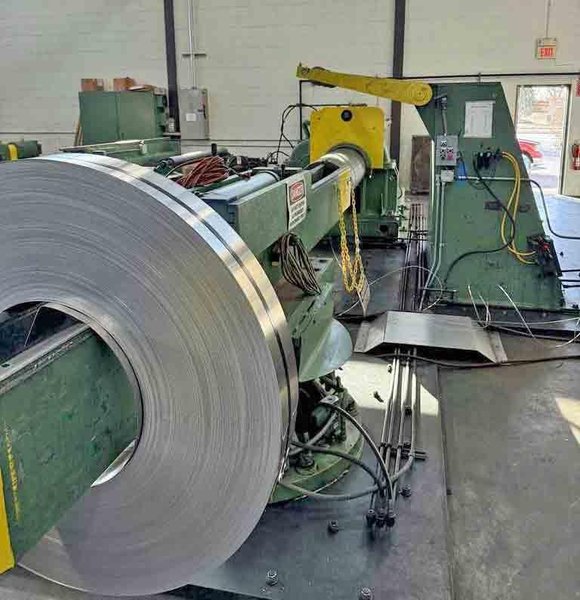

-Mandrel Uncoiler:
56" Mandrel Face
Hydraulic Expansion
Free Standing Over Arm Hold Down Roll
Slide Base
(2) Fawick Water Cooled Air Brakes
1.5hp AC Gear Motor Feedup
Stamco Integral Reducer Ratio 5.4:1
Lube Pump
52" Mandrel CL to Floor

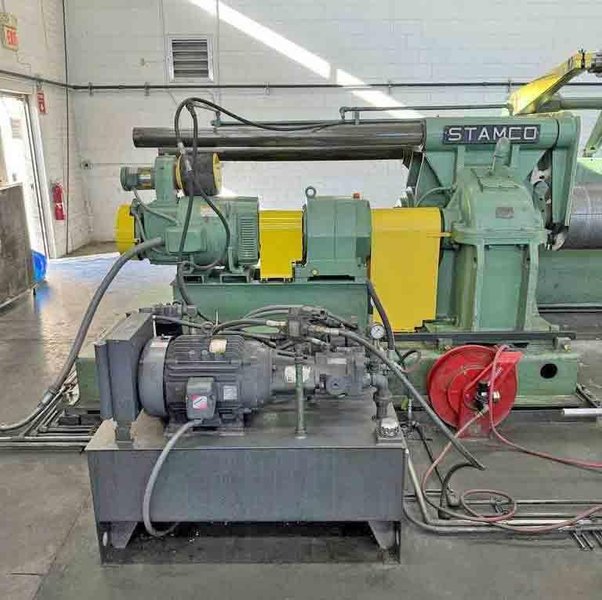

-Entry Hydraulic Power Unit:
20hp AC Motor
60 Gallon Tank
Valve Stand
-Peeler Table:
Hydraulic Lift and Extend
60" Pass Line Roll

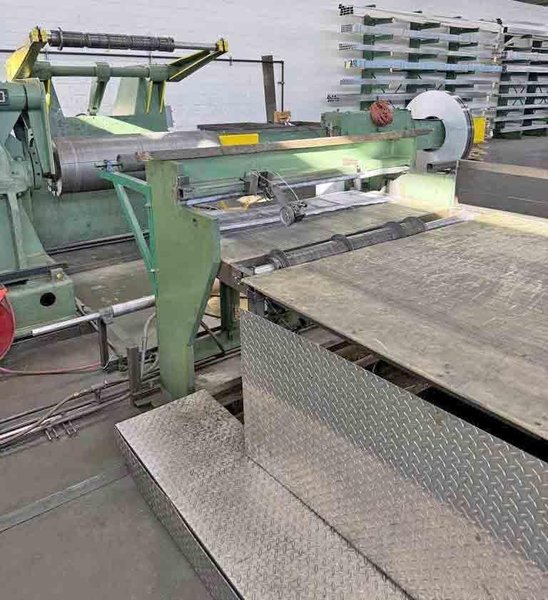

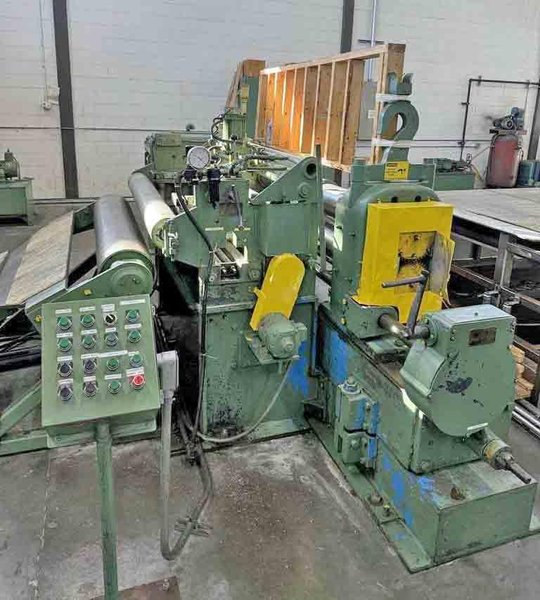

-Slitter Entry Unit:
Entry Passline Roll
Adjustable Roller Side Guides
Driven Pinch Rolls

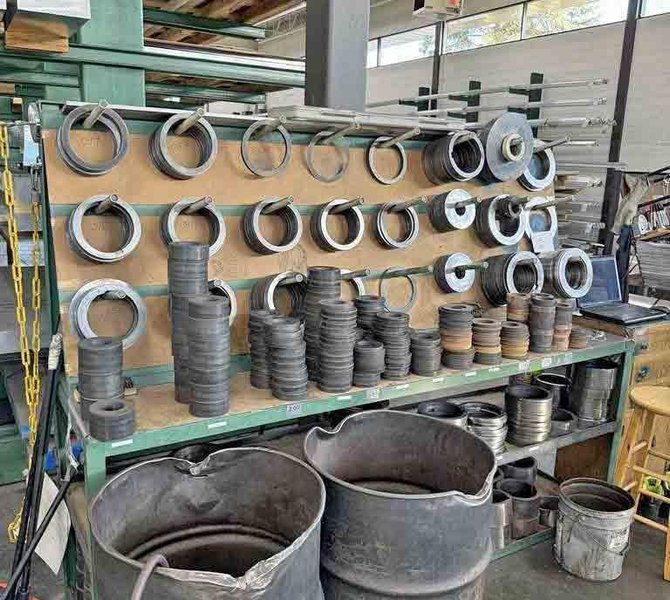

-(1) Removable Head Slitter:
6.50" Dia. Arbors
60" Arbor Face
Eccentric Arbor Adjustment

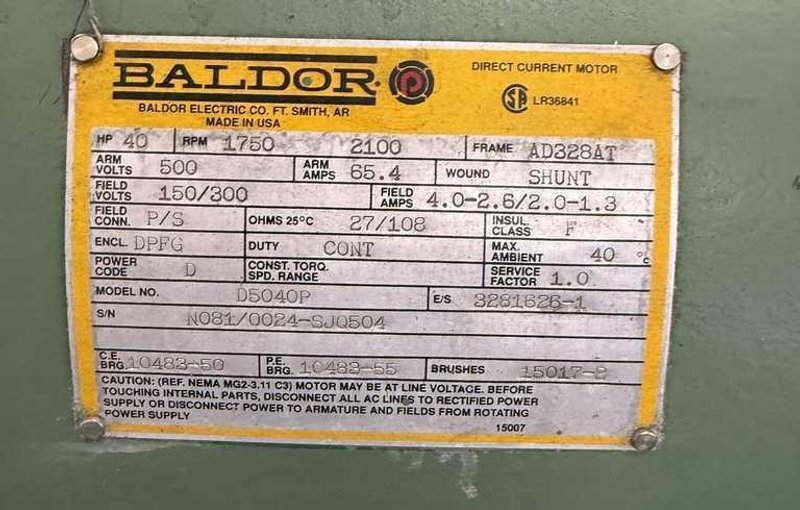

40 HP Baldor DC Motor, 1750/2100 RPM, 500 V
Stamco Reducer/Pinion Box 3.2:1 Ratio
Hansen Secondary Reducer 8.3:1 Ratio
-Pit Cross Over Table: (Scrapped)
-Drag Board Tension Stand:
Entry Separator Tooling Bar
Exit Passline Roll
3 Air Cylinder Tension Control

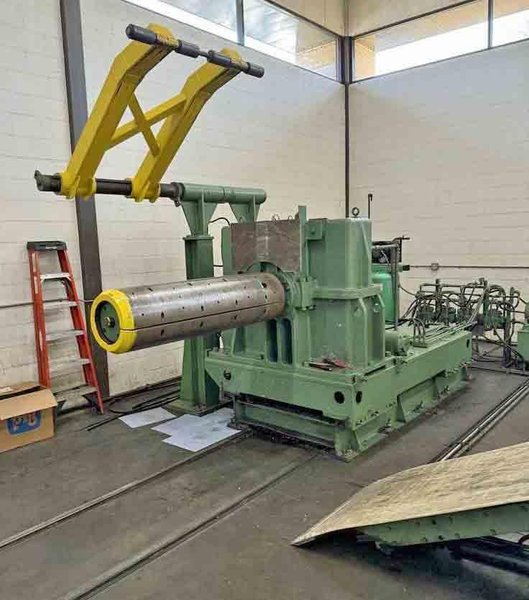

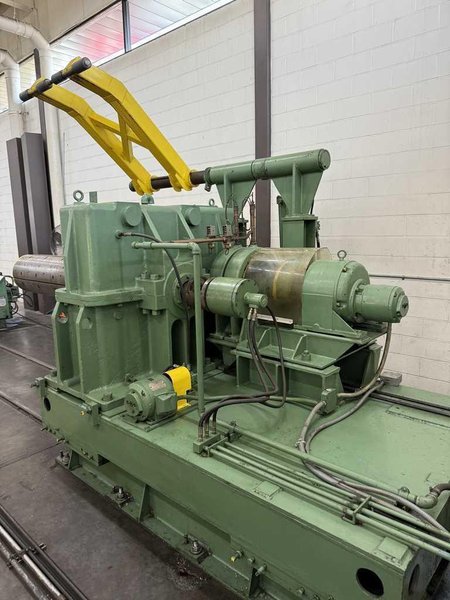

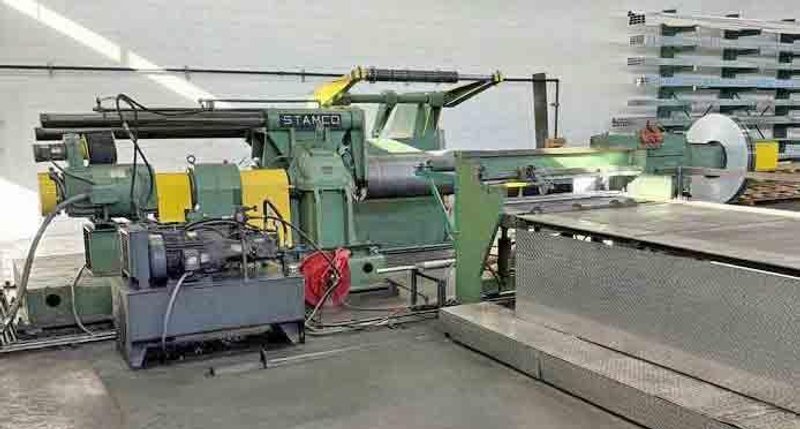

-Recoiler:
20"" Dia. Drum
60" Drum Face
Hydraulic Pushoff

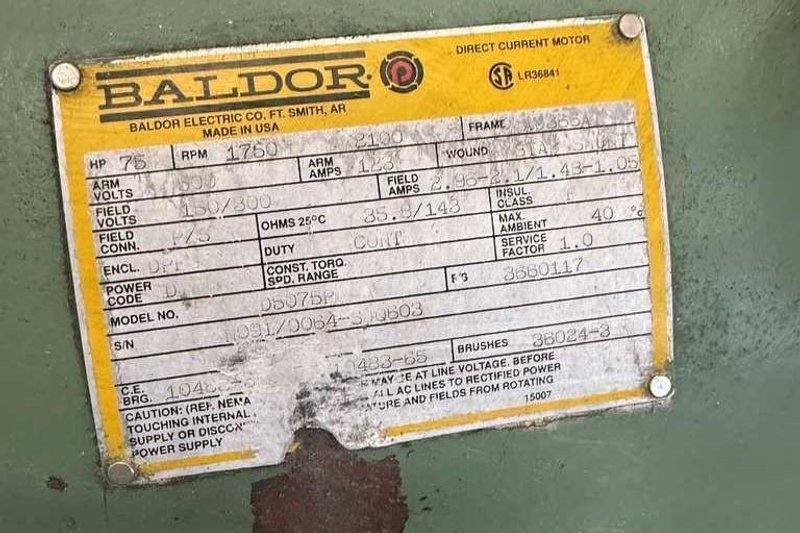

75 HP Baldor DC Motor, 1750/2100 RPM, 500 V, w/Blower
Stamco Integral Reducer 3.697:1 Ratio
Hansen Secondary Reducer 10:1 Ratio
-Overarm Separator:
Free Standing
-Paper Unwinder:

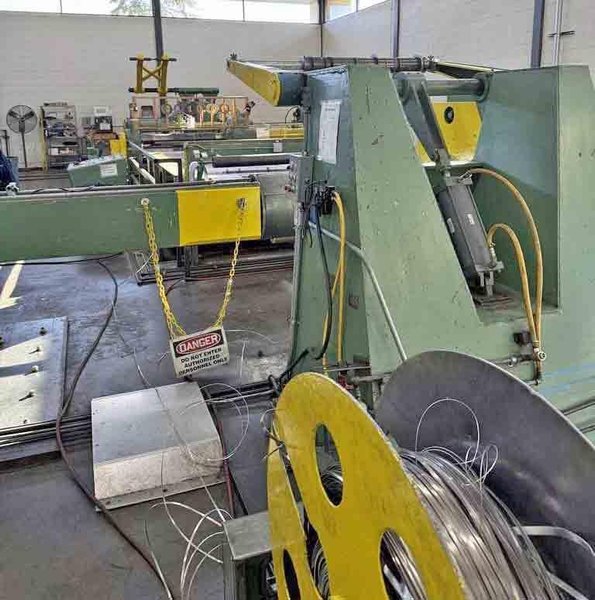

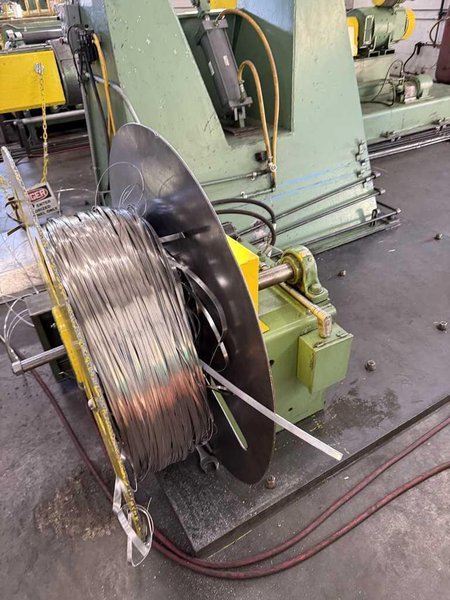

-Scrap Winder:
Hydraulic Motor Drive
Level Wind
Manual Ball Removal

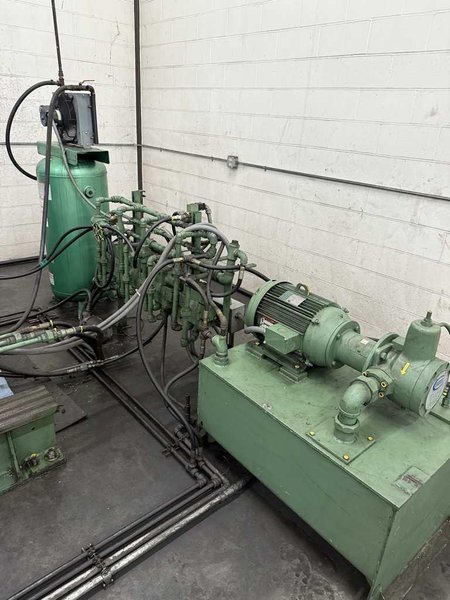

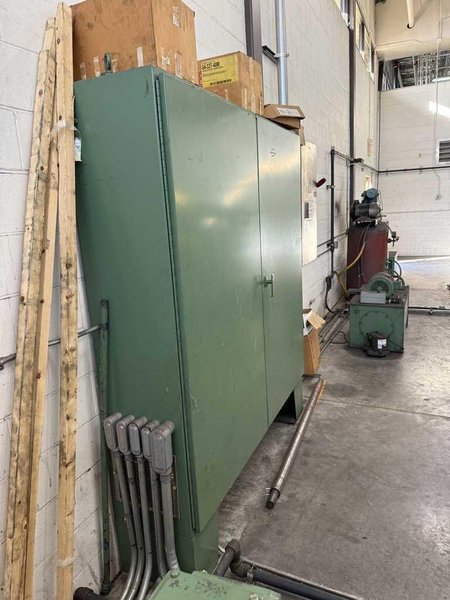

-Exit Hydraulic Power Unit:

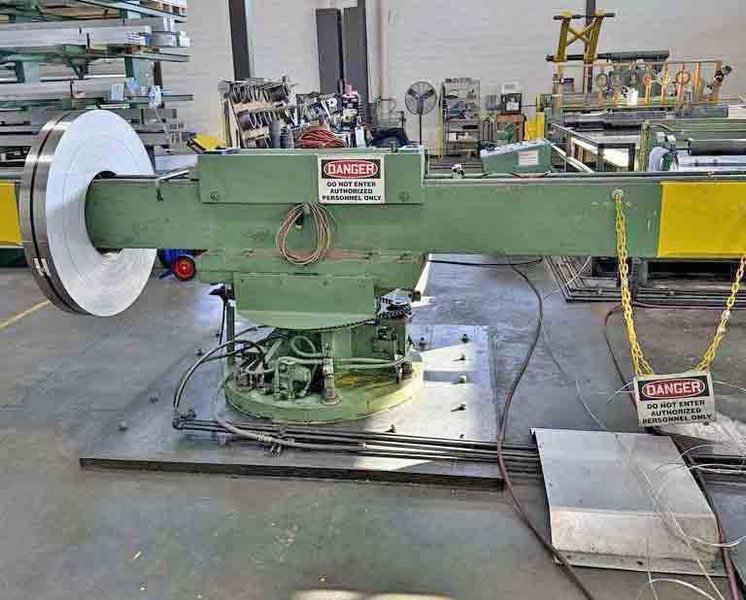

-2 Arm Exit Turnstile:
C-Hook Type Arms
65" Long Arms
18" Minimum ID
47" Floor to Top of Arm
Hydraulic Pushoff
Power Rotation
-Operator Controls:
-Line is in storage: Toledo, OH.
|
