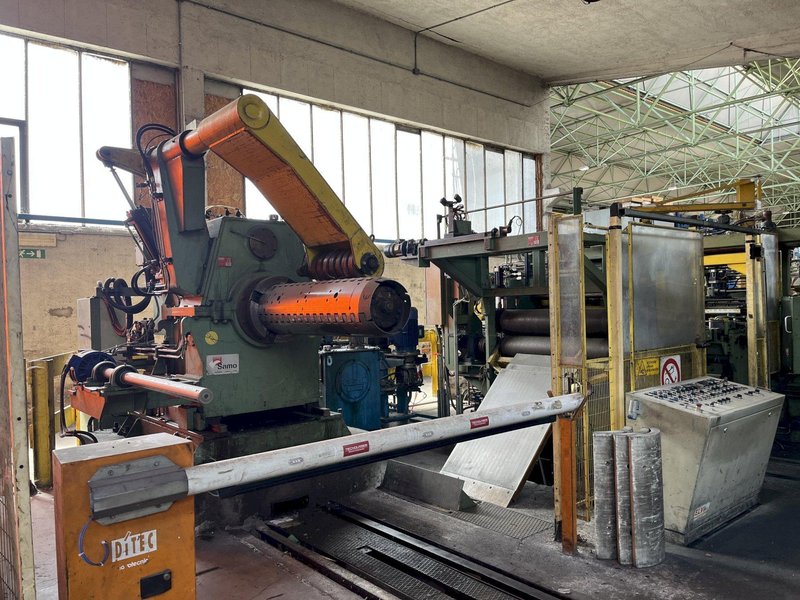

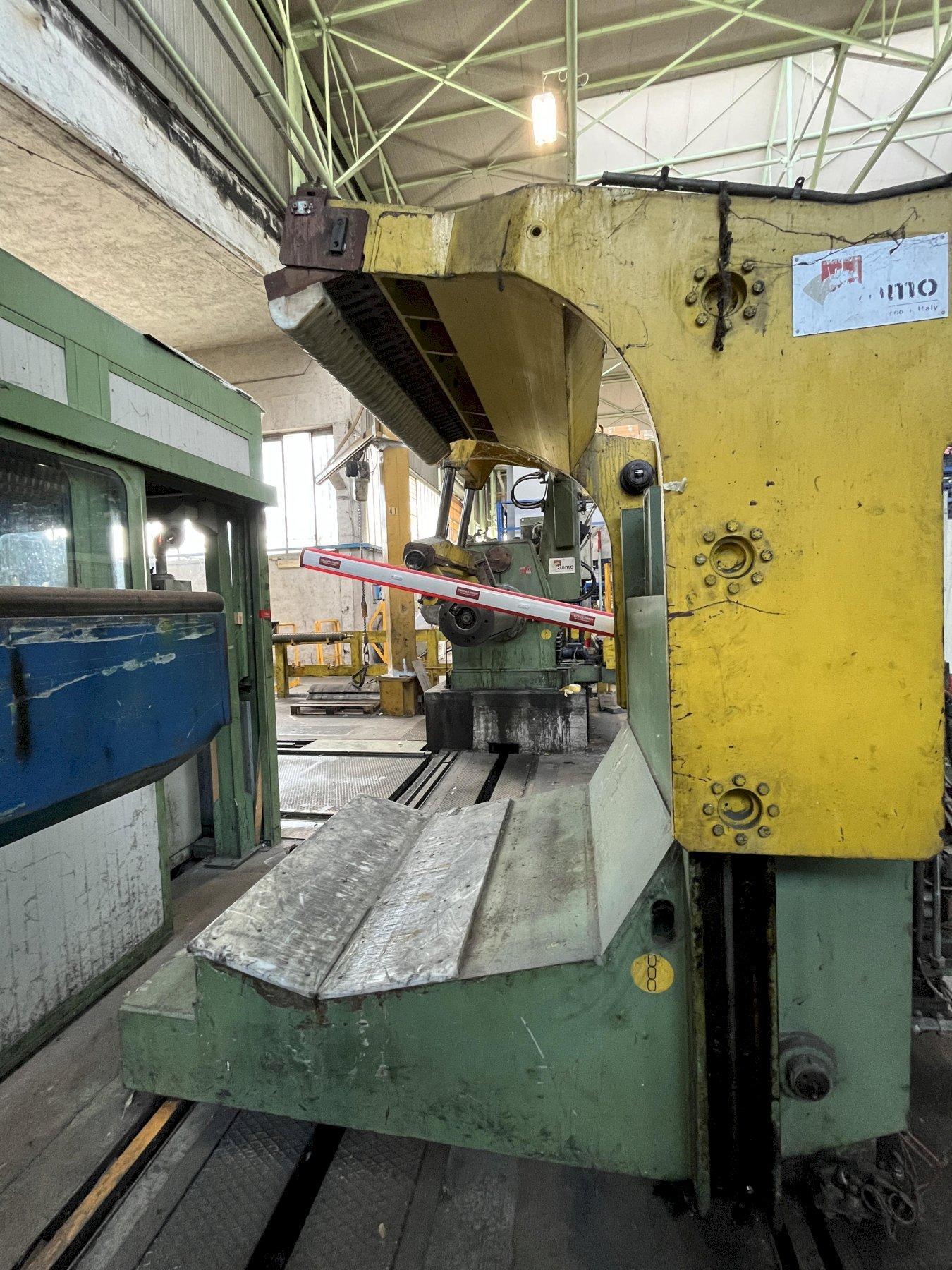

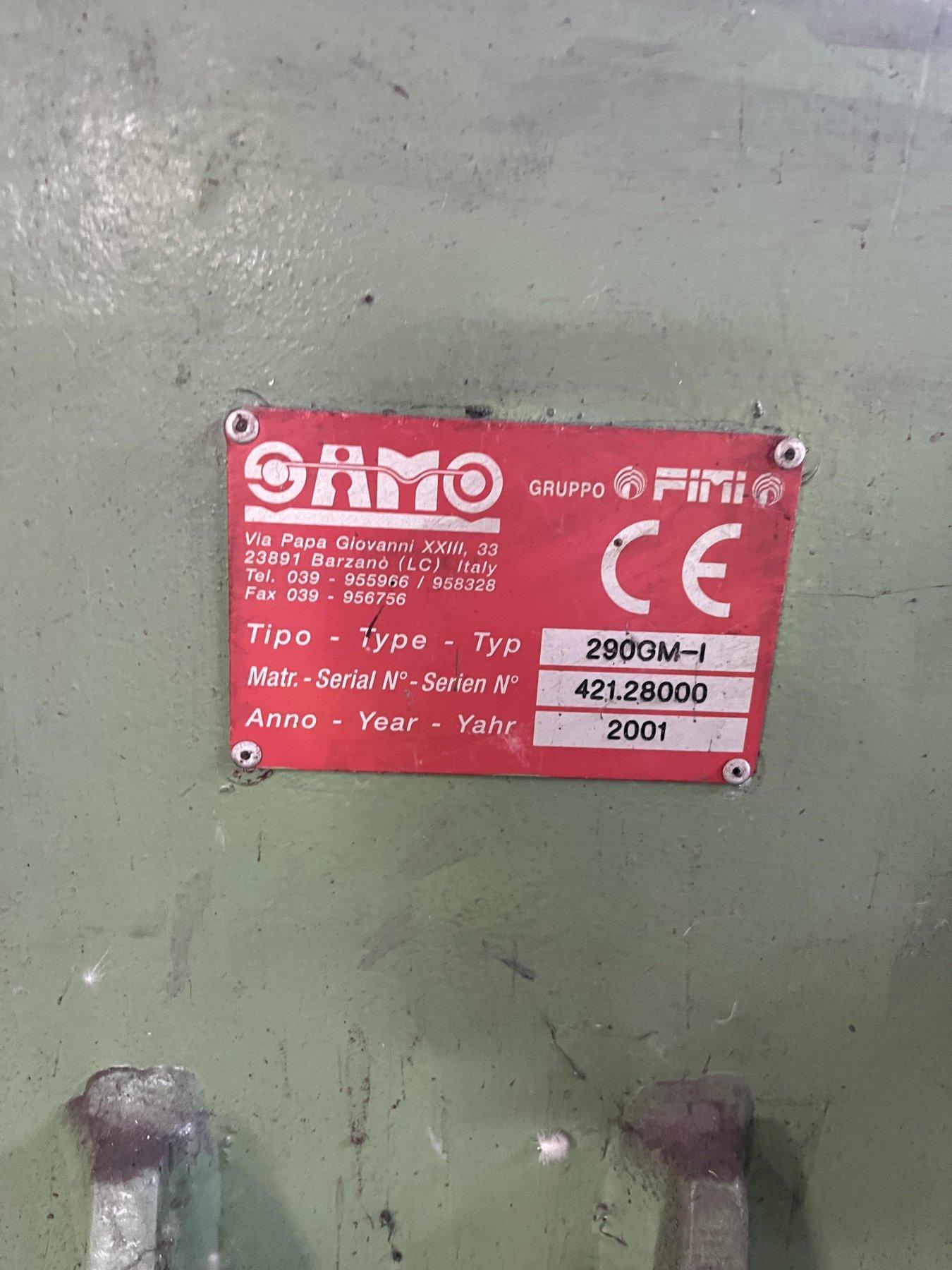

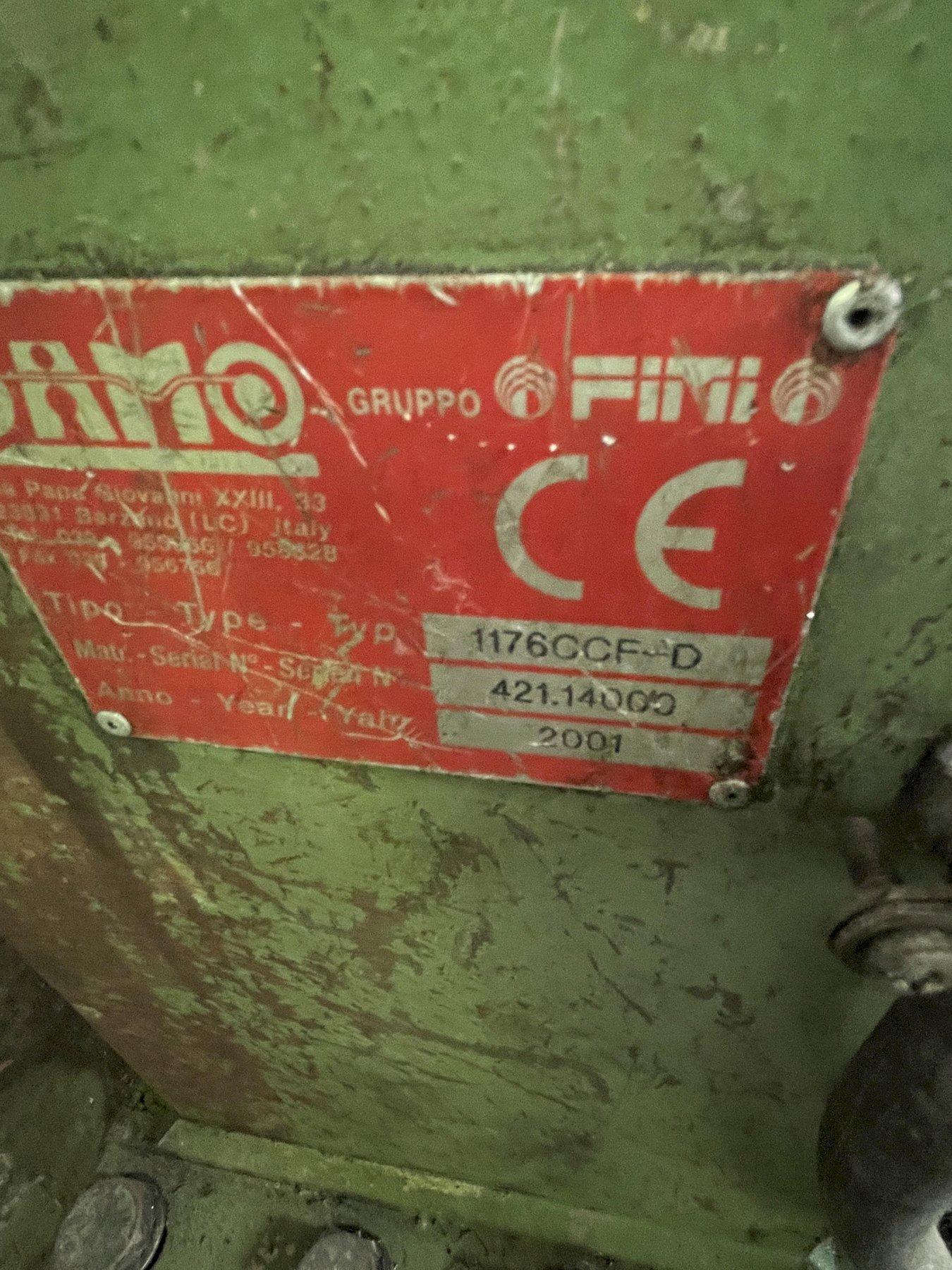

SAMO 1000 SLITTING LINE WITH PROMEC PACKAGING

The SAMO slitting line, 2001 processes material up to 1,000 mm wide and is integrated with the PROMEC packaging line, 2019. (N19).

Installed electrical power is 451 kW; Area 365 sq Meters

Capabilities include:

• Coil Inside Diameters: 400 / 500
• Coil Outside Diameter: 1,500 mm
• Strip width:
• Entry: 350–1,040 mm
• Exit: 20–1,020 mm
• Thickness: 0.3–3.0 mm
• Line Direction; Left to Right

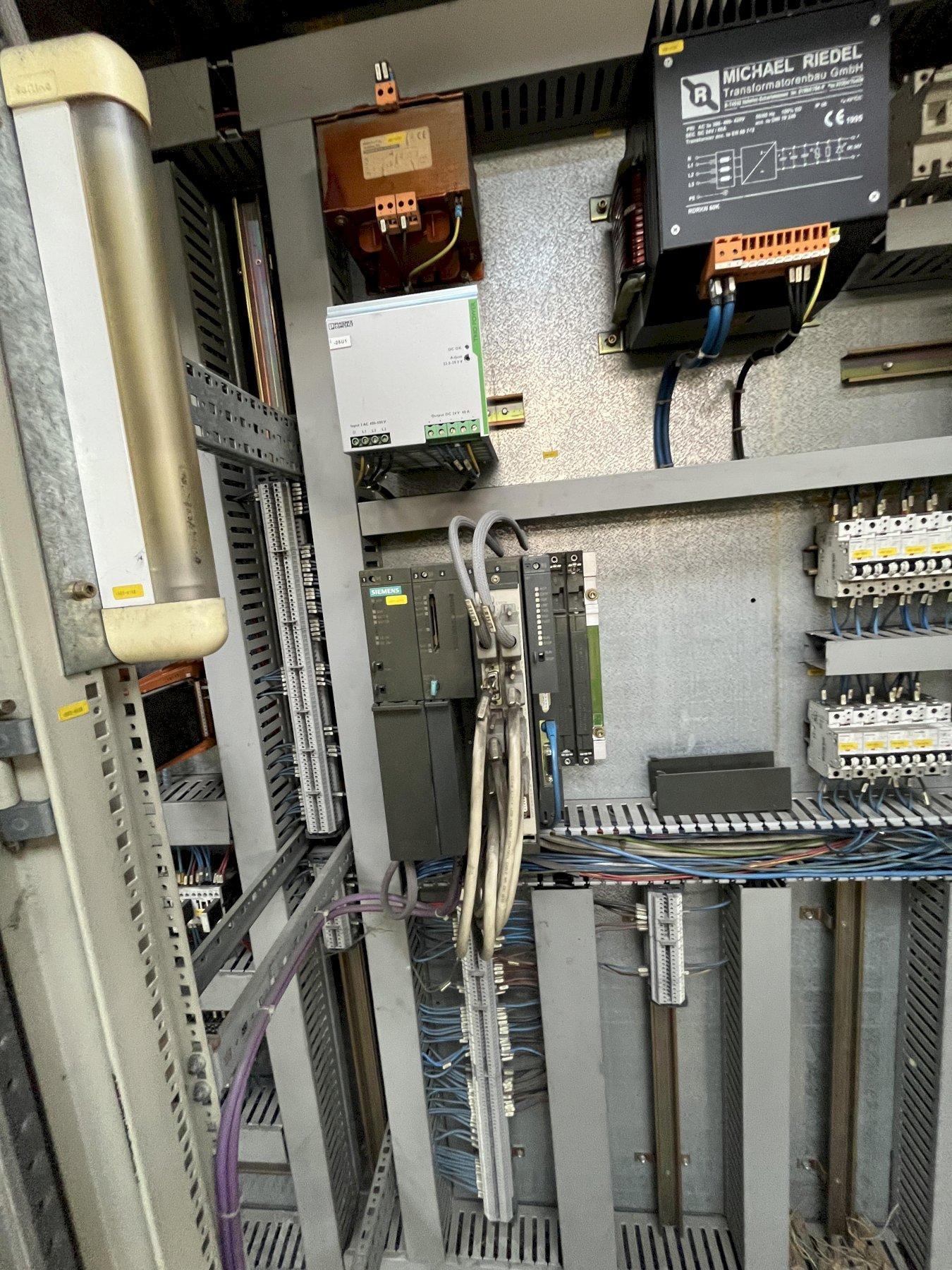

• Siemens S7-400 PLC

Installation includes:

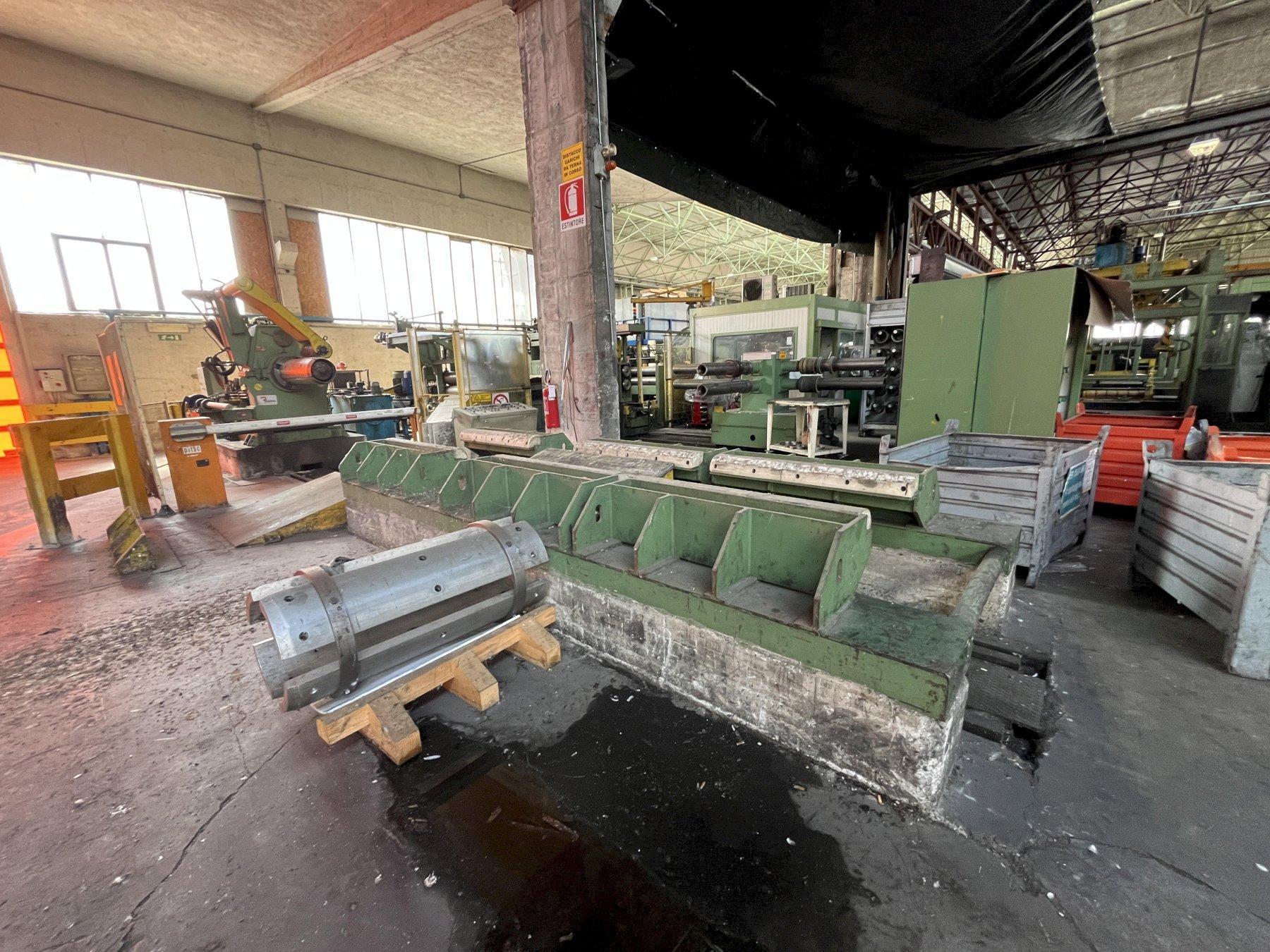

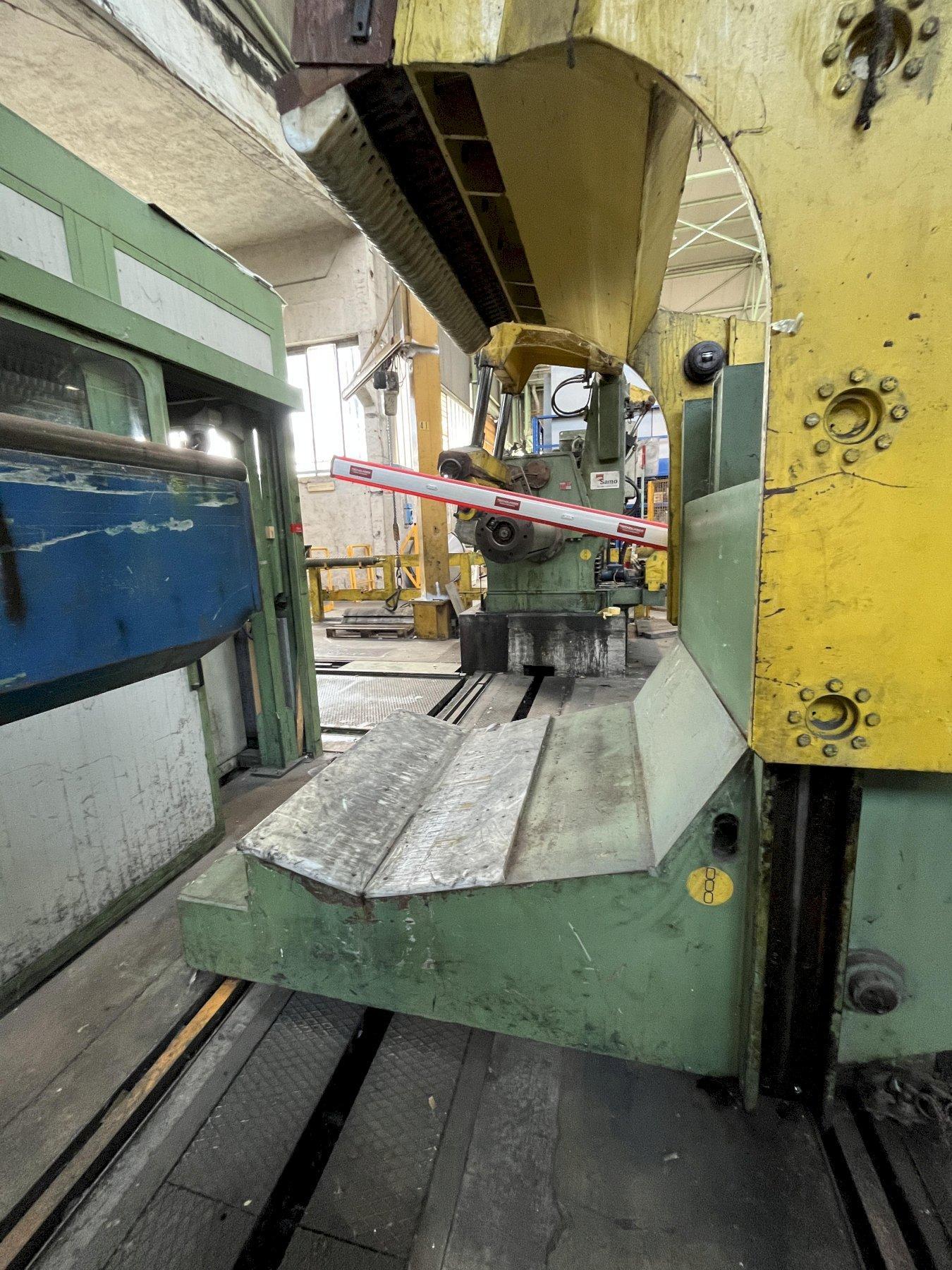

Coil Stand- 3 Coils

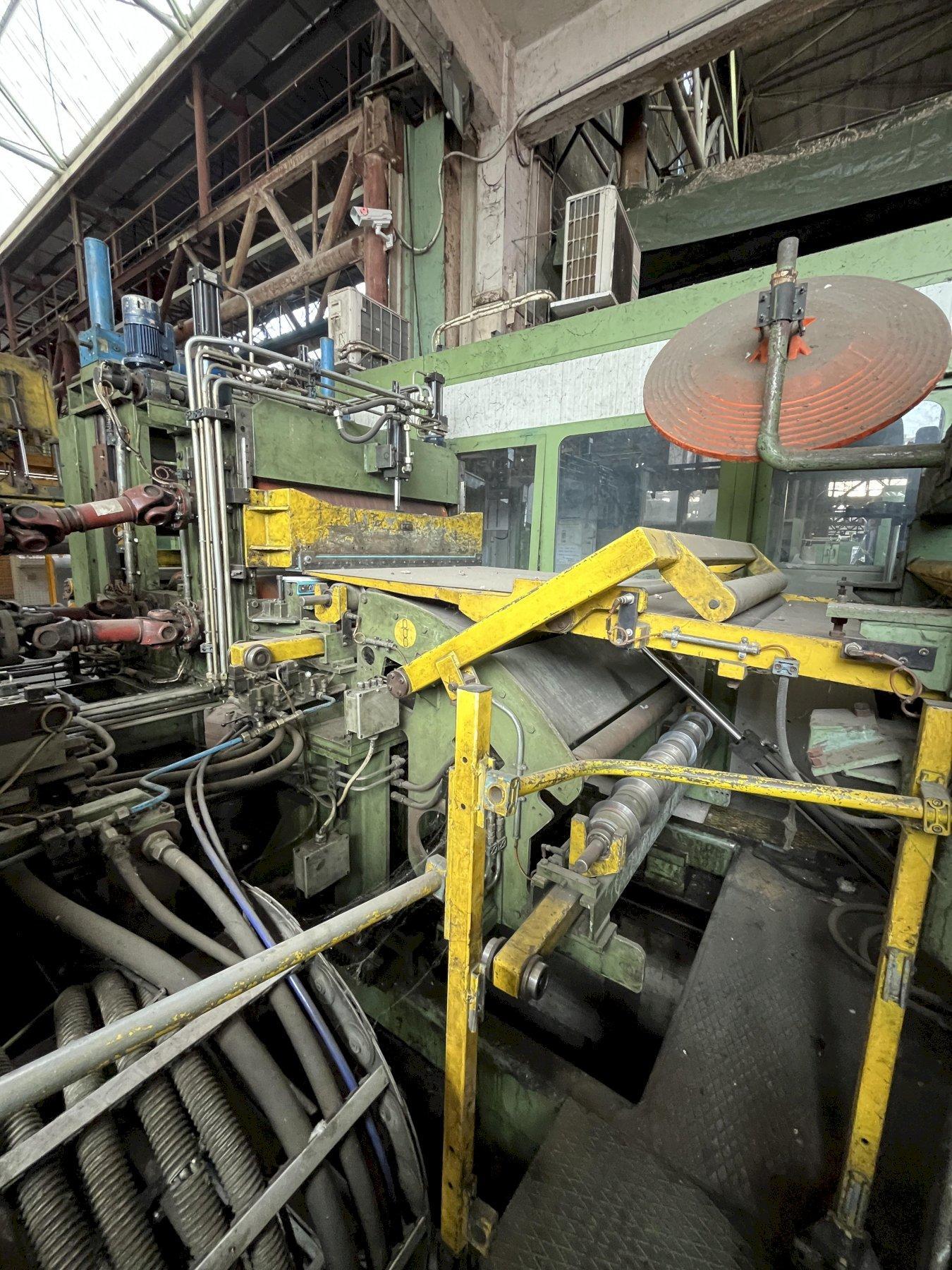

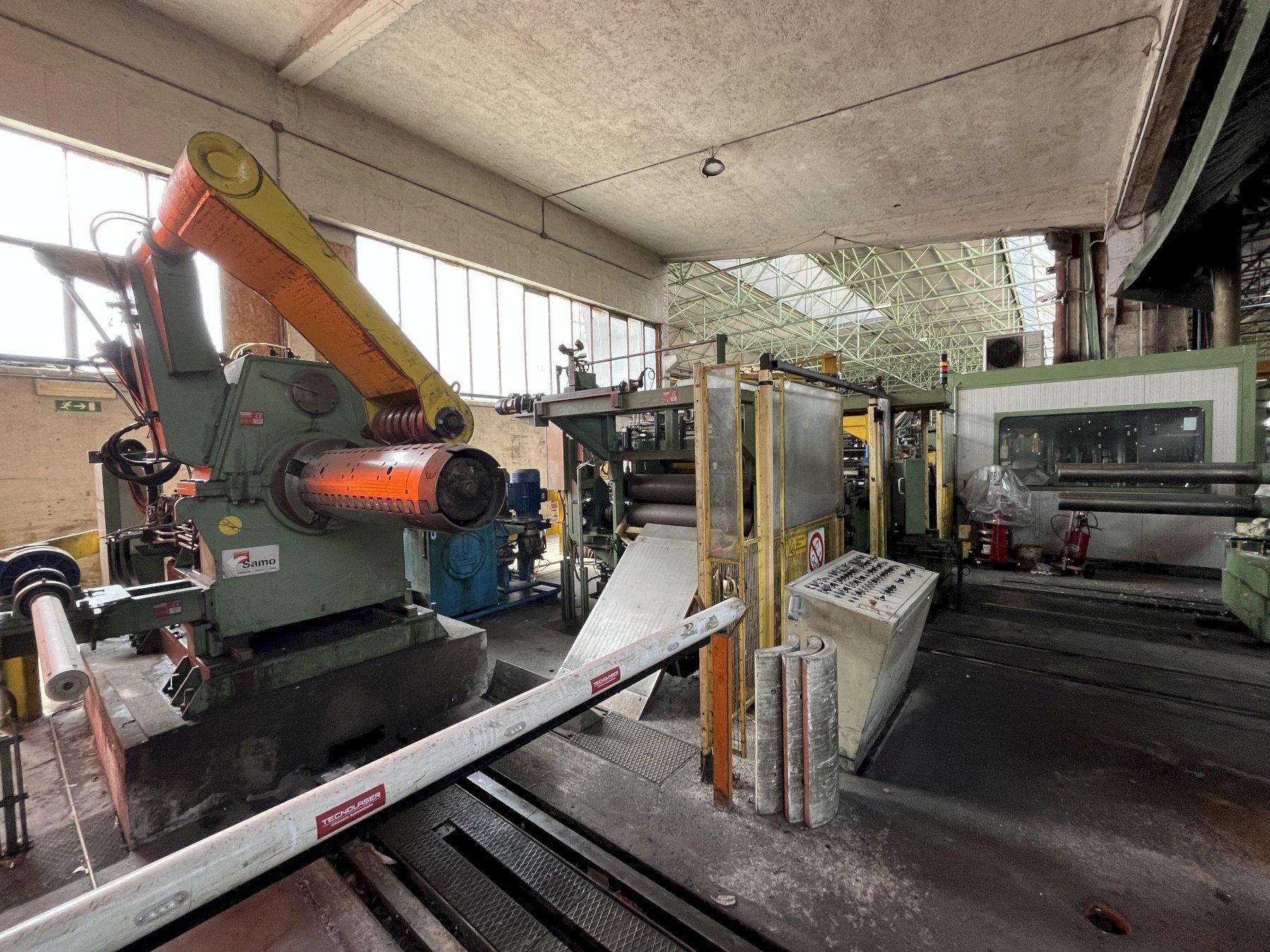

Uncoiler with Snub Control Roll

          Motor: 26.5 Kw DC

Edge Control, EMG

Paper Winder

Peeler Table

Pinch Roll

Crop Shear

Vollmer Contact Thickness Gauge,

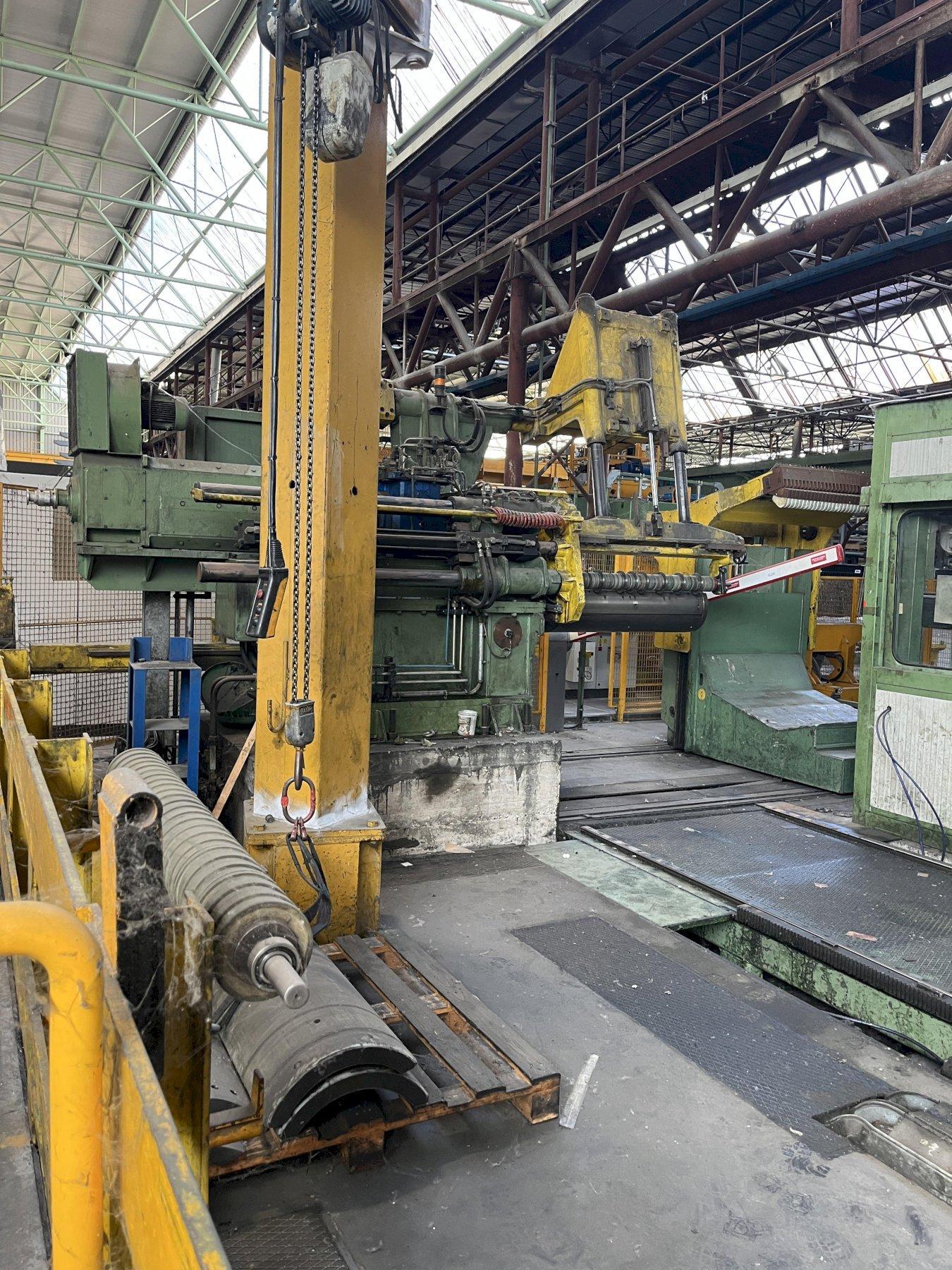

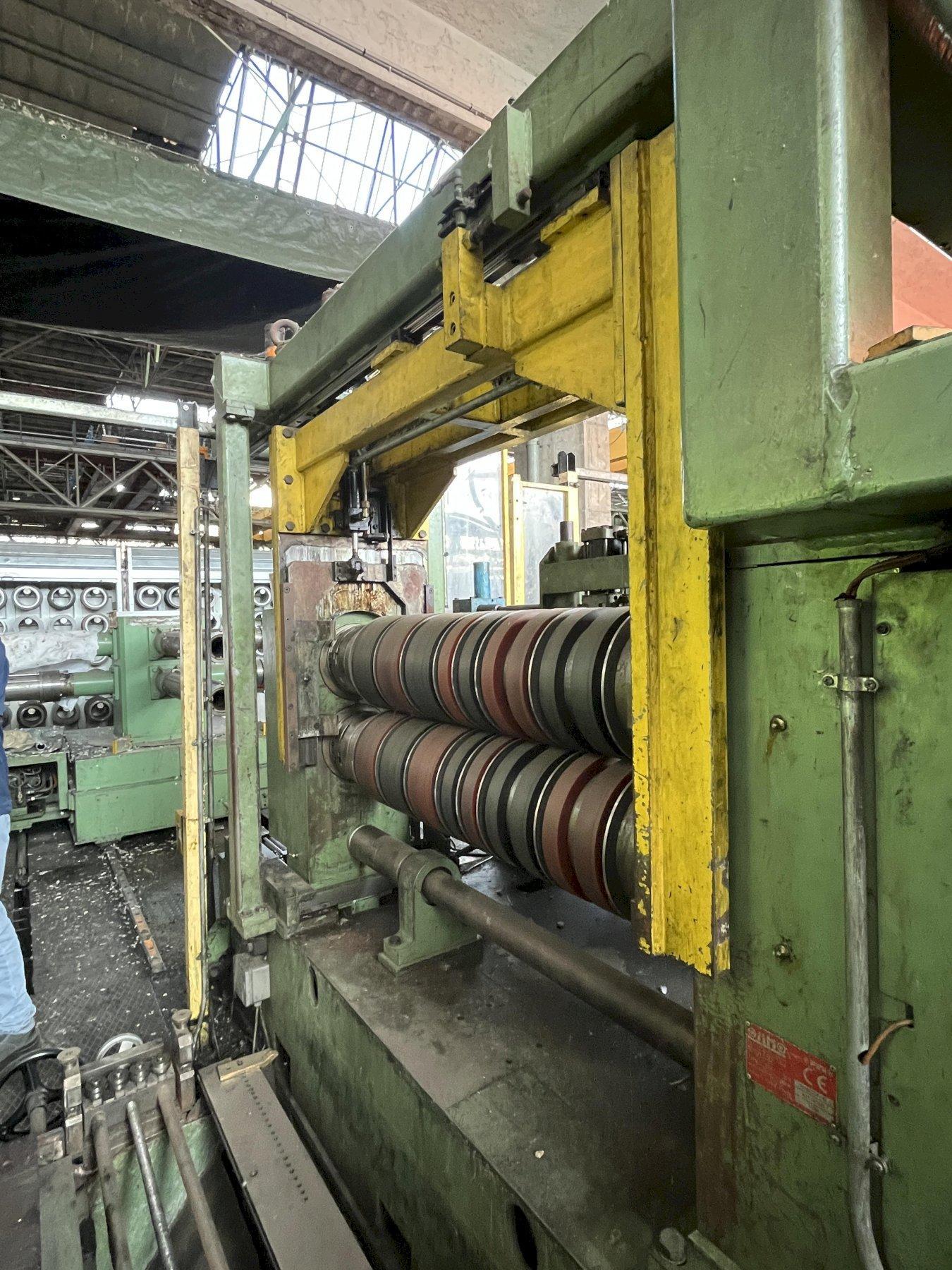

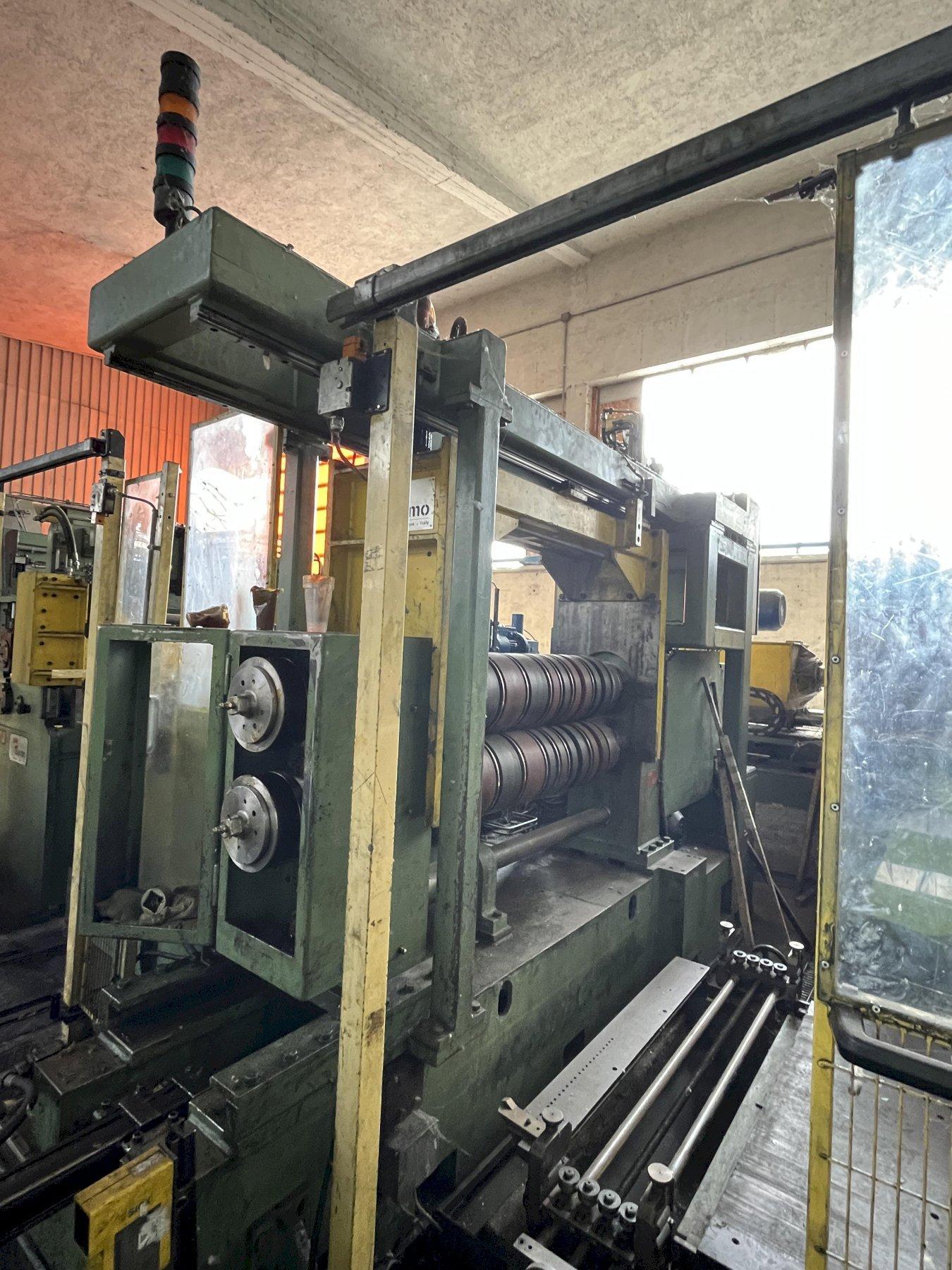

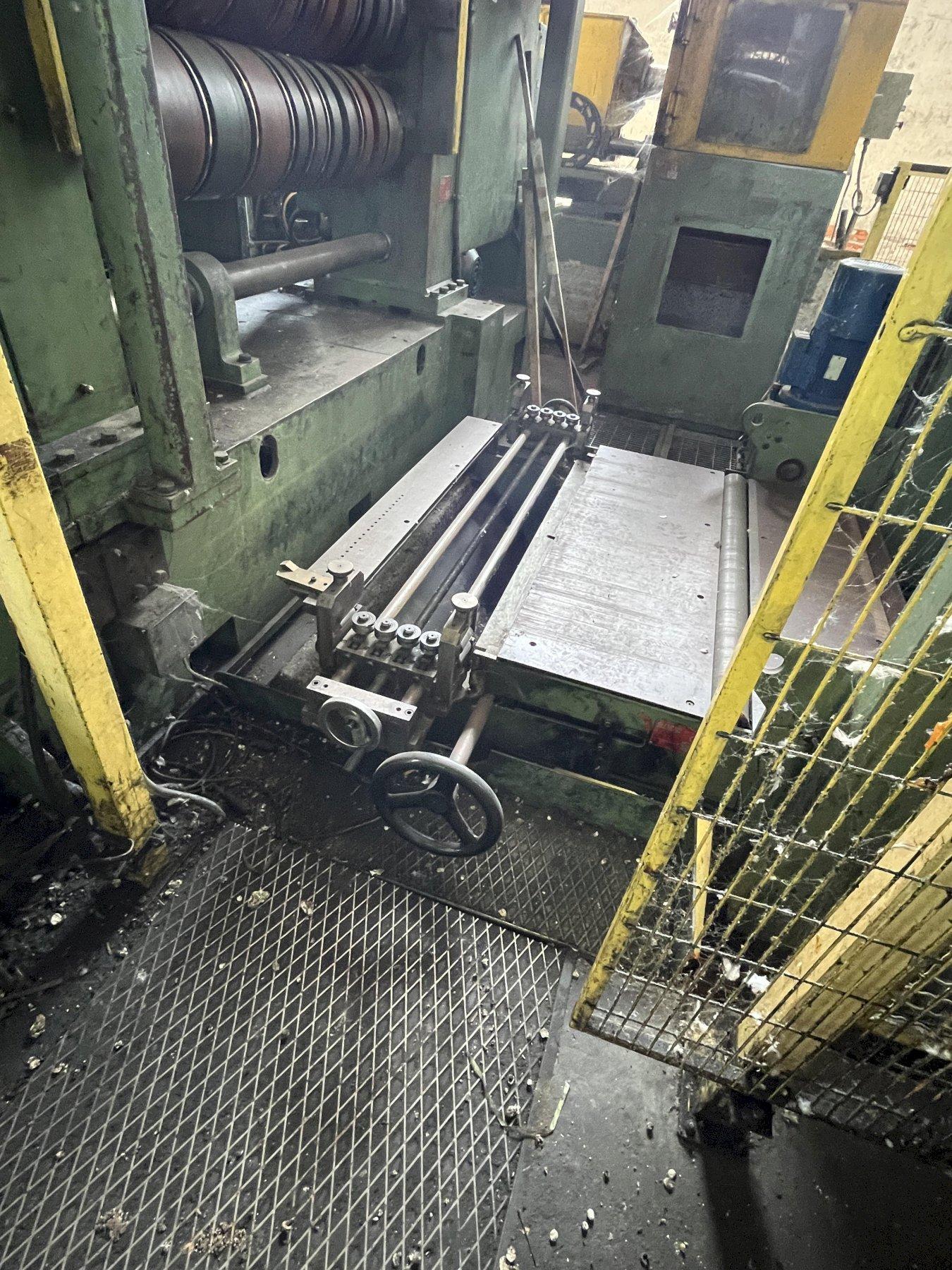

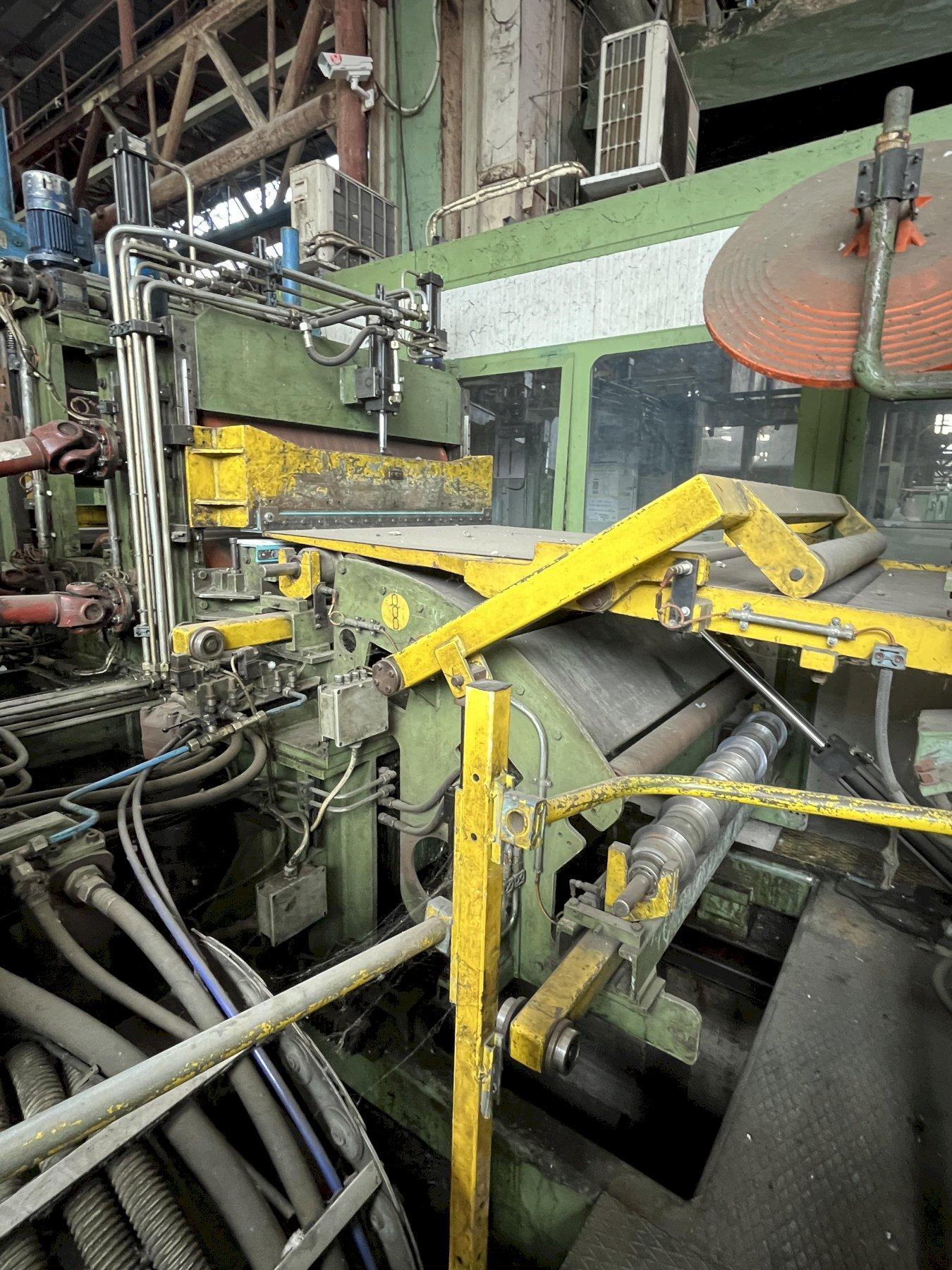

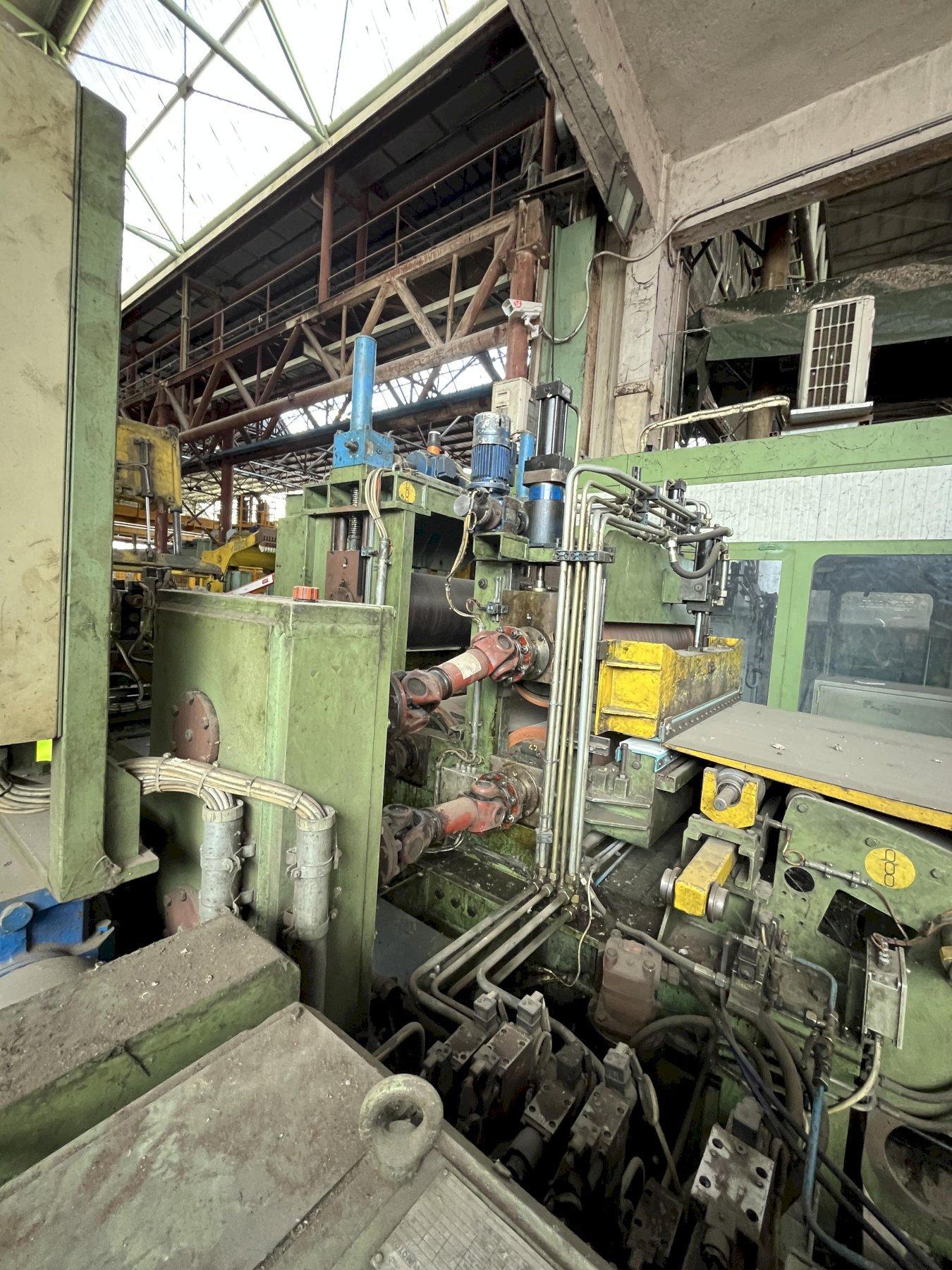

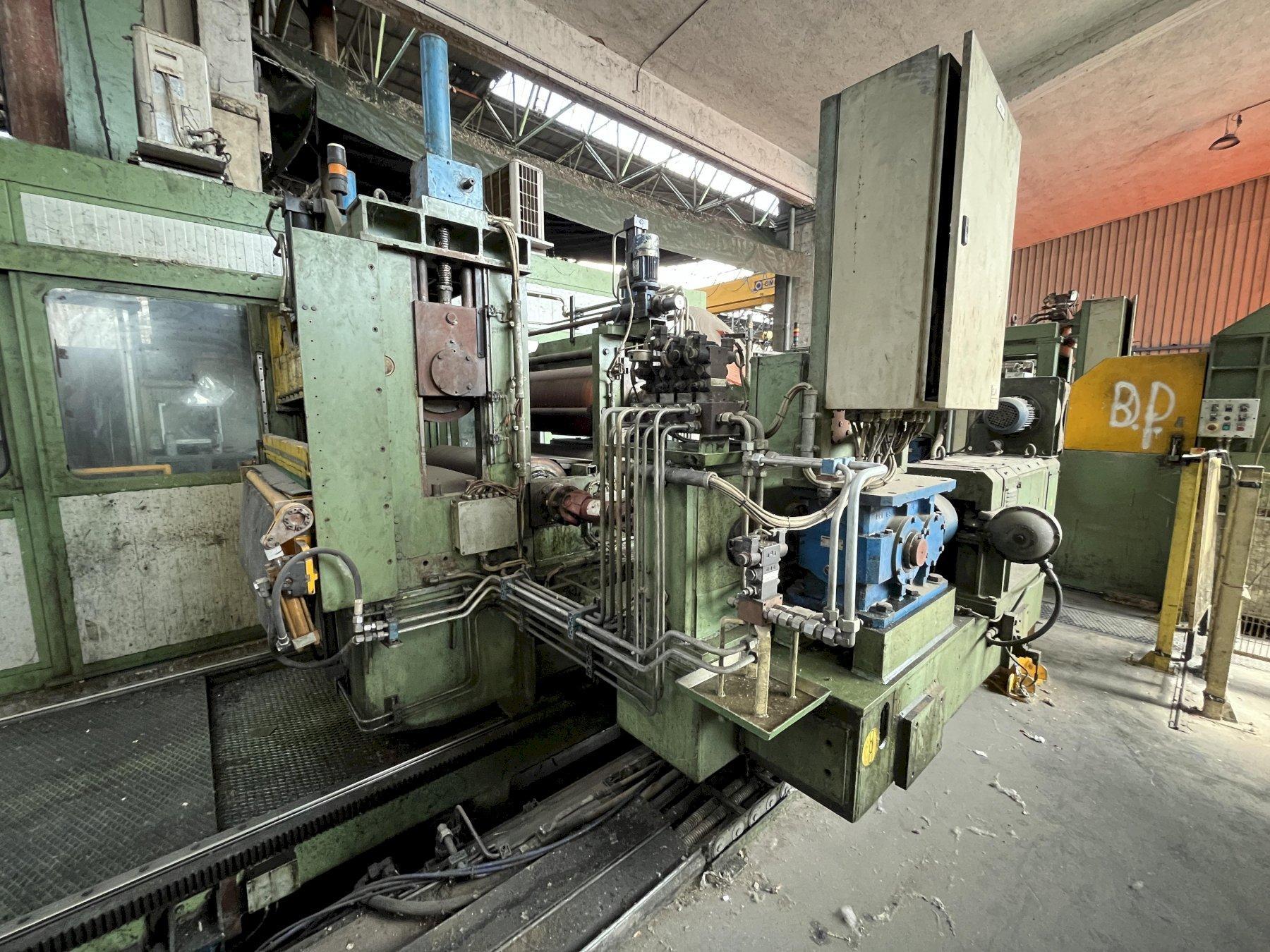

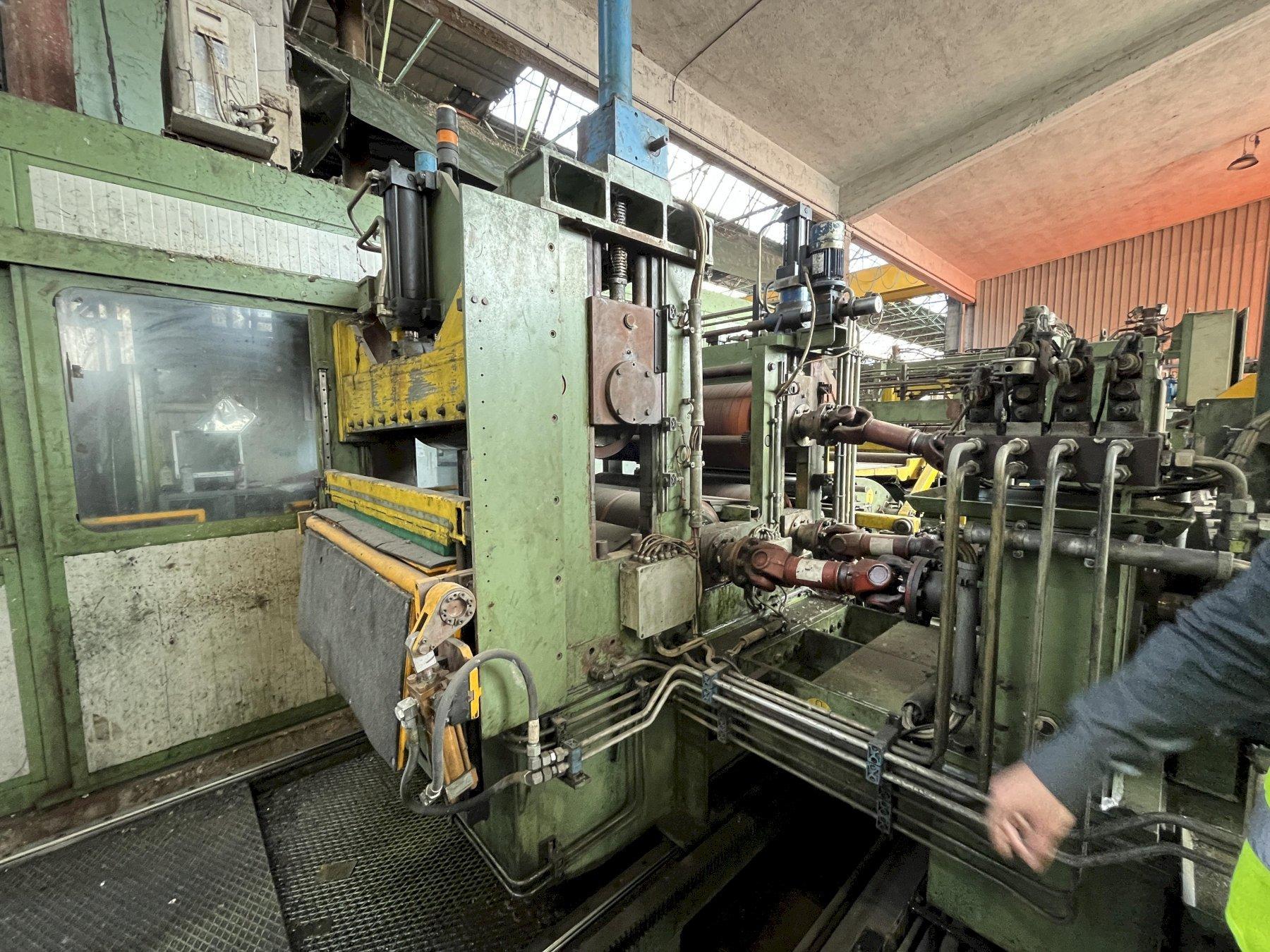

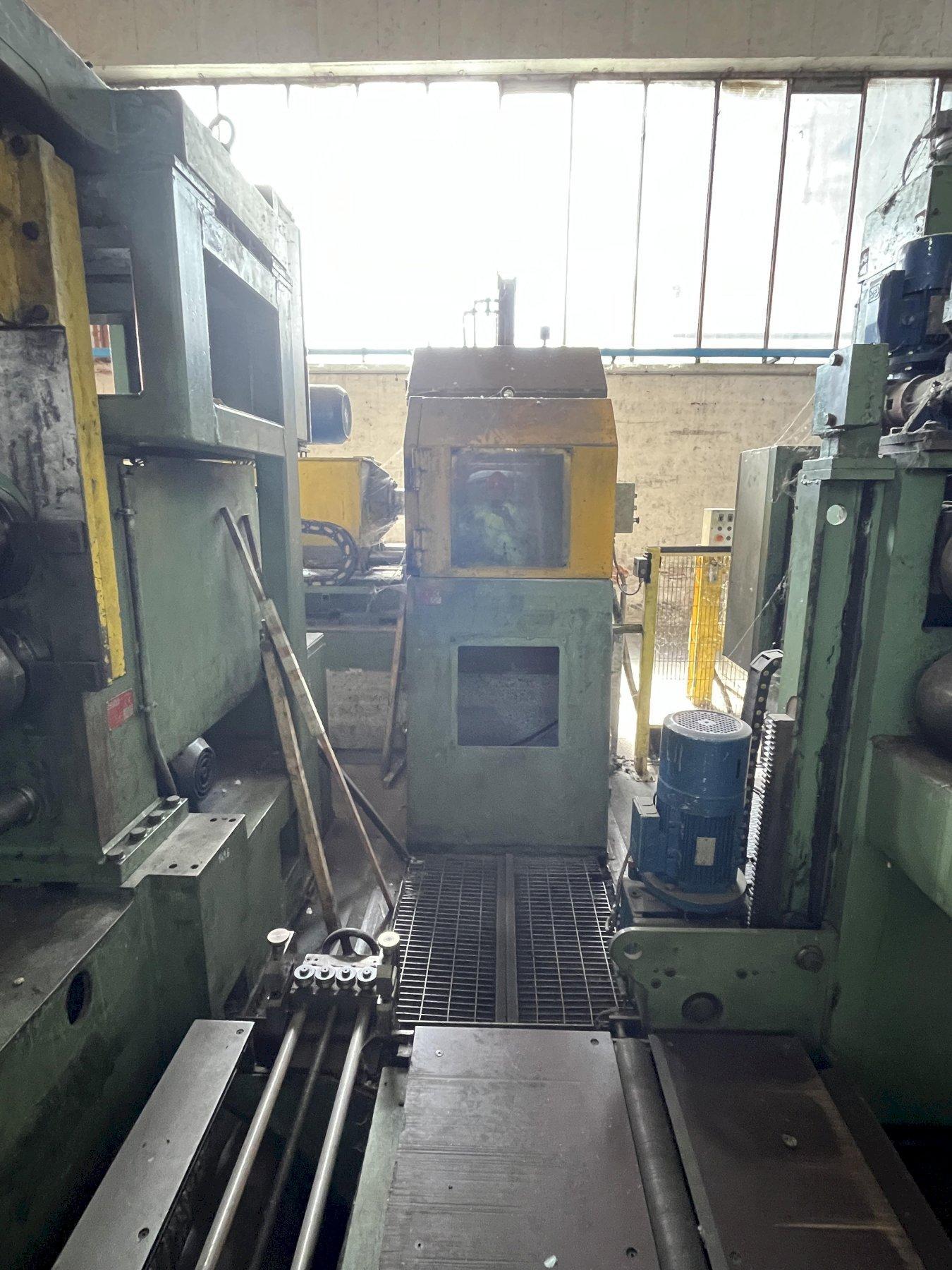

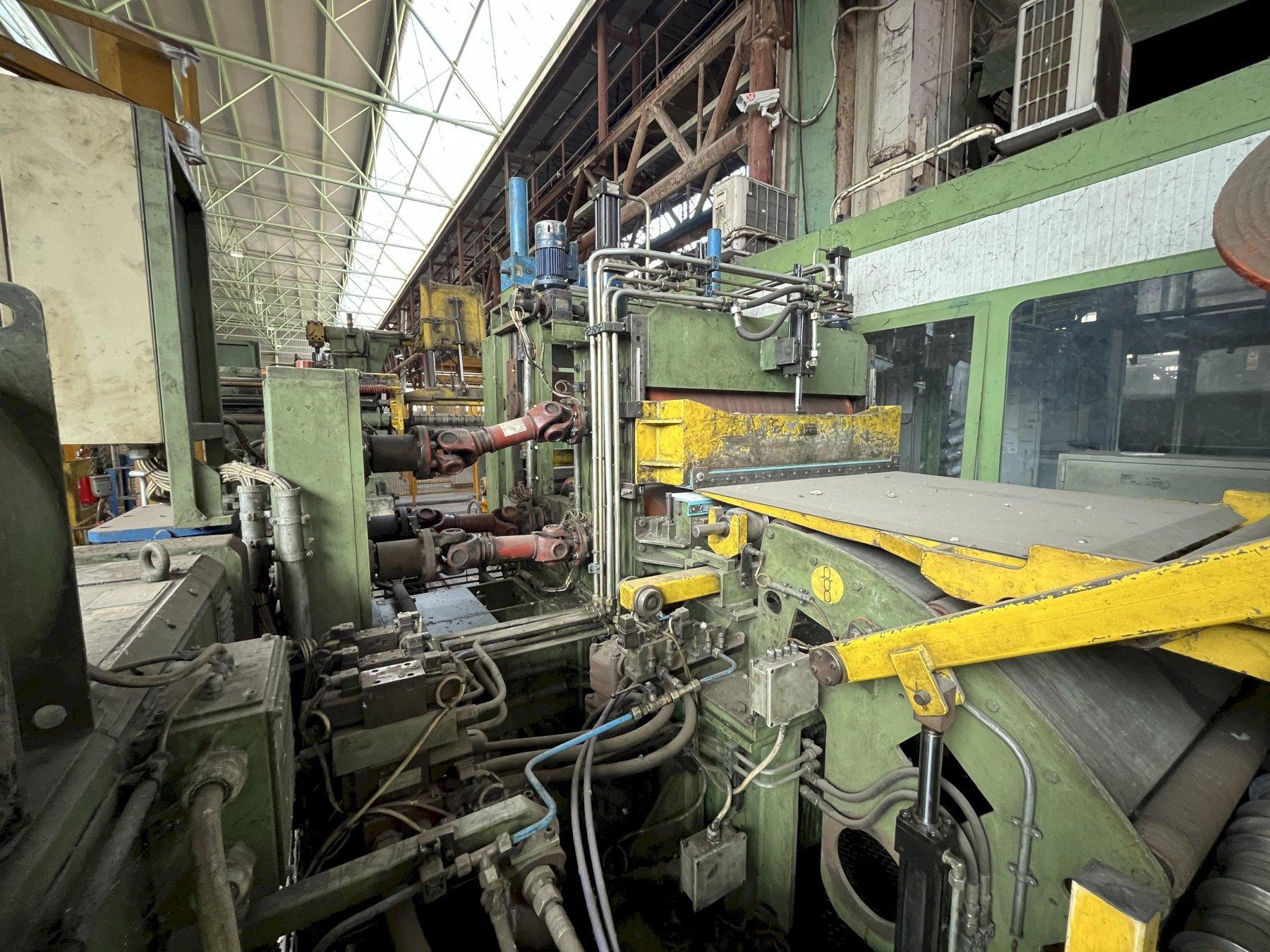

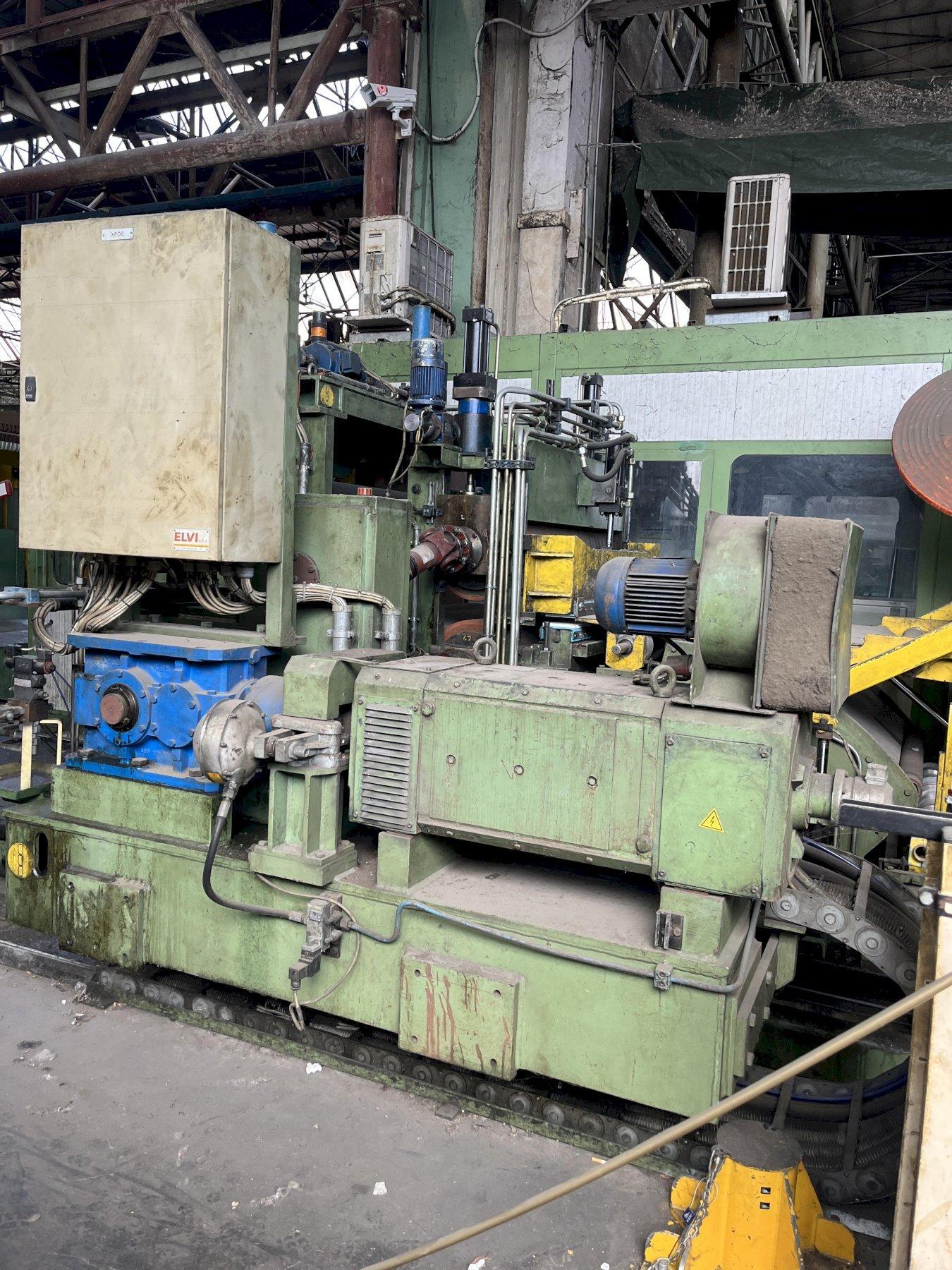

 Slitter Head

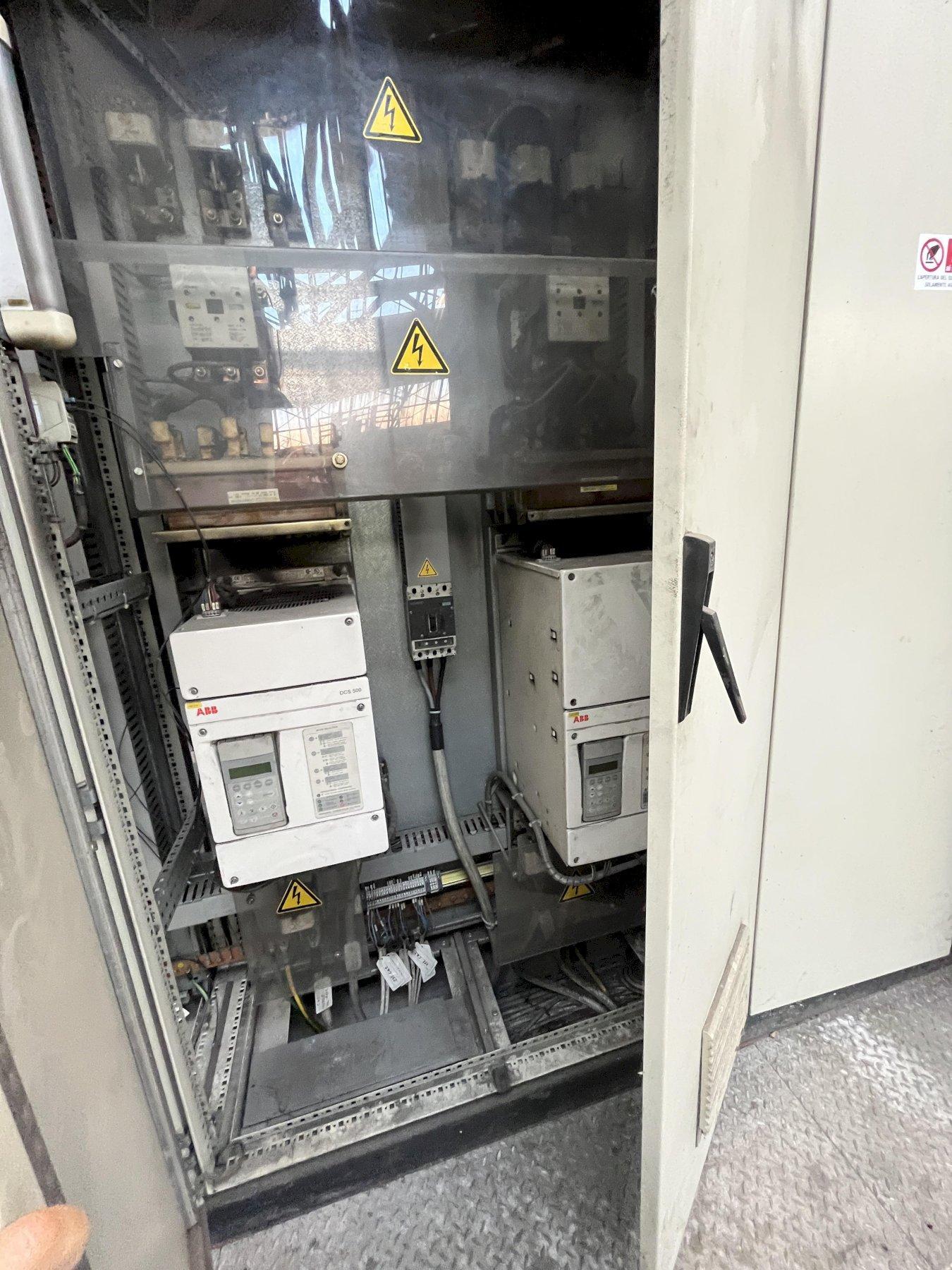

Motor Drive: 72Kw, DC 400 Volt

Edge guiding with automatic adjustment before slitting head

Horizontal guide rolls before slitting head

Shaft OD: 180mm

Slitting Knives OD: 280mm

Scrap winder

Edge guiding at exit

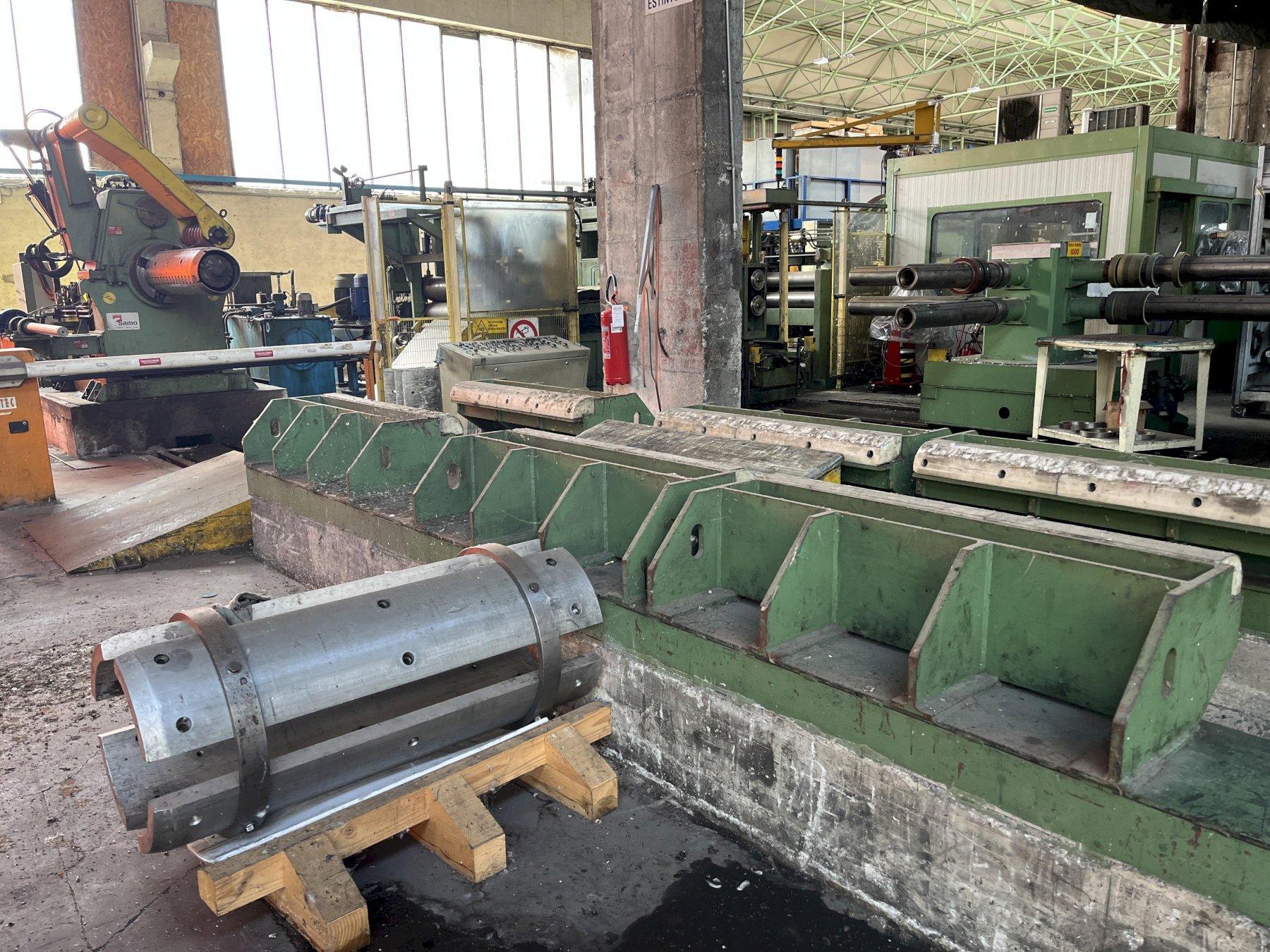

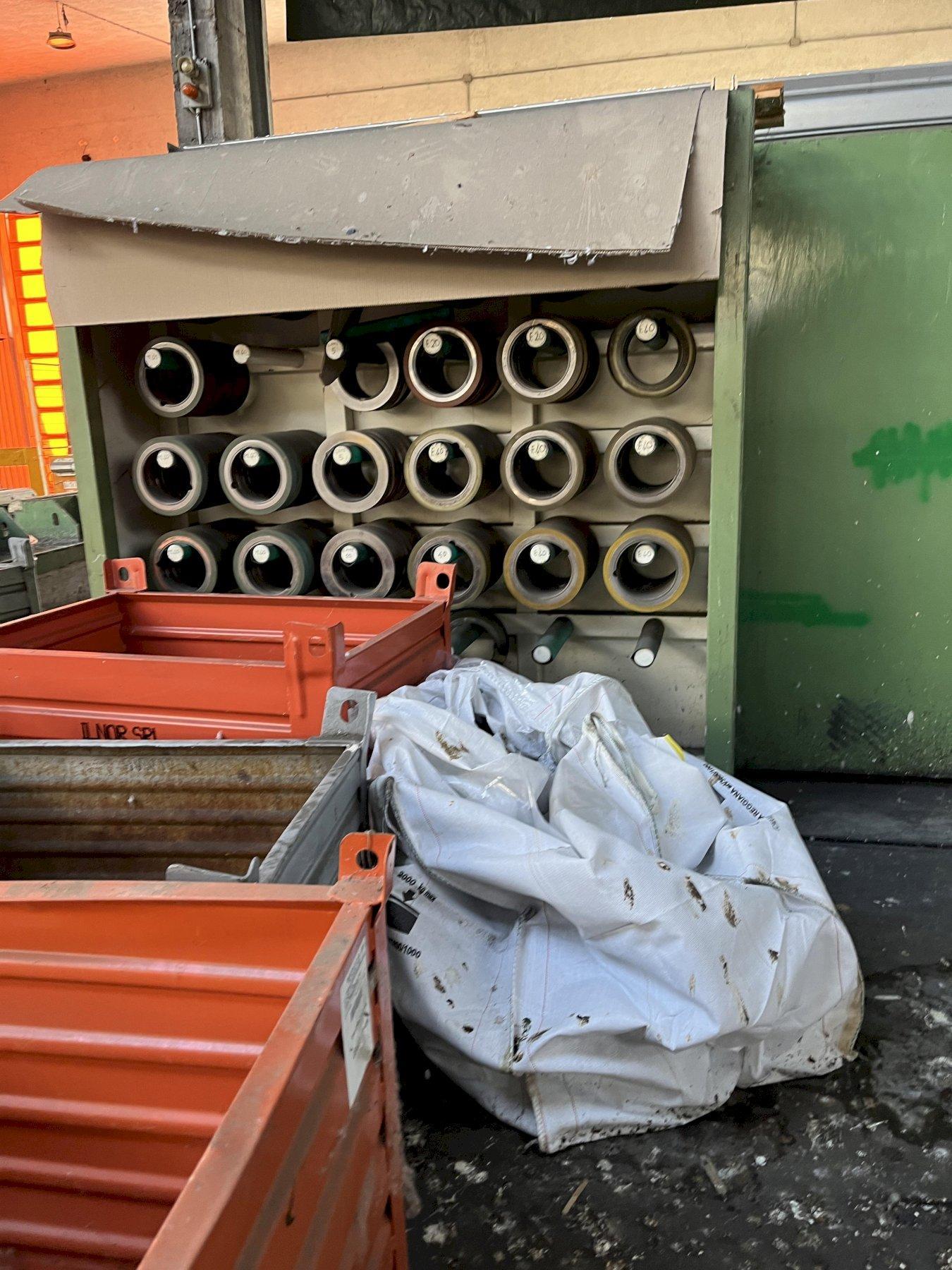

Rotating tooling turnstile on rails – 4 sided with 2 arms per side

Pit with Pit Car

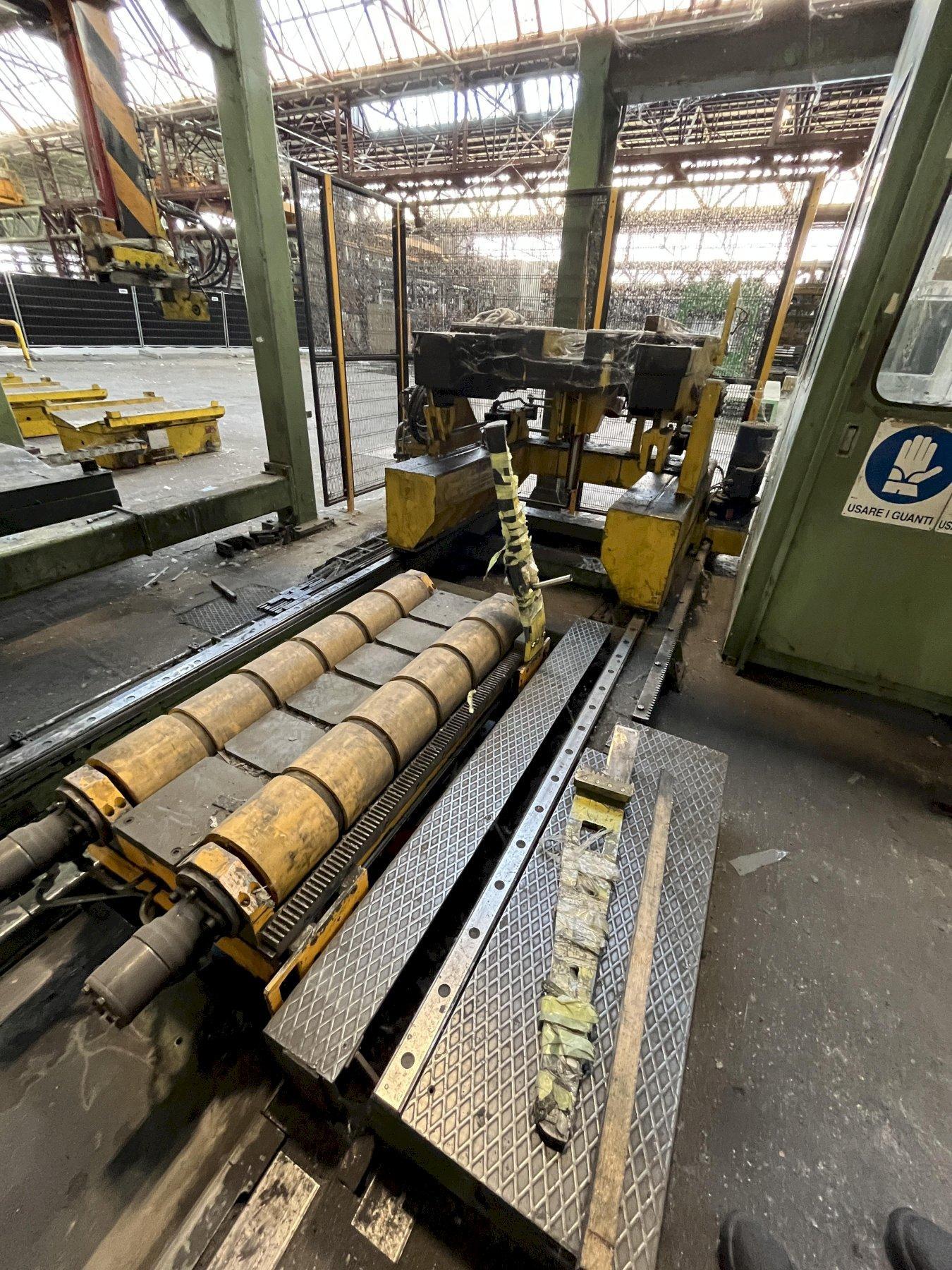

Tension stand:

Tension stand on linear rails

Material table with horizontal and vertical position

4 horizontal guide rolls – pneumatically engaged

3 Roll Tension bridle roll system as material break

Bridle roll motor: 138kW DC

Crop shear

Material table

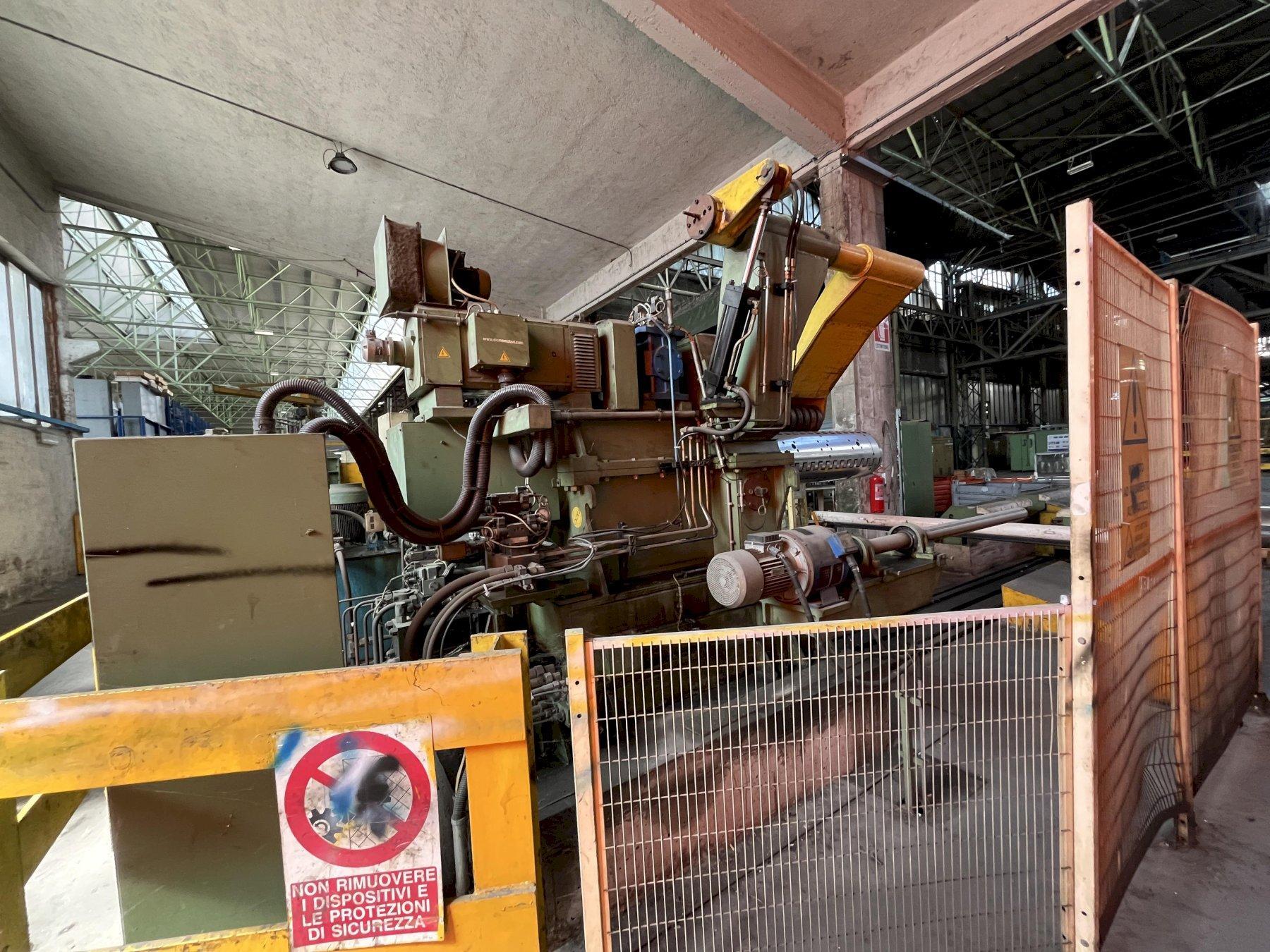

Re-coiler:

Full hydraulic drum

Overhead separator arm

Motor: 190kW DC drive

Ground level L-Shape coil car with overhead hold down arm

4 – arm coil turnstile with push-off arm

(5) Above ground Coil Cars

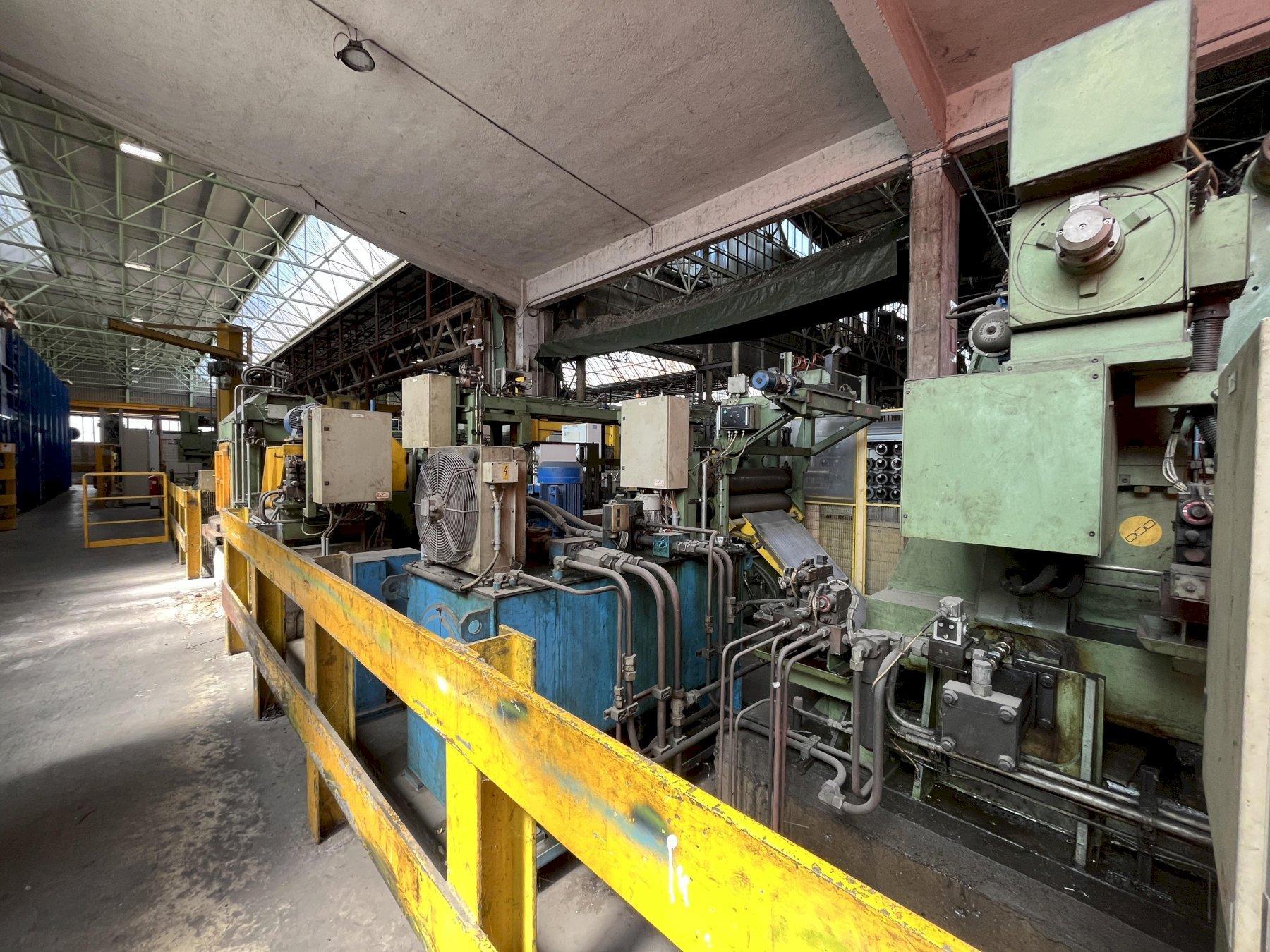

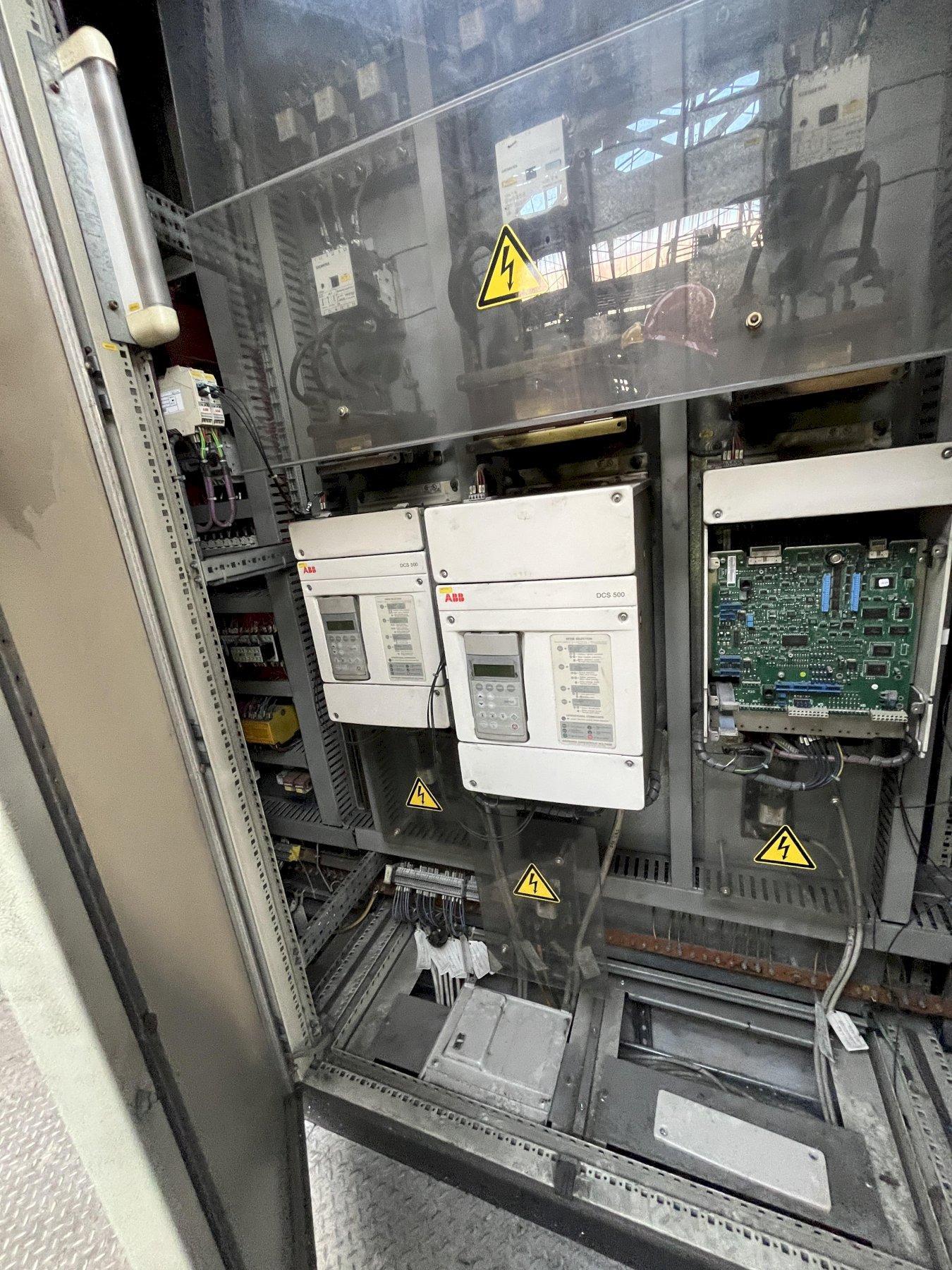

All hydraulics and Controls

PROMEC Packaging line: (See below)

Underground coil car in front of Turnstile

Scale

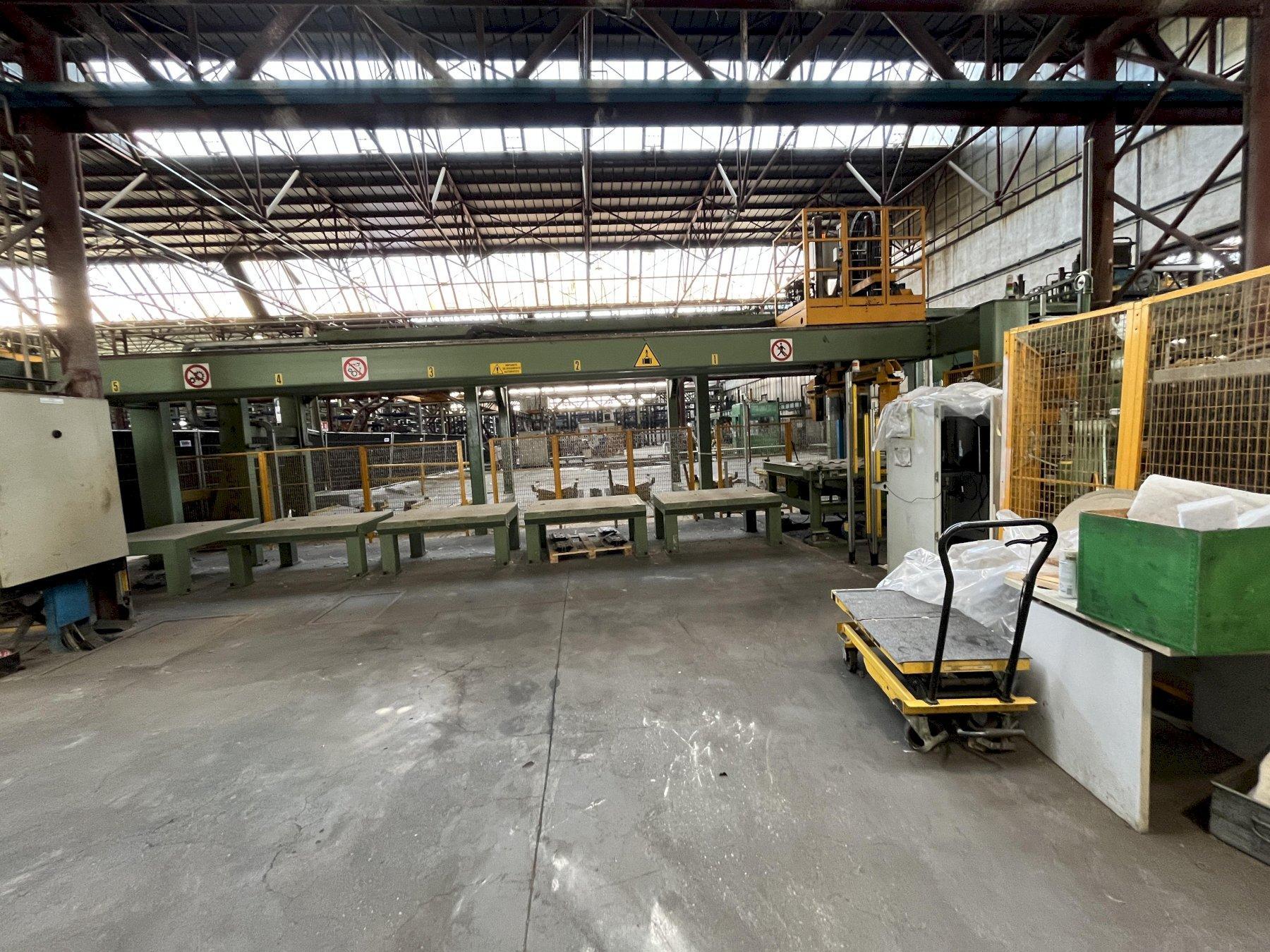

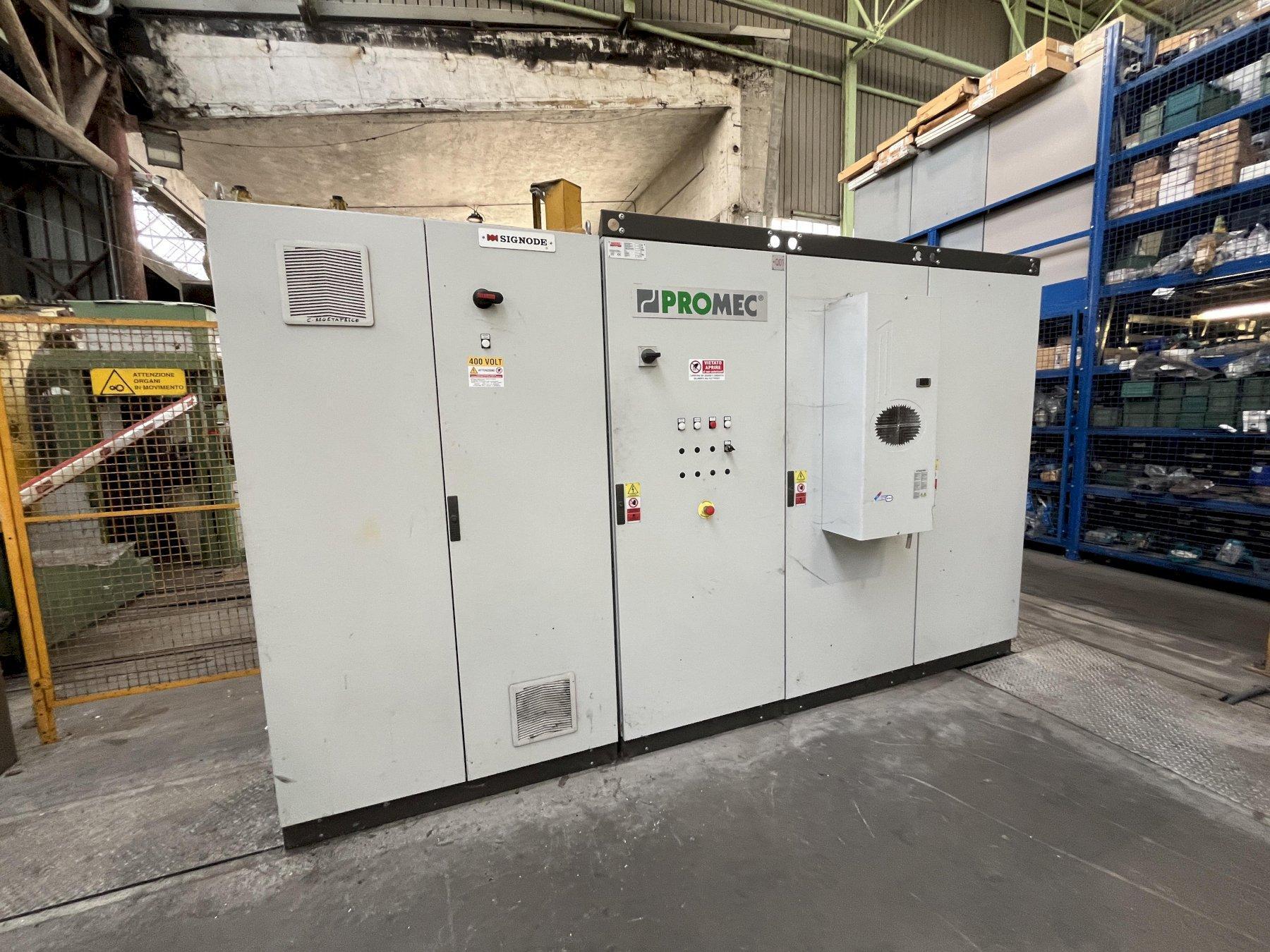

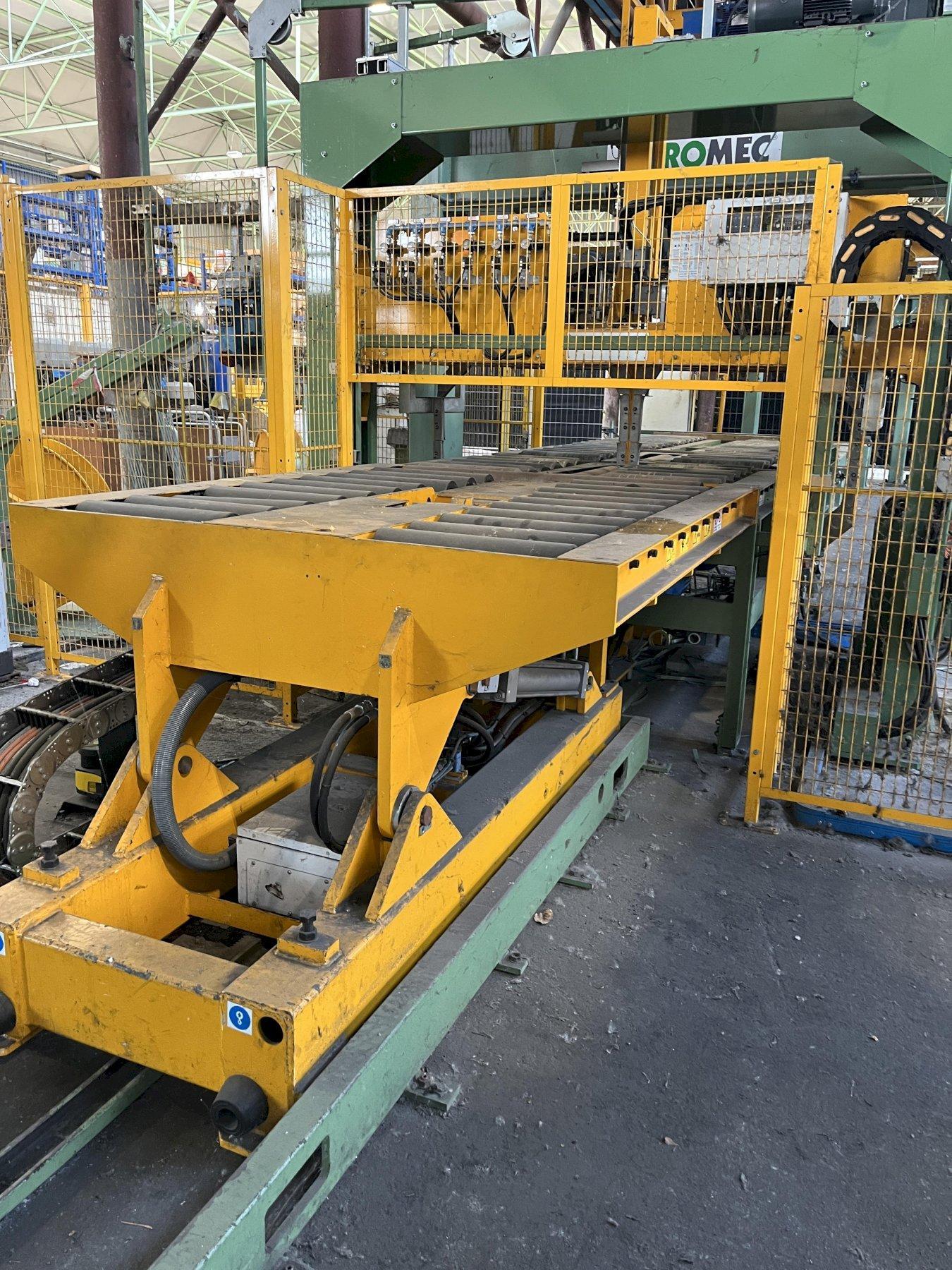

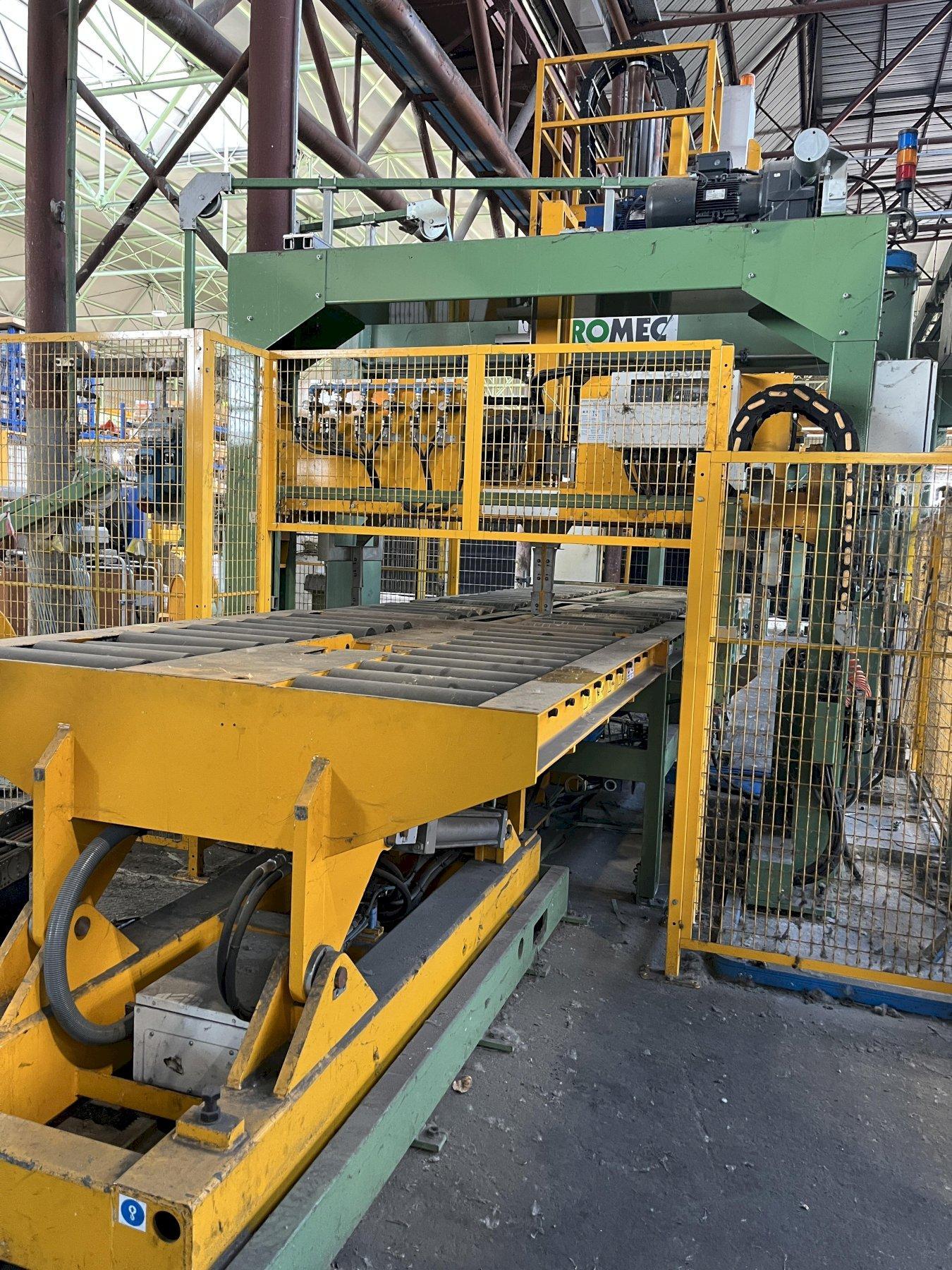

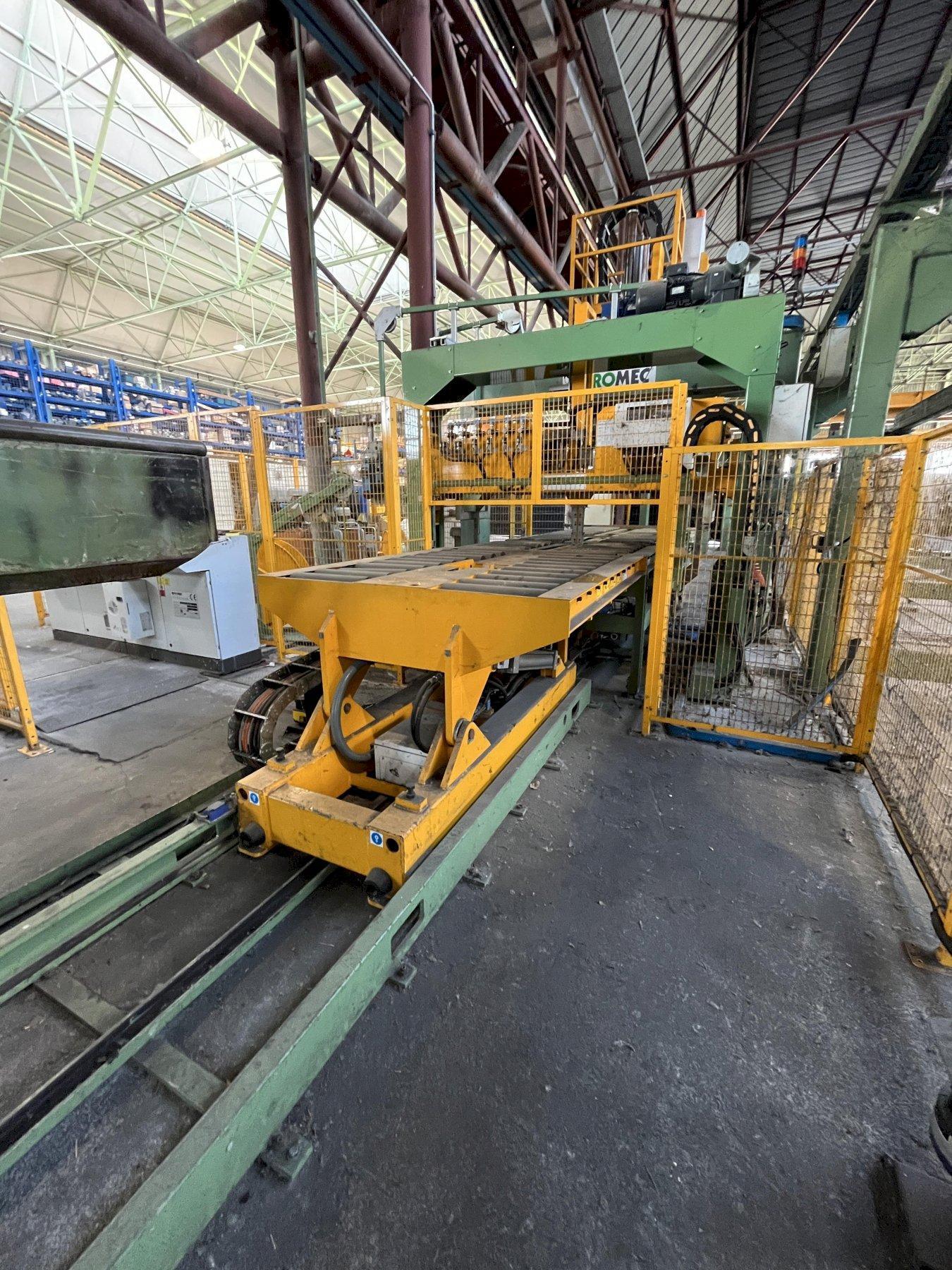

PROMEC PACKAGING LINE, 2019

Layout Code: N19

Automatic packaging system serving the SAMO slitting line.

Installed electrical power: 65 kW.

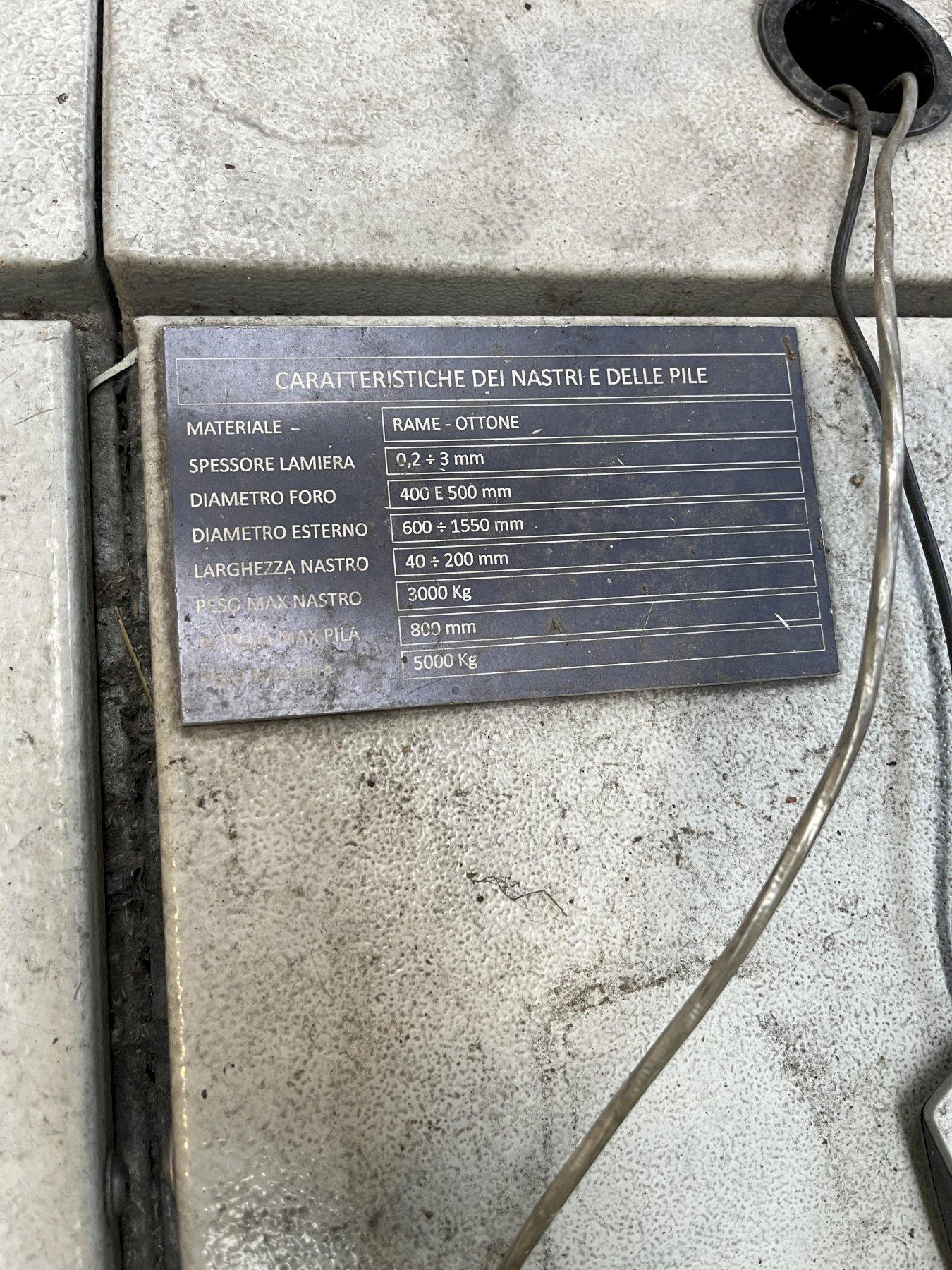

Processes strip widths from 40–200 mm and thicknesses from 0.2–3.0 mm.

Siemens S7-400 PLC

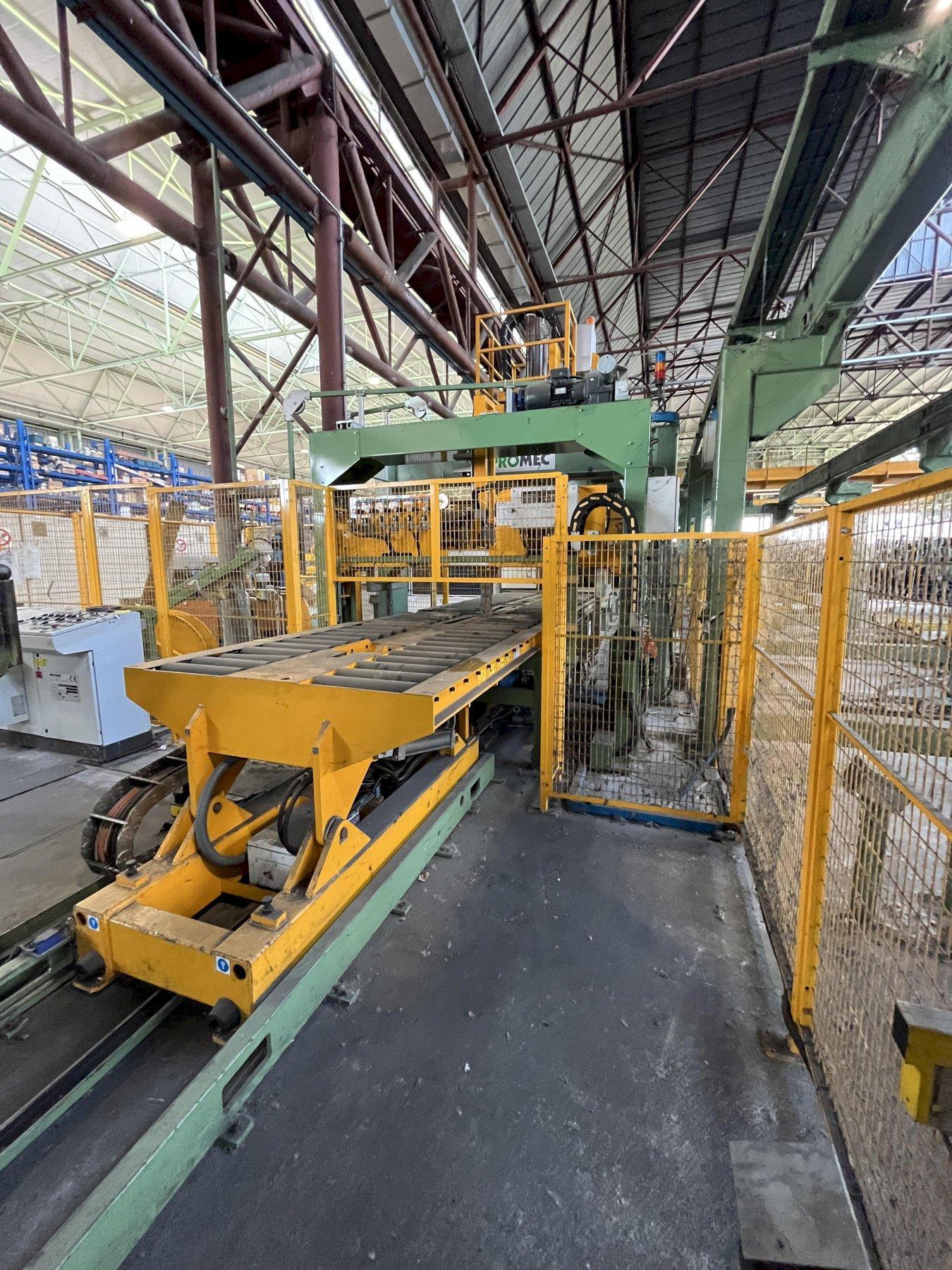

First table: Tilting table with mandrel for coil handling

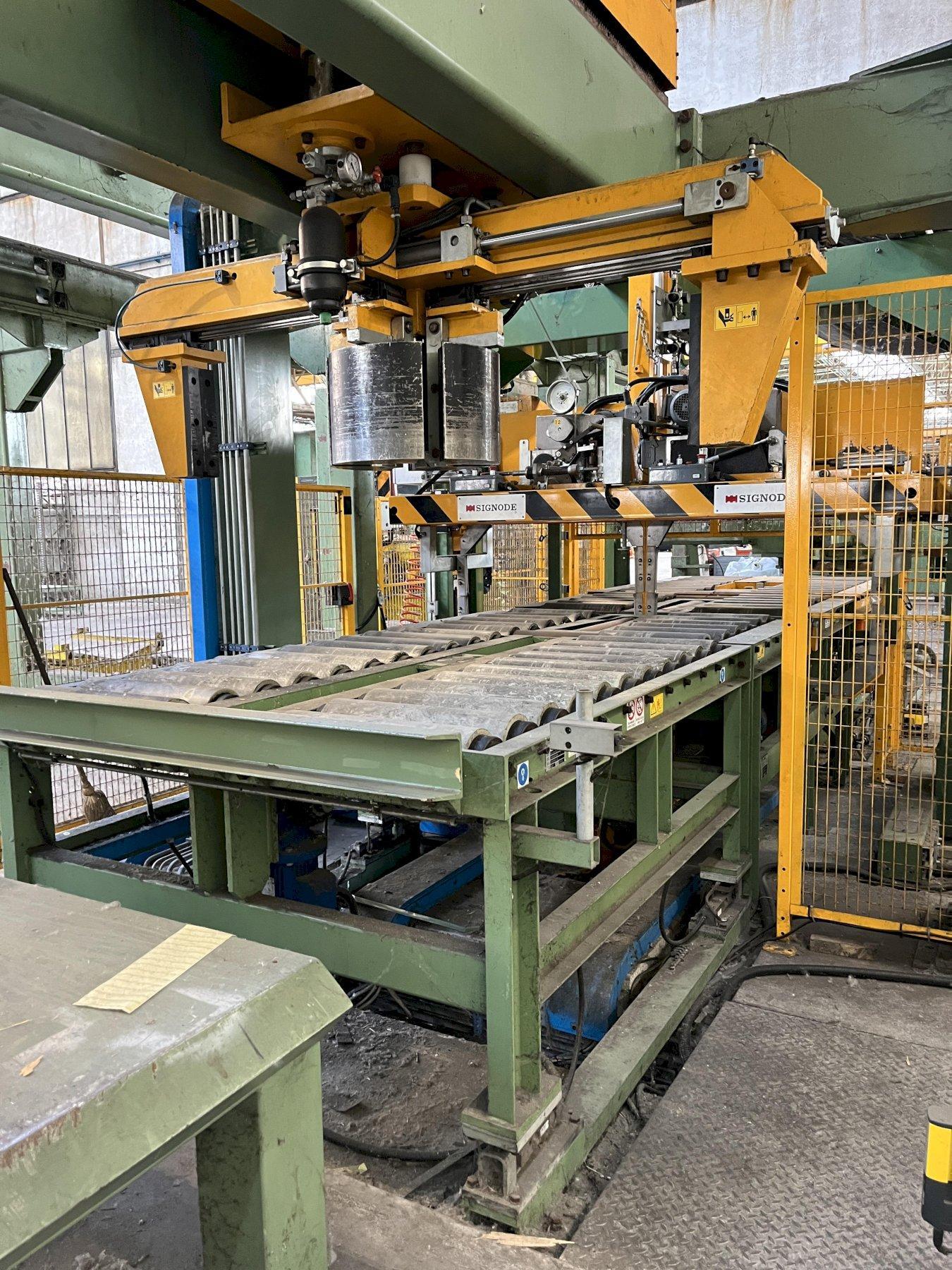

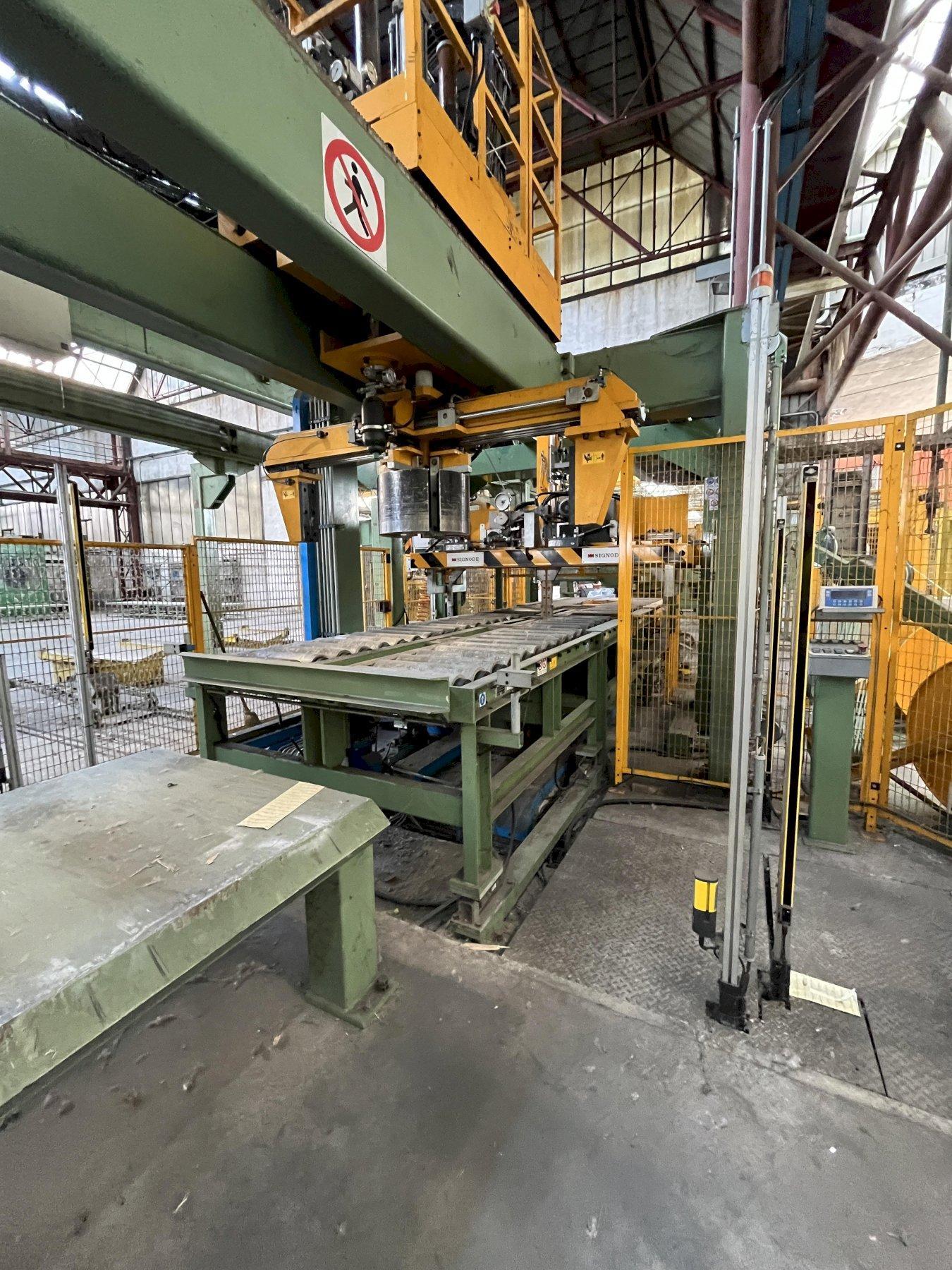

Signode Strapping Machine

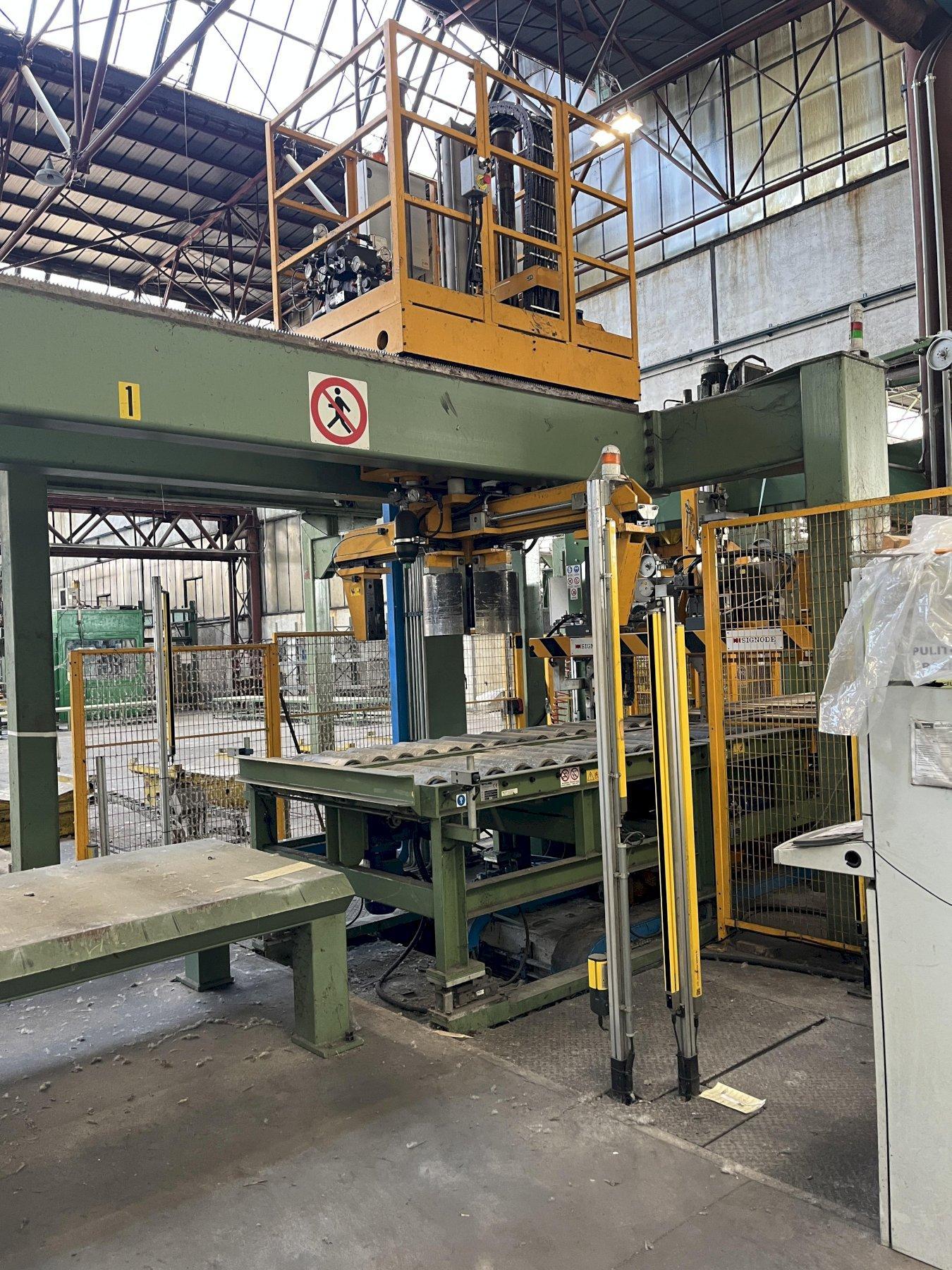

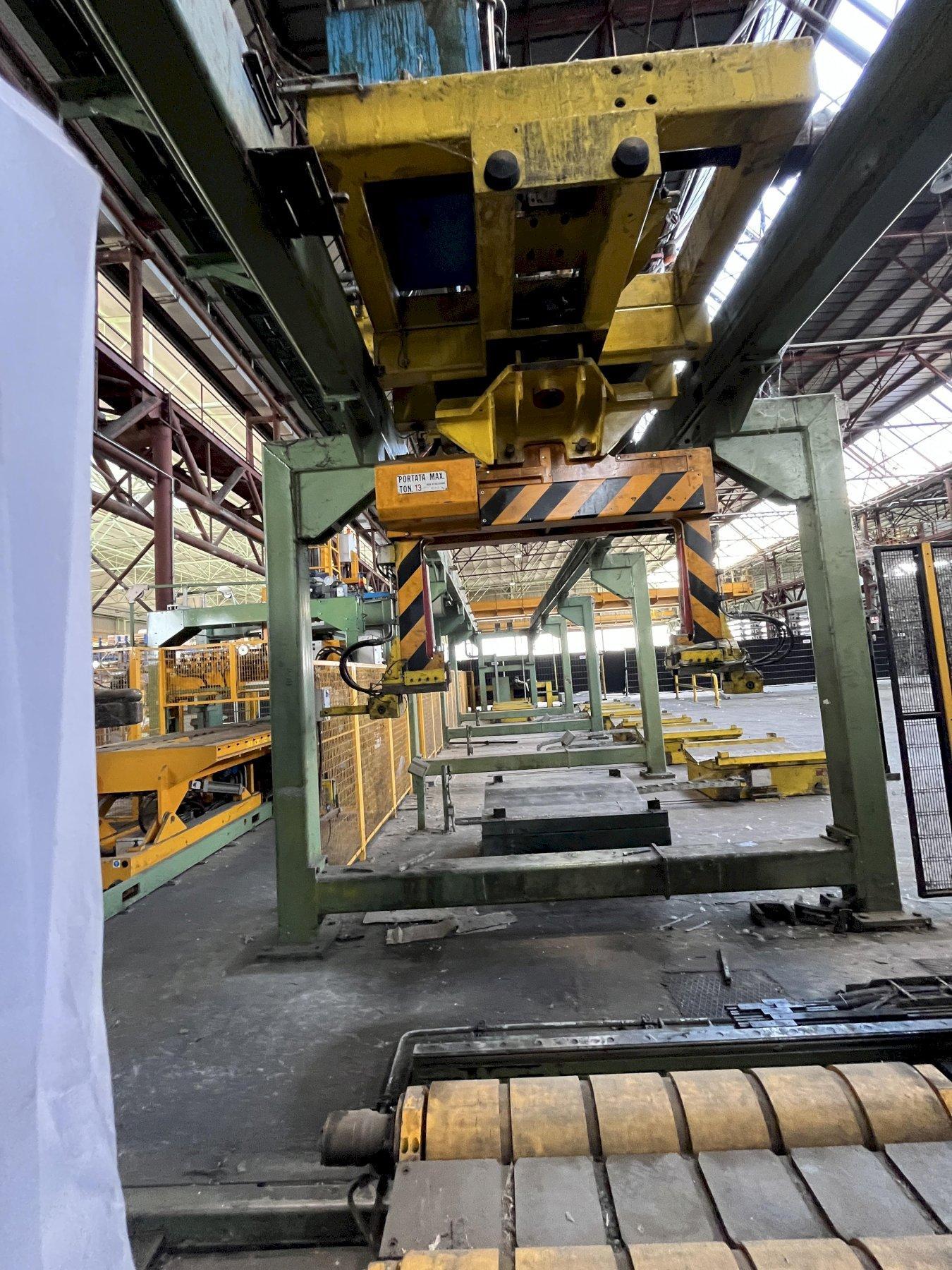

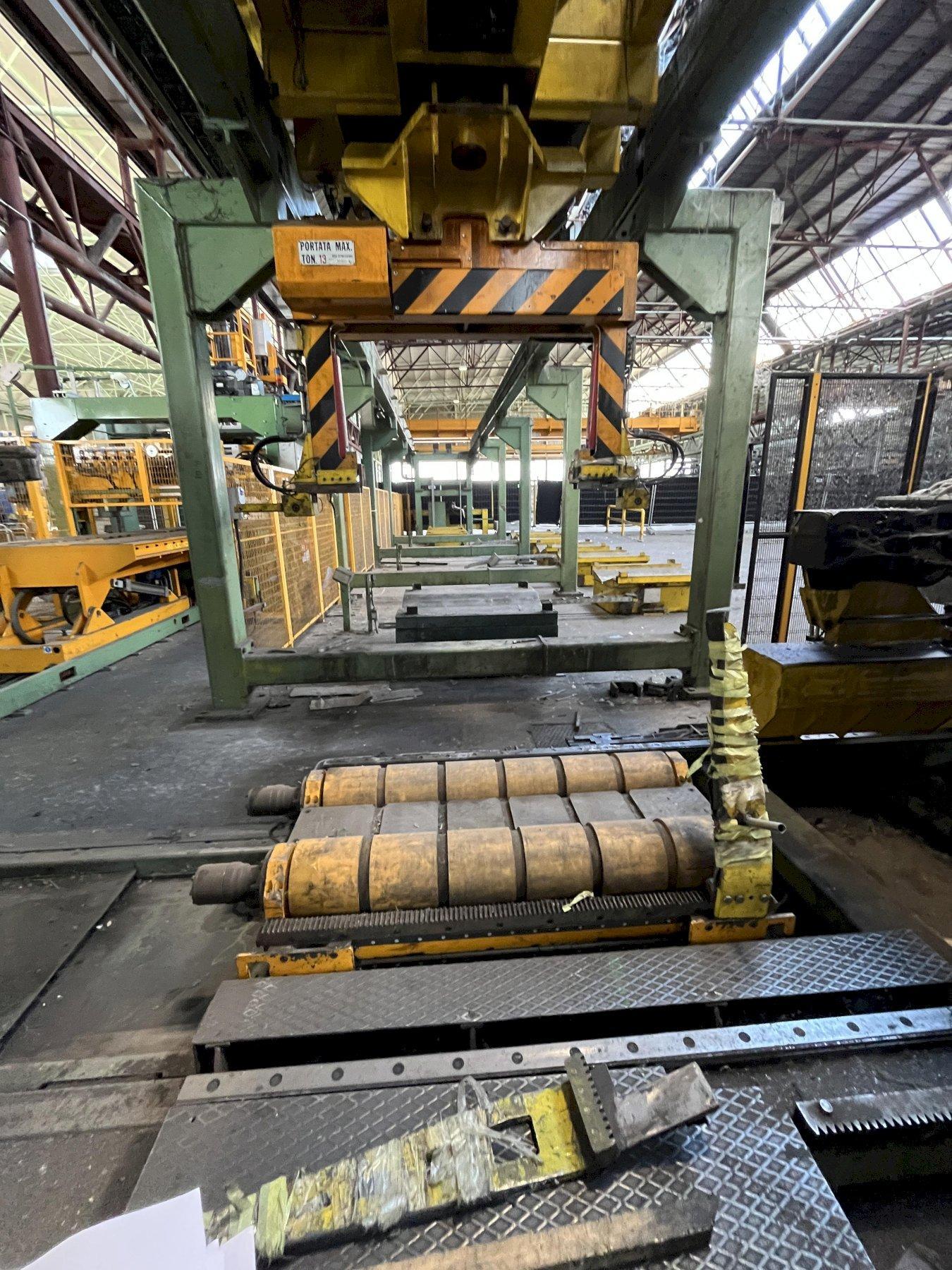

Overhead Manipulator- Horizontal Coil Handling with expanding mandrels into ID or 3 arm OD clamping

Packages eye to the sky or eye to wall.

All hydraulics and Controls
