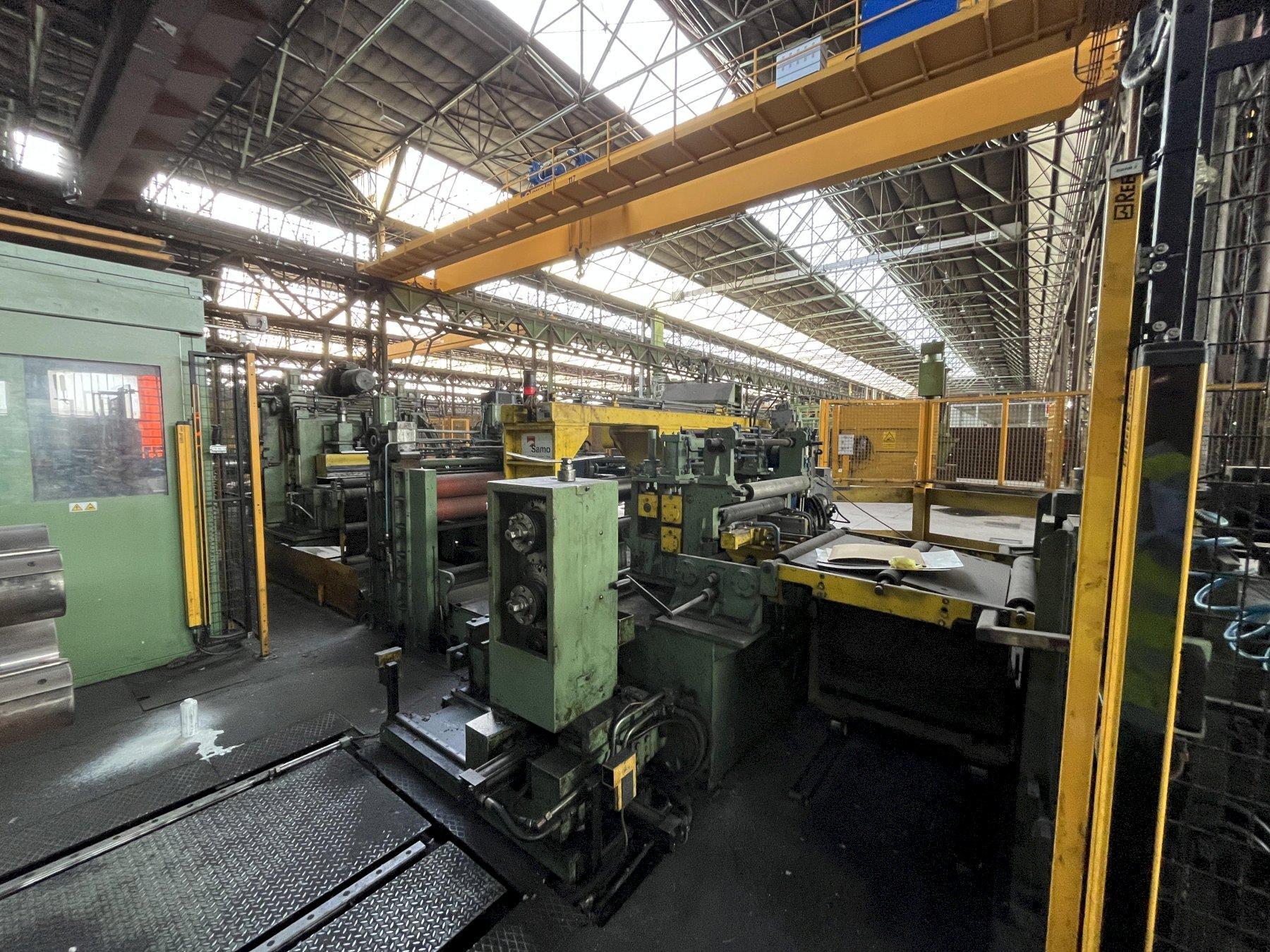

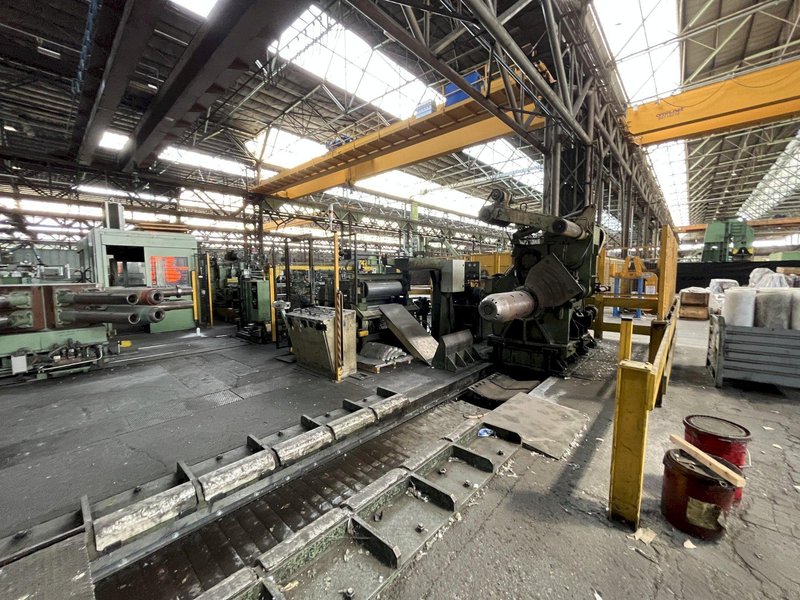

FIMI 800 SLITTING LINE

Manufactured by FIMI, Upgrade 2008, SAMO SLITTING HEAD

This slitting line processes strip up to 800 mm wide and includes an integrated packaging system.

Installed electrical power is 400 kW.

Area :  450 sq meter

Line Direction: Right to Left

Operating range:

• Coil Inside diameters: 400 & 500
• Coil Outside Diameter: 1,500 mm
• Strip width:
• Entry: 150–800 mm
• Exit: 12–790 mm
• Thickness: 0.2–3.0 mm

Installation includes:

Coil Car

Winder Motor: 20kW DC

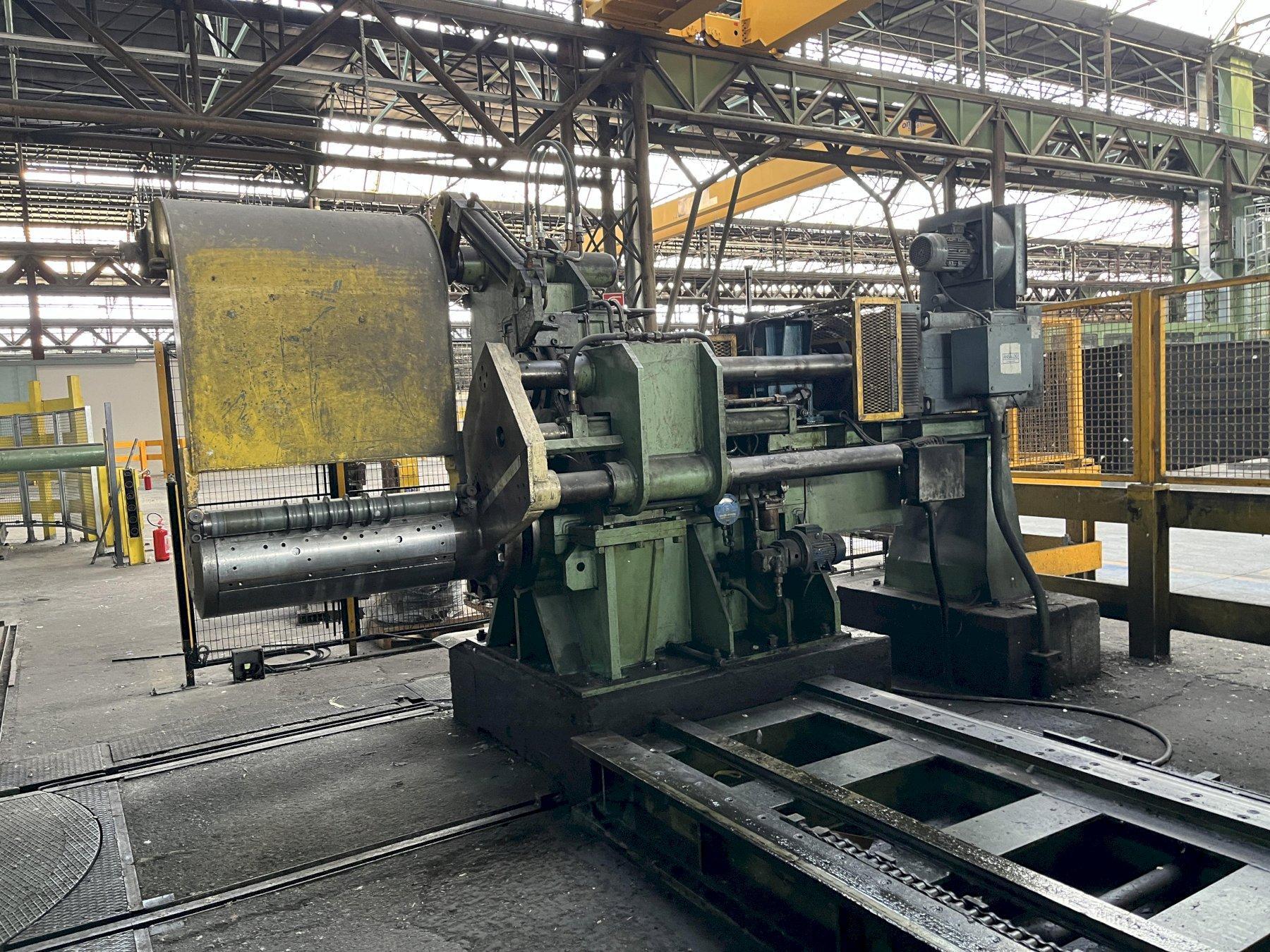

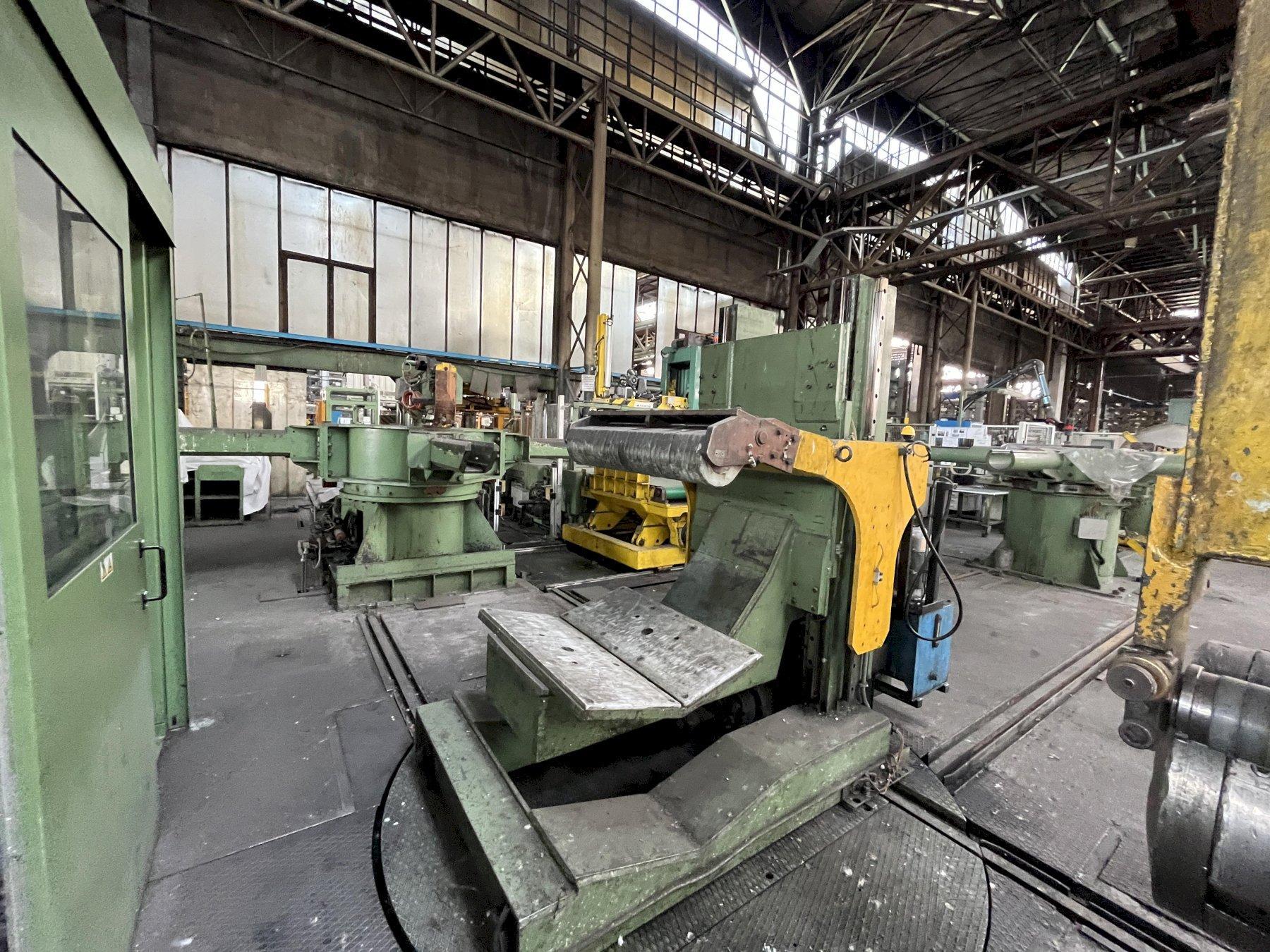

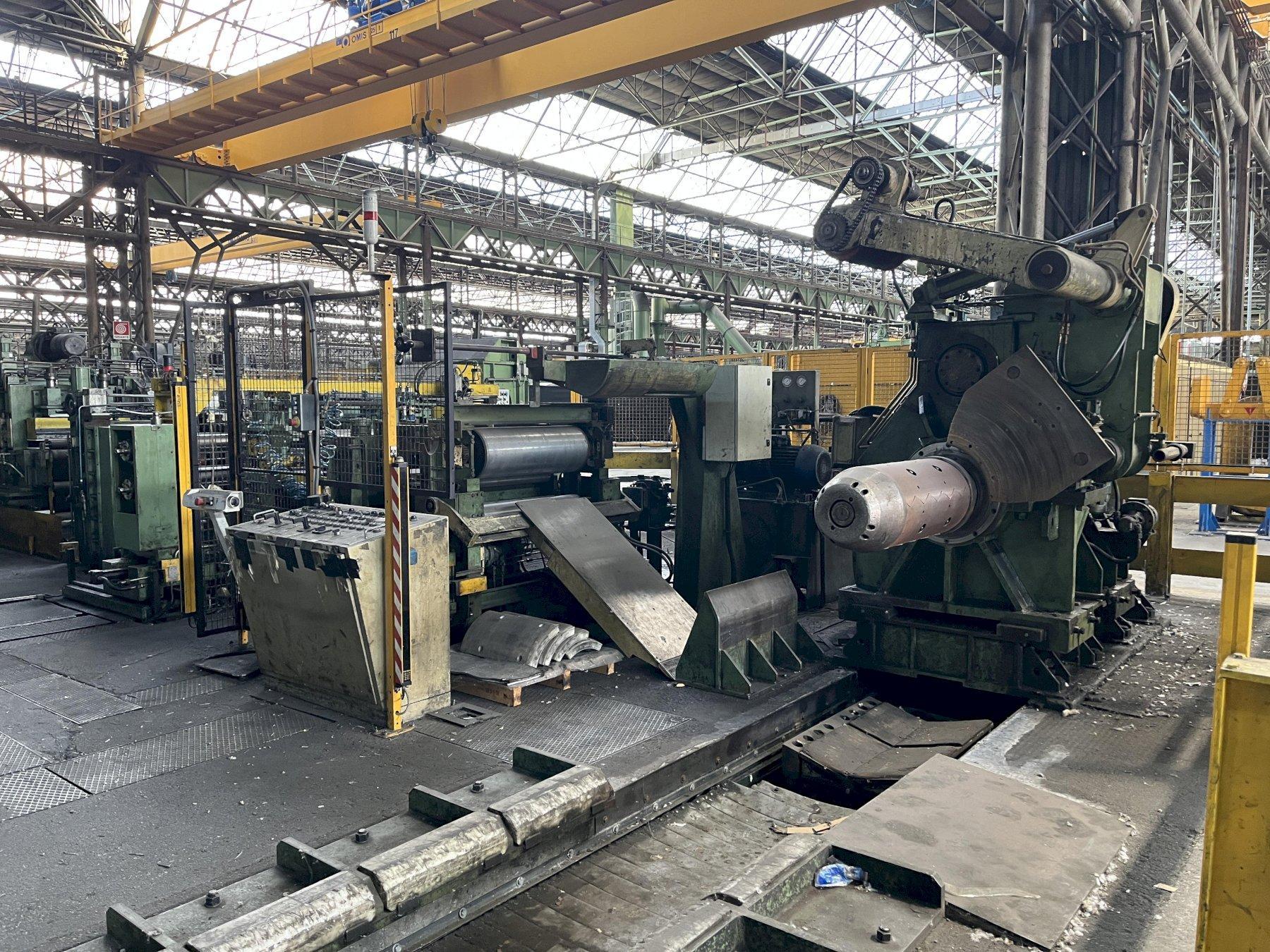

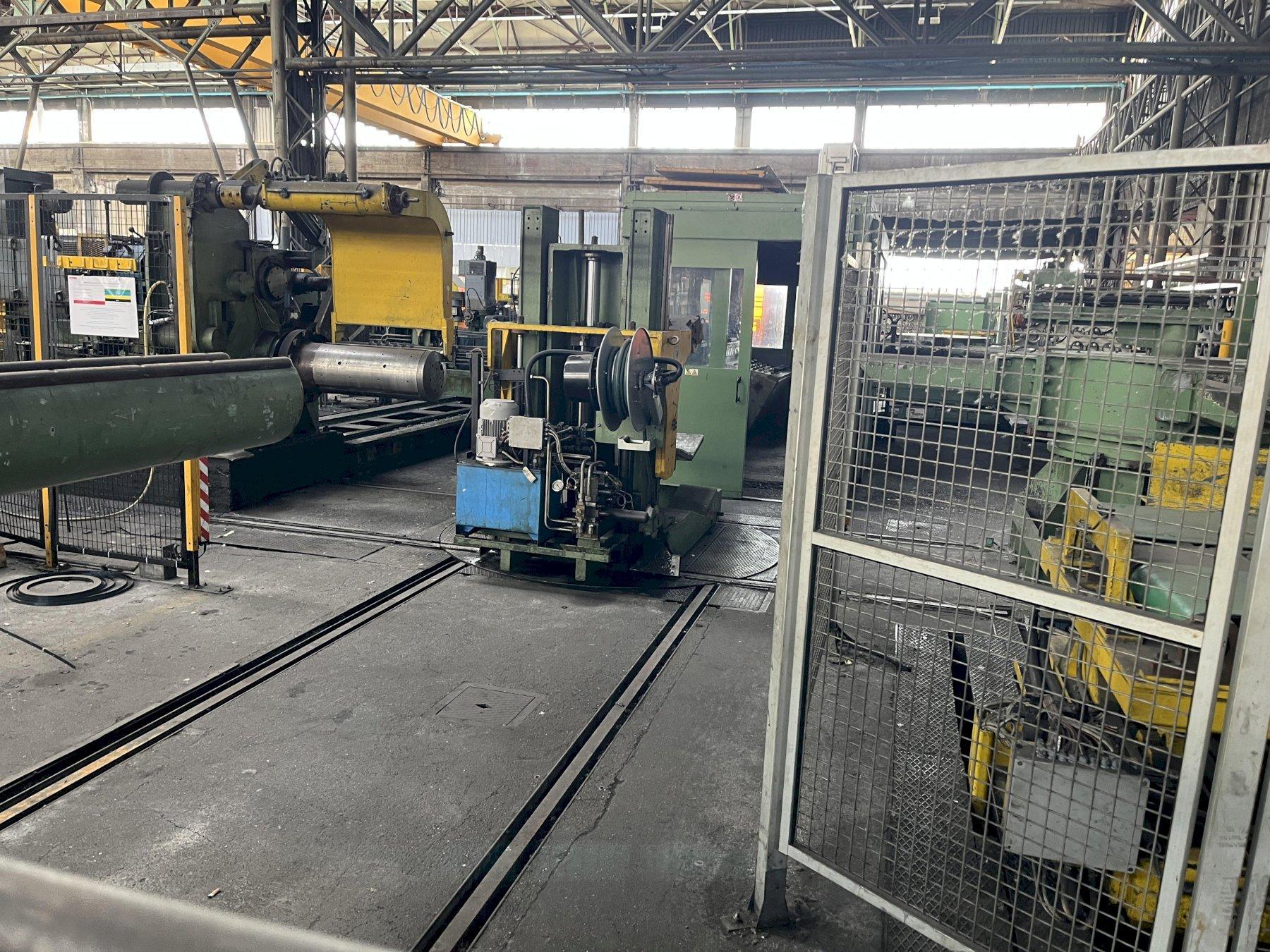

Uncoiler with Snub Control Roll, Hydr Motor, Edge Guide

Peeler Table

Pinch Roll Stand

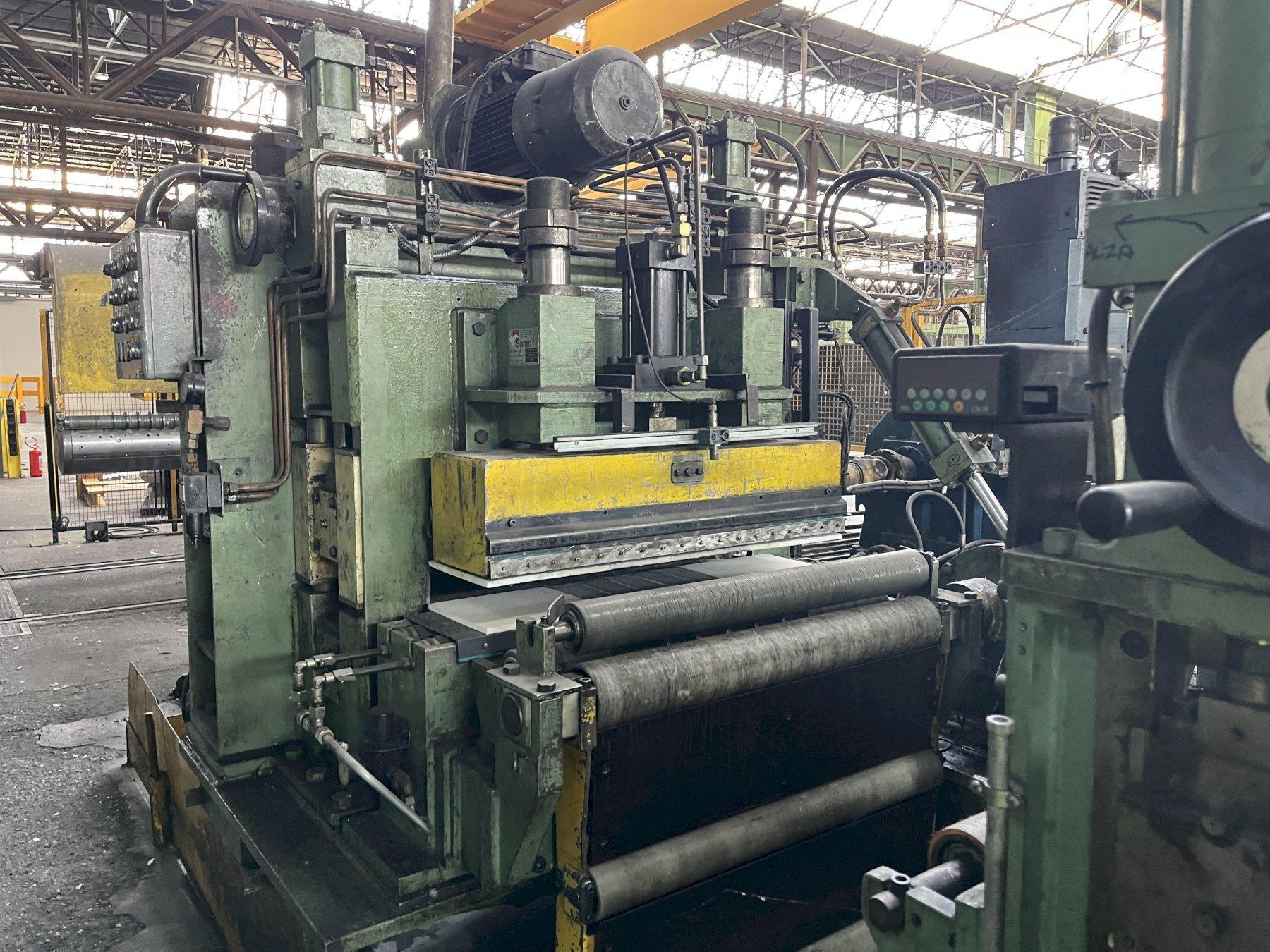

Crop Shear

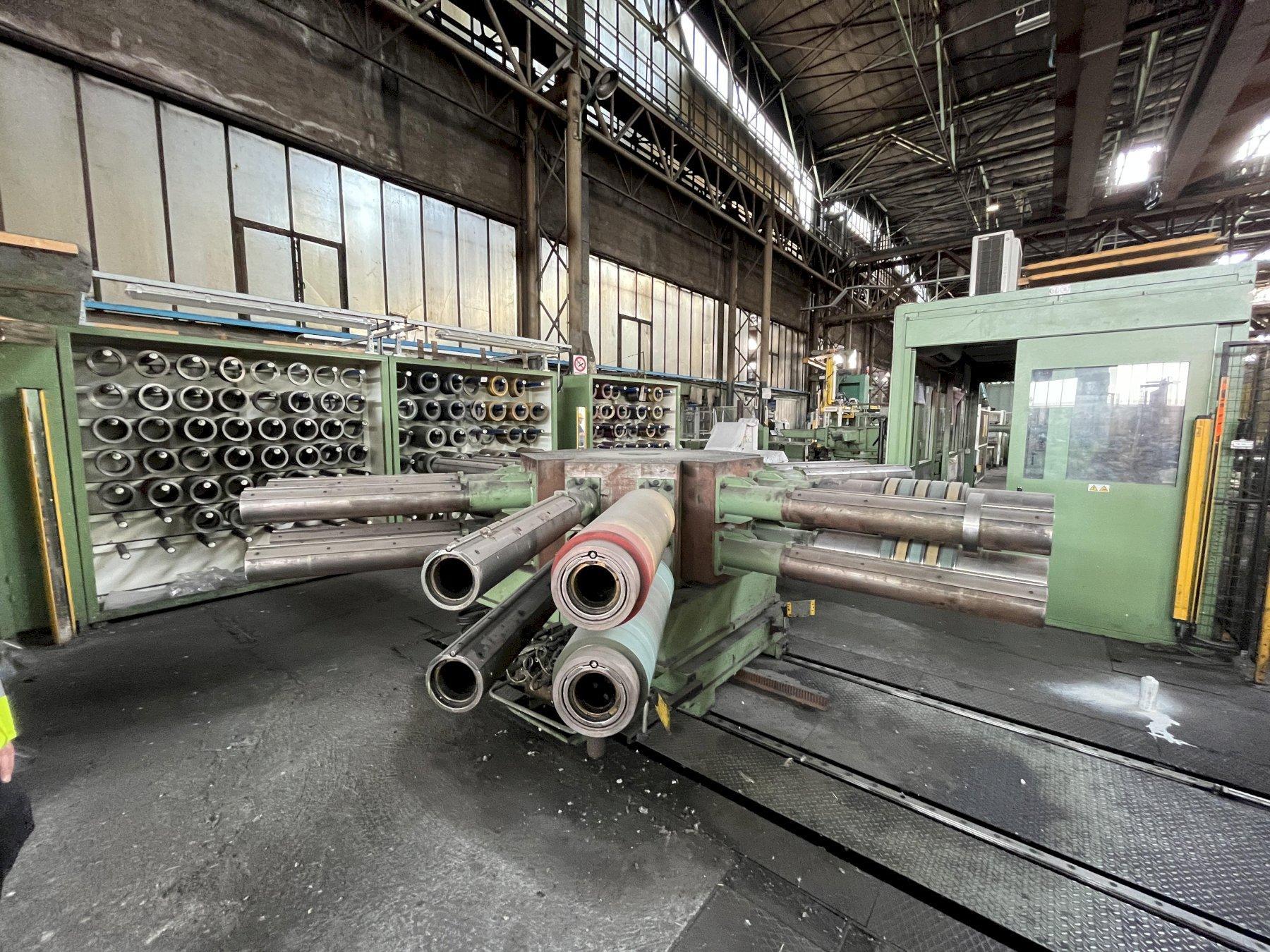

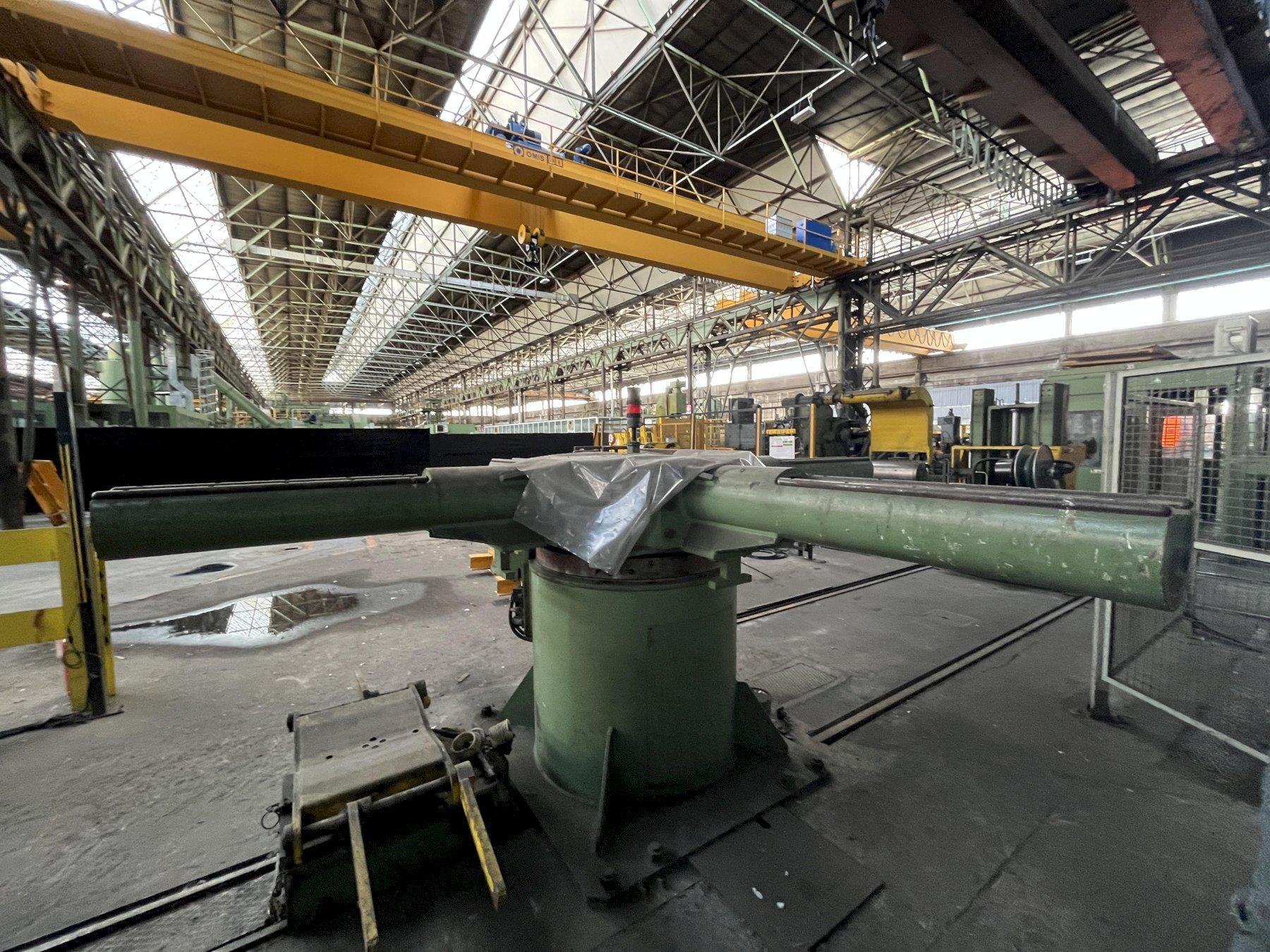

 6 Arm Tool Mounting Turnstile

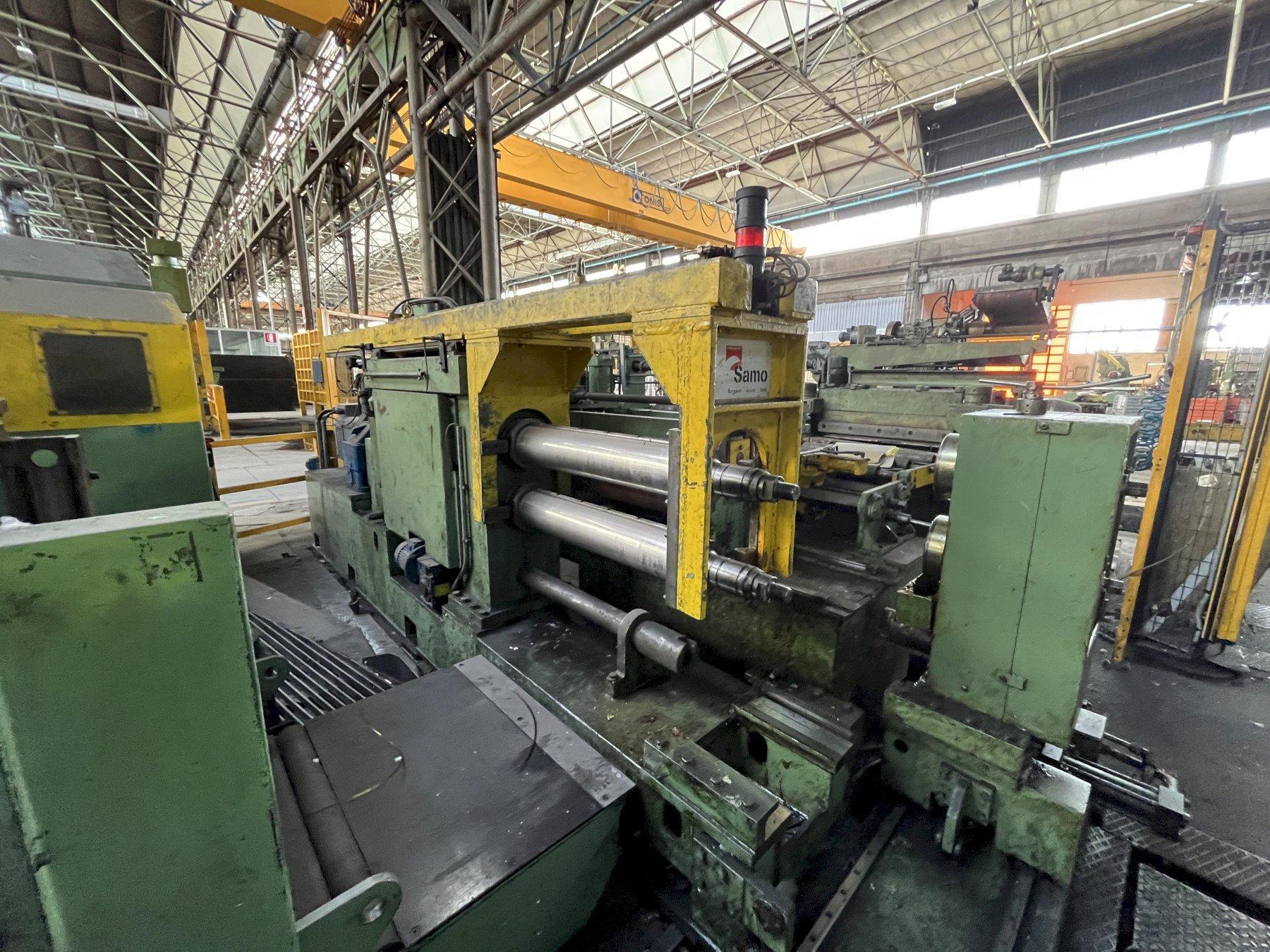

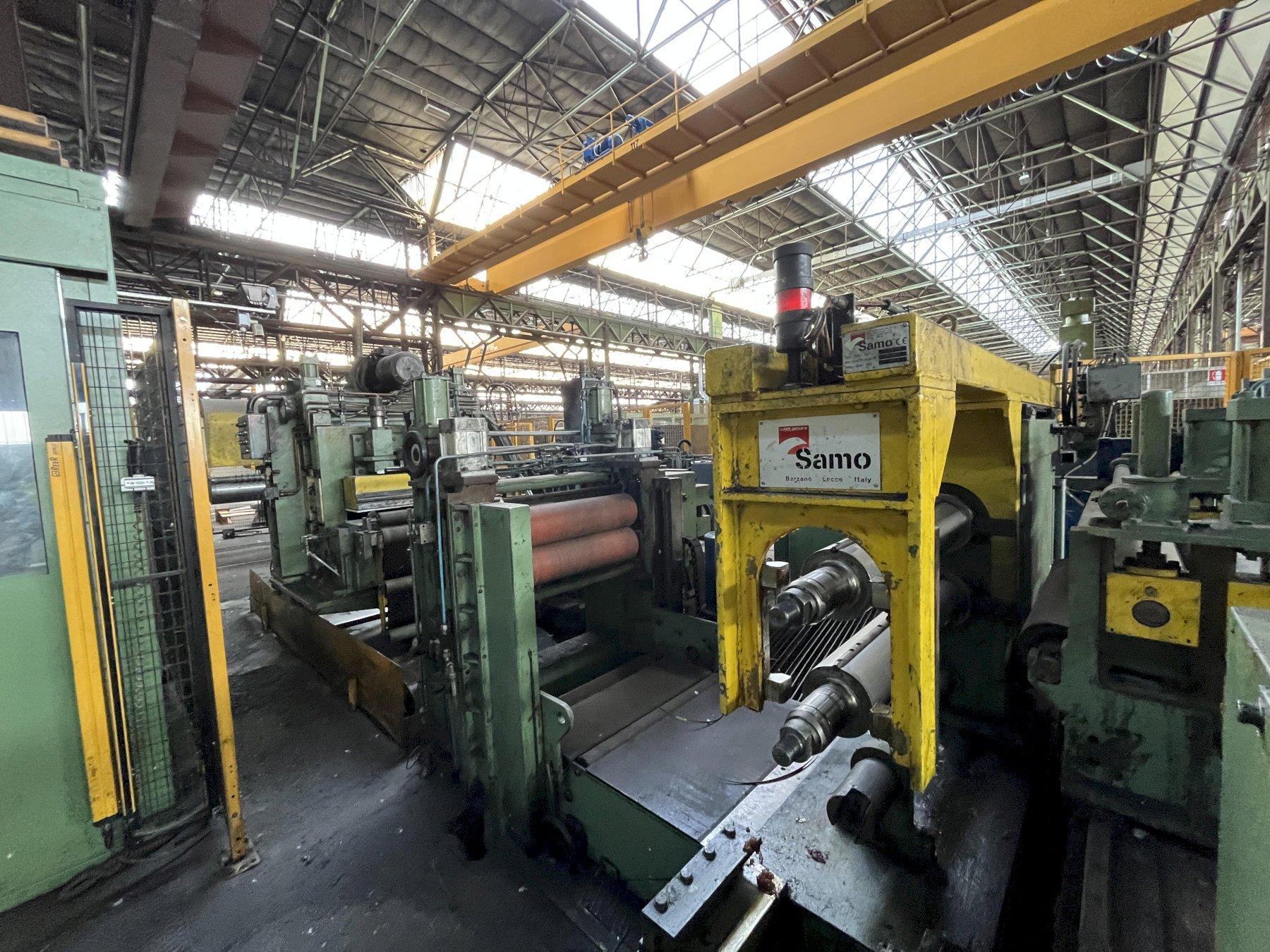

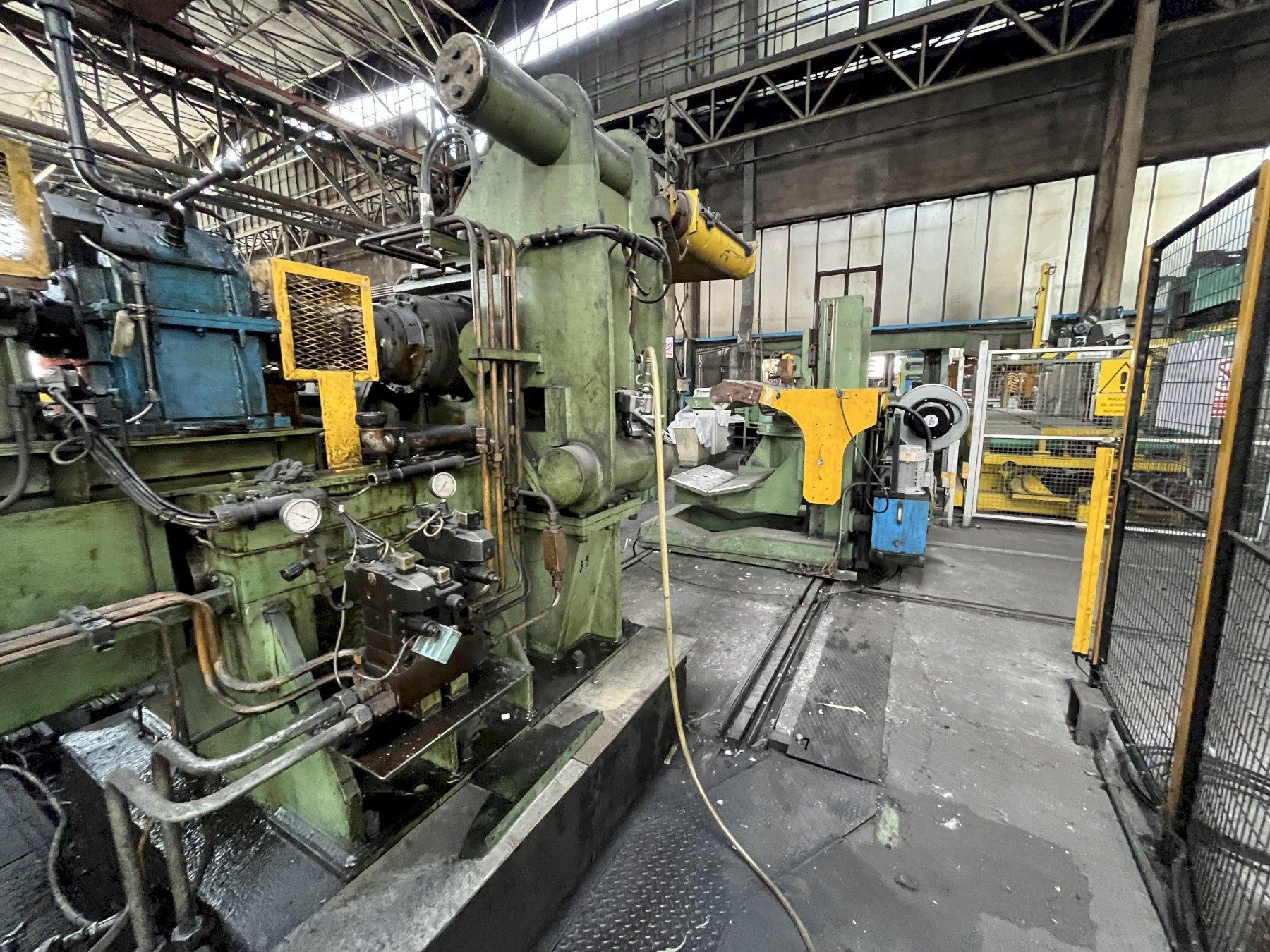

Motor Driven Slitting Head,

          Arbor Diameter: 160mm

          Slitting Knives Outside Diameter; 250mm

          Motor Drive: 53Kw DC

Scrap Baller

Pit

Pinch Rolls

Tension Pad

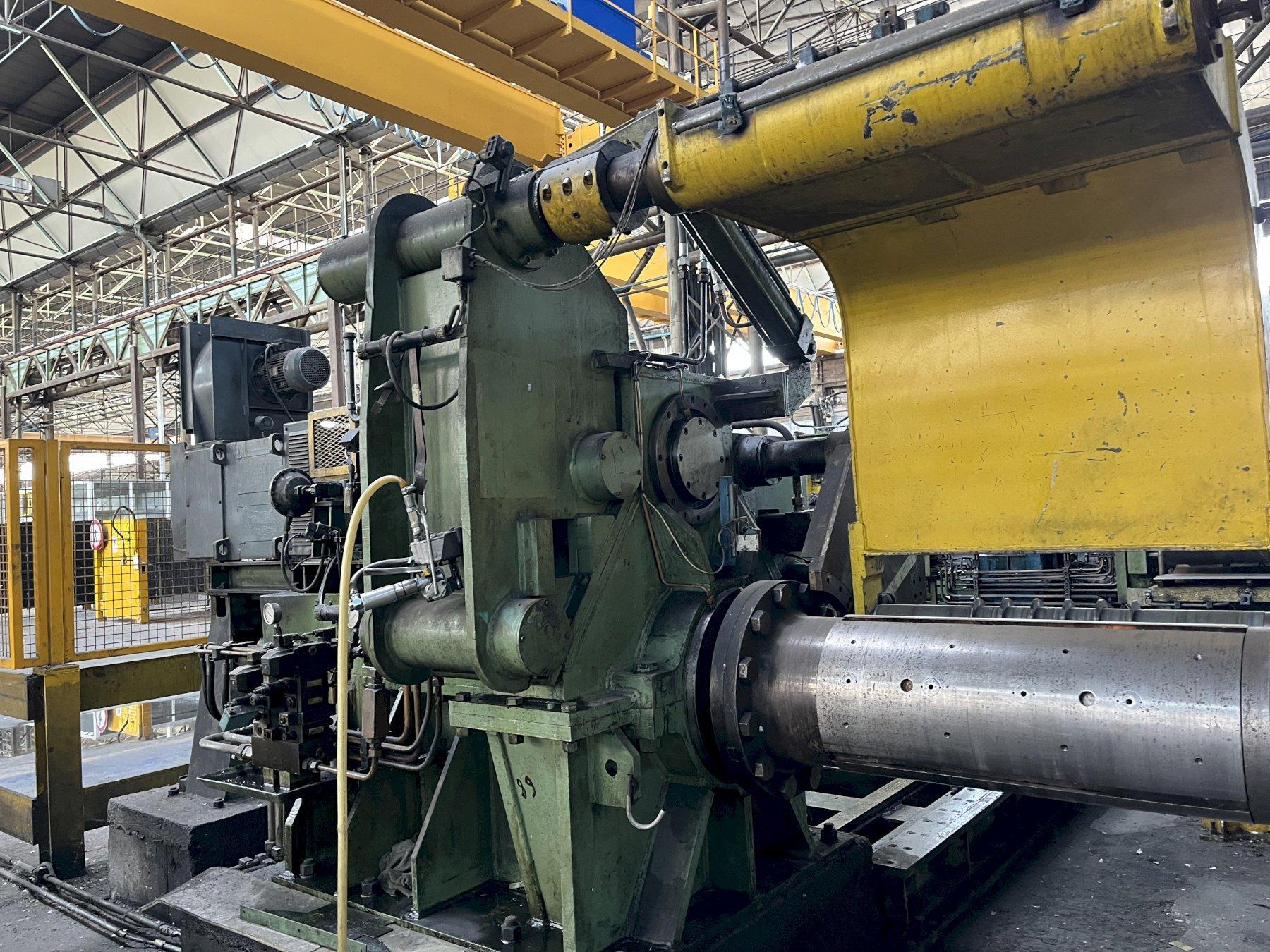

Recoiler with Overarm Separator

          Coil Inside Diameter: 400 & 500 am

          Drive Motor: 53 Kw DC

Coil Car “L” Shape, Overhead Separation Arm

4Arm Exit Turnstile, Rotating to feed Packaging line or CISAM Traverse Winding Line

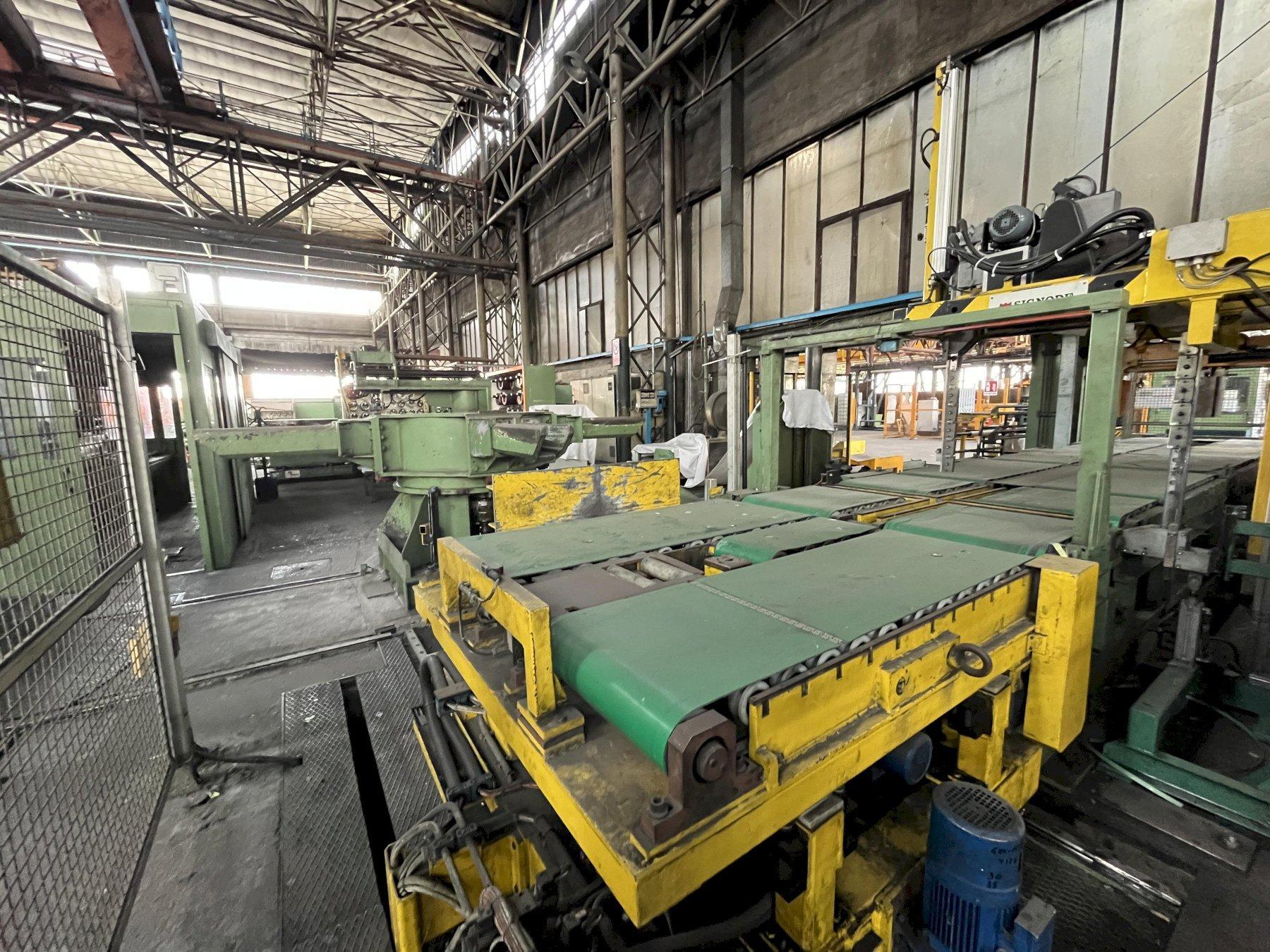

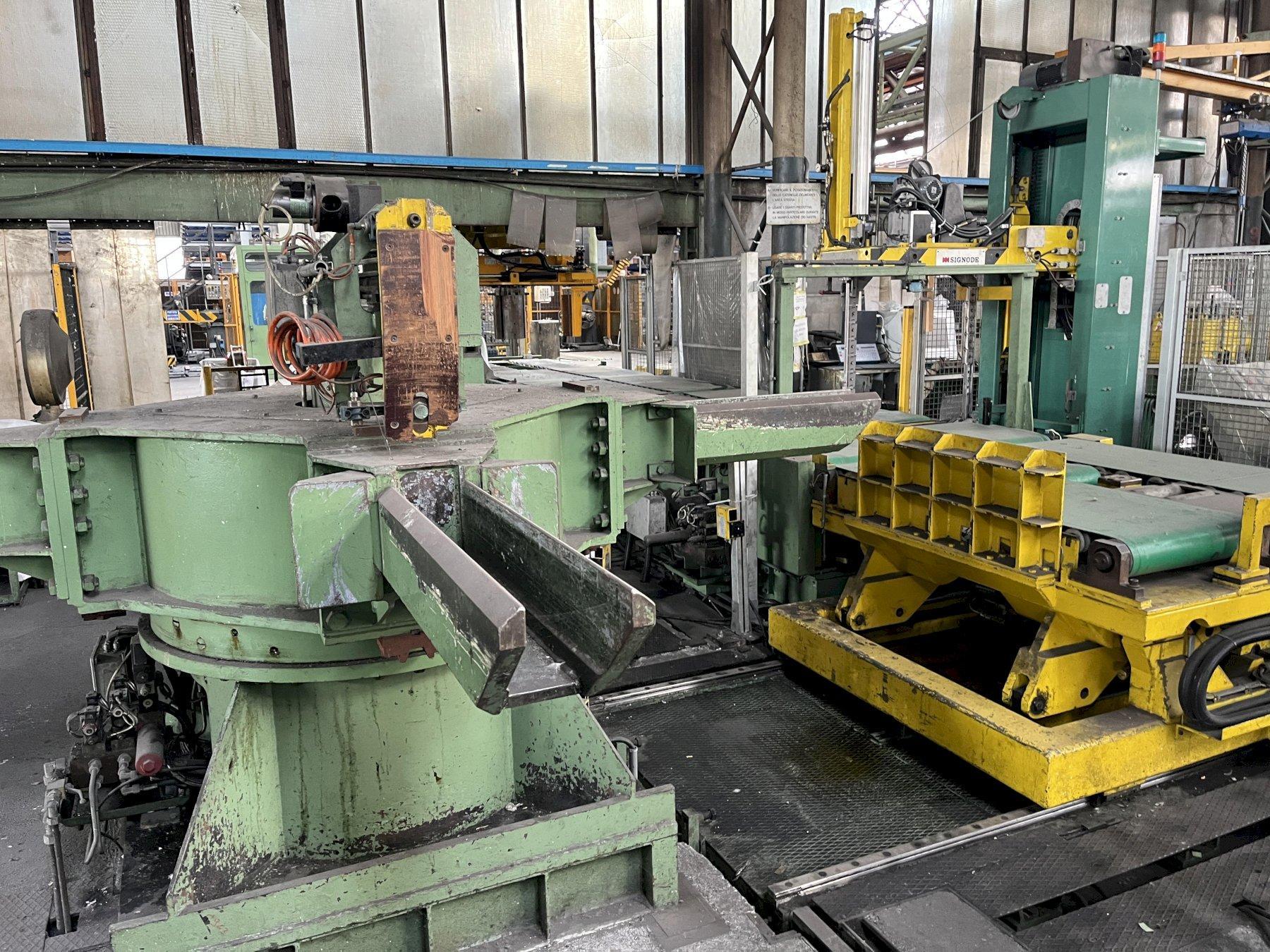

Packaging Line

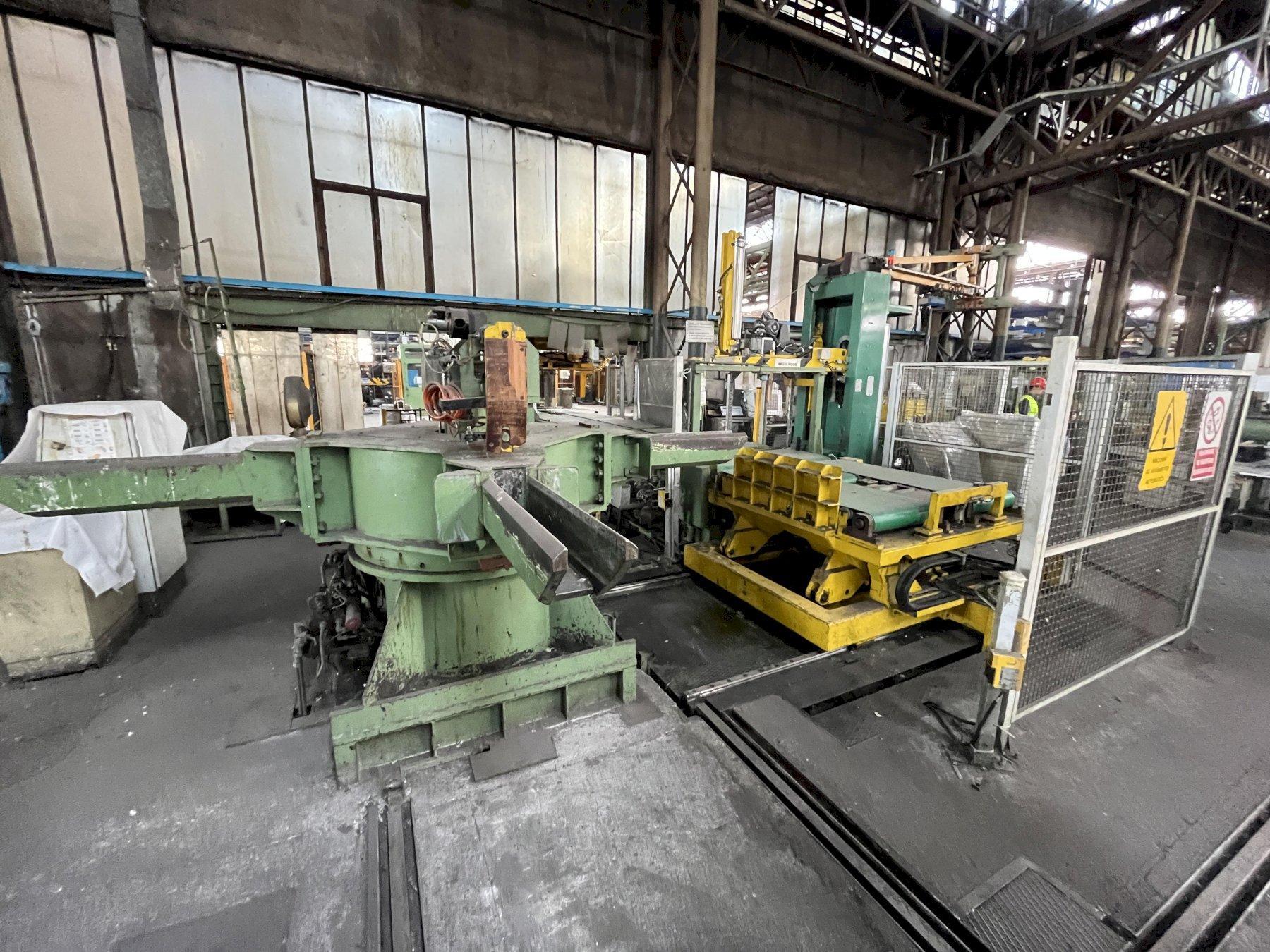

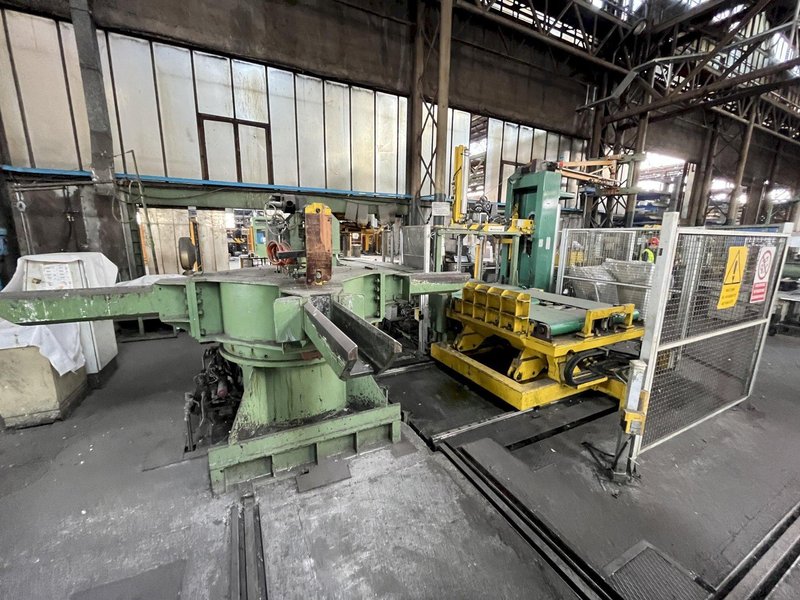

4 Arm coil turnstile with push off

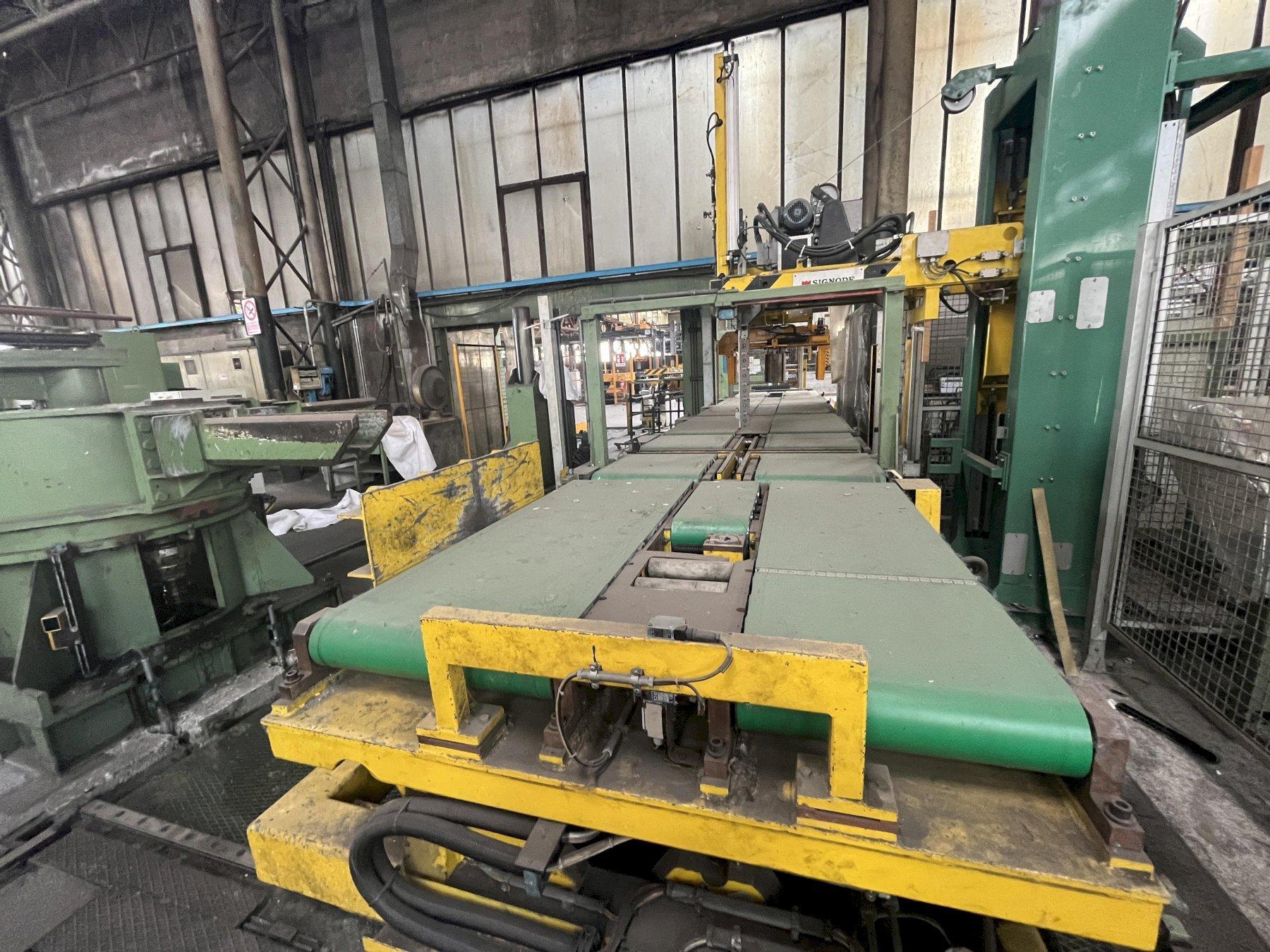

Tilt Table with conveyor rolls

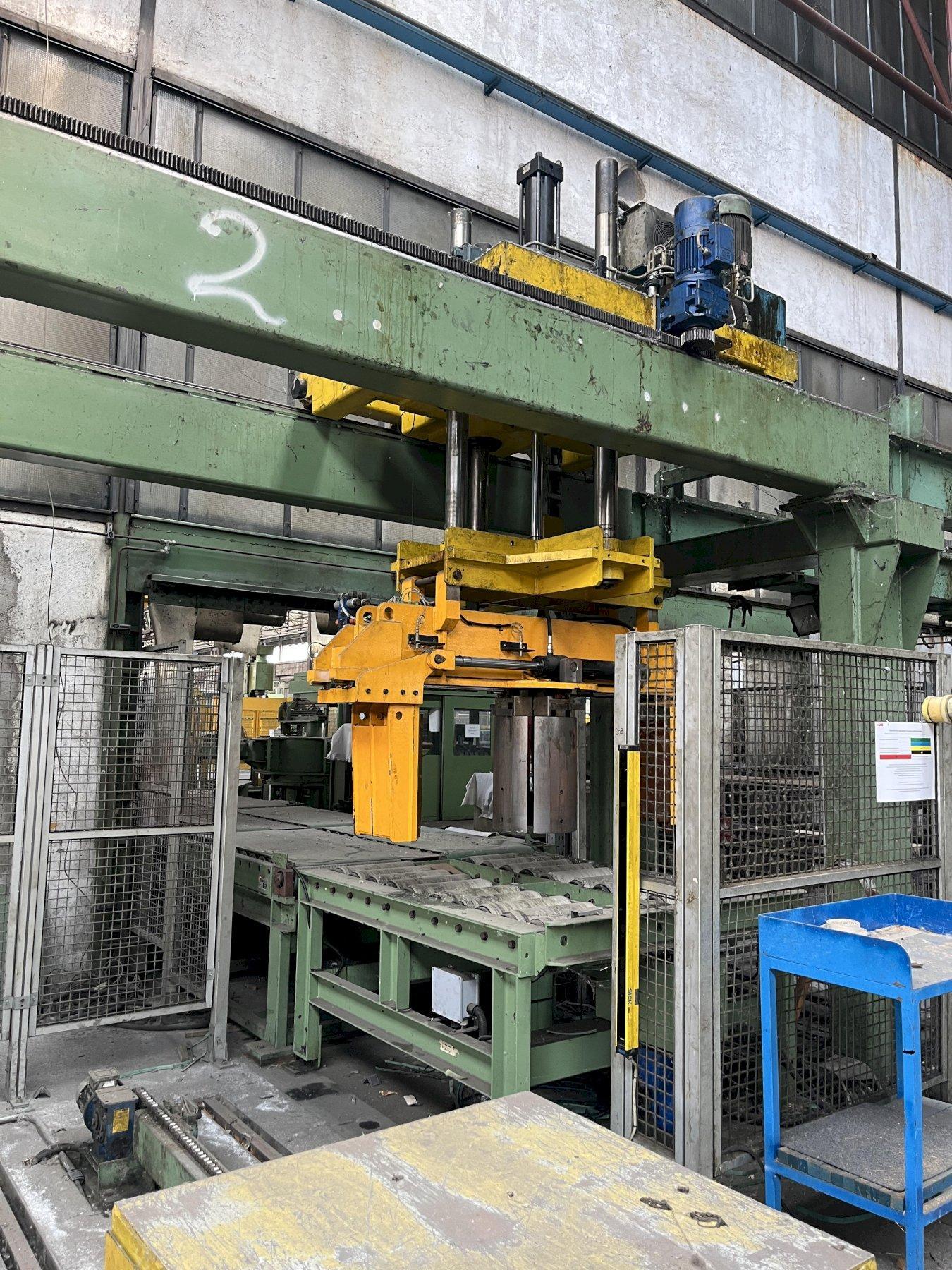

Signode strapping head

Expanding coil handling arm – 3 - arms
