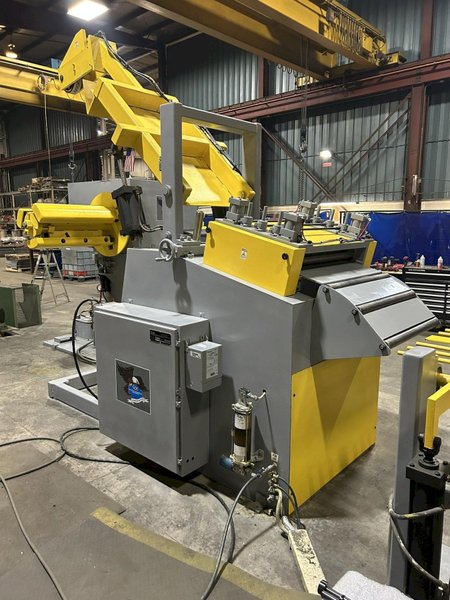

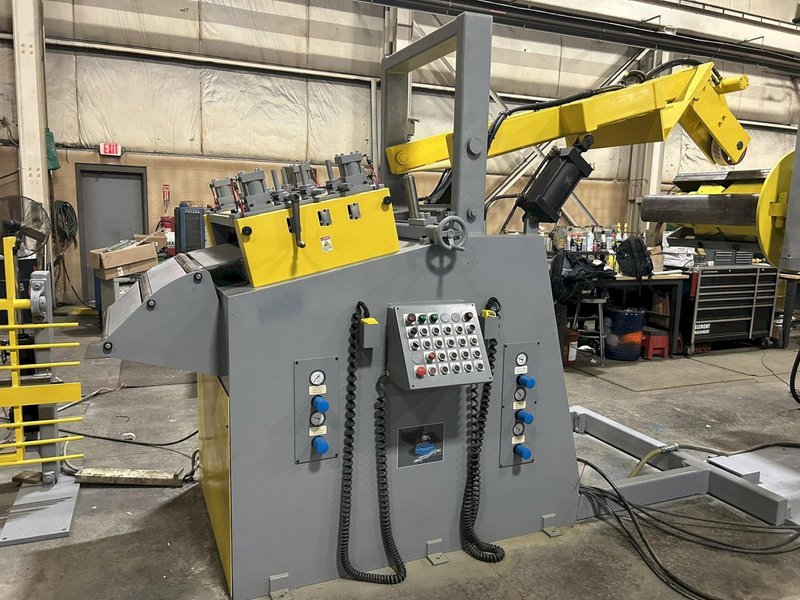

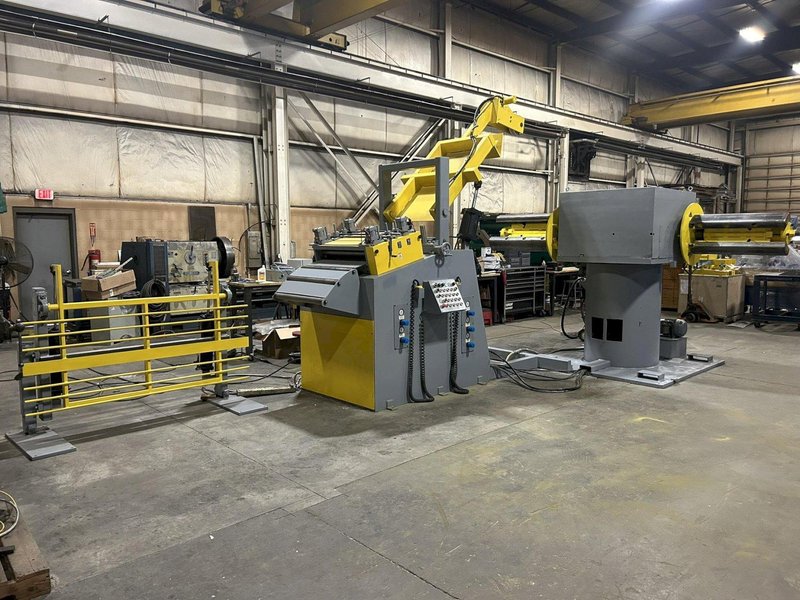

30″ X 0.090″ X 15,000 LBS COE COIL SERVO FEED LINE (CERTIFIED RECONDITIONED). STOCK # 0874026
Brand
Category
Type
Model
CPR-DE-PO-15030, CPPS-PO-300-30, CPTT-30-10
Stock #
0874026
Year
Not specified
Condition
Reconditioned
Location
Ohio
| Max Weight Of Coil | 15000 pounds |
| Max Coil Width Capacity | 30 inches |
| Max Stock Thickness Capacity At Full Width | .09 inches |
| Max Dia. Of Coil | 72 inches |
| Dimensions | 25' X 13' X 11' |
| Weight | 22000 pounds |
| Max Weight Of Coil | 15000 pounds |
| Max Coil Width Capacity | 30 inches |
| Max Stock Thickness Capacity At Full Width | 0.090 inches |
| Max Dia. Of Coil | 72 inches |
| Dimensions | 10ft Long |
|
Consisting of the following:

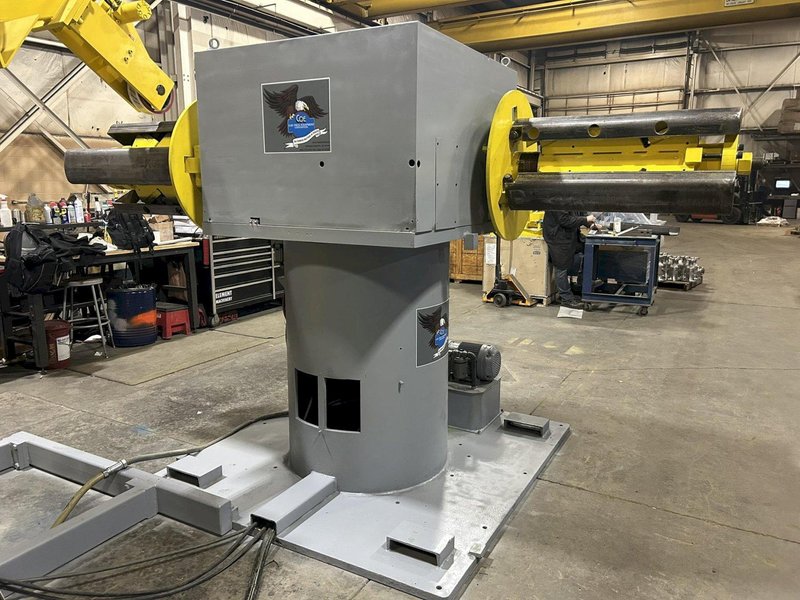

Coe Double-End Coil Reel Uncoiler Model No. CPR-DE-PO-15030 Coe Powered Coil Straightener Model No. CPPS-PO-300-30 Coe Press Equipment Single-Side Thread Table Model No. CPTT-30-10 Maximum Coil Capacity: 15,000 lbs Maximum Coil Width: 30” Material Thickness at Full Width: 0.090” @ 30” Wide Maximum Material Thickness: 0.125” @ 18” Wide Material: Mild Steel Only – 40 KSI Maximum Yield Feed Direction: Right to Left Power: 480V, 3-Phase, 60 Hz Serial Number: 11470 Coe Press Equipment Double-End Coil Reel Uncoiler Model No. CPR-DE-PO-15030 Double-End Reel 20-24” I.D. Expansion Range 72” Maximum Coil O.D. Three-Leaf Mandrel Pad Assembly Hydraulic Coil Reel Mandrel Expansion Hydraulic Mandrel Indexing with Locking Pin Hydraulic Threading Drive Air Brake with Pressure Regulators Jog, Forward and Reverse Remote Reel Jog Pendant Jog with Coil Cord Hydraulic Controls Solenoid Operated Manual-Bypass Foot Pedal Release for Mandrel Location Full Set of Adjustable Coil Reel Keeper Arms Coe Press Equipment Powered Coil Straightener Model No. CPPS-PO-300-30 4-Position Stock Peeler Peeler, Threader, Hold Down Station with Motorized End Wheel Entry Stock Width Edge Guides with Self-Centering Entry and Exit Powered Coil Straightener Pinch Rolls Air-Operated Entry Upper Powered Coil Straightener Pinch Roll Adjustment Air-Operated Exit Upper Powered Coil Straightener Pinch Roll Adjustment Seven (7) Coil Straightening Rolls, 3” O.D. 3-Over-4 Configuration with First/Last Lower Rolls Doubling as Pinch Rolls Individual Upper Coil Straightening Roll Adjustments Automatic Grease Lube System Hand Held Pendant Control for Jog Forward and Reverse New 10 HP VFD Variable Speed Powered Coil Straightener Drive System Exit Cascade Loop Support Rollers New Ultrasonic Loop Control System Coe Press Equipment Single-Side Thread Table Model No. CPTT-30-10 10ft Long Threading Table 30” Wide, Single Side Bomb Bay Style Air Raise and Lower with Limit Switch Integration OPTIONAL New Coe Press Equipment Servo Roll Feed No. CPRF-S330 3” O.D. Upper and Lower Servo Feed Rolls Air-Operated Upper Servo Feed Roll Lift and Pilot Release Adjustable Stock Width Edge Guides with Self-Centering Entry Cascade Loop Support Rollers Free-Standing Cabinet Base with Adjustable Pass Line Height Passline: TBD (Standard 49” Pass Height +/- 5”) - AC Servo Roll Feed Drive and Controls Job Memory Micro Adjust Batch Count New Free-Standing Sloped Front Servo Roll Feed Control Console Remote Pendant Control for Jog Forward and Reverse Feed Angle: 180 and 240 Degrees Maximum Speed: 367 FPM Maximum Acceleration: 55 FPS |
|
