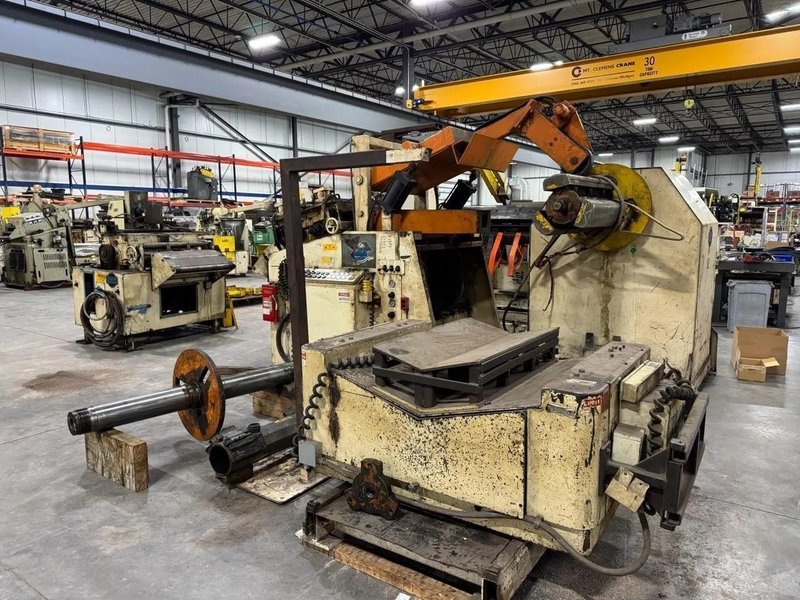

15,000 lbs. x 36 inch Coe Press Equipment Servo Coil Feed Line, Coe Feed with New Controls

15,000 lbs. x 36 inch Coe Press Equipment Servo Coil Feed Line, Coe Feed with New Controls

Name: 15,000 lbs. x 36 inch Coe Press Equipment Servo Coil Feed Line, Coe Feed with New Controls
Brand: COE
SKU: 3012
Availability: InStock

Brand

COE

Location

Michigan

Specifications
Files & Videos

Coil Weight	15000 pounds
Coil Width	36 inches
Coil Thickness	.090 inches

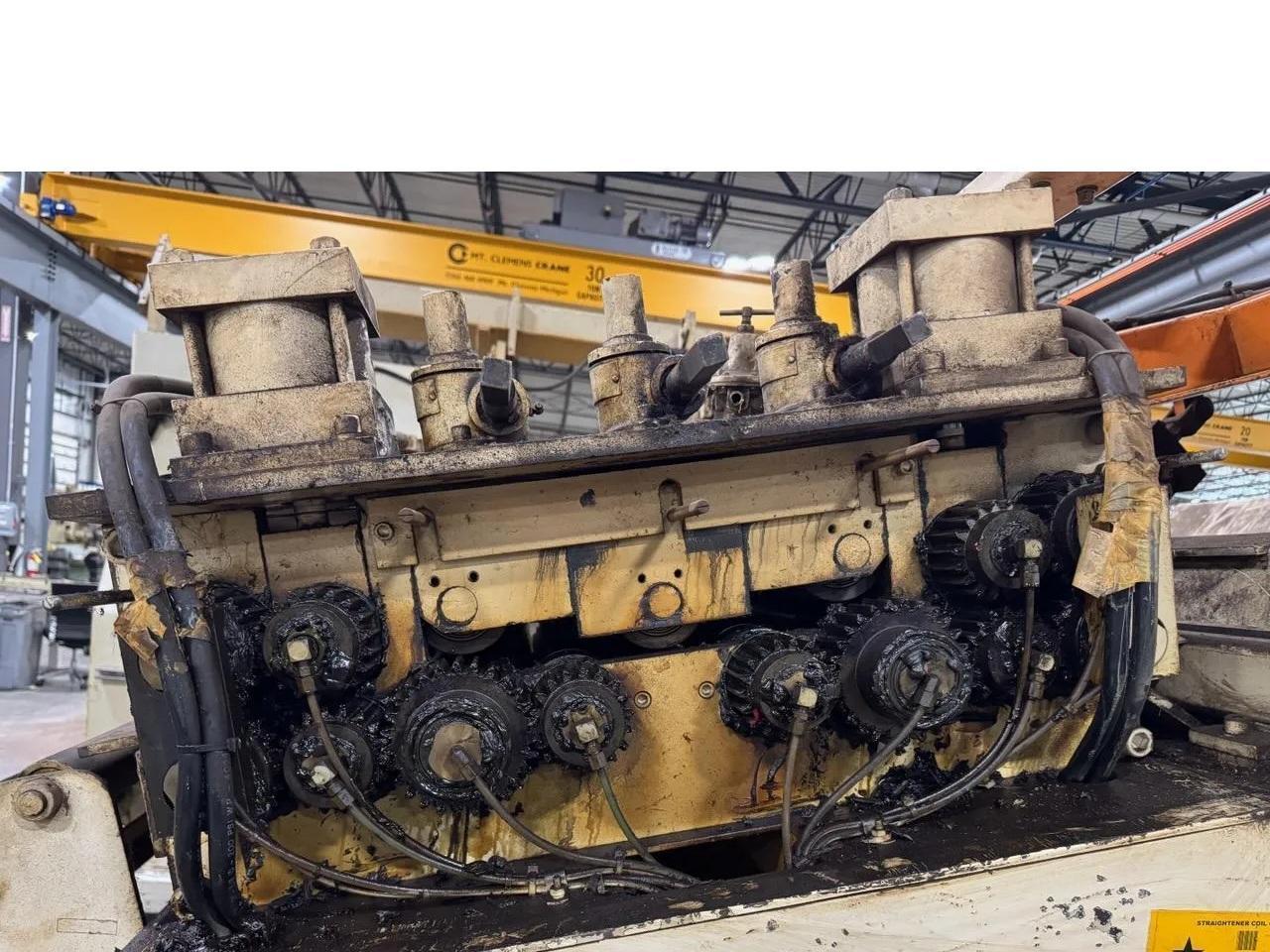

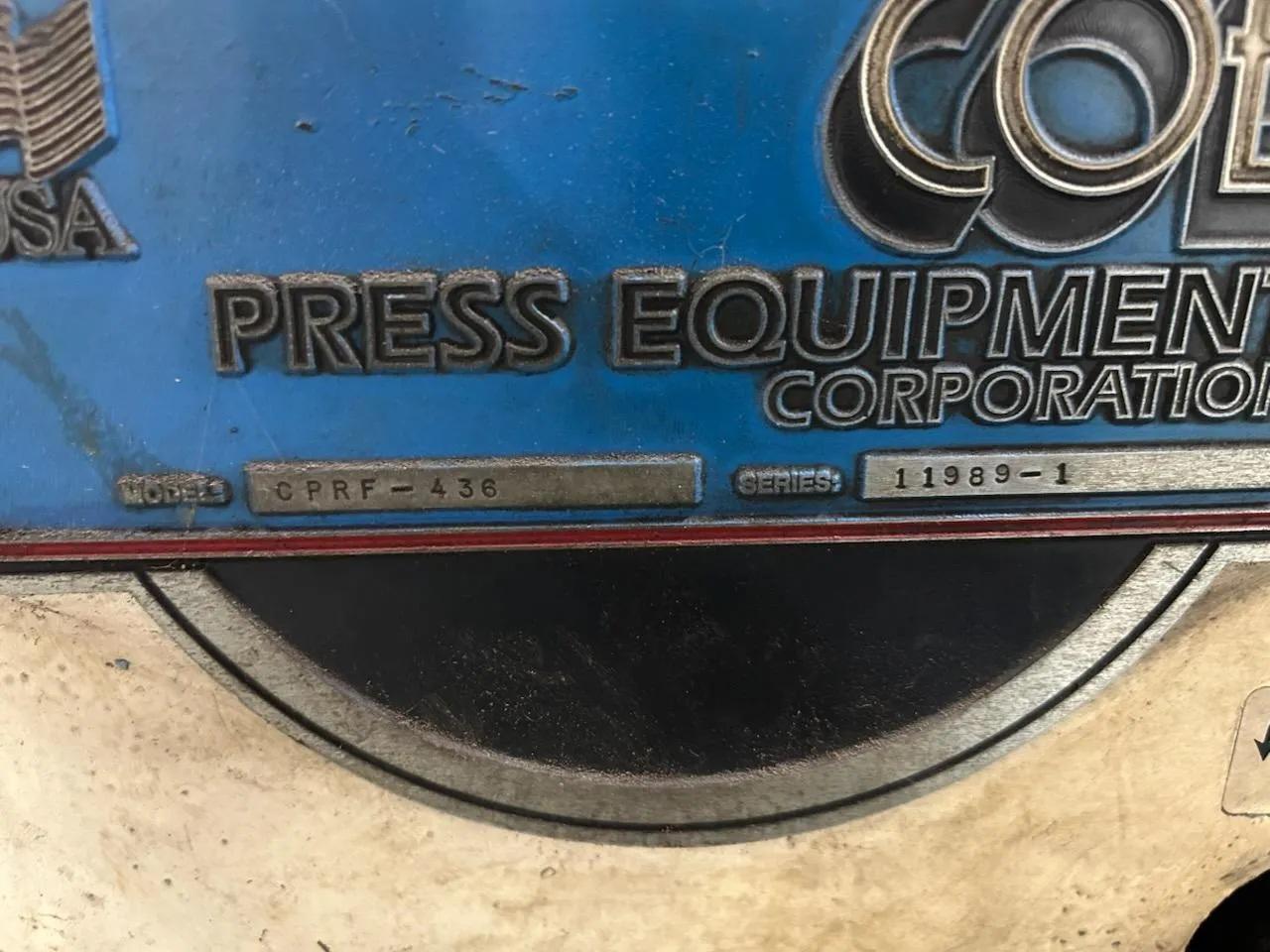

Coe Press Equipment Coil Feed Line Coil Weight: 15,000 lbs. Stock Width Capacity: 36 inches Max Stock Thickness Capacity At Full Width: .090 inches Stock Thickness Capacity: .090" x 36" Wide Stock Thickness Capacity: .187" x 12" Wide Coe Press Servo Roll Feed Model No. CPRF-436 Four inch diameter upper and lower feed rolls Piloting upper feed roll Adjustable stock width edge guides Entry cascade loop support rollers Cabinet base mounted with adjustable pass line Coe Press Powered Coil Straightener Model No. CPPS-350-36-PO Seven straightening rolls x 3.5" diameter rolls Entry and exit pinch rolls Stock width edge guides Coil hold down arm with motorized end wheel Stock peeler table Adjustable edge guides Coe Press Coil Reel Model No. CPR-150-36-PO Three leaf mandrel Hydraulic expansion Jog drive Air brake for tensioning Traveling coil load car Price Includes: The quoted price includes a completely new servo control system, custom-built, professionally installed, and fully tested by Coe Press Equipment to ensure seamless integration and performance. Reel and Straightener: These units will undergo a comprehensive 100% cycling and mechanical validation process. The scope of work also includes thorough cleaning, precision sanding of the rolls, and professional painting to your specific color requirements.
