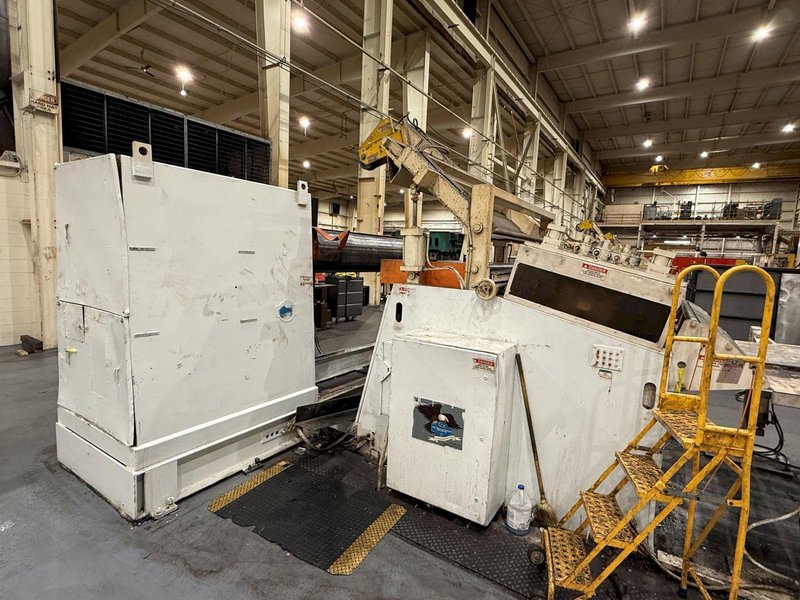

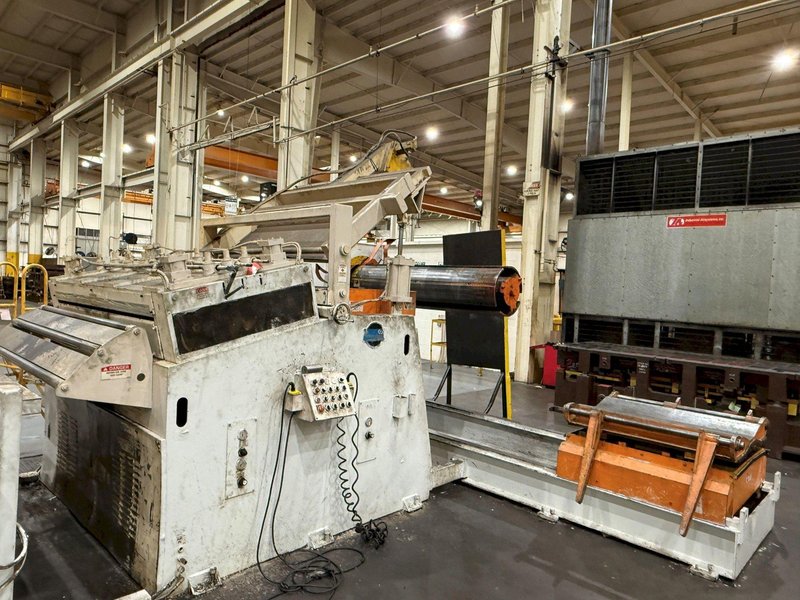

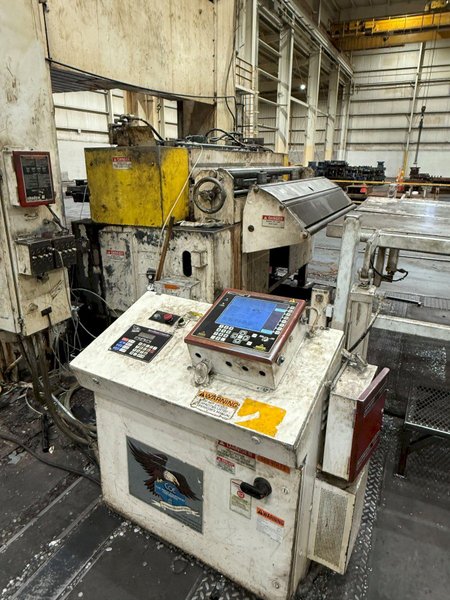

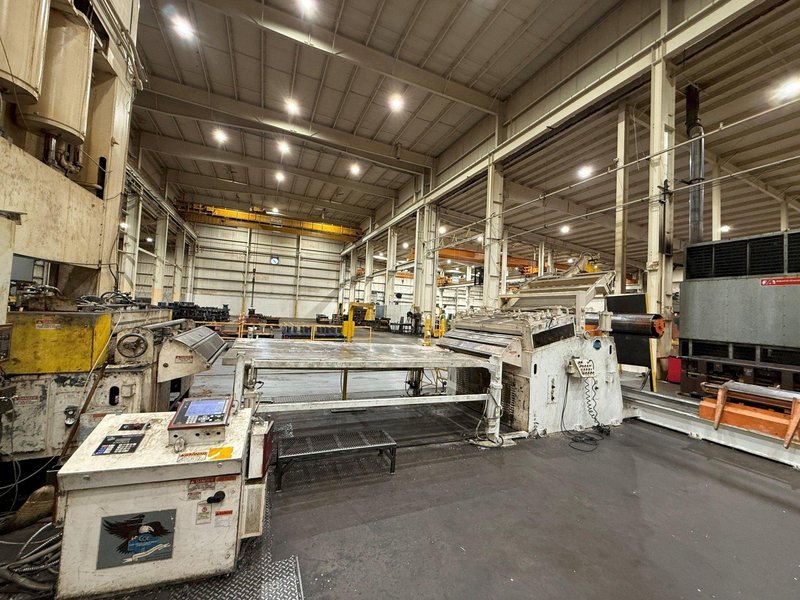

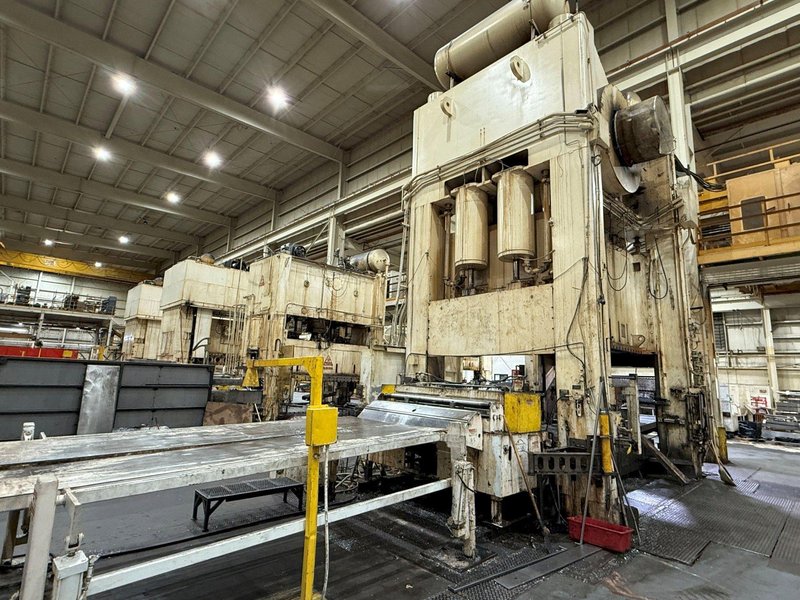

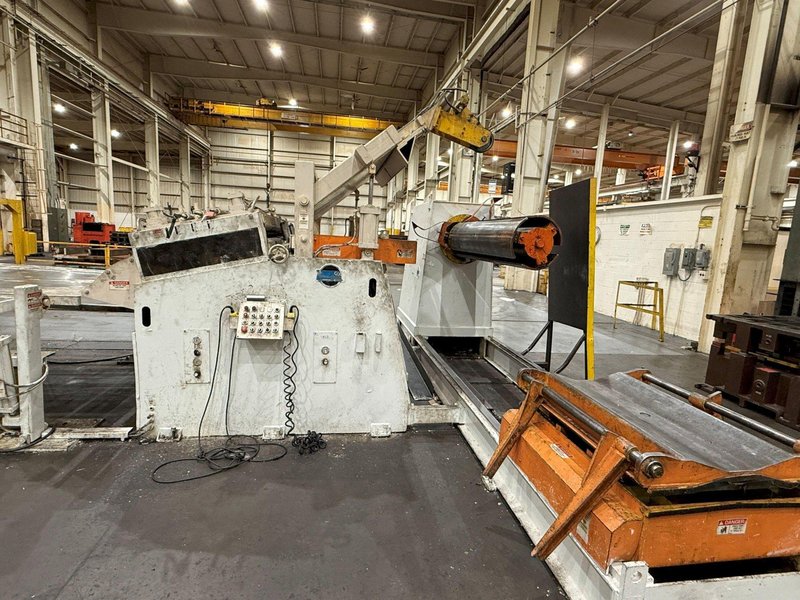

30,000 lbs. x 72 inch Coe Press Equipment "Conventional" Servo Coil Feed Line For Sale. Can Be Seen Under Power!

30,000 lbs. x 72 inch Coe Press Equipment "Conventional" Servo Coil Feed Line For Sale. Can Be Seen Under Power!

Name: 30,000 lbs. x 72 inch Coe Press Equipment "Conventional" Servo Coil Feed Line For Sale. Can Be Seen Under Power!
Brand: COE
SKU: 2999
Availability: PreOrder

Brand

COE

Location

Michigan

REQUEST FINANCING

Specifications
Files & Videos

Coil Weight	30000 pounds
Coil Width	72 inches
Coil Thickness	.090 inches
30,000 lbs. x 72" Coe Conventional Servo Coil Feed Line Coe Press Equipment Model #CPR-PO-30072 / CPPS-305-72 / CPRF-772 30,000 lbs. Maximum Coil Weight 72" Maximum Coil Width .090" @ 72" Maximum Thickness at Full Width .125" @ 36" Maximum Coil Thickness 72" Maximum Coil O.D. 20-24" Coil I.D. Range Right To Left Feed Direction Coe Press Equipment Coil Feed Line Consisting of: Coe Coil Reel Model No. CPR-PO-30072 Three leaf mandrel Hydraulic mandrel expansion Air brake (adjustable tensioning) Jog drive for threading Travelling Coil Load Car Hydraulic Lift for Coils Spindle Jog Forward/Reverse Coe Powered Coil Straightener Model No. CPPS-305-72 Seven straightening rolls x 3” diameter Siko Indicators above rolls Allen Bradley Powerflex 700 Variable Speed Drive 30 HP AC Drive Assembly Individual upper straightening roll adjustments Pinch rolls with air operated adjustments Hold Down Arm (Hydraulically Actuated) Peeler/Threader/Debender Unit Motorized End Wheel Exit and Entry Pinch Rolls Adjustable stock width edge guides Exit cascade loop support rollers Variable speed drive Auto / run loop control Operator's stations Air Operated Dual-Sided Thread Table Ultrasonic Loop Control Coe Cabinet Mounted Feeder-Model CPRF-772 Coe Servo Master Control Console Adjustable Base Feeder (+/- 4”) 7” diameter Feed Rolls Entry Edge Guides Entry Cascade Rollers Motors and Controls Optimize your high-capacity stamping with this 30,000 lbs. x 72" Coe Press Equipment servo coil feed line. This heavy-duty conventional coil line includes a Coe CPR-PO-30072 reel with a traveling load car, a CPPS-305-72 powered straightener featuring 7 rolls, and a CPRF-772 cabinet-mounted servo feeder. Engineered for precision, it handles 72" wide material up to .090" thickness and 36" wide up to .125". Equipped with Allen Bradley Powerflex drives, hydraulic mandrel expansion, and ultrasonic loop control, this used Coe feed line ensures seamless automated production. Enhance your metalforming efficiency with this robust, right-to-left Coe servo feed system, built for demanding industrial environments.
